SmartTag Ear / Quick start manual 5288215 / Version 00.001 / November 2020 / EN 1 Dairy Farming Quick start manual SmartTag Ear How to attach the SmartTag Ear Put the SmartTag Ear and male part of the tag into the plier and attach to the cow's ear. Make sure the SmartTag Ear is in the correct position in the ear: •The SmartTag Ear should be on the front side of the ear. •The Tag should be in the middle of the ear (not in the outside of the ear, in the auricle itself, or into any of the ear's nerves). •When there is already a tag in the ear, there should be no contact in any way between the tag and the SmartTag Ear. SmartTag Ear / Quick start manual 5288215 / Version 00.001 / November 2020 / EN 2 Dairy Farming Figure 1: Correct positions Figure 2: Wrong positions Additional information SmartTag Ear / Quick start manual 5288215 / Version 00.001 / November 2020 / EN 3 Dairy Farming Technical specifications SmartTag Ear ItemSpecification Electrical supply Supply voltageLithium coin cell 3,0 V (internal) Antenna Operating frequency (center)433,3 - 434,5 MHz Max. transmit power<1mW E.r.p. Environmental Operation temperature range-10 to 50 °C (14 to 122 °F) Storage temperature range-20 to 70 °C (-4 to 158 °F) Relative humidity (non-condensing)< 93% (non-condensing) Protection against water and dirtIP67 Compliance Certificates and declarationsAll relevant certificates and declarations are available at our Business Portal: http:// www.nedap.com/livestockmanagement-portal. Compliance Region [1] Certification Europe USAFCC ID: CGDFERPH CanadaIC: 1444A-FERPH Australia New-ZealandR-NZ [1]All relevant certificates and declarations are available at our Business Portal: https://www.nedap.com/livestockmanagement-portal FCC and ISED Compliance statement This device complies with part 15 of the FCC Rules and with RSS-210 of Innovation, Science and Economic Development Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Cet appareil se conforme aux normes CNR-210 exemptés de license d'Innovation, Sciences et Développement économique Canada. L'opération est soumis aux deux conditions suivantes: (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n'importe quelle interférence, y inclus interférence qui peut causer une operation non pas voulu de cet appareil. Les changements ou modifications n'ayant pas été expressément approuvés par la partie responsable de la conformité peuvent faire perdre à l'utilisateur l'autorisation de faire fonctionner le matériel. Copyright and Disclaimer Copyright © Nedap N.V., Parallelweg 2, NL-7141 DC Groenlo, The Netherlands. This document is property of Nedap N.V. and the content is not to be reproduced in any way, in whole or in part, without the prior written consent of Nedap N.V. Nedap N.V. makes no representations or warranties whether express or implied as to the accuracy, correctness, completeness of this document. If this document is part of the installation manual, the installation manual will be leading. You use the products at your own risk. Nedap N.V. reserves the right to make changes to this document and/or the products described. Please consult the Nedap Livestock Management business portal (www.nedap.com/livestockmanagement-portal) for any changes or notification. Parallelweg 2 NL-7141 DC Groenlo The Netherlands CE Hereby NEDAP N.V. declares that the subject equipment is in compliance with the directives 2014/53/ EU (Radio Equipment Directive) and 2011/65/EU (Restriction of the use of certain hazardous substances). The full text of the EU declaration of conformity is available at our Business Portal: http://www.nedap.com/ livestockmanagement-portal. Handling instructions Storage •If the product is to be stored for some time, make sure that it is under a protective cover to prevent dirt and moisture from entering. •Do not expose the product to direct sunlight and / or adverse weather conditions such as storm, rain, hail or snow. •See Summary technical specifications for the storage temperature range and relative humidity. Disposal The owner or last user of the product is responsible for the proper disposal of (parts of) the product according to local rules and regulations. The WEEE symbol in Europe indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive WEEE 2012/19/EU). Warranty and spare parts Please consult the Nedap products dealer from whom you purchased this product, in regards to the applicable warranty conditions. This product cannot be used for any other purpose as described in this document. If the product is not installed according to this document; the warranty provided is not applicable. At the sole discretion of Nedap N.V., Nedap N.V. may decide to change the conditions of the warranty policy. You agree that Nedap N.V. is able to compensate you the pro-rata value of the warranty involved rather than replacing or repairing the product depending on the technical or economical value of the product. Prior to applying the warranty, please verify if you comply with the warranty conditions of the warranty policy, whether you can successfully apply for the replacement or repair of a defective part. Parts can only be replaced with original Nedap…

Text truncated - open the document above for the full version.

® TÜV, TUEV a nd TUV are registered trademarks. Any use or application requires prior approval. To whom it may concern, On behalf of our customer Nedap N.V. we hereby would like to apply for an Original certification for the following device: FCC ID : CGDFERPH IC : 1444A-FERPH Manufacturer : Nedap N.V. Brand : Nedap Model : SMARTTAG EAR Description : RFID tag The following PDF files (exhibits) are electronically submitted: 1. Cover letter (this document) 2. Request or confidentiality 3. Authorization letter 4. Form 731 5. Antenna information 6. Bill of material (BOM)- Not required-Not provided 7. Block diagram 8. Circuit diagram 9. Interior photographs 10. Exterior photographs 11. Label information 12. Operational description 13. Test report in conformity with 47 CFR Part 15 / RSS-Gen 14. Test setup photographs 15. User/installation manual 16. RF Exposure according ISED RSP-100 Annex A and RSS-102 Annex C Best regards, TÜV Rheinland Nederland B.V. R .van der Meer Test Engineer TÜV Rheinland Nederland B.V. Eiberkamp 10 9351VT Leek The Netherlands Telephone: +31 888887888 Internet: www.tuv.com/nl E-mail: [email protected]

Trade register: 08013836 | IBAN: NL08 ABNA 0453299555 | BIC: ANBNANL2A | VAT: NL006456285B01 The General Terms and Conditions of ICT-Office apply to all our offers and agreements. These conditions can be found at our website and can be provided upon request. November 13, 2020 Subject: Confidentiality Request for FCC ID: CGDFERPH and IC: 1444A-FERPH Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Permanent Internal photographs Nedap N. V. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: __________________________ Reinold Hubers____ (Signature/Title) (Print name) Compliance Manager Nedap N.V. Parallelweg 2 7141 DC GROENLO The Netherlands T: +31 (0)544 471 111 [email protected] www.nedap.com

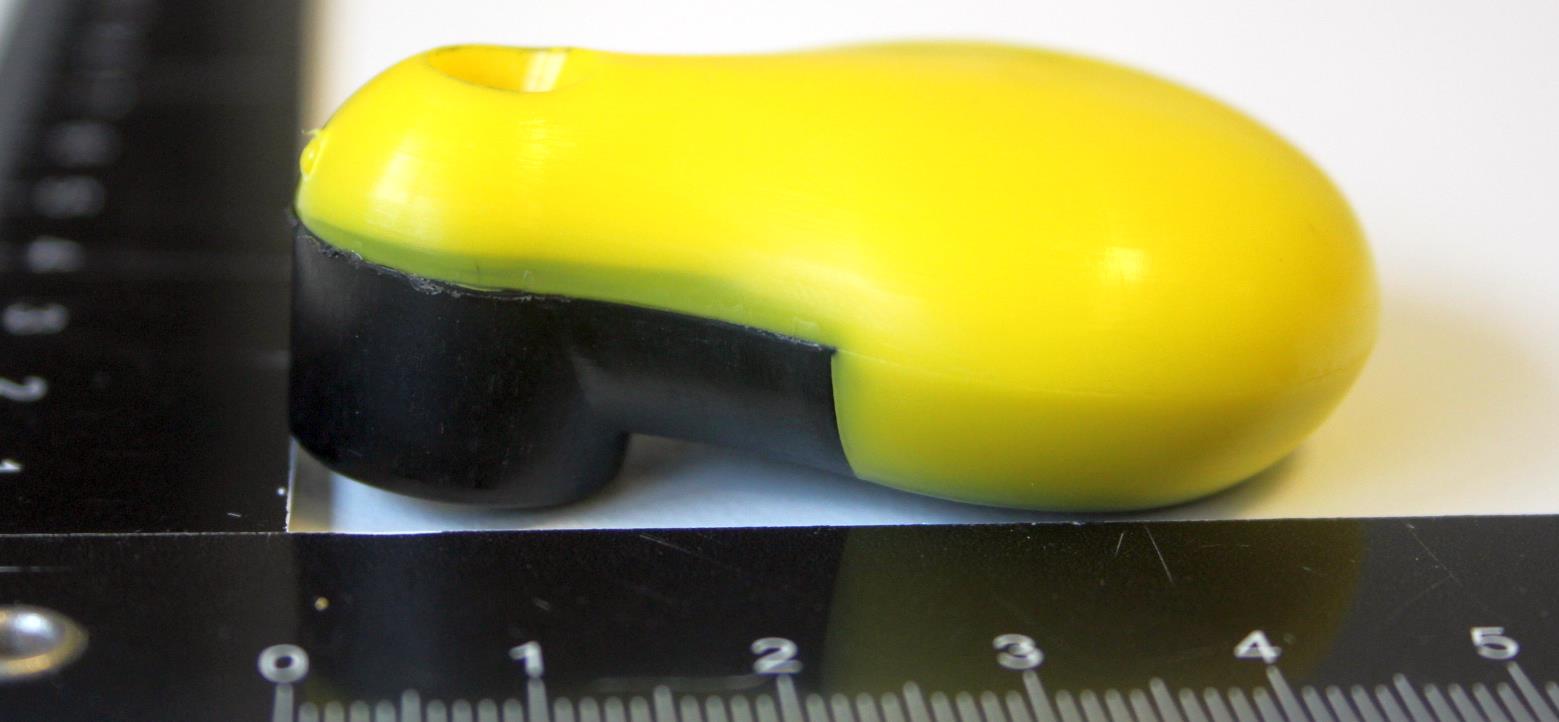

Testing and certification of electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland Nederland B.V. Eiberkamp 10 9351VT Leek The Netherlands Telephone: +31 888887888 Internet: www.tuv.com/nl E-mail: [email protected] Project number: 19121802.p02 Page 1 of 7 PHOTOGRAPHS OF THE EXTERIOR OF A BRAND NEDAP, MODEL SMARTTAG EAR Brand mark: Model: Nedap SMARTTAG EAR Project number: 19121802.p02 Page 2 of 7 Table of contents 1 PHOTOGRAPHS OF THE EQUIPMENT. ............................................................................................................. 3 1.1 EXTERNAL VIEW. ............................................................................................................................................... 3 1.1.1 Top view. ................................................................................................................................................. 3 1.1.2 Bottom view. ............................................................................................................................................ 4 1.1.3 Front view. ............................................................................................................................................... 5 1.1.4 Rear view ................................................................................................................................................ 5 1.2 SIDE VIEWS ...................................................................................................................................................... 6 Brand mark: Model: Nedap SMARTTAG EAR Project number: 19121802.p02 Page 3 of 7 1 Photographs of the equipment. 1.1 External view. 1.1.1 Top view. Brand mark: Model: Nedap SMARTTAG EAR Project number: 19121802.p02 Page 4 of 7 1.1.2 Bottom view. Brand mark: Model: Nedap SMARTTAG EAR Project number: 19121802.p02 Page 5 of 7 1.1.3 Front view. 1.1.4 Rear view Brand mark: Model: Nedap SMARTTAG EAR Project number: 19121802.p02 Page 6 of 7 1.2 Side views Left side view Brand mark: Model: Nedap SMARTTAG EAR Project number: 19121802.p02 Page 7 of 7 Right side view END OF REPORT

TÜV Rheinland Nederland B.V. Eiberkamp 10 9351VT Leek The Netherlands . ® TÜV, TUEV and TUV are registered trademarks. Utilisation and application requires prior a pproval. To whom it may concern, On behalf of our customer Nedap N.V., we hereby declare the following: FCC ID: CGDFERPH IC: 1444A-FERPH Manufacturer: Nedap N.V. Brand: Nedap Model: SMARTTAG EAR The item is not labeled with a FCC ID nor IC ID as it is considered to be too small and impractical to place those ID’s. Instead the FCC ID and IC ID are placed in the manual as per: KDB 784748 D01 General labeling and Notification v09r01 of july 2, 2018: When the device is so small, or for such use that it is impracticable to label with a font size that is fourpoints or larger (and the device does not utilize electronic labeling), then the FCC ID shall be placed in the user manual, and the FCC ID shall also be placed either on the device packaging or on a removable label attached to the device. And per Canadian RSS-Gen 4.1 General In addition to complying with the applicable RSSs and RSP-100, each unit of a product model (i.e. of a radio apparatus) shall meet the labelling requirements set out in this section prior to being marketed in Canada or imported into Canada. If the dimensions of the product are extremely small or it is not practical to place the label or marking on the product, and if electronic labelling cannot be implemented, the label shall be placed in a prominent location in the user manual supplied with the product, as agreed upon with ISED prior to the certification application. The user manual may be in an electronic format; if it is not supplied to the user, the user manual must be readily available. Label as placed on the packaging: Best regards, TÜV Rheinland Nederland B.V. R. van der Meer Test Engineer

Produkte Test Report Products FCC ID: CGDFERPH IC: 1444-FERPH Prüfbericht-Nr.: Test Report No.: 19121802.r02 Auftrags-Nr.: Order No.: 89003559 Seite 1 von 25 Page 1 of 25 Kunden-Referenz-Nr.: Client Reference No.: 1541649 Auftragsdatum: Order date: 10.02.2020 Auftraggeber: Client: Nedap N.V. Parallelweg 2 7141 DC Groenlo, Netherlands Prüfgegenstand: Test item: 433.3 - 434.5 MHz active RFID Tag Bezeichnung / Typ-Nr.: Identification / Type No.: SMARTTAG EAR FERP4 Auftrags-Inhalt: Order content: Compliance with regulatory requirements Prüfgrundlage: Test specification: FCC 47 CFR Part 15, Subpart C, Section 15.247 (10-1-19 Edition) RSS-Gen (Issue 5, April 2018) and RSS-210 (Issue 9, August 2016) ANSI C63.10-2013 Wareneingangsdatum: Date of receipt: 2020-09-29 Prüfmuster-Nr.: Test sample No.: 433.3 & 434.5 Prüfzeitraum: Testing period: 2020-10-06 - 2020-11-16 Ort der Prüfung: Place of testing: Leek Prüflaboratorium: Testing laboratory: TÜV Rheinland Nederland B.V. Leek Laboratory Prüfergebnis*: Test result*: Pass geprüft von / tested by: Genehmigt von / Approved by: 2020-11-16 R. van der Meer/Test Eng. 2020-11-16 T. Koning/Senior Eng. Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other: Firmware version: VT2223b69 Hardwareversion: A.08. Zustand des Prüfgegenstandes be Anlieferung: Condition of the test item at delivery: 2 Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: Legend: 1 = sehr gut P(ass) = entspricht o.g. 1 = very good P(ass) = passed a.m. 2 = gut Prüfgrundlage(n) 2 = good Test specification(s) 3 = befriedigend F(ail) = entspricht nicht o.g. Prüfgrundlage(n) 3 = satisfactory F(ail) a.m. test specification(s) 4 = ausreichend N/A = nicht anwendbar 4 = sufficient N/A = not applicable 5 = mangelhaft N/T/ = nicht getested 5 = poor N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwending eines Prüfzeichens. This test report only relates to the above mentioned testsample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This report does not entitle to carry any test mark TÜV Rheinland Nederland B.V. . Eiberkamp 10 . 9351 VT Leek . Tel: + 31 88 8887888 Mail: [email protected] . Web: www.tuv.com V04 Produkte Test Report Products FCC ID: CGDFERPH IC: 1444-FERPH Liste der verwendenten Prüfmittel List of used test equipment Prüfmittel Kind of Equipment Hersteller / Manufacturer Bezeichnung / Model Name Prüfmittel-Nr. / ID-Nr. Equipment No. / ID-No. Kalibrierung Calibration (mm/yyyy) Nächste Kalibrieru ng Next calibration (mm/yyyy) For Radiated Emissions Measurement Receiver Rohde & Schwarz ESR7 2790499 09/2020 09/2021 RF Cable S-AR Gigalink APG0500 2789217 03/2020 03/2021 Controller Turntable Maturo SCU/088/ 8090811 2789220 N/A N/A Controller Mast Innco Systems CO3000 9002463 N/A N/A Test facility Comtest FCC listed: 786213 IC: 2932G-2 2789206/ 2789082 03/2019 03/2022 Spectrum Analyzer Rohde & Schwarz FSV 2789106 09/2020 09/2021 Antenna mast, boresight Innco Systems MA4640-XP-ET- 0800-com 9002463 N/A N/A Temperature- Humiditymeter Extech SD500 2789214 07/2020 07/2021 Gain Horn antenna 1-18 GHz EMCO 3115 2787776 12/2017 12/2020 Cable RF > 1G H&S Sucotest 18/ Sucoflex 102 2789108&109 06-2020 06-2021 Biconilog Testantenna Teseq CBL 6111D 2789237 08/2020 08/2021 Conformance of the used measurement and test equipment with the requirements of ISO/IEC 17025 has been confirmed before testing. NA= Not Applicable Accreditation The reported tests were performed under ISO17025 accreditation, unless otherwise specified as ‘not under Accreditation’ An overview of all TÜV Rheinland Nederland B.V. accreditations, notifications and designations, please visit our website www.tuv.com/nl. You can find the relevant declarations under the download link. Notes: For the influence of the measuring uncertainties on the results, reference is made to the validation of the respective methods. Unless otherwise stated in this report, all tests were performed under accreditation. The test results exclusively relate to the tested sample. This report is only to be read as a whole, no sections from this report may be copied. No opinions or interpretations are included in this report. TÜV Rheinland Nederland B.V. is solely responsible for the content. Produkte Test Report Products FCC ID: CGDFERPH IC: 1444-FERPH 1 Produktdetails Product details The SMARTTAG EAR is an active Radio Frequency Identification (RFID) tag for individual tracing, cow activity monitoring, heat detecting and/or health indicating. 2 Maße / Gewicht Dimensions / Weight H x W x D = 36.3x52.7x21.2 mm / 23g 3 Bedienelemente Operating elements None 4 Ausstattung / Zubehör Equipment / Accessories None 5 Verwendete Materialien Used materials micoA @ 3Vdc non-replacable coin cel 6 Sonstiges Other Firmware revision: VT2223b69 Hardware revision: A.08 Prufbericht-Nr: 19121802.r02 Test report No: Seite 3 von 25 Page 3 of 25 Produktbeschreibung Product description / Disclaimer (info as provided by the client) Revisions Revisions Revision Revision Datum Date Anmerkung Remark Verfasser Author - 16-11-2020 First release R. van der Meer Note: Latest revision report will replace all previous reports Measurement Uncertainty Measurement Type Frequency Uncertainty Radiated Emission 30MHz – 4.5GHz ±5.22 dB Test specification(s): Brand mark: Model: FCC Part 15, RSS-210, RSS-Gen Nedap SMARTTAG EAR FERP4 Report number : 19121802.r02 Page 5 of 25 Table of contents Measurement Uncertainty ......................................................................................................................................... 4 1 General information. .............................................................................................................…
