CHO-VCRFBR24VIB CONNECT RF Bridge / Industrial Data Acquisition System

VIBCONNECT ® RF Installation and Operation The product described in this document, and the content of this manual are protected by intellectual property laws. All rights reserved. The manual may not be copied, reproduced, translated or made accessible to a third party in any form, neither in its entirety nor as an excerpt. No liability may be claimed against the publisher regarding the product described in this manual. The author assumes no liability for accuracy of the manual contents. The author shall not be liable for any direct or indirect damage of any kind resulting from use of the product or the manual, even if the publisher has expressly indicated the potential for occurrence of such damage. The manufacturer shall not be liable for product defects. This warranty and liability limitation also applies to sales partners and distributors. All registered trademarks referred to in this manual are the property of the respective owners. This applies also to trademarks that are not specifically denoted as such. © PRÜFTECHNIK Condition Monitoring. All rights reserved. Compliance Statement acc. to Sect. 15.19: This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interfer- ence, and (2) this device must accept any interfer- ence received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Indus- trie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas pro- duire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compro- mettre le fonctionnement. User Information acc. to Sect.15.21: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Class B Statement Sect. 15.105 –) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gener- ates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or r elocate the receiving antenna. • Increase the separation between the equip- ment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the re- ceiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. Legal notes Statement acc. to RSS-Gen 7.1.2 Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain ap- proved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication Installation and Operation VIBCONNECT ® RF Wireless Online Condition Monitoring Edition: May 2014 Order no.: LIT 72.200.EN Translation of the german manual Modules: VIB 7.220, VIB 7.225 VIBCONNECT RF Bridge VIB 7.200, VIB 7.205 VIBCONNECT RF Sensor unit VIB 7.205-2.9EX VIBCONNECT RF sensor Firmware : 2.1x 2 VIBCONNECT RF 05.2012 Foreword Foreword Thank you for purchasing our VIBCONNECT RF online condition monitoring system. VIBCONNECT RF offers maximum flexibility at minimum costs for installation and operation. It caters for the con- tinuous condition monitoring of machines for which wired systems would not be economically viable. System properties • Easy and quick installation without cabling • Low purchasing, installation and operating costs • Ideal to cover distant or difficult to reach locations • Free OMNITREND PC software for visualization, analysis and configuration • Up to 50 Sensor Units communicate with each Bridge • Each Sensor Unit connects to two 3-in-1 sensors for vibration, roller bearing condition and temperature • Separation of radio module and sensors for optimized signal r eception • Measures time waveform and temperature simultaneously • FFT spectrum and envelope spectrum (bearing condition) • Overall and narrow-band characteristic values • 3 power options: Long-life batteries, 24 VDC or Harvester • Battery life appr ox. 4 years thanks to energy-efficient sensor technology and intelligent power management • Battery load monitoring • Radio fr equency is ideal for applications without a permanent radio communication • Maximum radio range: 300 meters • Upgradable with additional sensor units at any time If you require more information, you might wish to attend a PRÜF- TECHNIK seminar, which focuses on practical issues and has been found very useful by participants. Attending our seminars has proven to be a valuable investment for machine operators. To find out more, please contact us for seminar dates or visit our website at http://www.pruftechnik.com Ismaning, May 2014 PRÜFTECHNIK Condition Monitoring 3 VIBCONNECT RF 05.2012 Chapter 1: Introduction .....................................................5 1.1 First steps ........................................................................5 1.2 Service addresses ............................................................5 1.3 About this manual ..........................................................6 Chapter 2: Safety ..............…

Text truncated - open the document above for the full version.

American Certification Body Inc. 6731 Whittier Ave, Suite C110 McLean, VA22101 Date: 12.02.2014 Model: Sensor Unit VIB 7.205 FCC ID: CHO-VCRFSU24 IC: 10238A-VCRFSU24 Model: Bridge VIB 7.225 FCC ID: CHO-VCRFBR24 IC: 10238A-VCRFBR24 Reverse Polarity SMA This is to confirm, the devices Sensor Unit VIB 7.205 (2.4 GHz) / Bridge VIB 7.225 (2.4 GHz) will be produced with antenna connection reverse polarity SMA. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Thomas Ring Manager Certification CSA Group Bayern GmbH Ohmstr. 1-4 94342 Strasskirchen Germany

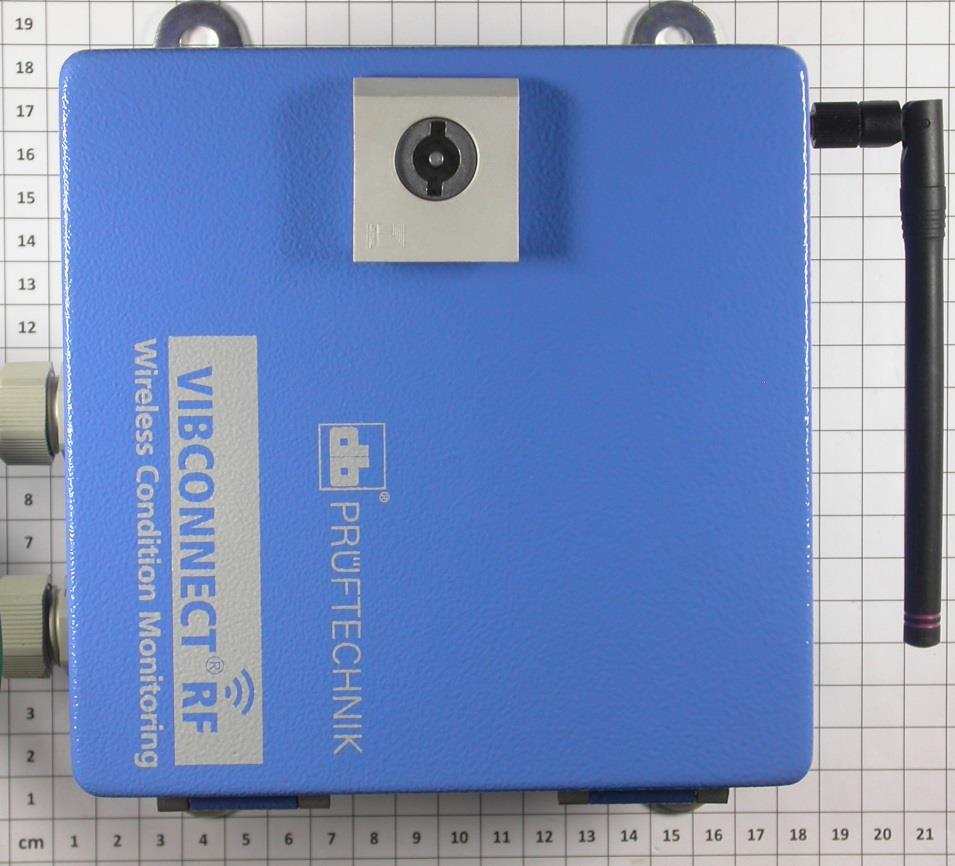

Attachment A to File No.: T37568-00 1 P h o t o d o c u m e n t a t i o n o f t h e E U T 1.1 External views: ,

Attachment A to File No.: T37568-00 1 P h o t o d o c u m e n t a t i o n o f t h e E U T 1.1 External views: 1.2 Internal views:

FCC ID: CHO-VCRFBR24 IC ID: 10238A-VCRFBR24 CSA Group Bayern GmbH File No. T37568-00-00HU, page 1 of 45 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481440 Rev. No. 3.0, 2014-01-31 EMI − T E S T R E P O R T - FCC Part 15.247, RSS210 - Test Report No. : T37568-00-00HU 27. February 2014 ______________________________________________________________________________________________ Date of issue Type / Model Name : VIBCONNECT RF Bridge - VIB 7.225 Product Description : Industrial Data Acquisition System Applicant : PRÜFTECHNIK Condition Monitoring GmbH Address : Oskar-Messter-Str. 19-21 D-85737 Ismaning Manufacturer : PRÜFTECHNIK Condition Monitoring GmbH Address : Oskar-Messter-Str. 19-21 D-85737 Ismaning Licence holder : PRÜFTECHNIK Condition Monitoring GmbH Address : Oskar-Messter-Str. 19-21 D-85737 Ismaning Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: CHO-VCRFBR24 IC ID: 10238A-VCRFBR24 CSA Group Bayern GmbH File No. T37568-00-00HU, page 2 of 45 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481440 Rev. No. 3.0, 2014-01-31 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 2.1 Test result summery 4 2.2 General remarks 5 2.3 Final assessment 5 3 E Q U I P M E N T U N D E R T E S T 6 3.1 Photo documentation of the EUT – Detailed photos see attachment A 6 3.2 Power supply system utilised 6 3.3 Short description of the equipment under test (EUT) 6 4 T E S T E N V I R O N M E N T 7 4.1 Address of the test laboratory 7 4.2 Environmental conditions 7 4.3 Statement of the measurement uncertainty 7 4.4 Measurement protocol for FCC and IC 8 5 T E S T C O N D I T I O N S A N D R E S U L T S 10 5.1 Conducted emissions 10 5.2 Emission bandwidth 16 5.3 Occupied bandwidth 19 5.4 Maximum peak conducted output power 21 5.5 Spurious emissions conducted 24 5.7 Spurious emissions radiated 31 5.8 Power spectral density 35 5.9 Maximum permissible exposure (MPE) 38 5.11 Antenna application 41 5.13 Receiver radiated emissions 42 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 45 FCC ID: CHO-VCRFBR24 IC ID: 10238A-VCRFBR24 CSA Group Bayern GmbH File No. T37568-00-00HU, page 3 of 45 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481440 Rev. No. 3.0, 2014-01-31 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2013) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15 Subpart B - Unintentional Radiators (October, 2013) Part 15, Subpart B, Section 15.107 AC Line conducted emission Class A device Class B device Part 15, Subpart B, Section 15.109 Radiated emission, general requirements FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2013) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.247 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz and 5725 - 5850 MHz FCC Rules and Regulations Part 1, Subpart I - Procedures Implementing the National Environmental Policy Act of 1969 Part 1, Subpart I, Section 1.1310 Radiofrequency radiation exposure limits Part 1, Subpart 2, Section 2.1093 Radiofrequency radiation exposure evaluation: portable device OET Bulletin 65, 65A, 65B, 65C Edition 97-01, August 1997 – Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1: 2005 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 KDB 558074 D01 Guidance for performing compliance measurements on DTS operating under Section 15.247, v03r01 of April 9, 2013. FCC ID: CHO-VCRFBR24 IC ID: 10238A-VCRFBR24 CSA Group Bayern GmbH File No. T37568-00-00HU, page 4 of 45 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481440 Rev. No. 3.0, 2014-01-31 2 S U M M A R Y 2.1 Test result summery FCC Rule Part RSS Rule Part Description Result 15.207(a) RSS Gen, 7.2.4. AC power line conducted emissions passed 15.247(a)(2) RSS210, A8.2(a) -6 dB EBW passed 15.247(b)(3) RSS-210, A8.4(4) Peak power passed 15.247(d) RSS-210, A8.5 Out-of-band emission, radiated passed 15.247(d) RSS-Gen, 7.2.2 Emissions in restricted bands passed 15.247(e) RSS-210, A8.2(b) PSD passed 15.35(c) RSS-Gen, 4.5 Pulsed operation not applicable 15.247(i) RSS 102, 2.5.2 MPE passed 15.247(b)(4) RSS-Gen, 7.1.2 Antenna requirement passed 15.107 RSS Gen, 7.2.4. AC power line conducted emissions passed 15.109(a) RSS-Gen, 6.1 Receiver spurious emissions, radiated passed RSS-Gen, 7.2.6 Transmitter frequency stability not applicable RSS-Gen, 4.6.1 99 % Bandwidth passed OET Bulletin 65 RSS102, 3.2 Co-location, Co-transmission not applicable The mentioned RSS Rule Parts in the above table are related to: RSS Gen, Issue 3, December 2010 RSS 210, Issue 8, December 2010 RSS 102, Issue 4, March 2010 FCC ID: CHO-VCRFBR24 IC ID: 10238A-VCRFBR24 CSA Group Bayern Gmb…

Text truncated - open the document above for the full version.

FCC ID: CHO-VCRFBR24 IC ID: 10238A-VCRFBR24 CSA Group Bayern GmbH File No. T37568-00-00HU, page 10 of 45 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481440 Rev. No. 3.0, 2014-01-31 5 T E S T C O N D I T I O N S A N D R E S U L T S 5.1 Conducted emissions For test instruments and accessories used see section 6 Part A 4. 5.1.1 Description of the test location Test location: Shielded Room S2 5.1.2 Photo documentation of the test set-up 5.1.3 Applicable standard According to FCC Part 15, Section 15.207(a): Except as shown in paragraphs (b) and (c) of this Section, for an intentional radiator that is designed to be connected to the public utility (AC) power line, the radio frequency voltage that is conducted back onto the AC power line on any frequency or frequencies within the band 150 kHz to 30 MHz shall not exceed the given limits. 5.1.4 Description of Measurement The measurements are performed following the procedures set out in ANSI C63.4 described under item 4.4.3. If the minimum limit margin appears to be less than 20 dB with a peak mode measurement, the emissions are remeasured using a tuned receiver with quasi-peak and average detection and recorded on the data sheets. FCC ID: CHO-VCRFBR24 IC ID: 10238A-VCRFBR24 CSA Group Bayern GmbH File No. T37568-00-00HU, page 16 of 45 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481440 Rev. No. 3.0, 2014-01-31 5.2 Emission bandwidth For test instruments and accessories used see section 6 Part MB. 5.2.1 Description of the test location Test location: AREA4 5.2.2 Photo documentation of the test set-up 5.2.3 Applicable standard According to FCC Part 15, Section 15.247(a)(2): Systems using digital modulation techniques may operate in the 902 - 928 MHz, 2400 – 2483.5 MHz and 5725 – 5850 MHz bands. The minimum 6 dB bandwidth shall be at least 500 kHz. 5.2.4 Description of Measurement The bandwidth was measured at an amplitude level reduced from the reference level of a modulated channel by a ratio of -6 dB. The reference level is the level of the highest signal amplitude observed at the transmitter at either the fundamental frequency or the first order modulation products in all typical modes of operation, including the unmodulated carrier, even if atypical. An alternative is to use the bandwidth measurement of the analyser. FCC ID: CHO-VCRFBR24 IC ID: 10238A-VCRFBR24 CSA Group Bayern GmbH File No. T37568-00-00HU, page 19 of 45 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481440 Rev. No. 3.0, 2014-01-31 5.3 Occupied bandwidth For test instruments and accessories used see section 6 Part MB. 5.3.1 Description of the test location Test location: AREA4 5.3.2 Photo documentation of the test set-up 5.3.1 Applicable standard According to RSS-Gen, 4.6.1: When an occupied bandwidth value is not specified in the applicable RSS, the transmitted signal bandwidth to be reported is to be its 99 % emission bandwidth, as calculated or measured. 5.3.2 Description of Measurement The bandwidth was measured with the function “bandwidth measurement” of the spectrum analyser. The EUT is connected via suitable attenuator at the spectrum analyser. The measurement is repeated for every different modulation standard of the EUT and recorded. FCC ID: CHO-VCRFBR24 IC ID: 10238A-VCRFBR24 CSA Group Bayern GmbH File No. T37568-00-00HU, page 21 of 45 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481440 Rev. No. 3.0, 2014-01-31 5.4 Maximum peak conducted output power For test instruments and accessories used see section 6 Part CPC 3. 5.4.1 Description of the test location Test location: AREA4 5.4.2 Photo documentation of the test set-up 5.4.3 Applicable standard According to FCC Part 15, Section 15.247(b)(3): For systems using digital modulation in the 902 – 928 MHz, 2400-2483.5 MHz and 5725 – 5850 MHz bands, the maximum peak output power of the transmitter shall not exceed 1 Watt. The limit is based on transmitting antennas of directional gain that do not exceed 6 dBi. 5.4.4 Description of Measurement The EuT was fixed mounted on the receiving antenna of the spectrum analyzer to find out the maximum power. An analyzer offset was tried to see the compliance to the measured radiated value. The transmitter output was directly connected to the spectrum analyzer. The center frequency of the spectrum analyzer is set to the fundamental frequency. The span of the spectrum analyzer should be larger than the emission bandwidth (EBW). The channel bandwidth has been set to EBW. With peak detector and power mode “Max Hold” the result is the summed maximum output power of the EBW. FCC ID: CHO-VCRFBR24 IC ID: 10238A-VCRFBR24 CSA Group Bayern GmbH File No. T37568-00-00HU, page 24 of 45 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810 Fax: ++49(0)9424-9481440 Rev. No. 3.0, 2014-01-31 5.5 Spurious emissions conducted For test instruments and accessories used see section 6 Part SEC 1, SEC 2 and SEC 3. 5.5.1 Description of the test location Test location: Shielded Room S4 5.5.2 Photo documentation of the test set-up 5.5.3 Applicable standard According to FCC Part 15C, Section 15.247(d): In any 100 kHz bandwidth outside the frequency band 2400 – 2483.50 MHz, the digitally modulated radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or an radiated measurement. Attenuation below the general limits specified in Section 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the radiated emission limit specified in Section 15.209(a). 5.5.4 Description of measurement A spectrum analyzer is connected to the output of the transmitter while EUT was operatin…

Text truncated - open the document above for the full version.
