JRN-130K 3G/GSM IT Controller User Manual Doc# : AN-1490012-2 Ver.1.02 Date: Oct 15, 2014 @Copyright Japan Radio Co., Ltd. Mobile Communication Group Engineering Department Communication Products Division 3G/GSM IT Controller JRN-130K 2/19 AN-1490012-2 History Date Number The contents of change Sep 16, 2014 1.00 DRAFT Oct 16, 2014 1.01 Oct 16, 2014 1.02 3G/GSM IT Controller JRN-130K 3/19 AN-1490012-2 Index 1 Introduction.............................................................................................................................. 4 2 Composition ............................................................................................................................ 5 3 Function .................................................................................................................................. 6 4 Product specification .............................................................................................................. 7 5 Block Diagram ...................................................................................................................... 11 6 External Interface ................................................................................................................. 12 7 Outline ................................................................................................................................... 14 8 Option .................................................................................................................................... 15 9 Compliance with FCC and IC Rules and Regulations ...................................................... 18 3G/GSM IT Controller JRN-130K 4/19 AN-1490012-2 1 Introduction 3G/GSM IT Controller (JRN-130K) is a vehicle small terminal to have the GPS measureme nt function and the 3G/GSM communication function, and to use it for management and posit ional information track / theft pursuit etc. of the vehicle. As a communications protocol TCP/IP are mounted. The terminal made by the Gemalto’s PHS8-P is installed. 1.1 Overview The main specification is presented as follows. No. Items Specification Remarks 1 Comnication module 3G/GSM Communication modu le (PHS8-P Gemalto) UMTS 800/850 BandVI UMTS 800/850 BandV* UMTS 900 BandVIII* UMTS 1900 BandII* UMTS 2100 BandI GSM850 GSM900 GSM1800 GSM1900 *:Only compatible module 2 Data transfer GPRS: Multislot Class 12 EGPRS: Multislot Class 12 CSD: V.110, RLP, non-transpa rent 3 Communication Antenna DP-BR0-DSC(BNC) NIPPON ANTENNA 4 GPS Antenna NAY-3930G 5 Internal Battery NBB-1300（1300mAh/6.0V） 6 Current and Voltage DC+20V～+32V 400mA max Power-saving : 7.5mAmax 3G/GSM IT Controller JRN-130K 5/19 AN-1490012-2 2 Composition NO. Equipment Model Quantity 1 3G/GSM Controller JRN-130K 1 (1) Communication Module PHS8-P Gemalto 1 (2) Battery pack NBB-1300 1 2 GPS Antenna NAY-3930G 1 3 3G/GSM Communication antenna DP-BR0-DSC(BNC) NIPPON ANTENNA 1 Power Supply & Control Block Communication Module IT Controller Fuse 3G/GSM Communication Antenna GPS Antenna Connection I/F Cable ） To Battery To Construction machine Battery pack (Note#1) Please prepare IF cable by the visitor side. (Note#2) A connection I/F cable requires a fuse because of over-current protection. Please insert the fuse in three places of a battery, GND, and ACC. (Note#3) Please do not take a power supply from DC cigar. It becomes the cause that operation is poor, according to loose connection. 3G/GSM IT Controller JRN-130K 6/19 AN-1490012-2 3 Function (1) Operation in ACC OFF executes the following. -1. Send data in daytime and nighttime. -2. Respond to calling from the server. -3. Acquisition of information on the actual location by GPS, and Generation of warning outside area. (2) Storage of operation data (3) Timer Even if the main source of power is cut, the date and time are maintained. (4) Backup The re-charge battery is installed. Even if it disconnects a power supply, the operational mode and network transmission setting of IT controller are held. (5) Serial communication ports Connection I/F (CAN), 115200bps(monitor) (6) GPS function Present location is acquired.(WGS84) (7) 3G/GSM communication (8) Software rewriting function A software rewriting is done by using the monitor port. (9) Serial communications with the external equipment are done by the serial commands. 1) Key ON 2) Engine ON 3) Key OFF 4) Alarm 5) Fuel residual quantity 6) Engine amount of water 7) Engine oil level 8) Hydraulic oil level 9) Engine oil pressure 10) Engine water temperature 11) Air cleaner 12) Charge 13) DS (compulsive key OFF) 14) RT (the present state inquiry) 15) HS (foxtail millet meter change) 16) CO (command) 17) Automatic key-off judging processing (10) Communication protocol It transmits to the mail server by the e-mail. (11) Time Zone Setting UTC+α, and operating. 3G/GSM IT Controller JRN-130K 7/19 AN-1490012-2 4 Product specification 4.1 Common Specification NO． Items Specification performance 1 Power supply voltage DC+20 to +32V 2 Battery pack NiMH rechargeable battery NBB-1300（1300mAh/6.0V） 3 SIM Interface 1.8V/3.0V 4 Current Communication: max current Less than 400mA（+25°C） Idle:7.5mAmax（ When not charging the battery） 5 Circumference environment Operation: -30 to +70 degree C Preservation: -40 to +80 degree C Humidity of operation: 0% to 90% (don't dew) At use in battery, Operation: -20 to +70 degree C 0 to 70 degree C of the charge operates. 6 Dimension 136.4(W)×220.0(D)×43.6(H) mm 7 Weight 1,300g or less 8 Case material SPCC 3G/GSM IT Controller JRN-130K 8/19 AN-1490012-2 4.1 Serial Interface Specification (1) A. DTE CAN NO． Items Specification performance 1 Data transmission SAE J1939 2 Speed 250/500 kbps 3 Communication formatExtension29bit 4 Switch to the RS-232CBy the chipjumperchange (1) B. DTE RS-232C NO． Items Specification performance 1 Data transmission Half duplex start-stop synchronization 2 Signal level RS-232C 3 Speed 4800bps 4 Frame length Variable-length 5 Data Length 8 bi…

Text truncated - open the document above for the full version.

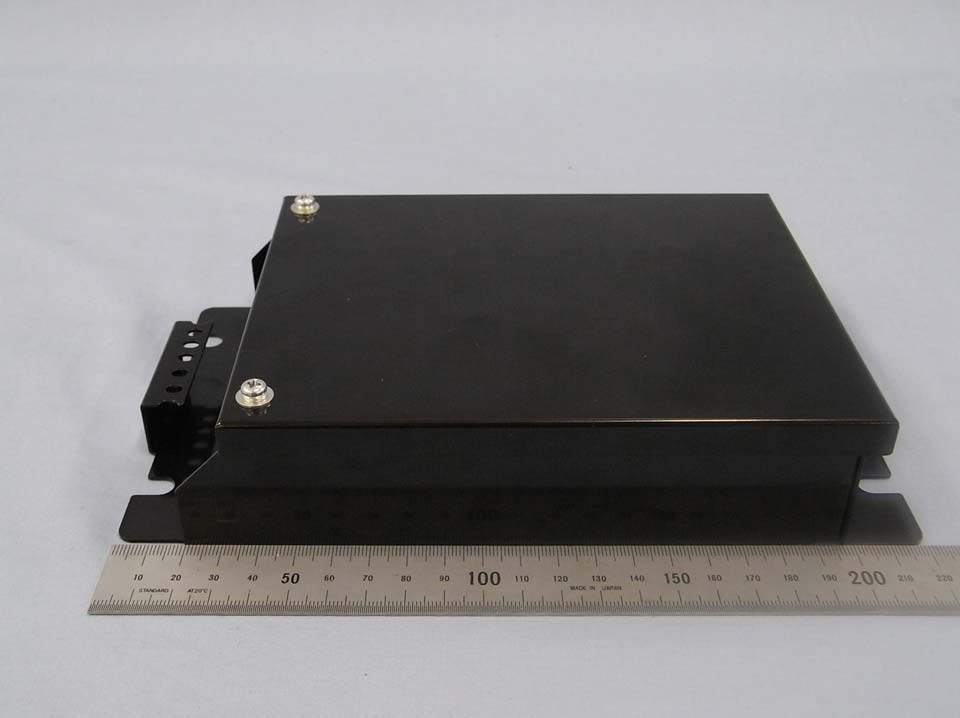

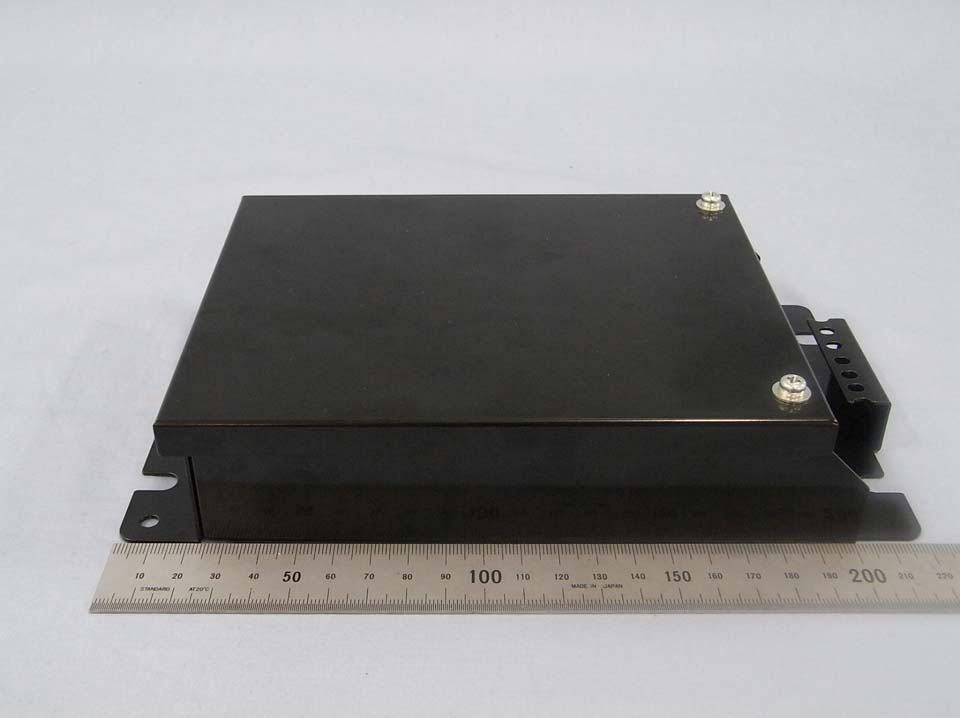

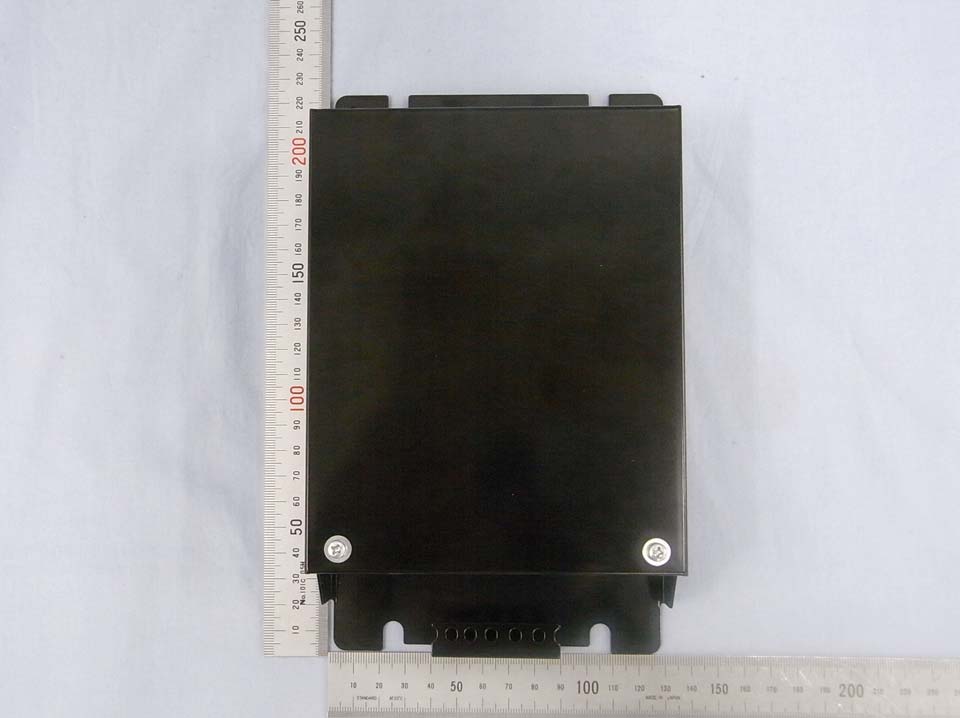

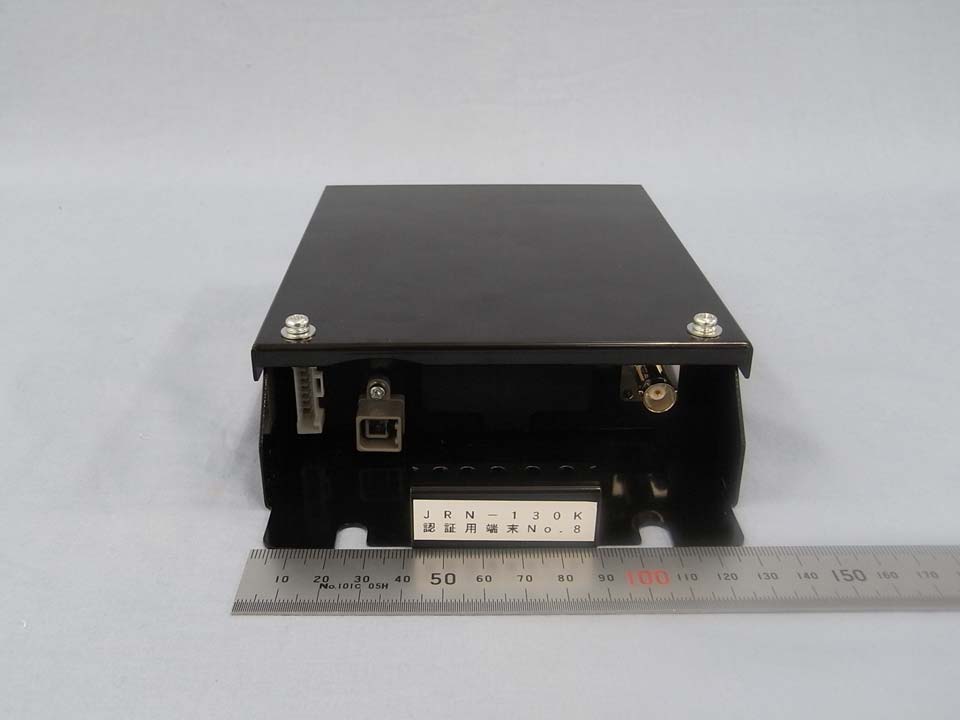

Japan Radio Co Ltd. FCC ID: CKEJRN-130K IC: 768B-JRN130K External photos Japan Radio Co Ltd. FCC ID: CKEJRN-130K IC: 768B-JRN130K Japan Radio Co Ltd. FCC ID: CKEJRN-130K IC: 768B-JRN130K Japan Radio Co Ltd. FCC ID: CKEJRN-130K IC: 768B-JRN130K GPS Antenna Half-wave length dipole Antenna

Japan Radio Co Ltd. FCC ID: CKEJRN-130K IC: 768B-JRN130K Internal photos Japan Radio Co Ltd. FCC ID: CKEJRN-130K IC: 768B-JRN130K Japan Radio Co Ltd. FCC ID: CKEJRN-130K IC: 768B-JRN130K Certified Module FCC ID: QIPPHS8-P IC: 7830A-PHS8P

RF Exposure statement TÜV SÜD Zacta Ltd. 4149-7 Hachimanpara 5-chome Yonezawa-shi, Yamagata 992-1128 Japan To whom it may concern: TÜV SÜD Zacta is authorized as an agency from Applicant: Japan Radio Co Ltd. (FCC ID: CKEJRN-130K, IC: 768B-JRN130K) to act on their behalf in all matters relating to applications for equipment authorization, including testing the device and the signing of all documents relating to these matters. MAXIMUM PERMISSIBLE EXPOSURE FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. IC RULES IC Safety Code 6, Section 2.2.1 (a) A person other than an RF and microwave exposed worker shall not be exposed to electromagnetic radiation in a frequency band listed in Column 1 of Table 5, if the field strength exceeds the value given in Column 2 or 3 of Table 5, when averaged spatially and over time, or if the power density exceeds the value given in Column 4 of Table 5, when averaged spatially and over time. CALCULATIONS Given E =  (30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts/meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts/square centimeter Combining equations, rearranging the terms to express the distance as a function of the remaining variables, changing to units of Power to mW and Distance to cm, and substituting the logarithmic form of power and gain yields: d = 0.282 * 10 ^ ((P + G) / 20) /  S where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW/cm^2 Rearranging terms to calculate the power density at a specific distance yields S = 0.0795 * 10 ^ ((P + G) / 10) / (d^2) The power density in units of mW/cm^2 is converted to units of W/m^2 by multiplying by a factor of 10. LIMITS From FCC §1.1310 Table 1 (B), the maximum value of S: S (850MHz) = f/1500 = 824/1500 = 0.549 mW/cm^2 S (1900MHz) = 1.0 mW/cm^2 From IC Safety Code 6, Section 2.2 Table 5 Column 4, S: S (850MHz) = f/150 = 824/150 = 5.49 W/m^2 S (1900MHz) = 10 W/m^2 RESULTS (MPE distance equals 20 cm) NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less. ModeBandMPEOutputAntennaFCC PowerIC Power DistancePowerGainDensityDensity (cm)(dBm)(dBi)(mW/cm^2)(W/m^2) GSM850850MHz20.033.50-0.580.393.89 WCDMA V 850MHz20.024.00-0.580.040.44 GSM1900 1900MHz20.030.501.050.282.84 WCDMA II 1900MHz20.024.001.050.060.64

Final Report on Cinterion Wireless Module PHS8-P HW: B1 SW: Revision 02.002 MDE_CINTE_1108_FCCd acc. Title 47 CFR chapter I part 22 subpart H Report Reference: December 01, 2011 Date: Test Laboratory: 7Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7Layers AG Aufsichtsratsvorsitzender Registergericht registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr VAT No.: Phone: +49 (0) 2102 749 0 Vorstand Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com Reference: MDE_CINTE_1108_FCCd acc. Title 47 CFR chapter I part 22 subpart H 2.2Detailed Description of OUT Samples Sample : C01 OUT Identifier PHS8-P Sample Description Sample #03 HW Status B1 SW Status Revision 02.000 Date of Receipt 2011/10/10 Low VoltageLow Temp. 3.3 V-10 °C High Temp.High Voltage 4.2 V+55 °C Normal Temp.Nominal Voltage 4.2 V+20 °C Parameter List: ValueParameter Description Parameter for Scope FCC_v2 IMEI004401080650142 Sample : F03 OUT Identifier PHS8-P Sample Description Sample #06 HW Status B1 SW Status Revision 02.002 Date of Receipt 2011/11/24 Low VoltageLow Temp. 3.3 V-10 °C High Temp.High Voltage 4.2 V+55 °C Normal Temp.Nominal Voltage 4.2 V+20 °C Parameter List: ValueParameter Description Parameter for Scope FCC_v2 IMEI004401080662097 Page 4 of 154 Reference: MDE_CINTE_1108_FCCd acc. Title 47 CFR chapter I part 22 subpart H 2.3OUT Features Features for OUT:PHS8-P Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 AC The OUT is powered by or connected to AC Mains DC The OUT is powered by or connected to DC Mains EDGE850 EUT supports EDGE in the band 824 MHz - 849 MHz EDGE1900 EUT supports EDGE in the band 1850 MHz - 1910 MHz FDD2 EUT supports UMTS FDD2 in the band 1850 MHz - 1910 MHz FDD5 EUT supports UMTS FDD5 in the band 824 MHz - 849 MHz GSM850EUT supports GSM850 band 824MHz - 849MHz HSDPA- FDD2 EUT supports UMTS FDD2 HSDPA in the band 1850 MHz - 1910 MHz HSDPA- FDD5 EUT supports UMTS FDD5 HSDPA in the band 824 MHz - 849 MHz HSUPA- FDD2 EUT supports UMTS FDD2 HSUPA in the band 1850 MHz - 1910 MHz HSUPA- FDD5 EUT supports UMTS FDD5 HSUPA in the band 824 MHz - 849 MHz PantC permanent fixed antenna connector, which may be built-in, designed as an indispensable part of the equipment PCS1900 EUT supports PCS1900 band 1850MHz - 1910MHz 2.4Auxiliary Equipment AE No.Serial No.SW StatusHW StatusDescriptionType Designation AE 02----Flex cable AE Ant1---- GSM/UMTS antenna AE 04----Shielded housing AE Ant2----UMTS antenna AE Ant3 ANN-MS-0-005 M827B 601657--GPS antenna AE 01DSB75_B1.1_0152---Evaluation board Page 5 of 154 Reference: MDE_CINTE_1108_FCCd acc. Title 47 CFR chapter I part 22 subpart H 2.5Setups used for Testing For each setup a relation is given to determine if and which samples and auxiliary equipment is used. The left side list all OUT samples and the right side lists all auxiliary equipment for the given setup. Sample No.Sample DescriptionAE No.AE Description Setup No.List of OUT samplesList of auxiliary equipment C01_cond (Sample #03) AE 02Flex cableC01Sample #03 Sample: AE 01Evaluation board C01_rad (Sample #03) AE 02Flex cableC01Sample #03 Sample: AE Ant1GSM/UMTS antenna AE 04Shielded housing AE Ant2UMTS antenna AE Ant3GPS antenna AE 01Evaluation board F03_cond (Sample #06) AE 02Flex cableF03Sample #06 Sample: AE 01Evaluation board 3Results 3.1General Available at the test laboratory. The results of the inspection are described on the following pages, where 'Conformity' or 'Passed' means that the certification criteria were verified and that the tested device is conform to the applied standard. In cases where 'Declaration' is printed, the required documents are available in the manufacturers product documentation. In cases where 'not applicable' is printed, the test case requirements are not relevant to the specific equipment implementation. Documentation of tested devices: Interpretation of the test results: This Test Report replaces the Test Report MDE_CINTE_1108_FCCb. Note: 3.2List of the Applicable Body (Body for Scope: FCC_v2) DesignationDescription Part 22, Subpart H - Cellular Radiotelephone Service FCC47CFRChIPART22PUBLIC MOBILE SERVICES Page 6 of 154 Reference: MDE_CINTE_1108_FCCd acc. Title 47 CFR chapter I part 22 subpart H 3.3List of Test Specification Test Specification: FCC part 2 and 22 Version10-1-10 Edition Title:PART 2 - GENERAL RULES AND REGULATIONS PART 22 - PUBLIC MOBILE SERVICES Page 7 of 154 Reference: MDE_CINTE_1108_FCCd acc. Title 47 CFR chapter I part 22 subpart H 3.4Summary Test Case Identifier / Name SetupDate of TestResultTest (condition)Ref. Lab 22.1 RF Power Output §2.1046, §22.913 22.1; Frequency Band = 850, Mode = EDGE, Channel = 128, Frequency = 824.2MHz, Method = conducted 2011/12/01F03_condLab 2Passed 22.1; Frequency Band = 850, Mode = EDGE, Channel = 190, Frequency = 836.6MHz, Method = conducted 2011/12/01F03_condLab 2Passed 22.1; Frequency Band = 850, Mode = EDGE, Channel = 251, Frequency = 848.8MHz, Method = conducted 2011/12/01F03_condLab 2Passed 22.1; Frequency Band = 850, Mode = GSM, Channel = 128, Frequency = 824.2MHz, Method = conducted 2011/12/01F03_condLab 2Passed 22.1; Frequency Band = 850, Mode = GSM, Channel = 190, Frequency = 836.6MHz, Method = conducted 2011/12/01F03_condLab 2Passed 22.1; Frequency Band = 850, Mode = GSM, Channel = 251, Frequency = 848.8MHz, Method = conducted 2011/12/01F03_condLab 2Passed 22.1; Frequency Band = FDD5, Mode = HSDPA_subtest_1, Channel = 4132, Frequency = 826.4MHz, Method = conducted 2011/12/01F03_condLab 2Passed 22.1; Frequency Band = FDD5, Mode = HSDPA_subtest_1, Channel = 4183, Frequency = 836.6MHz, Method = conducted 2011/12/01F03_condLab 2Passed 22.1; Frequency Band = FDD5, Mod…

Text truncated - open the document above for the full version.

Final Report on Cinterion Wireless Module PHS8-P HW: B1 SW: Revision 02.002 MDE_CINTE_1108_FCCe acc. Title 47 CFR chapter I part 24 subpart E Report Reference: December 01, 2011 Date: Test Laboratory: 7Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7Layers AG Aufsichtsratsvorsitzender Registergericht registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr VAT No.: Phone: +49 (0) 2102 749 0 Vorstand Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com Reference: MDE_CINTE_1108_FCCe acc. Title 47 CFR chapter I part 24 subpart E 2.2Detailed Description of OUT Samples Sample : C01 OUT Identifier PHS8-P Sample Description Sample #03 HW Status B1 SW Status Revision 02.000 Date of Receipt 2011/10/10 Low VoltageLow Temp. 3.3 V-10 °C High Temp.High Voltage 4.2 V+55 °C Normal Temp.Nominal Voltage 4.2 V+20 °C Parameter List: ValueParameter Description Parameter for Scope FCC_v2 IMEI004401080650142 Sample : F03 OUT Identifier PHS8-P Sample Description Sample #06 HW Status B1 SW Status Revision 02.002 Date of Receipt 2011/11/24 Low VoltageLow Temp. 3.3 V-10 °C High Temp.High Voltage 4.2 V+55 °C Normal Temp.Nominal Voltage 4.2 V+20 °C Parameter List: ValueParameter Description Parameter for Scope FCC_v2 IMEI004401080662097 Page 4 of 159 Reference: MDE_CINTE_1108_FCCe acc. Title 47 CFR chapter I part 24 subpart E 2.3OUT Features Features for OUT:PHS8-P Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 AC The OUT is powered by or connected to AC Mains DC The OUT is powered by or connected to DC Mains EDGE850 EUT supports EDGE in the band 824 MHz - 849 MHz EDGE1900 EUT supports EDGE in the band 1850 MHz - 1910 MHz FDD2 EUT supports UMTS FDD2 in the band 1850 MHz - 1910 MHz FDD5 EUT supports UMTS FDD5 in the band 824 MHz - 849 MHz GSM850EUT supports GSM850 band 824MHz - 849MHz HSDPA- FDD2 EUT supports UMTS FDD2 HSDPA in the band 1850 MHz - 1910 MHz HSDPA- FDD5 EUT supports UMTS FDD5 HSDPA in the band 824 MHz - 849 MHz HSUPA- FDD2 EUT supports UMTS FDD2 HSUPA in the band 1850 MHz - 1910 MHz HSUPA- FDD5 EUT supports UMTS FDD5 HSUPA in the band 824 MHz - 849 MHz PantC permanent fixed antenna connector, which may be built-in, designed as an indispensable part of the equipment PCS1900 EUT supports PCS1900 band 1850MHz - 1910MHz 2.4Auxiliary Equipment AE No.Serial No.SW StatusHW StatusDescriptionType Designation AE 02----Flex cable AE Ant1---- GSM/UMTS antenna AE 04----Shielded housing AE Ant2----UMTS antenna AE Ant3 ANN-MS-0-005 M827B 601657--GPS antenna AE 01DSB75_B1.1_0152---Evaluation board Page 5 of 159 Reference: MDE_CINTE_1108_FCCe acc. Title 47 CFR chapter I part 24 subpart E 2.5Setups used for Testing For each setup a relation is given to determine if and which samples and auxiliary equipment is used. The left side list all OUT samples and the right side lists all auxiliary equipment for the given setup. Sample No.Sample DescriptionAE No.AE Description Setup No.List of OUT samplesList of auxiliary equipment C01_cond (Sample #03) AE 02Flex cableC01Sample #03 Sample: AE 01Evaluation board C01_rad (Sample #03) AE 02Flex cableC01Sample #03 Sample: AE Ant1GSM/UMTS antenna AE 04Shielded housing AE Ant2UMTS antenna AE Ant3GPS antenna AE 01Evaluation board F03_cond (Sample #06) AE 02Flex cableF03Sample #06 Sample: AE 01Evaluation board 3Results 3.1General Available at the test laboratory. The results of the inspection are described on the following pages, where 'Conformity' or 'Passed' means that the certification criteria were verified and that the tested device is conform to the applied standard. In cases where 'Declaration' is printed, the required documents are available in the manufacturers product documentation. In cases where 'not applicable' is printed, the test case requirements are not relevant to the specific equipment implementation. Documentation of tested devices: Interpretation of the test results: This Test Report replaces the Test Report MDE_CINTE_1108_FCCc. Note: 3.2List of the Applicable Body (Body for Scope: FCC_v2) DesignationDescription Part 24, Subpart E - Broadband PCS FCC47CFRChIPART24PERSONAL COMMUNICATIONS SERVICES Page 6 of 159 Reference: MDE_CINTE_1108_FCCe acc. Title 47 CFR chapter I part 24 subpart E 3.3List of Test Specification Test Specification: FCC part 2 and 24 Version10-1-10 Edition Title:PART 2 - GENERAL RULES AND REGULATIONS PART 24 - PERSONAL COMMUNICATIONS SERVICES Page 7 of 159 Reference: MDE_CINTE_1108_FCCe acc. Title 47 CFR chapter I part 24 subpart E 3.4Summary Test Case Identifier / Name SetupDate of TestResultTest (condition)Ref. Lab 24.1 RF Power Output §2.1046, §24.232 24.1; Frequency Band = 1900, Mode = EDGE, Channel = 512, Frequency = 1850.2MHz, Method = conducted 2011/12/01F03_condLab 2Passed 24.1; Frequency Band = 1900, Mode = EDGE, Channel = 661, Frequency = 1880.0MHz, Method = conducted 2011/12/01F03_condLab 2Passed 24.1; Frequency Band = 1900, Mode = EDGE, Channel = 810, Frequency = 1909.8MHz, Method = conducted 2011/12/01F03_condLab 2Passed 24.1; Frequency Band = 1900, Mode = GSM, Channel = 512, Frequency = 1850.2MHz, Method = conducted 2011/12/01F03_condLab 2Passed 24.1; Frequency Band = 1900, Mode = GSM, Channel = 661, Frequency = 1880.0MHz, Method = conducted 2011/12/01F03_condLab 2Passed 24.1; Frequency Band = 1900, Mode = GSM, Channel = 810, Frequency = 1909.8MHz, Method = conducted 2011/12/01F03_condLab 2Passed 24.1; Frequency Band = FDD2, Mode = HSDPA_subtest_1, Channel = 9262, Frequency = 1852.4MHz, Method = conducted 2011/12/01F03_condLab 2Passed 24.1; Frequency Band = FDD2, Mode = HSDPA_subtest_1, Channel = 9400, Frequency = 1880MHz, Method = conducted 2011/12/01F03_condLab 2Passed 24.1; Frequency Ba…

Text truncated - open the document above for the full version.

Page 2 of 16 TÜV SÜD Zacta Ltd. Report number: Z101C-14063 Test Report Rev.FCC-22H1.0 FCC ID: CKEJRN-130K IC Certification Number: 768B-JRN130K Table of contents Page 1. Summary of Test ................................................................................................................. 3 1.1 Purpose of test ....................................................................................................................................... 3 1.2 Standards ............................................................................................................................................... 3 1.3 List of applied test to the EUT .............................................................................................................. 3 1.4 Modification to the EUT by laboratory ................................................................................................. 3 2. Equipment Under Test ........................................................................................................ 4 2.1 General Description of equipment ....................................................................................................... 4 2.2 EUT information ..................................................................................................................................... 4 2.3 Variation of the family model(s) ............................................................................................................ 5 2.4 Description of Test mode ...................................................................................................................... 5 3. Configuration of equipment ............................................................................................... 6 3.1 Equipment(s) used................................................................................................................................. 6 3.2 Cable(s) used ......................................................................................................................................... 6 3.3 System configuration ............................................................................................................................ 7 4. Effective Radiated Power .................................................................................................... 8 4.1 Measurement procedure ....................................................................................................................... 8 4.2 Calculation method................................................................................................................................ 8 4.3 Limit ......................................................................................................................................................... 8 4.4 Test data .................................................................................................................................................. 9 5. Radiated Emissions and Harmonic Emissions ............................................................... 10 5.1 Measurement procedure ..................................................................................................................... 10 5.2 Calculation method.............................................................................................................................. 10 5.3 Limit ....................................................................................................................................................... 10 5.4 Test data ................................................................................................................................................. 11 6. Uncertainty of measurement ............................................................................................ 14 7. Laboratory description ..................................................................................................... 15 Appendix A. Test equipment ................................................................................................ 16 Page 3 of 16 TÜV SÜD Zacta Ltd. Report number: Z101C-14063 Test Report Rev.FCC-22H1.0 FCC ID: CKEJRN-130K IC Certification Number: 768B-JRN130K 1. Summary of Test 1.1 Purpose of test It is the original test in order to verify conformance to FCC Part 22 Subpart H / IC RSS-132. 1.2 Standards CFR47 FCC Part 22 Subpart H, IC RSS-132 1.2.1 Test Methods ANSI/TIA/EIA-603-C-2004 1.2.2 Deviation from standards None 1.3 List of applied test to the EUT Test items Section Test items Condition Result 2.1046 RSS-132(4.4) Conducted Output Power Conducted N/A * 22.913(a) RSS-132(4.4) Effective Radiated Power Radiated PASS 22.917(a) 2.1049 RSS-Gen(4.6.1) Occupied Bandwidth Conducted N/A * 22.917(a) 2.1051 RSS-132(4.5.1) Band Edge Spurious and Harmonic at Antenna Terminal Conducted N/A * 22.917(a) 2.1053 RSS-132(4.5.1) Radiated emissions and Harmonic Emissions Radiated PASS 22.355 2.1055 RSS-132(4.3) Frequency Stability Conducted N/A * *: This product has a certified module inside it. (FCC ID: QIPPHS8-P, IC: 7830A-PHS8P) Therefore, it was only measured radiated test. 1.3.1 Test set up Table-Top 1.4 Modification to the EUT by laboratory None Page 4 of 16 TÜV SÜD Zacta Ltd. Report number: Z101C-14063 Test Report Rev.FCC-22H1.0 FCC ID: CKEJRN-130K IC Certification Number: 768B-JRN130K 2. Equipment Under Test 2.1 General Description of equipment The EUT is 3G/GSM IT Controller. 2.2 EUT information Applicant : Japan Radio Co., Ltd. 1011 SW Klickitat Way Bldg. B Suite 201B Seatle Washington 98134 United Phone: +1-206-654-5644 Fax: +1-206-654-7030 Equipment under test : 3G/GSM IT Controller Trade name : JRC Model number : JRN-130K Serial number : No.1 EUT condition : Pre-Production Power ratings : DC 24 V Size : (W) 136.4 × (D) 43.6 × (H) 220.0 mm Environment : Indoor and Outdoor use Terminal limitation : -30 ̊C to 70 ̊C RF Specification Frequency of Operation : Up Link GSM850: …

Text truncated - open the document above for the full version.

Page 2 of 16 TÜV SÜD Zacta Ltd. Report number: Z101C-14064 Test Report Rev.FCC-24E1.0 FCC ID: CKEJRN-130K IC Certification Number: 768B-JRN130K Table of contents Page 1. Summary of Test ................................................................................................................. 3 1.1 Purpose of test ....................................................................................................................................... 3 1.2 Standards ............................................................................................................................................... 3 1.3 List of applied test to the EUT .............................................................................................................. 3 1.4 Modification to the EUT by laboratory ................................................................................................. 3 2. Equipment Under Test ........................................................................................................ 4 2.1 General Description of equipment ....................................................................................................... 4 2.2 EUT information ..................................................................................................................................... 4 2.3 Variation of the family model(s) ............................................................................................................ 5 2.4 Description of Test mode ...................................................................................................................... 5 3. Configuration of equipment ............................................................................................... 6 3.1 Equipment(s) used................................................................................................................................. 6 3.2 Cable(s) used ......................................................................................................................................... 6 3.2 System configuration ............................................................................................................................ 7 4. Equivalent Isotropic Radiated Power ................................................................................ 8 4.1 Measurement procedure ....................................................................................................................... 8 4.2 Calculation method................................................................................................................................ 8 4.3 Limit .....................................................................................................................…
