CKENKE1066MARINE RADAR

JMA-1030Series MARINE RADAR EQUIPMENT INSTRUCTION MANUAL i PRECAUTIONS BEFORE OPERATION PRECAUTIONS BEFORE OPERATION ■ Cautions for high voltage High voltages from hundreds volts to tens of thousands volts are to be applied to the electronic equipment such radio and radar devices. You do not face any danger during normal operation, but sufficient cares are required for maintenance, inspection and adjustment of their internal components. (Maintenance, check-up and adjustment of the inside of the equipment are prohibited except by maintenance specialists. ) High voltages of tens of thousands volts are so dangerous as to bring a death from electric shock, but even voltages of hundred volts may sometimes lead to a death from electric shock. To prevent such an accident, make it a rule to turn off the power switch, discharge capacitors with a wire surely earthed on an end make sure that internal parts are no longer charged before you touch any parts inside these devices. At the time, wearing dry cotton gloves ensures you further to prevent such danger. It is also a necessary caution to put one of your hands in the pocket and not to use your both hands at the same time. It is also important to select a stable foothold always to prevent additional injuries once you were shocked by electricity. If you were injured from electric shock, disinfect the burn sufficiently and get it taken care of promptly. ■What to do in case of electric shock When finding a victim of electric shock, turn off the power source and earth the circuit immediately. If it is impossible to turn off the circuit, move the victim away promptly using insulators such as dry wood plate and cloth without touching the victim directly. In case of electric shock, breathing may stop suddenly if current flows to the respiration center in the brain. If the shock is not so strong, artificial respiration may recover breathing. When shocked by electricity, the victim will come to look very bad with weak pulse or without beating, resulting in unconsciousness and rigidity. In this case, it is necessary to perform an emergency measure immediately. ii FIRST-AID TREATMENTS FIRST-AID TREATMENTS ■First-aid treatments As far as the victim of electric shock is not in dangerous condition, do not move him and practice artificial respiration on him immediately. Once started, it should be continued rhythmically. 1 Do not touch the victim confusedly as a result of the accident, but the rescuer may also get an electric shock. 2 Turn off the power source calmly and move the victim away quietly from the electric line. 3 Call a physician or ambulance immediately or ask someone to call a doctor. 4 Lay the victim on this back and loosen his necktie, clothes, belt, etc. 5 a. Examine the victim's pulse. b. Examine his heartbeat bringing your ear close to his heart. c. Examine his breathing bringing the back of your hand or your face close to his face. d. Check the size of the pupils of his eyes. 6 Open the victim's mouth and take out artificial teeth, cigarette or chewing gum if any. Keep his mouth open, stretch his tongue and insert a towel or the like in his mouth to prevent the tongue from suffocating. (If it is hard to open his mouth due to set teeth, open it with a screwdriver and insert a towel in this mouth. ) 7 Then, wipe his mouth so that foaming mucus does not accumulate inside. iii FIRST-AID TREATMENTS ■When pulse is beating but breathing has stopped (Mouth-to-mouth respiration) Fig. 1 1 Tilt the victim's head back as far as this face looks back. (A pillow may be inserted his neck. ) 2 Push his jaw upward to open his throat wide (to spread his airway). 3 Pinch the victim's nostrils and take a deep breath, block his mouth completely with yours and blow into his mouth strongly. Take a deep breath again and blow into his mouth. Continue this 10 to 15 times a minutes (blocking his nostrils). 4 Carefully watch that he has recovered his natural breathing and atop practicing artificial respiration. 5 If it is difficult to open the victim's mouth, insert a rubber or vinyl tube into one of his nostrils and blow into it blocking the other nostril and his mouth completely. 6 When the victim recovers consciousness, he may try to stand up suddenly, but let him lie calmly and serve him with a cup of hot coffee or tea and keep him warm and quiet. (Never give him alcoholic drinks. ) ●Method of mouth-to-mouth respiration by raising head Fig. 1 Mouth-to mouth respiration (1) Raise the victim's head. Support his forehead with one of your hand and his neck with the other hand. →① When you tilt his head backward, the victim, in most cases, opens his mouth to the air. This makes mouth-to mouth respiration easy. (2) Cover his mouth as widely as possible with yours and press your cheek against his nose→② Or, pinch his nostrils with your fingers to prevent air from leaking. →③ (3) Blow into his lungs. Continue blowing into his mouth until his breast swells. Blow into his mouth as quickly as possible for the first 10 times. iv FIRST-AID TREATMENTS ■ When both pulse and breathing have stopped Perform the (Cardiac massage) Fig. 2 and (Mouth-to-mouth respiration) Fig. 1 When no pulse has come not to be felt, his pupils are open and no heartbeat is heard, cardiac arrest is supposed to have occurred and artificial respiration must be performed. 1 Place your both hands, one hand on the other, on the lower one third area of his breastbone and compress his breast with your elbows applying your weight on his breast so that it is dented about 2cm (Repeat compressing his breast 50 times or so a minutes). (Cardiac massage) 2 In case of one rescuer, Repeat cardiac massages about 15 times and blow into his mouth 2 times quickly, and repeat this combination. In case of two rescuers, one person repeats cardiac massages 15 times while the other person blow into his mouth twice, and they shall repeat this combination. (Perform the cardiac massage and mouth-to-mouth respiration) 3 Examine his pup…

Text truncated - open the document above for the full version.

Chapter 2 START THE BASIC OPERATION 29 Chapter 2 START THE BASIC OPERATION When * basic adjustment is made by the serviceman etc. beforehand, please perform as it is. (In case of no adjustment is done by the serviceman etc. beforehand, please through eyes to Chapter 5 for the time being, and after getting to know the outline of operation of this radar, perform Initial setting of Chapter 7.) The screen is a touch screen and can be operated by tracing a screen by a finger flip or touching. The term of operation: TAP: Push a screen display position once by a fingertip. Flick: Rub a screen display position by a fingertip. (A state recognized according to the rubbed direction) Swipe: Rub a screen display position keeping on touch by a fingertip. Long tap: Pushing a screen display position, continued more than 3 seconds or more by a fingertip. The operation of a Rotary knob: Click: Push in a Rotary knob once. Rotating and choosing the state of a screen, then click and fix. General using : The touch panel function is select absolute positions on panel, on the other hands, Rotary knob select sequential data up and down. and, at selection data appeared then click and fix. Only Cross cursor is individual moving, no relation to another. Chapter 2 START THE BASIC OPERATION 30 Power on startup screen. Startup screen. (3 Startup screen possible to select.) Swipe on the screen for select the startup screen. Push PWR/CLR button. Chapter 2 START THE BASIC OPERATION 31 Rotary knob. Push Rotary knob and rotate to select the starting item.. Tap icon at bottm side, then full icons can be seen. Keep press and rotate the rotary knob, then screen brillance menu will be open. Rotate Rotary knob at suitanble brilliande level. Release Rotary knob, then the brillance level is fixed Select the icon you needed by turning the knob Full icons will be appeared. Brillance menu will be appeared. The turn while pressing Chapter 2 START THE BASIC OPERATION 32 Tap TX/STBY Tap TX/STBY Tap After a few seconds, the icons fade out. Crick the Rotary knob will appear the icons Activate Cursor Activate TX/STBY Tap Sleep Cursor Sleep TX/STBY Push or click the Rotary knob. Chapter 2 START THE BASIC OPERATION 33 2 - 1 G U I D E F O R O P E R A T I O N Front view 2 - 2 P O W E R O N ( S T A N D B Y F O R T R A N S M I T ) Multi-Touch screen. ☆ Operate using “tap” “flick” long tap” “swipe” by fingertip. Rotary knob. ☆ Rotation: select the sequential menu. ☆ Push or click fix menu data. POWER ON OFF, CLEAR PUSH BUTTON. ☆ POWER ON/OFF ☆ CLEAR OF MENU Startup screen PRESS PWR / BUTTON Start to display screen. Chapter 2 START THE BASIC OPERATION 34 2 - 3 D I S P L A Y S C R E E N 2-3-1 SCREEN LAYOUT POWER ON OFF,CLEAR PUSH BUTTON. ☆ POWER ON/OFF ☆ CLEAR OF MENU Push Rotary knob, then appears some menu. Rotation of Rotary knob can select menu of activated icon. Function call icon will be displayed. Course Speed (through ground) Alarm Speaker Own ship. Longitude/Latitude. depth. Own ship position mark. Range Range interval USB Port Chapter 2 START THE BASIC OPERATION 35 Various ST-BY screen. Normal ST-BY screen, Normal ST-BY screen, Normal ST-BY screen, Graphical ST-BY screen Graphical ST-BY screen Graphical ST-BY screen Numeric Display ST-BY screen. Numeric Display ST-BY screen. Numeric Display ST-BY screen. Course Speed Course Speed Course Speed Own ship position * ST-BY Disp, Select.: “Normal” * ST-BY Disp, Select.: ”Graphical” * ST-BY Disp, Select.: “Numeric Display” Tap White dot Tap △ Tap White dot Tap △ Own ship position Own ship position Tap White dot Tap △ Chapter 2 START THE BASIC OPERATION 36 TX screen. Push Rotary knob, select TX icon by rotating Rotary knob and push Rotary knob. Push Rotary knob Tap UP icon Tap DOWN icon Push Rotary knob & select TX icon by rotating. Set focus to TX icon. Push Rotary knob Tap TX icon Or Tap △ Tap ▽ Start TX Chapter 2 START THE BASIC OPERATION 37 2-3-2 ICON’S TABLE The icons which will appear by screen operation. GAIN VRM CURSOR RAIN GURDZONE SETTING SEA MARK MENU BRILLIANCE AIS USER1 TX-STBY USER2 RANGE MOB MODE STANDARD EBL OFFCENTER MODE COAST MODE OFF MODE FIOAT DAY MODE RIVER TT NIGHT Chapter 2 START THE BASIC OPERATION 38 Display the function icons. Push Rotary knob Rotate Rotary knob Appear icons after Pushing Rotary knob No operation about 10 second. Rotate for icon selection. Selected icon is focused. Push Rotary knob, then appear the setting menu. Set level by Rotary knob or flick bar graph.. Then push Rotary knob, data is fixed. Chapter 2 START THE BASIC OPERATION 39 Tap TX/STBY icon, or Push rotary knob when TX/STBY icon is focused. TX ST-BY Tap icon or push rotary knob Scanned display is appeared Tap icon or push rotary knob Chapter 2 START THE BASIC OPERATION 40 Tap GAIN Adjust icon, or Push rotary knob when GAIN Adjust icon is focused. Adjustment Gain Bar is appeared The case of ST-BY Gain is set automatically. Tap “Auto” of Gain setting mode Tap “Auto” of Gain setting mode Rotate the rotary knob with monitoring green bar. Flick the green bar Tap “+” or “-“ The case of TX Adjustment Gain Bar is appeared ※In TX mode, can be adjusted while monitoring the display echo. Tap return icon Push Rotary knob The data is fixed, and then return Or Or Or Chapter 2 START THE BASIC OPERATION 41 SEA is set automatically. Tap “Auto” of SEA setting mode Tap “Auto” of SEA setting mode Rotate the rotary knob with monitoring green bar. Flick the green bar Tap “+” or “-“ Adjustment Bar is appeared ※Can be adjusted while monitoring the display echo. Tap return icon Push Rotary knob The data is fixed, and then return Tap SEA Adjust icon, or Push rotary knob when SEA Adjust icon is focused. Or Or Or Chapter 2 START THE BASIC OPERATION 42 RAIN is set automatically. Tap “Auto” of RAIN setting mode Tap “Auto” of RAIN setting mode Rotate the rotary knob with monitoring green bar. Flick the green bar Tap “+” or “-“ Adjustment Bar is appeared ※Can be adjusted while monitoring the display echo. Tap return icon Pus…

Text truncated - open the document above for the full version.

Chapter 4 MEASURE THE SURROUND SHIP 60 Chapter 4 MEASURE THE SURROUND SHIPS 4 - 1 M E A S U R E D I R E C T I O N A N D R A N G E U S I N G V R M / E B L 4-1-1 ICON DISPLAY VRM(Variable Range Marker) (ST-BY) When activated functions.(TX) EBL(Electric Bearing Line) (ST-BY) When activated functions.(TX) 4-1-2 OPERATION OF VRM, EBL ICON * VRM Tap ring, and Flick: VRM ring size will moving, meet to the target to ring together. That target Range is displayed on screen as VRM. . Ob course, it is possible to use Rotary knob, turn and press. Erase VRM: Select VRM icon by Rotary knob and double tap the icon, or double push the Rotary knob. *EBL Tap line, and Flick: EBL line direction will rotate, meet line to the target together. The target Bearing is displayed on screen as EBL. . Ob course, it is possible to use Rotary knob, turn and press. Erase EBL: Select EBL icon by Rotary knob and double tap the icon, or double push the Rotary knob. Chapter 8 DETAIL PERFORMANCE SETTING 100 8-1-1 MAIN BANG SUPPRESSION (Usually, doesn’t need set up. adjust if necessary) This adjustment is decrease the transmitted signal which appears as a circular echo around the center. Adjustment is done so as to main bang is observe slightly seen. Excess adjusting is danger for nearest small target observation. If the main bang is not so big, use as factory setting. Chapter 8 DETAIL RFORMANCE SETTING 101 8-1-2 TARGET EXPANSION Level setting. The level which can be set up is level 1, the level 2, the level 3, and the level 4. Expansion and the magnifying the observation target size.. Tap the “Level1, Level2, Level3, Level4“ icon. 8-1-3 GAIN LEVEL (Important adjustment. Since adjusted in factory, adjustment is not necessary in the field.) Chapter 8 DETAIL PERFORMANCE SETTING 102 8-1-4 SEA CLUTTER LEVEL (Important adjustment. Since adjusted in factory, adjustment is not necessary in the field.) Chapter 8 DETAIL RFORMANCE SETTING 103 8-1-5 RAIN AND SNOW CLUTTER LEVEL (Important adjustment. Since adjusted in factory, adjustment is not necessary in the field.) Chapter 8 DETAIL PERFORMANCE SETTING 104 8-1-6 RADAR Alarm LEVEL Set up Alarm 1 Level Set up Alarm 2 Level Chapter 8 DETAIL RFORMANCE SETTING 105 8 - 2 T T ( T A R G E T T R A C K I N G ) F U N C T I O N (Important adjustment. Since adjusted in factory, adjustment is not necessary in the field.) Vector shows the movement of the target. Vector Constant large. Vector is stable, but the response is slow. Vector Constant small. Vector is unstable, but the response is quick.. Tap Vector Constant, setting Bar appears lower part of screen. Set up by flick or tap + -. Rotary knob adjusting is possible. Click and set. Gate Display: The region automatically search target moving area. ON: Confirmation is possible under green searching area. OFF: Doesn’t display automatically searching area. Chapter 8 DETAIL PERFORMANCE SETTING 106 Gate Size: Set up the region size which can search the moving target automatically. Wide region: Possible to track fast moving target, but many clutters are include. Sometime do miss tracking because of much noise. Narrow region Possible to track stable, but fast moving target are tend to lost. Because of first target soon goes outside of the region. Chapter 8 DETAIL RFORMANCE SETTING 107 8 - 3 S C A N N E R F U N C T I O N 8-3-1 PULSE REPETITION FREQUENCY FINE TUNING (PRF ADJUST) When existing the same frequency radar, in the same area, they interfere each other. If p.r.f.(pulse reputation frequency)is the same, Interference can’t reject on the screen. In that case shift the p.r.f. a little may decrease the radar interference. PRF Fine Tuning: If radar interference cannot reject completely, it is effective way to shift the PRF. Watching the screen echo, rotate the Rotary knob and stop when radar interference are fade out from screen. Chapter 8 DETAIL PERFORMANCE SETTING 108 8-3-2 STAGGER TRIGGER When existing the same frequency radar, in the same area, they interfere each other. If p.r.f.(pulse reputation frequency)is the same, Interference can’t reject on the screen. Another way to decease interference is shift the transmitting time randomly. Not synchronize signal which transmit randomly is eliminate. So decrease the other radar interference echo on screen. ON Stagger: Stagger trigger is generated OFF Stagger: Stagger trigger stop. (Normal trigger timing) Select and Tap . Watching the screen echo, select off or on when heavy radar interference on screen. return to the menu Chapter 8 DETAIL RFORMANCE SETTING 109 8-3-3 SCANNER ROTATIONAL SPEED The rotational speed of inside microwave radiator is possible to change. The sensitivity of radar are low speed is more higher. So scanner rotation speed is possible to change according observing range. Every pulse length can select the Antenna rotation speed. Short range uses short pulse (SP). Medium range uses medium pulse (MP) Long range uses Long pulse (LP) Shorter range requires the High speed refresh screen. Longer range requires the Low speed for High sensitivity. User can select rotational speed according to his request. Chapter 8 DETAIL PERFORMANCE SETTING 110 8-3-4 ECONOMY MAGNETRON SETUP (PRF , PULSE LENGTH) The life of magnetron proportion to the total transmitting pulse power. Low power transmission makes magnetron life more longer. Selection Normal: It is the usual factory setup. Usually, this is chosen. Economy: Selected the shorter pulse, repeat frequency is also selected lowest 650 Hz. The life of a magnetron keeps more longer time. Sensitivity is decrease somewhat from Normal. High Power: High sensitivity high performance. 8-3-5 TIMED TX The life of magnetron proportion to the total transmitting pulse power. Timed TX can save magnetron life longer. return to the menu Select and Tap Chapter 8 DETAIL RFORMANCE SETTING 111 8-3-6 TUNE PEAK LEVEL Normally, adjustment is not necessary. (In case of adjustment the tuning peak point is shifted from maximum echo point.) This adjustment must be done with (8-3-…

Text truncated - open the document above for the full version.

Chapter 8 DETAIL PERFORMANCE SETTING 100 8-1-1 MAIN BANG SUPPRESSION (Usually, doesn’t need set up. adjust if necessary) This adjustment is decrease the transmitted signal which appears as a circular echo around the center. Adjustment is done so as to main bang is observe slightly seen. Excess adjusting is danger for nearest small target observation. If the main bang is not so big, use as factory setting. Chapter 8 DETAIL RFORMANCE SETTING 101 8-1-2 TARGET EXPANSION Level setting. The level which can be set up is level 1, the level 2, the level 3, and the level 4. Expansion and the magnifying the observation target size.. Tap the “Level1, Level2, Level3, Level4“ icon. 8-1-3 GAIN LEVEL (Important adjustment. Since adjusted in factory, adjustment is not necessary in the field.) Chapter 8 DETAIL PERFORMANCE SETTING 102 8-1-4 SEA CLUTTER LEVEL (Important adjustment. Since adjusted in factory, adjustment is not necessary in the field.) Chapter 8 DETAIL RFORMANCE SETTING 103 8-1-5 RAIN AND SNOW CLUTTER LEVEL (Important adjustment. Since adjusted in factory, adjustment is not necessary in the field.) Chapter 8 DETAIL PERFORMANCE SETTING 104 8-1-6 RADAR Alarm LEVEL Set up Alarm 1 Level Set up Alarm 2 Level Chapter 8 DETAIL RFORMANCE SETTING 105 8 - 2 T T ( T A R G E T T R A C K I N G ) F U N C T I O N (Important adjustment. Since adjusted in factory, adjustment is not necessary in the field.) Vector shows the movement of the target. Vector Constant large. Vector is stable, but the response is slow. Vector Constant small. Vector is unstable, but the response is quick.. Tap Vector Constant, setting Bar appears lower part of screen. Set up by flick or tap + -. Rotary knob adjusting is possible. Click and set. Gate Display: The region automatically search target moving area. ON: Confirmation is possible under green searching area. OFF: Doesn’t display automatically searching area. Chapter 8 DETAIL PERFORMANCE SETTING 106 Gate Size: Set up the region size which can search the moving target automatically. Wide region: Possible to track fast moving target, but many clutters are include. Sometime do miss tracking because of much noise. Narrow region Possible to track stable, but fast moving target are tend to lost. Because of first target soon goes outside of the region. Chapter 8 DETAIL RFORMANCE SETTING 107 8 - 3 S C A N N E R F U N C T I O N 8-3-1 PULSE REPETITION FREQUENCY FINE TUNING (PRF ADJUST) When existing the same frequency radar, in the same area, they interfere each other. If p.r.f.(pulse reputation frequency)is the same, Interference can’t reject on the screen. In that case shift the p.r.f. a little may decrease the radar interference. PRF Fine Tuning: If radar interference cannot reject completely, it is effective way to shift the PRF. Watching the screen echo, rotate the Rotary knob and stop when radar interference are fade out from screen. Chapter 8 DETAIL PERFORMANCE SETTING 108 8-3-2 STAGGER TRIGGER When existing the same frequency radar, in the same area, they interfere each other. If p.r.f.(pulse reputation frequency)is the same, Interference can’t reject on the screen. Another way to decease interference is shift the transmitting time randomly. Not synchronize signal which transmit randomly is eliminate. So decrease the other radar interference echo on screen. ON Stagger: Stagger trigger is generated OFF Stagger: Stagger trigger stop. (Normal trigger timing) Select and Tap . Watching the screen echo, select off or on when heavy radar interference on screen. return to the menu Chapter 8 DETAIL RFORMANCE SETTING 109 8-3-3 SCANNER ROTATIONAL SPEED The rotational speed of inside microwave radiator is possible to change. The sensitivity of radar are low speed is more higher. So scanner rotation speed is possible to change according observing range. Every pulse length can select the Antenna rotation speed. Short range uses short pulse (SP). Medium range uses medium pulse (MP) Long range uses Long pulse (LP) Shorter range requires the High speed refresh screen. Longer range requires the Low speed for High sensitivity. User can select rotational speed according to his request. Chapter 8 DETAIL PERFORMANCE SETTING 110 8-3-4 ECONOMY MAGNETRON SETUP (PRF , PULSE LENGTH) The life of magnetron proportion to the total transmitting pulse power. Low power transmission makes magnetron life more longer. Selection Normal: It is the usual factory setup. Usually, this is chosen. Economy: Selected the shorter pulse, repeat frequency is also selected lowest 650 Hz. The life of a magnetron keeps more longer time. Sensitivity is decrease somewhat from Normal. High Power: High sensitivity high performance. 8-3-5 TIMED TX The life of magnetron proportion to the total transmitting pulse power. Timed TX can save magnetron life longer. return to the menu Select and Tap Chapter 8 DETAIL RFORMANCE SETTING 111 8-3-6 TUNE PEAK LEVEL Normally, adjustment is not necessary. (In case of adjustment the tuning peak point is shifted from maximum echo point.) This adjustment must be done with (8-3-7 Tuning indicator) alternately. Set RANGE at 24NM Display tuning level indicator menu. Tune maximum echo point. At this point adjust tuning level, so as to seen within the green bar. Adjusting data is 0 to 127 . 8-3-7 TUNE INDICATOR LEVEL Normally, adjustment is not necessary. (Adjust ,in case of tuning level is too low.) Set RANGE at 24NM Display the Tune Indicator menu. Tuning region is 0 to 127 NOTE! If tuning level is too excess setting, can’t work automatic tuning function. Adjust the tuning level bar moves within 80 to 90%. Chapter 8 DETAIL PERFORMANCE SETTING 112 8 - 4 C O N T R O L 8-4-1 BEARING REFERENCE 8-4-2 BUZZER Select Bearing Mode True or Relative Set up the Buzzer sound Level. Chapter 8 DETAIL RFORMANCE SETTING 113 Set up the Every sound Level. Chapter 8 DETAIL PERFORMANCE SETTING 114 8 - 5 M A I N T E N A N C E S E T T I N G 8-5-1 SYSTEM TIME CLEAR 8-5-2 SCANNER TIME CLEAR Clear System time Clear Scanner time. Ch…

Text truncated - open the document above for the full version.

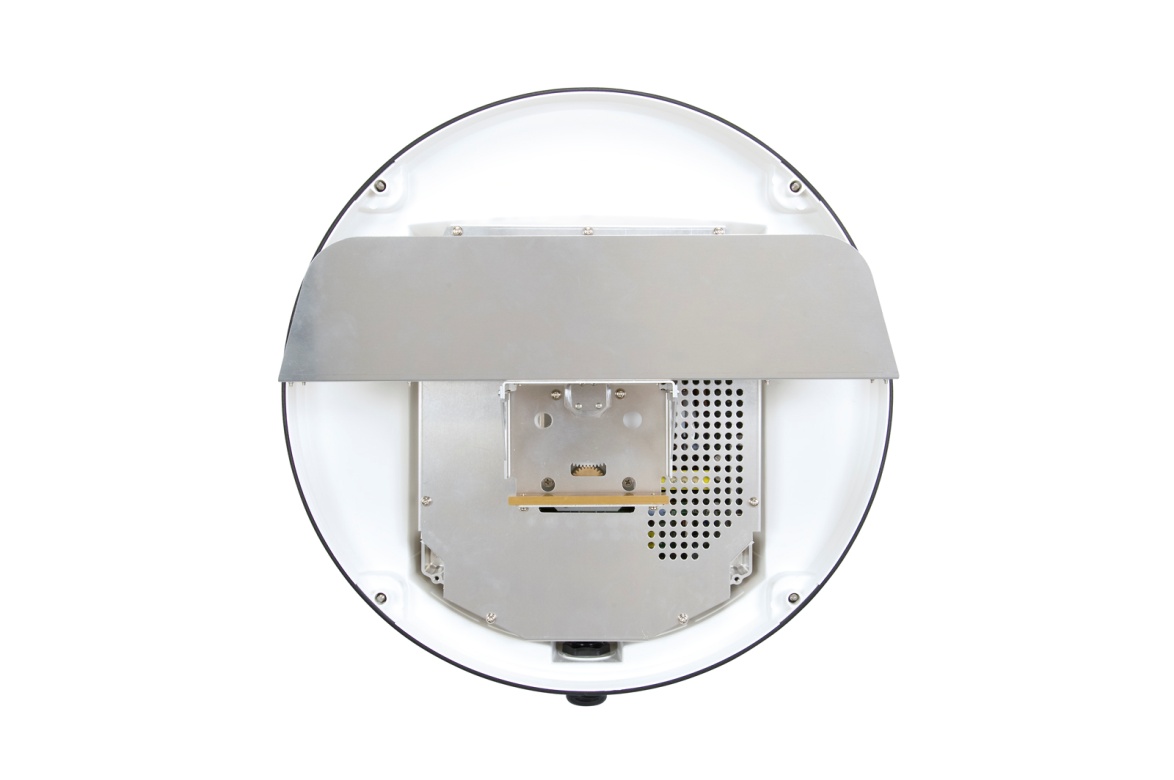

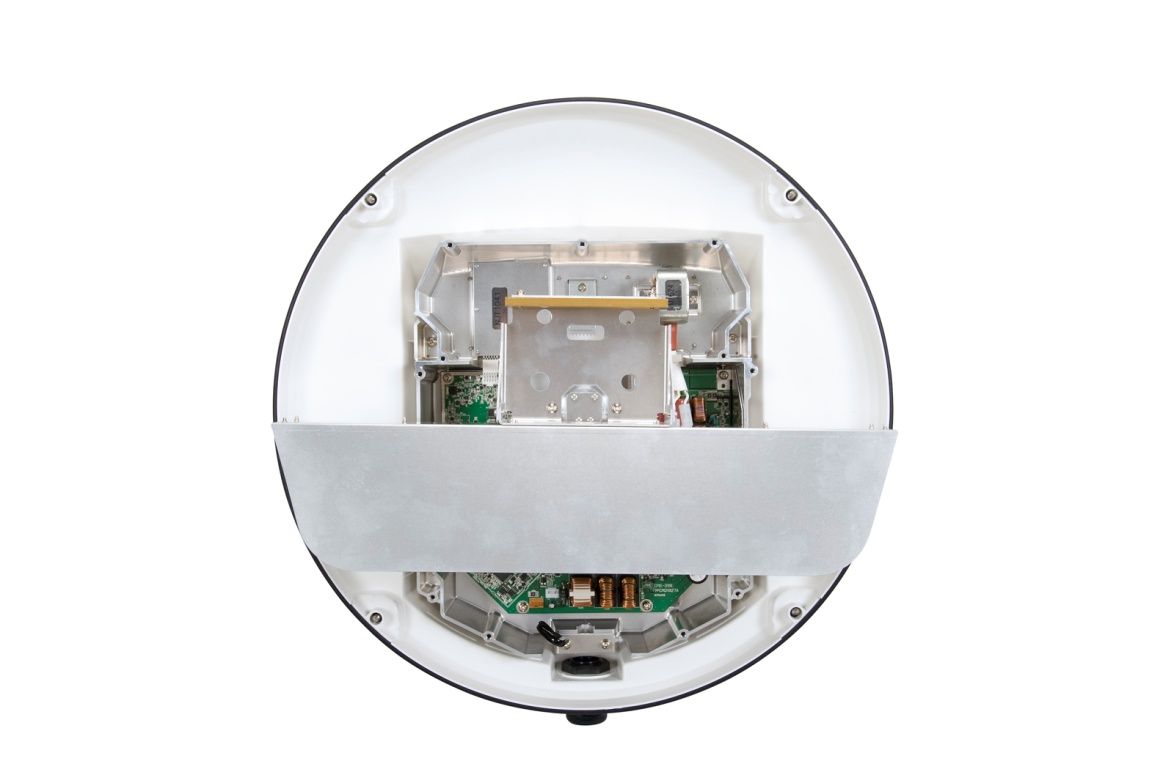

Chapter 8 DETAIL PERFORMANCE SETTING 138 Chapter 9 MAINTENANCE AND CHECK 9 - 1 R O U T I N E M A I N T E N A N C E For operating the radar equipment in the good conditions, it is necessary to make the maintenance work as described below. If maintenance is made properly, troubles will reduce. It is recommended to make regular maintenance work. Common points of maintenance for each unit are as follow: Clean the equipment. Remove the dust, dirt, and sea water rest on the equipment cabinet with a piece of dry cloth. Especially, clean the air vents with a brush for good ventilation. Chapter 9 MAINTENANCE AND CHECK 139 9 - 2 M A I N T E N A N C E O F E A C H U N I T 9-2-1 SCANNER NKE-1066 When conducting maintenance work on the antenna, make sure to turn its main power off. Failure to comply may result in electrocution or injuries. DANGER Chapter 9 MAINTENANCE AND CHECK 140 9-2-2 SCANNER NKE-2044 When conducting maintenance work on the antenna, make sure to turn its main power off. Failure to comply may result in electrocution or injuries. DANGER Chapter 9 MAINTENANCE AND CHECK 141 9-2-3 DISPLAY NCD-2256 When cleaning the display screen, do not wipe it too strongly with a dry cloth. Also, do not use gasoline or thinner to clean the screen. Failure to comply will result in damage to the screen surface. Dust accumulated on the screen will reduce clarity and darken the video. For cleaning it, wipe it with a piece of soft cloth (flannel or cotton). Do not wipe it strongly with a piece of dry cloth nor use gasoline or thinner. DANGER Chapter 9 MAINTENANCE AND CHECK 142 9 - 3 P E R F O R M A N C E C H E C K Make operational check on the radar equipment regularly and if any problem is found, investigate it immediately. Pay special attention to the high voltage sections in checking and take full care that no trouble is caused by any error or carelessness in measurement. Take note of the results of checking, which can be used effectively in the next check work. Operational check shall be made in accordance with Table 4.3-1 Function Check List in the order as specified in it. Table 9-3-1 Performance Check List Chapter 9 MAINTENANCE AND CHECK 143 9-3-1 TEST MENU The performance status of this radar equipment can be checked on the Test Menu. 9-3-2 SYSTEM INFORMATION Displays the current system information. (software version information). 9-3-3 SYSTEM TIME Displays the following system time information. ■ Indicator Running Time ■ Scanner Transmit Time ■ Scanner Motor Time ■ Scanner Running Time Chapter 9 MAINTENANCE AND CHECK 144 9-3-4 SCANNER INFORMATION Displays the following scanner information. ■ Transmitted output power ■ Motor Type ■ Magnetron Current 9-3-5 HARDWARE INFORMATION Displays the following hardware information. ■ Serial Number ■ MAC Address ■ Temperature 9-3-6 ERROR LOG The error log displays previously occurred system alarms with the dates and times when they occurred. 9-3-7 LINE MONITOR Serial communication data can be seen on the built-in Line monitor. Line monitor can be used to make sure that the serial data are received properly Chapter 9 MAINTENANCE AND CHECK 145 9-3-8 SELF TEST The following tests can be performed. ■ Key Test ■ Buzzer Test ■ Key Light Test ■ Monitor Display Test ■ Memory Test ■ Line Test ■ Sensor Test Chapter 9 MAINTENANCE AND CHECK 146 Chapter 9 MAINTENANCE AND CHECK 147 9 - 4 R E P L A C E M E N T O F M A J O R P A R T S Chapter 9 MAINTENANCE AND CHECK 148 9-4-1 PARTS REQUIRED FOR PERIODIC REPLACEMENT Here are parts required for periodic replacement. PARTS NAME INTERVAL 1. MAGNETRON 4,000 HOURS 2. MOTOR 10,000 HOURS Chapter 9 MAINTENANCE AND CHECK 149 9 - 5 F A U L T F I N D I N G 9-5-1 ALARMS AND OTHER DISPLAY LISTS 9-5-2 FUSE 9 - 6 T R O U B L E S H O O T I N G 9-6-1 INCLUDED ACCESSORIES 9-6-2 SPECIAL PARTS Location Parts No. Name Type Code Manufacture NKE-1066 V101 Magnetron M1624 New JRC NKE-2044 V101 Magnetron MSF1421B 5VMAA00092 New JRC NKE-2044 A101 Circulator FCX68R 5AJIX00027 Orient Microwave NKE-2044 A102 Diode Limiter NJS6930 5ATBT00006 New JRC Chapter 9 MAINTENANCE AND CHECK 150 9-6-3 CIRCUIT BLOCK TO BE REPAIRED JMA-1032 Location Circuit Block Type Remarks Scanner Motor unit H-7BDRD0053 Scanner Modulation circuit CME-396 Include IF Amplifier Scanner Micro wave unit Transmitter/ receiver CMN-924/NZT-1066 Include Receiver frontend Display Unit Power Supply circuit CBD-1928 Display Unit Process Circuit CDC-1433 Display Unit LCD Panel NZP-2256 JMA-1034 Location Circuit Block Type Remarks Scanner Motor unit H7BDRD0052A Scanner Modulation circuit CME-397 NZT-2044 Scanner Receiver NRG-242 Display Unit Power Supply circuit CBD-1928 Display Unit Process Circuit CDC-1433 Display Unit LCD Panel NZP-2256 Chapter 9 MAINTENANCE AND CHECK 151 Chapter 10 AFTER-SALE SERVICE 152 Chapter 10 AFTER-SALE SERVICE 1 0 - 1 K E E P I N G P E R I O D O F M A I N T E N A N C E P A R T S Keeping period of maintenance parts is ten years from the production is discontinued. 1 0 - 2 W H E N Y O U R E Q U E S T F O R R E P A I R If you suppose the product may be out of order, read the description in "9-2-5 FAULT FINDING" and "9-2-6 TROUBLE SHOOTING", and check the suspected point again. If it is still out of order, you are recommended to stop operation of the equipment and consult with the dealer from whom you purchased the product, or our branch office in your country or district, the sales department in our main office in Tokyo. ● Repair within the Warranty Period If any failure occurs in the product during its normal operation in accordance with the instruction manual, the dealer or JRC will repair free of charge. In case that any failure is caused due to misuse, faulty operation, negligence or force major such as natural disaster and fire, the product will be repaired with charges. ● Repair after the Warranty Period. If any defective function of the product is recoverable by repair, the repair of it will be made at your own charge upon your request. ● Necessary Information for R…

Text truncated - open the document above for the full version.
