CLV-AW9T900 MHz Transmitter Module

Recoton Corporation
900 MHz Transmitter Module - FCC ID CLV-AW9T - Recoton Corporation
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Aug 14, 2002
Application Purpose
Original Equipment
Date of Application
Aug 14, 2002
Equipment Note
900 MHz Transmitter Module
Frequency Range
911.00000000 - 915.00000000
Company
Recoton Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

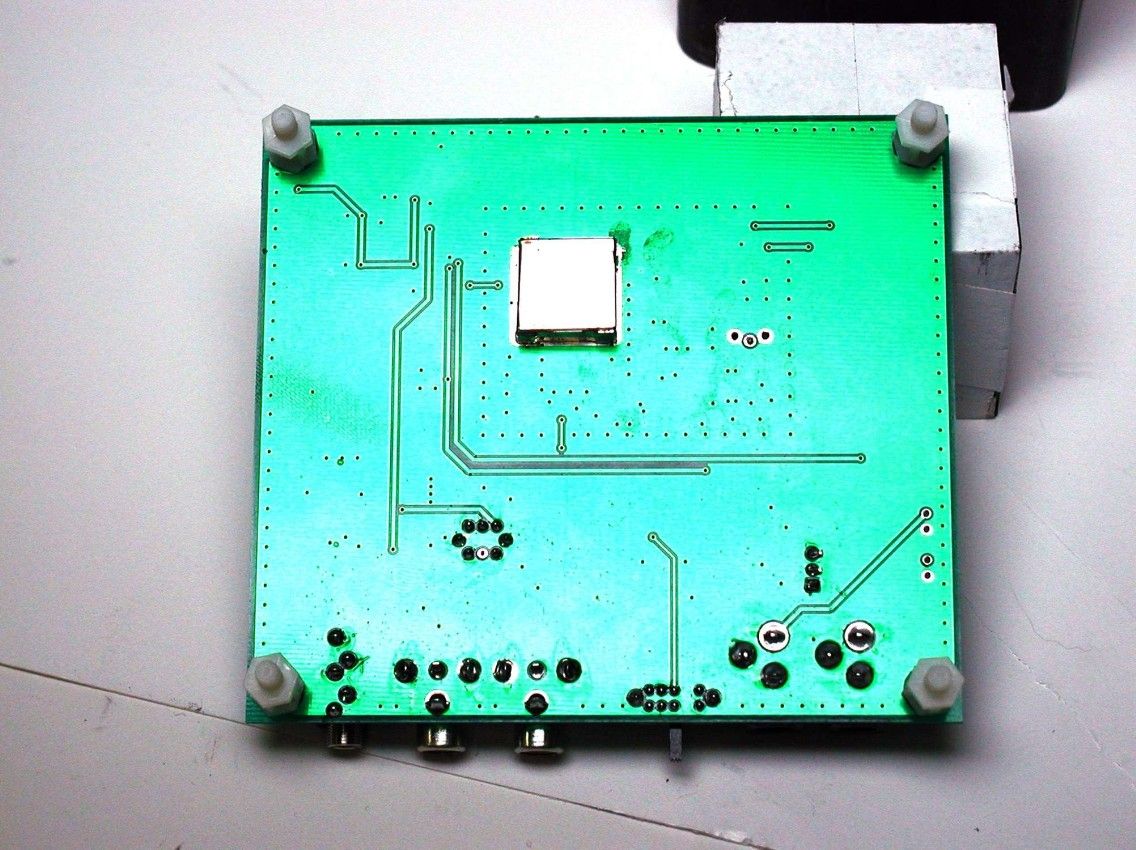

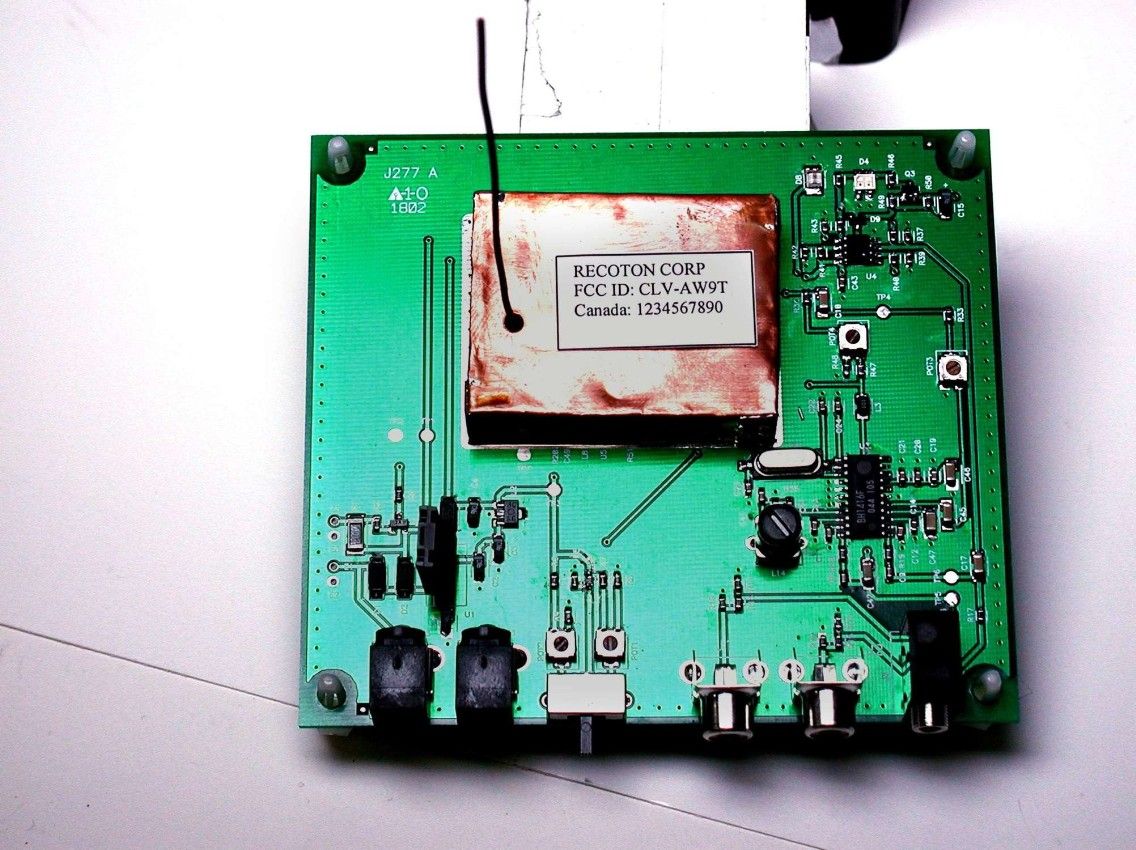

External Photos

↗
↗

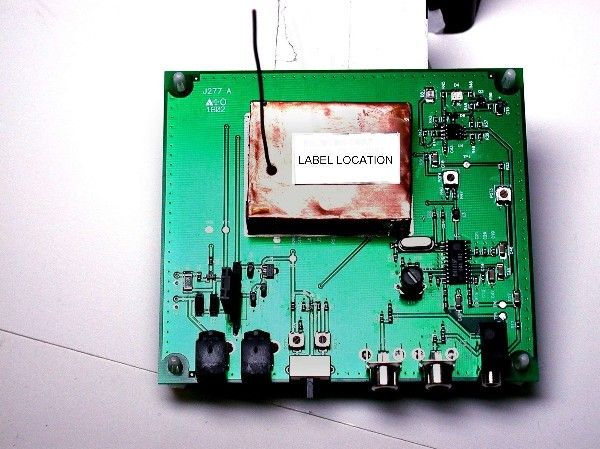

ID Label/Location Info

↗
↗

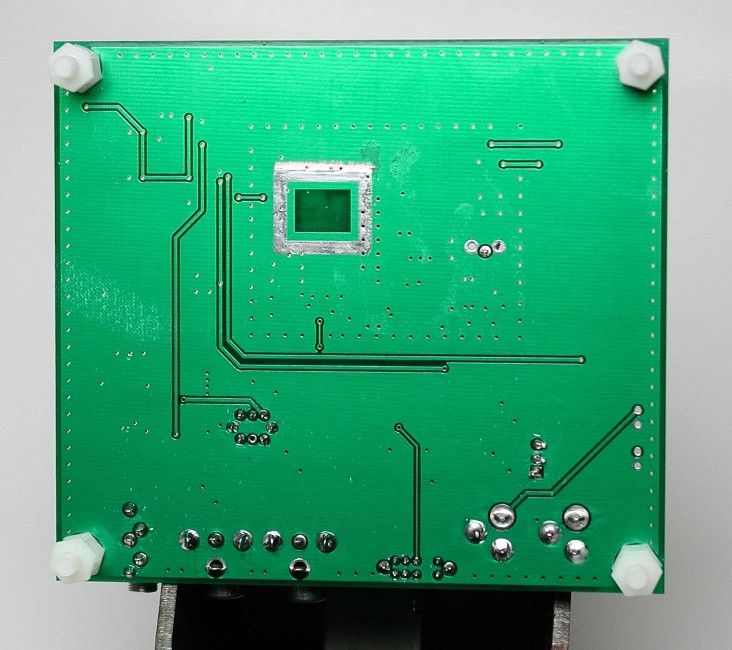

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CLV-AW9T Operations Instructions Installation: Connect the supplied audio cables to the transmitters audio input jacks on the rear panel. Connect the other end to the sound source. Two inputs are provided to match various devices. The 1/8" stereo phone jack requires 0.5 volt (RMS) input, and the phone jacks require 2 volt (RMS) for proper operation. Connect the power cable to the connector on the rear panel, and plug it into a 115-volt AC wall socket. For 220 volt applications, contact Recoton customer service. Operation: 1. Apply power and inputs as indicated above. The red indicator will illuminate. 2. For adjusting the modulation (sound quality), increase the audio level from the source until the green indicator flashes. This is the best level for sound fidelity. Further increases will result in distortion. There is an automatic limiter, which will protect the transmitter against improper emissions. 3. The unit has 3 frequencies, which are user selectable on the rear panel. This allows for mul- tiple transmitter usage or to escape interference from another nearby unit. 4. If "dead spots" are noted, move the transmitter away from walls, computers, TV sets, etc a few feet. 5. In case of difficulty, contact Recoton Customer service at 1 800 RECOTON. Power In Charger Out Frequency 2VInput 0.5VInput Modulation LED Power LED CLV-AW9T Operators Manual This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. A label on the exterior of the final product must include the FCC ID of this module. A sample of this would be: The product contains the transmitter FCC ID: CVL-AW9T. For the Canada manual Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Son fonctionnement est soumis aux deux conditions suivantes: 1) Ce dispositif ne doit pas causer de parasites nuisibles et; 2) Ce dispositif doit accepter les parasites qu’il reçoit même ceux pouvant nuire a son fonctionnement

Cover Letter(s)

Recoton Corporation 2950 Lake Emma Rd Lake Mary, Fl 32714 May 28,2002 Kenneth Nichols, Chief, Laboratory Division Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Dear Mr. Nichols: Reference: CLV-AW9T Pursuant to Section 0.459 and 0.457(d)(ii), we are requesting that certain portions of this application be withheld from public inspection for 2 years. The materials to which this request applies have been separated physically and marked “CONFIDENTIAL, NOT FOR PUBLIC INSPECTION”. These materials consist of: Schematics, Theory of operation, Block diagrams, and internal Photographs. They contain trade secrets which are proprietary, and for which patent protection has yet to be secured. Disclosure of these materials would do substantial harm to Recoton’s future business, and would deprive the public of a source of very low noise wireless audio devices. This material is not available to the public, and has been disclosed to third parties only pursuant to non-disclosure agreements of the type usually used in our industry. Protection for 2 years is requested until a patent application can be filed and processed. Please contact Jorgen Andersen, Chief Engineer at 407 833 1582 if there are any questions regarding this request. Regards, /s/Jorgen Andersen, Chief Engineer

Cover Letter(s)

849 NW State Road 45 • P. O. Box 370 • Newberry, Florida 32669 USA Telephone (352) 472-5500 • (888) 472-2424 • FAX (352) 472-2030 • email: [email protected] August 8, 2002 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045 Ref: Recoton Corporation’s Application for Modular Approval on their FCC ID: CLV-AW9T To Whom It May Concern: Enclosed please find an application for Modular Approval for Recoton Corporation’s FCC ID: CLV-AW9T. The attached test report will show that this device meets the requirements for modular approval per DA 00-1407 date June 26, 2000. Should you have any questions or require any further information, please advise. Regards, Mario R. de Aranzeta MRD/sh Encl.

Test Report

TABLE OF CONTENTS APPLICANT: RECOTON CORPORATION FCC ID: CLV-AW9T TEST REPORT CONTAINING: PAGE 1-5...........TEST EQUIPMENT LIST PAGE 6.............TEST PROCEDURE PAGE 7.............RADIATION INTERFERENCE TEST DATA PAGE 8.............OCCUPIED BANDWIDTH PAGE 9-10..........OCCUPIED BANDWIDTH PLOTS PAGE 11............POWERLINE CONDUCTED PAGE 12-13.........POWERLINE CONDUCTED PLOTS PAGE 14............MODULAR REQUIREMENTS EXHIBIT ATTACHMENTS: EXHIBIT 1...........FCC ID LABEL SAMPLE EXHIBIT 2...........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 3...........BLOCK DIAGRAM EXHIBIT 4...........SCHEMATIC EXHIBIT 5...........INSTRUCTION MANUAL EXHIBIT 6...........CIRCUIT DESCRIPTION EXHIBIT 7A-7B.......COMPONENT SIDE INTERNAL PHOTOS EXHIBIT 8A-8B.......COPPER SIDE INTERNAL PHOTOS EXHIBIT 9...........TEST SET UP PHOTO EXHIBIT 10..........CONFIDENTIALITY LETTER EXHIBIT 11..........MODULAR APPROVAL LETTER APPLICANT: RECOTON CORPORATION FCC ID: CLV-AW9T REPORT NO.: R\REC\585UT2\585UT2TestReport.doc TABLE OF CONTENTS Equipment List DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS X 3-Meter OATS TEI N/A N/A Listed 12/22/99 12/22/02 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 X Receiver, Beige Tower X Spectrum Analyzer (Tan) HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/02 X RF Preselector (Tan) HP 85685A 3221A01400 CAL 8/31/01 8/31/02 X Quasi-Peak Adapter (Tan) HP 85650A 3303A01690 CAL 8/31/01 8/31/02 Receiver, Blue Tower Spectrum Analyzer (Blue) HP 8568B 2928A04729 2848A18049 CHAR 10/22/01 10/22/02 RF Preselector (Blue) HP 85685A 2926A00983 CHAR 10/22/01 10/22/02 Quasi-Peak Adapter (Blue) HP 85650A 2811A01279 CHAR 10/22/01 10/22/02 Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 X Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/02 Biconnical Antenna Eaton 94455-1 1057 CHAR 3/15/00 3/15/01 BiconiLog Antenna EMCO 3143 9409-1043 X Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/02 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/02 Log-Periodic Antenna Electro-Metrics LPA-30 409 CHAR 10/16/01 10/16/02 APPLICANT: RECOTON CORPORATION FCC ID: CLV-AW9T REPORT NO.: R\REC\585UT2\585UT2TestReport.doc PAGE NO.: 1 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/02 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CHAR 11/24/00 11/24/01 Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 12/19/01 12/19/02 Horn Antenna Electro-Metrics EM-6961 6246 CAL 3/21/01 3/21/02 Horn Antenna ATM 19-443-6R None No Cal Required Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/02 Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/02 Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/16/01 3/16/02 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 (5/25/00) Termaline Wattmeter Bird Electronic Corporation 6104 1926 CAL 12/12/01 12/12/02 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/02 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/03 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/02 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/02 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/02 Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/03 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/03 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/03 APPLICANT: RECOTON CORPORATION FCC ID: CLV-AW9T REPORT NO.: R\REC\585UT2\585UT2TestReport.doc PAGE NO.: 2 Multimeter Fluke FLUKE-77-3 79510405 CAL 9/26/01 9/26/02 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/02 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/03 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/03 Temp/Humidity gauge EXTech 44577F E000901 CHAR 1/22/02 1/22/03 Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/02 Power Sensor Agilent Technologies 84811A 2551A02705 CAL 1/26/01 1/26/02 Injection Probe Fischer Custom Communications F-120-9A 270 CAL 6/1/01 6/1/02 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/01 Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 11/12/99 11/12/00 Signal Generator HP 8640B 2308A21464 CAL 11/15/01 11/15/02 Modulation Analyzer HP 8901A 3435A06868 CAL 9/5/01 9/5/02 Power Line Coupling/ Decoupling Network Fischer Custom Communications FCC-801-M2- 16A 01048 CAL 8/29/01 8/29/02 Power Line Coupling/ Decoupling Network Fischer Custom Communications FCC-801-M3- 16A 01060 CAL 8/29/01 8/29/02 VHF/UHF Current Probe Fischer Custom Communications F-52 130 CAL 8/30/01 8/30/02 Passive Impedance Adapter Fischer Custom Communications FCC-801-150- 50-CDN 01117 & 01118 CAL 8/29/01 8/29/02 Radiating Field Coil Fischer Custom Communications F-1000-4- 8/9/10-L-1M 9859 CAL 10/15/98 10/15/99 APPLICANT: RECOTON CORPORATION FCC ID: CLV-AW9T REPORT NO.: R\REC\585UT2\585UT2TestReport.doc PAGE NO.: 3 Near Field Probe HP HP11940A 2650A02748 CHAR 2/1/01 2/1/02 BandReject Filter Lorch Microwave 5BR4-2400/ 60-N Z1 CHAR 3/2/01 3/2/02 BandReject Filter Lorch Microwave 6BR6-2442/ 300-N Z1 CHAR 3/2/01 3/2/02 BandReject Filter Lorch Microwave 5BR4-10525/ 900-S Z1 CHAR 3/2/01 3/2/02 High Pas Filter Microlab HA-10N CHAR 10/4/01 10/4/02 Audio Oscillator HP 653A 832-00260 CHAR 3/1/01 3/1/02 Frequency Counter HP 5382A 1620A03535 CHAR 3/2/01 3/2/02 Frequency Counter HP 5385A 3242A07460 CHAR 12/11/01 12/11/02 Preamplifier HP 8449B-H02 3008A00372 CHAR 3/4/01 3/4/02 Amplifier HP 11975A 2738A01969 CHAR 3/1/01 3/1/02 Egg Timer Unk CHAR 2/28/01 2/28/02 Measuring Tape, 20M Kraftixx 0631-20 CHAR 2/28/01 2/28/02 Measuring Tape, 7.5M Kraftixx 7.5M PROFI CHAR 2/28/01 2/28/02 EMC Immunity Test System Keytek CEMASTER 9810210 AC Power Source California Instruments 1251RP L05865 AC Power Source California Instruments PACS-1 X71484 Isotropic Field Probe Amplifier Research FP5000 22839 Isotropic Field Probe Amplifier Research FP5000 300103 APPLICANT: RECOTON CORPORATION FCC ID: CLV-AW9T REPORT NO.: R\REC\585UT2\585UT2TestReport.doc PAGE NO.…

Text truncated - open the document above for the full version.

Test Setup Photos

POWERLINE CONDUCTED TEST SET UP RADIATED TEST SET UP

Contact Information

Applicant

William McGreevy(Vice President, Engineering)
407 333-8900Fax: 407 333-8903

Test Firm

Timco Engineering, Inc.S Sanders
[email protected]888-472-2424Fax: 352-472-2030

Technical Specifications

#Rule PartsFrequency RangePower Output
115C,15C911 MHz - 915 MHz-
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Modular Approval.
