CNTPP2170SILLaptop with WLAN and Bluetooth

Hardware Guide hp compaq notebook series Document Part Number: 309971-001 April 2003 This guide explains how to identify and use notebook hardware features, including connectors for external devices. It also includes power and environmental specifications, which may be helpful when traveling with the notebook. © 2003 Hewlett-Packard Company Microsoft and Windows are trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel and SpeedStep are trademarks of Intel Corporation in the U.S. and/or other countries. SD Logo is a trademark. HP shall not be liable for technical or editorial errors or omissions contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. The information in this document is provided “as is” without warranty of any kind, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, and is subject to change without notice. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company. Hardware Guide First Edition April 2003 Document Part Number: 309971-001 Hardware Guideiii Contents 1 Notebook Features Pointing Device Components. . . . . . . . . . . . . . . . . . . . . . 1–1 Top Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3 Left Side Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5 Right Side Components . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6 Front View Components . . . . . . . . . . . . . . . . . . . . . . . . . 1–7 Rear Panel Components. . . . . . . . . . . . . . . . . . . . . . . . . . 1–8 Bottom Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10 Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–12 2 Pointing Devices and Keyboard Using a Pointing Device. . . . . . . . . . . . . . . . . . . . . . . . . . 2–1 Using the Pointing Stick . . . . . . . . . . . . . . . . . . . . . . 2–3 Using the TouchPad. . . . . . . . . . . . . . . . . . . . . . . . . . 2–3 Using an External Mouse . . . . . . . . . . . . . . . . . . . . . 2–4 Setting Pointing Device Preferences . . . . . . . . . . . . . 2–4 Using Hotkeys and Shortcut Keys . . . . . . . . . . . . . . . . . . 2–5 Fn and Function Keys . . . . . . . . . . . . . . . . . . . . . . . . 2–5 Hotkey and Shortcut Key Quick Reference . . . . . . . 2–6 Initiating Standby (Fn+F3) . . . . . . . . . . . . . . . . . . . . 2–7 Switching Display and Image (Fn+F4) . . . . . . . . . . . 2–7 Viewing Battery Charge Information (Fn+F8) . . . . . 2–8 Adjusting the Screen Brightness (Fn+F9 and Fn+F10) . . . . . . . . . . . . . . . . . . . . . . . . . 2–8 Displaying System Information (Fn+esc) . . . . . . . . . 2–8 Using Hotkeys and Shortcut Keys with External Keyboards . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9 ivHardware Guide Contents Using Quick Launch Buttons. . . . . . . . . . . . . . . . . . . . . 2–10 Keypads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–11 Using the Internal Keypad. . . . . . . . . . . . . . . . . . . . 2–11 Using an External Keypad. . . . . . . . . . . . . . . . . . . . 2–12 3 Battery Packs Inserting or Removing the Primary Battery Pack . . . . . . 3–2 Using the Optional Travel Battery. . . . . . . . . . . . . . . . . . 3–5 Inserting or Removing the Battery Pack . . . . . . . . . . 3–5 Attaching or Detaching the Travel Battery . . . . . . . . 3–7 Charging a Battery Pack. . . . . . . . . . . . . . . . . . . . . . . . . 3–10 Monitoring the Charge of a Battery Pack . . . . . . . . . . . 3–12 Displaying Charge Information on the Screen . . . . 3–13 Displaying Charge Information on a Battery Pack. . . . . . . . . . . . . . . . . . . . . . . . . . . 3–14 Managing Low-Battery Conditions . . . . . . . . . . . . . . . . 3–15 Identifying Low-Battery Conditions . . . . . . . . . . . . 3–15 Resolving Low-Battery Conditions. . . . . . . . . . . . . 3–16 Calibrating a Battery Pack . . . . . . . . . . . . . . . . . . . . . . . 3–17 When to Calibrate . . . . . . . . . . . . . . . . . . . . . . . . . . 3–18 How to Calibrate . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–18 Conserving Battery Power . . . . . . . . . . . . . . . . . . . . . . . 3–18 Conserving Power as You Work . . . . . . . . . . . . . . . 3–18 Selecting Power Conservation Settings. . . . . . . . . . 3–19 Storing a Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . 3–20 Disposing of a Used Battery Pack . . . . . . . . . . . . . . . . . 3–20 Finding More Power Information . . . . . . . . . . . . . . . . . 3–21 4Hard Drive Caring for Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1 Hard Drive Activity Light . . . . . . . . . . . . . . . . . . . . . . . . 4–2 Replacing the Primary Hard Drive. . . . . . . . . . . . . . . . . . 4–3 Contents Hardware Guidev 5Audio and Video Using Audio Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1 Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . 5–2 Using the Microphone Input Jack . . . . . . . . . . . . . . . 5–3 Using the Audio Line-Out Jack. . . . . . . . . . . . . . . . . 5–3 Using Video Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3 Connecting a Device to the S-Video Out Jack . . . . . 5–4 Changing the Video Mode. . . . . . . . . . . . . . . . . . . . . 5–5 6 Communication Devices Connecting a Modem Cable. . . . . . . . . . . . . . . . . . . . . . . 6–1 Using the RJ-11 Cable. . . . . . . . . . . . . . . . . . . . . . . . 6–2 Using a Country-Specific Adapter Cable . . . . . . . …

Text truncated - open the document above for the full version.

Regulatory and Safety Notices Document Part Number: 326134-001 April 2003 This guide provides governmental agency notices concerning wireless communication and all other governmental agency information. Instructions for preventing damage from electrostatic discharge are also included. Regulatory and Safety Noticesiii Contents 1 Regulatory and Wireless Notices Federal Communications Commission Notice. . . . . . . . . 1–1 Modifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2 Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2 Declaration of Conformity for Products Marked with the FCC Logo (United States Only) . . . . . . . . . 1–2 Canadian Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3 Avis Canadien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3 Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3 Airline Travel Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3 Power Cords Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4 Battery Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5 Energy Star Compliance . . . . . . . . . . . . . . . . . . . . . . . . . 1–5 German Ergonomics Notice. . . . . . . . . . . . . . . . . . . . . . . 1–6 Laser Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6 CDRH Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6 Laser Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7 Modem Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7 Important Safety Instructions . . . . . . . . . . . . . . . . . . 1–7 Telecommunications Device Approvals . . . . . . . . . . 1–8 U.S. Modem Statements . . . . . . . . . . . . . . . . . . . . . . 1–8 Canadian Modem Statements . . . . . . . . . . . . . . . . . 1–10 New Zealand Modem Statements . . . . . . . . . . . . . . 1–11 Wireless Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–13 European Union Notice . . . . . . . . . . . . . . . . . . . . . . . . . 1–14 Japanese Regulatory Wireless Notice . . . . . . . . . . . . . . 1–16 Brazilian Regulatory Wireless Notice . . . . . . . . . . . . . . 1–16 ivRegulatory and Safety Notices Contents 2 Electrostatic Discharge Preventing Electrostatic Discharge . . . . . . . . . . . . . . . . . 2–1 Handling Drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1 Handling Internal Components . . . . . . . . . . . . . . . . . 2–1 Grounding Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2 Regulatory and Safety Notices1–1 1 Regulatory and Wireless Notices This chapter provides all country-specific regulatory notices and compliance information for your notebook including wireless notices. Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio or television technician for help. 1–2Regulatory and Safety Notices Regulatory and Wireless Notices Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hewlett-Packard may void the user’s authority to operate the equipment. Cables Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations. Declaration of Conformity for Products Marked with the FCC Logo (United States Only) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. If you have questions about your product that are not related to this declaration, refer to the printed Worldwide Telephone Numbers booklet included with your product for customer support information. Or write to: Hewlett-Packard Company P. O. Box 692000, Mail Stop 530113 Houston, TX 77269-2000 Regulatory and Wireless Notices Regulatory and Safety Notices1–3 For questions regarding this FCC declaration, write to: Hewlett-Packard Company P. O. Box 692000, Mail Stop 510101 Houston, TX 77269-2000 Or call HP at 281-514-3333. To identify your product, refer to the part, series, or model number found on the product. Canadian Notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Avis Canadien Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Japanese Notice Airline Travel Notice Use of electronic equipment aboard commercial aircraft is at the discretion of the airline. 1–4Regulatory and Safety Notices Regulatory and Wireless Notices Power Cords Notice If you were not provided with a power cord for your notebook or for an external power accessory intended for use with your notebook, you sho…

Text truncated - open the document above for the full version.

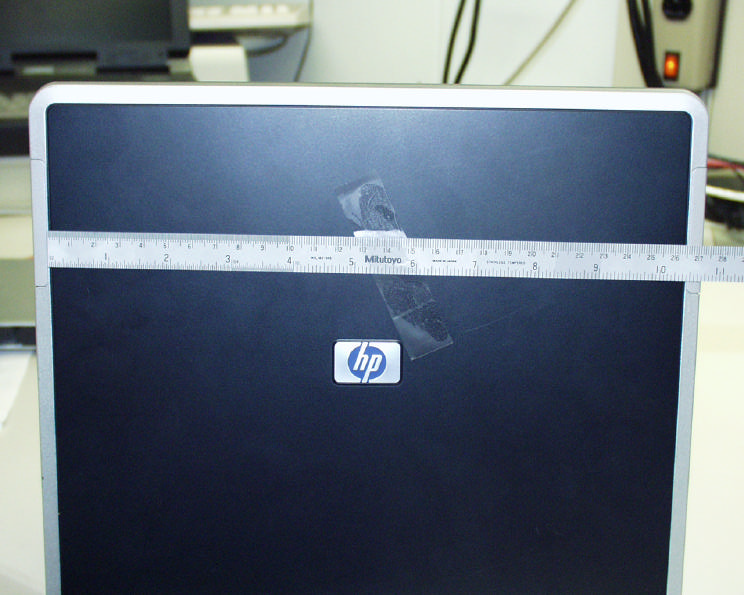

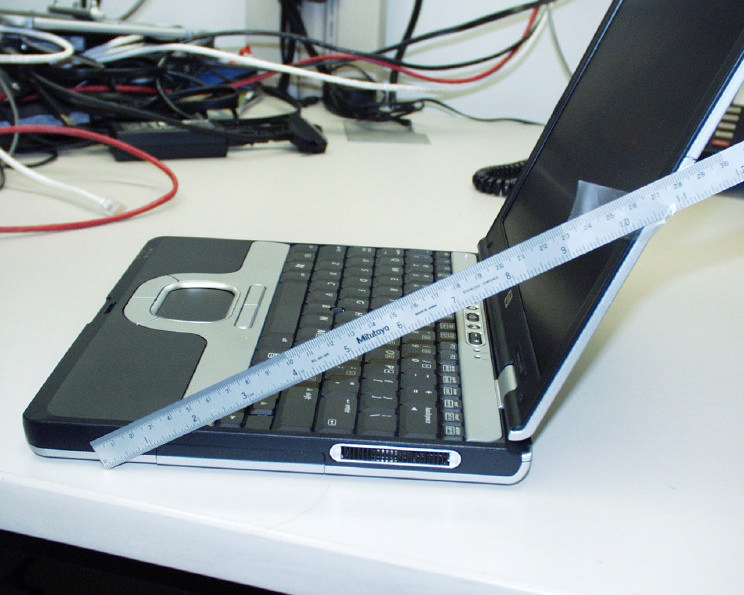

114 OLINDA DRIVE • •• • BREA, CALIFORNIA 92823 • •• • (714) 579-0500 • •• • FAX (714) 579-1850 April 9, 2004 RE: Hewlett Packard Company FCC ID: CNTPP2170SIL 1) It appears that the antennas for the bluetooth and 802.11 devices may be < 20 cm and therefore considered as co-located. However, the RF exposure information does not appear to address this issue. Please explain/correct the exhibits as necessary. Additionally, please provide information to show the distance of the antenna relative to the other antennas. Response: Per the BT test report for the FCC-ID: LNQBTM200, the antenna gain is 1 dBi, the power output is 2.50 dBm (worst case). Therefore, the calculated maximum EIRP is 2.50 dBm + 1 dBi = 3.33 dBm = 2.44 mW. Since the calculated maximum EIRP is below 5 mW, there is no co-location in this system, this was stated on previous submissions by Bill Graff. 2) Please explain the gain column shown in the power measurements. Additionally, it is uncertain how this factors into the formula for determining power. Note that the power methodology given states the device was directly connected to a power meter. Response: The gain column is only the level (setting) used to obtain the correct power level. Intel will set the gain given in the test report. The gain was set using the CRTU II tool, which is special software to control the gain (power output), rate and channels for EMI/EMC purposes. The gain does NOT factor into the formula for determining power. Note: The other questions have been answered by Aprel Labs and will be uploaded in a separate exhibit.

51 Spectrum Way Tel (613) 820-2730 Email: [email protected] Nepean, Ontario Fax (613) 820-4161 HTTP://www.aprel.com Canada K2R 1E6 8 th April 2004 Mr. Luis Olvera Intel Corporation San Diego CA Re: FCC ID CNTPP2170SIL Applicant: Compaq Computer Corporation Correspondence Reference Number: 25636 731 Confirmation Number: EA459937 Dear Mr. Olvera, Here are the responses to the questions set by ATCB. Question 1. It does not appear that all SAR plots were provided for the tabular results shown. Additionally, it appears that some SAR plots provided do not appear in the tabular results. Also, the maximum SAR plot from each device positioning does not appear to be provided. Please explain/correct as necessary. The graphs displayed on pages 41, 45, and 49 relate to position where the conservative SAR for the 802.11g mode was found for the respective low, mid and high channels. The table on page 20 does not include all the measured values, and only provides the conservative SAR value. In future all data will be displayed. Question 2. The SAR test report states the duty cycle was 93%, yet a crest factor of 1 appears throughout the testing. Please explain and justify the use of crest factor of 1. The crest factor used has yielded a more conservative SAR value than one which reflects the 93% crest factor value. As the crest factor is a devisor the SAR value would be reduced by a factor of less than 1% and as such APREL did not compensate for this. The values recorded are more conservative, and as such would not exceed the limits for FCC compliance. Question 3. The SAR test report does not appear to contain: a) Descriptions of extrapolation procedures used to estimate SAR values adjacent to phantom surface (unreachable due to probe case and boundary effects) The extrapolation routine used for surface calculations utilizes a fourth order polynomial routine. This will be included in future reports. b) Descriptions of within-cube interpolation procedures to get 1 mm or 2 mm SAR grid This is explained from sections 3.3 through 3.5, and is in line with IEEE 1528 methodologies. 51 Spectrum Way Tel (613) 820-2730 Email: [email protected] Nepean, Ontario Fax (613) 820-4161 HTTP://www.aprel.com Canada K2R 1E6 c) Description of averaging (integration) procedures to get 1-g SAR from final interpolated grid Please provide this information. This is covered in sections 3.3 through 3.5, with the final averaging method being reproduced in section 3.5 where the algorithm used for complex surface calculations is provided. Question 4. The FCC expects consistency in liquid parameters in calibration, system verification, and device testing. The conductivity given from the calibration of the probe at 2450 MHz for its calibration factors is not within 5% of the value within tissue conductivity used for testing. The FCC requires conductivity to be within consistent within 5%, but this appears to be about 10%. Please provide testing or calibration information that meets this requirement. The SAR tests were executed using tissue calibrated and manufactured to the guidelines presented in Supplement C (page 36). This method shows that the target values for both epsilon and sigma are within the FCC guidelines. Probe calibrations have been executed using the preferred dielectric target values as detailed on page 35 of FCC Supplement C and are within the 5% allowable tolerance. As a delta of 10% is documented in Supplement C for values relating to sigma when comparing page 35 against page 36, APREL Laboratories utilize a method which will yield more conservative SAR during probe calibrations, as this would allow an uncertainty of less than 5% either way. It is not necessary to retest as the delta between sigma values as presented in Supplement C is less than 10% and as such with this added to the conservative SAR value for the DUT, it is still well within the FCC limits. It should be pointed out that this issue must be addressed by the FCC so as to avoid confusion in the future. I trust that the above information should be enough for the ATCB to proceed. If you have any further questions please let me know. Regards, Stuart Nicol Director Product Development, Dosimetric R&D.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 ` April 6, 2004 RE: Compaq Computer Corporation FCC ID: CNTPP2170SIL After a review of the submitted information, I have a few comments on the above referenced Application. General 1) It appears that the antennas for the bluetooth and 802.11 devices may be < 20 cm and therefore considered as co-located. However, the RF exposure information does not appear to address this issue. Please explain/correct the exhibits as necessary. Additionally, please provide information to show the distance of the antenna relative to the other antennas. 2) Please explain the gain column shown in the power measurements. Additionally, it is uncertain how this factors into the formula for determining power. Note that the power methodology given states the device was directly connected to a power meter. 3) It does not appear that all SAR plots were provided for the tabular results shown. Additionally, it appears that some SAR plots provided do not appear in the tabular results. Also, the maximum SAR plot from each device positioning does not appear to be provided. Please explain/correct as necessary. 4) The SAR test report states the duty cycle was 93%, yet a crest factor of 1 appears throughout the testing. Please explain and justify the use of crest factor of 1. 5) The SAR test report does not appear to contain: a) descriptions of extrapolation procedures used to estimate SAR values adjacent to phantom surface (unreachable due to probe case and boundary effects) b) descriptions of within-cube interpolation procedures to get 1 mm or 2 mm SAR grid c) description of averaging (integration) procedures to get 1-g SAR from final interpolated grid Please provide this information. 6) The FCC expects consistency in liquid parameters in calibration, system verification, and device testing. The conductivity given from the calibration of the probe at 2450 MHz for its calibration factors is not within 5% of the value within tissue conductivity used for testing. The FCC requires conductivity to be within consistent within 5%, but this appears to be about 10%. Please provide testing or calibration information that meets this requirement. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

114 OLINDA DRIVE • •• • BREA, CALIFORNIA 92823 • •• • (714) 579-0500 • •• • FAX (714) 579-1850 March 30, 2004 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Request for withholding from public disclosure of Hewlett-Packard Company documents held as IP. Gentlemen: As appointed agent for the Hewlett Packard Company, 20555 SH 249, Houston, Texas 77070, we would like to request that the Block Diagrams, Schematics, and Theory of Operation submitted with the application for certification be withheld from public disclosure as per Section 0.459 of the FCC Rules. This request is made under the provisions of Section 0.457 (d) of the FCC Rules and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize a withholding from public inspection materials, which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to public by that person. If you have any questions, please do not hesitate to contact us at (714) 579-0500. Sincerely, Kyle Fujimoto Test Engineer

MoW RoW R-LARN-04-0043 CE mark applicable only with Intel authorized antenna solutions 0336 Contains Intel WLAN radio model WM3B2200BG FCC ID: CNTPP2170SIL IC: 466Q-WM3B2200 365905-001 E E 92LP0888 R-LARN-04-0043 CE mark applicable only with Intel authorized antenna solutions 0336 Contains Intel WLAN radio model WM3B2200BG 365905-002

Document Number:03052101 Rev: 0A Regulatory Antenna Information 1/9 Sapphire Regulatory Antenna Information Description : Triple-band Antenna(Main+Aux) Inventec Crop. P/N: 6036A0004601 6036A0004701 Wistron NeWeb P/N: 81.CA813.001 81.CA813.002 Wistron NeWeb Corporation No. 10-1,Li-hsin Road I, Science-base Industrial Park, Hsinchu 300,Taiwan, R.O.C. Tel: 886-3-6667799 Fax: 886-3-6667711 Provided by Wistron NeWeb Corp. Reviewed by Wistron NeWeb Corp. David Tau Eric Fang Document Number:03052101 Rev: 0A Regulatory Antenna Information 2/9 Antenna Information I. Antenna Assembly Specifications Antenna assembly overview: Peak Gain. Designator Manufacture Antenna type Cable Assembly Info. Peak Gain W/ Cable loss (dBi) 2400-2500MHz -0.65 dBi (peak) 5150-5350MHz 3.79 dBi (peak) (P/N: 6036A0004601) Main antenna WNC PIFA (P/N:WN-S-1.13B-36 0MM(2-4-1)) 50 ohm Coaxial. length: 360mm diameter: 1.13mm Connector: IPEX 20278-111R-08 5470-5825MHz 1.90 dBi (peak) 2400-2500MHz 0.35 dBi (peak) 5150-5350MHz 2.69 dBi (peak) (P/N: 6036A0004701) Auxiliary antenna WNC PIFA (P/N: WN-S-1.13W-475MM( 2-4-1)) 50 ohm Coaxial. length: 475mm diameter: 1.13mm Connector: IPEX 20278-111R-08 5470-5825MHz 2.91 dBi (peak) Antenna overview: Peak Gain not including cable loss. Antenna Designator Manufacture Antenna type Peak Gain w/o Cable Loss (dBi) 2400-2500MHz 0.75dBi (peak) 5150-5350MHz 5.89dBi (peak) (P/N: 6036A0004601) Main antenna WNC PIFA 5470-5825MHz 4.07dBi (peak) 2400-2500MHz 2.11dBi (peak) 5150-5350MHz 5.33dBi (peak) (P/N: 6036A0004701) Auxiliary antenna WNC PIFA 5470-5825MHz 5.62dBi (peak) Document Number:03052101 Rev: 0A Regulatory Antenna Information 3/9 Cable assembly overview: Cable loss (including connector). Designator Manufacture Cable type and length VSWR Cable Loss (dB) 2400-2500MHz 1.49 max 2400-2500MHz 1.40 dB (peak) 5150-5350MHz 2.17 max 5150-5350MHz 2.10 dB (peak) (P/N:WN-S-1.13B-3 60MM(2-4-1)) For use with the Main antenna IPEX (P/N:WN-S-1.13B-3 60MM(2-4-1)) 50 ohm Coaxial. length: 360mm diameter: 1.13mm Connector: IPEX 20278-111R-08 5470-5825MHz 2.07 max 5470-5825MHz 2.17 dB (peak) 2400-2500MHz 1.48 max 2400-2500MHz 1.76dB (peak) 5150-5350MHz 1.66 max 5150-5350MHz 2.64 dB (peak) (P/N: WN-S-1.13W-475M M(2-4-1)) For use with the Auxiliary antenna IPEX (P/N: WN-S-1.13W-475M M(2-4-1)) 50 ohm Coaxial. length: 475mm diameter: 1.13mm Connector: IPEX 20278-111R-08 5470-5825MHz 2.05 max 5470-5825MHz 2.71 dB (peak) Drawing of antennae as follow. Document Number:03052101 Rev: 0A Regulatory Antenna Information 4/9 Radiation characteristic of antennae Loaded (In Host System) I. Peak Gain and Average Gain 2G4 ISM (2.400 GHz - 2.4835 GHz)U-NII (5.150 GHz - 5.350 GHz) HyperLAN (5.470 GHz - 5.825 GHz) Antenna Gain 2.40 GHz 2.45 GHz 2.50GHz5.15 GHz5.25 GHz5.35 GHz5.47 GHz 5.6475 GHz5.825 GHz Peak dBi -1.40 -0.65 -0.77 3.30 3.59 3.79 1.07 1.82 1.90 MAIN Avg dBi -3.69 -2.95 -2.78 -0.78 -0.23 -0.44 -1.66 -0.86 -1.55 Peak dBi -0.77 0.35 0.20 2.62 2.69 2.25 2.32 2.33 2.91 AUX Avg dBi -3.49 -2.65 -2.33 -1.04 -0.90 -1.36 -1.48 -0.92 -0.76 * Average Gain = 10log{Average [SQRT(V power 2 +H power 2 )]}-Isotropic Gain **Peak Gain = 10log{Max [SQRT(V power 2 +H power 2 )]}-Isotropic Gain Average[ ] mean is sum all direction(200 point) and divide by 200 Max[ ] mean is chose maximum one on all direction(200 point ) II Radiation Pattern Main antenna [email protected] GHz Document Number:03052101 Rev: 0A Regulatory Antenna Information 5/9 Main antenna [email protected] Main antenna [email protected] Document Number:03052101 Rev: 0A Regulatory Antenna Information 6/9 AUX. Antenna [email protected] AUX. Antenna [email protected] Document Number:03052101 Rev: 0A Regulatory Antenna Information 7/9 AUX. Antenna [email protected] Document Number:03052101 Rev: 0A Regulatory Antenna Information 8/9 Host PC Information Host model:Sapphire Drawing of antenna placement. Drawing showing the distance between the transmit (main) antenna and the user (excluding hands, wrist, feet, and ankle) AUX antenna Main antenna Main Ant. Around 23.5 c m Document Number:03052101 Rev: 0A Regulatory Antenna Information 9/9 Photographs of the antenna location Main Antenna Aux Antenna AUX ANT. Main ANT. Sapphire LCD

Consulting ● Research ● Certification Testing ● SAR Tools and Training ● Since 1981 51 Spectrum Way Nepean, Ontario Canada K2R 1E6 © 2004 APREL Laboratories Tel: (613) 820-2730 Fax: (613) 820-4161 [email protected] www.aprel.com This report shall not be reproduced, except in full, without written approval of APREL Laboratories Project number: ITLB-Dell-5008 FCC ID: ID:CNTPP3006 AL-065 Page 23 of 64 Appendix A SAR Plots Consulting ● Research ● Certification Testing ● SAR Tools and Training ● Since 1981 51 Spectrum Way Nepean, Ontario Canada K2R 1E6 © 2004 APREL Laboratories Tel: (613) 820-2730 Fax: (613) 820-4161 [email protected] www.aprel.com This report shall not be reproduced, except in full, without written approval of APREL Laboratories Project number: ITLB-Dell-5008 FCC ID: ID:CNTPP3006 AL-065 Page 24 of 64 SAR Test Report Operator : Y. Chen Validation Date : 15-Mar-2004 Measurement Date : 15-Mar-2004 Starting Time : 15-Mar-2004 03:59:46 PM End Time : 15-Mar-2004 04:04:44 PM Scanning Time : 298 secs Product Data Device Name : HP Sapphire Serial No. : J311500PV033 Type : Other Model : Sapphire Frequency : 2412.00 MHz Max. Transmit Pwr : 0.05 W Drift Time : 0 min(s) Length : 200 Width : 180 Depth : 10 Antenna Type : Internal Power Drift-Start : 0.48 Power Drift-Finish: 0.42 Power Drift : 0.06 Phantom Data Name : APREL-Uni Type : Uni-Phantom Size : 280 x 280 x 200 Serial No. : Stuart Location : Center Description : Uni1 Tissue Data Type : Body Serial No. : Valiation Frequency : 2450 MHz Calibration Date : 15-Mar-2004 Temperature : 24 °C Ambient Temp. : 24 °C Humidity : 50 RH% Epsilon : 50 F/m Sigma : 1.79 S/m Density : 1000 kg/cu. m Probe Data Name : Probe-212 Model : E020 Type : E-Field Triangle Serial No. : 212 Calibration Date : 05-Mar-2004 Frequency : 2450 MHz Duty Cycle Factor: 1 Conversion Factor: 1.7 Probe Sensitivity: 0.78 0.78 0.75 μV/(V/sq. m) Compression Point: 93 Offset : 1.56 Consulting ● Research ● Certification Testing ● SAR Tools and Training ● Since 1981 51 Spectrum Way Nepean, Ontario Canada K2R 1E6 © 2004 APREL Laboratories Tel: (613) 820-2730 Fax: (613) 820-4161 [email protected] www.aprel.com This report shall not be reproduced, except in full, without written approval of APREL Laboratories Project number: ITLB-Dell-5008 FCC ID: ID:CNTPP3006 AL-065 Page 25 of 64 Measuarement Data Crest Factor : 1 Scan Type : Complete Set-up Date : 15-Mar-2004 Set-up Time : 3:59:32 PM Other Data DUT Position : Touch Separation : 0 Channel : Low - 2412 1 gram SAR value : 0.90.05 W/kg Area Scan Peak SAR : 1.19 Zoom Scan Peak SAR : 2.53 Consulting ● Research ● Certification Testing ● SAR Tools and Training ● Since 1981 51 Spectrum Way Nepean, Ontario Canada K2R 1E6 © 2004 APREL Laboratories Tel: (613) 820-2730 Fax: (613) 820-4161 [email protected] www.aprel.com This report shall not be reproduced, except in full, without written approval of APREL Laboratories Project number: ITLB-Dell-5008 FCC ID: ID:CNTPP3006 AL-065 Page 26 of 64 Exposure Assessment Measurement Uncertainty Source of Uncertainty Toleranc e Value Probability Distributio n Diviso r c i 1 (1- g) c i 1 (10- g) Standard Uncertaint y (1-g) Standard Uncertaint y (10-g) Measurement System Probe Calibration 3.5 normal 1 1 1 3.5 3.5 Axial Isotropy 3.7 rectangular √3 (1- cp) 1/ 2 (1- cp) 1/ 2 1.5 1.5 Hemisherical Isotropy 10.9 rectangular √3 √cp √cp 4.4 4.4 Boundary Effect 1.0 rectangular √3 1 1 0.6 0.6 Linearity 4.7 rectangular √3 1 1 2.7 2.7 Detection Limit 1.0 rectangular √3 1 1 0.6 0.6 Readout Electronics 1.0 normal 1 1 1 1.0 1.0 Response Time 0.8 rectangular √3…
