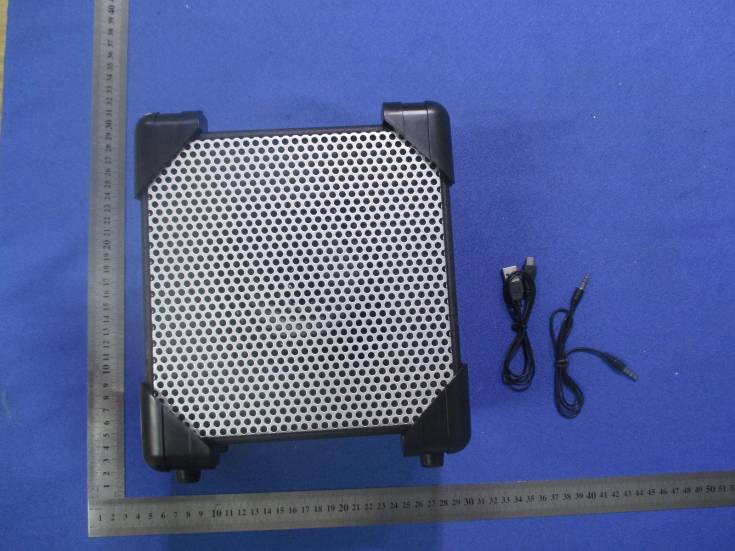

1 Bluetooth Boombox Speaker INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE 2 Getting started • Remove the Bluetooth Boombox Speaker & accessories from the box. • Remove all packaging from the Bluetooth Speaker. • Place the packaging inside the box to either store or dispose of safely. In the Box • Bluetooth Boombox Speaker • AUX Cable • USB Charging Cable • Instruction Manual Features • Enjoy music wirelessly. • Easy to switch between calls and music, you will not miss the incoming call whilst listening to music. • Answer & end a call at click of a button. • Every time the speaker is turned on, it connects to last connected device automatically. Safety Instructions Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids. Do not operate the unit if it has been exposed to water, moisture or any other liquids to prevent against electric shock, explosion and/or injury to yourself and damage to the unit. Do not use the unit if it has been dropped or damaged in any way. Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place the user at serious risk. Do not use the unit with wet hands. Do not put objects into any of the openings. Keep the unit free from dust, lint etc. Do not use this unit for anything other than its intended use. Keep the unit out of reach of children. This product is not a toy. 3 Description of Parts 1 Speaker 2 Play / Pause 3 Previous Track / Volume - 4 Next Track / Volume + 5 LED indicator 6 Call Answer Button 7 AUX-IN 8 Mini USB Charging Port (DC 5V) 9 Power On / Off 4 INSTRUCTIONS FOR USE Charging Instructions The speaker comes with a built in rechargeable battery. Before using it for the first time we recommend you charge the battery fully. Connect the USB cable to a computer USB port and the Mini USB plug to the charging port of the speaker. The Red LED illuminates while the speaker is being charged. It takes around 3 hours for the unit to fully charge. When the battery is fully charged the red LED will turn off. When the battery is low, an indication tone (only at Bluetooth paired mode) will alert you. When this occurs, please charge the speaker. Turning on/off the speaker There is an on/off switch at the back of the speaker. You can turn on/off the speaker with this switch. In order to save power, put the switch to off position when the speaker is not in use. Pairing the speaker with Bluetooth devices (phone or music device) Switch on the speaker. Place the speaker and Bluetooth device (phone or music device) so that they are no further than 1 meter apart. Activate the Bluetooth function on your Bluetooth device (phone or music device). Please refer to the manufacturer’s instructions for instructions on enabling Bluetooth on your device. Once you have activated Bluetooth on your device, select the speaker “SL BBX-4/6079” from the list of available Bluetooth devices. If required, enter the password ‘0000’ to confirm & finalize pairing. Once paired successfully, the blue LED flashes every two seconds. You can now start to use the speaker. If pairing is unsuccessful, turn off the speaker first and then re-pair following the above steps. Once you have paired the speaker with a device, the speaker will remember this device and will pair automatically when the device’s Bluetooth is activated and in range. You do not need to re-pair any previously connected devices. The speaker will attempt to automatically connect to the last device it was paired with when switched on. If you want to pair it with a new device please follow the steps outlined above. Once the speaker is paired with your device the music will transmit directly to the speaker. Please refer to your device’s user manual for further information. 5 Function Summary Listening to Music Once the speakers are paired with your device you can stream music wirelessly through the speaker. Select the track you wish to listen to and it will be streamed to your Bluetooth speaker. Should you encounter any problems while streaming please refer your device’s user manual for further information. Function Operation Button Increase Volume Playing music Long press the Next Track / Volume + button will increase the volume Decrease Volume Playing music Long press the Previous Track / Volume - button will decrease the volume Pause Playing music A short press on the Play / Pause button will pause the music Play Pausing A short press on the Play / Pause button will resume the music Next Track While playing music Short press the Next Track / Volume + button and it would move one track forward Previous Track While playing music Short press the Previous Track / Volume - button and it would move one track backward An indication tone will alert you when the volume is adjusted to the minimum or maximum level. Answering a call with the speaker Basic operation Function Operation Button Answer A Call Incoming Call Short press the Call Answer Button to answer an incoming call Reject a call Incoming Call Press and hold the Call Answer Button End a call Incoming Call After your phone conversation, short press the Call Answer Button. Increase Volume During a call Long press the Next Track / Volume + button will increase the volume Decrease Volume During a call Long press the Previous Track / Volume - button will decrease the volume Redial last number Standby mode and connected to a device Short press the Call Answer Button twice 6 Please Note • Not all mobile phones support all the functions listed above. Please refer to your cell phone’s user’s manual for further information. • Certain functions and indication tones maybe vary depending on your mobile phone. • When the volume is adjusted to min or max, you will hear an indication tone. Play music using “AUX-IN” Jack 1. Turn ON the device. 2. Insert the 3.5 mm Aux cable (provided) to the AUX-IN of the speaker. And, the other end of the cable connects to the audio device (…

Text truncated - open the document above for the full version.

SHENZHEN AOB ELECTRONICS CO., LTD. Bldg. A4, Third Industry Area, Huang Ma Bu Village, Xixiang Town, Bao An District, Shenzhen, China DATE 07-23-2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: COMES-13019BT Product Name: Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 07-23-2014 By: Steven Shen Signature Printed Title: General Manager On behalf of : SHENZHEN AOB ELECTRONICS CO., LTD. Telephone: +86-755-27694476

SHENZHEN AOB ELECTRONICS CO., LTD. Bldg. A4, Third Industry Area, Huang Ma Bu Village, Xixiang Town, Bao An District, Shenzhen 518126, ChinaTEL: +86-755-27694476 FAX: +86-755-27694592 Series Models Description FCC ID: COMES-13019BT Date: July 23, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: To whom concern: The device (Product Name: Bluetooth Speaker) Models Name: Model: ES-13019BT, ES-13018BT have same electrical, PCB and BOM, only the model’ s name and color are different for marketing requirements. Sincerely, Steven Shen /General Manager

SHENZHEN AOB ELECTRONICS CO., LTD. Bldg. A4, Third Industry Area, Huang Ma Bu Village, Xixiang Town, Bao An District, Shenzhen 518126, China TEL: +86-755-27694476 FAX: +86-755-27694592 USB Port Statement FCC ID: COMES-13019BT Date: July 23, 2014 To whom it may concern: We, the undersigned, state that the device's (Model: ES-13019BT, ES-13018BT) USB port only used for charge, no any data transfer to PC. Sincerely, Steven Shen / General Manager

FCC ID Label Information 1. Label location: 2. FCC ID Label: SHENZHEN AOB ELECTRONICS CO., LTD. Bluetooth speaker Model: ES-13019BT FCC ID: COMES-13019BT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 73.05 dBuV/m @3m Ant gain 0dBi ;so Ant numeric gain=1 So pt={ [10 (73.05 /20) /10 6 x3] 2 /30x1 }x1000 mW = 0.006mW So ( 0.006mW/5mm)x √2.480GHz = 0.002 <3 Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.249 Report Reference No. ..................... : CTL1407111589-WF Compiled by ( position+printed name+signature) .. : File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature) .. : Test Engineer Tracy Qi Approved by ( position+printed name+signature) .. : Manager Tracy Qi Date of issue ..................................... : July 23, 2014 Test Firm.......................................... : Shenzhen CTL Testing Technology Co., Ltd. Address............................................. : Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name ............................ : SHENZHEN AOB ELECTRONICS CO., LTD. Address............................................. : Bldg. A4, Third Industry Area, Huang Ma Bu Village, Xixiang Town, Bao An District, Shenzhen 518126, China Test specification: Standard ........................................... : FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator .................................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF ....................................... : Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Bluetooth Speaker Trade Mark ....................................... : N/A Models/Type reference ..................... : ES-13019BT, ES-13018BT Modulation ....................................... : FHSS Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal FCC ID ............................................. : COMES-13019BT Result ................................................ : Positive V1.0 Page 2 of 33 Report No.: CTL1407111589-WF T E S T R E P O R T Test Report No. : CTL1407111589-WF July 23, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Bluetooth Speaker Model /Type : ES-13019BT Listed Modes : ES-13018BT Difference Description : Only the color and model's name is different. Applicant : SHENZHEN AOB ELECTRONICS CO., LTD. Address : Bldg. A4, Third Industry Area, Huang Ma Bu Village, Xixiang Town, Bao An District, Shenzhen 518126, China Manufacturer SHENZHEN AOB ELECTRONICS CO., LTD. Address Bldg. A4, Third Industry Area, Huang Ma Bu Village, Xixiang Town, Bao An District, Shenzhen 518126, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 33 Report No.: CTL1407111589-WF Contents 1. T E S T S T A N D A R D S ................................................................. 4 2. S U M M A R Y ............................................................................ 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 6 2.5. EUT configuration 6 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 3. TES T E N V I R O N M E N T .............................................................. 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 9 4. T E S T C O N DI T I O N S A N D R E S U L T S ........................................... 10 4.1. Conducted Emissions Test 10 4.2. Radiated Emission Test 13 4.3. Band Edge Measurement 18 4.4. Occupied Bandwidth Measurement 22 5. A N T E N N A R E Q U I R E M E N T ...................................................... 24 6. T E S T S E T U P P H O T O S O F T H E E U T ......................................... 25 7. E X T E R N A L A N D I N T E R N AL P H O T O S O F T H E E U T ...................... 28 V1.0 Page 4 of 33 Report No.: CTL1407111589-WF 1. T E S T S T A N DA R D S The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 33 Report No.: CTL1407111589-WF 2. S U M M A R Y 2.1. General Remarks Date of receipt of test sample : July 13, 2014 Testing commenced on : July 13, 2014 Testing concluded on : July 23, 2014 2.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ● Other (specified in blank below) DC 3.7V from battery 2.3. Short description of the Equipment under Test (EUT) The EUT is a Bluetooth Speaker work at 2402~2480 MHz. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 2475 20 2422 47 2449 74 2476 21 2423 48 2450 75 2477 22 2424 49 2451 76 2478 23 2425 50 2…
