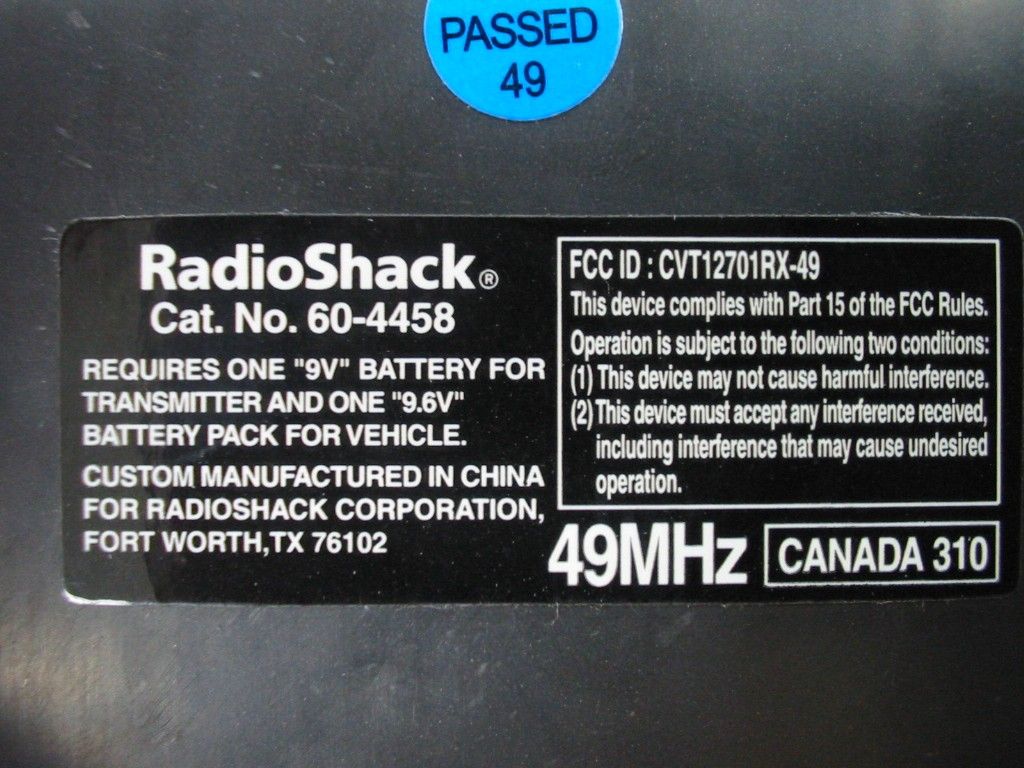

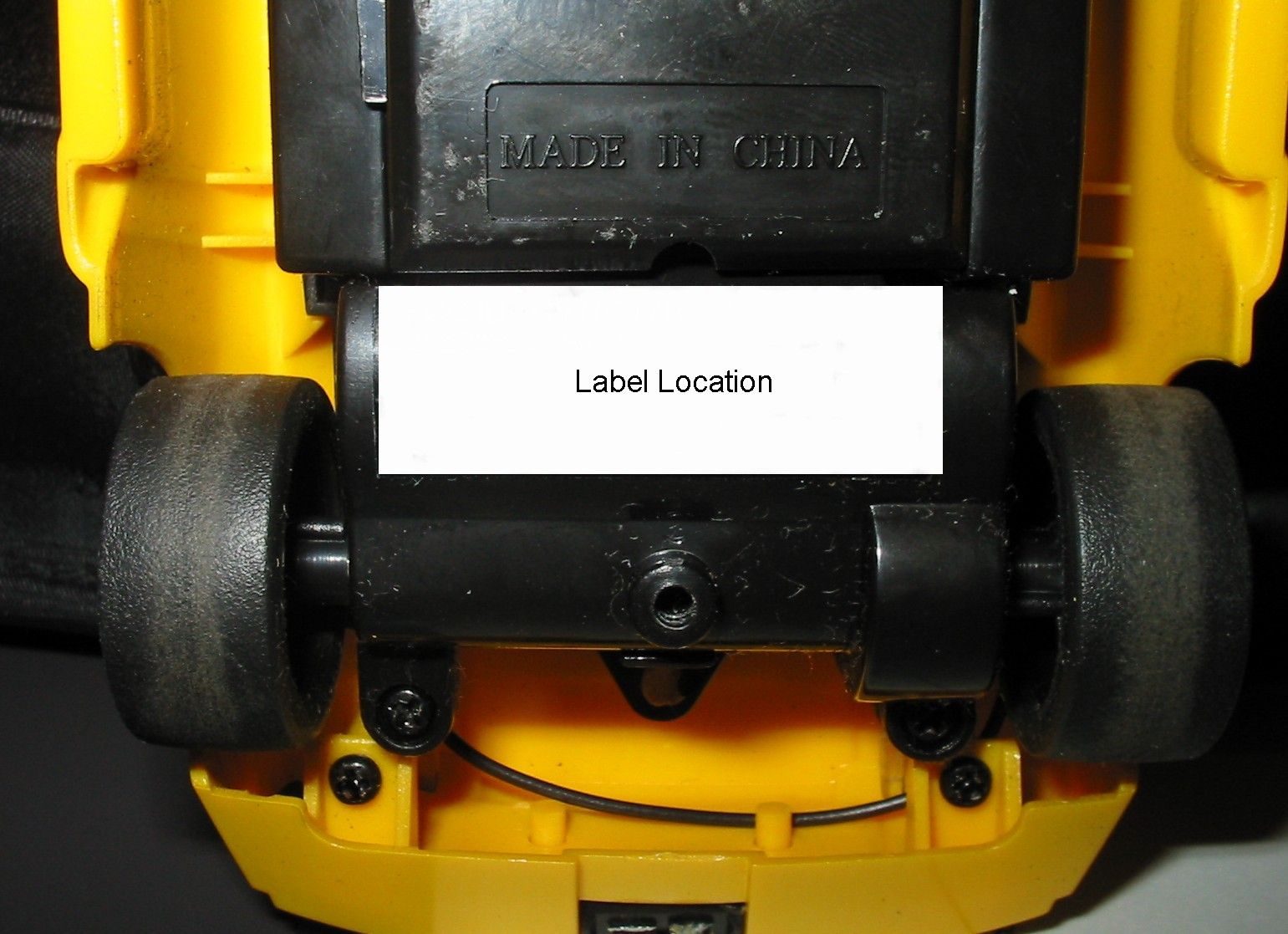

CVT12701RX-49Aston Martin DBS

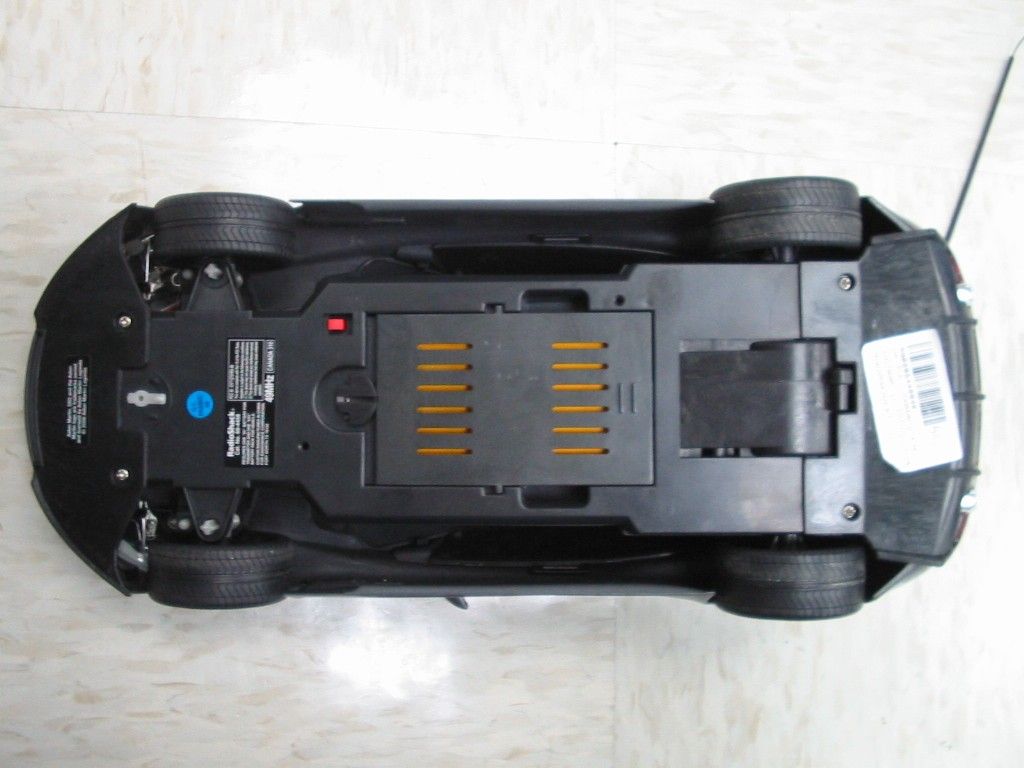

Please read this user’s guide before installing, setting up and using your new car www.radioshack.com 60-4458 James Bond Aston Martin DBS 1:12 Scale RC Car James Bond Aston Martin DBS Transmitter Transmitter Antenna User’s guide Vehicle Antenna Tube what’s included In your transmitter Your transmitter requires one 9V alkaline battery (not supplied). Replace the battery when your transmitter’s control range decreases. 1. Open the battery cover and insert the battery as marked (+ and -). 2. Replace the cover. In your vehicle Your vehicle requires one 9.6V rechargeable battery pack (not supplied). 1. Set ON/OFF on the vehicle under the body on the driver’s side to OFF. 2. Use a coin to turn the battery compartment latch to OPEN. 3. Slide the battery compartment cover in the direction of the arrow and lift to open it. 4. Attach the vehicle’s connector to battery pack. Do not force them; they fit together only one way. 5. Place the battery pack in the battery compartment. The battery pack’s connector must be on the same side as the car’s matching connector. 6. Close the lid and snap it shut. installing your batteries • Do not use your vehicle near devices with transmitters using the same frequency (27 or 49 MHz). • If someone uses a CB nearby, it might interfere with the control of your vehicle. If this happens, move the vehicle away from the CB. • Never play with the vehicle in the street. • Be careful when you use the vehicle to avoid high-impact collisions with people and objects. • If your vehicle does not respond, drives slowly, or the range reduces, recharge the batteries in the vehicle. safety information Note: Actual product may vary from the images found in this document. Thank you for purchasing your James Bond Aston Martin DBS 1:12 Scale RC Car from RadioShack. Your vehicle comes in two frequencies (27MHz and 49MHz), so you and your friends can drive your car. 60-4458_UG_en.indd 108/22/2006 16:48:24 ©2006. RadioShack Corporation. All rights reserved. RadioShack and RadioShack.com are trademarks used by RadioShack Corporation. 60-4458 07A06 printed in China This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from RadioShack company- owned stores and authorized RadioShack franchisees and dealers. For complete warranty details and exclusions, check with your local RadioShack store. RadioShack Customer Relations 300 RadioShack Circle, Fort Worth, TX 76102 04/04 limited 90-day warranty This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radi- ate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particu- lar installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your Vehicle. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to oper- ate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Field Strength.........................................27.145MHz: 67.9 dBμV/m at 3m .................................................................49.86MHz: 65.6 dBμV/m at 3m Only use the antenna supplied with this product. This radiocommunication device complies with all the requirements of Industry Canada Standard RSS-310. This Class B digital apparatus complies with Canadian ICES-003. RF emission informations 1. Slide ON/OFF on the vehicle to ON. 2. Use the transmitter’s controls to steer your vehicle in the directions shown below. 3. Slide ON/OFF on the vehicle to OFF when you finish driving. Wheel alignment If the vehicle does not drive in a straight line when you release the right stick, adjust WHEEL ALIGNMENT (located between the front wheels, underneath the vehicle). Push to L if the vehicle is pulling to the right or to R if the vehicle is pulling to the left. driving your vehicle • Dispose of old batteries promptly and properly. Do not burn or bury batteries. • Use only fresh batteries of the required size and recommended type. • Do not leave dead or weak batteries in your transmitter or vehicle. If you do not plan to use your RC vehicle for a few weeks, remove the batteries from your transmitter and vehicle. Batteries can leak chemicals that may damage electronic parts. • Do not charge or recharge your battery pack when it is in the vehicle. • Do not overcharge your battery pack. • Do not recharge your battery pack immediately after use. Allow it to cool first. • Make sure your battery pack is securely fastened to your vehicle before playing. battery notes • Handle your vehicle and transmitter carefully. Do not drop them. • Used and store them only in normal temperature environments. • Keep the vehicle and transmitter away from dust and dirt, and wipe them with a damp cloth occasionally to keep them looking ne…

Text truncated - open the document above for the full version.

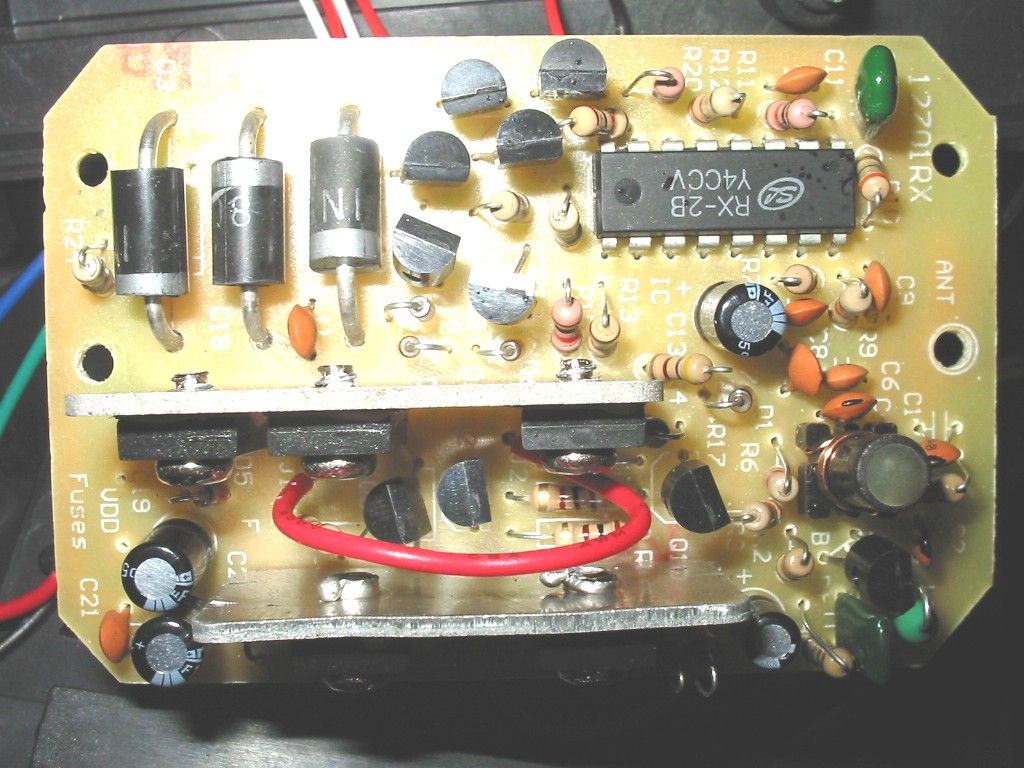

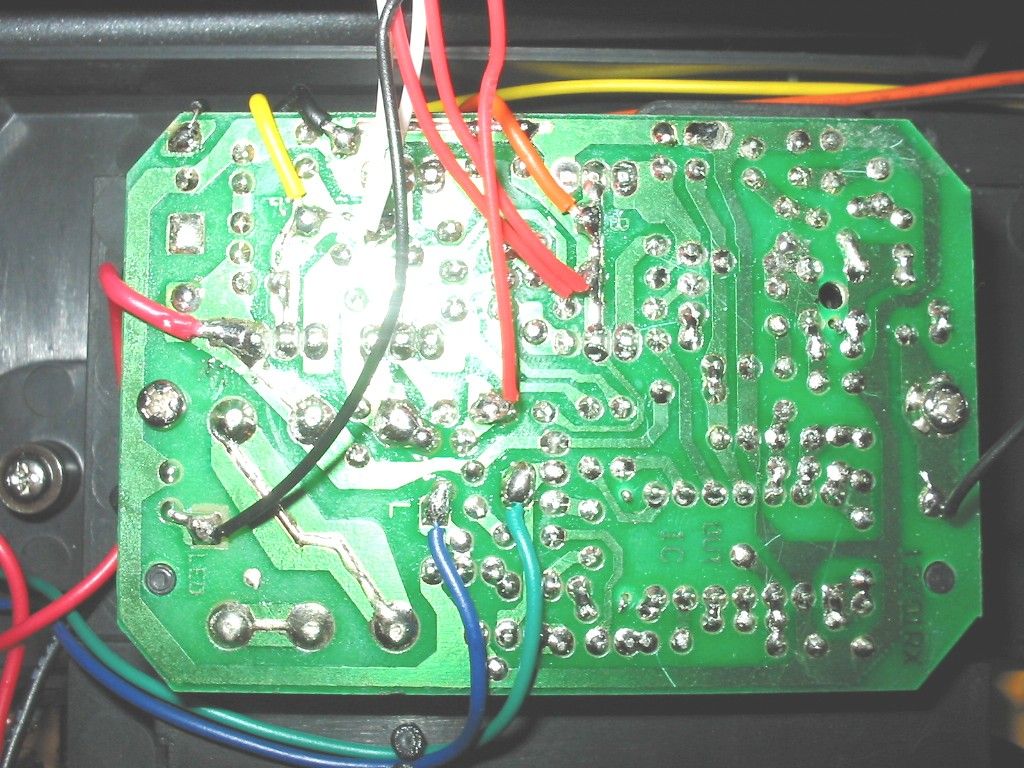

Operation Description for Aston Martin DBS The Radio control car for Aston Martin DBS is operates at 49.860MHz. The radio frequency is generated by LRC circuit. The EUT is powered by 1 x 9.6V size rechargeable battery. When received forward, backward, turn left and turn right radio control signal, it will running to corresponding direction. Refer to the schematic, the major operation for the electronic components as below: - IC RX2 and associated circuit act as decoder. - Q1, L2 and associated circuit act as RF receiver. - Q8 ~ Q13 and associated circuit act as M2 motor control. - Q2 ~ Q7, Q14, Q15 and associated circuit act as M1 motor control.

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:4-Jul-2006 Sheet of File:E:\yanghao\BlockSchPcb.ddbDrawn By: ANT Q8 C945 SW D1 3.3V L1 5 1/2T L2 3.3 uH Q1 S9013-H C1 4P C44P C2 25P C3 332K R2 330K R1 680 C5 3.3 uF R33.3K C13 100 uF R6 3.3K R73.9M R9 390K R10 3.9M R11 3.3K R12 300K R4470 C6 203Z C8501P C7473Z C9 103Z C10 222Z C11 102Z Q15 B1658ML Q3 B1658ML Q6 B1658ML Q14 C945-G Q2 C945 Q4 D2583ML Q7 D2583ML Q5 C945 R16 100 R131K R17 1K R15 1K Q9 B564 Q12 B564 Q10 D471 Q13 D471 Q11 C945 C17 473Z R21 100 R19 100 R181K R20 1K LR TFB RX-2 12 3 45 6 7 910 111213 14 8 1516 R5 1K R8 680 M2 FA-130RD-10300 C16 473Z C15 473Z M1 RC-280SA-2675 D11 LED C14 473Z D10 R24 270 A R14 100 R23 100 D5 1N4148 D4 1N5408D21N5408D31N5408 C18 473Z C19 100 uF C20 100 uF DC 9.6V 1600mAh Vehicle Diagrams 604458RX 49MHz A B D7 1N4148 D6 B LAMP1 LAMP2 R27 1K R28 1K D8 D9 IC C22 473Z C21 473Z D12

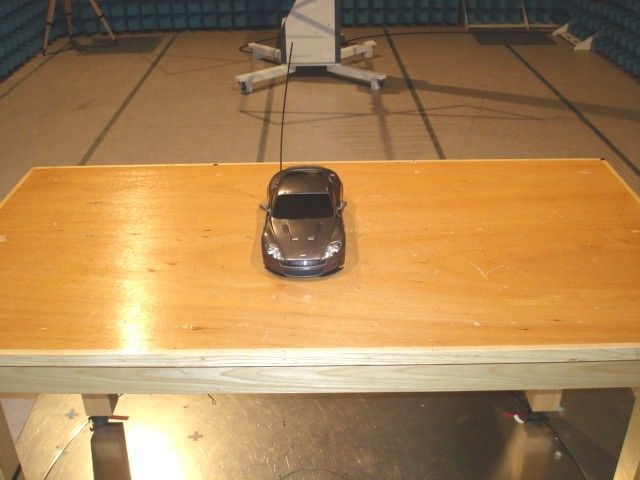

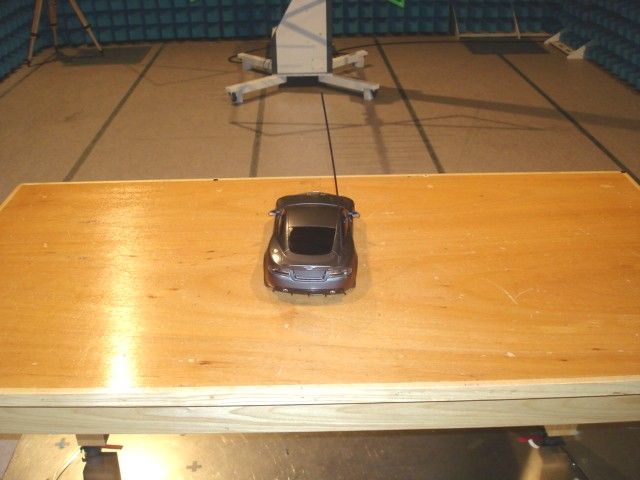

TEST REPORT Report No. : AG021399-001 Date : 2006 August 31 Page 1 of 11 FCC ID: CVT12701RX-49 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LG219095(4) Applicant : Nikko (NICS Engineering Ltd.) Unit 2701 & 2710-19, 27/F., The Metropolis Tower, The Metropolis Drive, Hunghom, Kowloon, Hong Kong Sample Description : One(1) submitted sample(s) stated to be Aston Martin DBS of Model No. 60-4458 Radio Frequency : 49.860MHz Receiver Rating : 1 x 9.6V rechargeable battery No. of submitted sample : One(1) piece(s) *** Date Received : 2006 August 10 Test Period : 2006 August 10 – 2006 August 21 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AG021399-001 Date : 2006 August 31 Page 2 of 11 FCC ID: CVT12701RX-49 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information............................................................................................................................. 3 1.1 General Description ..................................................................................................................... 3 1.2 Location of the test site ................................................................................................................ 4 1.3 List of measuring equipment........................................................................................................ 5 2 Description of the radiated emission test ............................................................................................. 6 2.1 Test Procedure ............................................................................................................................. 6 2.2 Test Result ................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ........................................................................................ 7 3 Description of the Line-conducted Test............................................................................................... 8 3.1 Test Procedure ............................................................................................................................. 8 3.2 Test Result ................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ..................................................... 8 4 Photograph ........................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission....................... 9 4.2 Photographs of the External and Internal Configurations of the EUT......................................... 9 5 Supplementary document................................................................................................................... 10 5.1 Bandwidth .................................................................................................................................. 10 5.2 Duty cycle .................................................................................................................................. 10 5.3 Transmission time ...................................................................................................................... 10 6 Appendices......................................................................................................................................... 11 TEST REPORT Report No. : AG021399-001 Date : 2006 August 31 Page 3 of 11 FCC ID: CVT12701RX-49 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a superregenerative receiver for Aston Martin DBS. It operates at 49.860MHz which is controlled by a LRC circuit. The EUT is powered by 1x 9.6V rechargeable battery and it has internal antenna. When received forward, backward, turn left and turn right radio control signal, it will running to corresponding direction. The brief circuit description is listed as follows: - IC RX2 and associated circuit act as decoder. - Q1, L2 and associated circuit act as RF receiver. - Q8 ~ Q13 and associated circuit act as M2 motor control. - Q2 ~ Q7, Q14, Q15 and associated circuit act as M1 motor control. TEST REPORT Report No. : AG021399-001 Date : 2006 August 31 Page 4 of 11 FCC ID: CVT12701RX-49 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2…

Text truncated - open the document above for the full version.
