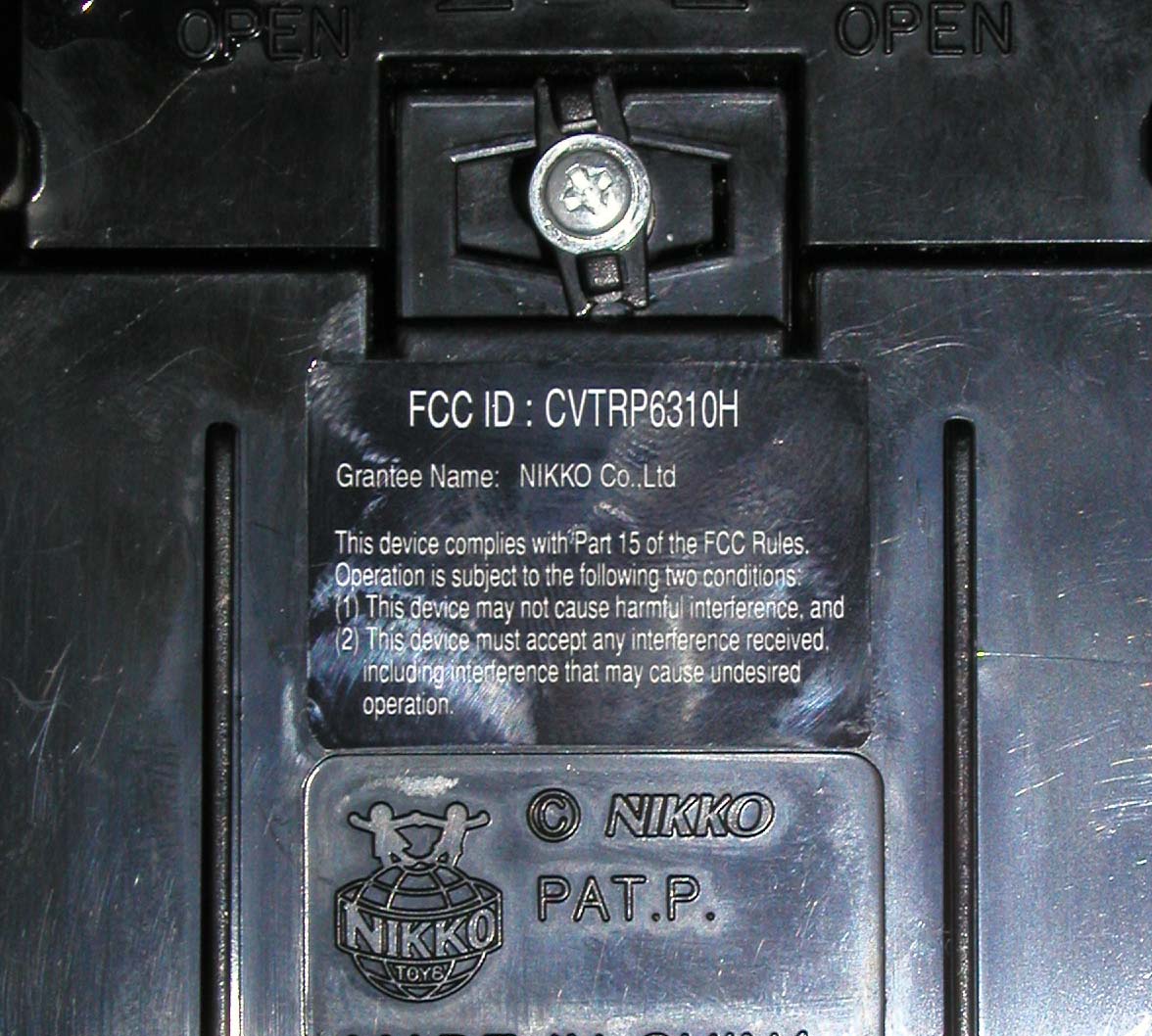

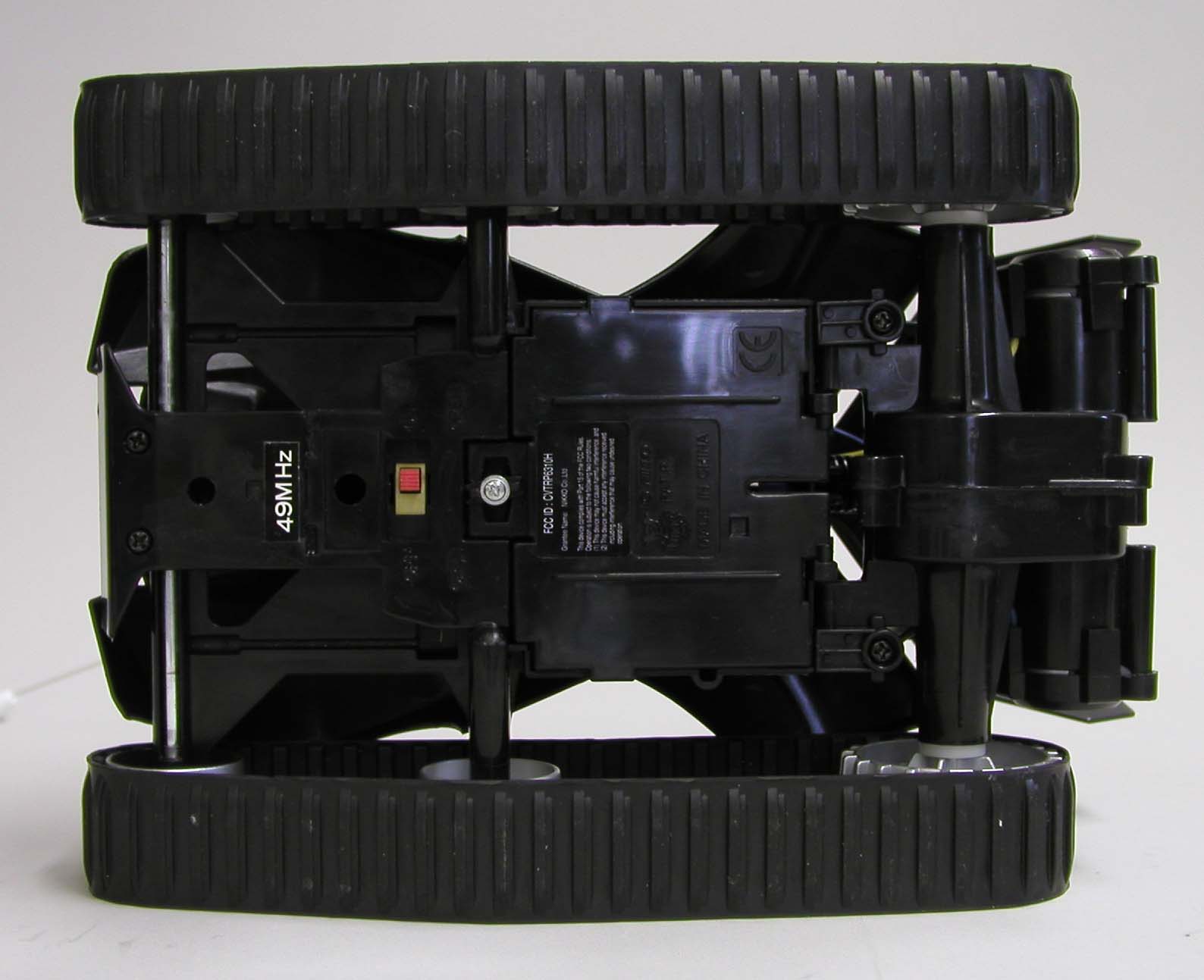

CVTRP6310HRemote Control Toy Receiver

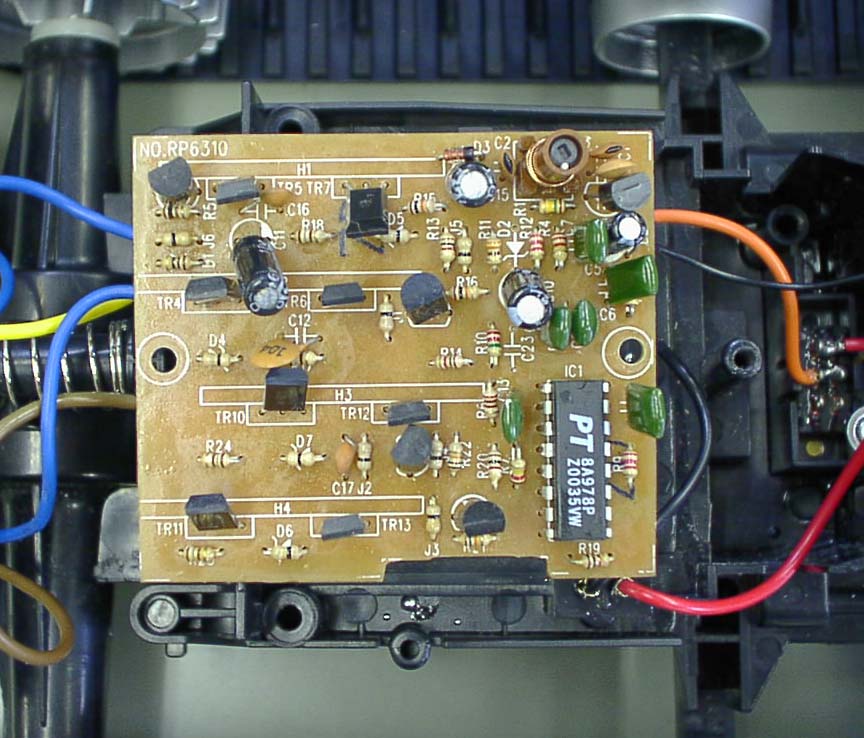

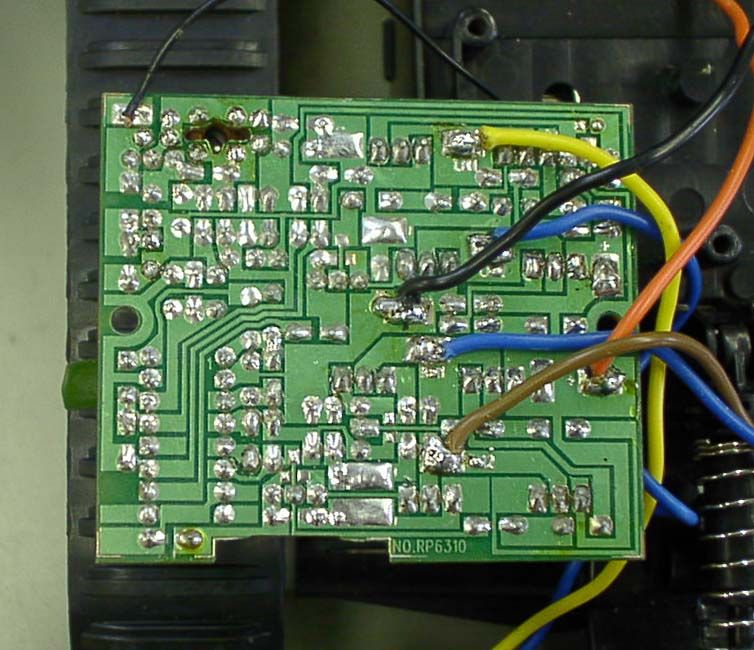

RP6310 CIRCUIT EXPLANATION FCC ID : CVTRP6310H 1)The Radio Frequency inputted through The ANT.,is passed to the Super regenerati ve receiver,formed by TR1,where the Action Signal is detected. 2)The Action Signal is decode in the Ic.,and are send to each output terminal. 3)TR2,3,4,5,6 and 7 form the left motor drive control circuit. TR8,9,10,11,12 and 13 form the right motor drive control circuit. 4)Forward motion IC.11p,7p are turned Hi,and TR2,4,7,8,10 and 13 are turned on to make a Forward drive. 5)Backward motion IC.10p,6p are turned Hi,and TR3,5,6,9,11 and 12 are turned on to make a backward dri ve. 6) Right turns IC.6p,11p are turned Hi,and TR2,4,7,9,11 and12 are turned on to make a Right turn. 7) Left turns IC.7p,10p are turned Hi,and TR3,5,6,8,10 and 13 are turned on to make a Left turn.

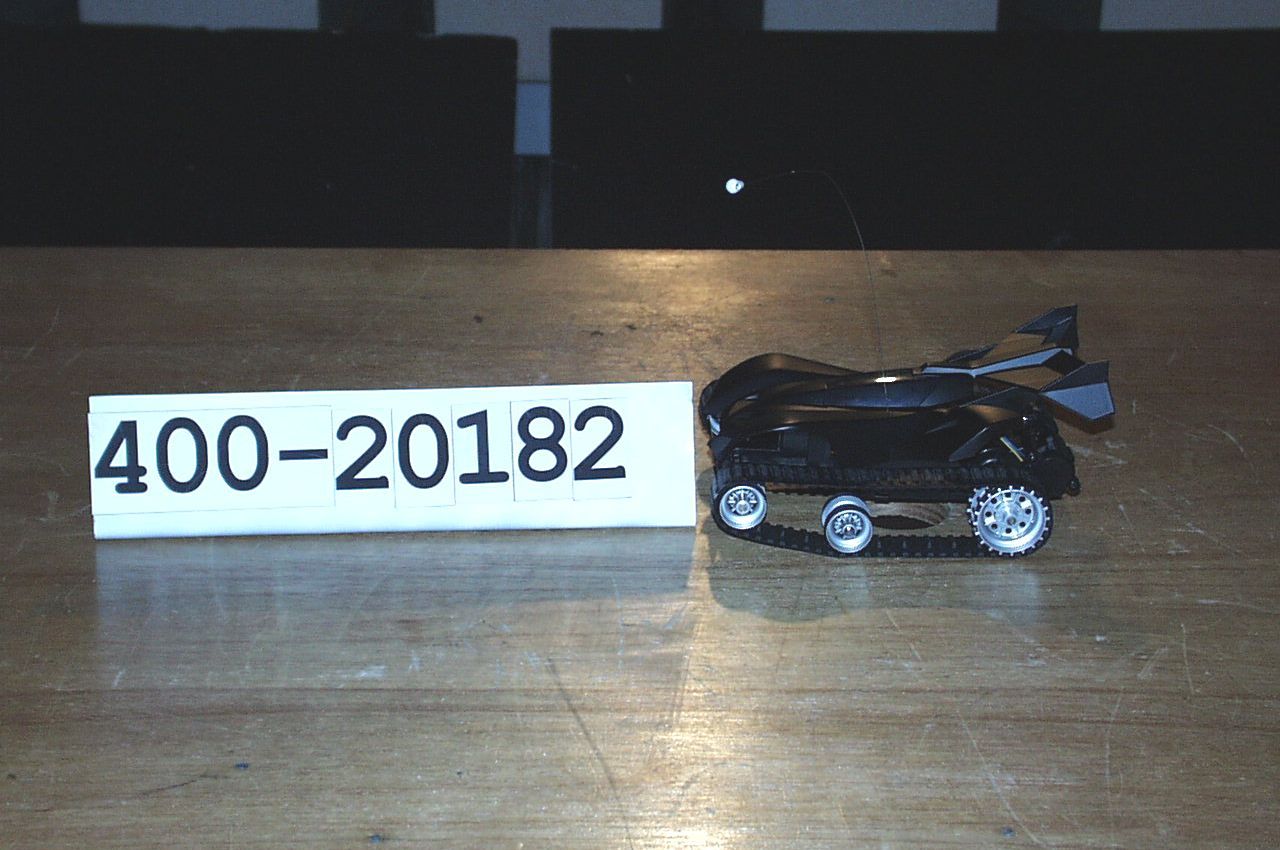

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE (03) 3416-0111, TELEX 242-2531 JQA J FAX (03) 3416-9691 JQA APPLICATION NO.: 400-20182 Issue Date : June 13, 2002 Page 1 of 16 EMI TEST REPORT JQA APPLICATION NO. : 400-20182 Model No. : RP6310H Type of Equipment : Radio Controlled Toy (Superregenerative Type) Regulations Applied : CFR 47 FCC Rules and Regulations Part 15 FCC ID : CVTRP6310H Applicant : NIKKO CO., LTD. Address : 1-7-14, Mizumoto, Katsushika-ku, Tokyo 125-0032, Japan Manufacture : NIKKO TEC INTERNATIONAL LTD. Address : Room 812, Houston Center, 63 Mody Road, Tsimshatsui, Kowloon, Hong Kong Received date of EUT : May 31, 2002 Final Judgment : Passed Test results in this report are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and Communication Research Laboratory (CRL) of Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. C O P Y JQA Application No. :400-20182 FCC ID : CVTRP6310H Model No. :RP6310H Issue Date :June 13, 2002 Standard :CFR 47 FCC Rules Part 15 Page 2 of 16 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 6 1.4 EUT Modifications / Deviation from Standard 7 1.5 Test results / Uncertainty 8 1.6 Summary 9 1.7 Test Configuration / Operation of EUT 10 1.8 Preliminary Test and Test-setup (Drawings) 11 – 13 1.9 EUT Arrangement (Photographs) 14 2 Test Data 2.1 AC Power Line Conducted Emission 0.45 MHz – 30 MHz N/A 2.2 Radiated Emission (Electric Field) 30 MHz – 1000 MHz 15 – 16 C O P Y JQA Application No. :400-20182 FCC ID : CVTRP6310H Model No. :RP6310H Issue Date :June 13, 2002 Standard :CFR 47 FCC Rules Part 15 Page 3 of 16 JAPAN QUALITY ASSURANCE ORGANIZATION 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A and B (June 23, 1989) Superregenerative Receiver Test procedure : AC power line conducted emission and radiated emission tests were performed according to the procedures in ANSI C63.4-1992. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers( 3 meters Site ). - Shielded Enclosure. Expiration date of FCC test facility filing : May 27, 2005 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2002) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : Radio Controlled Toy 2) Product Type : Production 3) Category : Superregenerative Receiver 4) EUT Authorization : Certification 5) FCC ID : CVTRP6310H 6) Trade Name : NIKKO 7) Model No. : RP6310H 8) Tuning Frequency Range : 49.830 MHz – 49.890 MHz 9) Highest Frequency Used in the EUT : - 10) Serial No. : None 11) Date of Manufacture : May 2002 12) Power Rating : 4.8 VDC(Battery) 13) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. C O P Y JQA Application No. :400-20182 FCC ID : CVTRP6310H Model No. :RP6310H Issue Date :June 13, 2002 Standard :CFR 47 FCC Rules Part 15 Page 4 of 16 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITION 1.3.1 The measurement of the AC Power Line Conducted Emission - was performed in the following test site. x - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Shielded Enclosure - Anechoic Chamber No. 2 (portable Type) Used test instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval - Test Receiver ESH-2 Rohde & Schwarz 880370/016 May 2002 1 Year - Test Receiver ESH-3 Rohde & Schwarz 881460/030 May 2002 1 Year - Test Receiver ESHS10 Rohde & Schwarz 835871/004 May 2002 1 Year - LISN(for Peripheral) KNW-407 Kyoritsu Electrical 8-833-6 Apr. 2002 1 Year - LISN(for EUT) KNW-407 Kyoritsu Electrical 8-855-2 Apr. 2002 1 Year - LISN KNW-407 Kyoritsu Electrical 8-757-1 Apr. 2002 1 Year - RF Cable 3D-2W Fujikura 155-21-006E0 Apr. 2002 1 Year - RF Cable 3D-2W Fujikura 155-21-007E0 Apr. 2002 1 Year - 50ohm Termination - SUHNER 154-06-501E0 Jan. 2002 1 Year - 50ohm Termination - SUHNER 154-06-502E0 Jan. 2002 1 Year C O P Y JQA Application No. :400-20182 FCC ID : CVTRP6310H Model No. :RP6310H Issue Date :June 13, 2002 Standard :CFR 47 FCC Rules Part 15 Page 5 of 16 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.2 The measurement of the Radiated Emission(30 MHz – 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - Anechoic Chamber No. 2 (3 meters) - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2002 2) Interval :1 year Used test instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval - Spectrum Analyzer 8560E Hewlett Packard 3240A00189 Nov. 2001 1 Year - Spectrum Analyzer 8566B Hewlett Packard 2140A01091 Mar. 2002 1 Year - RF Pre-selector 85685A Hewlett Packard 2648A00522 Oct. 2001 1 Year - Spectrum Analyzer 8566B Hewlett Packard 2747A05855 Apr. 2002 1 Year - RF Pre-selector 85685A Hewlett Packard 2091A00933 Apr. 2002 1 Year - Test Receiver ESV Rohde & Schwarz 872148/039 May 2002 1 Year x - Test Receiver ESVS10 Rohde & Schwarz 826148/002 May 2002 1 Year - Test Receiver ESVS10 Rohde & Schwarz 832699/001 May 2002 1 Year - Antenna KBA-511 Kyoritsu Elect…
