CVTRP6400HRadio Controlled Toy

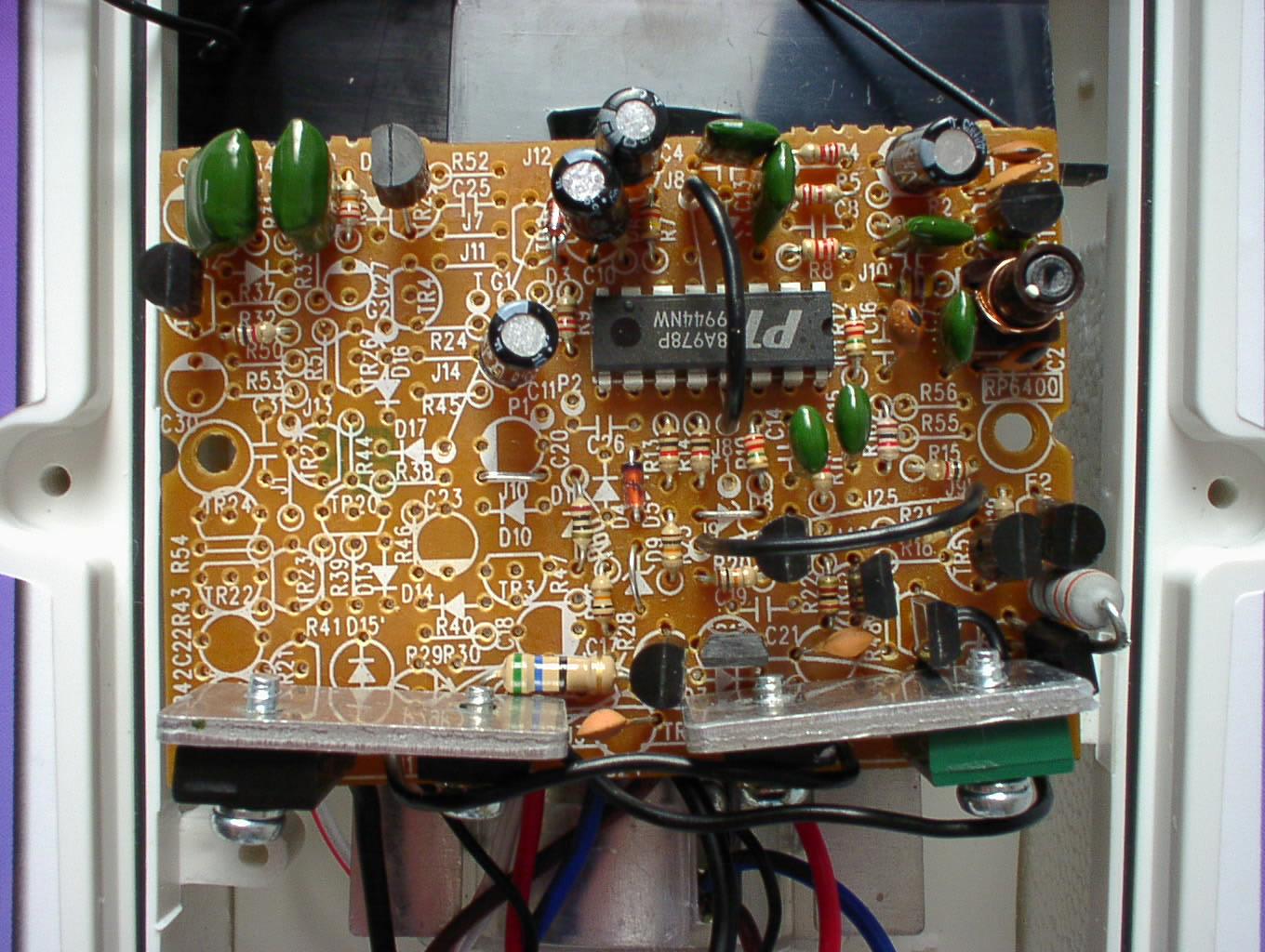

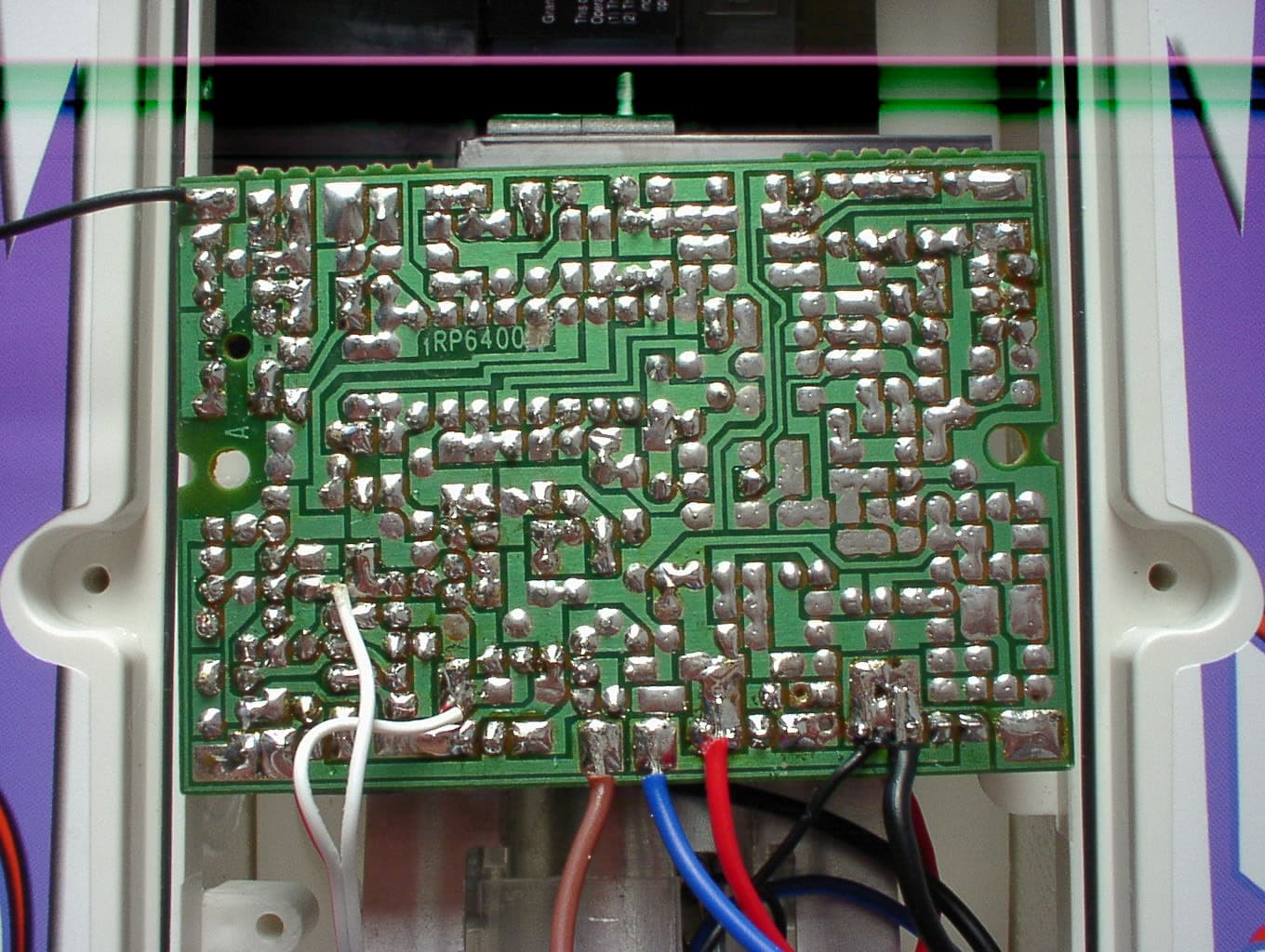

NO.RP6400 CIRCUIT EXPLANATION 1)The Radio Frequency inputted through The ANT.,is passed to the Super regenerative receiver,formed by TR1,where the Action Signal is detected. 2)The Action Signal is decode in the Ic.,and are send to each output terminal. 3)TR8,9,10,11,12 and 13 form the power motor drive control circuit. TR5,6,14,15,16 and 17 form the steering control circuit. TR28 and 29 form the pulse control circuit. 4)Forward motion IC.11P(Pin) is turned Hi,and TR8,10 and 13 are turned on to make a Forward drive. 5)Backward motion IC.10P is turned Hi,and TR9,11 and 12 are turned on by pulse drive circuit to make a backward switching drive. 6)Right turns IC.6P is turned Hi,and TR5,15 and16 are turned on to make a Right turn. 7)Left turns IC.7P is turned Hi,and TR6,14 and 17 are turned on to make a Left turn.

Grantee Name: NIKKO Co.,Ltd CVTRP6400H

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE (03) 3416-0111, TELEX 242-2531 JQA J FAX (03) 3416-9691 JQA APPLICATION NO.: 400-00339 Issue Date : September 1, 2000 Page 1 of 16 EMI TEST REPORT JQA APPLICATION NO. : 400-00339 Model No. : RP6400H Type of Equipment : Radio Controlled Toy (Superregenerative Type) Regulations Applied : CFR 47 FCC Rules and Regulations Part 15 FCC ID : CVTRP6400H Applicant : NIKKO CO., LTD. Address : 1-7-14, Mizumoto, Katsushika-ku, Tokyo 125-0032, Japan Manufacture : NIKKO ELECTRONICS BHD. Address : Plot 497 Prai Free Trade Zone, Prai Industrial Estate, Prai, Penang, Malaysia 13600 Received date of EUT : August 23, 2000 Final Judgment : Passed TEST RESULTS IN THIS REPORT are obtained in use of equipment that is traceable to Electrotechnical Lab. of MITI Japan and Communications Research Lab. of MPT Japan. The test results only respond to the tested sample. It is not allowed to copy this report even partly without the allowance of the JQA EMC Engineering Dept. Testing Div. C O P Y JQA Application No. :400-00339 FCC ID : CVTRP6400H Model No. :RP6400H Issue Date :September 1, 2000 Standard :CFR 47 FCC Rules Part 15 Page 2 of 16 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 6 1.4 EUT Modifications / Deviation from Standard 7 1.5 Test results / Uncertainty 8 1.6 Summary 9 1.7 Test Configuration / Operation of EUT 10 1.8 Preliminary Test and Test-setup (Drawings) 11 – 13 1.9 EUT Arrangement (Photographs) 14 2 Test Data 2.1 AC Power Line Conducted Emission 0.45 MHz – 30 MHz N/A 2.2 Radiated Emission (Electric Field)30 MHz – 1000 MHz 15 – 16 C O P Y JQA Application No. :400-00339 FCC ID : CVTRP6400H Model No. :RP6400H Issue Date :September 1, 2000 Standard :CFR 47 FCC Rules Part 15 Page 3 of 16 JAPAN QUALITY ASSURANCE ORGANIZATION 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A and B (June 23, 1989) Superregenerative Receiver Test procedure : AC power line conducted emission and radiated emission tests were performed according to the procedures in ANSI C63.4-1992. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers( 3 meters Site ). - Shielded Enclosure. Expiration date of FCC test facility filing : June 04, 2002 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2001) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : Radio Controlled Toy 2) Product Type : Production 3) Category : Superregenerative Receiver 4) EUT Authorization : Certification 5) FCC ID : CVTRP6400H 6) Trade Name : NIKKO 7) Model No. : RP6400H 8) Tuning Frequency Range : 49.830 MHz – 49.890 MHz 9) Highest Frequency Used in the EUT : - 10) Serial No. : None 11) Date of Manufacture : August 2000 12) Power Rating : DC 9.6V(Battery) 13) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. C O P Y JQA Application No. :400-00339 FCC ID : CVTRP6400H Model No. :RP6400H Issue Date :September 1, 2000 Standard :CFR 47 FCC Rules Part 15 Page 4 of 16 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITION 1.3.1 The measurement of the AC Power Line Conducted Emission - was performed in the following test site. x - was not applicable. Test location : Safety Testing Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Shielded Enclosure - Anechoic Chamber No. 2 (portable Type) Used test instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval - Test Receiver ESH-2 Rohde & Schwarz 880370/016 Sep. 1999 1 Year - Test Receiver ESH-3 Rohde & Schwarz 881460/030 June 2000 1 Year - LISN(for Peripheral) KNW-407 Kyoritsu Electrical 8-833-6 Apr. 2000 1 Year - LISN(for EUT) KNW-407 Kyoritsu Electrical 8-855-2 Apr. 2000 1 Year - LISN KNW-407 Kyoritsu Electrical 8-757-1 Apr. 2000 1 Year - RF Cable 3D-2W Fujikura 155-21-006E0 Apr. 2000 1 Year - RF Cable 3D-2W Fujikura 155-21-007E0 Apr. 2000 1 Year - 50ohm Termination - SUHNER 154-06-501E0 Jan. 2000 1 Year - 50ohm Termination - SUHNER 154-06-502E0 Jan. 2000 1 Year C O P Y JQA Application No. :400-00339 FCC ID : CVTRP6400H Model No. :RP6400H Issue Date :September 1, 2000 Standard :CFR 47 FCC Rules Part 15 Page 5 of 16 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.2 The measurement of the Radiated Emission(30 MHz – 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety Testing Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - Anechoic Chamber No. 2 (3 meters) - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2000 2) Interval :1 year Used test instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval - Test Receiver ESH-2 Rohde & Schwarz 880370/016 Sep. 1999 1 Year - Test Receiver ESV Rohde & Schwarz 872148/039 May 2000 1 Year - Test Receiver ESVS10 Rohde & Schwarz 826148/002 June 2000 1 Year x - Test Receiver ESVP Rohde & Schwarz 881487/004 May 2000 1 Year - Test Receiver ESVP Rohde & Schwarz 881487/005 May 2000 1 Year x - Antenna KBA-511A Kyoritsu Electrical 0-170-1 Nov. 1999 1 Year - Antenna KBA-511A Kyoritsu Electrical 0-201-13 Nov. 1999 1 Year x - Antenna KBA-611 Kyoritsu Electrical 0-147-14 Nov. 1999 1 Year - Antenna KBA-611 Kyoritsu Electrical 0-210-5 Nov. 1999 1 Year x - Biconical Antenna BBA9106 Schwarzbeck VHA91031150 May 2000 1 Year - Bicon…

Text truncated - open the document above for the full version.

JQA Application No. :400-00339 FCC ID : CVTRP6400H Model No. :RP6400H Issue Date :September 1, 2000 Standard :CFR 47 FCC Rules Part 15 Page 12 of 16 JAPAN QUALITY ASSURANCE ORGANIZATION 1.8.2 Radiated Emission ( 30 MHz – 1000 MHz) : According to description of ANSI C63.4-1992 sec.8.3.1.1, the preliminary radiated emissions measurements were carried out. The preliminary radiated measurements were performed at the measurement distance that specified for compliance to determine the emission characteristics of the EUT. The EUT configuration, cable configuration and mode of operation were determined for producing the maximum level of emissions. These configurations were used for the final radiated emissions measurements. The EUT is a superregenerative receiver. The radiated measurements were carried out according to ANSI C63.4-1992 sec.12.1.1.1. Refer to the “cohere” plot below. Signal Generator Frequency : 49.86 MHz Signal Generator Output Level : -40 dBm Anechoic Chamber - Side View - EUT 3 m 1 m 0.8 m 4 m Half-wave Dipole Antenna Test Receiver Turn Table Ground Plane Biconical Antenna Signal Generator C O P Y
