CVTRP7320HRemote Control Toy Receiver

1 Owner’s Manual © NIKKO Please read carefully before starting to oper- ate.
"Warning! use under the direct supervision of an adult. KEEP THE DISPLAYBOX AND THE MANUAL FOR FUTURE REFERENCE.

PRINTED IN MALAYSIA IMPRIME EN MALAISIE IMPRESO EN MALASIA English/Français/Español Manual del Propietario MANUEL DU PROPRIETAIRE CONTENU CAUTION: ELECTRIC TOY Not recommended for children un- der 8 years of age. As with all elec- tric products, precautions should be observed during handling and use to prevent electric shock. Input: 120 vac, 60 HZ 12W only. Output: 12 VDC, 3.6W ATTENTION PARENTS It is recommended that this toy and all accessories be periodically examined for potential hazards and that any potentially hazardous parts be repaired or replaced. Repair and Parts Department Monday to Friday 8:30AM- 5:30PM Central Time Repair:(800)736-4556 Parts:(800)776-4556 Fax:(972)578-7059 e-mail:[email protected] 1/16 HUMMER H2 RDC-160022 FEATURES Full function Runs forward, backward, turns left & right, and stops. Oversized off-road tires Impact resistant bumper

BATTERY REQUIREMENTS Vehicle: Transmitter:1 x 9V(006P)battery
Ni-Cd battery energy pack(6.0V) 2 • Lire attentivement ce mode d’emploi avant de commencer à utiliser ce jouet. • Attention! A utiliser sous la supervision directe d’un adulte. • CONSERVER LA BOITE D’EXPOSITION ET LE MANUEL POUR TOUTE REFERENCE ULTERIEURE. Français CARACTERISTIQUES


Toutes les fonctions Marche avant, arrière, virage à droite et à gauche, et arrêt Pneus tout terrain surdimensionnés Pare-chocs à impact PILES Véhicule: Batterie autonome Ni-Cd (6,0 V) rechargeable Emetteur: 1 pile 006P(9V) ATTENTION: JOUET ELECTRIQUE Non recommandé pour les enfants de moins de 8 ans. Comme avec tous les appareils électriques, des précautions doivent être observées pendant la manipu- lation et l’emploi pour éviter toute décharge électrique. Entrée: secteur 120 V, 60 Hz, 12 W seulement Sortie: 12 V c.c. 3,6 W PARENTS ATTENTION Il est recommandé de vérifier périodiquement l’absence de risque potentiel sur ce jouet et tous les accessoires, et de réparer ou remplacer les pièces potentiellement dangereuses. Département Réparation et pièces Lundi au vendredi, de 8h30 à 17h30, heure centrale Réparations: (800) 736-4556 Pièces: (800) 776-4556 Fax: (972) 578-7059 Courrier électronique: [email protected] 3 Por favor lea atentamente las instrucciones antes de empezar a operar. ¡Aviso! Úselo bajo la supervisión directa de un adulto. GUARDE LA CAJA Y EL MANUAL PARA REFERENCIAS FUTURAS. En este modelo hay que usar paquetes de pilas de Ni-Cd (9,6 V) y su cargador respectivo.



PRECAUCIÓN: JUGUETE ELÉCTRICO No recomendado para niños de menos de 8 años de edad. Al igual que con todos los productos eléctricos, para evitar un shock eléctrico, se deben observar precauciones especiales al manipular y usar este juguete. Entrada: Solamente 120 V.CA, 60 Hz, 12 W. Salida: 12 V. CC, 3,6 W. ATENCIÓN PADRES Se recomienda que este juguete y todos sus accesorios sean examinados periódicamente para tratar de encontrar peligros potenciales provocados por piezas que necesiten ser reparadas o cambiadas. Departamento de Reparación y Repuestos Lunes a viernes 8:30 AM – 5:30 PM Hora Central Reparaciones: (800) 736-4556 Repuestos: (800) 776-4556 Fax: (972) 578-7059 e-mail: [email protected] Español CARACTERÍSTICAS Funciones completas Avanza, retrocede, gira hacia la izquierda y derecha, se detiene. Neumáticos para todo camino de gran tamaño Parachoques resistente a impactos PILAS USADAS Vehículo:Batería de pilas de Ni-Cd "energy pack" de 6,0 V Transmisor: 1 pila de 9 V (006P)


4 1 BATTERY INSTALLATION TRANSMITTER CAUTION WHEN USING BATTERIES 9V(006P) Install battery pack making sure that the + and - poles of the battery is positioned accurately. Make sure vehicle's on-off switch is turned OFF when installing battery pack. Remove all the batteries from the vehicle and the transmitter after playing.

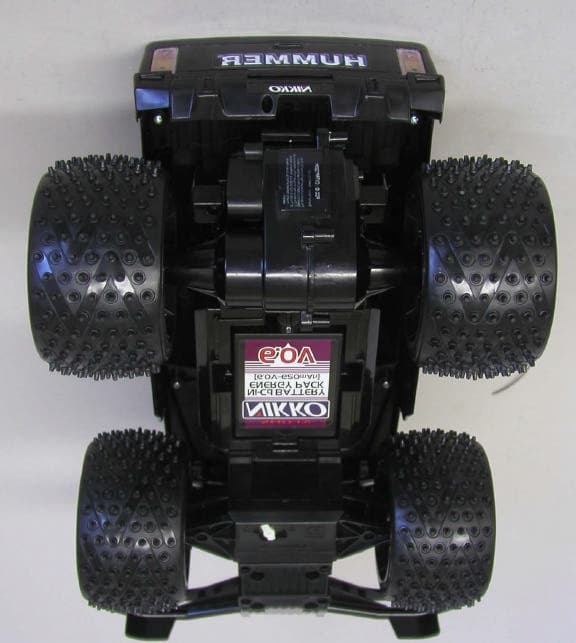

PREPARATION FOR STARTING OPERATION 1. HOW TO ATTACH ANTENNA TUBE Antenna tube Antenna wire Antenna tube holder Pass the antenna wire through the antenna tube, then insert the tube into the antenna tube holder. If the antenna tube cannot be suc- cessfully inserted into the antenna tube holder, try holding the root of the antenna wire with fingers of one hand and extending the wire with fingers of the other hand. * Note: Be careful not to pull an- tenna wire too strong. 2. HOW TO INSTALL TRANSMITTER ANTENNA Place the transmitter antenna into the antenna holder to screw it in clock- wise. Don’t install the antenna extended. It’s dangerous. If the antenna is not screwed in se- curely, the vehicle may move errati- cally. Screw the antenna securely. English 5 1 2 3 English VEHICLE Use a coin to turn the battery stopper to the "OPEN" position. Install the Ni-Cd battery pack into the battery compartment of the vehicle. Replace the battery stopper. Ni-Cd battery energy pack(6.0V) battery stopper Steering alignment lever 1 2 3 To remove the Ni-Cd battery pack: Turn the battery stopper to the "OPEN" position using a coin. Slide the Ni-Cd battery pack backward and take out.

2 HOW TO OPERATE Turn ON the vehicle. Operate the vehicle with transmitter. Turn OFF the vehicle after operating. Remove all the batteries both from the vehicle and the transmitter. Please follow the above sequence of operation. 1 2 3 4 ON/OFF switch TRANSMITTER Antenna Speed control stick Steering control stick LEFT/STRAIGHT/RIGHT FORWARD NEUTRAL REVERSE VEHICLE Check to see that the battery is INSTALLED in the CORRECT position. NOTE: You can control the vehicle at a longer distance by holding the trans- mitter higher with the antenna straight up. When the vehicle slows down or starts moving erratically, replace the vehicle's battery pack with fresh or fully charged one. STOP

Auto Power Off Function of the Transmitter (PAT.P) If the user does not operate the transmitter, or performs a single operation continuously (the con- tr…

Text truncated - open the document above for the full version.

RP7320H CIRCUIT EXPLANATION FCC ID:CVTRP7320H 1)The Radio Frequency inputted through The ANT.,is passed to the Super regenerative receiver,formed by TR1,where the Action Signal is detected. 2)The Action Signal is decode in the IC1.,and are send to each output terminal. 3)IC2 and 3 form the power motor drive control circuit. TR4,5,6,7,14 and 15 form the steering control circuit. 4)Forward motion IC1.11P(Pin) is turned Hi,and IC2.7P and 8P are turned Low,and IC.3 5P and 6P are turned Hi to make a Forward drive. 5)Backward motion IC.10P is turned Hi,and IC2.5P and 6P are turned Hi,and IC3.7P and 8P are turned Low to make a backward drive. 6)Right turns IC.6P is turned Hi,and TR15,4 and 7 are turned on to make a Right turn. 7)Left turns IC.7P is turned Hi,and TR14,5 and 6 are turned on to make a Left turn. NIKKO CO.,LTD R&D Dept.Chief Y.MAEDA

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE (03) 3416-0111, FAX (03) 3416-9691 JQA APPLICATION NO.: 400-20385 Issue Date : October 11, 2002 Page 1 of 16 EMI TEST REPORT JQA APPLICATION NO. : 400-20385 Model No. : RP7320H Type of Equipment : Radio Controlled Toy (Superregenerative Type) Regulations Applied : CFR 47 FCC Rules and Regulations Part 15 FCC ID : CVTRP7320H Applicant : NIKKO CO., LTD. Address : 1-7-14, Mizumoto, Katsushika-ku, Tokyo 125-0032, Japan Manufacture : NIKKO ELECTRONICS BHD. Address : Plot 497 Prai Free Trade Zone, Prai Industrial Estate, Prai, Penang, Malaysia 13600 Received date of EUT : August 12, 2002 Final Judgment : Passed Test results in this report are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and Communication Research Laboratory (CRL) of Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. C O P Y JQA Application No. :400-20385 FCC ID : CVTRP7320H Model No. :RP7320H Issue Date :October 11, 2002 Standard :CFR 47 FCC Rules Part 15 Page 2 of 16 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 6 1.4 EUT Modifications / Deviation from Standard 7 1.5 Test results / Uncertainty 8 1.6 Summary 9 1.7 Test Configuration / Operation of EUT 10 1.8 Preliminary Test and Test-setup (Drawings) 11 – 13 1.9 EUT Arrangement (Photographs) 14 2 Test Data 2.1 AC Power Line Conducted Emission 0.45 MHz – 30 MHz N/A 2.2 Radiated Emission (Electric Field) 30 MHz – 1000 MHz 15 – 16 C O P Y JQA Application No. :400-20385 FCC ID : CVTRP7320H Model No. :RP7320H Issue Date :October 11, 2002 Standard :CFR 47 FCC Rules Part 15 Page 3 of 16 JAPAN QUALITY ASSURANCE ORGANIZATION 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A and B (June 23, 1989) Superregenerative Receiver Test procedure : AC power line conducted emission and radiated emission tests were performed according to the procedures in ANSI C63.4-1992. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers( 3 meters Site ). - Shielded Enclosure. Expiration date of FCC test facility filing : May 27, 2005 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2003) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : Radio Controlled Toy 2) Product Type : Production 3) Category : Superregenerative Receiver 4) EUT Authorization : Certification 5) FCC ID : CVTRP7320H 6) Trade Name : NIKKO 7) Model No. : RP7320H 8) Tuning Frequency Range : 49.830 MHz – 49.890 MHz 9) Highest Frequency Used in the EUT : - 10) Serial No. : None 11) Date of Manufacture : Aug 2002 12) Power Rating : 6.0 VDC(Battery) 13) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. C O P Y JQA Application No. :400-20385 FCC ID : CVTRP7320H Model No. :RP7320H Issue Date :October 11, 2002 Standard :CFR 47 FCC Rules Part 15 Page 4 of 16 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITION 1.3.1 The measurement of the AC Power Line Conducted Emission - was performed in the following test site. x - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Shielded Enclosure - Anechoic Chamber No. 2 (portable Type) Used test instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval - Test Receiver ESH-2 Rohde & Schwarz 880370/016 May 2002 1 Year - Test Receiver ESH-3 Rohde & Schwarz 881460/030 May 2002 1 Year - Test Receiver ESHS10 Rohde & Schwarz 835871/004 May 2002 1 Year - LISN(for Peripheral) KNW-407 Kyoritsu Electrical 8-833-6 Apr. 2002 1 Year - LISN(for EUT) KNW-407 Kyoritsu Electrical 8-855-2 Apr. 2002 1 Year - LISN KNW-407 Kyoritsu Electrical 8-757-1 Apr. 2002 1 Year - RF Cable 3D-2W Fujikura 155-21-006E0 Apr. 2002 1 Year - RF Cable 3D-2W Fujikura 155-21-007E0 Apr. 2002 1 Year - 50ohm Termination - SUHNER 154-06-501E0 Jan. 2002 1 Year - 50ohm Termination - SUHNER 154-06-502E0 Jan. 2002 1 Year C O P Y JQA Application No. :400-20385 FCC ID : CVTRP7320H Model No. :RP7320H Issue Date :October 11, 2002 Standard :CFR 47 FCC Rules Part 15 Page 5 of 16 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.2 The measurement of the Radiated Emission(30 MHz – 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Anechoic Chamber No. 2 (3 meters) x - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2002 2) Interval :1 year Used test instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval - Spectrum Analyzer 8560E Hewlett Packard 3240A00189 Nov. 2001 1 Year - Spectrum Analyzer 8566B Hewlett Packard 2140A01091 Mar. 2002 1 Year - RF Pre-selector 85685A Hewlett Packard 2648A00522 Oct. 2001 1 Year - Spectrum Analyzer 8566B Hewlett Packard 2747A05855 Apr. 2002 1 Year - RF Pre-selector 85685A Hewlett Packard 2091A00933 Apr. 2002 1 Year - Test Receiver ESV Rohde & Schwarz 872148/039 May 2002 1 Year - Test Receiver ESVS10 Rohde & Schwarz 826148/002 May 2002 1 Year x - Test Receiver ESVS10 Rohde & Schwarz 832699/001 May 2002 1 Year - Antenna KBA-511 Kyoritsu El…

Text truncated - open the document above for the full version.

JQA Application No. :400-20385 FCC ID : CVTRP7320H Model No. :RP7320H Issue Date :October 11, 2002 Standard :CFR 47 FCC Rules Part 15 Page 14 of 16 JAPAN QUALITY ASSURANCE ORGANIZATION 1.9 TEST ARRANGEMENT (PHOTOGRAPHS) PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission C O P Y
