CVTTN6750Remote Control Toy Transmitter

NIKKO ST-40800 RDC-100022B-FCC JEEP RUBICON PRINTED IN MALAYSIA IMPRIME EN MALAISIE IMPRESO EN MALASIA English / Français / Español Owner's Manual Manuel du lutilisateur Manual del Propietario • Recharge the Battery Before You Start to Operate • Recargue la bateria antes de empezar a jugar • Recharger la batterie avant d'allumer ATTENTTION: JOUET ELECTRIQUE Non recommandé pour les enfants de moins de 8 ans. Comme aves tous les appareils électriques, des précaut ons doivent être observées pendant la manipulation et l'emploi pour éviter toute décharge électrique. Entrée: secteur 120 VAC, 60 Hz seulement Sortie: 12VDC 200mA PARENTS ATTENTION Il est recommandé de vérifier périodiquement l'absence de risque potentiel sur ce jouet et tous les accessoires et de réparer o remplacer les pieces potentieliement dangereuses. Please read this manual throughly before starting to operate. Keep the manual for future reference. FEATURES 2-channel full function: Forward, reverse, left/right turn and stop Front and rear suspension system 2 x 2 speed in forward running BATTERY REQUIREMENTS Vehicle : Ni-Cd battery energy pack (9.6V, 620-650mAh) Transmitter : 1 x 9V(006P)battery Lisez attentivement ce manual avant de commencer à jouer. Conservez ce manual pour toute référence ultérieure. Por favor, lea completamente este manual antes do comenzar a hacer funcionar su Porsche. Guarde oste manual para referencias futuras. PRECAUCÓN: JUGETE ELÉCTRICO No recomendado para niños de menos de 8 años de edad. AL igual que con todos los productos eléctricos, para evitar un shock eléctrico, se deben observar precauciones especiales al manipular y usar este juguete. Entrada: Solamente 120 VAC, 60 Hz. Salida: 12 VDC, 200mA ATENCIÓN PADRES Se recomienca que este juguete y todos sus accesorios sean examinados periódicamente para tratar de encontrar peligros potenciales provocados por piezas que necesiten ser reparadas o cambiadas. PILES Véhicule : Batterie autonome Ni-Cd (9,6V, 620-650mAh)rechargeable Emetteur : 1 pile 006p(9V) CARACTERISTIQUES PILAS USADAS Vehiculo : Bateria de pilas do Ni-Cd "energy pack" de (9,6V, 620-650mAh) Transmisor : 1 pila de 9 V (006P) CARACTERÍSTICAS 2- canaux et toutes les fonctions: marche avant, arrière, virage à droite/ gauche et arrêt. Système de suspensions avant et arrière 2 x 2 vitesses en marche avant Funciones completas mediante dos canales: Avance, retroceso, giros a la izquierda/ derecha y detención. Sistema de suspensión delantero y trasero Velocidad 2 x 2 durante el avance English3 language D/SALLY/100022B/100022B-FCC 23-5-03 1 English 2 English RDC-060002A ( FCC ) 3 language Do not charge Battery Pack immediately after use.Wait until it is cooled before charging. Avoid short circuits. Short circuits will cause overheating, burning of the cords and other damages to the Battery Pack and Charger. The Ni-CD Battery Charger should be used for charging one Battery Pack . Do not use the charger for charging other types of batteries and battery packs. Do not use the Charger as a direct current outlet for other electrical appliances or machines. Make sure that the Battery Pack and Charger are kept out of the hands of infants and small children while charging. Do not charge near fires, where the temperature is extremely high, or where it is wet or damp. The charger will become slightly heated while charging. Allow sufficient free space around the Charger. If the power of the battery pack is weak in spite of proper charging. The batteries may be worn out from repeated use. Replace it with a new Ni-CD battery pack. Dispose of use Ni-CD battery packs correctly. Disconnect the supply before making or breaking connections to the battery. WARNING AGAINST RECHARGING NON-RECHARGEABLE BATTERIES. Please use this battery charger only for the charger of the rechargeable battery pack. The NI-CD battery pack should be recharged under the supervision of an adult. RECHARGING CAUTION Pass the antenna wire through the antenna tube, then insert the tube into the antenna tube holder. If the antenna tube cannot be successfully inserted into the antenna tube holder, try holding the root of the antenna wire with fingers of one hand and extending the wire with fingers of the other hand. * Note: Be careful not to pull antenna wire too strong. 1. HOW TO ATTACH ANTENNA TUBE Antenna wire Antenna tube Antenna tube holder BEFORE YOU START "WARNING! USE UNDER THE DIRECT SUPERVISION OF AN ADULT." * The newly purchased Ni-Cd pack is not charged. Recharge before operate. 1. Join the connector of the charger to the connector of the Ni-Cd battery pack. 2. Plug the charger into an electrical outlet. 3. Recharge for about 4-5 hours. 4. When the recharging is over, plug out the charger from the electrical outlet and detach the connectors. Charger Charger Household outlet Household outlet Ni-Cd battery pack Ni-Cd battery pack OR English3 language English 3 2. HOW TO INSTALL TRANSMITTER ANTENNA Place the transmitter antenna into the antenna holder to screw it in clock-wise. Do not extend the antenna when installing. It’s dangerous. If the antenna is not screwed in securely, the vehicle may move erratically. Screw the antenna securely. 3. HOW TO INSTALL THE BATTERIES Transmitter One 9 volt (006P) battery To remove the battery lid, press the point marked “OPEN” and pull the lid downward. Install battery and make sure that (+) and (-) poles are positioned properly. * Dispose the used batteries separately from other trash. Vehicle When installing a Ni-Cd battery pack, make sure that the power switch of the vechile is OFF. (2) Fix the battery case into the battery compartment of your vehicle and push in all the way. Battery compartment RDC-100022B-FCC JEEP RUBICON ++ -- ++ -- Vehicle's connector Battery’s Connectors (1) Join the connectors of the vehicle and the Ni-Cd pack. 4. HOW TO PLAY English 4 (3) Press down the battery stopper. (1) Extend the transmitter antenna. You can control the vehicle at a longer dis- tance by holding the tra…

Text truncated - open the document above for the full version.

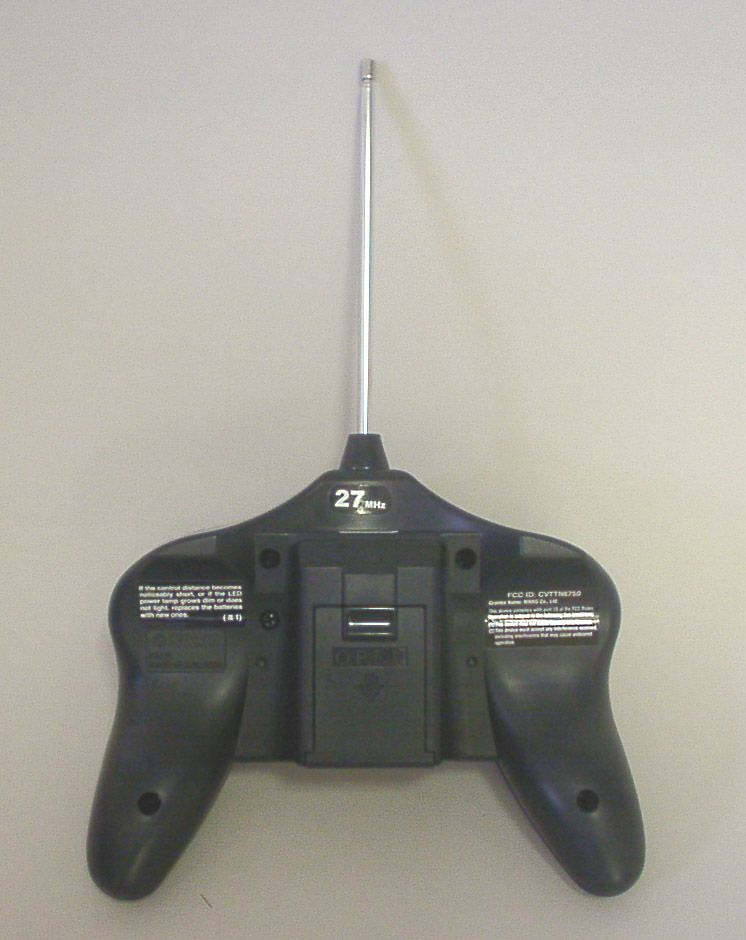

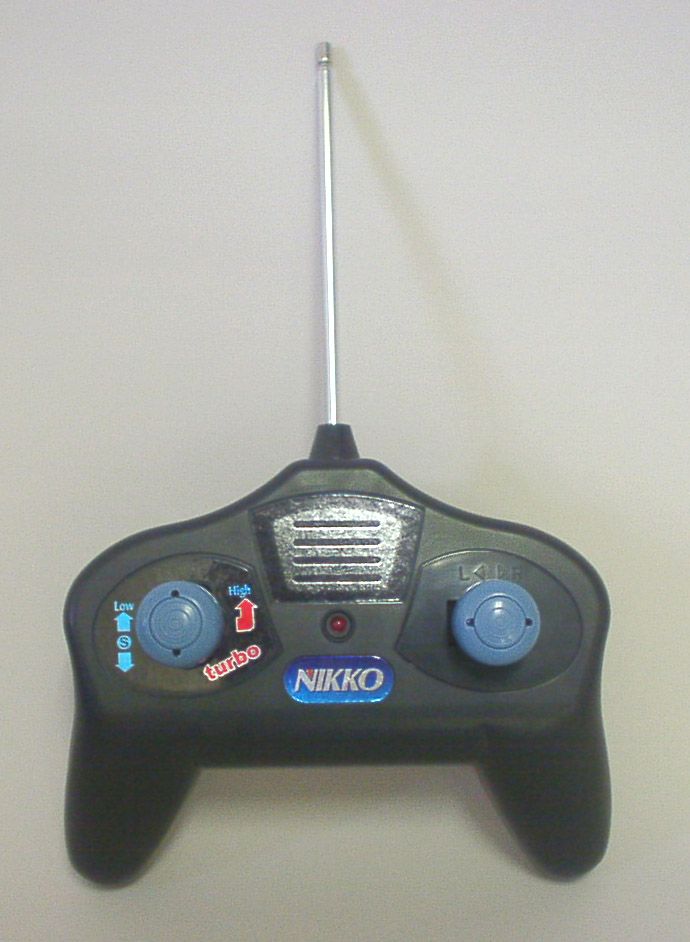

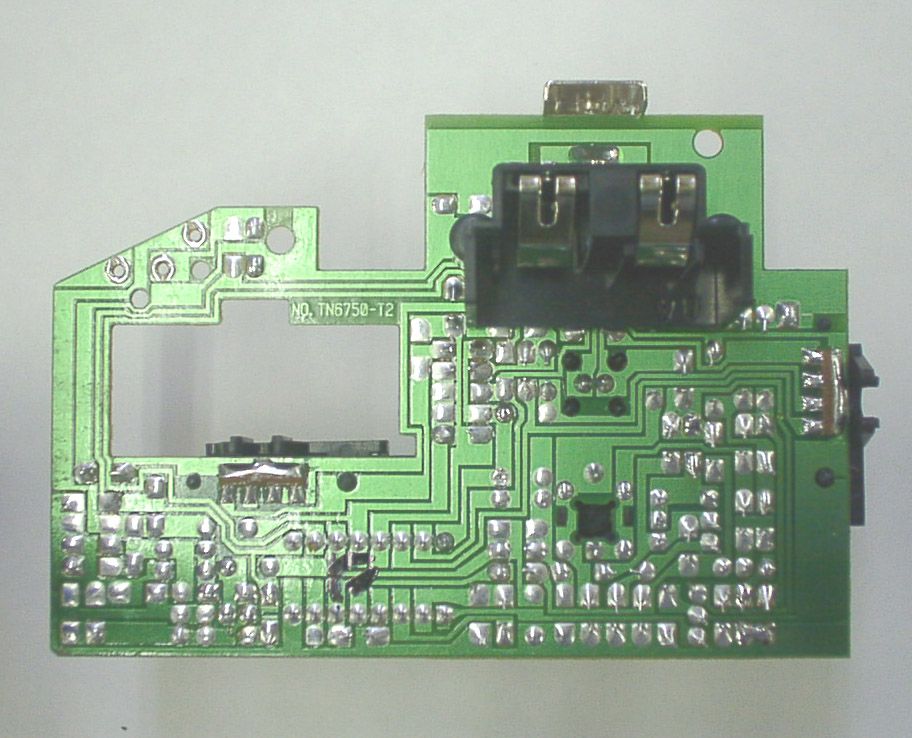

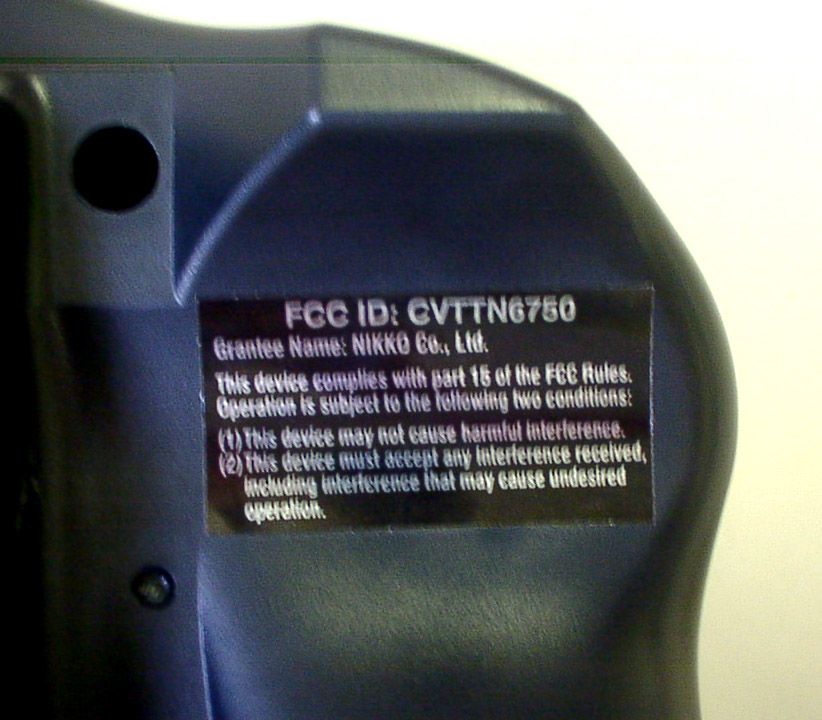

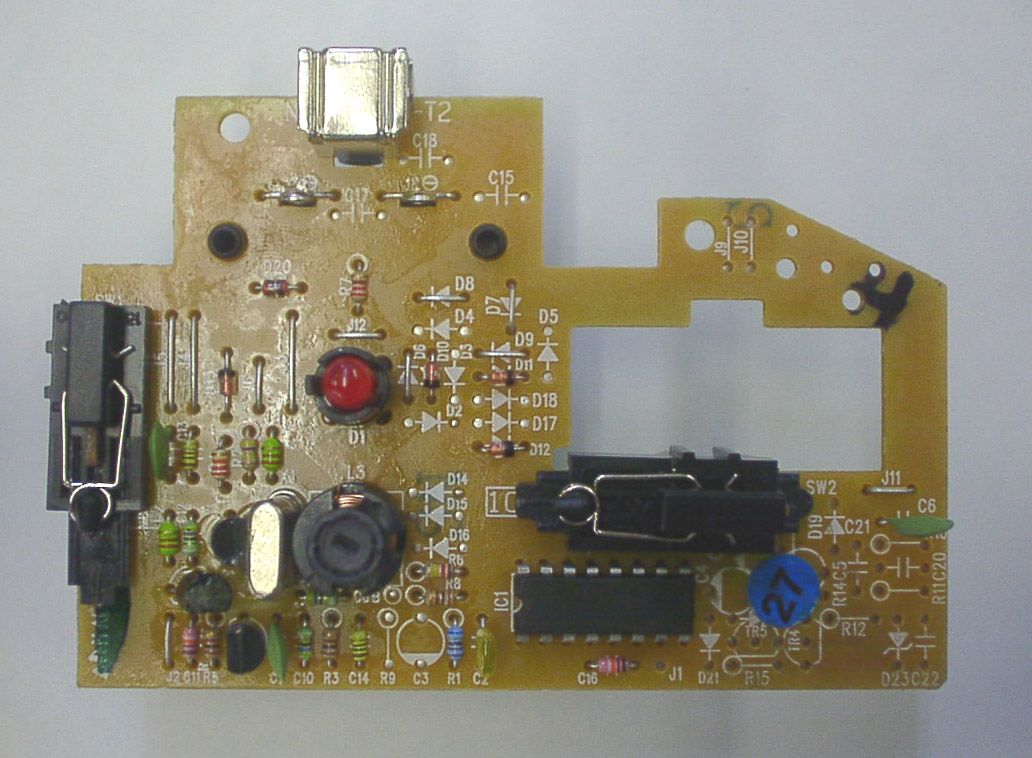

TN6750 CIRCUIT EXPLANATION (FCC ID:CVTTN6750) 1)TR1 forms the power circuit. 2)The power circuit status to operate when SW1 and SW2 are turn ON. 3)TR2 forms the Radio Frequency oscillator. 4)The Amplitude Modulation of the Radio Frequency is performed in TR3 by placing the waves on Audio Frequency. 5)AM. waves are output into the collector of TR3,passed through the filter, and is transmitted from the Antenna.

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE (03) 3416-0111, FAX (03) 3416-9691 JQA APPLICATION NO.: 400-30221 Issue Date : July 1, 2003 Page 1 of 33 EMI TEST REPORT JQA APPLICATION NO. : 400-30221 Model No. : TN6750 Type of Equipment : Radio Controlled Toy (Transmitter) Regulations Applied : CFR 47 FCC Rules and Regulations Part 15 FCC ID : CVTTN6750 Applicant : NIKKO CO., LTD. Address : 1-7-14, Mizumoto, Katsushika-ku, Tokyo 125-0032, Japan Manufacturer : NIKKO ELECTRONICS BHD. Address : Plot 497 Prai Free Trade Zone, Prai Industrial Estate, 13600 Prai, Penang, Malaysia Received date of EUT : June 20, 2003 Final Judgment : Passed Test results in this report are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and Communication Research Laboratory (CRL) of Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. C O P Y JQA Application No. :400-30221 FCC ID : CVTTN6750 Model No. :TN6750 Issue Date :July 1, 2003 Standard :CFR 47 FCC Rules Part 15 Page 2 of 33 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 8 1.4 EUT Modifications / Deviation from Standard 9 1.5 Test results 10 1.6 Summary 11 1.7 Test Configuration / Operation of EUT 12 1.8 EUT Arrangement(Drawing) 13 1.9 Preliminary Test and Test-setup (Drawings) 14 – 19 1.10 EUT Arrangement (Photographs) 20 – 21 2 Test Data 2.1 AC Power Line Conducted Emission N/A 2.2 Radiated Emission (Electric Field) 23 – 24 2.3 Frequency Stability N/A 2.4 Occupied Bandwidth 25 – 29 3 Appendix Test instruments List 30 – 33 C O P Y JQA Application No. :400-30221 FCC ID : CVTTN6750 Model No. :TN6750 Issue Date :July 1, 2003 Standard :CFR 47 FCC Rules Part 15 Page 3 of 33 JAPAN QUALITY ASSURANCE ORGANIZATION 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A and B (June 23, 1989) Superregenerative Receiver Test procedure : AC power line conducted emission, radiated emission and antenna conducted power tests were performed according to the procedures in ANSI C63.4-1992. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers( 3 meters Site ). - Shielded Enclosure. Expiration date of FCC test facility filing : May 27, 2005 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2004) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : Radio Controlled Toy 2) Product Type : Pre-Production 3) Category : Low Power Communication Device Transmitter 4) EUT Authorization : Certification 5) FCC ID : CVTTN6750 6) Trade Name : NIKKO 7) Model No. : TN6750 8) Operating Frequency Range : 27.145 MHz 9) Highest Frequency Used in the EUT : 27.145 MHz 10) Serial No. : None 11) Date of Manufacture : June 2003 12) Power Rating : 9.0 VDC(Battery) 13) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. C O P Y JQA Application No. :400-30221 FCC ID : CVTTN6750 Model No. :TN6750 Issue Date :July 1, 2003 Standard :CFR 47 FCC Rules Part 15 Page 4 of 33 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITION 1.3.1 The measurement of the AC Power Line Conducted Emission - was performed in the following test site. x - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Shielded Enclosure - Anechoic Chamber No. 2 (portable Type) Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver Spectrum Analyzer Cable AMN(for EUT) AMN(for Peripheral) Termination C O P Y JQA Application No. :400-30221 FCC ID : CVTTN6750 Model No. :TN6750 Issue Date :July 1, 2003 Standard :CFR 47 FCC Rules Part 15 Page 5 of 33 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.2 The measurement of the Radiated Emission(9 kHz – 30 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Anechoic Chamber No. 2 (3 meters) x - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date : N/A 2) Interval : N/A Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR07 Antenna AN01 Cable CA06 C O P Y JQA Application No. :400-30221 FCC ID : CVTTN6750 Model No. :TN6750 Issue Date :July 1, 2003 Standard :CFR 47 FCC Rules Part 15 Page 6 of 33 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.3 The measurement of the Radiated Emission(30 MHz – 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Anechoic Chamber No. 2 (3 meters) x - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2003 2) Interval :1 year Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR06 Antenna AN07, AN09 Cable CA02 RF Amplifier N/A C O P Y JQA Application No. :400-30221 FCC ID : CVTTN6750 Model No. :TN6750 Issue Date :July 1, 2003 Standard :CFR 47 FCC Rules Part 15 Page 7 of 33 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.4 The measurement of the Radiated Emission(Above 1000 MHz) - was per…

Text truncated - open the document above for the full version.

JQA Application No. :400-30221 FCC ID : CVTTN6750 Model No. :TN6750 Issue Date :July 1, 2003 Standard :CFR 47 FCC Rules Part 15 Page 20 of 33 JAPAN QUALITY ASSURANCE ORGANIZATION 1.10 TEST ARRANGEMENT (PHOTOGRAPHS) PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission C O P Y JQA Application No. :400-30221 FCC ID : CVTTN6750 Model No. :TN6750 Issue Date :July 1, 2003 Standard :CFR 47 FCC Rules Part 15 Page 21 of 33 JAPAN QUALITY ASSURANCE ORGANIZATION C O P Y
