CVTTP6740Radio Controlled Toy

NIKKO ST-39710 RDC-300113-FCC Super cruiser PRINTED IN MALAYSIA IMPRIME EN MALAISIE IMPRESO EN MALASIA English / Français / Español Owner's Manual Manuel du lutilisateur Manual del Propietario ATTENTTION: JOUET ELECTRIQUE Non recommandé pour les enfants de moins de 8 ans. Comme aves tous les appareils électriques, des précaut ons doivent être observées pendant la manipulation et l'emploi pour éviter toute décharge électrique. Entrée: secteur 120 VAC, 60 Hz seulement Sortie: 12VDC 200mA PARENTS ATTENTION Il est recommandé de vérifier périodiquement l'absence de risque potentiel sur ce jouet et tous les accessoires et de réparer o remplacer les pieces potentieliement dangereuses. FEATURES Full function: Forward, reverse, left/right turn and stop. Includes stand for display. PRECAUCÓN: JUGETE ELÉCTRICO No recomendado para niños de menos de 8 años de edad. AL igual que con todos los productos eléctricos, para evitar un shock eléctrico, se deben observar precauciones especiales al manipular y usar este juguete. Entrada: Solamente 120 VAC, 60 Hz. Salida: 12 VDC, 200mA ATENCIÓN PADRES Se recomienca que este juguete y todos sus accesorios sean examinados periódicamente para tratar de encontrar peligros potenciales provocados por piezas que necesiten ser reparadas o cambiadas. CARACTERISTIQUES CARACTERÍSTICAS Toutes les fonctions: Marche avant, arrière, virage à droite / gauche et arrêt. Inclut un support de rangement. Funciones totales: Avance, retroceso, giros a la izquierda / derecha y detención. Incluye una base para almacenamiento. English3 language D/SALLY/300113/Cruiser-st39710fcc-eng 05-04-04 1/22 RADIO CONTROL BOAT BATTERY REQUIREMENTS Boat : 1 x Ni-Cd rechargeable battery pack (9.6V, 620-650mAh) Transmitter : 1 x 9V(006P) battery PILES Bateau : 1 pack de batteries rechargeable Ni-Cd (9,6V, 620-650mAh) Emetteur : 1 pile 006p (9V) PILAS REQUERIDAS: Lancha : Paquete de batera de Ni-Cdí (9,6V, 620-650mAh) Transmisor : 1 pila de 9V (006P) 1 Lea estas instrucciones detenidamente antes de la utilización. Guardar la caja y el manual para su consulta en el futuro. Precautión! Úselo bajo la supervisión diercta de un adulto. El producto real puede diferir ligeramente de las ilustraciones. ! • Recharge the Battery Before You Start to Operate • Recargue la bateria antes de empezar a jugar • Recharger la batterie avant d'allumer KMNA-300113B NM0-140404 Lisez attentivement ce manuel avant de commencer à utiliser le véhicule. Conservez la boîte d'exposition et le manuel pour toute référence ultérieure. Attention! A utiliser sous la supervision directe d’un adulte. La moto contenue dans l'emballage peut ne pas correspondre exactement aux illustrations. Please read carefully before starting to operate. Keep the display box and the manual for future reference. Warning! Use under the direct supervision of an adult Actual product may vary from illustration of this manual. 9.6V English 2 RECHARGING "WARNING! USE UNDER THE DIRECT SUPERVISION OF AN ADULT." * The newly purchased Ni-Cd pack is not charged. Charge before operating. CAUTION Do not charge Battery Pack immediately after use. Wait until it has cooled before charging. Avoid short circuits. Short circuits will cause overheating, burning of the cords and other damages to the Battery Pack and Charger. The Ni-Cd Battery Charger should be used for charging one Battery Pack. Do not use the Charger for charging other type of batteries and Battery Packs Do not use the Charger as a direct current outlet for other electrical appliances or machines. Make sure that the Battery Pack and Charger are kept out of the hands of infants and small children while charging. Do not charge near fires, where the temperature is extremely high, or where it is wet or damp. The Charger will become slightly heated while charging. Allow sufficient free space around the Charger. If the power of the Battery Pack is weak in spite of proper charging, the batteries may be worn out from repeated use. Replace it with a new Ni-Cd Battery Pack. Dispose of use Ni-Cd Battery Packs correctly. Disconnect the supply before making or breaking connections to the Battery Pack. WARNING AGAINST RECHARGING NON-RECHARGEABLE BATTERIES. Please use this Battery Charger only for the charge of the rechargeable Battery Pack. The Ni-Cd Battery Pack should be charged under the supervision of an adult. PREPARATION FOR STARTING OPERATION RDC-300072-FCC falcon,caliente, English3 language Pass the antenna wire through the antenna tube, then insert the tube into the antenna tube holder. If the antenna tube cannot be successfully inserted into the antenna tube holder, try holding the root of the antenna wire with fingers of one hand and extending the wire with fingers of the other hand. 1. HOW TO ATTACH ANTENNA TUBE * Note: Be careful not to pull antenna wire too strong. 1. Join the connector of the charger to the connector of the Ni-Cd battery pack. 2. Plug the charger into an electrical outlet. 3. Recharge for about 4-5 hours. 4. When the recharging is over, plug out the charger from the electrical outlet and detach the Connectors. Charger Household outlet Ni-Cd battery pack OR Charger Household outlet Ni-Cd battery pack 9. 6V OR Antenna wire Antenna tube Antenna tube holder English 3 2. HOW TO INSTALL TRANSMITTER ANTENNA Place the transmitter antenna into the antenna holder to screw it in clock-wise. Do not extend the antenna when installing. It’s dangerous. If the antenna is not screwed in securely, the vehicle may move erratically. Screw the antenna securely. 3. HOW TO INSTALL THE BATTERIES Transmitter Boat When installing a Ni-Cd battery pack, make sure that the power switch of the boat is OFF. RDC-3000113-FCC Super cruiser English3 language Install battery make sure that (+) and (-) poles are positioned properly. * Dispose the used batteries separately from other trash. Join the boat and the Ni-Cd battery pack connector, and be sure it is connected properly. To remove the battery lid, press the point marked “…

Text truncated - open the document above for the full version.

TP6740 CIRCUIT EXPLANATION FCC ID :CVTTP6740 1) The power circuit status to operate when SW1 or SW2 are turn ON. 2) TR1 forms the Radio Frequency oscillator. 3) The Amplitude Modulation of the Radio Frequency is performed in TR2 by placing the waves on Audio Frequency. 4) AM. waves are output into the collector of TR2,passed through the filter, and is transmitted from the Antenna. NIKKO CO.,LTD R&D Dept.Chief Y.MAEDA

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE +81-3-3416-0111, FAX +81-3-3416-9691 JQA APPLICATION NO.: 400-40178 Issue Date : June 21, 2004 Page 1 of 32 EMI TEST REPORT JQA APPLICATION NO. : 400-40178 Model No. : TP6740 Type of Equipment : Radio Controlled Toy (Transmitter) Regulations Applied : CFR 47 FCC Rules and Regulations Part 15 FCC ID : CVTTP6740 Applicant : NIKKO CO., LTD. Address : 1-7-14, Mizumoto, Katsushika-ku, Tokyo 125-0032, Japan Manufacturer : NIKKO ELECTRONICS BHD. Address : PLOT 497 PRAI FREE TRADE ZONE, PARI INDUSTRIAL ESTATE, 13600 PRAI, PENANG, MALAYSIA. Received date of EUT : June 4, 2004 Final Judgment : Passed Test results in this report are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology(NICT) of Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. JQA Application No. :400-40178 FCC ID :CVTTP6740 Model No. :TP6740 Issue Date :June 21, 2004 Standard :CFR 47 FCC Rules Part 15 Page 2 of 32 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 8 1.4 EUT Modifications / Deviation from Standard 9 1.5 Test results 10 1.6 Summary 11 1.7 Test Configuration / Operation of EUT 12 1.8 EUT Arrangement(Drawing) 13 1.9 Preliminary Test and Test-setup (Drawings) 14 – 19 1.10 EUT Arrangement (Photographs) 20 – 21 2 Test Data 2.1 AC Power Line Conducted Emission N/A 2.2 Radiated Emission (Electric Field) 22 – 23 2.3 Frequency Stability N/A 2.4 Occupied Bandwidth 24 – 28 3 Appendix Test instruments List 29 – 32 JQA Application No. :400-40178 FCC ID :CVTTP6740 Model No. :TP6740 Issue Date :June 21, 2004 Standard :CFR 47 FCC Rules Part 15 Page 3 of 32 JAPAN QUALITY ASSURANCE ORGANIZATION 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A and C Intentional Radiators Test procedure : AC power line conducted emission, radiated emission, frequency stability and occupied bandwidth tests were performed according to the procedures in ANSI C63.4-2001. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers( 3 meters Site ). - Shielded Enclosure. Expiration date of FCC test facility filing : May 27, 2005 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2005) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : Radio Controlled Toy (Transmitter) 2) Product Type : Production 3) Category : Low Power Communication Device Transmitter 4) EUT Authorization : Certification 5) FCC ID : CVTTP6740 6) Trade Name : NIKKO 7) Model No. : TP6740 8) Operating Frequency Range : 27.145 MHz 9) Highest Frequency Used in the EUT : 27.145 MHz 10) Serial No. : None 11) Date of Manufacture : None 12) Power Rating : DC 9.0V(Battery) 13) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JQA Application No. :400-40178 FCC ID :CVTTP6740 Model No. :TP6740 Issue Date :June 21, 2004 Standard :CFR 47 FCC Rules Part 15 Page 4 of 32 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITION 1.3.1 The measurement of the AC Power Line Conducted Emission - was performed in the following test site. x - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Shielded Enclosure - Anechoic Chamber No. 2 (portable Type) Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver Spectrum Analyzer Cable AMN(for EUT) AMN(for Peripheral) Termination JQA Application No. :400-40178 FCC ID :CVTTP6740 Model No. :TP6740 Issue Date :June 21, 2004 Standard :CFR 47 FCC Rules Part 15 Page 5 of 32 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.2 The measurement of the Radiated Emission(9 kHz – 30 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Anechoic Chamber No. 2 (3 meters) x - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date : N/A 2) Interval : N/A Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR06 Antenna AN01 Cable CA06 JQA Application No. :400-40178 FCC ID :CVTTP6740 Model No. :TP6740 Issue Date :June 21, 2004 Standard :CFR 47 FCC Rules Part 15 Page 6 of 32 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.3 The measurement of the Radiated Emission(30 MHz – 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Anechoic Chamber No. 2 (3 meters) x - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2004 2) Interval :1 year Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR06 Antenna AN07, AN09 Cable CA02 RF Amplifier N/A JQA Application No. :400-40178 FCC ID :CVTTP6740 Model No. :TP6740 Issue Date :June 21, 2004 Standard :CFR 47 FCC Rules Part 15 Page 7 of 32 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.4 The measurement of the Radiated Emission(Above 1000 MHz) - was performed in the f…

Text truncated - open the document above for the full version.

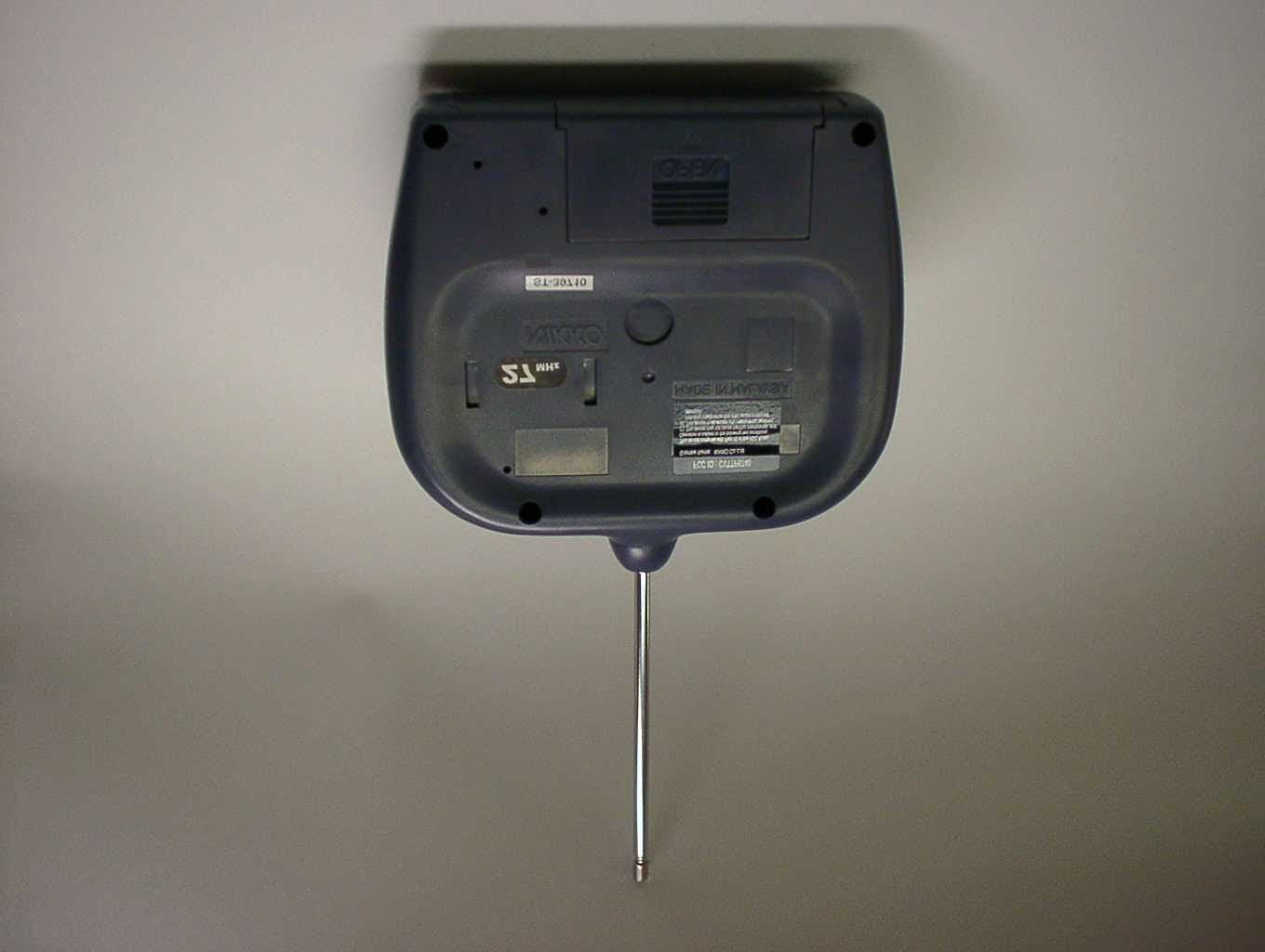

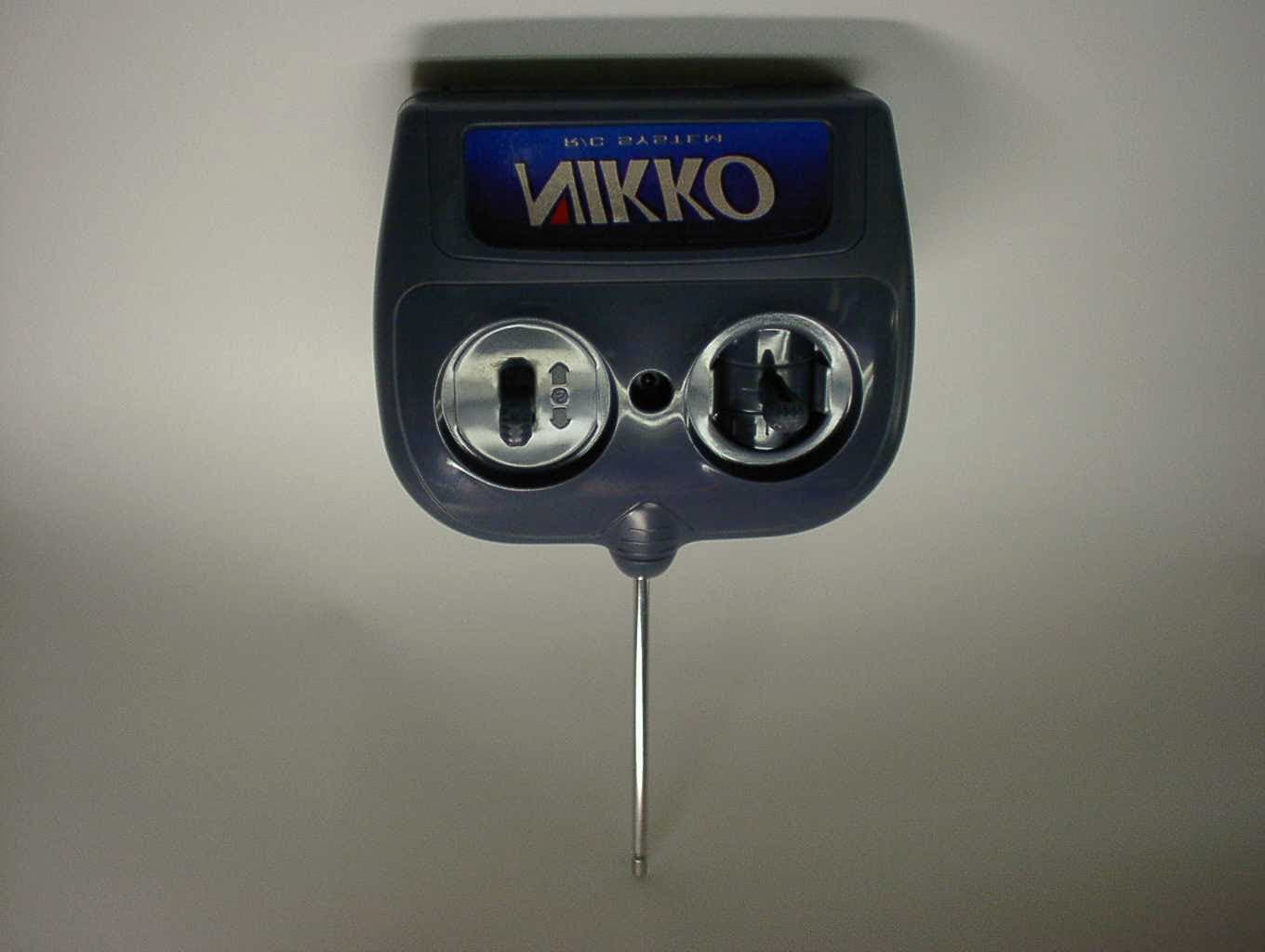

JQA Application No. :400-40178 FCC ID :CVTTP6740 Model No. :TP6740 Issue Date :June 21, 2004 Standard :CFR 47 FCC Rules Part 15 Page 20 of 32 JAPAN QUALITY ASSURANCE ORGANIZATION 1.10 TEST ARRANGEMENT (PHOTOGRAPHS) PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission JQA Application No. :400-40178 FCC ID :CVTTP6740 Model No. :TP6740 Issue Date :June 21, 2004 Standard :CFR 47 FCC Rules Part 15 Page 21 of 32 JAPAN QUALITY ASSURANCE ORGANIZATION
