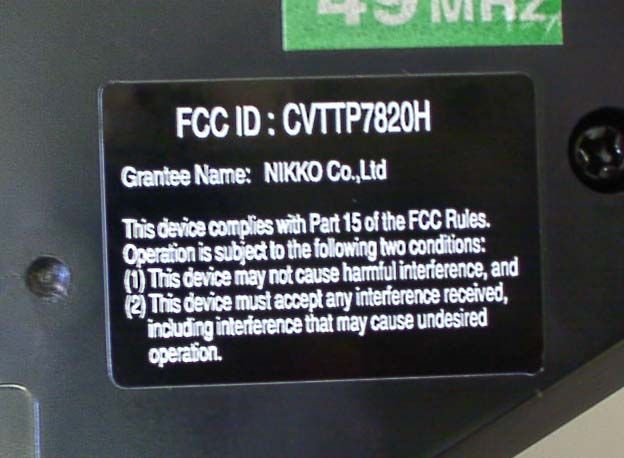

CVTTP7820HRemote Control Toy Transmitter

1 1/16 Go Kart © NIKKO English/Français/Español FEATURES BATTERY REQUIREMENTS: Transmitter: One 006P(9V)6F22 battery
Full function: Forward, reverse, left/right turn and stop When cornering, the driver tilts to the left or right.
VEHICLE:

PILES : Emetteur: Une pile 6F22 (9 V) Véhicule: une batterie rechargeable Ni-Cd (9,6 V) CARACTERÍSTICAS Funciones completas REQUISITOS DE PILAS: Transmisor: 1 pila de 9 V (006P)6F22 Vehículo: Un paquete de pilas recargables de Ni-Cd (9,6 V) Avanza, retrocede, gira hacia la izquier- da y derecha, se detiene.

1 x Ni-Cd rechargeable battery pack(9.6 V) RDC-16702 *Keep the display box and the manual for future reference. *"WARNING! USE UNDER THE DIRECT SUPERVISION OF AN ADULT." *CONVERVER L’EMBALLAGE ET LE MODE D’EMPLOI POUR TOUTE REFERENCE ULTERIEURE. *ATTENTION! A UTILISER SOUS LA SURVEILLANCE DIRECTE D’UN ADULTE. *Guarde la caja y el manual para referencias futuras. *"¡AVISO! ÚSELO BAJO LA SUPERVISIÓN DIRECTA DE UN ADULTO" En las curvas, el conductor se inclina a la izquierda o derecha. CARACTERISTIQUES Toutes les fonctions: marche avant, arrière, virage à droite et à gauche, et arrêt Dans les virages, le conducteur penche vers la gauche ou la droite. Owner’s Manual Manual del Propietario MANUEL DU PROPRIETAIRE Please read carefully before starting to operate.
Lire attentivement cet explicatif avant de commencer à jouer.
Lea cuidadosamente las instrucciones siguientes antes de comenzar a jugar.
Repair and Parts Department Monday to Friday 8:30AM- 5:30PM Central Time Repair:(800)736-4556 Parts:(800)776-4556 Fax:(972)578-7059 e-mail:[email protected] CAUTION: ELECTRIC TOY Not recommended for children un- der 8 years of age. As with all elec- tric products, precautions should be observed during handling and use to prevent electric shock. Input: 120 vac, 60 HZ 12W only. Output: 12 VDC, 3.6W ATTENTION PARENTS It is recommended that this toy and all accessories be periodically examined for potential hazards and that any potentially hazardous parts be repaired or replaced. 2 Français ATTENTION: JOUET ELECTRIQUE Non recommandé pour les enfants de moins de 8 ans. Comme avec tous les appareils électriques, des précautions doivent être observées pendant la ma- nipulation et l’emploi pour éviter toute décharge électrique. Entrée: secteur 120 V, 60 Hz, 12 W seulement Sortie: 12 V c.c. 3,6 W PARENTS ATTENTION Il est recommandé de vérifier périodiquement l’absence de risque potentiel sur ce jouet et tous les accessoires, et de réparer ou remplacer les pièces potentiellement dangereuses. Département Réparation et pièces Lundi au vendredi, de 8h30 à 17h30, heure centrale Réparations: (800) 736-4556 Pièces: (800) 776-4556 Fax: (972) 578-7059 Courrier électronique: [email protected] PRECAUCIÓN: JUGUETE ELÉCTRICO No recomendado para niños de menos de 8 años de edad. Al igual que con todos los productos eléctricos, para evitar un shock eléctrico, se deben observar precauciones especiales al manipular y usar este juguete. Entrada: Solamente 120 V.CA, 60 Hz, 12 W. Salida: 12 V. CC, 3,6 W. ATENCIÓN PADRES Se recomienda que este juguete y todos sus accesorios sean examinados periódicamente para tratar de encontrar peligros potenciales provocados por piezas que necesiten ser reparadas o cambiadas. Departamento de Reparación y Repuestos Lunes a viernes 8:30 AM – 5:30 PM Hora Central Reparaciones: (800) 736-4556 Repuestos: (800) 776-4556 Fax: (972) 578-7059 e-mail: [email protected] Español 3 2. HOW TO INSTALL TRANSMITTER ANTENNA Place the transmitter antenna into the antenna holder to screw it in clockwise. Don’t install the antenna extended. It’s dangerous. If the antenna is not screwed in se- curely, the vehicle may move errati- cally. Screw the antenna securely. To remove the battery lid, press the point marked "OPEN"and pull the lid downward. One 006P(9V)6F22 battery Install battery making sure that + and - poles of the battery are posi- tioned properly. Transmitter Battery lid HOW TO INSTALL THE BATTERIES Make sure vehicle’s on-off switch is turned OFF when installing bat- tery. Remove all the batteries from the vehicle and the transmitter after playing.


Vehicle
  To open push and slide. Lift the battery lid. Join the connectors of the Ni-Cd pack and the vehicle. When you connect the connectors, make certain the vehicle switch is in the "OFF" position. Replace the battery lid. Ni-Cd battery pack (9.6 V) Battery lid PREPARATION FOR STARTING OPERATION 1. HOW TO ATTACH ANTENNA TUBE Antenna tube Antenna wire Antenna tube holder Pass the antenna wire through the antenna tube, then insert the tube into the antenna tube holder. If the antenna tube cannot be suc- cessfully inserted into the antenna tube holder, try holding the root of the antenna wire with fingers of one hand and extending the wire with fingers of the other hand. * Note: Be careful not to pull an- tenna wire too strong. English 4 HOW TO PLAY LEFT/STRAIGHT/RIGHT FORWARD NEUTRAL BACKWARD 1. Turn ON the vehicle. 2.Operate the vehicle with transmitter. 3.Turn OFF the vehicle after operating. 4.Remove all the batteries both from the vehicle and the transmitter. Check to see that the battery is INSTALLED in the CORRECT position. * Please follow the above sequence of operation. *AUTO POWER OFF TRANSMITTER (PAT.P.) (To prevent unnecessary power loss) The transmitter power is automatically turned ON when the user operates the transmitter (and the red LED lamp lights up to indicate that the power has been turned ON). About 15 seconds after the user stops operating the transmitter, the power is automatically turned OFF (and the red LED lamp goes out). When the transmitter power is turned OFF (about 15 seconds after the user stops operating), the vehicle can be jammed by other transceiver radio waves and start to move abnor- mally. When this happens, turn the transmitter power ON once more, so that the vehicle will not be jammed by external radio waves. Antenna Transmitter Vehicle When the…

Text truncated - open the document above for the full version.

TP7820H CIRCUIT EXPLANATION FCC ID :CVTTP7820H 1) The power circuit status to operate when SW1 or SW2 are turn ON. 2) TR1 forms the Radio Frequency oscillator. 3) The Amplitude Modulation of the Radio Frequency is performed in TR2 by placing the waves on Audio Frequency. 4) AM. waves are output into the collector of TR2,passed through the filter, and is transmitted from the Antenna. NIKKO CO.,LTD R&D Dept.Chief Y.MAEDA

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE +81-3-3416-0111, FAX +81-3-3416-9691 JQA APPLICATION NO.: 400-30609 Issue Date : November 19, 2003 Page 1 of 34 EMI TEST REPORT JQA APPLICATION NO. : 400-30609 Model No. : TP7820H Type of Equipment : Radio Controlled Toy (Transmitter) Regulations Applied : CFR 47 FCC Rules and Regulations Part 15 FCC ID : CVTTP7820H Applicant : NIKKO CO., LTD. Address : 1-7-14, Mizumoto, Katsushika-ku, Tokyo 125-0032, Japan Manufacturer : NIKKO TEC INTERNATIONAL LTD. Address : Rm. 601-603, Houston Center, 63, Mody Road, Tsimshatsui East, Kowloon, Hong Kong Received date of EUT : November 7, 2003 Final Judgment : Passed Test results in this report are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and Communication Research Laboratory (CRL) of Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. C O P Y JQA Application No. :400-30609 FCC ID :CVTTP7820H Model No. :TP7820H Issue Date :November 19, 2003 Standard :CFR 47 FCC Rules Part 15 Page 2 of 34 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 8 1.4 EUT Modifications / Deviation from Standard 9 1.5 Test results 10 1.6 Summary 11 1.7 Test Configuration / Operation of EUT 12 1.8 EUT Arrangement(Drawing) 13 1.9 Preliminary Test and Test-setup (Drawings) 14 – 19 1.10 EUT Arrangement (Photographs) 20 – 21 2 Test Data 2.1 AC Power Line Conducted Emission N/A 2.2 Radiated Emission (Electric Field) 23 – 24 2.3 Frequency Stability N/A 2.4 Occupied Bandwidth 25 – 30 3 Appendix Test instruments List 31 – 34 C O P Y JQA Application No. :400-30609 FCC ID :CVTTP7820H Model No. :TP7820H Issue Date :November 19, 2003 Standard :CFR 47 FCC Rules Part 15 Page 3 of 34 JAPAN QUALITY ASSURANCE ORGANIZATION 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A and C Intentional Radiators Test procedure : AC power line conducted emission, radiated emission, frequency stability and occupied bandwidth tests were performed according to the procedures in ANSI C63.4-1992. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers( 3 meters Site ). - Shielded Enclosure. Expiration date of FCC test facility filing : May 27, 2005 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2004) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : Radio Controlled Toy (Transmitter) 2) Product Type : Production 3) Category : Low Power Communication Device Transmitter 4) EUT Authorization : Certification 5) FCC ID : CVTTP7820H 6) Trade Name : NIKKO 7) Model No. : TP7820H 8) Operating Frequency Range : 49.860 MHz 9) Highest Frequency Used in the EUT : 49.860 MHz 10) Serial No. : None 11) Date of Manufacture : None 12) Power Rating : DC 9.0V(Battery) 13) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. C O P Y JQA Application No. :400-30609 FCC ID :CVTTP7820H Model No. :TP7820H Issue Date :November 19, 2003 Standard :CFR 47 FCC Rules Part 15 Page 4 of 34 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITION 1.3.1 The measurement of the AC Power Line Conducted Emission - was performed in the following test site. x - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Shielded Enclosure - Anechoic Chamber No. 2 (portable Type) Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver Spectrum Analyzer Cable AMN(for EUT) AMN(for Peripheral) Termination C O P Y JQA Application No. :400-30609 FCC ID :CVTTP7820H Model No. :TP7820H Issue Date :November 19, 2003 Standard :CFR 47 FCC Rules Part 15 Page 5 of 34 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.2 The measurement of the Radiated Emission(9 kHz – 30 MHz) - was performed in the following test site. x - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Anechoic Chamber No. 2 (3 meters) - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date : N/A 2) Interval : N/A Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver Antenna Cable C O P Y JQA Application No. :400-30609 FCC ID :CVTTP7820H Model No. :TP7820H Issue Date :November 19, 2003 Standard :CFR 47 FCC Rules Part 15 Page 6 of 34 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.3 The measurement of the Radiated Emission(30 MHz – 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - Anechoic Chamber No. 2 (3 meters) - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2003 2) Interval :1 year Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR05 Antenna AN06, AN08 Cable CA01 RF Amplifier N/A C O P Y JQA Application No. :400-30609 FCC ID :CVTTP7820H Model No. :TP7820H Issue Date :November 19, 2003 Standard :CFR 47 FCC Rules Part 15 Page 7 of 34 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.4 The measurement of the Radiate…

Text truncated - open the document above for the full version.

JQA Application No. :400-30609 FCC ID :CVTTP7820H Model No. :TP7820H Issue Date :November 19, 2003 Standard :CFR 47 FCC Rules Part 15 Page 20 of 34 JAPAN QUALITY ASSURANCE ORGANIZATION 1.10 TEST ARRANGEMENT (PHOTOGRAPHS) PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission C O P Y JQA Application No. :400-30609 FCC ID :CVTTP7820H Model No. :TP7820H Issue Date :November 19, 2003 Standard :CFR 47 FCC Rules Part 15 Page 21 of 34 JAPAN QUALITY ASSURANCE ORGANIZATION C O P Y
