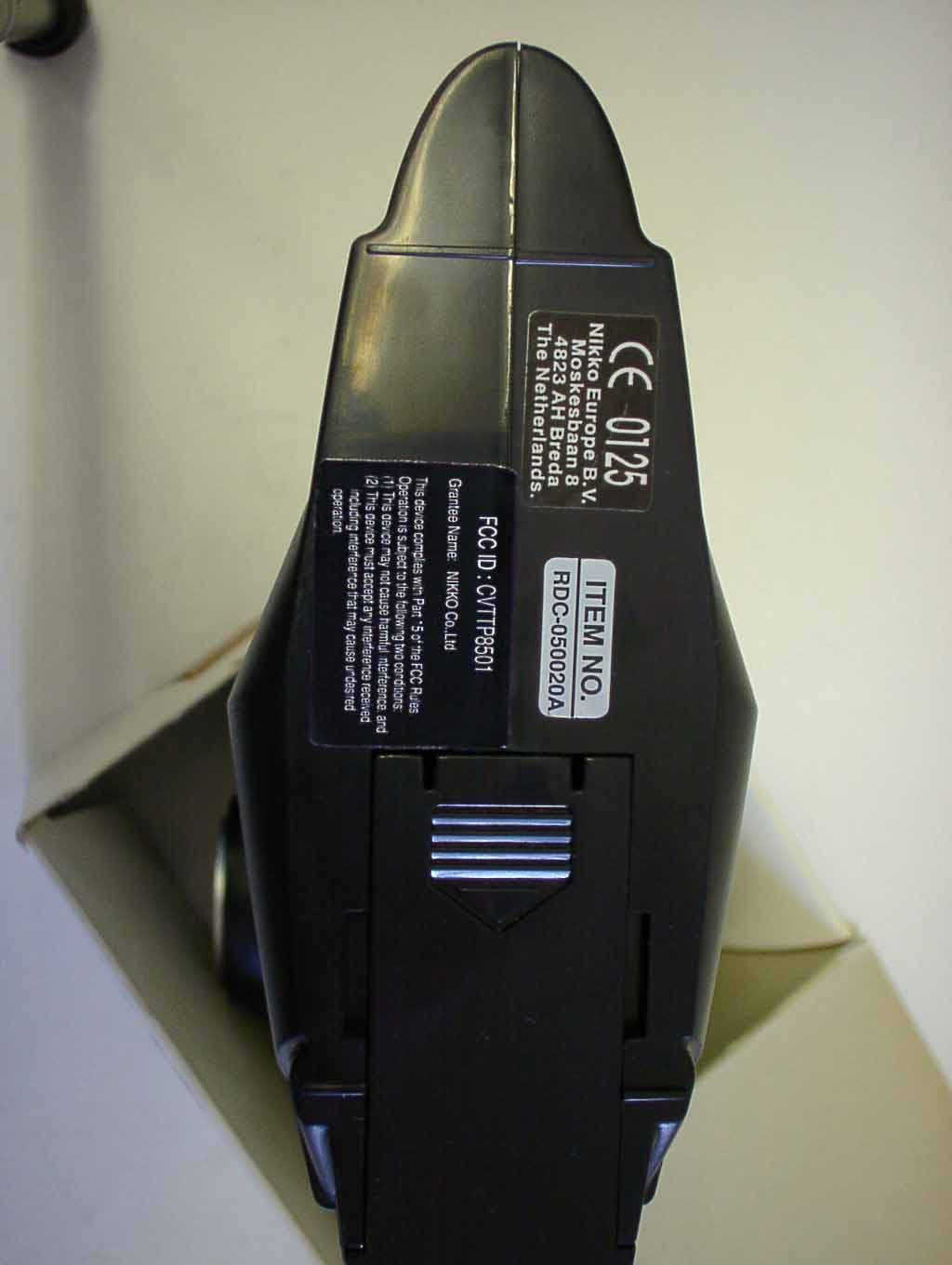

CVTTP8501Radio Controlled Toy(Transmitter)

PT-24810 PRINTED IN MALAYSIA IMPRIME EN MALAISIE IMPRESO EN MALASIA English / Français / Español Owner's Manual Manuel du lutilisateur Manual del Propietario • Recharge the Battery Before You Start to Operate • Recargue la bateria antes de empezar a jugar • Recharger la batterie avant d'allumer ATTENTTION: JOUET ELECTRIQUE Non recommandé pour les enfants de moins de 8 ans. Comme aves tous les appareils électriques, des précaut ons doivent être observées pendant la manipulation et l'emploi pour éviter toute décharge électrique. Entrée: secteur 120 VAC, 60 Hz seulement Sortie: 12VDC 200mA PARENTS ATTENTION Il est recommandé de vérifier périodiquement l'absence de risque potentiel sur ce jouet et tous les accessoires et de réparer o remplacer les pieces potentieliement dangereuses. FEATURES BATTERY REQUIREMENTS Vehicle : Ni-Cd rechargeable battery pack (9.6V, 600mAh- 650mAh) Transmitter : 1 x 9V(006P)battery PRECAUCÓN: JUGETE ELÉCTRICO No recomendado para niños de menos de 8 años de edad. AL igual que con todos los productos eléctricos, para evitar un shock eléctrico, se deben observar precauciones especiales al manipular y usar este juguete. Entrada: Solamente 120 VAC, 60 Hz. Salida: 12 VDC, 200mA ATENCIÓN PADRES Se recomienca que este juguete y todos sus accesorios sean examinados periódicamente para tratar de encontrar peligros potenciales provocados por piezas que necesiten ser reparadas o cambiadas. PILES Véhicule : a set de piles Ni-Cd rechargeables (9,6V, 600mAh- 650mAh) Emetteur : 1 pile 006p(9V) CARACTERISTIQUES PILAS USADAS Vehiculo : Pack de bateria 1x NiCd recargable (9,6V, 600mAh- 650mAh) Transmisor : 1 pila de 9 V (006P) CARACTERÍSTICAS Lea estas instrucciones detenidamente antes de la utilización. Guardar la caja y el manual para su consulta en el futuro. Precautión! Úselo bajo la supervisión diercta de un adulto. El producto real puede diferir ligeramente de las ilustraciones. ! Lisez attentivement ce manuel avant de commencer à utiliser le véhicule. Conservez la boîte d'exposition et le manuel pour toute référence ultérieure. Attention! A utiliser sous la supervision directe d’un adulte. La moto contenue dans l'emballage peut ne pas correspondre exactement aux illustrations. Please read carefully before starting to operate. Keep the display box and the manual for future reference. Warning! Use under the direct supervision of an adult Actual product may vary from illustration of this manual. KMNA-BIKE3B NM0-010306 9.6V NIKKO 2-channel full function: Forward, left/ right turn and stop. Electric Break System. Beginner/ Expert setting is possible by changing the side bumper attachment position. Front & rear suspension. Fonction complète double canal: avant, gauche/droite et arrêt. Système de freinage électrique. Il est possible de passer du mode débutant au mode expert en modifiant la position de la fixation du pare-choc latéral. Suspension avant arrière. Función total en dos canales : Adelante, giro izquierda/derecha y paro. Sistema de frenado eléctrico. Se puede configurar como principiante o experto cambiando la posición del parachoques lateral. Suspensión delantera y trasera. 12VDC, 200mA Sélecteur 3 bandes. 3 bands selector switch. 3 interruptor del selector de la banda. 3 BANDS 2 RECHARGING "WARNING! USE UNDER THE DIRECT SUPERVISION OF AN ADULT." * The newly purchased Ni-Cd pack is not charged. Charge before operating. 1. Connect the connector of the charger to the connector of the Ni-Cd battery pack. 2. Plug the charger into an electrical outlet. 3. Recharge for about 4-5 hours. 4. When the recharging is over, plug out the charger from the electrical outlet and detach the connectors. When playing for the first time after purchase, or after a long interval, the battery power may be weak. Even after recharging, the playing time can be relatively short. The battery will gradually regain power after 2 or 3 repetitions of usage and recharging. Household socket Ni-Cd battery pack Charger CONTENTS Transmitter Transmitter antenna Antenna tube 9.6V Ni-Cd battery 9 V(006P) battery Manual & sticker Charger Motorbike Battery lid Stand Side bumper Do not charge Battery Pack immediately after use. Wait until it has cooled before charging. Avoid short circuits. Short circuits will cause overheating, burning of the cords and other damages to the battery Pack and Charger. The Ni-Cd Battery Charger should be used for charging one Battery Pack. Do not use the Charger for charging other type of batteries and battery packs Do not use the Charger as a direct current outlet for other electrical appliances or machines. Make sure that the Battery Pack and Charger are kept out of the hands of infants and small children while charging. Do not charge near fires, where the temperature is extremely high, or where it is wet or damp. The charger will become slightly heated while charging. Allow sufficient free space around the Charger. If the power of the battery pack is weak in spite of proper charging, the batteries may be worn out from repeated use. Replace it with a new Ni-Cd battery pack. Dispose of used Ni-Cd battery packs correctly. Disconnect the supply before making or breaking connections to the battery. Only use batteries or accumulators of the recommended type or a similar type. WARNING AGAINST RECHARGING NON-RECHARGEABLE BATTERIES. Please use this battery charger only for the charge of the rechargeable battery pack. The Ni-Cd battery pack should be charged under the supervision of an adult. CAUTION 3 Insert the antenna wire through the antenna tube, then insert the tube into the antenna tube holder. If the antenna tube cannot be successfully inserted into the antenna tube holder, try holding the root of the antenna wire with one hand and extending the wire with the other hand. 1. HOW TO ATTACH ANTENNA TUBE * Precautions: Do not pull the antenna wire too strong. PREPARATION FOR STARTING OPERATION 2. HOW TO INSTALL THE TRANSMITTER ANTENNA Place the transmitter antenna into the antenna holder…

Text truncated - open the document above for the full version.

TP8501 CIRCUIT EXPLANATION FCC ID :CVTTP8501 1) The power circuit status to operate when SW1 or SW2 are turn ON. 2) TR1 forms the Radio Frequency oscillator. 3) The Amplitude Modulation of the Radio Frequency is performed in TR2 by placing the waves on Audio Frequency. 4) AM. waves are output into the collector of TR3,passed through the filter, and is transmitted from the Antenna. 5)TR3 and TR4 form auto cut off Power circuit. NIKKO CO.,LTD R&D Dept.Chief M.Miyaura

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE +81-3-3416-0111, FAX +81-3-3416-9691 JQA File No. : 400-60129 Issue Date : June 14, 2006 Page 1 of 33 EMI TEST REPORT JQA File No. : 400-60129 Model No. : TP8501 Type of Equipment : Radio Controlled Toy (Transmitter) Regulations Applied : CFR 47 FCC Rules and Regulations Part 15 FCC ID : CVTTP8501 Applicant : NIKKO CO., LTD. Address : 1-7-14, Mizumoto, Katsushika-ku, Tokyo 125-0032, Japan Manufacturer : NIKKO ELECTRONICS BHD. Address : PLOT 497 PRAI FREE TRADE ZONE, PARI INDUSTRIAL ESTATE, 13600 PRAI, PENANG, MALAYSIA Received date of EUT : June 1, 2006 Test Result : Passed Test results in this report are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology(NICT) of Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. JQA File No. :400-60129 FCC ID :CVTTP8501 Model No. :TP8501 Issue Date :June 14, 2006 Standard :CFR 47 FCC Rules Part 15 Page 2 of 33 TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 8 1.4 EUT Modifications / Deviation from Standard 9 1.5 Test results 10 1.6 Summary 11 1.7 Test Configuration / Operation of EUT 12 1.8 EUT Arrangement(Drawing) 13 1.9 Preliminary Test and Test-setup (Drawings) 14 – 19 1.10 EUT Arrangement (Photographs) 20 – 22 2 Test Data 2.1 AC Power Line Conducted Emission N/A 2.2 Radiated Emission (Electric Field) 23 – 24 2.3 Frequency Stability N/A 2.4 Occupied Bandwidth 25 – 29 3 Appendix Test instruments List 30 – 33 JQA File No. :400-60129 FCC ID :CVTTP8501 Model No. :TP8501 Issue Date :June 14, 2006 Standard :CFR 47 FCC Rules Part 15 Page 3 of 33 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A and C Intentional Radiators Test procedure : AC power line conducted emission, radiated emission, frequency stability and occupied bandwidth tests were performed according to the procedures in ANSI C63.4-2003. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers( 3 meters Site ). - Shielded Enclosure. 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : Radio Controlled Toy (Transmitter) 2) Product Type : Production 3) Category : Low Power Communication Device Transmitter 4) EUT Authorization : Certification 5) FCC ID : CVTTP8501 6) Trade Name : NIKKO 7) Model No. : TP8501 8) Operating Frequency Range : 27.145 MHz 9) Highest Frequency Used in the EUT : 27.145 MHz 10) Serial No. : None 11) Date of Manufacture : None 12) Power Rating : DC 9.0V(Battery) 13) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JQA File No. :400-60129 FCC ID :CVTTP8501 Model No. :TP8501 Issue Date :June 14, 2006 Standard :CFR 47 FCC Rules Part 15 Page 4 of 33 1.3 TEST CONDITION 1.3.1 The measurement of the AC Power Line Conducted Emission - was performed in the following test site. x - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - Shielded Enclosure - Anechoic Chamber No. 2 (portable Type) Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver N/A Spectrum Analyzer N/A Cable N/A AMN(for EUT) N/A AMN(for Peripheral) N/A Termination N/A JQA File No. :400-60129 FCC ID :CVTTP8501 Model No. :TP8501 Issue Date :June 14, 2006 Standard :CFR 47 FCC Rules Part 15 Page 5 of 33 1.3.2 The measurement of the Radiated Emission(9 kHz – 30 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - Anechoic Chamber No. 2 (3 meters) - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date : N/A 2) Interval : N/A Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver 13 Antenna 21 Cable 43 JQA File No. :400-60129 FCC ID :CVTTP8501 Model No. :TP8501 Issue Date :June 14, 2006 Standard :CFR 47 FCC Rules Part 15 Page 6 of 33 1.3.3 The measurement of the Radiated Emission(30 MHz – 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - Anechoic Chamber No. 2 (3 meters) - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2006 2) Interval :1 year Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver 11 Antenna 26, 28 Cable 38 RF Amplifier N/A JQA File No. :400-60129 FCC ID :CVTTP8501 Model No. :TP8501 Issue Date :June 14, 2006 Standard :CFR 47 FCC Rules Part 15 Page 7 of 33 1.3.4 The measurement of the Radiated Emission(Above 1000 MHz) - was performed in the following test site. x - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan - No. 2 site (3 meters) - No. 3 site (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2006 2) Interval :1 year Used test instruments : Type Number of test instruments …

Text truncated - open the document above for the full version.

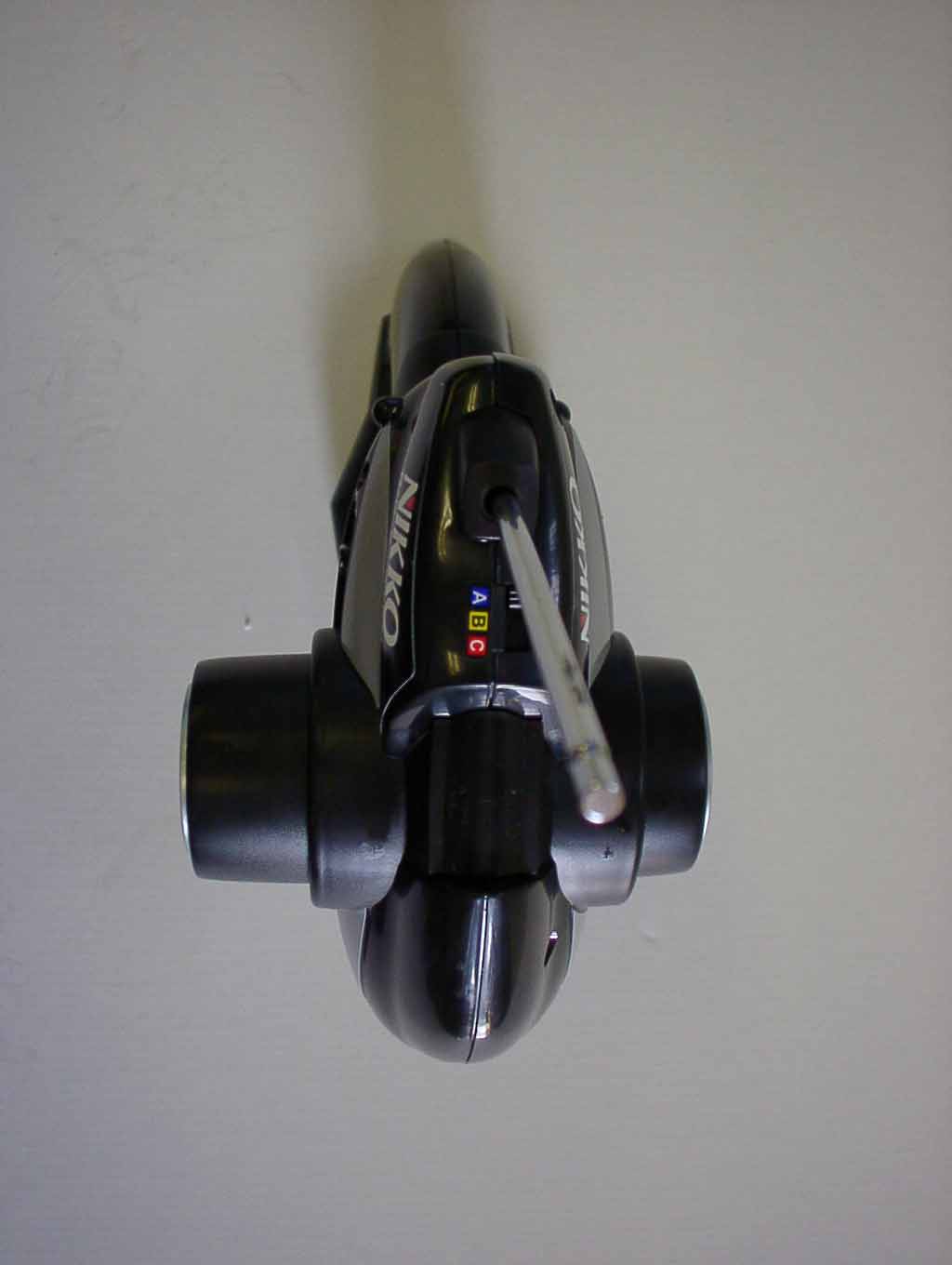

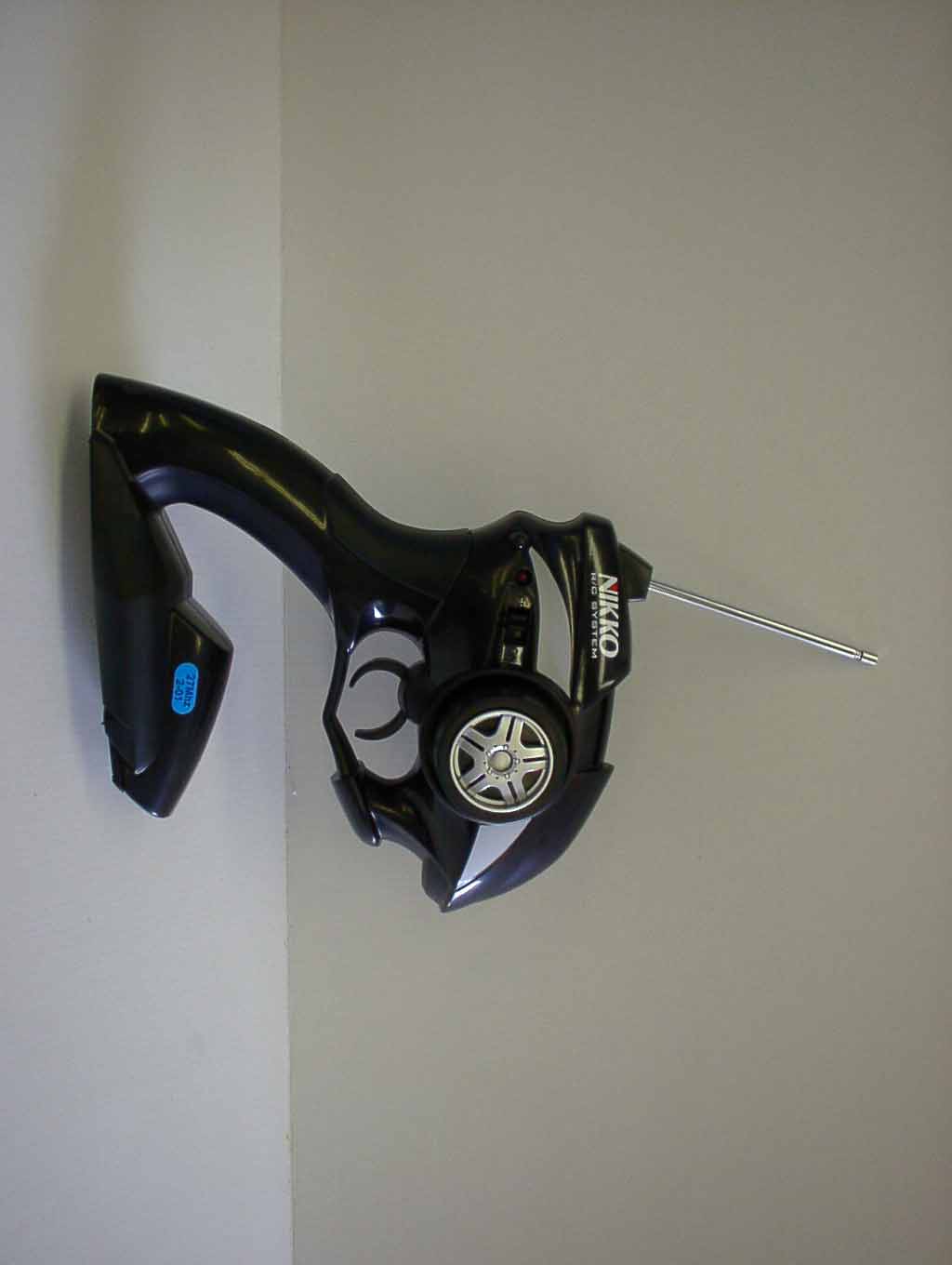

JQA File No. :400-60129 FCC ID :CVTTP8501 Model No. :TP8501 Issue Date :June 14, 2006 Standard :CFR 47 FCC Rules Part 15 Page 20 of 33 1.10 TEST ARRANGEMENT (PHOTOGRAPHS) PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission JQA File No. :400-60129 FCC ID :CVTTP8501 Model No. :TP8501 Issue Date :June 14, 2006 Standard :CFR 47 FCC Rules Part 15 Page 21 of 33 PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission JQA File No. :400-60129 FCC ID :CVTTP8501 Model No. :TP8501 Issue Date :June 14, 2006 Standard :CFR 47 FCC Rules Part 15 Page 22 of 33 PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission
