CW21668-1Remote Firing Device

Rothenbuhler Engineering Company Inc
Remote Firing Device - FCC ID CW21668-1 - Rothenbuhler Engineering Company Inc
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Apr 05, 2000
Application Purpose
Original Equipment
Date of Application
Feb 10, 2000
Equipment Note
Remote Firing Device
Frequency Range
134.00000000 - 174.00000000
Company
Rothenbuhler Engineering Company Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

External Photos

↗
↗

ID Label/Location Info

↗
↗

Internal Photos

↗
↗
↗

Schematics

↗

Test Report

↗
↗
↗
↗
↗
↗

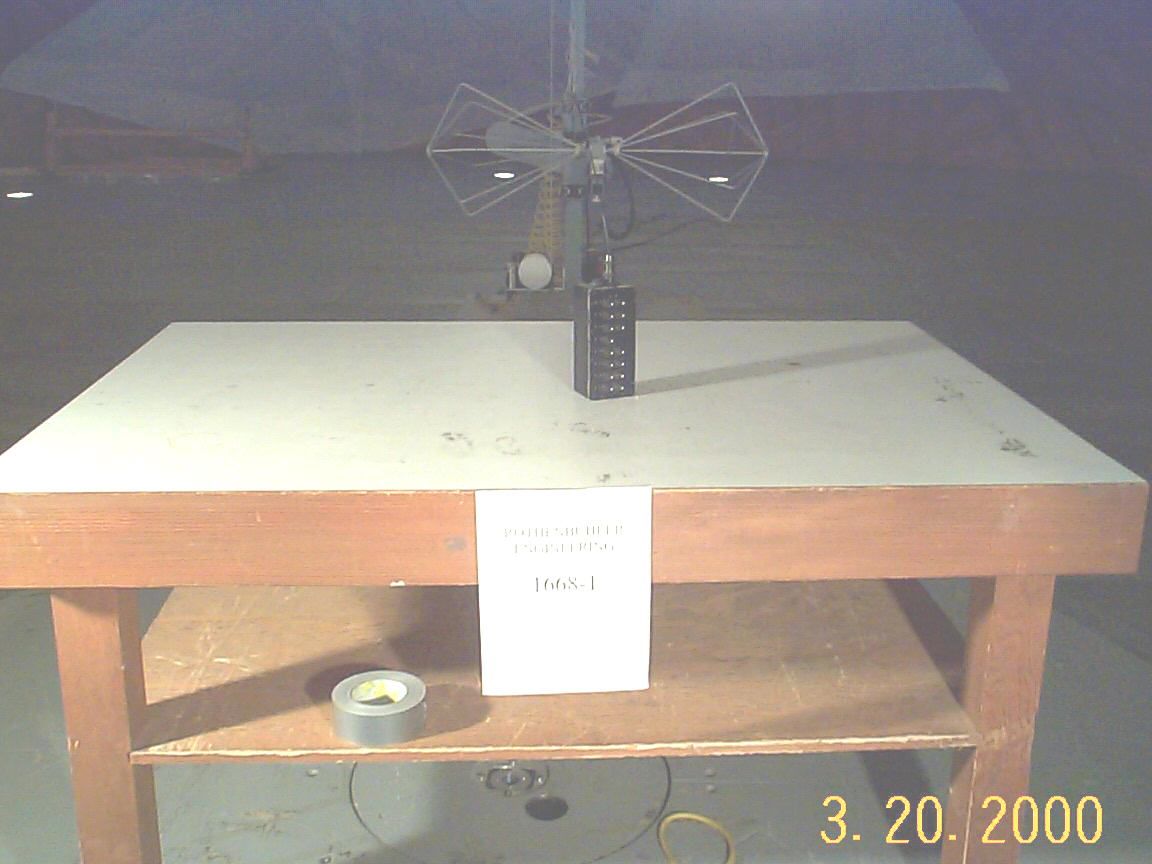

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

REMOTE FIRING DEVICE OPERATOR'S MANUAL (DRAFT 10/25/99) The information contained in this document is subject to change without notice. In no event shall Rothenbuhler Engineering Company be liable for errors contained herein or for special, indirect, or consequential damages or injuries of any nature resulting from use of information in this document. ROTHENBUHLER ENGINEERING P.0. BOX 708 2191 RHODES ROAD SEDRO WOOLLEY, WA 98284 1668-A16 10/25/99 ©1999 Rothenbuhler Engineering All Rights reserved RFD OPERATOR MANUAL ii SPECIAL NOTICE WARNING TO USERS AND AFFECTED PERSONS The Remote Firing Device (RFD) is designed to be used in blasting operations. Explosives used in connection with the RFD may be extremely powerful. Improper use of explosives with or without the RFD or improper safety precautions taken with respect to personnel or property may result in death, serious personal injury, or property damage. Other manufacturers’ equipment that may not be in compliance with frequency coordination may inadvertently interfere with the operation of the RFD. Be aware of other operations within the receiving range of the RFD. The literature accompanying this warning contains information of a general nature for users of the RFD based upon the Manufacturer’s experience in the design and manufacture of remote radio frequency devices. In addition, the Manufacturer provides product literature and technical data sheets periodically which should be consulted for detailed information on the characteristics, specifications and recommendations for the RFD. The Manufacturer does not purport to give information or advice on explosives or their use. The RFD and related explosive devices are intended for use only by trained professionals having comprehensive knowledge of the RFD, the explosives being used, and the application together with all related safety precautions. The Manufacturer of the RFD is responsible only for the proper performance of the RFD itself and is not responsible for the performance, safety, or specifications of the explosive used, nor the suitability of the RFD for any particular purpose other than that expressly described in the Manufacturer’s literature. LIMITED WARRANTY Manufacturer warrants the Model 1668 Remote Firing Device (RFD) to be free of defects in workmanship or materials for the period of one year from the date of purchase. In the event any RFD or component thereof is shown to be defective in workmanship or materials within one year, the system or component will be repaired or replaced without charge by Manufacturer at Manufacturer’s place of business. This warranty does not cover damage or injury to equipment resulting from abuse, neglect, or use in applications other than expressly described by Manufacturer as fit purposes for the RFD. This Limited Warranty is given in lieu of all other legal warranties express or implied and neither Manufacturer nor its representatives shall be liable for any direct, incidental or consequential loss or damages arising out of any occurrence or accident involving the use of this product. RFD OPERATOR MANUAL iii FCC NOTICE This device complies with Part 15 of the FCC regulations. Operation is subject to the following two conditions: (1) That this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RFD OPERATOR MANUAL iv TABLE OF CONTENTS ChapterPage Special Notice.............................................................................................ii Warning to Users and Affected Persons .....................................................ii Limited Warranty ........................................................................................ii FCC Notice................................................................................................ iii Table of Contents ......................................................................................iv List of Illustrations..................................................................................... vii Safety Summary ...................................................................................... viii 1. Introduction. ....................................................................................... 1-1 1.1. Purpose. ........................................................................................................1-1 1.2. Explosives Handling Practices. .......................................................................1-1 1.3. Storage and Environmental Conditions. ..........................................................1-1 1.4. Packaging. .....................................................................................................1-2 1.5. Maintenance. .................................................................................................1-4 2. Introduction to RFD System Components. ......................................... 2-5 2.1. System...........................................................................................................2-5 2.2. Controller Unit. ...............................................................................................2-7 2.3. Controller Unit Switch Operation. ....................................................................2-8 2.4. Controller Unit Display Operation. .................................................................2-10 2.5. Detonator Unit. .............................................................................................2-12 2.6. Battery Charger Assembly. ...........................................................................2-13 2.7. Antenna Assembly. ......................................................................................2-14 2.8. Carrying Case. .............................................................................................2-15 2.9. Vent operation..................................................................…

Text truncated - open the document above for the full version.

Attestation Statements

Necessary Bandwidth Calculations are based on worst case alternating 10101010 data. () ()() () ()()() ()() () () 10K6F2DDesignatorEmission Requested 10600 )20003300(2 rule sCarson')(2)( 3300)( 2000 3300 )23200(1700 2 3200 )1200400(2 )(2 1700 1300213002100 1212 400 213002100 212 21002 13001 1200 = = += ⇒+= = = = ÷+= ÷+= = += += = +÷−= +÷−= = ÷−= ÷−= = = = Hz HzHz DMBWcydioFrequenecessaryRaBandWidthN HzMeHighestTonModulation HzDncyadioFrequeDeviationR Hz BWFeulatingTonHighestMod Hz BRDBWdioecessaryAuBandWidthN Hz ToneToneToneFenterAudioFrequencyC Hz ToneToneDudioDeviationA HzTone HzTone BRBaudRate RFHTNRF HT RF NACA ANA CA A

External Photos

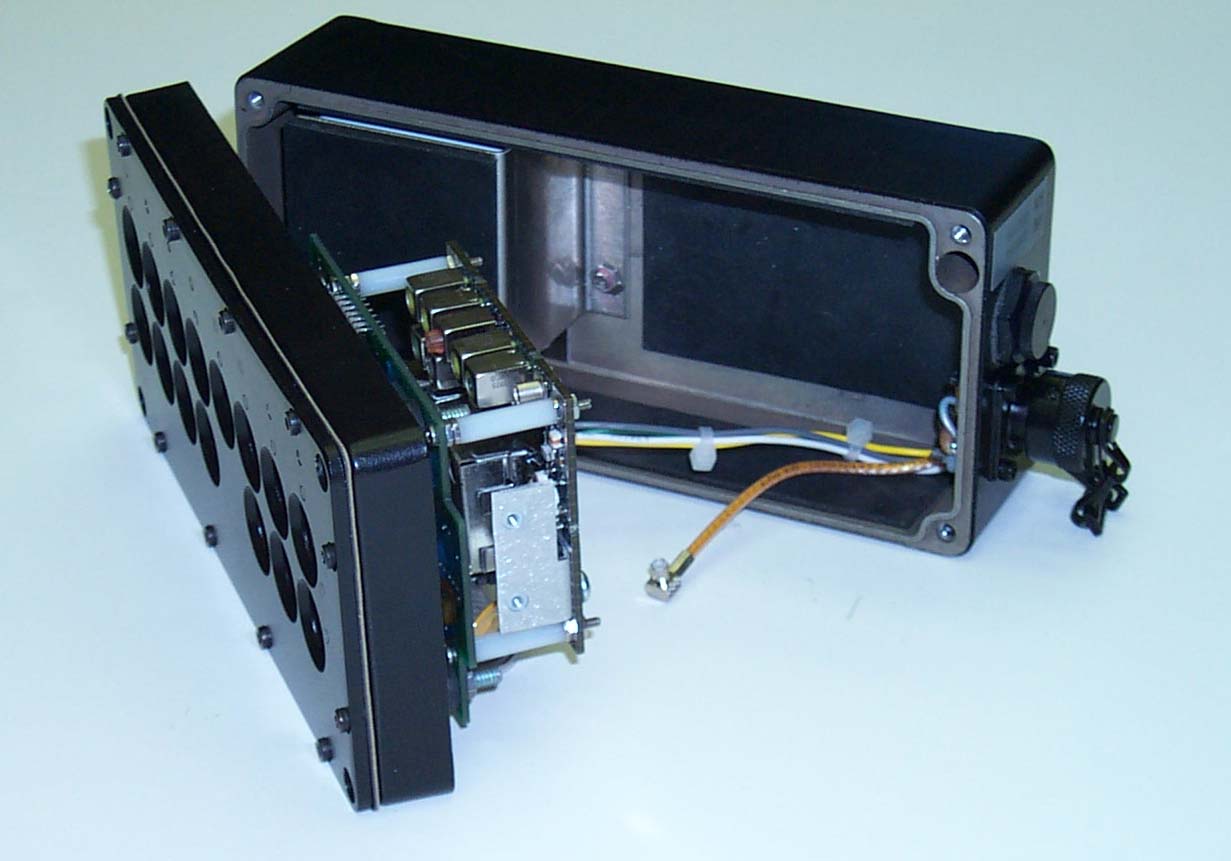

Figure 1. 1668-1 Figure 2. Antenna / Battery Charger Interface

ID Label/Location Info

1668-1 FCC ID Label 1668-2 FCC ID Label

ID Label/Location Info

FCC ID Label Locations for 1668-1 (Left) & 1668-2 (Right)

Internal Photos

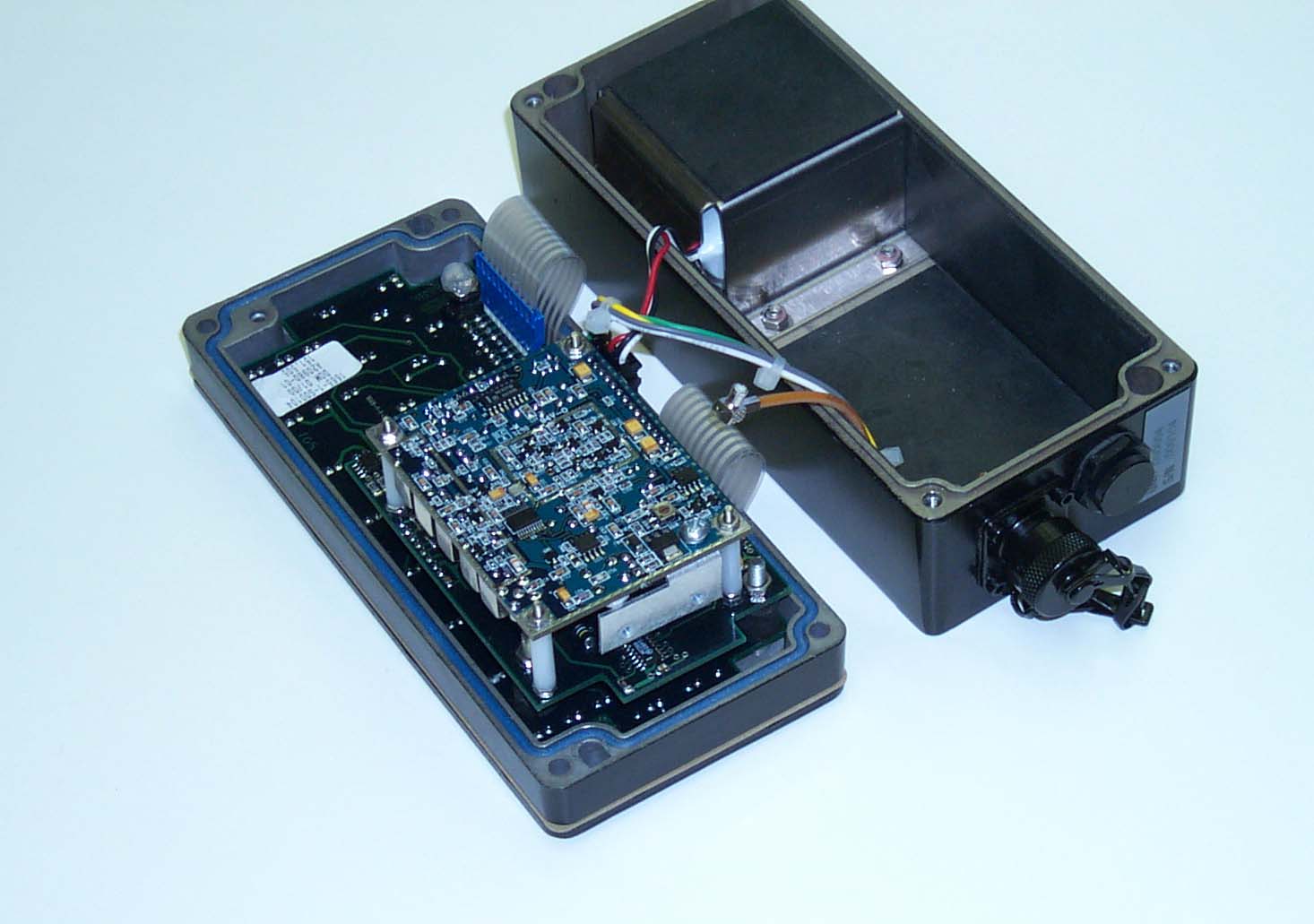

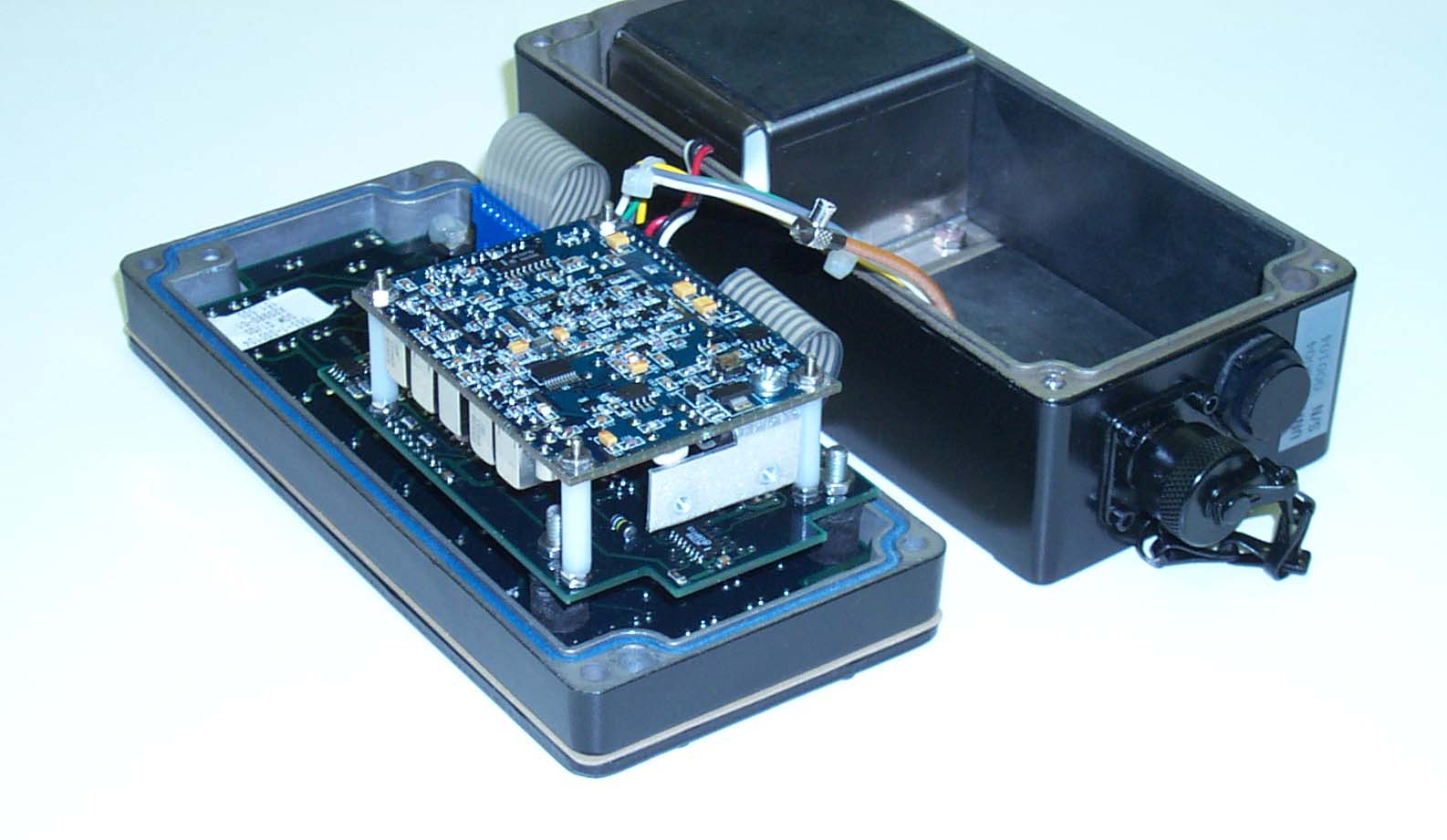

Figure 1. Top Side Of 1668-1 Circuit Board Assemblies Figure 2. Bottom Side Of 1668-1 Circuit Board Assemblies

Test Report

13 April, 2001 Tom Jacobson Rothenbuhler Engineering PO Box 708 2191 Rhodes Road Sedro-Woolley WA 98284 Dear Mr. Jacobson, Enclosed is the FCC Part 90 Subpart I report for the Remote Firing Device Transceiver (Controller), model 1668-1. Please check it thoroughly for discrepancies. This is an official copy of this report complete with the original Acme Testing staff signatures, which should be retained by you as the official record of testing, as it may be required for future verification of compliance. Please be aware that our internal controls require us to keep a historical copy of your report on file for two years only. Thank you for your business and we look forward to being of service should you require testing services in the future. Yours Sincerely, Steve FitzGerald President :dp Enclosures DATE OF ISSUANCE: 21 JANUARY 2000REPORT NUMBER: 990332FCC ID: CW21668-1PAGE 1 OF 30 Partial reproduction of this document is prohibited without prior written consent of Acme Testing ACME TESTING, 2002 VALLEY HWY, P.O. BOX 3, ACME, WASHINGTON 98220-0003 888 226-3837. FCC PART 90 SUBPART I REPORT OF MEASUREMENTS DEVICE:REMOTE FIRING DEVICE TRANSCEIVER (CONTROLLER) MODEL:1668-1 MANUFACTURER: ROTHENBUHLER ENGINEERING ADDRESS:PO BOX 708 2191 RHODES ROAD SEDRO WOOLEY WA 98284 THE DATA CONTAINED IN THIS REPORT WAS COLLECTED ON 28 & 29 DECEMBER 1999 AND COMPILED BY: PAUL G. SLAVENS CHIEF EMC ENGINEER WORK ORDER: 2097 DATE OF ISSUANCE: 21 JANUARY 2000REPORT NUMBER: 990332FCC ID: CW21668-1PAGE 2 OF 30 1.GENERAL .......................................................................................................................................................................................... 3 1.1P URPOSE....................................................................................................................................................................................... 3 1.2M ANUFACTURER........................................................................................................................................................................... 3 1.3T EST LOCATION............................................................................................................................................................................. 3 1.4T EST PERSONNEL........................................................................................................................................................................... 3 2.TEST RESULTS SUMMARY........................................................................................................................................................... 4 3.DESCRIPTION OF EQUIPMENT AND PERIPHERALS ............................................................................................................ 5 3.1E QUIPMENT UNDER TEST (EUT) ................................................................................................................................................... 5 3.2EUT P ERIPHERALS........................................................................................................................................................................ 5 3.3D ESCRIPTION OF INTERFACE CABLES............................................................................................................................................. 5 4.RF POWER OUTPUT ....................................................................................................................................................................... 6 4.1TEST REQUIREMENT...................................................................................................................................................................... 6 4.2T EST TECHNICAL STANDARD......................................................................................................................................................... 6 4.3T EST PROCEDURE.......................................................................................................................................................................... 7 4.4T EST EQUIPMENT........................................................................................................................................................................... 7 4.5T EST RESULTS............................................................................................................................................................................... 7 5.MODULATION CHARACTERISTICS........................................................................................................................................... 8 5.1TEST REQUIREMENT...................................................................................................................................................................... 8 5.2T EST TECHNICAL STANDARD......................................................................................................................................................... 9 5.3T EST PROCEDURE.......................................................................................................................................................................... 9 5.4T EST EQUIPMENT........................................................................................................................................................................... 9 5.5T EST RESULTS............................................................................................................................................................................... 9 6.OCCUPIED BANDWIDTH............................................................................................................................................................. 10 6.1TEST REQUIREMENT.................................................................................................................................................................... 10 6.2T EST TEC…

Text truncated - open the document above for the full version.

Test Report

RFD Controller (1668-1) Modulation Characteristics Modulation ToneDeviationPLOT 1300 Hz1.98 kHz#3 2100 Hz2.02 kHz#2 1200 Baud Data (using 1300 Hz/2100 Hz tones)2.25 kHz#1

Test Report

T on T1 T2 5 ms 20 ms +12.5 kHz 0 kHz +6.25 kHz -6.25 kHz -12.5 kHz -0.765 kHz +0.765 kHz +12.5 kHz +6.25 kHz 0 kHz -6.25 kHz -12.5 kHz T on T1 T2 5 ms 20 ms -0.765 kHz +0.765 kHz Turn On Transient – Modulated with data +12.5 kHz +6.25 kHz 0 kHz -6.25 kHz -12.5 kHz T3 T off 5 ms -0.765 kHz +0.765 kHz Tur n Off Transient – No Modulation +12.5 kHz -12.5 kHz -6.25 kHz +6.25 kHz 0 kHz T3 T off 5 ms -0.765 kHz +0.765 kHz Turn Off Transient – Modulated with data

Test Report

Necessary Bandwidth Calculations are based on worst case alternating 10101010 data. () ()() () ()()() ()() () () 10K6F2DDesignatorEmission Requested 10600 )20003300(2 rule sCarson')(2)( 3300)( 2000 3300 )23200(1700 2 3200 )1200400(2 )(2 1700 1300213002100 1212 400 213002100 212 21002 13001 1200 = = += ⇒+= = = = ÷+= ÷+= = += += = +÷−= +÷−= = ÷−= ÷−= = = = Hz HzHz DMBWcydioFrequenecessaryRaBandWidthN HzMeHighestTonModulation HzDncyadioFrequeDeviationR Hz BWFeulatingTonHighestMod Hz BRDBWdioecessaryAuBandWidthN Hz ToneToneToneFenterAudioFrequencyC Hz ToneToneDudioDeviationA HzTone HzTone BRBaudRate RFHTNRF HT RF NACA ANA CA A

Contact Information

Applicant

Neal Rothenbuhler
[email protected]360 856-0836Fax: 360 856-2183

Technical Contact

Acme TestingPaul G Slavens
[email protected]360 595-2785

2002 Valley Highway · Acme, Washington · United States

Non-Technical Contact

Acme TestingDesiree R Patterson
[email protected]360 595-2785

Test Firm

Acme Testing Co.Harry Hodes
[email protected]360-595-2785Fax: 360-595-2722

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
190134 MHz - 174 MHz5 W10K6F2D5.0000000000 ppm
