CW21668-2Remote Firing Device

REMOTE FIRING DEVICE OPERATOR'S MANUAL (DRAFT 10/25/99) The information contained in this document is subject to change without notice. In no event shall Rothenbuhler Engineering Company be liable for errors contained herein or for special, indirect, or consequential damages or injuries of any nature resulting from use of information in this document. ROTHENBUHLER ENGINEERING P.0. BOX 708 2191 RHODES ROAD SEDRO WOOLLEY, WA 98284 1668-A16 10/25/99 ©1999 Rothenbuhler Engineering All Rights reserved RFD OPERATOR MANUALii SPECIAL NOTICE WARNING TO USERS AND AFFECTED PERSONS The Remote Firing Device (RFD) is designed to be used in blasting operations. Explosives used in connection with the RFD may be extremely powerful. Improper use of explosives with or without the RFD or improper safety precautions taken with respect to personnel or property may result in death, serious personal injury, or property damage. Other manufacturers’ equipment that may not be in compliance with frequency coordination may inadvertently interfere with the operation of the RFD. Be aware of other operations within the receiving range of the RFD. The literature accompanying this warning contains information of a general nature for users of the RFD based upon the Manufacturer’s experience in the design and manufacture of remote radio frequency devices. In addition, the Manufacturer provides product literature and technical data sheets periodically which should be consulted for detailed information on the characteristics, specifications and recommendations for the RFD. The Manufacturer does not purport to give information or advice on explosives or their use. The RFD and related explosive devices are intended for use only by trained professionals having comprehensive knowledge of the RFD, the explosives being used, and the application together with all related safety precautions. The Manufacturer of the RFD is responsible only for the proper performance of the RFD itself and is not responsible for the performance, safety, or specifications of the explosive used, nor the suitability of the RFD for any particular purpose other than that expressly described in the Manufacturer’s literature. LIMITED WARRANTY Manufacturer warrants the Model 1668 Remote Firing Device (RFD) to be free of defects in workmanship or materials for the period of one year from the date of purchase. In the event any RFD or component thereof is shown to be defective in workmanship or materials within one year, the system or component will be repaired or replaced without charge by Manufacturer at Manufacturer’s place of business. This warranty does not cover damage or injury to equipment resulting from abuse, neglect, or use in applications other than expressly described by Manufacturer as fit purposes for the RFD. This Limited Warranty is given in lieu of all other legal warranties express or implied and neither Manufacturer nor its representatives shall be liable for any direct, incidental or consequential loss or damages arising out of any occurrence or accident involving the use of this product. RFD OPERATOR MANUALiii FCC NOTICE This device complies with Part 15 of the FCC regulations. Operation is subject to the following two conditions: (1) That this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RFD OPERATOR MANUALiv TABLE OF CONTENTS ChapterPage Special Notice ............................................................................................. ii Warning to Users and Affected Persons ..................................................... ii Limited Warranty ......................................................................................... ii FCC Notice ................................................................................................ iii Table of Contents....................................................................................... iv List of Illustrations ..................................................................................... vii Safety Summary ...................................................................................... viii 1. Introduction......................................................................................... 1-1 1.1. Purpose. ............................................................................................................1-1 1.2. Explosives Handling Practices...........................................................................1-1 1.3. Storage and Environmental Conditions. ............................................................1-1 1.4. Packaging. .........................................................................................................1-2 1.5. Maintenance. .....................................................................................................1-4 2. Introduction to RFD System Components........................................... 2-5 2.1. System...............................................................................................................2-5 2.2. Controller Unit....................................................................................................2-7 2.3. Controller Unit Switch Operation........................................................................2-8 2.4. Controller Unit Display Operation. ...................................................................2-10 2.5. Detonator Unit..................................................................................................2-12 2.6. Battery Charger Assembly. ..............................................................................2-13 2.7. Antenna Assembly. ..........................................................................................2-14 2.8. Carrying Case. .................................................................................................2-15 2.9. Vent operation. ..................…

Text truncated - open the document above for the full version.

Necessary Bandwidth Calculations are based on worst case alternating 10101010 data. () ()() () ()()() ()() () () Hz KHzHz DMBWcydioFrequenecessaryRaBandWidthN HzMeHighestTonModulation KHzDncyadioFrequeDeviationR eulatingTonHighestModHzUpperLimit HzLowerLimit DBRFBWdioecessaryAuBandWidthN Hz ToneToneToneFenterAudioFrequencyC Hz ToneToneDudioDeviationA HzTone HzTone BRBaudRate RFHTNRF HT RF ACANA CA A 9560 220.127802 20.12)( 2780)( 2 2780, 620 224002.112001700 222.1 1700 1300213002100 1212 400 213002100 212 21002 13001 1200 = ∗∗+∗= ∗∗+∗= = = ÷∗∗+±= ÷∗∗+±= = +÷−= +÷−= = ÷−= ÷−= = = = ö ç è æ ÷ ö ç è æ ÷ ö ç è æ ÷ ö ç è æ

Figure 1. 1668-2 Figure 2. 1668-2 Antenna / Battery Charger & Wiring Interfaces

1668-1 FCC ID Label 1668-2 FCC ID Label

FCC ID Label Locations for 1668-1 (Left) & 1668-2 (Right)

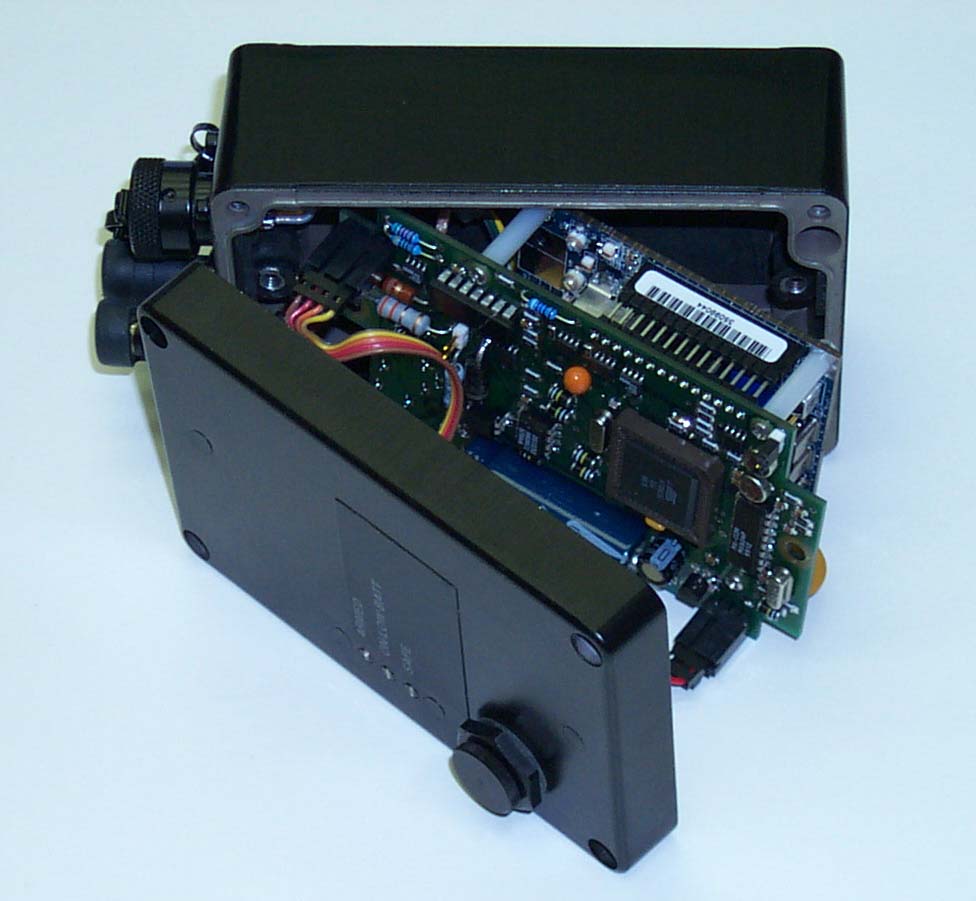

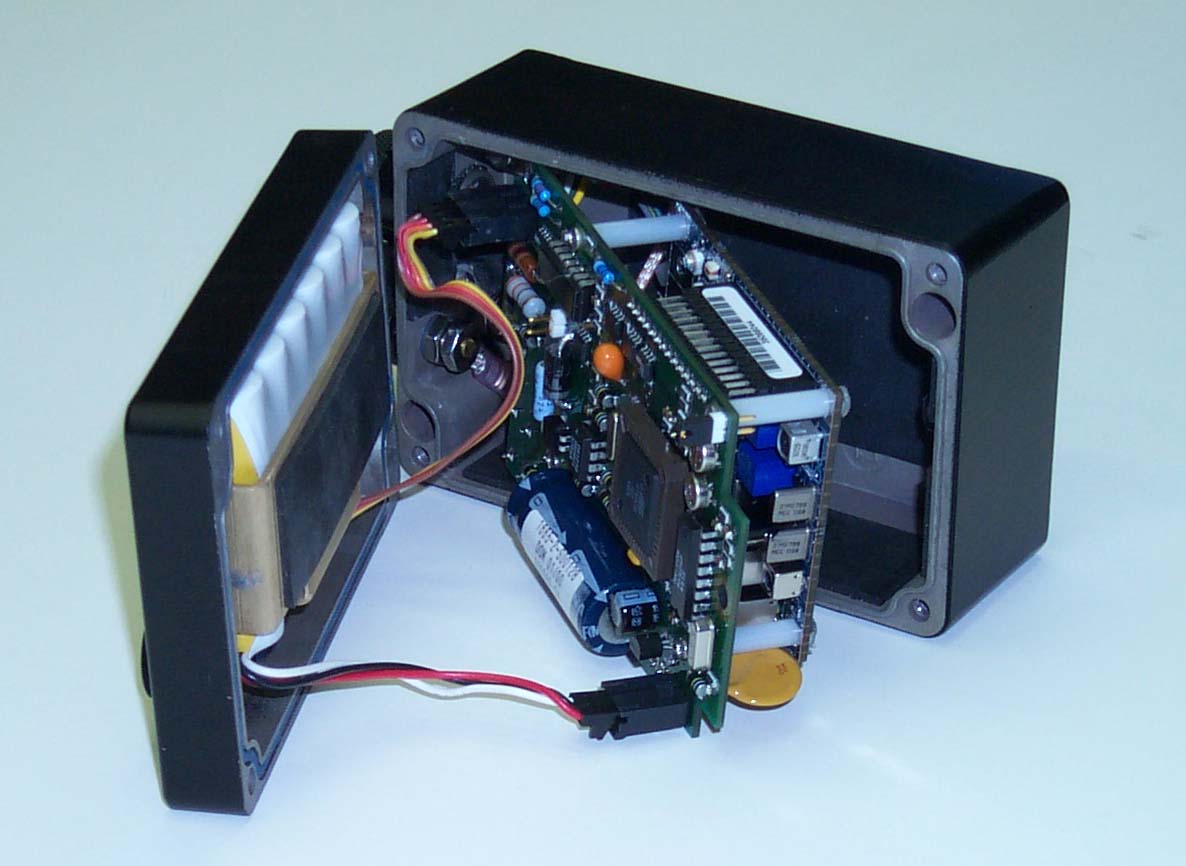

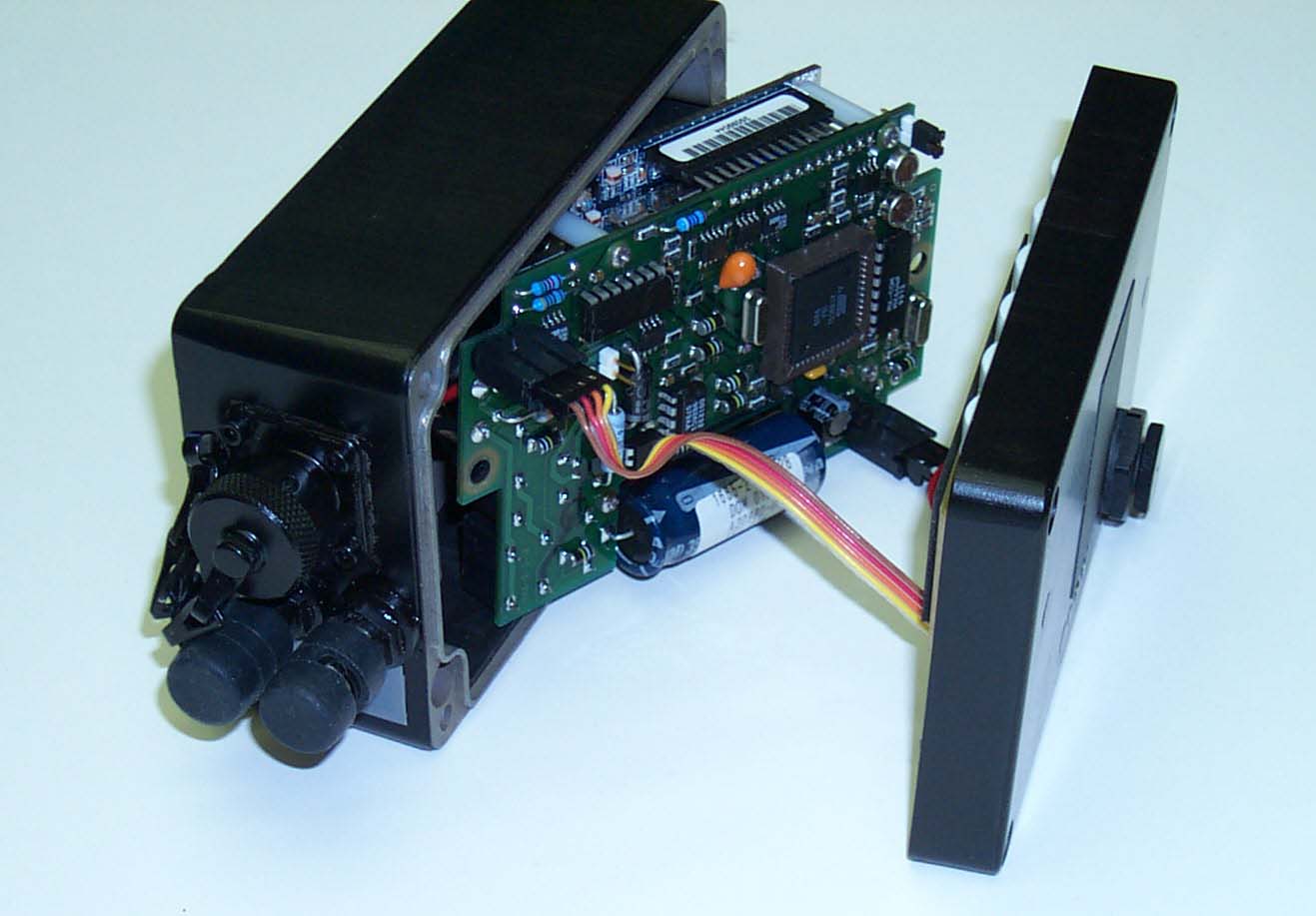

Figure 1. Top Side of 1668-2 Circuit Boards Figure 2. Bottom Side of 1668-2 Circuit Boards

5A204B-NB VHF Transceiver Module Technical Manual - Version RE2 January 10,2000 This device complies with Part 15 of the FCC regulations. Operation is subject to the condition that this device does not cause harmful interference. Changes or modifications to this device that are not expressly approved by Rothenbuhler Engineering are prohibited and could void the user’s warranty and possibly his authority to operate this product. TABLE OF CONTENTS 1. PRODUCT OVERVIEW 3 2. THEORY OF OPERATION AND CIRCUIT DESCRIPTION 3 2.1.SYNTHESIZER3 2.2.R EFERENCE OSCILLATOR3 2.3.A NTENNA INPUT3 2.4.R ECEIVER3 2.5.T RANSMITTER3 3. RADIO I/O CONNECTIONS 3 4. ALIGNMENT 4 4.1.TEST SETUP4 4.2.T RANSMITTER4 4.3.FCC N OTICE4 1. Product Overview This manual covers the 5A204-NB VHF transceiver module. The module is a synthesized 0.1 to 5 watt transceiver, covering the frequency band of 150-174MHz. It is designed for data communication systems. 2. Theory of Operation and Circuit Description 2.1. Synthesizer In transmit mode, Q12, D6 and L24 form a voltage controlled oscillator. In receive mode, Q7, D7 and L26 form a voltage controlled oscillator. The output of the VCO is buffered by Q11, and fed into the input of a programmable divider/phase comparator, U3. U3 divides the RF from the VCO down to either 10KHz or 12.4KHz, and compares this divided down signal to a reference. The reference is derived by dividing down a 14.4MHz crystal reference oscillator. A separate modem board programs U3 with the appropriate data for each radio frequency. 2.2. Reference oscillator Y4 along with Q8 and associated circuitry form a high- stability 14.4MHz reference oscillator. D5 provides DC modulation capability. D4, RT2 and RT1 form a temperature compensation circuit, adjusting the voltage on D4 as the temperature varies. 2.3. Antenna Input The RF I/O is via the ANT1 connection. This is an OSX female connector. L3, L2, C6, C7, and C8 form a 174MHz low-pass filter. In receive mode, RF from the low-pass filter passes through L1 and into the receiver front end. In the transmit mode, the 7.5V is applied to L10, which biases on D2 and D3. When these diodes conduct, D1 passes the transmit signal out to the low-pass filter on the antenna. D3 shorts the transmit to ground at the receivers input, protecting the receiver’s LNA from damage. 2.4. Receiver In the receive mode, RF from the antenna enters the receiver’s front-end filter, comprised of L4, L5 and associated components. Q1 amplifies the RF 20dB. L6, L7, and L8 along with their associated components form a band-pass filter, tuned to the receiver’s frequency of operation. Q2 mixes the receiver’s RF from Q1 with a local oscillator signal from the PLL. The output of Q2 is tuned to 21.4MHz. Y1 and Y2 form a 4 pole crystal filter, provided the receiver with its selectivity. Q3 amplifies the 21.4MHz IF signal. The 21.4MHz signal is down-converted to 455kHz, and demodulated by U1. The RX output is an FM detected analog signal. 2.5. Transmitter The transmit modulation is applied to the VCO and to the reference crystal, providing flat FM modulation response from DC to 5kHz. The VCO’s output is amplified by Q11, Q10, Q4, Q5, and Q6, to a level of up to 5 watts of RF. The maximum power output is dependent upon the voltage applied to the B+ signal (pin 2 of the I/O connector) and power adjustment resistor R105. 3. Radio I/O Connections The interface to a radio transceiver circuit board is through a 14 pin single in-line connector. Table 1 lists the function of each pin. Pin #Function 1System ground 2B+ (usually 7.5V DC from the modem PCB) 3 +7.5V transmit, ±5%. 4 +5.0V receive, 0V transmit, ±5%.,. 5 +5.0V regulated input, ±5% 6Transmit modulation. 2.5V DC RX, 2.5V DC with 1.25V p-p (2.0 Khz deviation) data during transmit. 7Synthesizer lock detect. 8PLL enable signal. Latch enable signal for serial interface to PLL. 9PLL data signal. Data to PLL chip via three wire interface, pins 8,9, and 10. 10PLL clock signal. 11No connect 12RSSI output from radio. 13Receiver discriminator output from radio. 14No connect Table 1 4. Alignment This test procedure assumes that the transceiver module is part of a wireless modem and will be tested with a properly configured modem board. 4.1. Test Setup With both the modem PCB and the transceiver PCB must be removed from the enclosure to align them. Connect the two boards together with a ribbon cable, providing access to the adjustments on the transceiver board. Connect a 12.5V DC source to the DC input of the modem board (5 watt systems) or 7.2V DC (0.1 – 2.0 watt systems). Connect a service monitor to the RF I/O of the radio. 4.2. Transmitter Program the modem so that it is on the correct operating frequency or in the middle of the operating range. Refer to the proper technical manual for programming information. With the service monitor in the receive mode, key the transmitter. Adjust L25 (red) so that there is 4.0V DC on C97 (TP3). Adjust C91 to set the carrier on the center of the channel. At room temperature (20 deg C) the RF carrier should be set to 300 to 400 Hz above the desired channel frequency. Adjust C58, C60, C65 and C67 for maximum power output. Adjust the modem’s transmit deviation pot on the modem PCB for 2kHz deviation With the service monitor set to generate FM, modulate a carrier with a 1kHz tone and 2kHz deviation. Set the RF level to 1mV. Connect the SINAD meter to J1 pin 13. Program the modem so that the unit is on the correct operating frequency or in the middle of the operating frequency range. Adjust the RX VCO using L26 (Orange) so that there is 4.0V at C97 (TP3). Adjust L11 for a reading of 2.5VDC at pin 13 of J1. Adjust L4, L5, L6,L7,and L8 for best SINAD. Lower the RF generator’s source as the SINAD falls below 20dB, and readjust the inductors until the specified sensitivity is met. Typically, 12dB SINAD will be obtained around 0.7uV. 4.3. FCC Notice It is the responsibility of the user of this equipment to obtain the proper FCC licens…

Text truncated - open the document above for the full version.

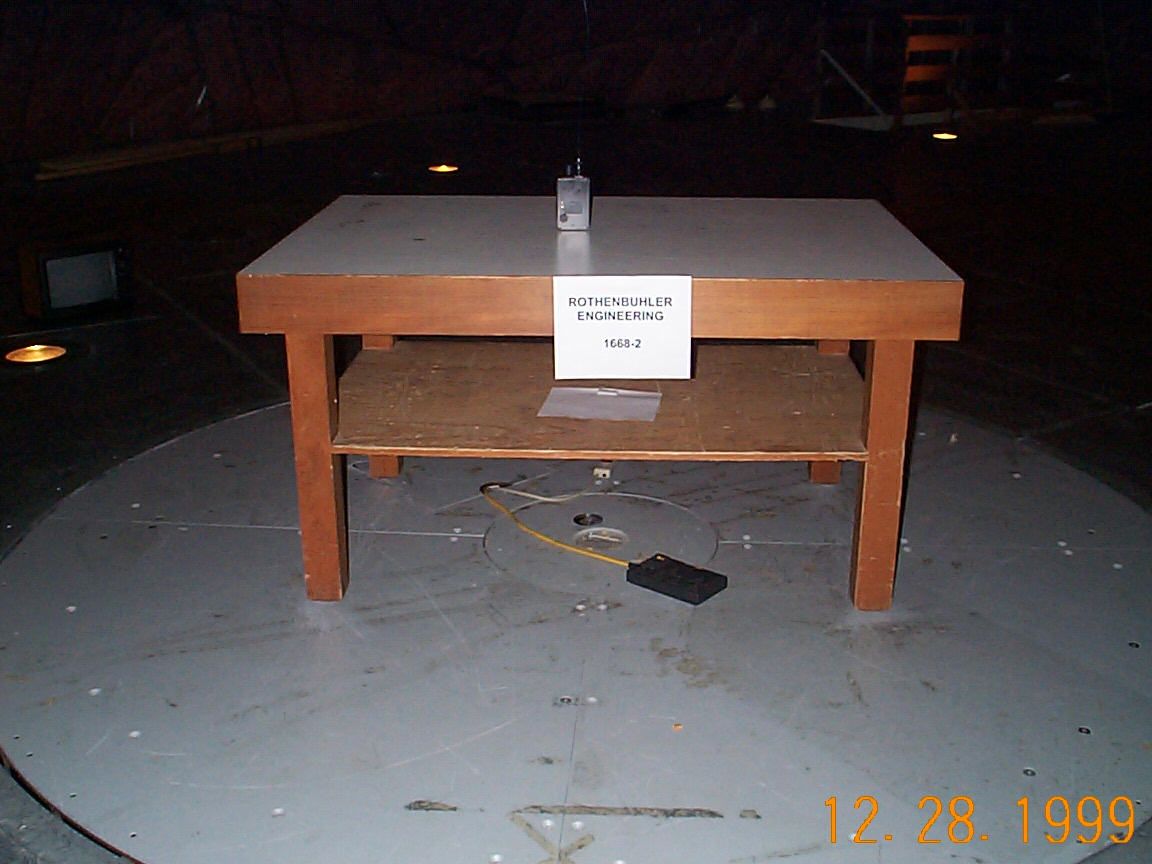

13 April, 2001 Tom Jacobson Rothenbuhler Engineering PO Box 708 2191 Rhodes Road Sedro-Woolley WA 98284 Dear Mr. Jacobson, Enclosed is the FCC Part 90 Subpart I report for the Remote Firing Device Transceiver (Controller), model 1668-2. Please check it thoroughly for discrepancies. This is an official copy of this report complete with the original Acme Testing staff signatures, which should be retained by you as the official record of testing, as it may be required for future verification of compliance. Please be aware that our internal controls require us to keep a historical copy of your report on file for two years only. Thank you for your business and we look forward to being of service should you require testing services in the future. Yours Sincerely, Steve FitzGerald President :dp Enclosures DATE OF ISSUANCE: 21 JANUARY 2000REPORT NUMBER: 990333 FCC ID: CW21668-2 PAGE 1 OF 37 Partial reproduction of this document is prohibited without prior written consent of Acme Testing ACME TESTING, 2002 VALLEY HWY, P.O. BOX 3, ACME, WASHINGTON 98220-0003 888 226-3837. FCC PART 90 SUBPART I REPORT OF MEASUREMENTS DEVICE:REMOTE FIRING DEVICE TRANSCEIVER (DETONATOR) MODEL:1668-2 MANUFACTURER: ROTHENBUHLER ENGINEERING ADDRESS:PO BOX 708 2191 RHODES ROAD SEDRO WOOLEY WA 98284 THE DATA CONTAINED IN THIS REPORT WAS COLLECTED ON 28 & 29 DECEMBER 1999 AND COMPILED BY: PAUL G. SLAVENS CHIEF EMC ENGINEER WORK ORDER: DATE OF ISSUANCE: 21 JANUARY 2000REPORT NUMBER: 990333 FCC ID: CW21668-2 PAGE 2 OF 37 1.GENERAL....................................................................................................................................................................... 4 1.1P URPOSE.................................................................................................................................................................... 4 1.2M ANUFACTURER....................................................................................................................................................... 4 1.3T EST LOCATION......................................................................................................................................................... 4 1.4T EST PERSONNEL....................................................................................................................................................... 4 2.TEST RESULTS SUMMARY ....................................................................................................................................... 5 3.DESCRIPTION OF EQUIPMENT AND PERIPHERALS ........................................................................................ 6 3.1E QUIPMENT UNDER TEST (EUT) ............................................................................................................................... 6 3.2EUT P ERIPHERALS.................................................................................................................................................... 6 3.3D ESCRIPTION OF INTERFACE CABLES......................................................................................................................... 6 4.EXEMPTION FROM TECHNICAL STANDARDS .................................................................................................. 7 4.1T EST REQUIREMENT.................................................................................................................................................. 7 4.2T EST EQUIPMENT....................................................................................................................................................... 8 4.3T EST RESULTS........................................................................................................................................................... 8 5.RF POWER OUTPUT (THE EUT IS EXEMPT FROM THIS TECHNICAL STANDARD PER 90.217, THIS DATA IS PROVIDED FOR INFORMATION PURPOSES) ........................................................................................... 13 5.1T EST REQUIREMENT................................................................................................................................................ 13 5.2T EST TECHNICAL STANDARD................................................................................................................................... 13 5.3T EST PROCEDURE.................................................................................................................................................... 14 5.4T EST EQUIPMENT..................................................................................................................................................... 14 5.5T EST RESULTS......................................................................................................................................................... 14 6.MODULATION CHARACTERISTICS (THE EUT IS EXEMPT FROM THIS TECHNICAL STANDARD PER 90.217, THIS DATA IS PROVIDED FOR INFORMATION PURPOSES)........................................................... 15 6.1T EST REQUIREMENT................................................................................................................................................ 15 6.2T EST TECHNICAL STANDARD................................................................................................................................... 16 6.3T EST PROCEDURE.................................................................................................................................................... 16 6.4T EST EQUIPMENT..................................................................................................................................................... 16 6.5T EST RESULTS......................................................................................................................................................... 16 7.OCCUPIED BANDWIDTH (THE EUT IS EXEMPT FROM THIS TECHNICAL STANDARD PER …

Text truncated - open the document above for the full version.
