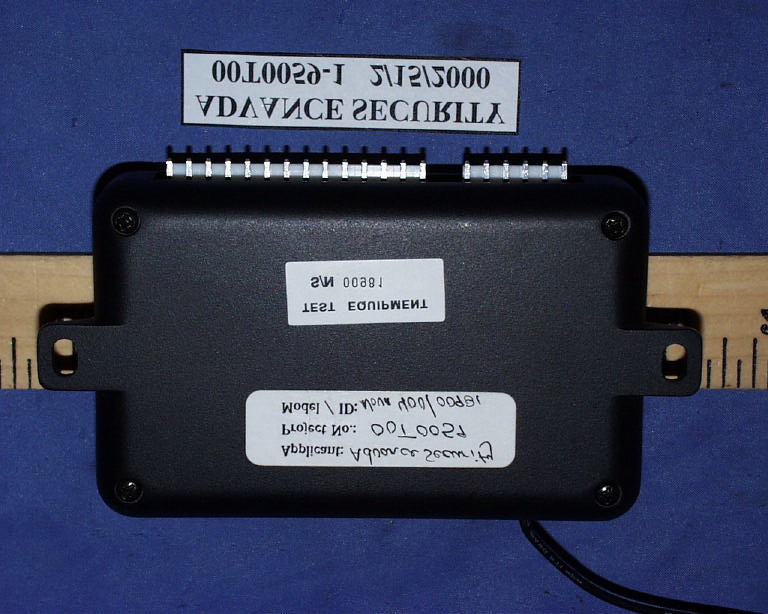

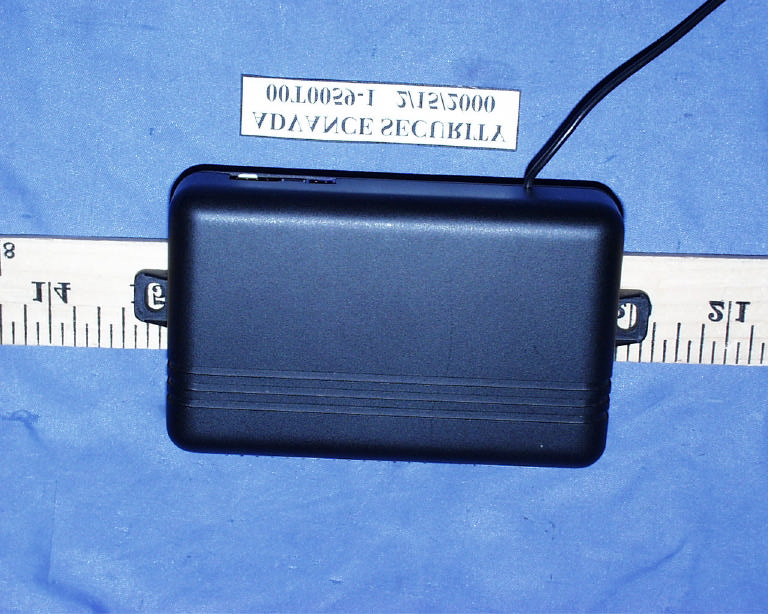

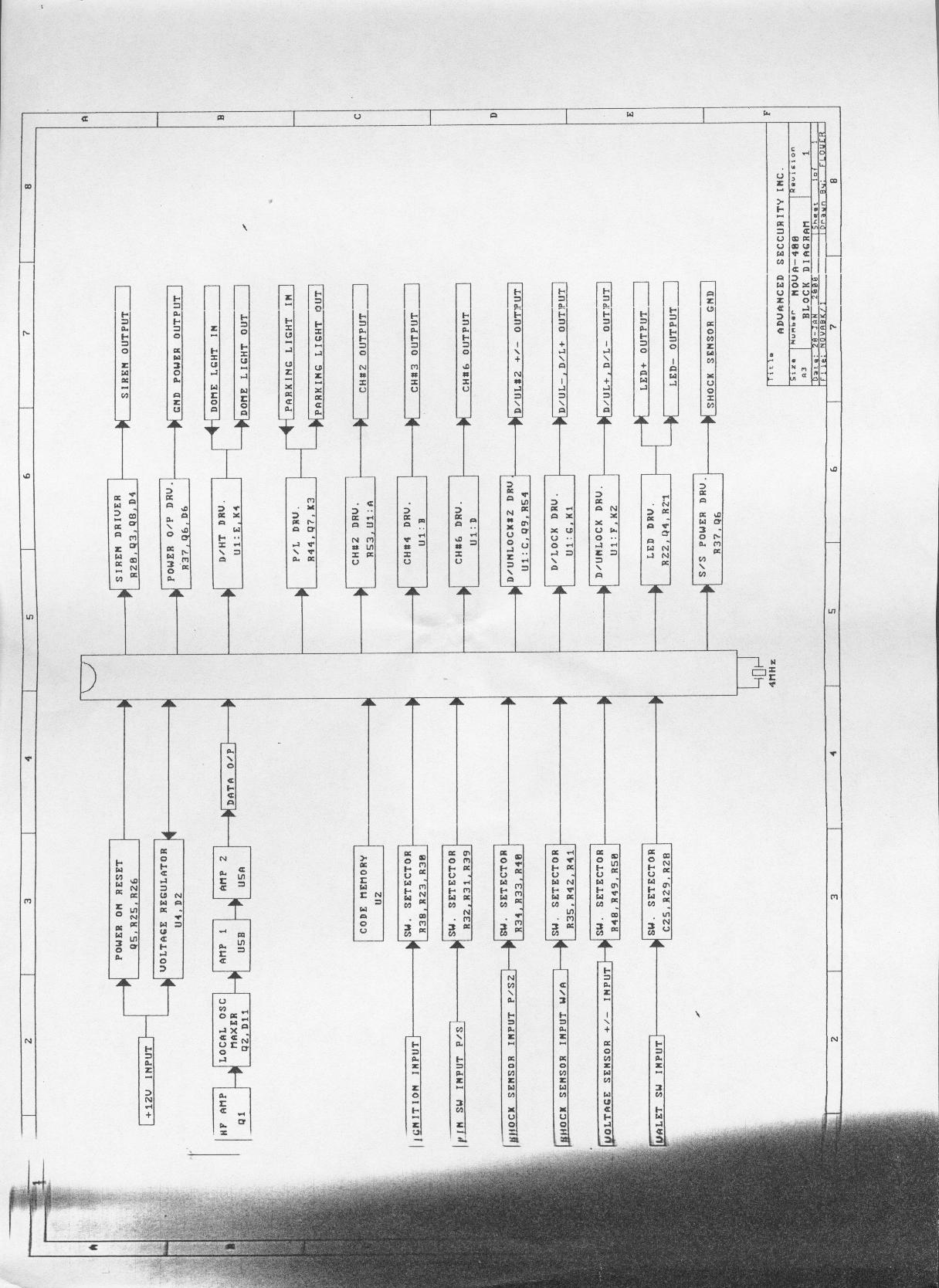

CZ57RRRXAD4Car Alarm Receiver

1Nova 400 – Security OPERATION MANUAL Table of Contents Remote Control ..........................................................................................................2 Using the Remote Control..........................................................................................2 To transmit channels 1, 2 or 3 ....................................................................................2 To transmit channels 4, 5 or 6 ....................................................................................2 To arm the system ......................................................................................................2 To disarm the system ..................................................................................................3 To silently arm or disarm the system ............................................................................ 3 To activate the panic feature ......................................................................................... 3 To activate an option when the alarm is disarmed ....................................................... 3 To activate an option regardless of state........................................................................ 3 To activate an option connected to the timer................................................................. 3 Remote Controls with Hopping Coding ........................................................................... 4 Electronic Scan Prevention (ESP) ................................................................................ 4 Selectable Passive Arming ........................................................................................4 Quick Override of Passive Arming ................................................................................ 4 Passive Self-Locking .................................................................................................... 4 Valet Mode with Remote Controlled Activation.............................................................. 4 To remotely turn ON the protected valet mode .............................................................. 4 To remotely turn OFF the protected valet mode ........................................................... 5 To manually turn ON the protected valet mode ............................................................. 5 To manually turn OFF the protected valet mode ............................................................. 5 Keyless entry in valet mode............................................................................................ 5 Automatic Door Control ................................................................................................. 5 Dual-Level Tampering Warning .................................................................................... 5 Alarm State Memory ...................................................................................................... 5 Automatic System Check............................................................................................... 5 Specific Malfunction Identification............................................................................6 Automatic Malfunction Override .................................................................................... 6 Non-Volatile Malfunction Recall ..................................................................................... 6 LED Status Indicator ...................................................................................................... 6 Attempted Theft Alert ..................................................................................................... 7 How to Interpret the Chirps and Parking Light Flashes ................................................. 7 Selectable Chirp Control ............................................................................................... 7 Chirp Canceling ............................................................................................................. 7 One-Time Remote Chirp Muting .................................................................................... 7 Remote Headlight Activation OR Window/Sunroof Closure ........................................ 7 User-Programmable Features ....................................................................................... 8 Example of Programming .............................................................................................. 8 Programming Table for User-Programmable Features ................................................. 9 2Using Your Nova 400 Security System ! Remote Control Each of the pair of remote controls is a miniature radio transmitter with a typical range of up to 100 feet. Obstructions radio interference, cellular transmissions or a weak remote control battery may reduce the range, or interrupt transmission (if the system does not immediately respond, release and press the button again; this works better than holding the button down). The second remote can be used by a second driver of the vehicle. or kept as a spare. ! Using the Remote Control Your 3-button/6-channel remote control is the key to your security system. It incorporates Nova 400 Security Stealth Coding technology which offers the most advanced protection available against "code-grabbing' devices. It’s an ingenious user-friendly device that can control six different functions, yet it has only three buttons. You will use the remote control to arm and disarm the system, lock and unlock the doors, activate its panic feature, and control options such as headlight activation, remote trunk release and Nova 400 Security systems on your other vehicles. ! To transmit channels 1, 2 or 3: Just press button 1, 2, or 3. For instance, to transmit channel 3, press button 3. When you transmit, the LED will flash. ! To transmit channels 4, 5 or 6: Channel 4: Press button 1 and 2 together. Channel 5: Press button 2 and 3 together. Channel 6: Press …

Text truncated - open the document above for the full version.

PROPOSED FCC ID LABEL AND LOCATION CLIFFORD ELECTRONICS, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: CZ57RRRXAD4 FCC ID LABEL FCC ID LABEL

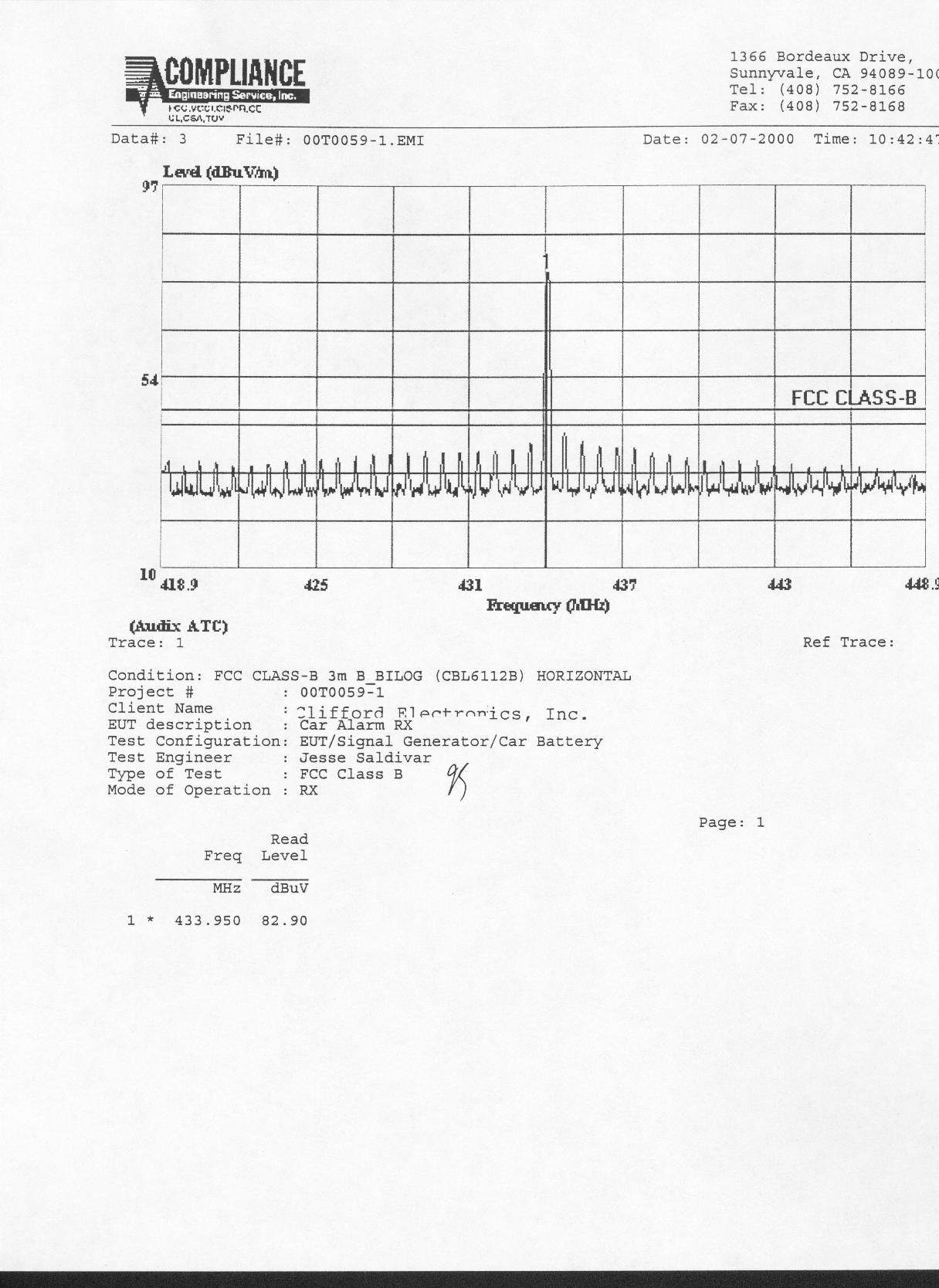

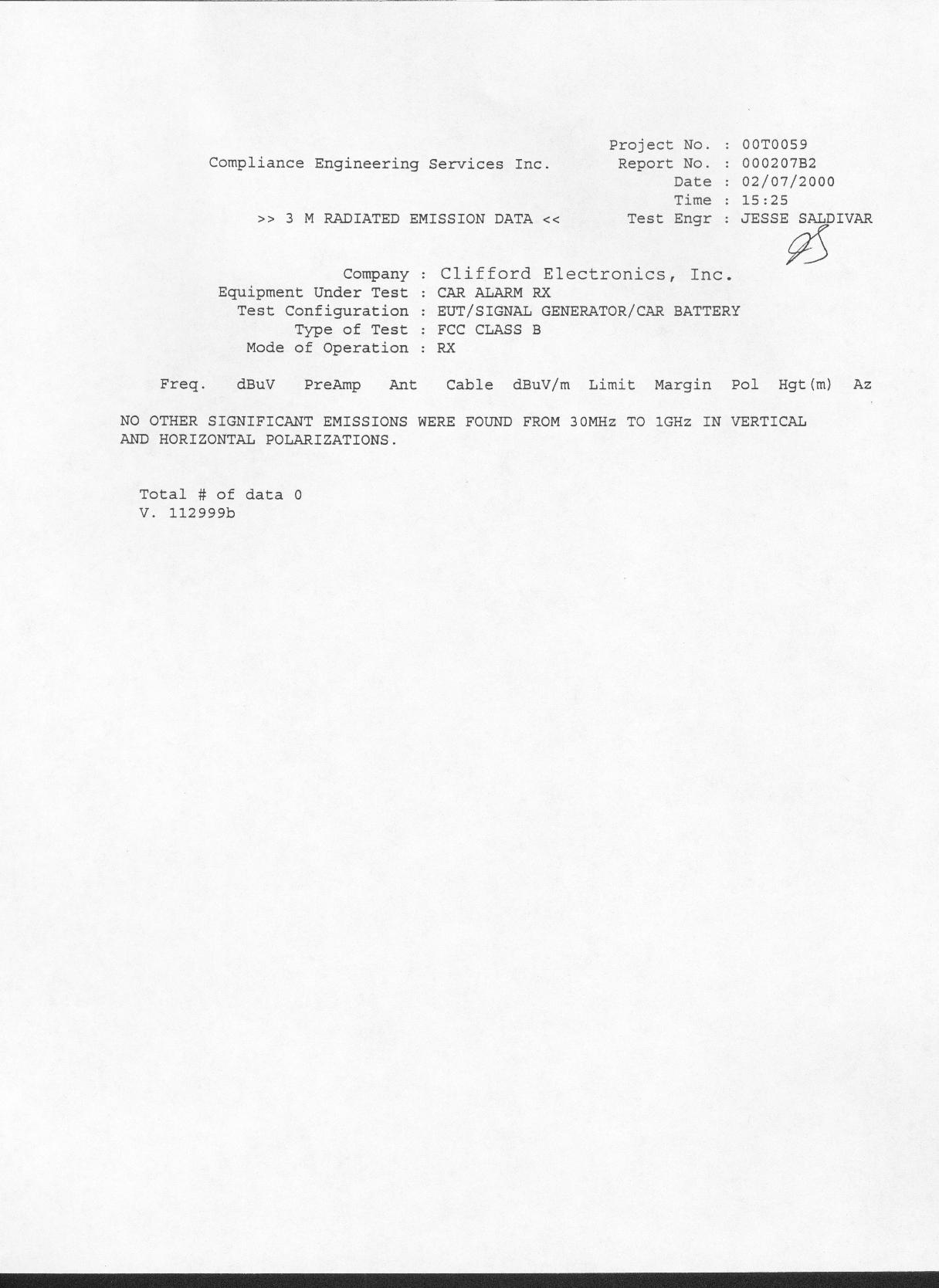

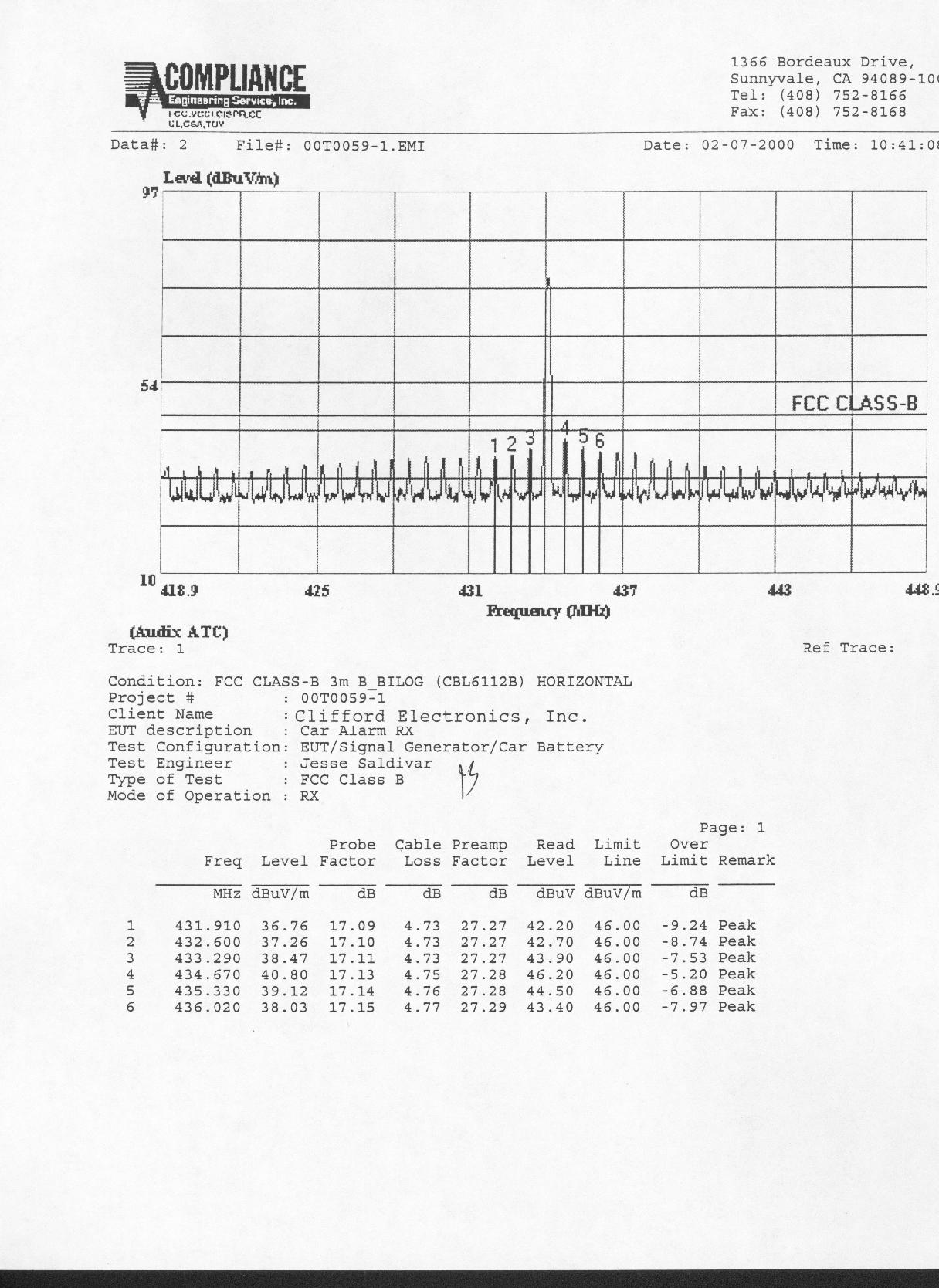

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for UNINTENTIONAL RADIATOR 433.95 CAR ALARM RECEIVER MODEL: NOVA 400 FCC ID NO: CZ57RRRXAD4 REPORT NO: 00T0059-1 ISSUE DATE: FEBRUARY 07, 2000 Prepared for CLIFFORD ELECTRONICS, INC. 20750 LASSEN STREET CHATSWORTH, CA 91311 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:00T0059-1DATE:FEBRUARY 07, 2000 FCC ID:CZ57RRRXAD4EUT:433.95MHz CAR ALARM RECEIVER PAGE NO: 0 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. TABLE OF CONTENTS 1.VERIFICATION OF COMPLIANCE ............................................................................................................. 1 2.PRODUCT DESCRIPTION .............................................................................................................................. 2 3.TEST FACILITY ................................................................................................................................................ 2 4.MEASUREMENT EQUIPMENT USED ......................................................................................................... 2 5.TEST CONFIGURATION................................................................................................................................. 3 6.TESTS CONDUCTED........................................................................................................................................ 3 7. RADIATED EMISSION TEST PROCEDURE ................................................................................................... 4 8.COHERENT TESTS .......................................................................................................................................... 4 9.EQUIPMENT MODIFICATIONS.................................................................................................................... 4 10.TEST CONFIGURATION PHOTOS (RADIATED EMISSION TEST) ................................................. 5 ATTACHMENT: Proposed FCC ID Label Agent Authorization Letter Test data • Radiated Emission Data Block Diagram/Schematics User Manual REPORT NO:00T0059-1DATE:FEBRUARY 07, 2000 FCC ID:CZ57RRRXAD4EUT:433.95MHz CAR ALARM RECEIVER PAGE NO: 1 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME:CLIFFORD ELECTRONICS, INC. 20750 LASSEN STREET CHATSWORTH, CA 91311 USA CONTACT PERSON:JIM ANDREAS / VICE PRESIDENT TELEPHONE NO.:818-709-7551 EUT DESCRIPTION:433.95MHz CAR ALARM RECEIVER MODEL NAME/NUMBER :NOVA 400 DATE TESTED :FEBRUARY 07, 2000 REPORT NUMBER:00T0059-1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (UNINTENTIONAL RADIATOR) EQUIPMENT TYPE433.95 MHz SUPERREGENERATE RECEIVER MEASUREMENT PROCEDUREANSI 63.4 / 1992 LIMIT TYPECERTIFICATION FCC RULECFR 47, PART 15.109 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. T. N. COKENIAS / ENGINEERING DIRECTOR COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO:00T0059-1DATE:FEBRUARY 07, 2000 FCC ID:CZ57RRRXAD4EUT:433.95MHz CAR ALARM RECEIVER PAGE NO: 2 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 2.PRODUCT DESCRIPTION CLIFFORD ELECTRONICS, INC., Model NOVA 400 is the receiving portion of a multi- purpose security device. The associated Transmitter is manufactured by Clifford Electronics, Inc., FCC ID: CZ57RRTX3AD. 3.TEST FACILITY The 3 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facilities was submitted to the Commission on May 27, 1994. The measuring instrument which was utilized in performing the tests documented herein has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment which is traceable to recognized national standards. 4.MEASUREMENT EQUIPMENT USED ManufacturerModel Number DescriptionCal Due Date H.P.E4432ASignal Generator (0.5 - 1024 MHz) 08/00 H.P.8566BSpectrum Analyzer (100Hz - 22GHz) 08/00 EMCO3146Antenna (200-1000 MHz) 10/00 H.P.8447DPreamplifier (0.1 - 1300 MHz) 09/00 ARADRG-18/AAntenna(1 - 18GHZ)12/00 H.P.8449BPreamplifier (1-26.5GHZ)03/00 REPORT NO:00T0059-1DATE:FEBRUARY 07, 2000 FCC ID:CZ57RRRXAD4EUT:433.95MHz CAR ALARM RECEIVER PAGE NO: 3 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 5.TEST CONFIGURATION Set frequency generator to 433.95 MHz, EUT receiving transmission continuously. All the wires are placed on the turn table to their maximum length to simulate the worse emission conditions. 6.TESTS CONDUCTED CFR 47, 15.109 RADIATED EMISSION TESTS CONDUCTED AT 3 METERS REPORT NO:00T0059-1DATE:FEBRUARY 07, 2000 FCC ID:CZ57RRRXAD4EUT:433.95MHz CAR ALARM RECEIVER PAGE NO: 4 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 7. RADIATE…
