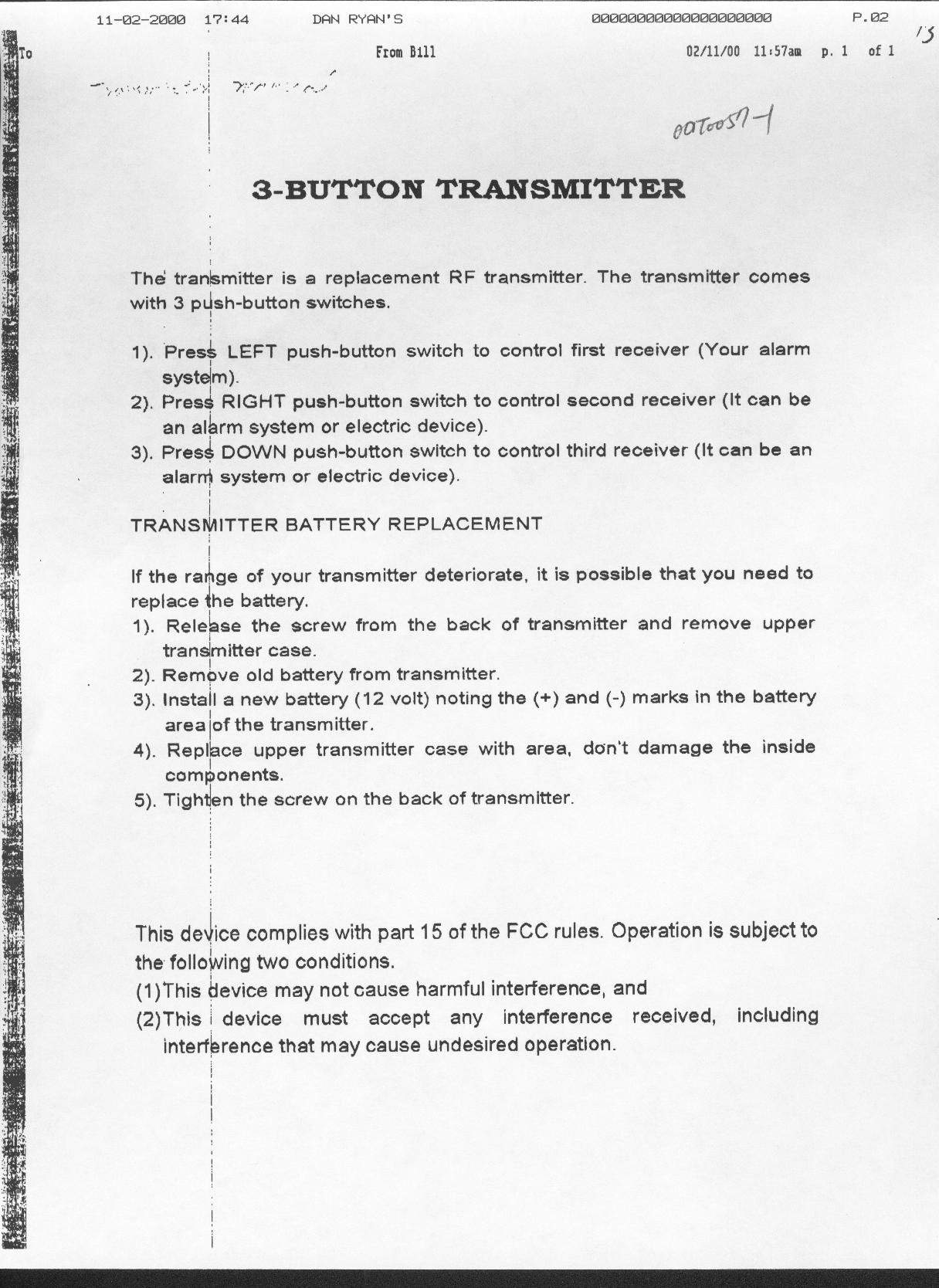

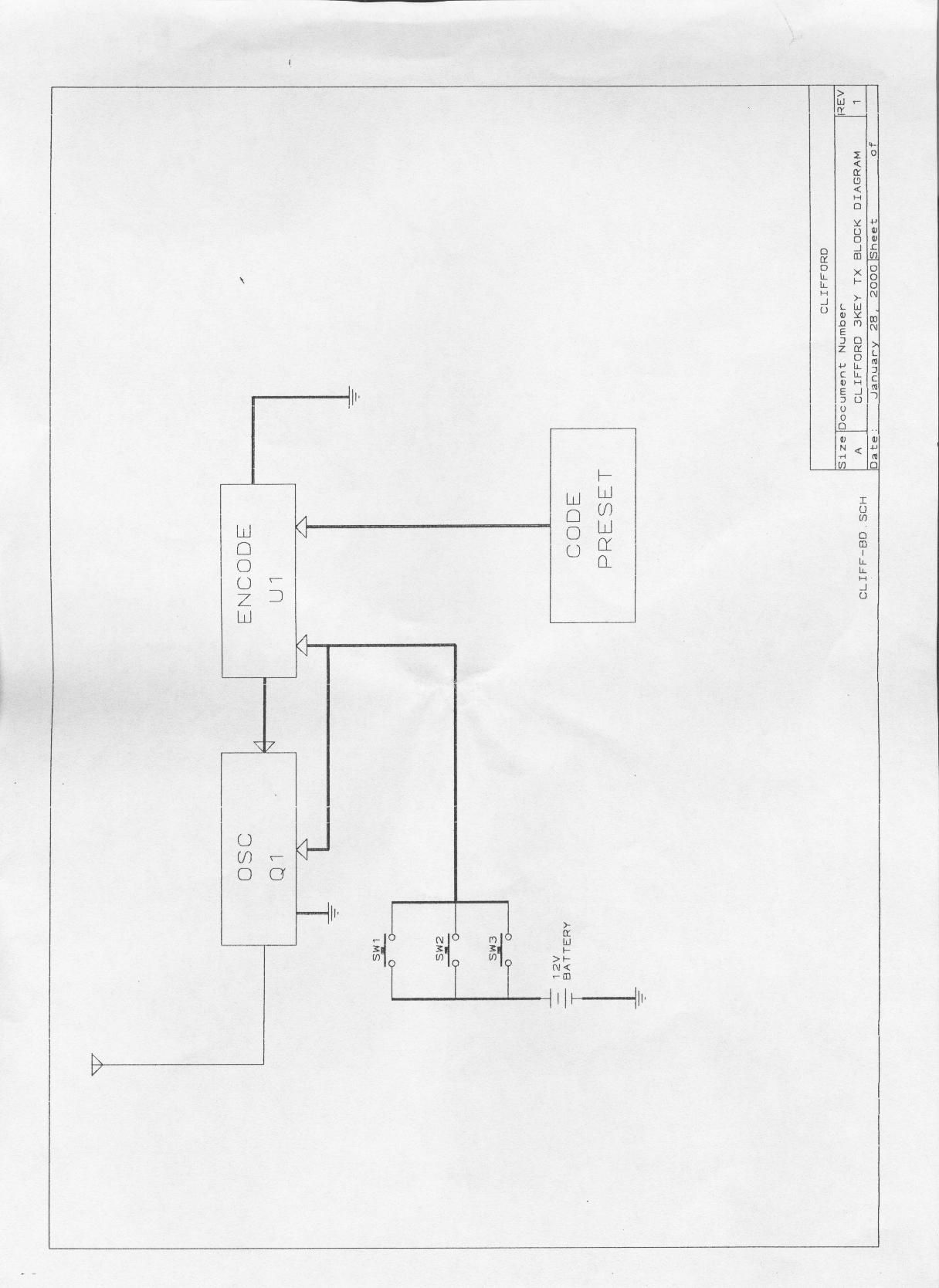

CZ57RRTX3ADCar Alarm Transmitter

PROPOSED FCC ID LABEL AND LOCATION CLIFFORD ELECTRONICS, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: CZ57RRTX3AD FCC ID LABEL FCC ID LABEL

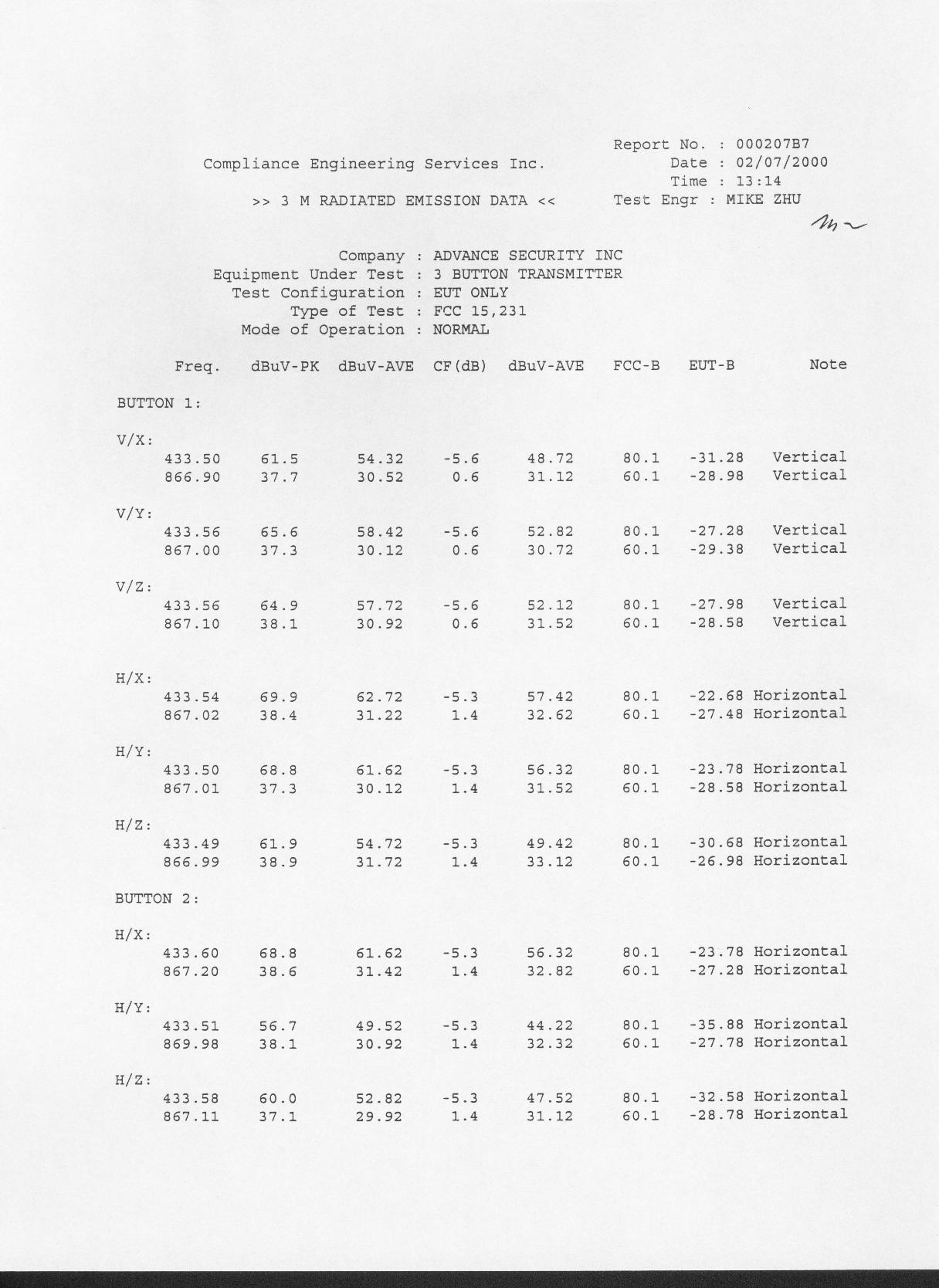

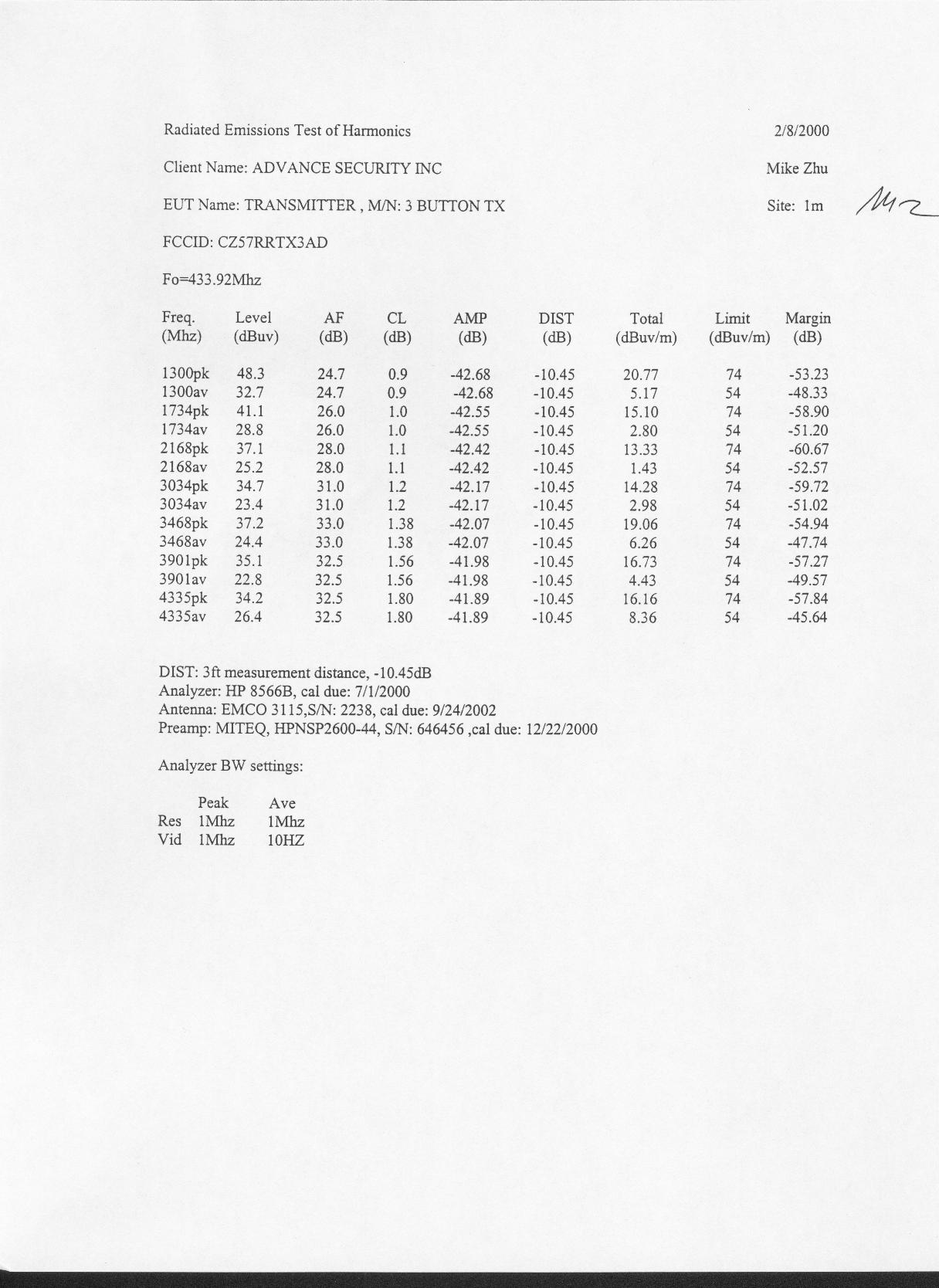

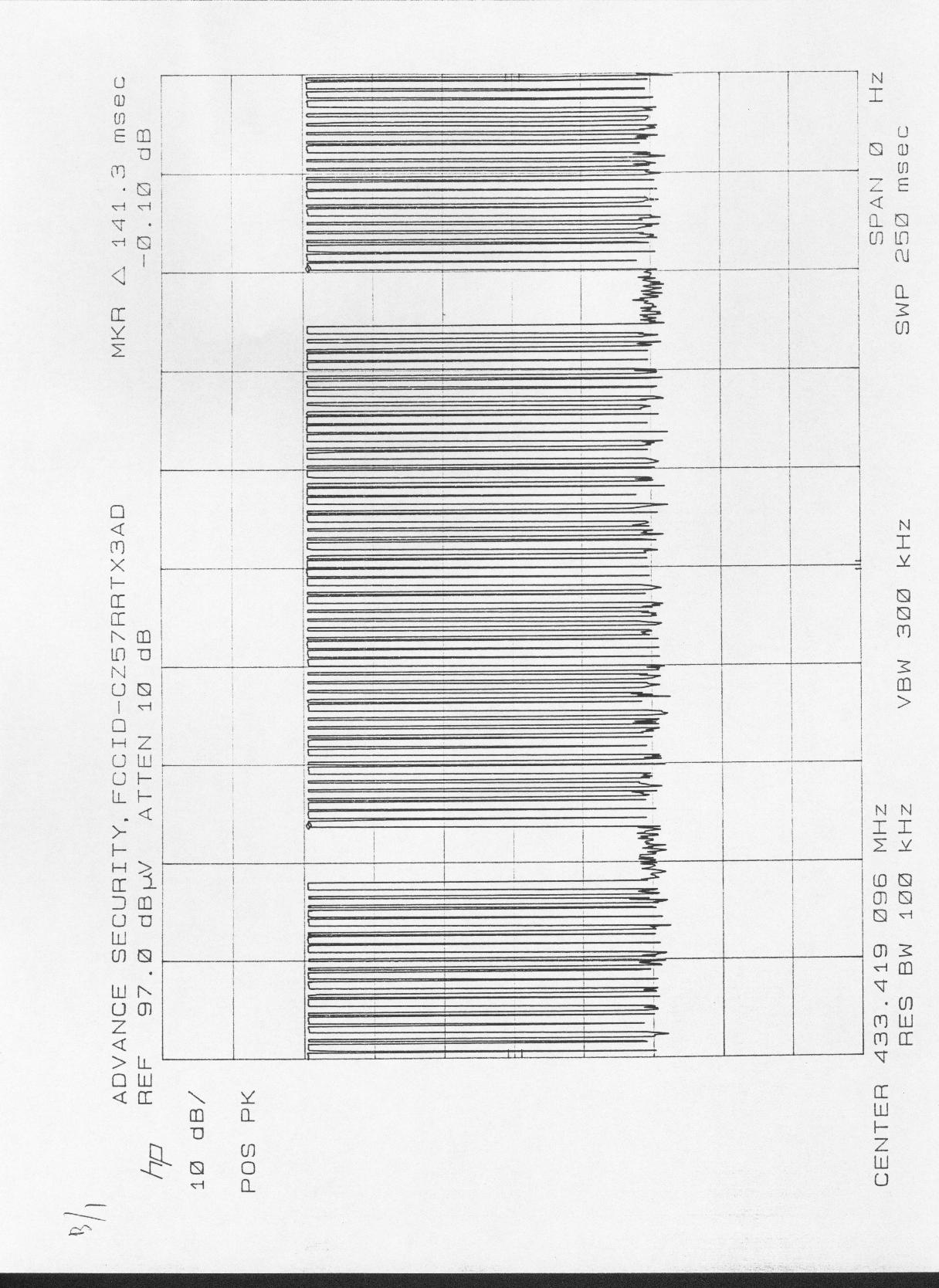

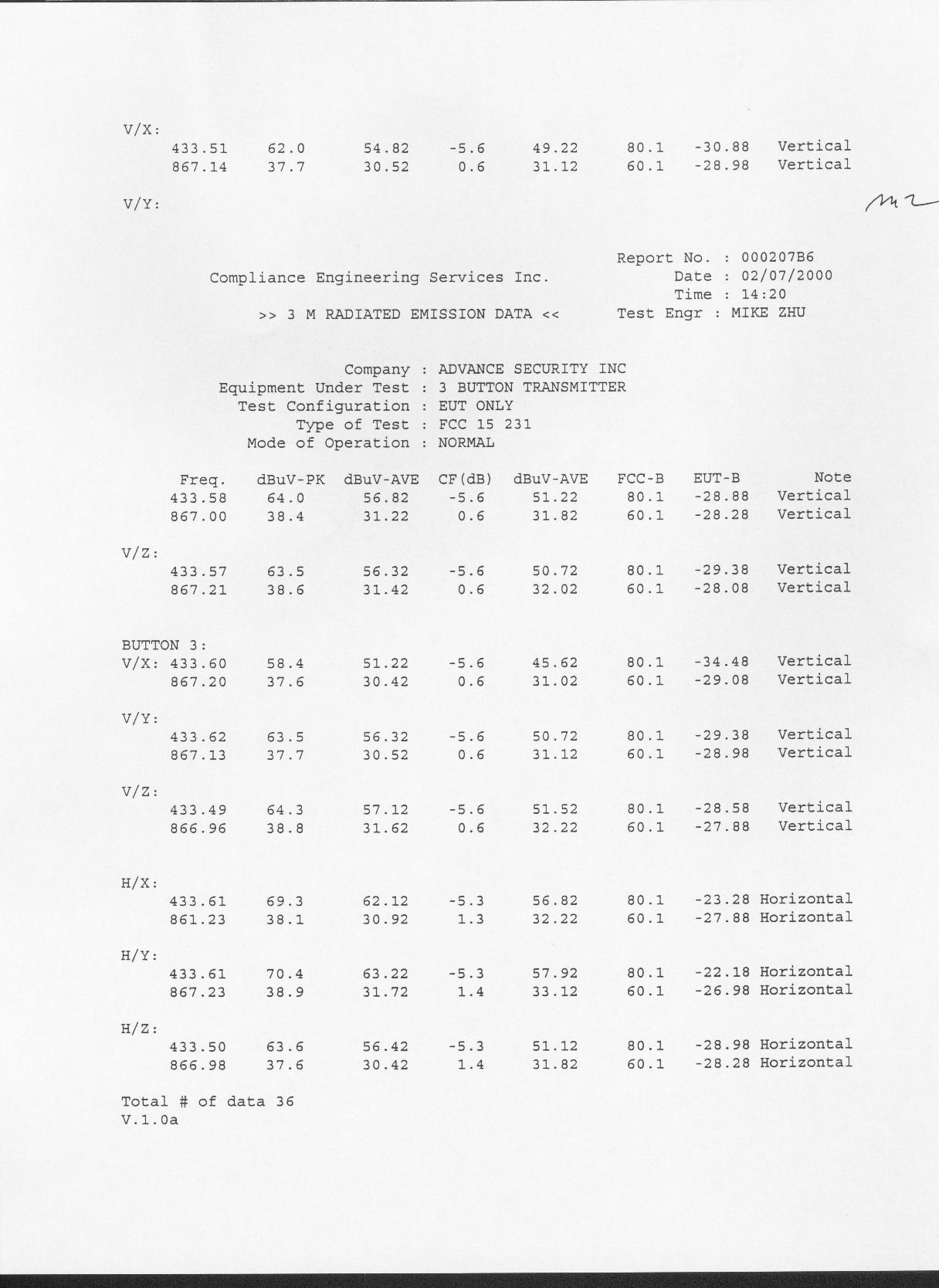

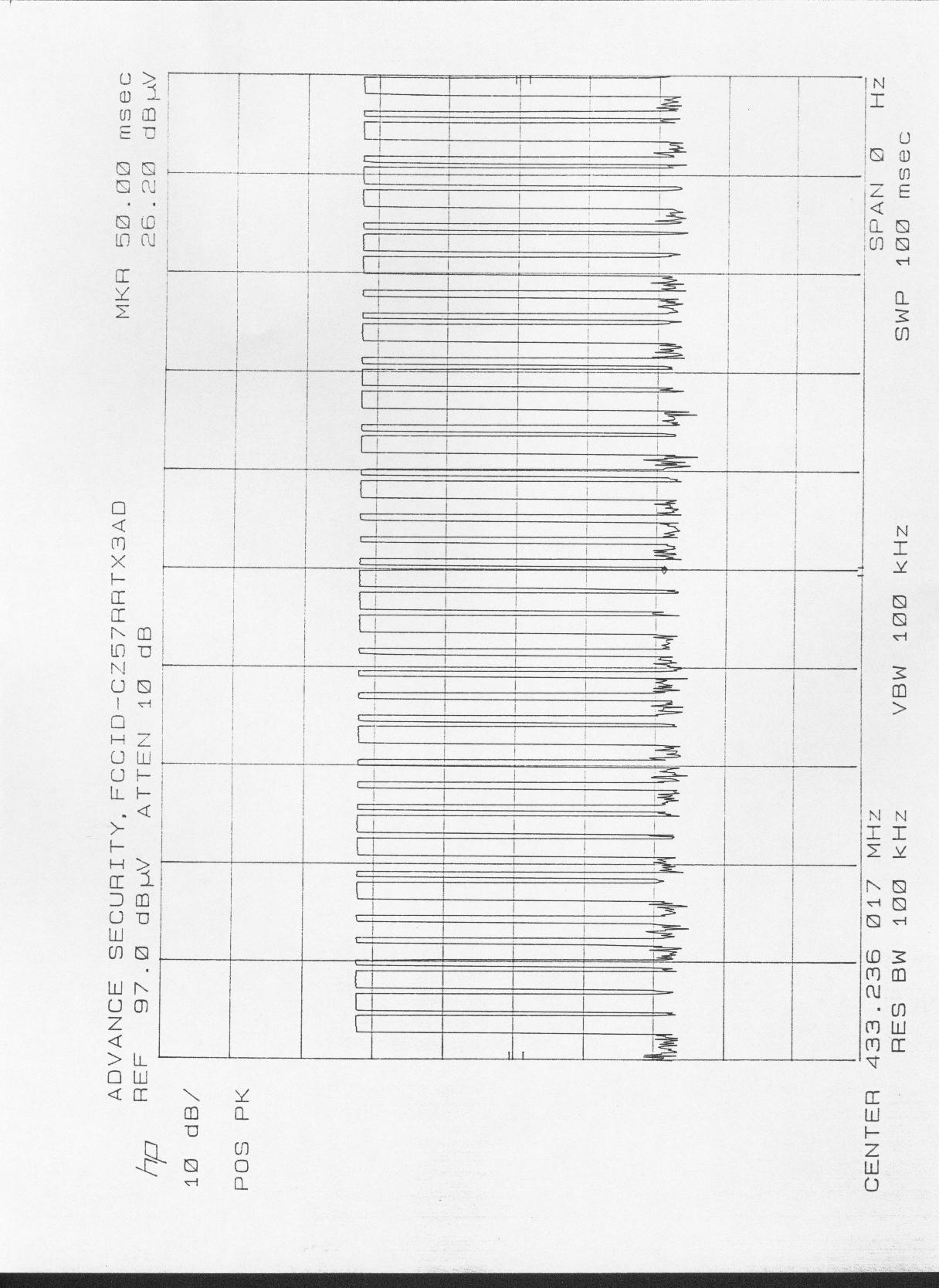

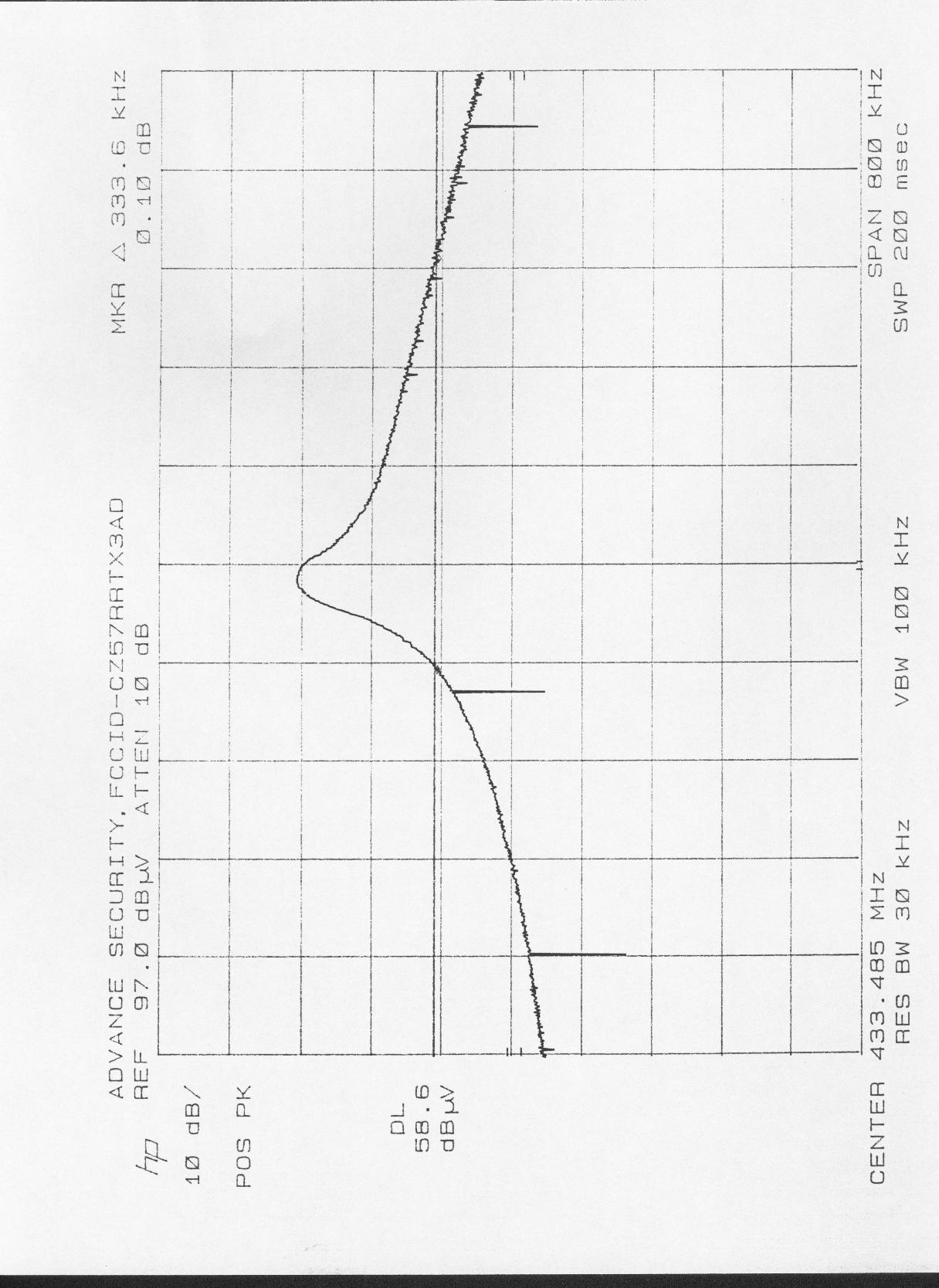

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 433.92 MHz CAR ALARM TRANSMITTER MODEL NO: 3-BUTTON TRANSMITTER FCC ID NO: CZ57RRTX3AD REPORT NO: 00T0057-1 ISSUE DATE: FEBRUARY 07, 2000 Prepared for CLIFFORD ELECTRONICS, INC. 20750 LASSEN STREET CHATSWORTH, CA 91311 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:00T0057 FCC ID:CZ57RRTX3AD DATE:FEBRUARY 07, 2000 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ........................................................................................ 1 2. Product Description..................................................................................................................... 2 3. Test Facility ................................................................................................................................. 2 4. Measurement Standards .............................................................................................................. 2 5. Test Methodology........................................................................................................................ 2 6. Measurement Equipment Used ...................................................................................................2 7. POWERLINE RFI LIMIT ..........................................................................................................3 8. RADIATED EMISSION LIMITS .............................................................................................. 3 9. SYSTEM TEST CONFIGURATION......................................................................................... 4 10. Test Procedure........................................................................................................................... 5 11. Equipment Modifications .......................................................................................................... 6 12. TEST RESULT ......................................................................................................................... 7 12.1 Maximum Modulation Percentage (M%) ............................................................................... 7 12.2 The Emissions Bandwidth....................................................................................................... 7 TEST DATA • Maximum Modulation Percentage Plot • Emission Bandwidth Plot • Radiated Emission Worksheet for Peak Measurement • Radiated Emission Worksheet for Average Measurement REPORT NO:00T0057 FCC ID:CZ57RRTX3AD DATE:FEBRUARY 07, 2000 PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME :CLIFFORD ELECTRONICS, INC. 20750 LASSEN STREET CHATSWORTH, CA 91311 USA CONTACT PERSON :JIM ANDREAS / VICE PRESIDENT TELEPHONE NO.:818-709-7551 EUT DESCRIPTION :433.92 CAR ALARM TRANSMITTER FCC ID:CZ57RRTX3AD DATE TESTED:FEBRUARY 07, 2000 REPORT NUMBER:00T0057 TYPE OF EQUIPMENTSECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE433.92 MHz TRANSMITTER MEASUREMENT PROCEDUREANSI C63.4 / 1992 LIM IT TYPEC ERT IF IC AT ION FCC RULECFR 47, PART 15 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. TOM COKENIAS / ENGINEERING DIRECTOR COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO:00T0057 FCC ID:CZ57RRTX3AD DATE:FEBRUARY 07, 2000 PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2. Product Description Fundamental Frequency 433.92 MHz Power Source 12V Battery Transmitting Time Periodic < 5 seconds Associated Receiver FCC ID: CZ57RRRXAD2 3. Test Facility The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. Measurement Standards The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. Test Methodology For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) 6. Measurement Equipment Used ManufacturerModel Number DescriptionCal Due Date H.P.8568ASpectrum Analyzer (100Hz – 1.5GHz) 02/01 H.P.8566BSpectrum Analyzer (100Hz – 22GHz) 09/00 EMCO3146Antenna (200-1000 MHz) 10/00 H.P.8447DPreamplifier (0.1 - 1300 MHz) 09/00 EMCO3115Antenna(1 - 18GHZ)11/00 H.P.8449BPreamplifier (1-26.5GHZ)03/00 REPORT NO:00T0057 FCC ID:CZ57RRTX3AD DATE:FEBRUARY 07, 2000 PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 kHZ TO 30 MHz SE…
