DE4-3301TBWireless Door Chime Transmitter

INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information (in blue) must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** FCC ID: DE4-3301TB IC: 2998A-3301T This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. ****************************************************************************** INSTRUCTION GUIDE Wireless Chime ButtonsRC3302, RC3303, RC4121 Congratulations on a wise purchase! ENCLOSED YOU WILL FIND: • Chime Button • One 3-volt lithium battery (installed) for RC3302 and RC3303 • Two 3-volt lithium batteries (installed) for RC4121 • Double-sided tape • Screws TOOLS NEEDED: • Small Phillips head screwdriver • Medium flat head screwdriver • Ballpoint pen • Drill, if mounting with screws Note:Your new wireless chime button can only be used to add a button to an existing Carlon Wireless Chime system. It can not be used with any other mechanical or wireless chime system. MOUNTING BACK COVER OF CHIME BUTTON Note:Mounting Chime Button on aluminum siding or metal door frame may reduce range. If button must be mounted on metal, try placing a 1/2’’ piece of wood between the button and the metal. If you want to cover the wire hole from your existing button, save mounting of the new Chime Button until after removing the existing button. 1. Remove cover from back of Button by inserting flat head screwdriver in notch at bottom of transmitter and turn. Lift Chime Button cover away from the back plate. 2. For tape mounting: A) Make sure surfaces are free of dust, oil, and other substances that could affect adhesion. B) Attach double-sided tape to Chime Button back cover. GUÍA DE INSTRUCCIONES Botones de Timbre inalámbrico RC3302, RC3303, RC4121 ¡Lo felicitamos por su compra sabia! SE ADJUNTA: • Botón de timbre • One 3-volt lithium battery (installed) for RC3302 and RC3303 • Dos baterías de litio de 3 voltios (instaladas) for RC4121 • Cinta con pegamento por ambos lados • Tornillos HERRAMIENTAS NECESARIAS: • Pequeño destornillador de cabeza Phillips • Medium flat head screwdriver • Bolígrafo • Taladro, si se monta con tornillos Nota:Su nuevo botón de timbre inalámbrico solamente puede usarse para agregar un botón a un sistema de timbre inalámbrico Carlon existente. No puede usarse con ningún otro sistema de timbre inalámbrico. MONTAJE DE LA CUBIERTA POSTERIOR DEL BOTÓN DE TIMBRE Nota:Instalando el bóton de timbre en uno panel de alumino o montante de puerta en metal puede disminuir el alcance de operación. Si debe instalar el bóton en una pieza de metal, intercale una pieza de madera de 1/2” entre el bóton y el metal. Si desea cubrir el agujero del alambre de su botón existente, guarde el montaje del nuevo botón de timbre hasta después de retirar el botón existente. 1. Remove cover from back of Button by inserting flat head screwdriver in notch at bottom of transmitter and turn. Lift Chime Button cover away from the back plate. 2. Para montaje con cinta: A) Asegúrese de que las superficies estén sin polvo, aceite y otras sustancias que podrían afectar la adhesión. B) Instale la cinta con pegamento por ambos lados en la tapa posterior del botón de timbre. GUIDE D’INSTALLATION Boutons de Carillon sans filRC3302, RC3303, RC4121 Nous vous félicitons de votre choix judicieux ! VOUS TROUVEREZ DANS CET ENSEMBLE : • Un bouton de carillon • One 3-volt lithium battery (installed) for RC3302 and RC3303 • Deux piles au lithium 3 volts (installées) for RC4121 • Un ruban à deux faces • Des vis LES OUTILS NÉCESSAIRES : • Un petit tournevis à pointe cruciforme (Phillips) • Medium flat head screwdriver • Un stylo-bille • Une perceuse, si vous faites un montage avec vis Remarque :Votre nouveau bouton de carillon sans fil ne peut être utilisé que pour ajouter un bouton à un système de carillon sans fil Carlon existant. Il ne peut pas être utilisé avec un autre carillon sans fil ou mécanique. MONTAGE DU DOS DU BOUTON DE CARILLON Remarque : Installer le bouton de carillon sur une planche d’aluminium ou un cadre de porte en métal peut réduire la portée. Si le bouton doit être installé sur du métal, insérez une pièce de bois de 1/2 po entre le bouton et le métal. Si vous voulez couvrir le trou de fil du bouton de sonnette existant, ne montez le nouveau bouton qu’après avoir enlevé le bouton existant. 1. Remove cover from back of Button by inserting flat head screwdriver in notch at bottom of transmitter and turn. Soulevez le devant du bouton pour le séparer du dos. 2. Montage avec le ruban : A) Les surfaces doivent être libres de poussière, d’huile et de toute autre substance qui peut nuire à l’adhésion. B) Posez le ruban à deux faces sur le dos du bouton. C) Making sure that the end with the hook-shaped latch is facing down, press cover firmly to moun…

Text truncated - open the document above for the full version.

November 8, 2010 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: New Certification for Thomas & Betts Transmitter FCC ID: DE4-3301TB IC: 2998A-3301T On behalf of Thomas & Betts we are submitting application materials for New Cert- ification of Transmitter, FCC ID: DE4-3301TB. We tested it and found it to comply with FCC Part 15. If there are any questions rega rding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

Re: New Filing / Class II Permissive Change FCC ID: DE4-3301TB IC: 2998A-3301T REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.457 (d) and 0.459 and IC RSP-100, Section 10, Thom as & Betts requests that a part of the subject application be held confidential. Thomas & Betts has spent substantial effort in developing this product and it is one of the first of its kind i n industry. Having the subject information easily available to "co mpetition" would negate the advantage they have achieved by developing t his pr oduct. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12)Description of Operation 1. Block diagram exhibit contains device crystal information the manufacturer considers to be proprietary information. Permanent Confidentiality: Thomas & Betts requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality: Thomas & Betts requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

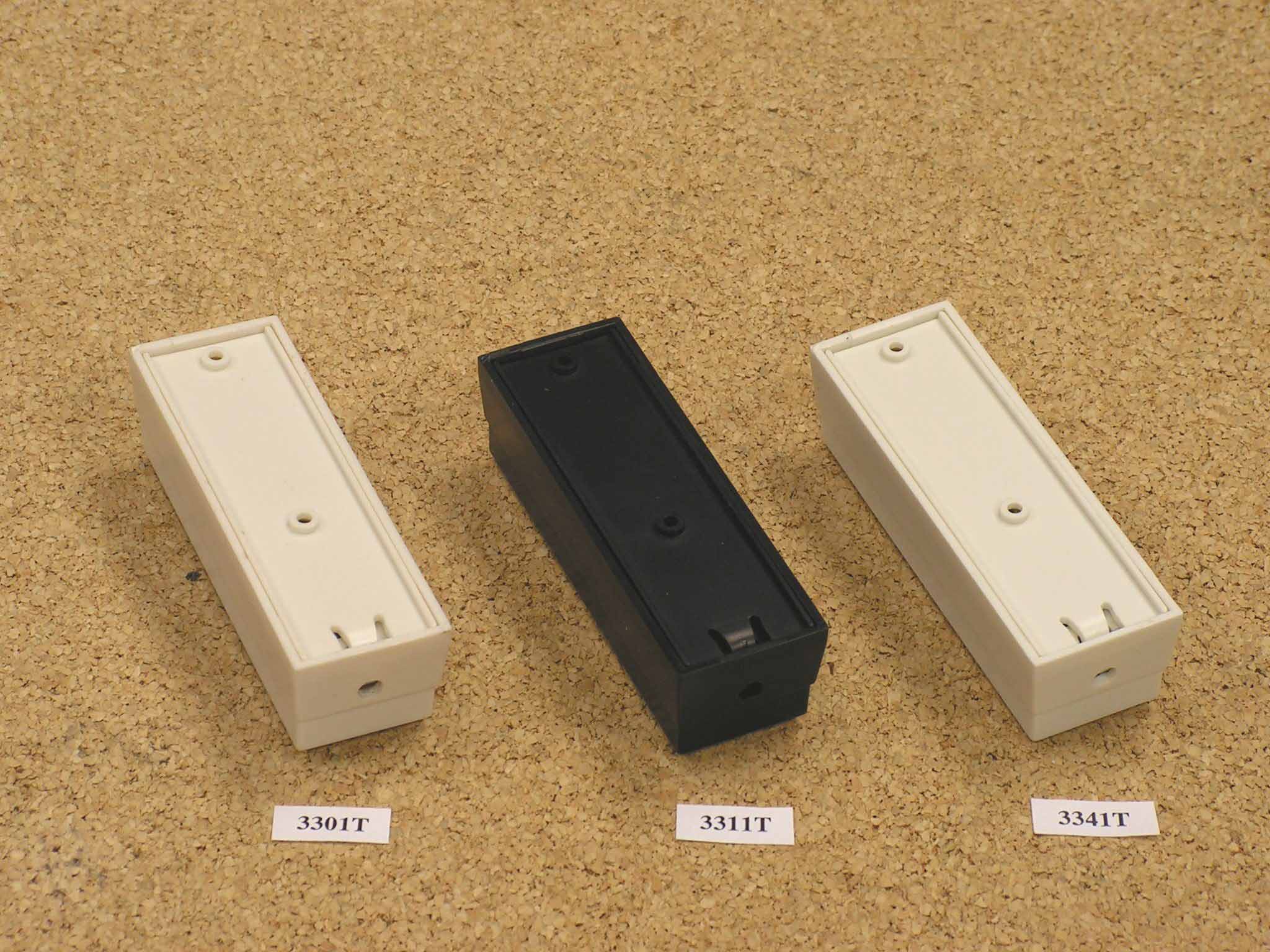

FCC ID:DE4-3301T IC:2998A-3301T MODEL: 3301T FCC ID:DE4-3301T IC:2998A-3301T MODEL: 3311T FCC ID:DE4-3301T IC:2998A-3301T MODEL: 3341T

3301T, 10-6-29--TECHNICAL DESCRIPTION: Revised 8-23-2010 The 3301T (3301H1C.PCB) is a small battery (two CR2032,s) powered door chime transmitter contained in plastic casing, meant to be wall/door-frame mounted, and serve as an RF replacement for regular house-hold wired doorbells. The case is made of plastic and measures 3.25 inches long, 1.07 inches wide and .95 inches high. The case opens manually for battery changes using a plastic case tab. There are two user momentary pushbutton switches on the transmitter, one for the RING function and a second for the SCROLL function. The scroll function is to change songs on the receiver. There are also 5 ADDRESS jumpers, all hard-wired & soldered to the board, in shorted position. This is the normal address setting. If two or more of the 3301T units are used in proximity and with two different receivers, an address jumper may be cut on one xmtr-rcvr set to differentiate the two rcvr-xmtr sets and allow independent operation. Operation: When a button is depressed a micro-processor, clocked with a 4MHZ resonator, is activated. Once activated, the micro sends out pulse-position encoded modulation to the RF section and functions in the ASK mode. The duty cycle of the modulation is about 13%. Two modulated output words are transmitted, one via pulse-width, and the second with a WAKE signal (900HZ @ 12% duty) of about 160ms-200ms followed by a pulse position word. Each modulation type works with a different receiver demodulation design. The transmitter output duty as a whole, is less than 13%. The transmitted bit information includes: Start, song bits, address bits and more. The RF section is a simple one-transistor 315MHZ Colpitts oscillator, LC tuned, and employing a stub antenna. The power supply is two CR2032 Lithium batteries for a total of 6VDC. The output directly supplies the RF section and thru a diode the microprocessor.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-589 Page 1 of 13 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647-2106 Measured Radio Frequency Emissions From Thomas & Betts Corporation Transmitter FCC ID: DE4 -3301TB IC: 2998A-3301T Test Report No. 417124-589 November 8, 2010 Copyright © 2010 For: Thomas & Betts Corporation 8155 T&B Boulevard Memphis, TN 38125 Contact: Hal Fonville [email protected] Phone: (901) 252-8439 Fax: (901) 252-1374 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and with Industry Canada RSS-210/Gen, were performed on a Thomas & Betts, FCC ID: DE4 -3301TB, IC: 2998A- 330 1T. This device under test (DUT ) is subject to the rules and regulations as a Transmitter. In testing completed on October 6, 2010, the DUT tested met the allowed specifications for radiated emissions by 7.2 dB. Conducted emissions are not subject to regulation as the DUT is powered by two 3VDC batteries. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-589 Page 2 of 13 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Variants and Samples ............................................................................................................ 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 5. Measurement Procedures ................................................................................................................. 6 5.1 Semi -Anechoic Chamber Radiated Emissions ...................................................................... 6 5.2 Outdoor Radiated Emissions ................................................................................................. 6 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 6 5.5 Supply Voltage Variation ...................................................................................................... 7 6. Test Results ...................................................................................................................................... 7 6.1 Radiated Emissions ............................................................................................................... 7 6.1.1 Correction for Pulse Operation ......................................................................................... 7 6.1.2 Emission Spectrum ........................................................................................................... 7 6.1.3 Emission Bandwidth ......................................................................................................... 7 6.1.4 Supply Voltage and Supply Voltage Variation ................................................................. 7 6.2 Conducted Emissions ............................................................................................................ 7 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-589 Page 3 of 13 1. Introduction This Thomas & Betts Transmitter was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 7, June 2007. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation L aboratory ( UMRL) q uality system. T his q uality system h as b een est ablished t o en sure al l equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations are traceable to national standards. Table 2.1 Test Equipment. Test Instrument Used Manufacturer/Model Q Number Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8593E, SN: 3412A01131 HP8593E1 Spectrum Analyzer (9kHz-6…

Text truncated - open the document above for the full version.
