DE47DC3500TDoorbell Transmitter

Re: Certification for Lamson 3500T Transmitter Model: 3500T FCC ID: DE47DC3500T CANADA: 29981021007 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: DE47DC3500T CANADA: 29981021007 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 29, 2002 RE: Lamson & Sessions FCC ID: DE47DC3500T After a review of the submitted information, I have a few comments on the above referenced Application. 1) The cover letters provided state that no modifications were made, while the test report (section 3.1) shows that there were modifications. Please comment and correct the affected exhibit. 2) Modification (5) refers to C9. The parts list does not show a C9. Please comment and correct the affected exhibit(s). 3) Information regarding compliance with 15.231(a)(1). 4) FYI, the harmonic at 2835 MHz falls in a restricted band. The incorrect limit was applied. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

April 30, 2002 Re: Certification for Lamson 3500T Transmitter Model: 3500T FCC ID: DE47DC3500T CANADA: 29981021007 STATEMENT OF MODIFICATIONS There following modifications were made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). C3 was changed from 100 to 150pF. R7 was changed from 390K to 360K. R11 was changed from 240 to 220 ohms. R4 was changed from 10K to 2K. C9 was changed from 30 to 33pF. _____________________ Valdis V. Liepa Research Scientist Comments regarding operation and testing of the DUT The DUT has been tested for compliance with FCC 15.231(b) and RSS 210; 6.1 and 6.3. 1) Per 15.231(b), the DUT initiates transmission when button is depressed and ceases to transmit within 5 seconds of when the button is released. 2) Under part 15.231(b)(2) of the FCC rules requires the use of an average detector or Quasi-Peak Detector. Because this is a pulse device, and we the guidelines of section 15.35(c), per 15.231(b), wherein the average measurement is obtained by mathematically averaging the peak value. 3) Per 15.231, the DUT transmits only identification and control signals; there is no provision for input of data.

Re:Certification for Lamson3500T Transmitter Model:3500T FCC ID: DE47DC3500T CANADA:29981021007 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Lamson requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10)Parts List (Part of Exhibit only) Lamson has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan April 21,2002 Re:Certification for Lamson3500T Transmitter Model:3500T FCC ID: DE47DC3500T CANADA:29981021007 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re:Certification for Lamson3500T Transmitter Model:3500T FCC ID: DE47DC3500T CANADA:29981021007 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Lamson 3500T Transmitter Model: 3500T FCC ID: DE47DC3500T CANADA: 29981021007 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Lamson & Sessions 25701 Science Park Drive Cleveland, Ohio 44122 Mark Roesch Tel: (216) 766-6762 Fax: (216) 591-1035 Lamson manufactures its products at various subcontractor manufacturers. It will be marketed under the trade name “Dimango.” Marketing and Service will be handled from Corporate Facilities in Cleveland, Ohio.

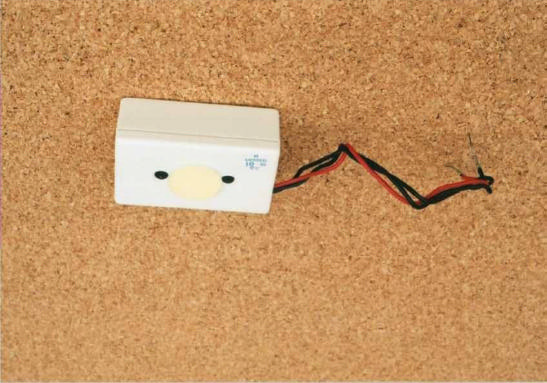

DE47DC3500T Transmitter + Transformer DE47DC3500T Transmitter Front DE47DC3500T Transmitter Back

DE47DC3500T Transmitter + Transformer DE47DC3500T Transmitter Front

DE47DC3500T Transmitter Open - Top DE47DC3500T Transmitter Open - Bottom DE47DC3500T Transmitter PCB - Top DE47DC3500T Transmitter PCB - Bottom

DE47DC3500T Transmitter Close-up on OATS DE47DC3500T Transmitter on OATS
