Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. D33-07-016-9E

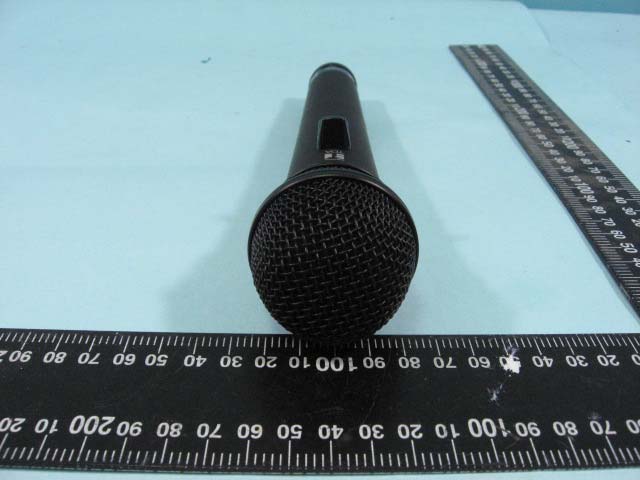

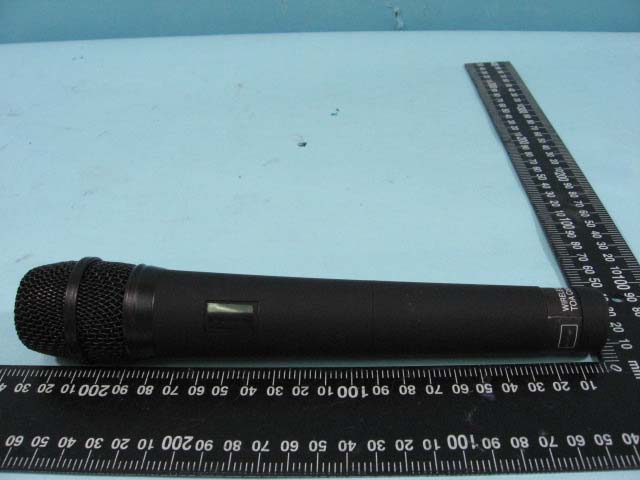

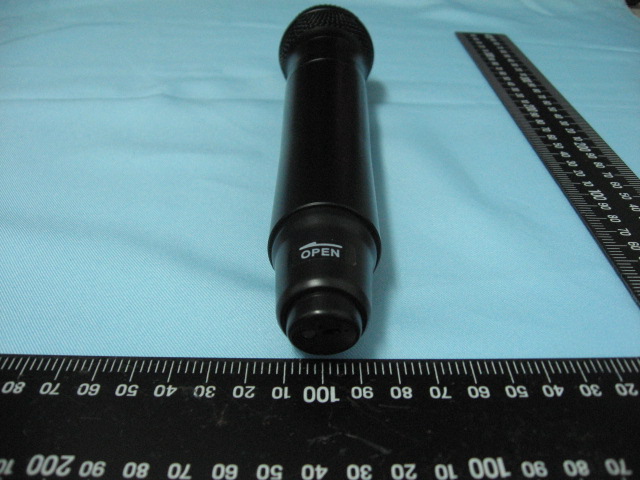

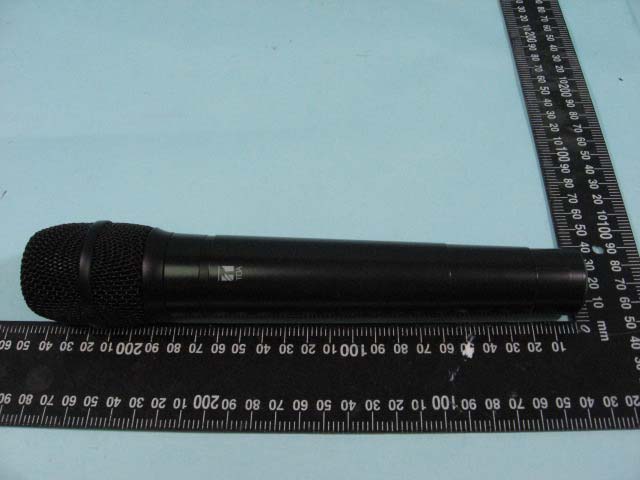

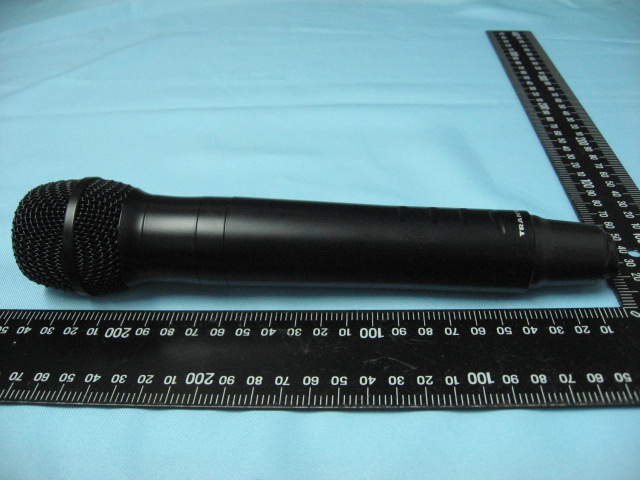

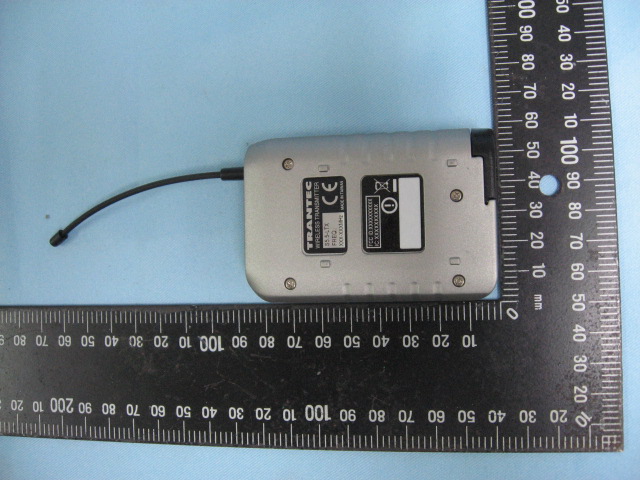

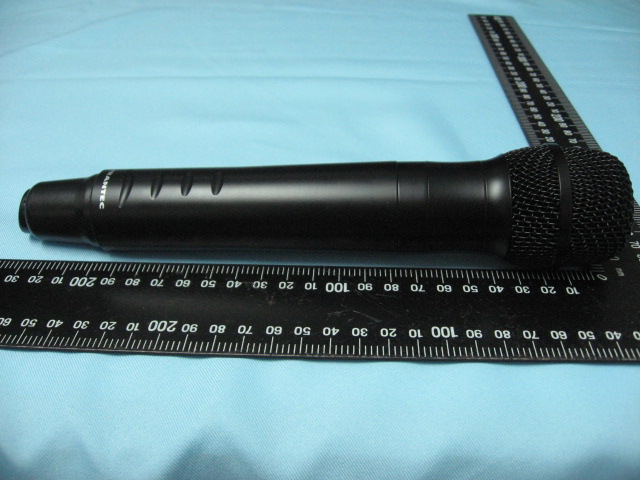

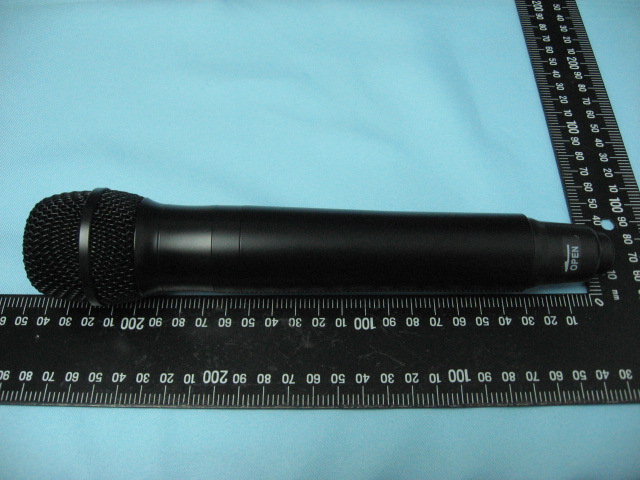

ETC Report No.: 14-06-RBF-004-01 Sheet 1 of 6 Sheets FCC ID:DLAS5HDX Rev. 2.0 CONSTRUCTED PHOTOS of EUT 1. 2. ETC Report No.: 14-06-RBF-004-01 Sheet 2 of 6 Sheets FCC ID:DLAS5HDX Rev. 2.0 CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No.: 14-06-RBF-004-01 Sheet 3 of 6 Sheets FCC ID:DLAS5HDX Rev. 2.0 CONSTRUCTED PHOTOS of EUT 5. 6.

ETC Report No.: 14-06-RBF-004-01 Sheet 4 of 6 Sheets FCC ID:DLAS5HDX Rev. 2.0 CONSTRUCTED PHOTOS of EUT 7. 8. ETC Report No.: 14-06-RBF-004-01 Sheet 5 of 6 Sheets FCC ID:DLAS5HDX Rev. 2.0 CONSTRUCTED PHOTOS of EUT 9. 10. ETC Report No.: 14-06-RBF-004-01 Sheet 6 of 6 Sheets FCC ID:DLAS5HDX Rev. 2.0 CONSTRUCTED PHOTOS of EUT 11.

According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance,mm)] ·[ √f(GHz)] ≤ 3.0 The max. average power of channel, including tune-up tolerance(mW) is 9.12 mW @ 697.87MHz (With Tune-up tolerance), The min. test separation distance (mm) is 5 mm, So, [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] ·[√f(GHz)] = 1.52 < 3.0 (With Tune-up tolerance). Therefore, standalone SAR measurements are not required for both head and body. Signature___________________________________ Name/Title: S. S. Liou / Section Manager, EMC Testing Department II TEL: +886‐2‐2602‐3052 Email: [email protected]

Rev. 2.0 FCC Part 74 Subpart H EMI TEST REPORT of E.U.T. : UHF Wireless Microphone FCC ID. : DLAS5HDX Model No. : S5.5-HDX; S5.3-HDX; S5.5-HCX; S5.3-HCX Working Frequency : 576~608 MHz ; 614~698 MHz for APPLICANT : TOA Corporation ADDRESS : 2-1 Takamatsu-cho, Takarazuka-shi, Hyogo-ken, 665-0043, Japan Test Performed by ELECTRONICS TESTING CENTER (ETC) , TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 FAX : (02)26010910 http:// www.etc.org.tw ; e-mail:[email protected] Report Number : 14-06-RBF-004-01 ETC Report No.: 14-06-RBF-004-01 FCC ID:DLAS5HDX Rev. 2.0 TEST REPORT CERTIFICATION Applicant : TOA Corporation 2-1 Takamatsu-cho, Takarazuka-shi, Hyogo-ken, 665-0043, Japan Manufacturer : Dynatron Industrial Co., Ltd. No.89, Din Pin Rd., Ray Fong Industrial Area, Ray Fong Dist, New Taipei City, Taiwan Description of EUT : a) Type of EUT : UHF Wireless Microphone b) Trade Name : TOA Corporation, TRANTEC c) Model No. : S5.5-HDX; S5.3-HDX; S5.5-HCX; S5.3-HCX d) FCC ID : DLAS5HDX e) Working Frequency : 576~608 MHz 614~698 MHz f) Power Supply : DC 9V Battery Regulation Applied : FCC Rules and Regulations Part 74 Subpart H I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. ETC Report No.: 14-06-RBF-004-01 FCC ID:DLAS5HDX Rev. 2.0 Issued Date : Jun. 11, 2014 Test Engineer : ( Vincent Chang, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.: 14-06-RBF-004-01 FCC ID:DLAS5HDX Rev. 2.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION........................................................................................................................................... 1 1.2 TEST METHODOLOGY.............................................................................................................................................. 1 1.3 TEST FACILITY........................................................................................................................................................ 1 2. REQUIREMENTS OF PROVISIONS ................................................................................................................ 2 2.1 DEFINITION............................................................................................................................................................. 2 2.2 FREQUENCIES AVAILABLE...................................................................................................................................... 2 2.3 REQUIREMENTS FOR RADIO EQUIPMENT ON CERTIFICATION.................................................................................. 2 2.4 LABELING REQUIREMENT........................................................................................................................................ 3 3. OUTPUT POWER MEASUREMENT ................................................................................................................ 4 3.1 PROVISION APPLICABLE.......................................................................................................................................... 4 3.2 MEASUREMENT PROCEDURE................................................................................................................................... 4 3.3 TEST DATA.............................................................................................................................................................. 6 3.4 RESULT CALCULATION............................................................................................................................................ 7 3.5 TEST EQUIPMENT.................................................................................................................................................... 7 4. MODULATION CHARACTERISTICS ............................................................................................................. 8 4.1 PROVISIONS APPLICABLE........................................................................................................................................ 8 4.2 MEASUREMENT METHOD........................................................................................................................................ 8 4.3 MEASUREMENT INSTRUMENT.................................................................................................................................. 9 4.4 MEASUREMENT RESULT.......................................................................................................................................... 9 5. OCCUPIED BANDWIDTH OF EMISSION .................................................................................................... 11 5.1 PROVISIONS APPLICABLE...................................................................................................................................... 11 5.2 MEASUREMENT METHOD...................................................................................................................................... 11 5.3 OCCUPIED BANDWIDTH TEST EQUIPMENT............................................................................................................ 11 5.4 BANDWIDTH MEASURED....................................................................................................................................... 12 6. FIELD STRENGTH OF EMISSION................................................................................................................. 19 6.1 PROVISIONS APPLICABLE.........................................................................…
