DLAWM-5325Wireless Transmitter

OPERATING INSTRUCTIONS WIRELESS TRANSMITTER WM-5325 Thank you for purchasing TOA's Wireless Transmitter . Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ............................................................................... 2 2. GENERAL DESCRIPTION ............................................................................. 3 3. FEATURES .......................................................................................................... 3 4. HANDLING PRECAUTIONS .......................................................................... 3 5. NOMENCLATURE ............................................................................................. 4 6. BATTERY INSERTION .................................................................................... 6 7. WHEN OPERATING ON RECHARGEABLE BATTERY ....................... 7 8. CHANNEL NUMBER /BANK SETTING ...................................................... 8 9. OPERATION ........................................................................................................ 8 10. OPERATIONAL HINTS .................................................................................... 9 11. DISTANCE BETWEEN THE MICROPHONE AND THE MOUTH ...... 9 12. AUDIO LEVEL ADJUSTMENT (SENSITIVITY CONTROL) ................ 9 13. SPECIFICATIONS ........................................................................................... 10 3 2 When the Unit is in Use • To prevent the electromagnetic wave from badly influencing medical equipment, make sure toswitch off the unit's power when placing it in closeproximity to the medical equipment. • Use TOA's BC-5000 Battery Charger when recharging. • The wireless transmitter can be powered by WB- 2000 Battery. But, if use of any other than thecounter specified battery into the BC-5000 BatteryCharger, it may cause fire, personal injury, orenvironmental contamination due to battery ruptureor leakage. • The use of any other than the specified charger could result in fire, personal injury, orenvironmental contamination due to battery ruptureor leakage. • Stop charging, if the batteries are not fully charged with in 3 hours. Failure to do so may cause thebatteries to fire, explode, leak, or heat. • Never short-circuit the charging terminals on the bottom of the transmitter with metal objects. Doingso could result in electric shocks or burns. When the Unit is in Use • When the unit is not in use for 10 days or more, be sure to take the battery out of the unit becausebattery leakage may cause personal injury orcontamination of environment. • Make sure to observe the following handling precautions so that a fire or personal injury doesnot result from leakage or explosion of the battery. · Do not short, disassemble, heat nor put the battery into a fire. · Never charge batteries of the type which are not rechargeable. · Do not solder a battery directly.· Be sure to use the specified type of battery.· Note correct polarity (positive and negative orientation) when inserting a battery in the unit. · Avoid locations exposed to the direct sunlight, high temperature and high humidity when storingbatteries. Do not place the dry cell battery into charger.Placing non-rechargeable batteries in the chargermay cause the battery to crack resulting in a fireand/or harm to the body. When recharging, please only use the BC-5000Battery Charger and WB-2000 Battery. Do not use other battery types. When the battery becomes inflated or leaks,discontinue use and replace with new oneimmediately. If there’s any burning and/or peculiar smell whilecharging the battery, please switch off the powerimmediately. CAUTION TO USER: Changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operatethe equipment.License requirement The term "IC:" before the radio certification numberonly signifies that Industry Canada Technicalspecifications were met. Operation is subject to thefollowing two conditions; (1) This device may not cause harmful interference,and (2) this device must accept any interferencereceived, including interference that may causeundesired operation. 1. SAFETY PRECAUTIONS• Be sure to read the instructions in this section carefully before use.• Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. • We also recommend you keep this instruction manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and propertydamage which could result from mishandling. Before operating your product, read this manual first andunderstand the safety symbols and messages so you are thoroughly aware of the potential safety hazards. WARNINGCAUTION Indicates a potentially hazardous situation which, if mishandled, couldresult in death or serious personal injury.Indicates a potentially hazardous situation which, if mishandled, couldresult in moderate or minor personal injury, and/or property damage. WARNINGCAUTION 2. GENERAL DESCRIPTIONThe TOA's WM-5325 is a wireless transmitter.The YP-M5300 and YP-M5310 are lavalier microphones and the WH-4000A and WH-4000H are headsetmicrophones; they are all optional and designed for speech use. The YP-M5310 employs an omni-directional electret condenser microphone element, while the YP-M5300,WH-4000A and WH-4000H employ uni-directional electret condenser microphone elements. The difference between the WH-4000A and the WH-4000H is that the WH-4000A features sweat-proof designand is supplied with an optional waist pouch.3. FEATURES• One frequency can be selected from 64 frequencies (16 channels x 4 banks) of 576 – 865 MHz.• An optimized PLL-synthesizer minimizes the oscillation frequency drift resulting from the ambient temperature or voltage flu…

Text truncated - open the document above for the full version.

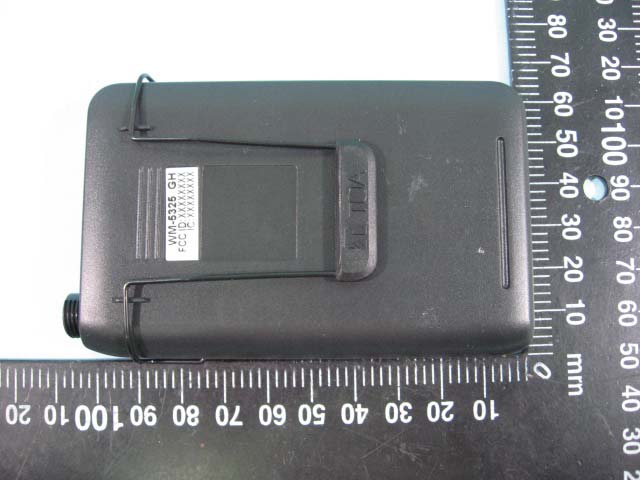

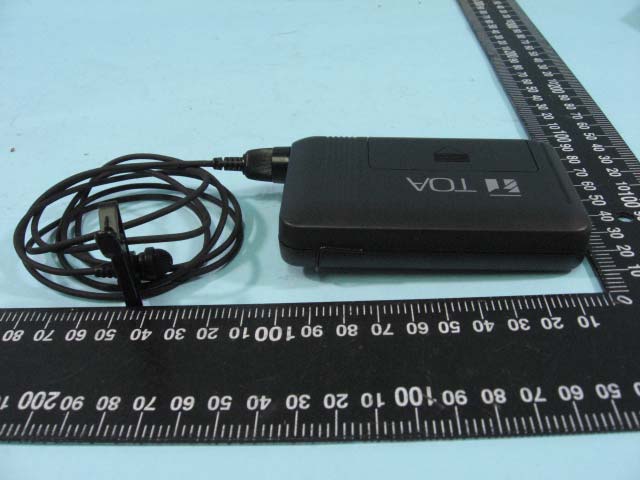

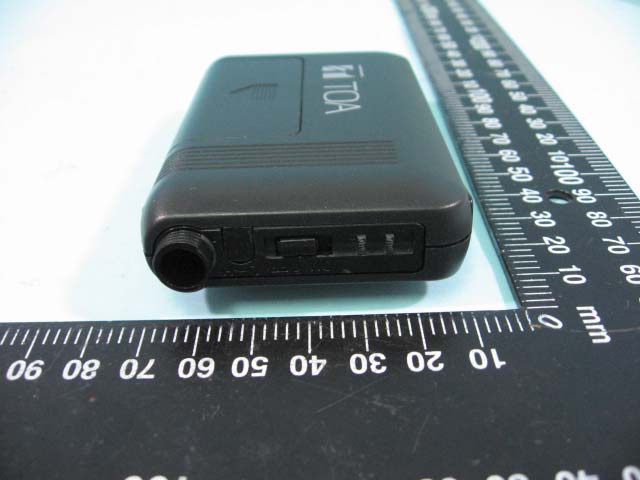

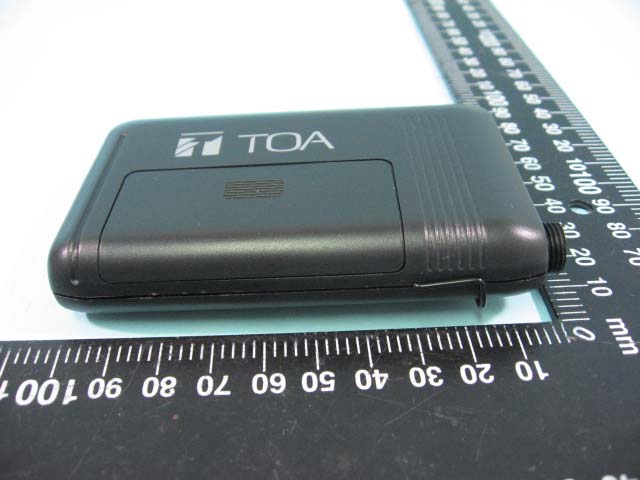

ETC Report No.:10-11-RBF-240-01 Sheet 1 of 7 Sheets FCC ID.: DLAWM-5325 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Side View of EUT ETC Report No.:10-11-RBF-240-01 Sheet 2 of 7 Sheets FCC ID.: DLAWM-5325 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 3. Front View of EUT 4. Side View of EUT ETC Report No.:10-11-RBF-240-01 Sheet 3 of 7 Sheets FCC ID.: DLAWM-5325 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 5. Rear View of EUT 6. Bottom View of EUT ETC Report No.:10-11-RBF-240-01 Sheet 4 of 7 Sheets FCC ID.: DLAWM-5325 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 7. Accessory - Microphone 8. Accessory - Microphone ETC Report No.:10-11-RBF-240-01 Sheet 5 of 7 Sheets FCC ID.: DLAWM-5325 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 9. Accessory - Microphone

WM-5325 X01 FCC ID : DLAWM-5325 IC : 1599B-WM5325

ETC Report No.:10-11-RBF-240-01 Sheet 6 of 7 Sheets FCC ID.: DLAWM-5325 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 10. Internal View of EUT ETC Report No.:10-11-RBF-240-01 Sheet 7 of 7 Sheets FCC ID.: DLAWM-5325 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 11. Component View of PCB 12. Solder View of PCB

WM-5225、WM-5265、WM-5325 Adjusting Procedures Test frequency AB→722.0MHz CD→830.0MHz EF→668.0MHz GH→606.0MHz (1)Transmission frequency adjustment Connect RF output to a frequency counter ,then rotate the TC1 so that the transmission frequency can be adjusted with in ±1kHz for the nominal value at no modulation. (2)RF output adjustment Connect RF output to a power meter ,then rotate the VR4 so that RF output can be adjusted to power at no modulation.. WM-5225 AB/CD/EF/GH 10.0+1mW-2 mW WM-5265 AB/CD/EF/GH 10.0+1mW-2 mW WM-5325 AB/EF/GH 10.0+1mW-2 mW WM-5325 CD 8.0+0.5mW-0.5 mW (3)Maximum deviation adjustment Connect RF output to a modulation analyzer ,then adjust the VR1 so that frequency deviation except tone signal becomes in the range of ±40±0.2kHz when modulation signal below is input from Mic input (LPF:20kHz,P-P/2) ・Modulation signal WM-5225:1kHz-14dBV ，WM-5265:1kHz,-18dBV ，WM-5325:1kHz,-28dBV

Rev. 2.0 FCC Part 74 Subpart H EMI TEST REPORT of E.U.T. : WIRELESS TRANSMITTER FCC ID. : DLAWM-5325 Model No. : WM-5325 Working Frequency : 576~606, 614.075~697.925 MHz for APPLICANT : TOA Corporation ADDRESS : 2-1 Takamatsu-cho, Takarazuka-shi, Hyogo-ken, 665-0043, Japan Test Performed by ELECTRONICS TESTING CENTER (ETC) , TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI COUNTY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 FAX : (02)26010910 http:// www.etc.org.tw ; e-mail:[email protected] Report Number : 11-06-RBF-217-01 ETC Report No.:11-06-RBF-217-01 FCC ID.: DLAWM-5325 Rev. 2.0 TEST REPORT CERTIFICATION Applicant : TOA Corporation 2-1 Takamatsu-cho, Takarazuka-shi, Hyogo-ken, 665-0043, Japan Manufacturer : Dynatron Industrial Co., Ltd. No. 89, Din Pin Rd. Ray Fong Industrial Area, Ray Fong Town, Taipei Hsien, Taiwan, R.O.C. Description of EUT : a) Type of EUT : WIRELESS TRANSMITTER b) Trade Name : TOA c) Model No. : WM-5325 d) FCC ID : DLAWM-5325 e) Working Frequency : 576~606, 614.075~697.925 MHz f) Power Supply : Battery DC 1.5V Regulation Applied : FCC Rules and Regulations Part 74 Subpart H (2009) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. ETC Report No.:11-06-RBF-217-01 FCC ID.: DLAWM-5325 Rev. 2.0 Issued Date : Jul. 12, 2011 Test Engineer : ( Vincent Chang, Engineer ) Check By : ( Charles Wang, Supervisor ) Approve & Authorized : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:11-06-RBF-217-01 FCC ID.: DLAWM-5325 Rev. 2.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION........................................................................................................................................... 1 1.2 TEST METHODOLOGY.............................................................................................................................................. 1 1.3 TEST FACILITY........................................................................................................................................................ 1 2. REQUIREMENTS OF PROVISIONS................................................................................................................. 2 2.1 DEFINITION.............................................................................................................................................................. 2 2.2 FREQUENCIES AVAILABLE....................................................................................................................................... 2 2.3 REQUIREMENTS FOR RADIO EQUIPMENT ON CERTIFICATION................................................................................... 2 2.4 LABELING REQUIREMENT........................................................................................................................................ 3 3. OUTPUT POWER MEASUREMENT ................................................................................................................ 4 3.1 PROVISION APPLICABLE.......................................................................................................................................... 4 3.2 MEASUREMENT PROCEDURE................................................................................................................................... 4 3.3 TEST DATA.............................................................................................................................................................. 6 3.4 RESULT CALCULATION............................................................................................................................................ 8 3.5 TEST EQUIPMENT.................................................................................................................................................... 8 4. MODULATION CHARACTERISTICS.............................................................................................................. 9 4.1 PROVISIONS APPLICABLE......................................................................................................................................... 9 4.2 MEASUREMENT METHOD........................................................................................................................................ 9 4.3 MEASUREMENT INSTRUMENT...............................................................................................................................10 4.4 MEASUREMENT RESULT........................................................................................................................................ 10 5. OCCUPIED BANDWIDTH OF EMISSION..................................................................................................... 17 5.1 PROVISIONS APPLICABLE....................................................................................................................................... 17 5.2 MEASUREMENT METHOD...................................................................................................................................... 17 5.3 OCCUPIED BANDWIDTH TEST EQUIPMENT............................................................................................................ 17 5.4 BANDWIDTH MEASURED....................................................................................................................................... 18 5.4.1 Input Level Derived ...................................................................................................................................... 18 5.4.2 Occupied Bandwidth Plotted ...............................................................................…

Text truncated - open the document above for the full version.

ETC Report No.:10-11-RBF-240-01 Sheet 45 of 50 Sheets FCC ID.: DLAWM-5325 Rev. 2.0 6.6 Radiated Measurement Photos
