DLAWM-4300-4310Wireless Microphone

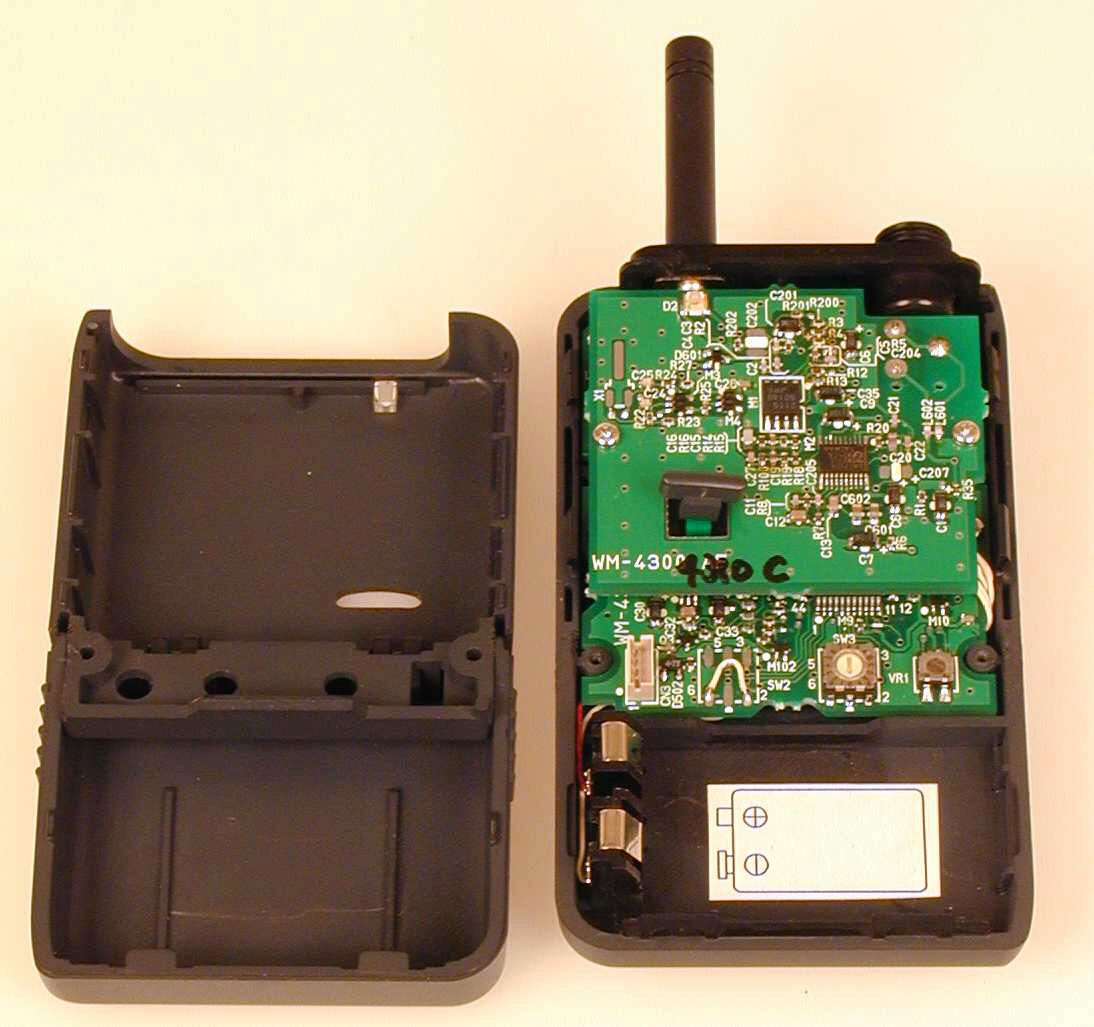

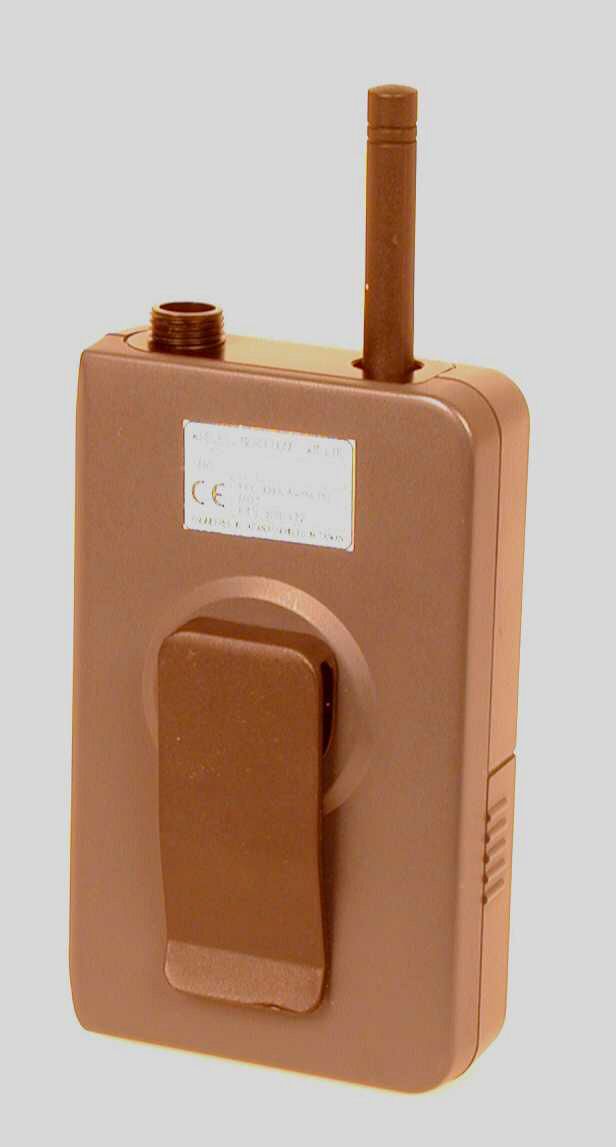

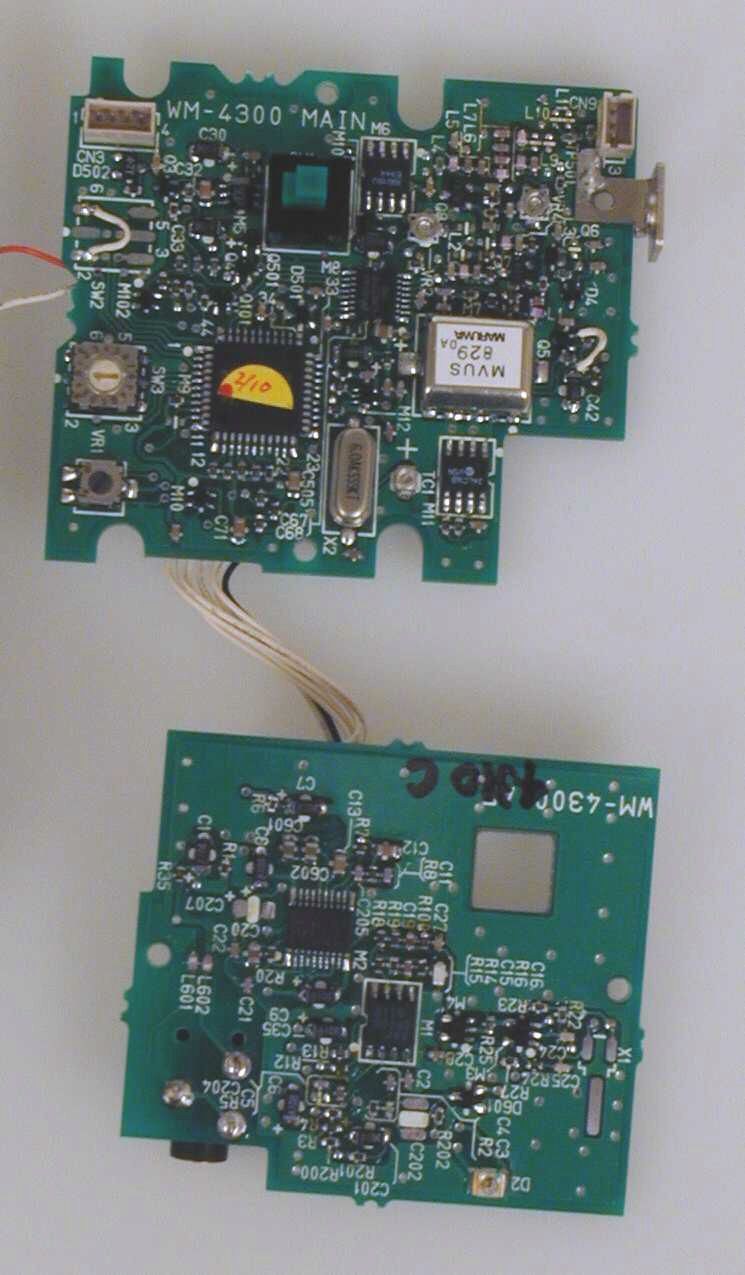

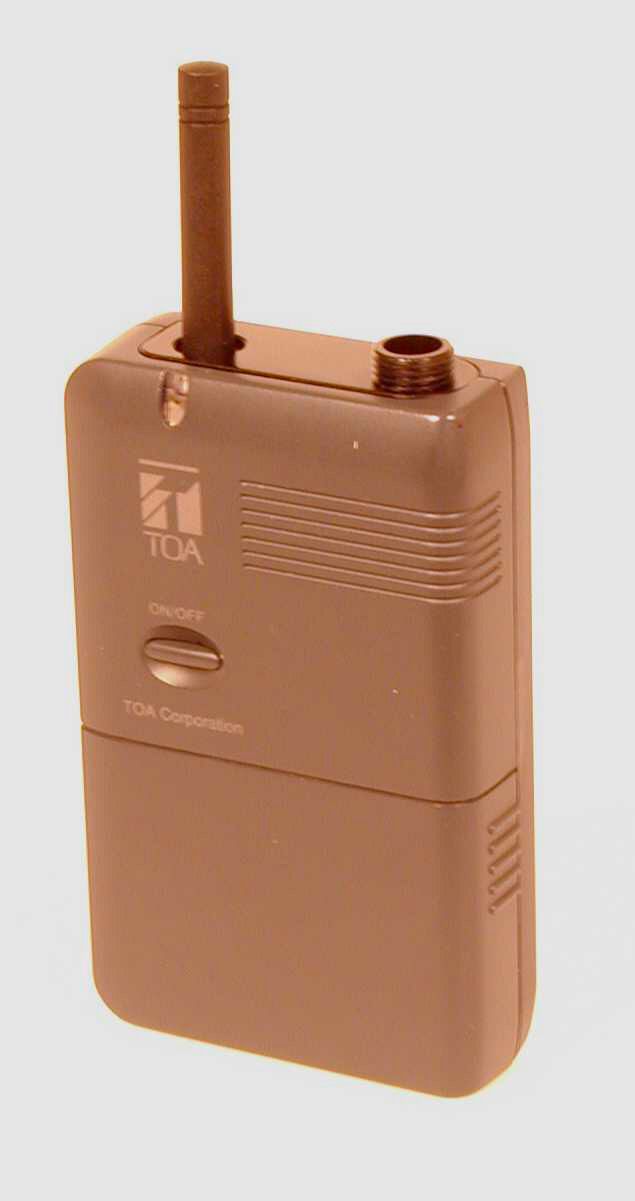

11 9. OPERATING INSTRUCTIONS TOA WIRELESS MICROPHONE model WM-4300 General description The WM-4300 lavalier wireless microphone has been manufactured for use with a UHF system. It incorporates a cardioid pick-up pattern and has been designed for use in vocal and speech reinforcement applications. The built-in compressor -expander circuit minimizes the influence from ambient noise. Battery insertion 1) Getting hold of the microphone body, and slide the battery case down. The battery case is not designed to be completely removed from the body. 2)The battery compartment accepts one 6LR61 battery. Please insert the battery according to the instructions attached to the inside of the battery compartment. Please observe correct polarity when inserting the battery. 3)Replace the battery case. Operating the microphone 1)Make sure that the receiver and the wireless microphone are of the same channel(frequency). 2)If they are not identical in channel(frequency),you have to adjust the bank and channel switches. 3)Place the microphone ON/OFF switch in the ON position. The orange LED indicates the circuit is active. 4)Make sure to shift the ON/OFF switch back to the off position after using the WM-4300 wireless microphone. Battery replacement 1)A brand-new battery will provide the power for enough to operate the unite continuously for 10 hours . 2)As long as the battery has sufficient power for the microphone to function properly, the orange LED will light. When the orange LED starts to fade and then flashing, replace it with a new one. Operational Hints (1) The microphone's service distance is 3-150 m. When the microphone user moves in a facility, signal dropouts (momentary losses of signal reception) may be encountered. These dropouts are caused by the building's architectural designs or materials which block the travel of or reflect the radio signal. If this occurs, the user needs to change locations for better signal reception. (2) The proper operation of your wireless system may be interfered with by other system operating on the same frequency. In such cases, change the operating frequency of your system. It is recommended that the Scan function (of the WT-4800) be used to avoid the frequency interference, which always searches and shows idle frequencies. (3) Should you have any questions regarding the use or availability of TOA wireless products, please contact your local TOA dealer. Audio Level Adjustment (Sensitivity Control) To change the factory-preset level, follow the procedures below: 1. Getting hold of the microphone body ,and slide the battery case down. The battery case is not designed to be completely removed from the body. 2. Switch on the power of the tuner and microphone. 3. Adjust the level control using a small screwdriver. The level increases as the control is rotated clockwise, and decrease when rotated counter-clockwise. 4. Adjust the corresponding tuner's volume control so that its knob points to the 2 o'clock position. When the tuner's AF PEAK indicator remains lit, readjust the microphone's level control to the position that causes the indicator to flash when the tuner output level reaches its peak. The AF PEAK indicator lights when the output level reaches the point of 3 dB below the clipping level. NOTE. The AF PEAK indicator operates in response to the volume control position. However, the AF LEVEL indicator (on the WT-4800) indicates the level regardless of the volume control setting. 5. Replace the battery case. 12 ModelWM-4300 Carrier Frequency 64 frequencies (Selectable from 690 MHz and 806 MHz) OscillatorCrystal-controlled PLL-synthesizer Modulation System Reactance modulation Frequency StabilityLess than 0.005% RF Carrier Power Less than 50 mW Effective Radiated Power Less than 10 mW Maximum Input Level125 dBspl (Factory preset) Maximum Deviation±40 kHz Microphone ElementUnidirectional erectlet condenser microphone Frequency Response50 to 15000 Hz Pre-emphasis 50 μsec Antenna Herical antenna Battery Type 6LR61(Alkaline 9 V) Battery Life More than 10 hours Current Consumption 50mA TYP.(at 9.0V) Ambient Temperature14°F to 122°F (–10°C to 50°C) Tone Frequency 32.768 kHz Controls Power ON/OFF, Bank and Channel select, Audio level adjust(Sensitivity Control) BatteryChecker, illegal Channel ColorBlack Dimensions4.13" X 2.44" X0.95"(105 X 62 X 24 mm) Weight 0.33 lbs.(150g) with battery Specifications FCC license requirement FCC This system requires a FCC license for legal operation. Obtain the application form FCC at the address listed on the form and mail it to the FCC after completing it, following the instructions below. When the application is approved, the FCC will mail the license to you.

13 9. OPERATING INSTRUCTIONS TOA WIRELESS MICROPHONE model WM-4310 General description The WM-4310 lavalier wireless microphone has been manufactured for use with a UHF system. It incorporates a cardioid pick-up pattern and has been designed for use in speech reinforcement applications. The built-in compressor -expander circuit minimizes the influence from ambient noise. Battery insertion 1) Getting hold of the microphone body, and slide the battery case down. The battery case is not designed to be completely removed from the body. 2)The battery compartment accepts one 6LR61 battery. Please insert the battery according to the instructions attached to the inside of the battery compartment. Please observe correct polarity when inserting the battery. 3)Replace the battery case. Operating the microphone 1)Make sure that the receiver and the wireless microphone are of the same channel(frequency). 2)If they are not identical in channel(frequency),you have to adjust the bank and channel switches. 3)Place the microphone ON/OFF switch in the ON position. The orange LED indicates the circuit is active. 4)Make sure to shift the ON/OFF switch back to the off position after using the WM-4310 wireless microphone. Battery replacement 1)A brand-new battery will provide the power for enough to operate the unite continuously for 10 hours . 2)As long as the battery has sufficient power for the microphone to function properly, the orange LED will light. When the orange LED starts to fade and then flashing, replace it with a new one. Operational Hints (1) The microphone's service distance is 3-150 m. When the microphone user moves in a facility, signal dropouts (momentary losses of signal reception) may be encountered. These dropouts are caused by the building's architectural designs or materials which block the travel of or reflect the radio signal. If this occurs, the user needs to change locations for better signal reception. (2) The proper operation of your wireless system may be interfered with by other system operating on the same frequency. In such cases, change the operating frequency of your system. It is recommended that the Scan function (of the WT-4800) be used to avoid the frequency interference, which always searches and shows idle frequencies. (3) Should you have any questions regarding the use or availability of TOA wireless products, please contact your local TOA dealer. Audio Level Adjustment (Sensitivity Control) To change the factory-preset level, follow the procedures below: 1. Getting hold of the microphone body ,and slide the battery case down. The battery case is not designed to be completely removed from the body. 2. Switch on the power of the tuner and microphone. 3. Adjust the level control using a small screwdriver. The level increases as the control is rotated clockwise, and decrease when rotated counter-clockwise. 4. Adjust the corresponding tuner's volume control so that its knob points to the 2 o'clock position. When the tuner's AF PEAK indicator remains lit, readjust the microphone's level control to the position that causes the indicator to flash when the tuner output level reaches its peak. The AF PEAK indicator lights when the output level reaches the point of 3 dB below the clipping level. NOTE. The AF PEAK indicator operates in response to the volume control position. However, the AF LEVEL indicator (on the WT-4800) indicates the level regardless of the volume control setting. 5. Replace the battery case. 14 ModelWM-4310 Carrier Frequency 16 frequencies (Selectable from 690MHz and 806MHz) OscillatorCrystal-controlled PLL-synthesizer Modulation System Reactance modulation Frequency StabilityLess than 0.005% RF Carrier Power Less than 50mW Effective Radiated Power Less than 10mW Maximum Input Level115dBspl (Factory preset) Maximum Deviation±40kHz Microphone ElementUnidirectional erectlet condenser microphone Frequency Response100 to 15000Hz Pre-emphasis 50 μsec Antenna Herical antenna Battery Type 6LR61(Alkaline 9V) Battery Life More than 10 hours Current Consumption 50mA TYP.(at 9.0V) Ambient Temperature14°F to 122°F (–10°C to 50°C) Tone Frequency 32.768kHz Controls Power ON/OFF, Bank and Channel select, Audio level adjust(Sensitivity Control) BatteryChecker, illegal Channel ColorBlack Dimensions4.13" X 2.44" X0.95"(105 X 62 X 24 mm) Weight 0.33 lbs.(150g) with battery Specifications FCC license requirement FCC This system requires a FCC license for legal operation. Obtain the application form FCC at the address listed on the form and mail it to the FCC after completing it, following the instructions below. When the application is approved, the FCC will mail the license to you..

6 6. BLOCK DIAGRAM +B: DC 5V LOOPFIL. BANKSET CHANNELSET VOLTAGEDETECTORM10: S-80842ANNP SW OFF DETECT MUTE SW. BIAS SW. BAT CHECKER X1:32.768KHz X2: 6.000MHz RESET FREQ. SET DATA POWER ON / OFF SW BATT.6LR61DC9V RFLPF RF AMP.Q7:2SC3356 D1: DA204U BIASREGULATOR VCOM7:MVUS MIC AMP.M1,: NJM2115M TONE OSC.M3: TC4SU69F FREQUENCYSYNTHESIZERM8: LMX2316 BIAS SW.Q6:2SA1622 PAD CPUM9: PD750004GB BAT. CHECKERQ2: 2SC4211D2: LED MIC CPU CPU REG. CONT./SW OFF DETECTQ1,3,4: 2SC4211 RF P.A.Q8:2SC3356 VOLTAGE DETECTM102: S-80855ANNP CLOCK BUFFERM12: TC7S04FU VR4RF POWER ADJ. D4 VR2DEV. ADJ. PRE EMPHASISM1: NJM2115M COMPRESSERM2:SA575DK L.P.F.M2:SA575DK TONE BUFFERM4: TC4SU69F MUTE SW.M101:TC7S66FU VR1GAIN TRIM PLL LOOP VCO SW.Q5:2SA1622 CPU REGULATORM5: TK11250MTL CPU LOW VOLTAGE DETECT REFERENCECLOCK OSC FREQ.ADJ. EEPROMM11: 24C16 FREQ. DATAWRITE VCO.SW. 23 4 1 5 6 7 8 9 10 11 12 13 14 17 15 16 19 28 18 21 22 20 25 26 23 24 27 29

8 6. BLOCK DIAGRAM +B: DC 5V LOOPFIL. CHANNELSET VOLTAGEDETECTORM10: S-80842ANNP SW OFF DETECT MUTE SW.BIAS SW. BAT CHECKER X1:32.768KHz X2: 6.000MHz RESET FREQ. SET DATA POWER ON / OFF SW BATT.6LR61DC9V RFLPF RF AMP.Q7:2SC3356 D1: DA204U BIASREGULATOR VCOM7:MVUS MIC AMP.M1,: NJM2115M TONE OSC.M3: TC4SU69F FREQUENCYSYNTHESIZERM8: LMX2316 BIAS SW.Q6:2SA1622 PAD CPUM9: PD750004GB BAT. CHECKERQ2: 2SC4211D2: LED MIC CPU CPU REG. CONT./SW OFF DETECTQ1,3,4: 2SC4211 RF P.A.Q8:2SC3356 VOLTAGE DETECTM102: S-80855ANNP CLOCK BUFFERM12: TC7S04FU VR4RF POWER ADJ. D4 VR2DEV. ADJ. PRE EMPHASISM1: NJM2115M COMPRESSERM2:SA575DK L.P.F.M2:SA575DK TONE BUFFERM4: TC4SU69F MUTE SW.M101:TC7S66FU VR1GAIN TRIM PLL LOOP VCO SW.Q5:2SA1622 CPU REGULATORM5: TK11250MTL CPU LOW VOLTAGE DETECT REFERENCECLOCK OSC FREQ.ADJ. EEPROMM11: 24C16 FREQ. DATAWRITE VCO. SW. 1 23 4 5 6 7 8 28 29 9 12 13 15 16 11 10 19 18 25 26 20 22 27 23 24 14 17

7 7. CIRCUIT EXPLANATION HOW EACH SECTION WORKS We will explain operations of each section based on block diagrams. (1) MICROPHONE (Block diagram No. 1) The microphone is a lavaliere microphone having an internal microphone of unidirectional, electret condenser type. Impedance: 1 kΩ Sensitivity: -48 dB (1kHz, 0 dB = 1 V/1 pa) (2) MICROPHONE AMPLIFIER (2) The microphone amplifier uses an OP amp (M1) and amplifies the signal from the microphone capsule to the level necessary for the compressor circuit. By changing the feedback amount, this microphone amplifier permits gain control of 15 dB. (3) COMPRESSOR (3) The compander IC is SA575DK (M2), and has a compressor circuitry and 2 OP amps. The compression ratio is 1/2 (logarithmic compression). (4) PRE-EMPHASIS (4) Pre-emphasis is carried out to improve the system's S/N ratio. Amplifier (M1) is used as an OP amp. A time constant if 50 μsec. (5) LPF (5) The third Butterworth type low-pass filter is constructed using the OP amp built in M2 to attenuate the audio signal components of over 15 kHz. Also, the harmonic components of the tone signal to be superimposed in the LPF circuit are attenuated by the-pass filter.. (6) MUTE SW (6) Using the analog switch (M101), this circuit mutes both the audio and tone signals during the periods of from the power switch-on to the commencement of signal transmission and from power switch-off to transmission termination to operate the receiver tone squelch. (7) TONE OSC(7, 8) Consists of a quarts oscillator (X1) and an inverter (M3) and oscillates a signal for tone squelch (tone signal). The oscillation frequency is 32.768 kHz, and the output signal is taken out through a buffer (M4). (8) PLL FREQUENCY SYNTHESIZER (9, 10, 11) VCO (M7), PLL IC (M8) and LOOP FILTER make up a phase locked loop. The VCO oscillates the transmission frequency directly and divides the output. It then compares the frequency phase by means of the 25 kHz comparison frequency, and outputs a pulse corresponding to the phase difference. The pulse is applied to the VCO as a control voltage after integrated at a loop filter, and then is locked to the set transmission frequency. Both the audio and tone signals are input from the VCO's modulation terminal, and then are frequency-modulated. The modulation method is a reactance modulation system using a variable capacitance diode. (9) RF AMP, RF POWER AMP (12,13, 14) By amplifying the VCO's oscillation output with a transistor, these amplifiers not only make up for losses in a pad or RF LPF, but also gain the antenna power. The two-stage construction method is employed for the amplifiers to obtain sufficient buffer effects for the VCO, and a 6 dB pad is installed in the amplifier input. The output is less than 50 mW, and is adjusted by changing Q8's bias current using VR4 to change operation points. (10) BIAS REGULATOR, BIAS SWITCH (15, 16) By compensating for the temperature by means of a diode (D4), the bias circuit suppresses the changes of operation points due to temperature variations. When the VCO's transmission frequency becomes stable after PLL lockup completion, the switch (Q6) turns on and the bias is applied for radio signal transmission. 8 (11) RF LPF (17) A 3-stage πtype low-pass filter is used for the RF section's band limiting filter to suppress the spurious- radiated signals with frequencies much different from the transmission frequency. (12) CPU and its peripheral parts (18, 19, 20, 21, 22) This section is comprised of the CPU (M9), voltage detector (M10) and crystal-controlled reference oscillator (X2). The reference oscillator is 6.0 MHz in frequency, and is oscillated by the CPU's internal inverter to operate the CUP as a clock. At the same time, the 6 MHz signal is supplied to the PLL IC via the buffer (M12) as the PLL reference oscillation frequency. The oscillation frequency is adjusted by TCI so that its deviation stays within ±1 kHz. After its power switch is set to the ON position, the CPU controls the transmission frequency setting, the start of transmission, actions till voice transmission, and actions when the system is switched off. The operating procedures are stored in the CPU's mask ROM, and the control contents are as follows: (A) The CPU reads transmission frequency setting data from both the Bank and Channel setting switches, and transmits data to PLL IC for the division ratio setting. (B) The CPU controls the bias circuitry and Q6 so that the radio signal is not transmitted until the transmission frequency becomes stable. (C) The CPU controls MUTE SW, VCO SW, BIAS SW, and BATT.CHECKER. When the circuit voltage drops below 4.2 V, the voltage detector transmits a reset signal to the CPU to stop the CPU's operation so that no radio signal is transmitted. (13) REG.CONT/SW OFF DETECT (23, 24, 29) Setting the power switch to the ON position turns on Q3, and adds the control voltage to a regulator (M5) for its operation. As a result, the voltage of 5 VDC is supplied to each circuit all circuits begin to operate. If the power switch is set to the OFF position, both Q1 and Q4 transmit the SW OFF DETECT signal to the CPU and the tone signal is muted (M101) to enable the receiver's tone squelch. Both Q5 and Q6 then turn off, and the radio signal transmission stops. During this process, M5 continues to operate according to time constants of both C30 and R31. One second after the signal transmission stops, when R31's terminal voltage becomes lower than M5's operating voltage, M5 and all other circuits stop their operations. (14) BATT.CHECKER (25, 26, 27) Informs the battery consumption by means of a lamp (D2). Although the lamp lights bright when the battery is new, it becomes darker as the battery voltage drops. When the voltage drops below 6 V, M102 transmits a signal to the CPU and causes the lamp to flash bright, indicating the battery needs to be replaced. (15) Frequency registration (28) Transmission frequencies and their banks and channels are written in the EEPR…

Text truncated - open the document above for the full version.

9 7. CIRCUIT EXPLANATION HOW EACH SECTION WORKS We will explain operations of each section based on block diagrams. (1) MICROPHONE (Block diagram No. 1) The microphone is a lavaliere microphone having an internal microphone of unidirectional, electret condenser type. Impedance: 1 kΩ Sensitivity: -47 dB (1kHz, 0 dB = 1 V/1 pa) (2) MICROPHONE AMPLIFIER (2) The microphone amplifier uses an OP amp (M1) and amplifies the signal from the microphone capsule to the level necessary for the compressor circuit. By changing the feedback amount, this microphone amplifier permits gain control of 15 dB. (3) COMPRESSOR (3) The compander IC is SA575DK (M2), and has a compressor circuitry and 2 OP amps. The compression ratio is 1/2 (logarithmic compression). (4) PRE-EMPHASIS (4) Pre-emphasis is carried out to improve the system's S/N ratio. Amplifier (M1) is used as an OP amp. A time constant if 50 μsec. (5) LPF (5) The third Butterworth type low-pass filter is constructed using the OP amp built in M2 to attenuate the audio signal components of over 15 kHz. Also, the harmonic components of the tone signal to be superimposed in the LPF circuit are attenuated by the-pass filter.. (6) MUTE SW (6) Using the analog switch (M101), this circuit mutes both the audio and tone signals during the periods of from the power switch-on to the commencement of signal transmission and from power switch-off to transmission termination to operate the receiver tone squelch. (7) TONE OSC(7, 8) Consists of a quarts oscillator (X1) and an inverter (M3) and oscillates a signal for tone squelch (tone signal). The oscillation frequency is 32.768 kHz, and the output signal is taken out through a buffer (M4). (8) PLL FREQUENCY SYNTHESIZER (9, 10, 11) VCO (M7), PLL IC (M8) and LOOP FILTER make up a phase locked loop. The VCO oscillates the transmission frequency directly and divides the output. It then compares the frequency phase by means of the 25 kHz comparison frequency, and outputs a pulse corresponding to the phase difference. The pulse is applied to the VCO as a control voltage after integrated at a loop filter, and then is locked to the set transmission frequency. Both the audio and tone signals are input from the VCO's modulation terminal, and then are frequency-modulated. The modulation method is a reactance modulation system using a variable capacitance diode. (9) RF AMP, RF POWER AMP (12,13, 14) By amplifying the VCO's oscillation output with a transistor, these amplifiers not only make up for losses in a pad or RF LPF, but also gain the antenna power. The two-stage construction method is employed for the amplifiers to obtain sufficient buffer effects for the VCO, and a 6 dB pad is installed in the amplifier input. The output is less than 50 mW, and is adjusted by changing Q8's bias current using VR4 to change operation points. (10) BIAS REGULATOR, BIAS SWITCH (15, 16) By compensating for the temperature by means of a diode (D4), the bias circuit suppresses the changes of operation points due to temperature variations. When the VCO's transmission frequency becomes stable after PLL lockup completion, the switch (Q6) turns on and the bias is applied for radio signal transmission. 10 (11) RF LPF (17) A 3-stage πtype low-pass filter is used for the RF section's band limiting filter to suppress the spurious- radiated signals with frequencies much different from the transmission frequency. (12) CPU and its peripheral parts (18, 19, 20, 21, 22) This section is comprised of the CPU (M9), voltage detector (M10) and crystal-controlled reference oscillator (X2). The reference oscillator is 6.0 MHz in frequency, and is oscillated by the CPU's internal inverter to operate the CUP as a clock. At the same time, the 6 MHz signal is supplied to the PLL IC via the buffer (M12) as the PLL reference oscillation frequency. The oscillation frequency is adjusted by TCI so that its deviation stays within ±1 kHz. After its power switch is set to the ON position, the CPU controls the transmission frequency setting, the start of transmission, actions till voice transmission, and actions when the system is switched off. The operating procedures are stored in the CPU's mask ROM, and the control contents are as follows: (A) The CPU reads transmission frequency setting data from both the Bank and Channel setting switches, and transmits data to PLL IC for the division ratio setting. (B) The CPU controls the bias circuitry and Q6 so that the radio signal is not transmitted until the transmission frequency becomes stable. (C) The CPU controls MUTE SW, VCO SW, BIAS SW, and BATT.CHECKER. When the circuit voltage drops below 4.2 V, the voltage detector transmits a reset signal to the CPU to stop the CPU's operation so that no radio signal is transmitted. (13) REG.CONT/SW OFF DETECT (23, 24, 29) Setting the power switch to the ON position turns on Q3, and adds the control voltage to a regulator (M5) for its operation. As a result, the voltage of 5 VDC is supplied to each circuit all circuits begin to operate. If the power switch is set to the OFF position, both Q1 and Q4 transmit the SW OFF DETECT signal to the CPU and the tone signal is muted (M101) to enable the receiver's tone squelch. Both Q5 and Q6 then turn off, and the radio signal transmission stops. During this process, M5 continues to operate according to time constants of both C30 and R31. One second after the signal transmission stops, when R31's terminal voltage becomes lower than M5's operating voltage, M5 and all other circuits stop their operations. (14) BATT.CHECKER (25, 26, 27) Informs the battery consumption by means of a lamp (D2). Although the lamp lights bright when the battery is new, it becomes darker as the battery voltage drops. When the voltage drops below 6 V, M102 transmits a signal to the CPU and causes the lamp to flash bright, indicating the battery needs to be replaced. (15) Frequency registration (28) Transmission frequencies and their banks and channels are written in the EEP…

Text truncated - open the document above for the full version.

9 8. CIRCUIT DIAGRAM 10

11 8. CIRCUIT DIAGRAM 12

Elliott Laboratories, Inc. -- EMC DepartmentTest Report Report Date: May 12, 2000 File: R36946Page 2 of 10 pages TABLE OF CONTENTS COVER PAGE...................................................................................................................................................................................1 TABLE OF CONTENTS................................................................................................................................................................2 SCOPE..............................................................................................................................................................................................3 OBJECTIVE.....................................................................................................................................................................................3 STATEMENT OF COMPLIANCE................................................................................................................................................3 EMISSION TEST RESULTS.........................................................................................................................................................4 LIMITS OF POWER, MODULATION, AND BANDWIDTH...............................................................................................4 LIMITS OF RADIATED SPURIOUS EMISSIONS.................................................................................................................4 LIMITS OF FREQUENCY TOLERANCE.................................................................................................................................4 EQUIPMENT UNDER TEST (EUT) DETAILS............................................................................................................................5 GENERAL.....................................................................................................................................................................................5 OTHER EUT DETAILS...............................................................................................................................................................5 ENCLOSURE................................................................................................................................................................................5 MODIFICATIONS.......................................................................................................................................................................5 SUPPORT EQUIPMENT.............................................................................................................................................................5 EXTERNAL I/O CABLING.........................................................................................................................................................5 EUT OPERATION.......................................................................................................................................................................5 TEST SITE........................................................................................................................................................................................6 GENERAL INFORMATION.......................................................................................................................................................6 RADIATED EMISSIONS CONSIDERATIONS......................................................................................................................6 MEASUREMENT INSTRUMENTATION....................................................................................................................................7 RECEIVER SYSTEM....................................................................................................................................................................7 INSTRUMENT CONTROL COMPUTER.................................................................................................................................7 FILTERS/ATTENUATORS........................................................................................................................................................8 ANTENNAS.................................................................................................................................................................................8 ANTENNA MAST AND EQUIPMENT TURNTABLE.........................................................................................................8 INSTRUMENT CALIBRATION................................................................................................................................................8 TEST PROCEDURES.....................................................................................................................................................................9 EUT AND CABLE PLACEMENT.............................................................................................................................................9 RADIATED EMISSIONS...........................................................................................................................................................9 CONDUCTED EMISSIONS FROM ANTENNA PORT.........................................................................................................9 SPECIFICATION LIMITS AND CALCULATIONS...............................................................................................................10 RADIATED EMISSIONS SPECIFICATION LIMITS, SECTION 74.861(E)(6)..................................................................10 EXHIBIT 1:Test Equipment Calibration Data..........................................................................................................1 EXHIBIT 2:Test Data Log Sheets..................................................................…

Text truncated - open the document above for the full version.
