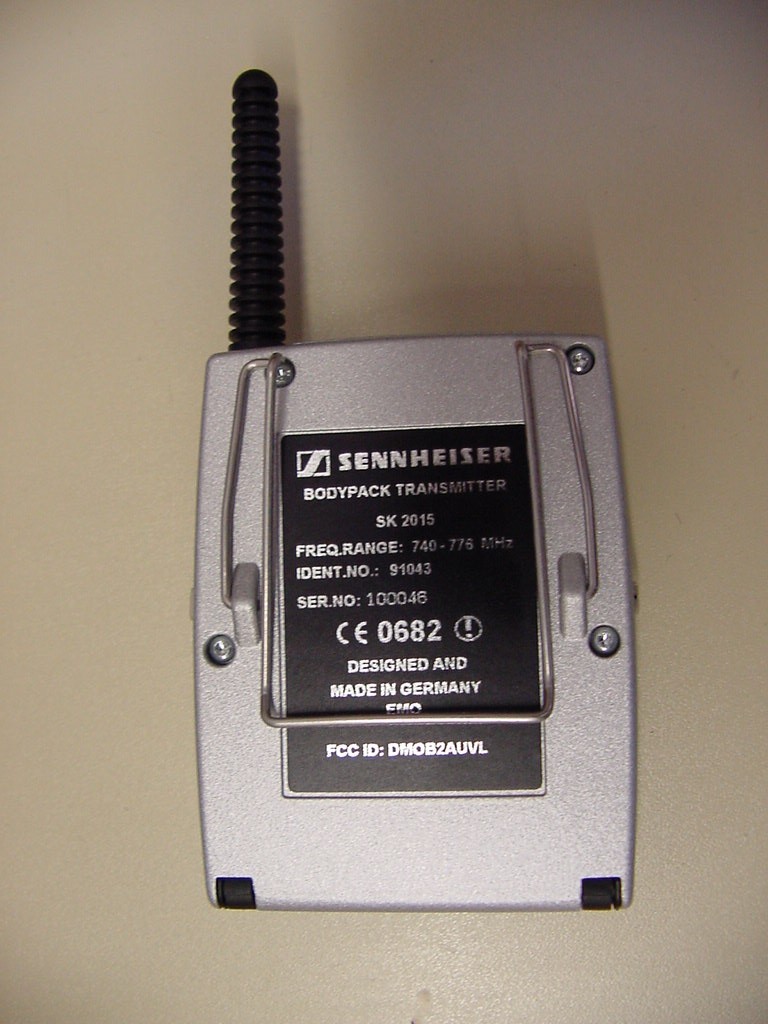

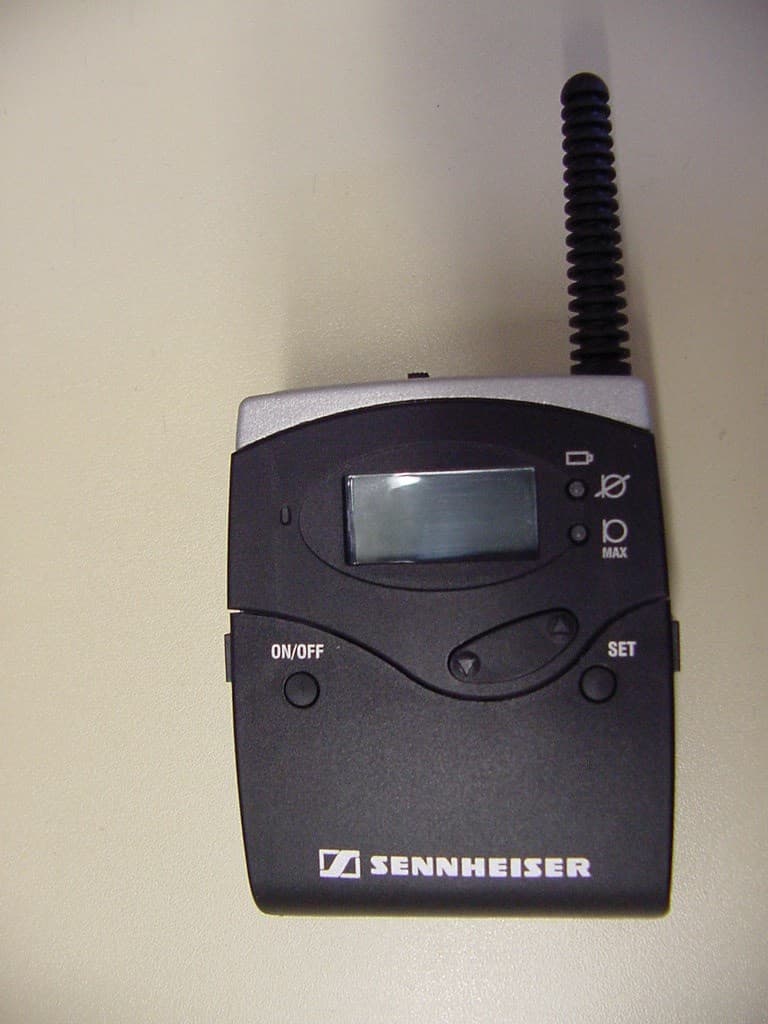

DMOB2AUWGWireless Bodypack Transmitter

Instructions for use No tice d’emp lo i System 2015 4 I ns tr ucti ons fo r use ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... ... 3 N otice d ’em plo i . ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... .53 I stru zion i p er l’ uso 14 1 Instrucciones para el uso 187 Gebruiksaa nwijzing233 Instructions for use 3 System 2015 4 Safety instructions Never open an elec tronic unit! If units are opened by customers in breach of this instruction, the warranty becomes null and void. Keep the units awa y from central heating radiators and electric heaters. Never expose them to direct sunlight. Use the units in dry rooms only. Use a da mp cloth for cleaning the units. Do not use any cleansing agents or so lvents. Thank you for choosing Sennheiser! We h ave d esig ned th es e p rod uc ts to gi ve you r eli abl e op erati on over man y years. Over half a century o f accumul ated experti se in the design and manufacture of high-quality electro-acoustic equipment have made Sennheiser a w orl d-leading c ompany in this field. Pl ease t ake a few mo ment s to r ead th ese i ns tr uct i ons car efu lly, as we w ant you to enjo y yo ur new Sennhei ser products quickl y and to the ful lest. 5 Contents Sa fety i nstr uctio ns ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... ... .... ... ... .. 4 Th e 2015 System ... ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... ... .... ... ... .. 7 The ope rat ing principle of t he 2015 System ........... ............ ............ ........... ............ .... 7 Del iver y i ncl ud es .... ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... ... .... ... ... .. 8 Op erati ng con tr ol s o f th e EK 2015 r eceiver . ... ... ... ... ... ... .... ... ... ... ... ... ... ... .... ... ... ..9 Indicati ons and displays on the recei ve r ...... ............ ............ ............ ........... ............ ..10 Op erati ng con tr ol s o f th e SK 2015 tr an smitter ... ... ... ... .... ... ... ... ... ... ... ... .... ... ... 12 Indicati ons and displays on the transmit ter ............ ............ ............ ........... ............ ..13 P rep ari ng the u ni ts f or us e . ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... ... .... ... ... 15 Transport ing the transmit ter and re ceiver .. ............ ............ ............ ........... ............ ..15 Insert ing the accupack/batte rie s (t ransm itte r and rece ive r) ...... ........... ............ ..15 Connecting t he re ce iver t o he ar ing aids ....... ............ ............ ............ ........... ............ ..16 Connecting sound sources t o the transm itt er ......... ............ ............ ........... ............ ..17 At taching t he t ransm itte r or re ceiver t o clot hi ng .. ............ ............ ........... ............ ..18 U sin g th e r eceiver .. ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... ... .... ... ... 20 Switching the rece ive r on/of f .. ............ ........... ............ ............ ............ ........... ............ ..20 Acti vating/deactivat ing the lock mode ........ ............ ............ ............ ........... ............ ..20 Adjust ing the level of t he re ceived audio si gnal ..... ............ ............ ........... ............ ..21 Adjust ing the level of t he int ernal mi cr ophone ...... ............ ............ ........... ............ ..21 Switching the channel ... ............ ............ ........... ............ ............ ............ ........... ............ ..21 Displaying t he fr equency .......... ............ ........... ............ ............ ............ ........... ............ ..22 Operati ng menu of t he E K 2015 re ce ive r ..... ............ ............ ............ ........... ............ ..23 U sin g th e tran smi tter . ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... ... .... ... ... 24 Switching the transmit te r on/off ........ ........... ............ ............ ............ ........... ............ ..24 Mut ing the microphone . ............ ............ ........... ............ ............ ............ ........... ............ ..24 Acti vating/deactivat ing the lock mode ........ ............ ............ ............ ........... ............ ..25 Displaying t he fr equency .......... ............ ........... ............ ............ ............ ........... ............ ..25 The ope rat ing me nu of the t ransm itt er ........ ............ ............ ............ ........... ............ ..26 Working with t he operati ng m enu ..... ........... ............ ............ ............ ........... ............ ..27 Operati ng menu of t he SK 2015 t ransmi tte r ........... ............ ............ ........... ............ ..29 Adjust ment tips for t he operati ng menu of t he t ransm itte r ....... ........... ............ ..30 Tr ou bles hoo ti ng . .... ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... ... .... ... ... 32 Error checklist ..............................................................................................32 Recom me ndat ions and ti ps ...... ............ ........... ............ ............ ............ ........... ............ ..33 Car e an d main tenan ce ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... .... ... ... ... ... ... ... ... .... ... ... 34 In for mat io n for al l u ser s In for mat io n for u sers of t he recei ver In for mat io n for u sers of t he transmitter In for mat io n for…

Text truncated - open the document above for the full version.

WW6VORL\QMH_DT Form 05-25, Stand 17.12.02 Transmitter SK2015 Procedure Parameter Test point min. Value max. Value Unit Adjuster Remarks RF board Adjust PLL Voltage@ mid frequency TP3 2,5 2,9 V C114 Set to 2,7V +0,2 V Offset Offset without chassis cover Adjust RF power level, fs=fm 2 20 mW C220, R226 or R326 if available Depending on version and range Adjust RF power level, fs=fu 2 20 mW C220, R226 or R326 if available Depending on version and range Adjust RF power level, fs=fo 2 20 mW C220, R226 or R326 if available Depending on version and range Adjust FM Deviation , fs=fm 23,5 24,5 kHz R8 Input TP21 1kHz/370mV Version Änderungsnr./EC No. Datum/Date Name Datum/ Date Name Bearbeiter/ Originator 15.05.04 Hag Bezeichnung/Specification Alignment Procedure SK2015 Geprüft/ Checked by Gesehen/ 2 nd check Nr. des zugeh. Teils/ Related Ident. No. Zeichnungsnr./ Drawing No. Für dieses Dokument behalten wir uns die Rechte vor . All rights reserved. Sennheiser electronic GmbH & Co. KG, D-30900 Wedemark Seite/Page 1 von/of 1

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Telephon: +49 (0)681 598-0 Telefax: -9075 RSC14 issued test report consists of 57 Pages Page 1 (57) Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 0001 Anechoic chamber registration no.: 3463 (IC) Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test Report No.: 2_3696-01-04/04 FCC Part 74.861 / CANADA RSS-123 SK 2015 / EK 2015 FCC ID : DMOB2AUWG IC : 2099A-SK2015 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 589-9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no.: 2_3696-01-04/04 Issue Date: 19.07.2004 Page 2 (57) Table of Contents 1 General Information 1.1 Notes 1.2 Testing Laboratory 1.3 Details of Applicant 1.4 Application Details 1.5 Test Item 1.6 Test Specifications 2 Technical Test 2.1 Summary of Test Results 2.2 Test Report CETECOM ICT Services GmbH Test report no.: 2_3696-01-04/04 Issue Date: 19.07.2004 Page 3 (57) 1 General Information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test Laboratory Manager: 2004-07-26 RSC8411 Berg M. Date Section Name Signature Technical Responsibility for Area of Testing: 2004-07-26 RSC8412 Hausknecht D. Date Section Name Signature CETECOM ICT Services GmbH Test report no.: 2_3696-01-04/04 Issue Date: 19.07.2004 Page 4 (57) 1.2 Testing Laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone : + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR-registration number : TTI-P-G 166/98-30 Accredited Bluetooth™ Test Facility (BQTF) BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM 1.3 Details of Applicant Name : Sennheiser electronic GmbH & Co. KG Street : Am Labor 1 City : D-30900 Wedemark Country : Germany Telephone : +49 (0) 5130 600-0 Telefax : +49 (0) 5130 600-324 Contact : Mr. Volker Bartsch Telephone : +49 (0) 5130 600-542 E-mail : [email protected] 1.4 Application Details Date of receipt of application : 2004-07-05 Date of receipt of test item : 2004-07-05 Date of test : 2004-07-19 to 2004-07-20 CETECOM ICT Services GmbH Test report no.: 2_3696-01-04/04 Issue Date: 19.07.2004 Page 5 (57) 1.5 TEST ITEM Type of equipment : Low power auxiliary equipment Type designation : Tx: SK 2015 Rx: EK 2015 Manufacturer : Sennheiser electronic GmbH & Co. KG Street : Am Labor 1 City : D-30900 Wedemark Country : Germany Serial number : 100035, 100041, 100043, 100047, 100053, 100022 Additional information : Frequency : 518 MHz – 870 MHz (518-608 MHz and 614-806 MHz) Type of modulation : 116KF3E (2x max. Audio Frequency + 2x max. FM Deviation) Number of channels : 1440 (in 25 kHz steps) Antenna : Fixed mounted Lambda/4 antenna Power supply : 2x1.5V DC Battery Output power : max 10 mW Field strength : 107.5 dBμV/m in 3m Occupied bandwidth : 89.2 kHz Transmitter spurious : -39.5 dBm Receiver spurious . 44.6 μV7M in 3m (noise floor) Temperature range : -30°C - +50°C FCC ID : DMOB2AUWG IC : 2099A-SK2015 DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Signature: _______________________________________________ Date: ___2004-07-19 Michael Berg ; Test management NAME AND TITLE (Please print or type): 1.6 Test Specifications: FCC Part 74 Subpart H CANADA RSS-123 CETECOM ICT Services GmbH Test report no.: 2_3696-01-04/04 Issue Date: 19.07.2004 Page 6 (57) 2 Technical Test 2.1 Summary of Test Results TEST PROCEDURE All tests were done in accordance with the EIA/TIA 603. THE SUBSTITUTION METHOD ( TIA/EIA 603) WAS USED. This products fulfills also the requirements for CANADA RSS-123 No deviations from the technical specification(s) were ascertained in the course of the tests performed. Final verdict : PASS CETECOM ICT Services GmbH Test report no.: 2_3696-01-04/04 Issue Date: 19.07.2004 Page 7 (57) 2.2 Test report TEST REPORT Test report no.: 2_3696-01-04/04 CETECOM ICT Services GmbH Test report no.: 2_3696-01-04/04 Issue Date: 19.07.2004 Page 8 (57) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED PAGE OUTPUT POWER (radiated) FCC Rule Part 74.861 (e)(1)(ii) 9 AFC FREQ ERROR vs. VOLTAGE FCC Rule Part 74.861 12 AFC FREQ ERROR vs. TEMPERATURE 14 CHARACTERISTICS OF THE AUDIO MODULATION CIRCUITRY 16 OCCUPIED BANDWIDTH FCC Rule Part 74.861(e)(3), (5)/ Sec. 2.1049 17 Emission mask FCC 74 861(e)(6) 23 RADIATED EMISSIONS FCC Rule Part 74 subpart H 28 FCC Part 15 Subpart B 36 SPURIOUS RADIATION § 15.109 37 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 40 Test setup 42 Photographs of the equipment 45 CETECOM ICT Services GmbH Test report no.: 2_3696-01-04/04 Issue Date: 19.07.2004 Page 9 (57) Equipment under test : SK 2015 Ambient temperature : 25.6°C Relative humidity : …

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report no.: 2_3696-01-04/04 Issue Date: 19.07.2004 Page 42 (57) Test setup Radiated Emissions SK 2015 CETECOM ICT Services GmbH Test report no.: 2_3696-01-04/04 Issue Date: 19.07.2004 Page 43 (57) Test setup Radiated Emissions SK 2015 CETECOM ICT Services GmbH Test report no.: 2_3696-01-04/04 Issue Date: 19.07.2004 Page 44 (57) Test site Radiated Emissions EK 2015 CETECOM ICT Services GmbH Test report no.: 2_3696-01-04/04 Issue Date: 19.07.2004 Page 45 (57) Test site Radiated Emissions EK 2015
