DMOCDBDKBDW BS USB - US DECT Base Station

DECT Headset System DW Office Instruction manual 1 Contents Contents Important safety information ................................................................................... 2 The DW Office wireless headset system ............................................................... 4 Delivery includes ............................................................................................................. 5 Product overview ............................................................................................................ 6 Base station ................................................................................................................. 6 Headset ......................................................................................................................... 7 Overview of the buttons .............................................................................................. 8 Overview of the LEDs ..................................................................................................... 9 Putting the headset system into operation ..................................................... 10 Putting the base station into operation ....................................................... 10 Putting the headset into operation ................................................................ 16 Testing the headset system in Phone mode and adjusting it .............. 17 Testing the headset system in PC mode and adjusting it ...................... 19 Adjusting advanced settings ............................................................................. 20 Using the headset system ........................................................................................ 22 Charging the headset rechargeable battery ............................................... 22 Switching the headset on/off ........................................................................... 23 Establishing a wireless link between headset and base station ......... 23 Putting the headset on and adjusting it ....................................................... 24 Calling via the fixed line phone using the headset ................................... 24 Calling via the PC using the headset ............................................................... 26 Switching between Phone and PC mode ....................................................... 28 Adjusting the volume ........................................................................................... 28 Muting the headset’s microphone .................................................................. 29 Using the advanced functions .......................................................................... 29 If you leave the DECT range ............................................................................... 31 Cleaning and maintaining the headset system .............................................. 32 Replacing the ear pad of the headband ........................................................ 33 Replacing the headset’s rechargeable battery ........................................... 34 If a problem occurs ..................................................................................................... 35 Accessories and spare parts .................................................................................... 36 Specifications ................................................................................................................. 37 Manufacturer Declarations ...................................................................................... 39 Index .................................................................................................................................. 41 Important safety information 2 Important safety information •Please read these instructions carefully and completely before using the product. •Make these instructions easily accessible to all users at all times. Always include these instructions when passing the product on to third parties. •Do not use the product in situations which require special attention (e.g. when performing skilled jobs). •Always keep the product dry and do not expose it to extreme tempera- tures (normal operating temperatures: +5°C/+41°F to +45°C/+113°F). •Use the product with care and store it in a clean, dust-free environ- ment. •Switch off the headset after use to conserve battery power. •Only use the DW Office base station for charging DW Office headsets fitted with the DW Office rechargeable battery. Never try to charge other rechargeable batteries or non-rechargeable batteries in the DW Office base station. •Do not short-circuit the contacts of the product. Make sure that no metal objects (e.g. paper clips, hair pins, earrings) come into contact with the interfaces and contacts. •Sennheiser Communications is not liable for damages resulting from the loss of connection due to a run flat battery, an old battery or exceeding the DECT transmission range. •This equipment generates, uses and can radiate radio frequency energy and, if not used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. •The DW Office headset contains magnets that generate a magnetic field which could cause interference with cardiac pacemakers and implanted defibrillators. Keep the DW Office headset at least 1.2” (3 cm) from cardiac pacemakers or implanted defibrillators! •Protect your hearing from high volume levels. •Only use the mains units supplied by Sennheiser Communications. •To reduce the risk of fire or electric shock, do not use the product near water and do not expose it to rain or moisture. •Unplug the mains unit from the wall socket – to completely disconnect the product from the mains – during lightning storms or – when unused for long periods of time. •Only operate the mains unit from the type of power source speci…

Text truncated - open the document above for the full version.

Sicherheitshinweise Indicazioni di sicurezza Instruções de segurança Säkerhetsanvisning Veiligheidsvoorschriften Safety Guide Consignes de sécurité Indicaciones de seguridad Sikkerhedsvejledning Sikkerhetsinstrukser DW Office Safety Guide TEOS_1109_SP10.book Seite 1 Freitag, 6. November 2009 10:16 10 TEOS_1109_SP10.book Seite 2 Freitag, 6. November 2009 10:16 10 English Deutsch Français Italiano Español Portugues Dansk Svenska Norsk Nederlands TEOS_1109_SP10.book Seite 1 Freitag, 6. November 2009 10:16 10 TEOS_1109_SP10.book Seite 2 Freitag, 6. November 2009 10:16 10 Important safety information 1 Important safety information • Please read these instructions carefully and completely before using the product. • Make these instructions easily accessible to all users at all times. Always include these instructions when passing the product on to third parties. • Do not use the product in situations which require special attention (e.g. when performing skilled jobs). • Always keep the product dry and do not expose it to extreme temperatures (normal operating temperatures: +5°C/+41°F to +45°C/+113°F). • Use the product with care and store it in a clean, dust-free environment. • Switch off the headset after use to conserve battery power. • Only use the DW Office base station for charging DW Office headsets fitted with the DW Office rechargeable battery. Never try to charge other rechargeable batteries or non-rechargeable batteries in the DW Office base station. • Do not short-circuit the contacts of the product. Make sure that no metal objects (e.g. paper clips, hair pins, earrings) come into contact with the interfaces and contacts. • Sennheiser Communications is not liable for damages resulting from the loss of connection due to a run flat battery, an old battery or exceeding the DECT transmission range. • This equipment generates, uses and can radiate radio frequency energy and, if not used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. • The DW Office headset contains magnets that generate a magnetic field which could cause interference with cardiac pacemakers and implanted defibrillators. Keep the DW Office headset at least 1.2” (3 cm) from cardiac pacemakers or implanted defibrillators! • Protect your hearing from high volume levels. • Only use the mains units supplied by Sennheiser Communications. • To reduce the risk of fire or electric shock, do not use the product near water and do not expose it to rain or moisture. • Unplug the mains unit from the wall socket – to completely disconnect the product from the mains – during lightning storms or – when unused for long periods of time. TEOS_1109_SP10.book Seite 1 Freitag, 6. November 2009 10:16 10 Important safety information 2 • Only operate the mains unit from the type of power source specified in the chapter “Specifications” of the detailed instruction manual (included on the supplied CD ROM). • Ensure that the mains unit is – in a safe operating condition and easily accessible, – properly plugged into the wall socket, – only operated within the permissible temperature range, – not covered or exposed to direct sunlight for longer periods of time in order to prevent heat accumulation. • Do not operate the product near any heat sources. • Only use attachments/accessories specified by Sennheiser Communications. • Keep plastic wrap and plastic bags of the packaging out of reach of children – danger of suffocation! Intended use Intended use of the product includes • having read the detailed instruction manual included on the CD ROM, especially the chapter “Important safety information”, • using the product within the operating conditions and limitations described in this instruction manual. “Improper use” means using the product other than as described in this instruction manual, or under operating conditions which differ from those described herein. Safety instructions for the Lithium-Polymer rechargeable batteries If abused or misused, the rechargeable batteries may leak. In extreme cases, they may even present Please understand that Sennheiser does not accept liability for damage arising from abuse or misuse. • a heat hazard, • a fire hazard, •an explosion hazard, • a smoke or gas hazard. TEOS_1109_SP10.book Seite 2 Freitag, 6. November 2009 10:16 10 Manufacturer Declarations 3 Manufacturer Declarations Warranty Sennheiser Communications A/S gives a warranty of 24 months on this product. For the current warranty conditions, please visit our web site at www.sennheiser.com or contact your Sennheiser partner. In compliance with the following requirements • RoHS Directive (2002/95/EC) • WEEE Directive (2002/96/EC) Please dispose of this product at the end of its operational lifetime by taking it to your local collection point or recycling center for such equipment. • Battery Directive (2006/66/EC) The supplied rechargeable battery can be recycled. Please dispose of it as special waste or return it to your specialist dealer. In order to protect the environment, only dispose of exhausted rechargeable batteries. Keep away from children.Do not short-circuit. Do not expose to moisture.Do not heat above +45°C/+113°F, e.g. do not expose to sunlight or throw into a fire. Do not mutilate or dismantle.Do not charge the rechargeable battery if the device is obviously defective. When not using rechargeable batteries for extended periods of time, charge them reg- ularly (every six months for about one hour). Only charge rechargeable batteries with an appropriate Sennheiser Communications charger. Only charge rechargeable batteries at ambient temperatures between +5°C/+41°F to +45°C/+113°F. Store in a cool and dry place at room temperature (approx. 20°C/68°F). Return defective devices or devices with defective rechargeable batteries to your specialist dealer. TEOS_1109_SP10.book Seite 3 Freitag, 6. November 2009 10:16 …

Text truncated - open the document above for the full version.

Langager 6 DK‐ 2680 Solrød Strand Denmark Phone:+45 56 18 00 00 Fax:+45 56 18 00 99 www.sennheisercommunications.com 20-01-2009 Applicant’s self-declaration concerning DECT wideband system Federal Communications Commission Application for FCC ID: DMOCDBDIB; DMOCDBDKB; DMOCDHDKB With reference for KDB publication number 377704, Sennheiser Communications A/S hereby declares that the product : DW Office ( DECT base station & headset ) meet the criteria as set out in the FCC answer of the publication 377704 Request: Can a DECT CAT –iq system that defines five frequency bands divided into 12 time slots for each band ,for a total of 60 duplex time/frequency windows , apply the provision of Section 15.323 ( c ) ( 5 )if a connection uses an access channels with one or two time windows ? For the case when two time/ frequency windows are used the system would still monitor 60 time/frequency windows. Answer : A DECT CAT –iq system that has 60 duplex time and spectrum windows and complies the provisions of Section 15.323 ( c ) ( 5 )may allow an access channel to use one or two time and spectrum windows under the following conditions : FCC Answer Self Declaration The system must be capable of defining a minimum of 40 duplex access channels Complies DW office defines 56 access channels but monitors 60 channels. Multiple time windows on the same frequency ( with or without gaps between them ) are permitted for a connection only if the multiple time windows determined for the emission bandwidth are the lowest power levels below a monitoring threshold of 50 dB above the thermal noise power . Complies DW Office monitors the windows and select first windows below a monitoring threshold of 30dB above thermal noise power. If no windows are available below the 30dB threshold the 50dB threshold is used. Time frequency windows that are dedicated to a connection that always uses multiple time/ frequency windows are counted as one channel* For example , a device that uses 40 duplex time/frequency windows and can define 40 duplex channels meets the 40 channel requirement .It is permissible to use multiple time windows on the same frequency with or without gaps between them , for a connection; However , if 12 of the 40 time/ frequency windows are dedicated to two time/frequency windows per connection, than the 12 time / frequency windows can only define 6 channels and the device is considered to only monitor 34 channels. Complies DW office uses 1 or 2 duplex channels .Each channel can be 1 or 2 time windows .The defined channel number is consequently 56 ( 5 frequencies with each 12 time windows minus 2 channels with each 2 windows ) Langager 6 DK‐ 2680 Solrød Strand Denmark Phone:+45 56 18 00 00 Fax:+45 56 18 00 99 www.sennheisercommunications.com A DECT CAT –iq long –slot may be regarded as two time windows on the same frequency bonded together without any gap .In addition ,the device must verify , within the 20 milliseconds ( 40 milliseconds for devices designed to use a 20 milliseconds frame period )immediately preceding actual channel, access that the detected power of the selected time and spectrum windows is no higher than the previously detected value . CompliesDW Office supports a 10ms frame period and monitors the spectrum as defined above The power measurement resolution for this comparison must be accurate to within 6dB Complies The chipset used in DW office meets this accuracy No device or group of cooperating devices located within one meter of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth ;or alternatively ,more than one third of the time and spectrum windows defined by the system Complies DW Office uses maximum 4/ 60 of the spectrum Feb. 26 2010 (Date) Old Lyme, CT Uwe Sattler___ (Place) (Name printed)

DECT P0059-THOR Project Author: EM Rev: 12.0Date:04-09-2009Page: 11 of 20 3 LABEL INFORMATION BS1’s Sticker labels positions : Figure: 1.2 Label 1 Figure: 1.3 Label 2

RADIO FREQUENCY RADIATION EXPOSURE MPE calculation: Test setup 1: EUT Attenuator Combiner TRLUH281 / Splitter Companion Attenuator Device Formula: S=EIRP / 4π R 2 S = Power Density (mW/cm 2 ) EIRP = Radiated power (mW) R = distance for body (cm) Calculation: S = 106.4 / 4 π 0.3 mW/cm 2 S = 0.94 mW/cm 2 Notes: 1. The unit will be mounted at least 0.3 cm away from the body. 2. The carrier power EIRP of 106.4mW was the worst case peak level measured. Limit The limit of Power density for the General Population/ Uncontrolled Exposure is 1 mW/cm 2 . Result The EUT meet the 1 mW/cm 2 limit.

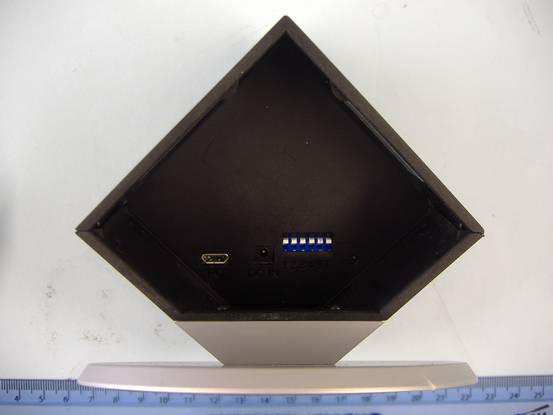

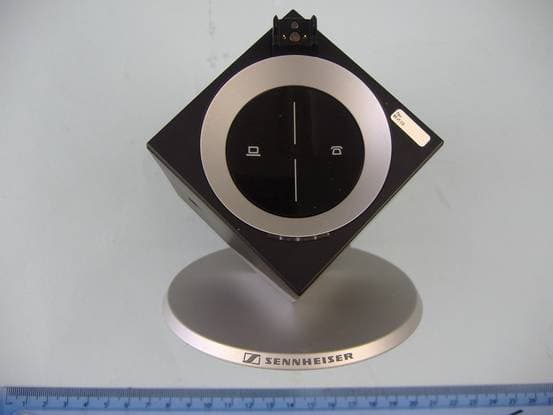

REPORT ON THE CERTIFICATION TESTING OF AN SENNHEISER COMMUNICATIONS A/S DW BS USB - US WITH RESPECT TO FCC RULES CFR 47, PART 15D July 2008 INTENTIONAL RADIATOR SPECIFICATION TEST REPORT NO: 8F1839WUS3 COPY NO: PDF ISSUE NO: 1 FCC ID: DMOCDBDKB IC NUMBER: 2099D –TDB1 REPORT ON THE CERTIFICATION TESTING OF AN SENNHEISER COMMUNICATIONS A/S DW BS USB - US WITH RESPECT TO FCC RULES CFR 47, PART 15D July 2008 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 1 st – 15 th September 2009 TESTED BY: D WINSTANLEY APPROVED BY: J CHARTERS RADIO PRODUCT MANAGER DATE: 10 th February 2010 Distribution: Sennheiser Communications A/S TRaC Telecoms & Radio THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE 8F1839WUS3 Page 3 of 90 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 4 APPLICANT’S SUMMARY 5 TESTS REQUIRED 6 EQUIPMENT TEST CONDITIONS 7 SYSTEM DESCRIPTION 7 TEST RESULTS 8 – 33 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Radiated Test Setup PHOTOGRAPH No. 2: Powerline Conduction Test Setup PHOTOGRAPH No. 3: Top Overview Display Down PHOTOGRAPH No. 4: Top Overview Display Up PHOTOGRAPH No. 5: Bottom Overview APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B AC POWERLINE CONDUCTION C EMISSION BANDWIDTH D PEAK TRANSMIT POWER E POWER SPECTRAL DENSITY F ACCESS CRITERIA TEST INTERVAL G ACKNOWLEDGEMENTS H EMISSIONS OUTSIDE THE SUB-BAND - CONDUCTED I EMISSIONS INSIDE THE SUB-BAND - CONDUCTED J SPURIOUS EMISSIONS – RADIATED K FRAME PERIOD L EQUIPMENT DETAILS & CALIBRATION M MEASUREMENT UNCERTAINTY N Notes: 1. Component failure during test YES [ ] NO [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. CERTIFICATE OF CONFORMITY & COMPLIANCE 8F1839WUS3 FCC IDENTITY: DMOCDBDKB IC NUMBER: 2099D –TDB1 PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15D July 2008 RSS-213 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: DW BS USB - US EQUIPMENT TYPE: UPCS Transceiver PRODUCT USE: Personal communications CARRIER POWER: 20.27 dBm (Conducted) ANTENNA TYPE: Integral BAND OF OPERATION: 1920 MHz – 1930 MHz CHANNEL SPACING: 1.728 MHz NUMBER OF CHANNELS: 5 frequencies, 12 single time slots per frequency giving 60 channels FREQUENCY GENERATION: SAW Resonator [ ] Crystal [ ] Synthesiser [X] MODULATION METHOD: Amplitude [ ] Digital [X] Angle [ ] POWER SOURCE(s): +110 Vac or Via USB TEST DATE(s): 1 st – 15 th September 2009 APPLICANT: Sennheiser Communications A/S ADDRESS: Langager 6 DK-2680 Solrød Stand Denmark TESTED BY: D WINSTANLEY APPROVED BY: J CHARTERS RADIO PRODUCT MANAGER 8F1839WUS3 Page 5 of 90 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): DW BS USB - US EQUIPMENT TYPE: UPCS Transceiver PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15D July 2008 RSS-213 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S CONTACT PERSON(s): Ms E Mujan E-mail address: [email protected] APPLICANT: Sennheiser Communications A/S ADDRESS: Langager 6 DK-2680 Solrød Stand Denmark TEL: +45 5618 0000 FAX: +45 5618 0099 TEST LABORATORY: TRaC Telecoms & Radio, Up Holland TEST DATE(s): 1 st – 15 th September 2009 TEST REPORT No: 8F1839WUS3 8F1839WUS3 Page 6 of 90 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION Part 15 RSS-213 Applicable Coordination with Fixed Microwave Service 15.307 (b) 2.1 No note 1 Cross reference to Subpart B 15.309 (b) N/A Yes Labelling Requirements 15.311 15.19 (a)(3) RSS-GEN 5.2 Yes Measurement Procedures 15.313 4.1 Yes Antenna Requirement 15.317 15.203 4.1(e) Yes Modulation Techniques 15.319 (b) 4.3.1 Yes Conducted AC Powerline 15.315 15.207 4.2 Yes Emission Bandwidth 15.323 (a) 4.3.2.1 Yes Peak Transmit Power 15.319 (c) 4.3.1 Yes Power Spectral Density 15.319 (d) 4.3.2.1 Yes Antenna Gain 15.319 (e) 4.1 (e) Yes Automatic Discontinuation of Transmission 15.319 (f) 4.3.4(a) Yes Radio Frequency Radiation Exposure 15.319 (i) RSS-102 Yes Monitoring Thresholds 15.323 (c)(2) 15.323 (c)(9) 4.3.4(b)(2) Yes Monitoring of Intended Transmit Window and Maximum Reaction Time 15.323 (c)(1) 4.3.4(b)(1) Yes Monitoring Bandwidth 15.323 (c)(7) 4.3.4(b)(7) Yes Access Criteria Functional Test 15.323 (c)(6) 4.3.4(b)(6) Yes Duration of Transmission 15.323 (c)(3) 4.3.4(b)(3) Yes Connection Acknowledgement 15.323 (c)(4) 4.3.4(b)(4) Yes Lower threshold Selected Channel, Power Accuracy, Segment Occupancy 15.323 (c)(5) 4.3.4(b)(5) Yes Monitoring Antenna 15.323 (c)(8) 4.3.4(b)(8) Yes Duplex Connections 15.323 (c)(10) 4.3.4(b)(10) Yes Alternative Monitoring Interval for Co-located Devices 15.323 (c)(11) 4.3.4(b)(11) No Note 3 Fair Access to Spectrum Related to (c)(10) & (c)(11) 15.323 (c)(12) 4.3.4(b)(12) Yes Emission Inside and Outside the Sub-band 15.323 (d) 4.3.3 Yes Frame Period 15.323 (e) 4.3.4(c) Yes Frequency Stability 15.323 (f) 6.2 Yes Note: 1. Requirement removed April 4 th 2005 see public notice DX 05-1005. 2. Not utilized by this EUT as devices will not be co-located within 1m of each other. 8F1839WUS3 Page 7 of 90 2. Product Use: Personal Communications 3. Duty Cycle: 8.33% 4. Transmitter bit or pulse rate and level: 2Mbps 5. Temperatures: Ambient (Tnom) 22 o C 6. Supply Voltages: Vnom +110 Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 7. Equipment Category: Multi-channel [X] Narrowband [ ] Wideband [X] 8. Channel spacing: 9. System Description: The system is made up of two parts, a fixed part and a portable part. The portable part is a cordless headset device. The portable part is capable of operating on a maximum of 60 channels (time spectrum windows). The fixed part is a desktop trans…
