DMOEKP1G9WEPlug-on Receiver

AV X Technische Daten Specifications Caractéristiques techniques Dati tecnici Especificaciones técnicas Dados técnicos Technische specificaties        (ᄂ)㚰⍃㓱 (ᄂ)埔˻̫˳ 韥ꯕ鴥넩뫥 VX_105x297.indb 123.02.2015 11:48:10 EKP AVX 51 mm 81 mm 21 mm SKM AVX/SKM AVX-S 215 mm 40 mm SK AVX 100 mm 65 mm 24 mm VX_105x297.indb 223.02.2015 11:48:11 KO EN FR IT PT NL RU ZH ES DE JA LICENSE 1 AV X Technische Daten System NF-Übertragungsbereich20 bis 20.000 Hz Dynamikbereich> 120 dB (A) THD (1 kHz)typ. 0,1 % Audio Sampling24 bit/48 kHz Signal/Rauschabstand> 90 dB (A) HF-Frequenzbereiche1880 bis 1930 MHz (länderspezifisch) ModulationGFSK mit Datenrückkanal ÜbertragungssystemTDMA fast switching antenna diversity Latenz19 ms relative Luftfeuchtemax. 95 % Temperaturbereich*im Betrieb: –10 °C bis +55 °C Lagerung: –20 °C bis +70 °C * Die Batterie-Eigenschaften beeinflussen diesen Temperaturbereich EKP AVX HF-Empfindlichkeit<–90 dBm Sendeleistung Rückkanaltyp. 15 dBm e.i.r.p. Audio Outputeinstellbar XLR, symmetrisch–30 dBu bis 0 dBu in 4 Stufen SpannungsversorgungBA 20 (Li-Ion 3,7 V DC) Akkulaufzeit> 4 h NF-AnschlussbuchseXLR, male Gewicht (incl. BA 20)ca. 87 g SKM AVX Sendeleistungadaptiv bis zu 250 mW (länderspezifisch) NF-Übertragungsbereich50 bis 20.000 Hz EingangsempfindlichkeitAutomatic Sensitivity Adjustment Spannungsversorgung Akkupack: BA 10 (Li-Ion, 3,6 V) Batterien*: 2 x Mignon AA (1,5 V) BatterielaufzeitAkkupack: typ. 15 h Batterien*: typ. 10 h DisplayLCD Gewicht (ohne Akkupack)ca. 282 g inkl. Kapsel * optionales Zubehör VX_105x297.indb 123.02.2015 11:48:11 2 SK AVX Sendeleistungadaptiv bis zu 250 mW (länderspezifisch) NF-Übertragungsbereich Mic: 50 bis 20.000 Hz Line: 20 bis 20.000 Hz Max. EingangspegelMic: 2,2 V RMS Line: 3,3 V RMS Eingangsimpedanz Line1 M EingangsempfindlichkeitAutomatic Sensitivity Adjustment SpannungsversorgungAkkupack: BA 30 (Li-Ion, 3,7 V) Batterien*: 2x Mignon AA (1,5 V) BatterielaufzeitAkkupack: typ. 15 h Batterien*: typ. 11 h NF-Anschlussbuchse3,5 mm-Klinkenbuchse, verschraubbar Steckerbelegung: Line Mic Gewicht (ohne Akkupack)ca. 87 g * optionales Zubehör MMD 835-1 MMD 42-1 Mikrofontypdynamisch Empfindlichkeit2,1 mV/Pa1,8 mV/Pa RichtcharakteristikNiereKugel Max. Schalldruckpegel154 dB SPL154 dB SPL ME 2-2 Mikrofontypdauerpolarisiertes Kondensatormikrofon Empfindlichkeit20 mV/Pa RichtcharakteristikKugel Max. Schalldruckpegel130 dB SPL MKE 2 Mikrofontypdauerpolarisiertes Kondensatormikrofon Empfindlichkeit5 mV/Pa RichtcharakteristikKugel Max. Schalldruckpegel142 dB SPL VX_105x297.indb 223.02.2015 11:48:11 KO EN FR IT PT NL RU ZH ES DE JA LICENSE 3 Anforderungen werden erfüllt für: Europa Funk EMV Sicherheit RoHS EN 301406 EN 301489-1/-6 EN 60950-1 EN 62311 (SAR) EN 50581 USAFCC 47 CFR 15 KanadaIndustry Canada RSS 210 CAN ICES-3 (B)/NMB-3(B) Zugelassen für: USA SKM SK EKP FCC ID: DMOSKM1G9WE FCC ID: DMOSK1G9WE FCC ID: DMOEKP1G9WE KanadaSKM SK EKP IC: 2099A-SKM1G9WE IC: 2099A-SK1G9WE IC: 2099A-EKP1G9WE Australien/Neuseeland Japan R 202-SMC049 SKM R 202-SMC050 SK R 202-SMC051 EKP NT 5-10U Nenneingangspannung100 bis 240 V~ Netzfrequenz50 oder 60 Hz Nennausgangsspannung 5 V Ausgangsstrom1 A Stand-by-Leistungsaufnahme 0,1 W Energie-Effizienz-KlasseV Betriebstemperatur0 °C bis +40 °C Lagertemperatur–20 °C bis +70 °C Relative Luftfeuchtemax. 90 % Gewichtca. 55 g Anforderungen werden erfüllt für: Europa EMV Sicherheit RoHs EN 55022, EN 55024 EN 60950-1 EN 50581 Energie Effizienz Verordnung Nr. 1275/2008 USA/ Kanada EMV Sicherheit FCC 47 CFR 15 B ICES 003, CAN ICES-3(B)/NMB-3(B) UL 60950-1 CAN/CSA-C22.2 No. 60950-1 AustralienEMV Sicherheit AS/NZ CISPR 22 AS/NZL 60950.1 Zertifiziert nach: EuropaENEC 22 SIQ USA/Kanada C US Australien/Neuseeland Japan VX_105x297.indb 323.02.2015 11:48:12 4 Akkupacks Anforderungen werden erfüllt für: Europa EMV Sicherheit EN 301489-1/-6/-17 IEC/EN 62133 USA/KanadaAkkuzellen Akkupack UL 1642 UL 2054 JapanDENAN Ordinance Article 1; Appendix 9 Lithium Ion KoreaSicherheitK 62133 UN Transporttest gemäß UN-Prüfhandbuch Teil III, Abschnitt 38.3 Lithiumbatterien Zertifiziert nach: USA/Kanada Japan Korea BA 10BA 20BA 30 Ladekapazität2200 mAh430 mAh2030 mAh Ausgangsspannung3,6 V3,7 V3,7 V Garantie  Sennheiser electronic GmbH & Co. KG übernimmt für dieses Produkt eine Garantie von 24 Monaten.  Die aktuell geltenden Garantiebedingungen können Sie über das Internet www.sennheiser.com oder Ihren Sennheiser-Partner beziehen. In Übereinstimmung mit folgenden Anforderungen  WEEE-Richtlinie (2012/19/EU) Bitte entsorgen Sie die Produkte am Ende ihrer Nutzungsdauer bei Ihrer örtlichen kommunalen Sammelstelle oder im Recycling Center.  Batterierichtlinie (2006/66/EG) Die mitgelieferten Akkus oder Batterien sind recyclingpflichtig. Bitte entsorgen Sie Akkus bzw. Batterien über offizielle Sammelstellen oder den Fachhandel. Entsorgen Sie nur leere Batterien oder Akkus, um den Umweltschutz zu gewährleisten. CE-Konformität  0682  R&TTE-Richtlinie (1999/5/EG)  RoHS-Richtlinie (2011/65/EU)  EMV-Richtlinie (2004/108/EU)  Niederspannungs-Richtlinie (2006/95/EU) Die Erklärungen stehen im Internet unter www.sennheiser.com zur Verfügung. Vor Inbetriebnahme sind die jeweiligen länderspezifischen Vorschriften zu beachten. Herstellererklärungen VX_105x297.indb 423.02.2015 11:48:12 KO EN FR IT PT NL RU ZH ES DE JA LICENSE 1 AV X Specifications System AF frequency response20 to 20,000 Hz Dynamic range> 120 dB (A) THD (1 kHz)typ. 0.1 % Audio sampling24 bit/48 kHz Signal-to-noise ratio> 90 dB (A) RF frequency ranges1,880 to 1,930 MHz (country-specific) ModulationGFSK with back channel Transmission methodTDMA fast switching antenna diversity Latency19 ms Relative air humiditymax. 95 % Temperature range*Operation: –10 °C to +55 °C Storage: –20 °C to +70 °C * The temperature range is influenced by the battery characteristics EKP AVX RF sensitivity<–90 dBm RF output power back channeltyp. 15 dBm e.i.r.p. Audio outputadjustable XLR, balanced–30 dBu to 0 dBu in 4 steps…

Text truncated - open the document above for the full version.

Battery Charging Change device Battery check Setup On/Off Set AF-OUT AVX Quick Guide Kurzanleitung | Guide rapide | Guida rapida | Instrucciones resumidas | Guida rápido | Beknopte handleiding | Краткая инструкция | | | | EKP AVX Cl 400 BA 20 BA 30 NT 5-10U SHORT BA 10 > 3 h > 2 h > 1 h > 15 min < 15 min OR EKP holder ! 100% 75% 60% 30% 1:00 h 2:00 h 3:00 h 4:30 h 0:15 h 0:30 h 0:40 h 1:15 h Belt Paired 3 s Pair ! AF Out Check Check max. 320° ! No Link! 3 s Pair SHORT = ON 3 s = OFF max. 320° SKM AVX-SSKM AVX Mute Mic SK/SKM EKP SK AVX Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in Germany, Publ. 11/14, 554637/A02

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 February 25, 2015 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Company requests confidentiality for the following products: FCC ID Number Product Title/Model DMOEKP1G9WE EKP AVX For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” 4. Tune Up Info submitted as Equipment Authorization Electronic Filing attachment: “tune up info” The above exhibits contain Company trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Marco Happ Company: Sennheiser electronic GmbH & Co. KG Address: Am Labor 1 D-30900 Wedemark (Germany) Phone: 49-5130-600-2621 Email: [email protected]

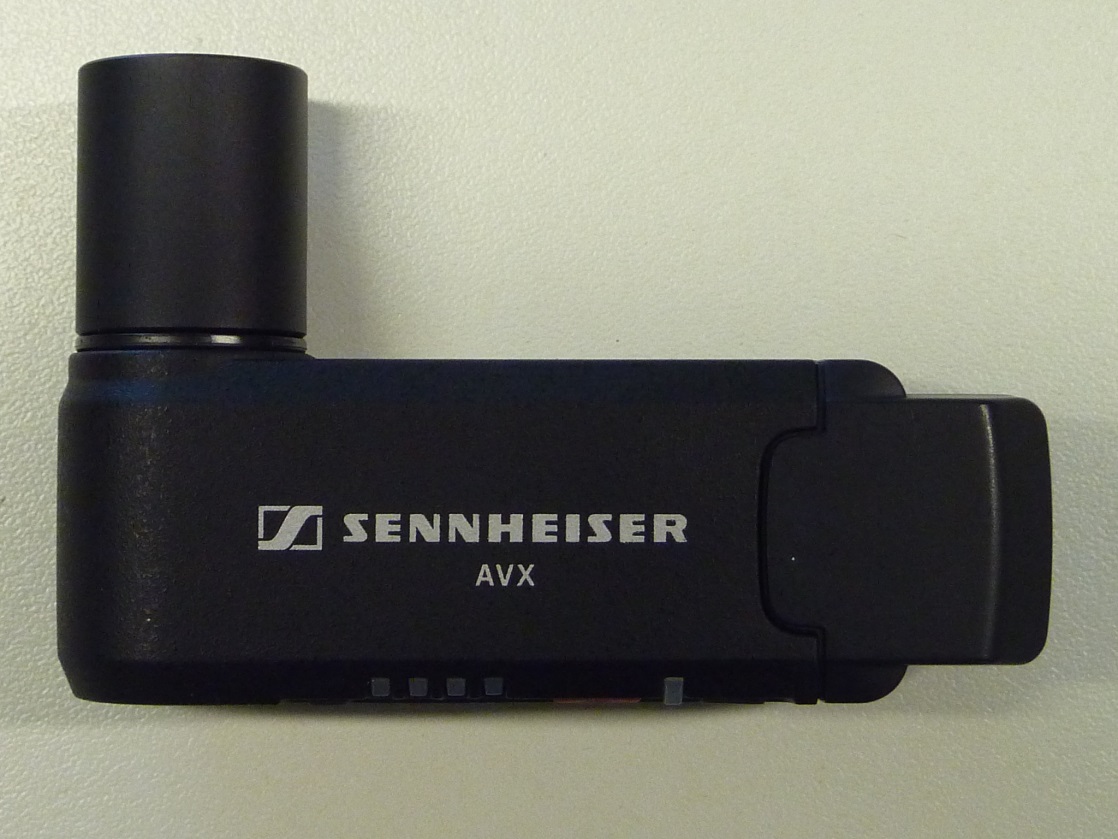

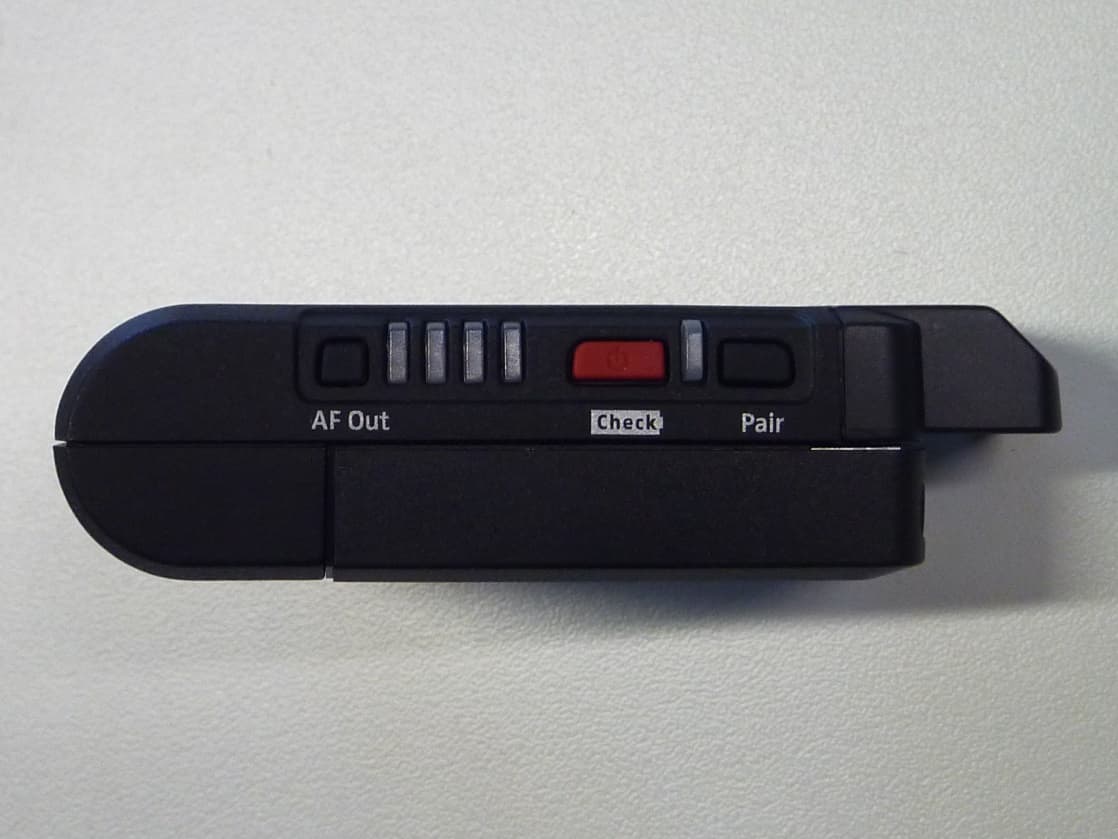

Test report no.: 1-5753/12-02-18 2014-09-03 Page 53 of 59 Annex B: External Photographs of the EUT Photo 1: Photo 2:

EKP AVX

Test report no.: 1-5753/12-02-18 2014-09-03 Page 54 of 59 Annex C: Internal Photographs of the EUT Photo 1: Photo 2: Test report no.: 1-5753/12-02-18 2014-09-03 Page 55 of 59 Photo 3:

Declaration regarding RF Exposure Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 March 17, 2015 TO WHOM IT MAY CONCERN RF Exposure issue for any portable devices subject to 2.1093 routine evaluations regarding the following product: FCC ID Number Product Title/Model DMOEKP1G9WE EKP AVX SAR exemption: This device has been excluded from SAR testing based on source-based time-averaged conducted output power and KDB 447498 D01 section 4.3.1 1). This document serves as the RF exposure exhibit in the FCC Form 731 application in lieu of a SAR report. Operational Description: The EKP AVX is a portable wireless transceiver operating in the DECT/UPCS band capable of receiving audio as well as sending control commands. UPCS Channel Frequency (GHz) 23 1.921536 24 1.923264 25 1.924992 26 1.926720 27 1.928448 RF Exposure Conditions: The device is intended for use in the portable exposure condition and the General Population / Uncontrolled RF exposure environment. Transmission Mode: The above mentioned device uses the DECT wireless communication technology with a maximum of 1 TDMA long-slot out of the 24 total slots. The device has no roaming and no multi line capabilities. All supported multiple time slot transmissions are considered in the calculation below. Duty Cycle: The slot and frame structure is defined by the DECT standard resulting in a maximum transmit long-slot number of 1. The device is using 1 long-slot out of a total of 12 (656us in 10ms frame) resulting in a duty-cycle of 6.56%. Slot length (SL):656 us, frame length (FL):10 ms, max. no. of slots per frame (N): 1 dc – duty cycle / factor 6.56% SL X N/FL RF Output Power: Tx frequency range: 1921.536 ~ 1928.448MHz Test separation distance: 5mm Maximum Output Power: 17.9 dBm (61.7mW) Maximum Duty Factor: 6.56% Source-based time-averaged conducted output power is 4.04mW Pt – Transmitted output power (rms peak) 17.9 dBm dc – dut y cycle / factor 6.56% SL X N/FL Production tunin g range 17.5 ±1 dBm Psource based time average , max Pt dc 4.64mW With a transmitted output power of 70.79mW (18.5dBm) the source‐based time‐averaged conducted output power is 4.64mW. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0/7.5 respectively • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation 25 • The result is rounded to one decimal place for comparison ܹ݉4.64 ݉݉5 ∗√ ሺ 1.924 ሻ ൌ1.29൑3 The device is excluded from SAR testing.

2014-09-03 Page 1 of 59 TEST REPORT Test Report No.: 1-5753/12-02-18 Testing Laboratory Applicant CETECOM ICT Services GmbH Untertürkheimer Straße 6 – 10 66117 Saarbrücken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Test Laboratory: The testing laboratory (FCC part 15 D) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-00 Sennheiser electronic GmbH & Co. KG Am Labor 1 30900 Wedemark GERMANY Phone: +49 5130 600-0 Fax: +49 5130 600-574 Contact: Marco Happ e-mail: [email protected] Phone: +49 5130 600-2621 Manufacturer Sennheiser electronic GmbH & Co. KG Am Labor 1 30900 Wedemark GERMANY Test Standard/s FCC Part 15, subpart D Isochronous UPCS Device 1920 – 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communication Service Devices (LE-PCS) Test Item Kind of test item: DECT Fixed Part Model name: EKP AVX FCC ID: DMOEKP1G9WE IC: 2099A-EKP1G9WE S/N serial number: 1234100258 HW hardware status: 551423-08 EKP SW software status: 0.3.4 Frequency [MHz]: 1920 -1930 Type of Modulation: Digital (Gaussian Frequency Shift Keying) Number of channels: 5 RF Channels, 5x12 = 60 TDMA Duplex Channels Antenna: 2 Chip antennas Power Supply: 3 V Li-Ion Battery Temperature Range: -20°C to 50°C Test Report authorised: Test performed: 2014-09-03 Lenjoint, Marco 2014-09-03 Wolf, Joachim Testing Manager Senior Consultant Test report no.: 1-5753/12-02-18 2014-09-03 Page 2 of 59 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 General information .................................................................................................................................. 4 2.1 Notes and disclaimer ..................................................................................................................... 4 2.2 Application details ......................................................................................................................... 4 3 Test standard/s: ......................................................................................................................................... 4 4 Test Environment ...................................................................................................................................... 5 5 Test Item ..................................................................................................................................................... 5 6 RSP100 Test report Cover Sheet/Performance Test Data ..................................................................... 6 7 Summary of Measurement Results ......................................................................................................... 7 8 Test Set-up ................................................................................................................................................. 8 8.1 Frequency Measurements ............................................................................................................. 8 8.2 Timing Measurements ................................................................................................................... 8 8.3 Conducted Emission Test ............................................................................................................. 8 8.4 Radiated Emission Test ................................................................................................................. 9 8.5 Power Line Conducted Emissions Test ....................................................................................... 9 8.6 Monitoring Tests........................................................................................................................... 10 8.7 Radiated Output Power Test ....................................................................................................... 10 9 Detailed Test Results .............................................................................................................................. 11 9.1 Power Line Conducted Emissions ............................................................................................. 11 9.2 Coordination with fixed microwave ............................................................................................ 12 9.3 Digital Modulation Techniques ................................................................................................... 12 9.4 Labeling Requirements ................................................................................................................ 12 9.5 Antenna Requirements ................................................................................................................ 13 9.6 Channel Frequencies ................................................................................................................... 13 9.7 Automatic Discontinuation of Transmission ............................................................................. 14 9.8 Peak Power Output ...................................................................................................................... 15 9.9 E m i s s i o n B a n d w i d t h B ......................................................................................................... 19 9.10 Power Spectral Density ............................................................................................................ 22 9.11 In-Band Unwanted Emissions, Conducted ............................................................................ 25 9.12 Out-of-Band Emissions, Conducted .......................................................................................…
