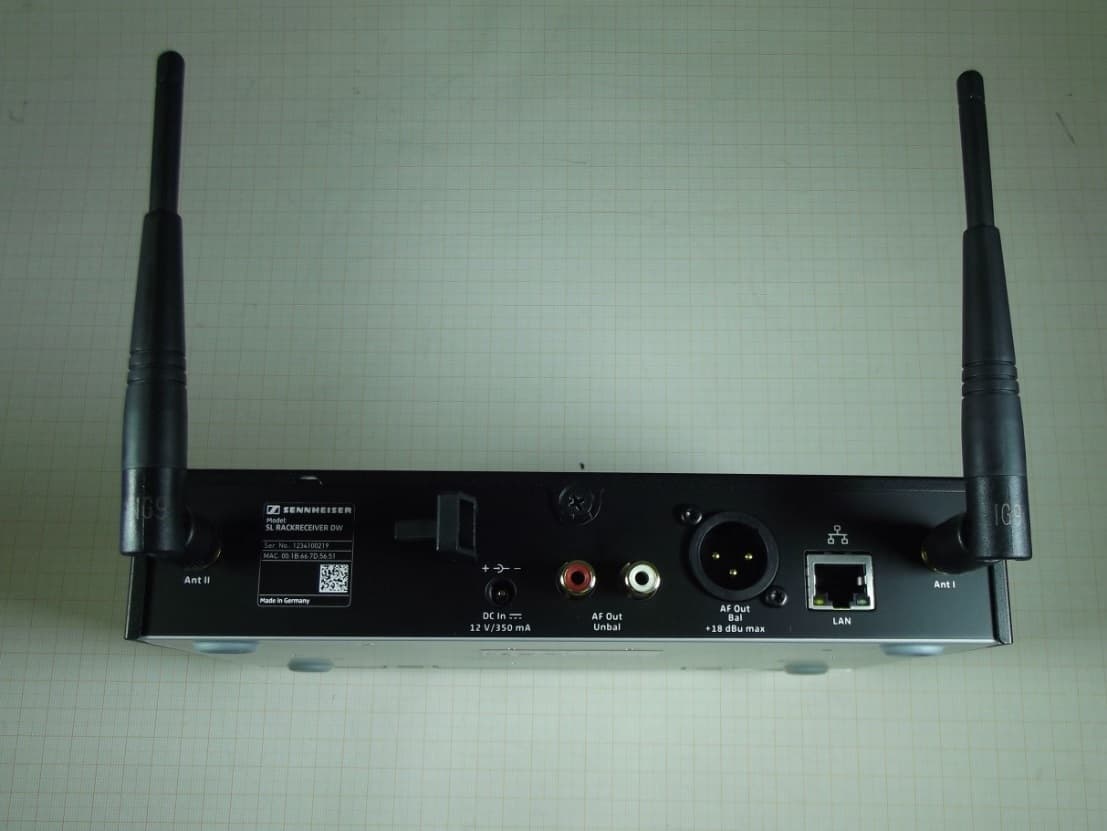

DMOEM1G9WERack Receiver

Sennheiser Electronic Corp
Rack Receiver - FCC ID DMOEM1G9WE - Sennheiser Electronic Corp
Click to zoom

Application Details

Equipment Class
PUB - Part 15 Unlicensed PCS Base Station
Date of Grant
Mar 15, 2015
Application Purpose
Original Equipment
Date of Application
Mar 15, 2015
Equipment Note
Rack Receiver
Frequency Range
1921.53600000 - 1928.44800000
Company
Sennheiser Electronic Corp
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

SpeechLine DW Technische Daten Specifications CaractĂ©ristiques techniques Dati tecnici Especificaciones tĂ©cnicas Dados tĂ©cnicos Technische specificaties        (ᄂ)ăš°âƒă“± (ᄂ)ćŸ”Ë»Ì«Ëł éŸ„êŻ•鎄넩뫄 Manual SL LavalierSet CSL HeadmicSet CSL HandheldSet CSL Rack ReceiverSL LavalierSet RSL HeadmicSet RSL HandheldSet R KO EN FR IT PT NL RU ZH ES DE JA LICENSE 1 SpeechLine Digital Wireless Technische Daten System NF-Übertragungsbereich20 bis 20.000 Hz Dynamikbereich> 120 dB (A) THD (1 kHz)typ. 0,1 % Audio Sampling24 bit/48 kHz Signal/Rauschabstand 90 dB (A) EncryptionAES 256 HF-FrequenzbereicheEU: 1.880 bis 1.900 MHz USA: 1.920 bis 1.930 MHz Brasilien: 1.910 bis 1.920 MHz Taiwan: 1.880 bis 1.895 MHz Japan: 1.893 bis 1.906 MHz ModulationGFSK mit DatenrĂŒckkanal ÜbertragungssystemTDMA, Space diversity Latenz19 ms relative Luftfeuchte max. 95 % Temperaturbereich*im Betrieb: –10 °C bis +55 °C Lagerung: –20 °C bis +70 °C * Die Batterie-Eigenschaften beeinflussen diesen Temperaturbereich SL Rack Receiver HF-Empfindlichkeit –90 dBm Sendeleistung RĂŒckkanaladaptiv bis zu 250 mW (lĂ€nderspezifisch) Digital Gain einstellbar in 6-dB-Schritten Mic/Line level switch: –24 dB/0 dB XLR, symmetrisch: max. +18 dBu Cinch, unsymmetrisch: max. +6 dBu Audio-EffekteLow Cut: –3 dB bei 120 Hz Equalizer: 7-Band-Graphic-Equalizer mit Sound-Presets Automatic Gain Control AGC: Kompression/Expansion mit automatischer Make-Up-Gain-Funktion DisplayOLED NetzwerkprotokollMedia Control Protocol, TCP/IP IPv4 (DHCP, Manual)/IPv6 Spannungsversorgung12 V DC Stromaufnahme350 mA NF-AnschlussbuchsenXLR/2 x Cinch Antennenbuchsen2 x Rev-SMA NetzwerkbuchseRJ45 StromanschlussHohlklinke Gewichtca. 828 g 2 SL Handheld Sendeleistungadaptiv bis zu 250 mW (lĂ€nderspezifisch) NF-Übertragungsbereich50 bis 20.000 Hz EingangsempfindlichkeitAutomatic Sensitivity Adjustment SpannungsversorgungAkkupack: BA 10 (Li-Ion, 3,7 V) Batterien*: 2 x Mignon AA (1,5 V) BatterielaufzeitAkkupack: typ. 15 h Batterien*: typ. 10 h DisplayLCD Mute-Schaltervorhanden Gewicht (ohne Akkupack)ca. 262 g inkl. Kapsel * optionales Zubehör SL Bodypack Sendeleistungadaptiv bis zu 250 mW (lĂ€nderspezifisch) NF-Übertragungsbereich Mic: 50 bis 20.000 Hz Line: 20 bis 20.000 Hz Max. EingangspegelMic: 2,2 V RMS Line: 3,3 V RMS Eingangsimpedanz Line1 M EingangsempfindlichkeitAutomatic Sensitivity Adjustment SpannungsversorgungAkkupack: BA 30 (Li-Ion, 3,7 V) Batterien*: 2 x Mignon AA (1,5 V) BatterielaufzeitAkkupack: typ. 15 h Batterien*: typ. 11 h NF-Anschlussbuchse3,5 mm-Klinkenbuchse, verschraubbar LineMic Gewicht (ohne Akkupack)ca. 88 g * optionales Zubehör KO EN FR IT PT NL RU ZH ES DE JA LICENSE 3 MME 865-1MKE 1SL Headmic 1 Mikrofontypdauerpolarisiertes Kondensatormikrofon Empfindlichkeit1,6 mV/Pa5 mV/Pa5 mV/Pa RichtcharakteristikSuperniereKugelKugel Max. Schalldruckpegel152 dB SPL142 dB SPL142 dB SPL Mikrofone Anforderungen werden erfĂŒllt fĂŒr: Europa Funk EMV Sicherheit RoHS EN 301406 EN 301489-1/-6 EN 60950-1, EN 62311 (SAR) EN 50581 USAFCC 47 CFR 15 KanadaIndustry Canada RSS 210, CAN ICES-3(B)/NMB-3(B) Zugelassen fĂŒr: USASL Rack Receiver SL Handheld SL Bodypack FCC ID: DMOEM1G9WE FCC ID: DMOSKM1G9WE FCC ID: DMOSK1G9WE KanadaSL Rack Receiver SL Handheld SL Bodypack IC: 2099A-EM1G9WE IC: 2099A-SKM1G9WE IC: 2099A-SK1G9WE Australien/Neuseeland Japan R 202-SMC048 SL Rack Receiver R 202-SMC049 SL Handheld R 202-SMC050 SL Bodypack 4 Netzteile NT 12-4CNT 2-3 Nenneingangspannung100 bis 240 V~ Netzfrequenz50 oder 60 Hz Eingangsstrommax. 120 mA Nennausgangsspannung 12 V Stand-by-Leistungsaufnahme 0,3 W Energie-Effizienz-KlasseVIV Betriebstemperatur–10 °C bis +55 °C Lagertemperatur–20 °C bis +70 °C Relative Luftfeuchtemax. 95 % Gewichtca. 100 gca. 105 g Anforderungen werden erfĂŒllt fĂŒr: Europa EMV Sicherheit RoHs EN 55022, EN 55024 EN 60065 EN 50581 Energie Effizienz Verordnung Nr.1275/2008 USA/KanadaEMV Sicherheit FCC 47 CFR 15 B ICES 003, CAN ICES-3(B)/NMB-3(B) UL 60065 CAN/CSA-C22.2 No. 60065 ChinaEMV Sicherheit RoHs GB13837, GB17625 GB8898 Australien/NeuseelandEMV Sicherheit AS/NZS CISPR 22 AS/NZS 60065 KO EN FR IT PT NL RU ZH ES DE JA LICENSE 5 Zertifiziert nach: EuropaVDF_GS (NT2-3) ENEC 22 SIQ (NZ12-4) USA/Kanada Australien/Neuseeland Japan China(nur NT 2-3) KoreaKTL SU 10524-13002 (nur NT 2-3) Russland ME95 Akkupacks BA 10BA 30 LadekapazitĂ€t2200 mAh2030 mAh Ausgangsspannung3,6 V3,7 V 6 Garantie  Sennheiser electronic GmbH & Co. KG ĂŒbernimmt fĂŒr dieses Produkt eine Garantie von 24 Monaten.  Die aktuell geltenden Garantiebedingungen können Sie ĂŒber das Internet www.sennheiser.com oder Ihren Sennheiser-Partner beziehen. In Übereinstimmung mit folgenden Anforderungen  WEEE-Richtlinie (2012/19/EU) Bitte entsorgen Sie die Produkte am Ende ihrer Nutzungsdauer bei Ihrer örtlichen kommu- nalen Sammelstelle oder im Recycling Center.  Batterierichtlinie (2006/66/EG) Die mitgelieferten Akkus oder Batterien sind recyclingpflichtig. Bitte entsorgen Sie Akkus bzw. Batterien ĂŒber offizielle Sammelstellen oder den Fachhandel. Entsorgen Sie nur leere Batterien oder Akkus, um den Umweltschutz zu gewĂ€hrleisten. CE-KonformitĂ€t  0682  R&TTE-Richtlinie (1999/5/EG)  RoHS-Richtlinie (2011/65/EU)  EMV-Richtlinie (2004/108/EU)  Niederspannungs-Richtlinie (2006/95/EU) Die ErklĂ€rungen stehen im Internet unter www.sennheiser.com zur VerfĂŒgung. Vor Inbetriebnah- me sind die jeweiligen lĂ€nderspezifischen Vorschriften zu beachten. HerstellererklĂ€rungen Anforderungen werden erfĂŒllt fĂŒr: Europa EMV Sicherheit EN 301489-1/-6/-17 IEC/EN 62133 USA/KanadaAkkuzellen Akkupack UL 1642 UL 2054 JapanDENAN Ordinance Article 1; Appendix 9 Lithium Ion KoreaSicherheitK 62133 UN Transporttest gemĂ€ĂŸ UN-PrĂŒfhandbuch Teil III, Abschnitt 38.3 Lithiumbatterien Zertifiziert nach: USA/Kanada Japan Korea KO EN FR IT PT NL RU ZH ES DE JA LICENSE 1 SpeechLine Digital Wireless Specifications System AF frequency response20 to 20,000 Hz Dynamic range> 120 dB (A) THD (1 kHz)typ. 0.1 % Audio sampling24 bit/48 kHz Signal-to-no


Text truncated - open the document above for the full version.

Users Manual

Identify Change device App Control Menu Battery Setup SpeechLine Digital Wireless Quick Guide Kurzanleitung | Guide rapide | Guida rapida | Instrucciones resumidas | Guida rĂĄpido | Beknopte handleiding |      | | | | OR SHORT = ON 3 s = OFF Paired OR 3 s Pair 3 s Pair 1G9 min. 1 m AB OR 1:00h 2:00h 3:00h 4:30h 100% 75% 50% 25% 0:30h 1:00h 1:30h 3:00h OR SHORT Pair RCAXLR OR = Menu up esc = Navigate = Set App Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in Germany, Publ. 11/14, 554639/A02 SL Handheld SpeechLine Digital Wireless MME 865-1 NT 2-3 NT 12-4C Charger Battery Wallmount antenna SL Rack Receiver Power Supply SL Bodypack Lavalier microphone Headset microphone MKE 1 SL Headmic 1

Cover Letter(s)

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 February 25, 2015 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Company requests confidentiality for the following products: FCC ID Number Product Title/Model DMOEM1G9WE SL Rack Receiver DW For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” 4. Tune Up Info submitted as Equipment Authorization Electronic Filing attachment: “tune up info” The above exhibits contain Company trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Marco Happ Company: Sennheiser electronic GmbH & Co. KG Address: Am Labor 1 D-30900 Wedemark (Germany) Phone: 49-5130-600-2621 Email: [email protected]

External Photos

Test report no.: 1-5753/12-02-15 2015-02-04 Page 56 of 61 Annex B: External Photographs of the EUT Photo 1: Photo 2:

ID Label/Location Info

SL Rack Receiver DW

Internal Photos

Test report no.: 1-5753/12-02-15 2015-02-04 Page 57 of 61 Annex C: Internal Photographs of the EUT Photo 1: Photo 2:

RF Exposure Info

Test report no.: 1-5753/12-02-15 2015-02-04 Page 60 of 61 Annex F: Safety exposure levels Prediction of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG / 4π R 2 where: S = Power density P = Power input to the antenna G = Antenna gain R = Distance to the center of radiation of the antenna The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 -1500 f/1500 30 1500 - 100000 1.0 30 where f = Frequency (MHz) Prediction: P Max power input to the antenna: 19.52 dBm P Max power input to the antenna: 89.5 mW R Distance: 20 cm G Maximum antenna gain: 3.00 dBi G Maximum antenna gain: 2.0 numeric S MPE limit for uncontrolled exposure: 1 mW/cm 2 Calculated Power density: 0.0356 mW/cm 2 0.356 W/m 2 This prediction demonstrates the following: The power density levels at a distance of 20 cm are below the maximum levels allowed by FCC regulations

Test Report

2015-02-04 Page 1 of 61 TEST REPORT Test Report No.: 1-5753/12-02-15 Testing Laboratory Applicant CETECOM ICT Services GmbH UntertĂŒrkheimer Straße 6 – 10 66117 SaarbrĂŒcken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Test Laboratory: The testing laboratory (FCC part 15 D) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-00 Sennheiser electronic GmbH & Co. KG Am Labor 1 30900 Wedemark GERMANY Phone: +49 5130 600-0 Fax: +49 5130 600-574 Contact: Marco Happ e-mail: [email protected] Phone: +49 5130 600-2621 Manufacturer Sennheiser electronic GmbH & Co. KG Am Labor 1 30900 Wedemark GERMANY Test Standard/s FCC Part 15, subpart D Isochronous UPCS Device 1920 – 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communication Service Devices (LE-PCS) Test Item Kind of test item: DECT Fixed Part Model name: SL Rack Receiver DW FCC ID: DMOEM1G9WE IC: 2099A-EM1G9WE S/N serial number: 1234100304 HW hardware status: 551054-09 EM SW software status: 0.3.4 Frequency [MHz]: 1920 -1930 Type of Modulation: Digital (Gaussian Frequency Shift Keying) Number of channels: 5 RF Channels, 5x12 = 60 TDMA Duplex Channels Antenna: 2 dipole antennas Power Supply: 12 V AC/DC Adapter Temperature Range: -20°C to 50°C Test Report authorised: Test performed: 2015-02-04 Lenjoint, Marco 2015-02-04 Wolf, Joachim Testing Manager Senior Consultant Test report no.: 1-5753/12-02-15 2015-02-04 Page 2 of 61 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 General information .................................................................................................................................. 4 2.1 Notes and disclaimer ..................................................................................................................... 4 2.2 Application details ......................................................................................................................... 4 3 Test standard/s: ......................................................................................................................................... 4 4 Test Environment ...................................................................................................................................... 5 5 Test Item ..................................................................................................................................................... 5 6 RSP100 Test report Cover Sheet/Performance Test Data ..................................................................... 6 7 Summary of Measurement Results ......................................................................................................... 7 8 Test Set-up ................................................................................................................................................. 8 8.1 Frequency Measurements ............................................................................................................. 8 8.2 Timing Measurements ................................................................................................................... 8 8.3 Conducted Emission Test ............................................................................................................. 8 8.4 Radiated Emission Test ................................................................................................................. 9 8.5 Power Line Conducted Emissions Test ....................................................................................... 9 8.6 Monitoring Tests........................................................................................................................... 10 8.7 Radiated Output Power Test ....................................................................................................... 10 9 Detailed Test Results .............................................................................................................................. 11 9.1 Power Line Conducted Emissions ............................................................................................. 11 9.2 Coordination with fixed microwave ............................................................................................ 14 9.3 Digital Modulation Techniques ................................................................................................... 14 9.4 Labeling Requirements ................................................................................................................ 14 9.5 Antenna Requirements ................................................................................................................ 15 9.6 Channel Frequencies ................................................................................................................... 15 9.7 Automatic Discontinuation of Transmission ............................................................................. 16 9.8 Peak Power Output ...................................................................................................................... 17 9.9 E m i s s i o n B a n d w i d t h B ......................................................................................................... 21 9.10 Power Spectral Density ............................................................................................................ 24 9.11 In-Band Unwanted Emissions, Conducted ............................................................................ 27 9.12 Out-of-Band Emissions, Conducted ............................................................................


Text truncated - open the document above for the full version.

Test Setup Photos

Test report no.: 1-5753/12-02-15 2015-02-04 Page 54 of 61 Annex A: Photographs of the Test Set-up Photo 1: Power Line Conducted Emission Test Photo 2: Power Line Conducted Emission Test Test report no.: 1-5753/12-02-15 2015-02-04 Page 55 of 61 Photo 3: Radiated Emission Photo 4: Radiated Emission

Contact Information

Applicant

Michael Lieske
[email protected]860-434-9190Fax: 860-434-1759

Test Firm

cetecom advanced GmbHGerald Schmidt
[email protected]49-681-598-0Fax: 49-681-598-8775

Technical Specifications

#Rule PartsFrequency RangePower Output
115D1.92 GHz - 1.93 GHz89.00 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
