URBANITE XL Wireless Bluetooth headset Instruction manual URBANITE XL Wireless - Bluetooth headset | 1 Contents Contents Important safety instructions ...................................................................................2 Introduction..................................................................................................................3 Package contents .........................................................................................................4 Product overview .........................................................................................................5 Overview of the headset ...........................................................................................5 Overview of the remote control................................................................................5 Overview of pictograms .............................................................................................6 Overview of the LED indications ...............................................................................6 Overview of buttons ...................................................................................................7 Getting started ............................................................................................................8 Charging the headset battery ...................................................................................8 Pairing the headset .....................................................................................................9 Using the headset.....................................................................................................12 Individually adjusting the headset ........................................................................12 Switching the headset on and connecting it .......................................................12 Switching the headset off .......................................................................................12 Changing the volume ................................................................................................13 Listening to music using the headset ..................................................................13 Making calls using the headset .............................................................................14 Managing two calls ...................................................................................................15 Using the audio cable ..............................................................................................16 Storing and transporting the headset .................................................................17 If you are out of the Bluetooth transmission range ...........................................17 Cleaning and maintaining the headset .................................................................18 Replacing the ear pads .............................................................................................18 If a problem occurs ... ...............................................................................................19 Specifications ............................................................................................................20 Valuable information – aptX audio coding ...........................................................21 Manufacturer Declarations .....................................................................................22 2 | URBANITE XL Wireless - Bluetooth headset Important safety instructions Important safety instructions XPlease read this instruction manual carefully and com- pletely before using the product. XAlways include this instruction manual when passing the product on to third parties. XDo not use an obviously defective product. Preventing damage to health and accidents XDo not listen at high volume levels for long periods of time to prevent hearing damage. XAlways maintain a distance of at least 3.94” (10 cm) between the ear cups and the cardiac pacemaker or implanted defibrillator since the product generates permanent magnetic fields. XKeep the product, accessories and packaging parts out of reach of children and pets to prevent accidents and choking hazards. XDo not use the product in situations which require spe- cial attention. Preventing damage to the product and malfunctions XAlways keep the product dry and do not expose it to extreme temperatures (hairdryer, heater, extended exposure to sunlight, etc.) to avoid corrosion or deformation. XOnly use attachments/accessories supplied or recom- mended by Sennheiser. XOnly clean the product with a soft, dry cloth. XOnly use the product in environments where wireless Bluetooth® transmission is permitted. Intended use/Liability The URBANITE XL WIRELESS is designed for use with mobile phones, tablets pcs and computers and other Bluetooth devices. The Bluetooth technologies “hands free profile” (HFP), “headset profile” (HSP) and “ad- vanced audio distribution profile” (A2DP) support the wireless communication. It is considered improper use when this product is used for any application not named in this instruction manual. Sennheiser does not accept liability for damage arising from abuse or misuse of this product and its attach- ments/accessories. The risk is to be borne by the user. Sennheiser is not liable for damages to USB devices that are not consistent with the USB specifications. Sennheiser is not liable for damages resulting from the loss of connection due to flat or overaged rechargeable batteries or exceeding the Bluetooth transmission range. Safety instructions for rechargeable batteries WARNING In extreme cases, abuse or misuse of rechargeable batteries can lead to: • explosion, • fire development, • heat generation or • smoke or gas development. Switch rechargeable battery-powered products off after use. Only charge rechargeable batteries at am- bient temperatures between 10°C/50°F and 40°C/104°F. When not using rechargeable batte…

Text truncated - open the document above for the full version.

Authorization Letter Date: October 22, 2014 To whom it may concern: We hereby authorize our Regulatory Compliance Manager Ms. Edina Mujan to sign on behalf of our company Sennheiser Electronic Corporation., in the following matters related to the Product Type Approval and Certification of our products to FCC: - Application forms and Report submittal - Related correspondence - Signing of all documents relating to the above matters and - Any other lawful activity necessary to obtain such certification This authorization is limited to the product type approval and certification matters for one year from the date of issue or until rescinded in writing. If you have any questions regarding the authorization, please don’t hesitate to contact the undersigned. Sincerely yours, Name: Greg Beebe Title: President - SEC Tel: +1 860 434 9190 Fax: +1 860 434 1759 e-mail: [email protected]

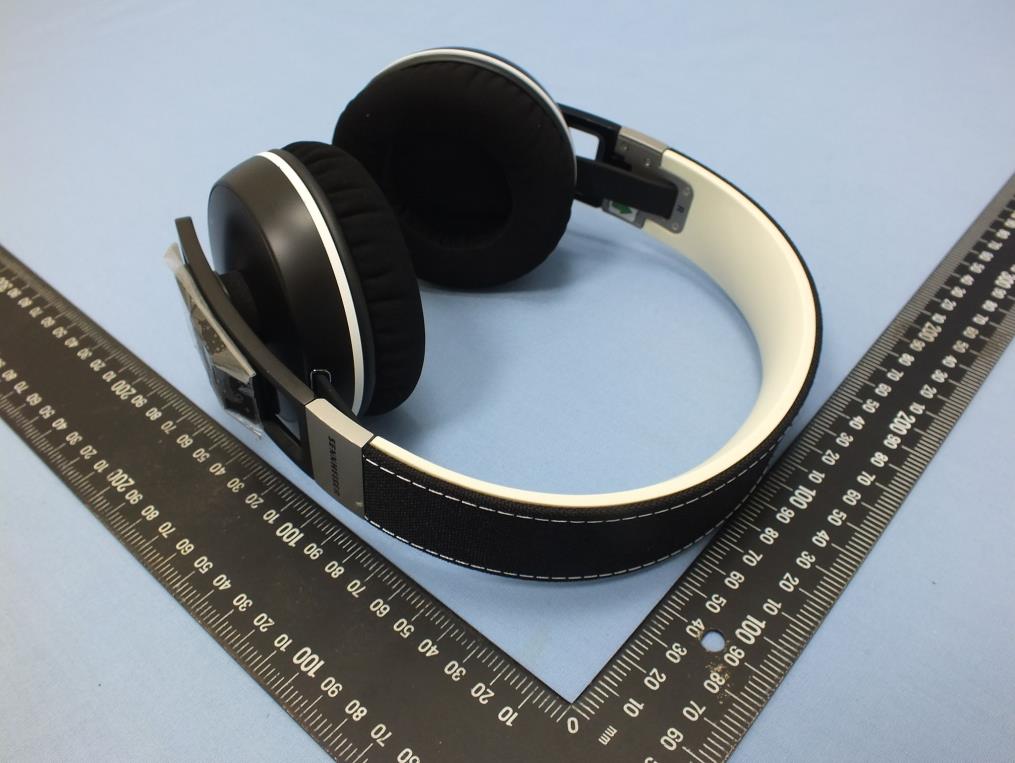

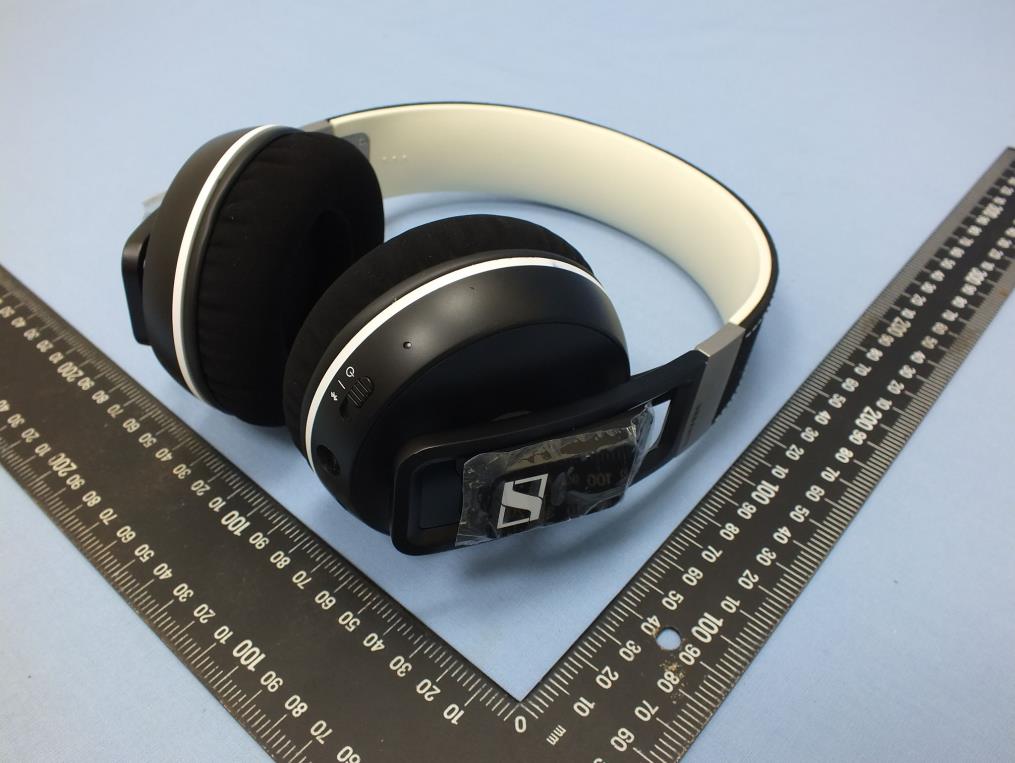

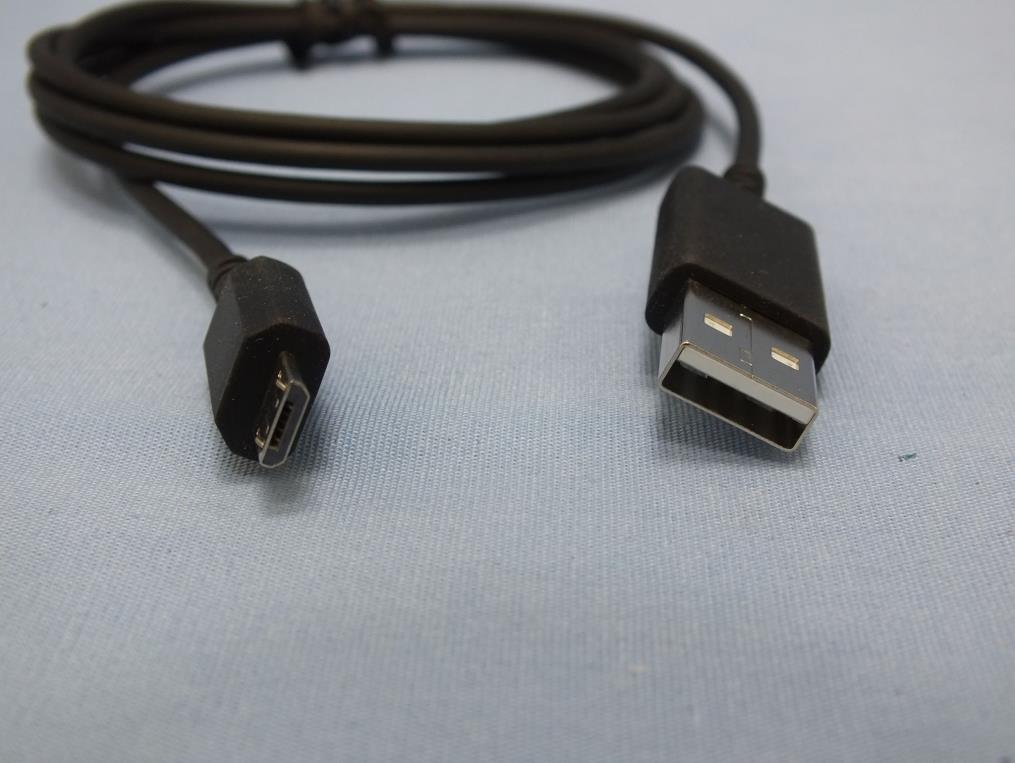

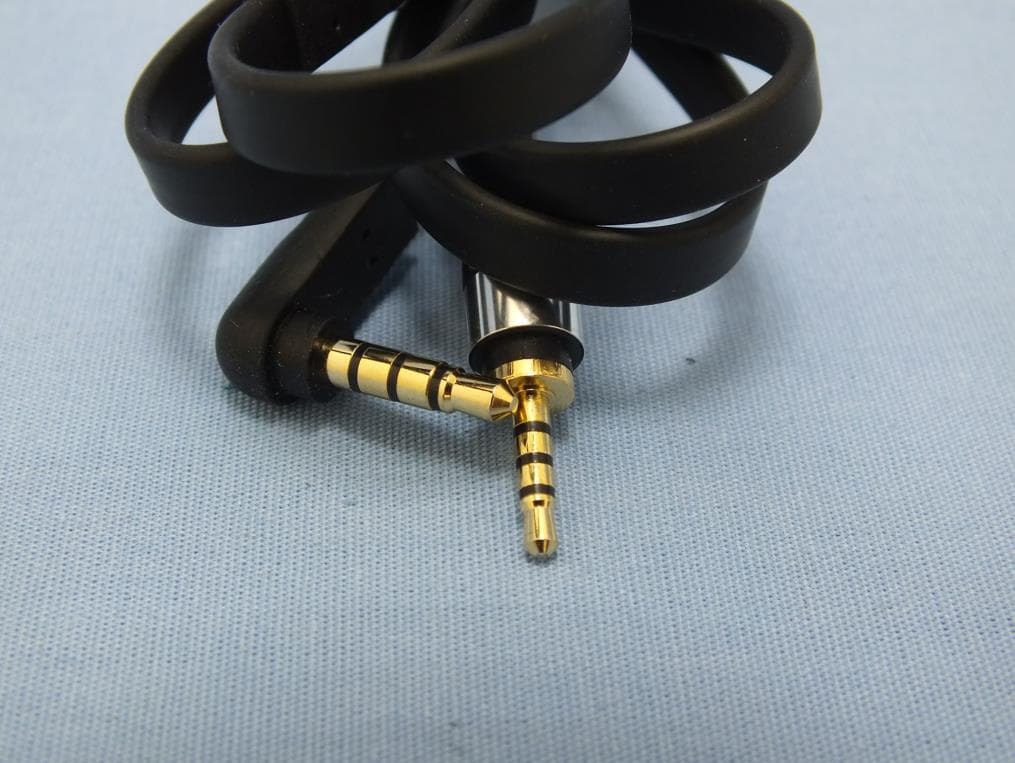

Report No. : EP481948 SPORTON International Inc. Page No. : 1 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Photographs of EUT Report No. : EP481948 SPORTON International Inc. Page No. : 2 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP481948 SPORTON International Inc. Page No. : 3 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973

Label Location

Report No. : EP481948 SPORTON International Inc. Page No. : 4 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP481948 SPORTON International Inc. Page No. : 5 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP481948 SPORTON International Inc. Page No. : 6 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP481948 SPORTON International Inc. Page No. : 7 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP481948 SPORTON International Inc. Page No. : 8 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP481948 SPORTON International Inc. Page No. : 9 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP481948 SPORTON International Inc. Page No. : 10 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP481948 SPORTON International Inc. Page No. : 11 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP481948 SPORTON International Inc. Page No. : 12 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP481948 SPORTON International Inc. Page No. : 13 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP481948 SPORTON International Inc. Page No. : 14 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP481948 SPORTON International Inc. Page No. : 15 of 15 TEL : 886-3-327-3456 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FA481948 SPORTON INTERNATIONAL INC. Page No. : 1 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 EXPOSURE EVALUATION OF PORTABLE OR MOBILE DEVICES Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. 1.1 SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and  50mm Frequency (MHz) 5 10 15 20 25 Separation distance (mm) 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion FCC EMF Test Report Report No. : FA481948 SPORTON INTERNATIONAL INC. Page No. : 2 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.2 EVALUATION RESULTS Maximum Conducted Output Power Result Condition RF Output Power (dBm) Modulation Mode Freq. (MHz) Peak Power (dBm) Average Power (dBm) Average Power (mW) Antenna Gain (dBi) BR-1Mbps 2402 6.99 6.84 4.83 2.00 BR-1Mbps 2440 8.38 8.27 6.71 2.00 BR-1Mbps 2480 8.56 8.47 7.03 2.00 EDR-2Mbps 2402 5.95 3.93 2.47 2.00 EDR-2Mbps 2440 7.73 6.09 4.06 2.00 EDR-2Mbps 2480 7.89 6.29 4.26 2.00 EDR-3Mbps 2402 6.25 3.97 2.49 2.00 EDR-3Mbps 2441 7.85 6.11 4.08 2.00 EDR-3Mbps 2480 8.06 6.30 4.27 2.00 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] =7.03 / 5 * √2.480 = 2.214 < 3.0 SAR Test Exclusion Thresholds is < 10mW and 3.0 for separation distance 5mm. Therefore, SAR test is not required.

FCC Test Report Report No. : FR481948 SPORTON INTERNATIONAL INC. Page No. : 1 of 47 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 FCC Test Report Equipment : Bluetooth stereo headset Brand Name : Sennheiser Model No. : URBANITE XL WIRELESS FCC ID : DMOHD4BT4 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DSS Applicant : Sennheiser Communications A/S Industriparken 27, Ballerup 2750 , Denmark The product sample received on Aug. 18, 2014 and completely tested on Sep. 01, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: James Fan / Assistant Manager Tested by: XXXX / Engineer FCC Test Report Report No. : FR481948 SPORTON INTERNATIONAL INC. Page No. : 2 of 47 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 8 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ........................................................................................ 9 2.4 Test Setup Diagram ............................................................................................................................. 10 3 TRANSMITTER TEST RESULT .......................................................................................................... 11 3.1 AC Power-line Conducted Emissions .................................................................................................. 11 3.2 20dB Bandwidth and Carrier Frequency Separation............................................................................ 14 3.3 Number of Hopping Frequencies ......................................................................................................... 16 3.4 Time of Occupancy (Dwell Time) ......................................................................................................... 18 3.5 RF Output Power .................................................................................................................................. 20 3.6 Emissions in Non-restricted Frequency Bands .................................................................................... 23 3.7 Transmitter Radiated Unwanted Emissions ......................................................................................... 28 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 45 FCC Test Report Report No. : FR481948 SPORTON INTERNATIONAL INC. Page No. : 3 of 47 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]:0.1516180MHz 44.88 (Margin 11.03dB) - AV 53.73 (Margin 12.18dB) - QP FCC 15.207 Complied 3.2 15.247(a) 20dB Bandwidth 1.2696 MHz N/A Complied 3.2 15.247(a) Carrier Frequency Separation (ChS) 1.0029 MHz ChS ≥ BW 20dB x2/3. Complied 3.3 15.247(a) Number of Hopping Frequencies (N) 79 N ≥ 15 Complied 3.4 15.247(a) Time of Occupancy (Dwell Time) 0.319 sec 0.4 s within 0.4 x N Complied 3.5 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm] 8.56 Power [dBm] 21 Complied 3.6 15.247(c) Emissions in non-restricted frequency bands Out-of -band emissions are 20dB below the highest power Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 0 15.247(c) Transmitter Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 48.43MHz 34.42 (Margin 5.58dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR481948 SPORTON INTERNATIONAL INC. Page No. : 4 of 47 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR481948 Rev. 01 Initial issue of report Oct. 21, 2014 2500-2690 FCC Test Report Report No. : FR481948 SPORTON INTERNATIONAL INC. Page No. : 5 of 47 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Frequency (MHz) Channel Number RF Output Power (dBm) 2400-2483.5 BR (V4.0) 2402-2480 0-78 [79] 8.56 Note 1: Bluetooth BR uses a GFSK (1Mbps). Note 2: Bluetooth EDR uses …

Text truncated - open the document above for the full version.

Test Photos Report No. : FR481948 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 TEST PHOTOS 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Test Photos Report No. : FR481948 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW Test Photos Report No. : FR481948 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration FRONT VIEW REAR VIEW
