DMOHDR195Digital Wireless Headphones System (RS 175/185/195)

RS 175 Digital Wireless Headphone System Instuction Manual Instruction manual RS 175 | 1 Contents Contents Important safety information ...................................................................... 2 The RS 175 digital wireless headphone system ........................................ 4 Package includes ............................................................................................ 5 Product overview ........................................................................................... 6 Overview of the HDR 175 headphones ..................................................... 6 Overview of the TR 175 transmitter .......................................................... 7 Overview of indicators .................................................................................. 8 Putting the RS 175 into operation ............................................................ 11 Setting up the transmitter ......................................................................... 11 Connecting the transmitter to an audio source .................................... 12 Connecting the transmitter to an AC wall outlet .................................. 16 Inserting and replacing the rechargeable batteries ............................. 17 Charging the rechargeable batteries ....................................................... 18 Adjusting the headband ............................................................................ 19 Using your RS 175 headphone system ..................................................... 20 Switching your wireless headphone system on .................................... 20 Selecting an audio input ............................................................................. 21 Adjusting the volume ................................................................................. 21 Muting/unmuting the headphones ......................................................... 21 Activating/Deactivating the virtual surround sound ........................... 22 Activating/Deactivating the dynamic bass boost ................................ 23 Pairing one or several headphones to the transmitter ........................ 24 Switching your wireless headphone system off .................................... 25 Cleaning and maintaining the RS 175 ...................................................... 26 Replacing the ear pads ............................................................................... 26 Troubleshooting ........................................................................................... 27 Sound problems ........................................................................................... 27 Other problems ............................................................................................ 28 Leaving the range of the transmitter ...................................................... 29 Clearing the pair settings on the headphones ....................................... 29 Specifications ............................................................................................... 30 Manufacturer declarations ......................................................................... 31 Important safety information 2 | RS 175 Important safety information Read this instruction manual carefully and completely before using the product. Always include this instruction manual when passing the product on to thir d parties. Do not use an obviously defective product. P reventing damage to heal th and accidents Protect your hearing from high volume levels. Permanent hearing dam- age may occur when headphones are used at high volume levels for long periods of time. Sennheiser headphones sound exceptionally good at low and medium volume levels. Keep the headphones at least 10 cm/3.94” from cardiac pacemakers or i m planted defibrillators. The headphones contain magnets that gener- ate a magnetic field which could cause interference with cardiac pace- makers and implanted defibrillators. Keep the product, accessories and pac k aging parts out of reach of chil- dren and pets to prevent accidents and choking hazards. Do not use the product in situations which require special attention (e.g. in traffic or when performing skilled jobs). Preventing damage to the product and malfunctions Always keep the product dry and do not expo se it to extreme tempera- tures to avoid corrosion or deformation. The normal operating tem- perature is from 0 to 40 °C/32 to 104 °F. Use only attachments/accessories/spare parts sup p lied or recom- mended by Sennheiser. Unplug the power supply unit from the AC wall outlet if you are not going to use the product for extended periods of time. Varnish or furniture polish may degrade the feet of the transmitter, wh ich could stain your furniture. You should therefore place the trans- mitter on a non-splip pad to avoid potential staining of furniture. Do not place your headphones on a g l ass dummy head, chair armrest or similar objects for long periods as this can widen the headband and reduce the contact pressure of the headphones. Clean the product only with a soft, dry cloth. Intended use/Liability This wireless headphone system is suitab le for use with hi-fi systems, TV sets, and home cinema systems that can support either or both analog and digital inputs. This product is intended for private domestic use only. It is not suitable for commercial use. This product is also not intended to be used with portable audio devices. It is considered improper use when this product is used for any application not named in the associated product guides and instruction manual. Sennheiser does not accept liability for damage arising from abuse or mis- use of this product and its attachments/accessories. Important safety information RS 175 | 3 Safety instructions for standard/r echargeable batteries WARNING In extreme cases, the standard/rechargeable batteries ma y leak and may cause the following hazards if …

Text truncated - open the document above for the full version.

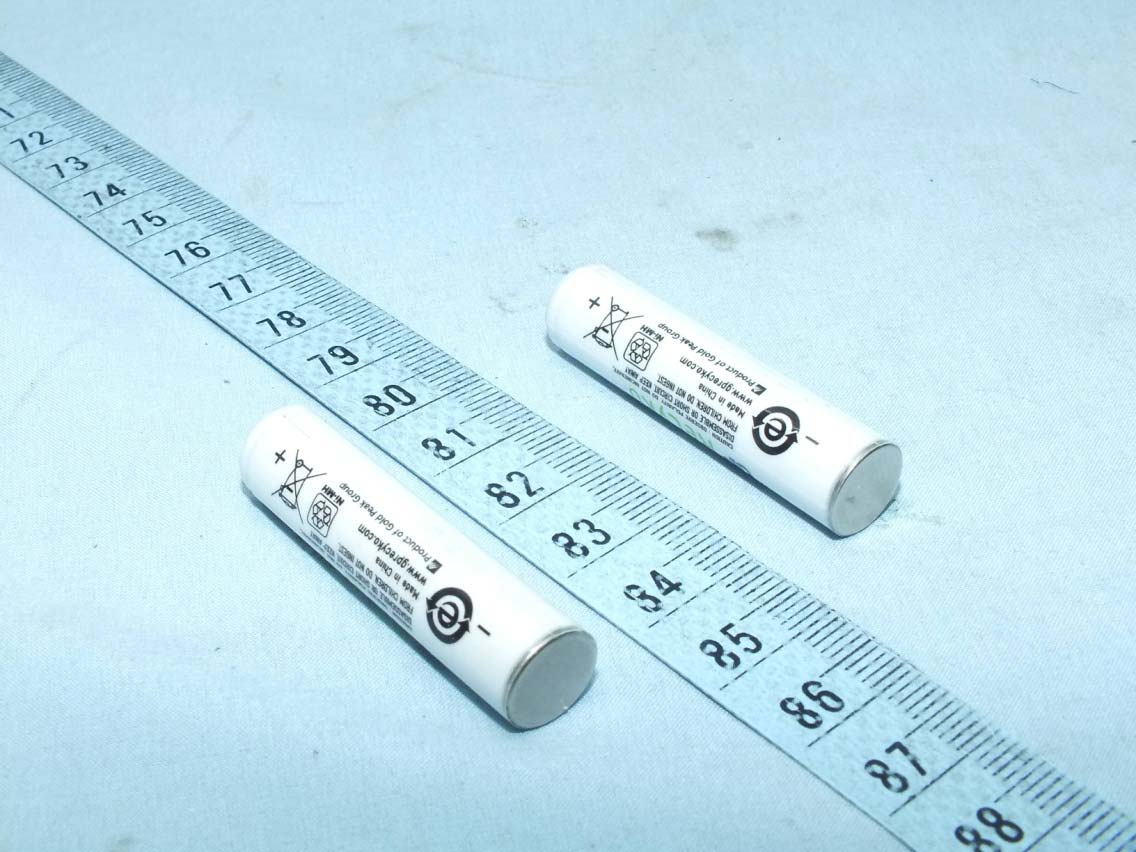

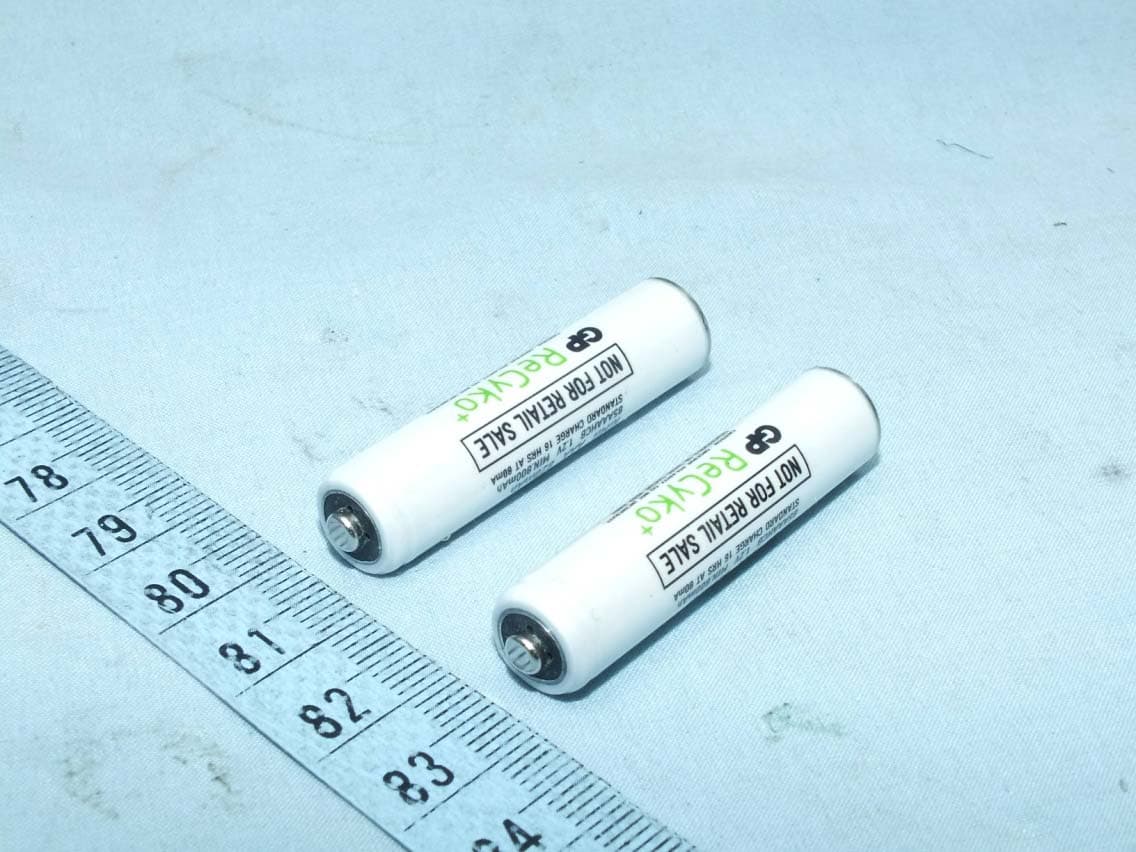

Putting the RS 175 into operation RS 175 | 17 Inserting and replacing the rechargeable batteries 1Lightly twist the ear pads counterclockwise until you overcome a slight resistance. 2Lift the ear pads off the ear cups to reveal the battery compartments. 3Insert the rechargeable batt eries into the compartments. To replace the batteries, pull the batteries out of the compartments and insert the new ones. Be sure to observe correct polarity when inserting the bat- teries. Please dispose old batteries as special waste or return them to your specialist dealer. 4Hook the ear pads onto the ear cups. A s you put back the ear pads, observe the L (left) and R (right) markings on the rear of the ear pads. 5Twist the ear pads clockwise until you hear a click sound. Ensure that they are locked firmly onto the ear cups. You can also power the headphones using standard batteries (AAA size, 1.5 V). Note however, that standard batteries are not recharge- able, and if you are using non-rechargeable batteries, you must not place the headphones on the headphones holder. 12 345 NEW Putting the RS 175 into operation 18 | RS 175 Charging the rechargeable batteries In general, a complete charging cycle takes about 8.5 hours. However, before using the headphones for the first time, charge the rechargeable batteries for at least 16 hours without interruption to optimize the perfor- mance of the batteries. When the rechargeable batteries are almost empty, the HDR status LED turns red and you hear beeps in the headphones. The headphones switch off after few minutes. Place the headphones on the headphone charger of the transmitter. Y o u may place the headphones on either side provided that the charging contacts of the headphones and the transmitter connect. The headphones automatically switch off and the Charge status LED on the transmitter lights up red. When the rechargeable batteries are full y char ged, the Charge status LED turns green. CAUTIONDanger of damage to the headphones! If you insert non-rechargeable batteries into the battery compartments, the batteries may leak during charging and can damage your headphones. Do not place the headphones on the headphon es holder if you are using non-rechargeable batteries. 8.5h When not in use, place the headphones on the headphones holder to ensure that batteries are fully charged when needed. The transmit- ter utilizes an intelligent battery charging technology that prevents overcharging. After taking the headphones from the holder, the Charge status LED indicates the approximate operating time (see page 9). S U RR LO HI BA S S 100% Putting the RS 175 into operation RS 175 | 19 Adjusting the headband For good sound quality and best possible wearing comfort, the headband has to be adjusted to properly fit your head. The headphones feature an adjustable headband with a snap-in locking mechanism for easy adjust- ment. Wear the headphones so that the headband runs over the top of your h ead. Observe the L (left) and R (right) markings on the outer head- band when putt ing the headphones on. Adjust the length of the headband until – y our ears are comfortably covered by the ear pads, – you feel even, gentle pressure around your ears, – a snug fit of the headband on the head is ensured. Using your RS 175 headphone system 20 | RS 175 Using your RS 175 headphone system Switching your wireless headphone system on 1Switch your audio source on. If you are using the headphone connection (see page 14) to connect to your audio source,adjust the volume from the source, or in some cases from the headphone socket on your audio source (e.g. TV), to at least the medium level. 2Slide the AUDIO INPUT SELECTION switch up or down to select your a udi o source (see page 21). The status LED on the transmitter lights up green. 3Press and hold the HDR power button for approx. 2 seconds to switch the headphones on. The tr ansmitter in standby mode recognizes the active paired head- phones and automatically transmits a signal. The status LEDs on the transmitter and the headphones light up green. WARNING Danger due to high volume levels! Listening at high volume levels can lead to permanent hearing defects. Before putting the headphones on and before toggli ng between your audio inputs, adjust the volume on the headphones to a low level. Toggling between different inputs may cause enor- mous volume jumps that can damage your hearing. Do not expose yourself to high volume levels for long periods of ti me. VOLUME If the headphones are brought outside the transmission range or if there is no audio signal received from the transmitter for more than 5 minutes, the headphones switch off automatically. S U RR L O HI B A S S 2s AUTO-ON Analog Digital S U RR LO HI BA S S 1 2 3 ON ON Using your RS 175 headphone system RS 175 | 21 Selecting an audio input If both analog and digital audio inputs are connected to different audio sources, the headphone system enables you to toggle between the two inputs. Push the AUDIO INPUT SELECTION switch up to listen to an audio source connected to the digital optical input (see page 13). Push the AUDIO INPUT SELECTION switch down to listen to an audio source connected to the analog input (see pages 14 and 15). Adjusting the volume Press the Volume + button or the Volume – button repeatedly until the volume is adjusted to the desired level. When the minimum or maxi- mum volume setting is reached, you hear a beep in the headphones. Muting/unmuting the headphones Press the HDR power button to mute the headphones. Press the HDR power button or any of the Volume +/–, buttons to ca ncel the muting. Digital Analog VolVol If the headphones are muted for 15 minutes, the headphones switch off automatically to save energy. Using your RS 175 headphone system 22 | RS 175 Activating/Deactivating the virtual surround sound The RS 175 headphone system offers two virtual surround modes (highHI/lowLO) that simulate the sound generated by external stereo speakers , thus, produ…

Text truncated - open the document above for the full version.

Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in China, Publ. 01/15, 551733/A01 The compliance marks for your headphone system are printed under the ear pads of the headphones and on the bottom surface of the transmitter. To remove or replace the ear pads, please refer to the appropriate instruction manual. Country/RegionRS 165RS 175RS 185RS 195 USA FCC ID: DMOTR165 FCC ID: DMOHDR165 FCC ID: DMOTR175 FCC ID: DMOHDR175 FCC ID: DMOTR185 FCC ID: DMOHDR185 FCC ID: DMOTR195 FCC ID: DMOHDR195 Canada IC: 2099A-TR165 IC: 2099A-HDR165 IC: 2099A-TR175 IC: 2099A-HDR175 IC: 2099A-TR185 IC: 2099A-HDR185 IC: 2099A-TR195 IC: 2099A-HDR195 CAN ICES-3 (B)/NMB-3(B) Europe 0560 Australia/ New Zealand Singapore RS 165 HDR 165 RS 175 HDR 175 RS 185 HDR 185 RS 195Compliance Information RS5_In_compliance_130x130_Sheet_551733_Taiwan.indd 110/17/2014 4:27:58 PM Statements regarding FCC and Industry Canada FCC Declaration of Conformity (DoC) We, Sennheiser Electronic Corporation One Enterprise Drive • Old Lyme • CT 06371 • USA Tel: +1 (860) 434 9190 Fax: +1 (860) 434 1759 declare the above device comply with the requirements of Federal Communications Commission. This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Responsible Party: Greg Beebe SENNHEISER Model No: TR 165, HDR 165, TR 175, HDR 175, TR 185, HDR 185, TR 195, HDR 195 This device complies with Part 15 of the FCC rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules and RSS-210 of Industry Canada. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void FCC authorization to operate this equipment. CAN ICES-3 (B)/NMB-3(B) RF Radiation Exposure Information Since the radiated output power of this device is far below the FCC radio frequency exposure limits, it is not subjec- ted to routine RF exposure evaluation as per Section 2.1093 of the FCC rules. This device meets FCC RF exposure guidelines for an uncontrolled environment. The transmitter of this device should be installed and operated at least 20 cm away from the user’s body. Use of other accessories not verified by the manufacturer may not ensure compliance with FCC RF exposure guidelines. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Information sur l’exposition aux rayonnements radio fréquence (RF) La puissance RF rayonnée de cet appareil étant de loin inférieure aux limites imposées par la FCC, il n’est pas soumis à la réglementation sur l’exposition aux RF selon la section 2.1093 de la réglementation FCC. Cet équipement est conforme aux limites d‘exposition aux rayonnements imposées par la FCC pour un environ- nement non réglementé. L‘émetteur de cet équipement doit être installé et utilisé à une distance minimale de 20 cm du corps de l‘utilisateur. L‘utilisation d‘autres accessoires non homologués par le fabricant remet en cause la conformité des normes imposées par la FCC. Cet émetteur ne doit pas être positionné à proximité d‘une autre antenne ou d‘un autre émetteur, ni utilisé avec une autre antenne ou un autre émetteur. 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特 性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得 繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用 電波輻射性電機設備之干擾。 RS5_In_compliance_130x130_Sheet_551733_Taiwan.indd 210/17/2014 4:27:58 PM

RS 185 Digital Wireless Headphone System Instuction Manual Instruction manual RS 185 | 1 Contents Contents Important safety information ...................................................................... 2 The RS 185 digital wireless headphone system ........................................ 4 Package includes ............................................................................................ 5 Product overview ........................................................................................... 6 Overview of the HDR 185 headphones ..................................................... 6 Overview of the TR 185 transmitter .......................................................... 7 Overview of LED indicators .......................................................................... 8 Putting the RS 185 into operation ............................................................ 11 Setting up the transmitter ......................................................................... 11 Connecting the transmitter to an audio source .................................... 12 Connecting the transmitter to an AC wall outlet .................................. 16 Inserting or replacing the rechargeable batteries ................................ 17 Charging the rechargeable batteries ....................................................... 18 Adjusting the headband ............................................................................ 19 Using your RS 185 headphone system ..................................................... 20 Switching your wireless headphone system on .................................... 20 Selecting an audio input ............................................................................. 21 Adjusting the volume ................................................................................. 21 Muting/unmuting the headphones ......................................................... 21 Adjusting the balance ................................................................................. 22 Controlling the input level of analog signals ......................................... 22 Pairing one or several headphones to the transmitter ........................ 25 Switching your wireless headphones off ................................................ 26 Cleaning and maintaining the RS 185 ...................................................... 27 Replacing the ear pads ............................................................................... 27 Troubleshooting ........................................................................................... 28 Sound problems ........................................................................................... 28 Other problems ............................................................................................ 29 Leaving the range of the transmitter ...................................................... 30 Clearing the pair settings on the headphones ....................................... 30 Specifications ............................................................................................... 31 Manufacturer declarations ......................................................................... 32 Important safety information 2 | RS 185 Important safety information Read this instruction manual carefully and completely before using the product. Always include this instruction manual when passing the product on to third p arties. Do not use an obviously defective product. Pr eventing damage to he alth and a ccidents Protect your hearing from high volume levels. Permanent hearing dam- age may occur when headphones are used at high volume levels for long periods of time. Sennheiser headphones sound exceptionally good at low and medium volume levels. Keep the headphones at least 10 cm/3.94” from cardiac pacemakers or i mplant ed defibrillators. The headphones contain magnets that gener- ate a magnetic field which could cause interference with cardiac pace- makers and implanted defibrillators. Keep the product, accessories and pac kag ing parts out of reach of chil- dren and pets to prevent accidents and choking hazards. Do not use the product in situations which require special attention (e.g. in t raffic or when performing skilled jobs). Preventing damage to the product and malfunctions Always keep the product dry and do not expose it to extreme tem pera- tures to avoid corrosion or deformation. The normal operating tem- perature is from 0 to 40 °C/32 to 104°F. Use only attachments/accessories/spare parts sup plied or recom- mended by Sennheiser. Unplug the power supply unit from the AC wall o utlet if you are not going to use the product for extended periods of time. Varnish or furniture polish may degrade the feet of the transmitter, which coul d stain your furniture. You should therefore place the trans- mitter on a non-splip pad to avoid potential staining of furniture. Do not place your headphones on a g lass dummy head, chai r armrest or similar objects for long periods as this can widen the headband and reduce the contact pressure of the headphones. Clean the product only with a soft, dry cloth. Intended use/Liability This wireless headphone system is suitable for use with hi-fi systems, TV sets, and home cinema systems that can support either or both analog and digital inputs. This product is intended for private domestic use only. It is not suitable for commercial use. This product is also not intended to be used with portable audio devices. It is considered improper use when this product is used for any application not named in the associated product guides and instruction manual. Sennheiser does not accept liability for damage arising from abuse or mis- use of this product and its attachments/accessories. Important safety information RS 185 | 3 Safety instructions for standard/recharg eable batteries WARNING In extreme cases, the standard/rechargeable batteries may leak and…

Text truncated - open the document above for the full version.

Putting the RS 185 into operation RS 185 | 17 Inserting or replacing the rechargeable batteries 1Lightly twist the ear pads counterclockwise until you overcome a slight resistance. 2Lift the ear pads off the ear cups to reveal the ba ttery compartments. 3Insert the rechargeable batteries in to the compartments. To replace the batteries, pull the batteries out of the compartments and insert the new ones. Be sure to observe correct polarity when inserting the bat- teries. Please dispose old batteries as special waste or return them to your specialist dealer. 4Hook the ear pads onto the ear cups. A s you put back the ear pads, observe th e L (left) and R (right) markings on the rear of the ear pads. 5Twist the ear pads clockwise until you hear a cli ck sound. Ensure that they are locked firmly onto the ear cups. You can also power the headphones using standard batteries (AAA size, 1.5 V). Note however, that standard batteries are not recharge- able, and if you are using non-rechargeable batteries, you must not place the headphones on the headphones holder. 12 345 NEW Putting the RS 185 into operation 18 | RS 185 Charging the rechargeable batteries In general, a complete charging cycle takes about 8.5 hours. However, before using the headphones for the first time, charge the rechargeable batteries for at least 16 hours without interruption to optimize the perfor- mance of the batteries. When the rechargeable batteries are almost empty, the HDR status LED turns red and you hear beeps in the headphones. The headphones switch off after few minutes. Place the headphones on the headpho nes ho lder of the transmitter. You may place the headphones on either side provided that the charging contacts of the headphones and the transmitter connect. The headphones automatically switch off and the Charge status LED on the transmitter lights up red. When the rechargeable batteries are full y charged, the Charge stat us LED turns green. CAUTION Danger of damage to the headphones! If you insert non-rechargeable batteries into the battery compartments, the batteries may leak during charging and can damage your headphones. Do not place the headphones on the headphones holder if you are us ing non-rechargeable batteries. 8.5h When not in use, place the headphones on the headphones holder to ensure that batteries are fully charged when needed. The transmit- ter utilizes an intelligent battery charging technology that prevents overcharging. After taking the headphones from the holder, the charge status LED indicates the approximate operating time (see page 9). M LC ALC L EV EL ML C MAX MI N LEVEL 100% LEV EL Putting the RS 185 into operation RS 185 | 19 Adjusting the headband For good sound quality and best possible wearing comfort, the headband has to be adjusted to properly fit your head. The headphones feature an adjustable headband with a snap-in locking mechanism for easy adjust- ment. Wear the headphones so that the headband runs over the top of your h ead. Observe the L (left ) and R (right) markings on the outer head- band when putting the headphones on. Adjust the length of the headband until – your ears are comf ortably covered by the ear pads, – you feel even, gentle pressure around your ears, – a snug fit of the headband on the head is ensured. LEVEL LEVEL Using your RS 185 headphone system 20 | RS 185 Using your RS 185 headphone system Switching your wireless headphone system on 1Switch your audio source on. If you are using the headphone connection (see page 15) to connect to your audio source, adjust the volume from the source, or in some cases from the headphone socket on your audio source (e.g. TV), to at least the medium level. 2Slide the AUDIO INPUT SELECTION switch up or down to select your a udio source (see page 21). The status LED on the transmitter lights up green. 3Press and hold the HDR power button for approx. 2 seconds to switch the headphones on. The transmi tter in standby mode recognizes the active paired head- phones and automatically transmits a signal. The status LEDs on the transmitter and the headphones light up green. WARNING Danger due to high volume levels! Listening at high volume levels can lead to permanent hearing defects. Before putting the headphones on and before toggling bet ween your audio inputs, adjust the volume on the headphones to a low level. Toggling between different inputs may cause enor- mous volume jumps that can damage your hearing. Do not expose yourself to high volume levels for long periods of ti me. VOLUME If the headphones are brought outside the transmission range or if there is no audio signal received from the transmitter for more than 5 minutes, the headphones switch off automatically. ML C AL C L EV E L ML C MA X MI N LEVEL 2s AUTO-ON MLC AL C LE VE L ML C M AX M I N L E V E L ON ON 1 2 3 Analog Digital Using your RS 185 headphone system RS 185 | 21 Selecting an audio input If both analog and digital audio inputs are connected to different audio sources, the headphone system enables you to toggle between the two inputs. Push the AUDIO INPUT SELECTION switch up to listen to an audio so urce connected to the digital optical input (see page 13). Push the AUDIO INPUT SELECTION switch down to listen to an audio source connected to th e analog input (see pages 14 and 15). Adjusting the volume Press the Volume + button or the Volume – button repeatedly until the volume is adjusted to the desired level. When the minimum or maxi- mum volume setting is reached, you hear a beep in the headphones. Muting/unmuting the headphones Press the HDR power button to mute the headphones. Press the HDR power button or any of the Volume +/–, Balance L/R buttons to cancel the muting. Digital Analog L EV EL LE VEL VolVol If the headphones are muted for 15 minutes, the headphones switch off automatically to save energy. LEVELLEVEL Using your RS 185 headphone system 22 | RS 185 Adjusting the balance The balance buttons allow you to adjust the volume on the left…

Text truncated - open the document above for the full version.

Using your RS 185 headphone system 26 | RS 185 Switching your wireless headphones off There are two ways to switch your wireless headphones off. Press and hold the HDR power button for approx. 2 seconds. The he adphones switch off. If no other pair of active wireless head- phones is connected to the transmitter, the transmitter switches to standby mode. All LEDs are off. Place the headphones on the headphones ho lder of the transmitter. The headph ones switch off and the charging process starts (see page 18). If no other pair of active wireless headphones is connected to the transmitter, the transmitter switches to standby mode. A 2s M L C ALC LE VEL ML C MA X MI N L EV EL H DR 185 LEVEL OFFAUTO-STANDBY B To disconnect the transmitter from the power source, unplug the power supply unit from the AC wall outlet. LEV EL M LC ALC L EV EL ML C MAX MI N LEVE L AUTO- STANDBY OFF Cleaning and maintaining the RS 185 RS 185 | 27 Cleaning and maintaining the RS 185 To clean the wireless headphone system: Switch your wireless headphone system off and disconnect the trans- mitter fr om the AC wall outlet…

Text truncated - open the document above for the full version.
