DMOMXW1RDigital wireless earphone system

MX W1 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones de uso Gebruiksaanwijzing Manual de utilização Book_XXXXXX_0308_Sp6.book Seite 1 Mittwoch, 6. Februar 2008 10:59 10 Book_XXXXXX_0308_Sp6.book Seite 2 Mittwoch, 6. Februar 2008 10:59 10 English Deutsch Français Italian Español Nederlands Portugues Ðóñêèé Book_XXXXXX_0308_Sp6.book Seite 1 Mittwoch, 6. Februar 2008 10:59 10 Book_XXXXXX_0308_Sp6.book Seite 2 Mittwoch, 6. Februar 2008 10:59 10 1 Contents Important safety instructions ............................................. 2 MX W1 digital wireless earphone system ......................... 4 Delivery includes .................................................................... 4 Product overview ................................................................... 5 LED indications of the devices ...................................................6 Putting the MX W1 into operation ..................................... 6 Charging the MX W1 ...................................................................6 Associating the earphones to the transmitter (Pairing) .....9 Setting up your MX W1 for usage ......................................... 12 Using the MX W1 ................................................................. 14 Switching the earphones on/off ............................................ 14 Switching the transmitter on/off .......................................... 15 Putting on the earphones ....................................................... 16 Care and maintenance ........................................................ 17 Get the most out of your Sennheiser MX W1! ................ 19 Troubleshooting ................................................................... 20 Accessories and spare parts ............................................... 22 Specifications ........................................................................ 23 Manufacturer declarations ................................................. 24 Book_XXXXXX_0308_Sp6.book Seite 1 Mittwoch, 6. Februar 2008 10:59 10 2 Important safety instructions The MX W1 has been manufactured according to the accepted rules of safety and current technology. However, there is still a danger of damage to equipment if the following general safety instructions are not complied with. • Please read these instructions for use carefully and completely before using the devices. • Make these instructions for use easily accessible to all users at all times. Always include these instructions for use when passing the devices on to third parties. • Do not use the devices in situations which require special attention (e.g. in traffic or when performing skilled jobs). • Always keep the devices dry and do not expose them to extreme temperatures (normal operating temperatures: 0 °C to 40 °C). • Use the devices with care and store them in a clean, dust-free environment. • Switch off the devices after use to conserve battery power. Remove the batteries if the earphones will not be used for extended periods of time. •Protect your hearing from high volume levels. Sennheiser earphones also sound exceptionally good at low volumes. • Use only Sennheiser supplied charging cables and power supply units. Intended use of the devices Appropriate use of the devices includes: • having read and understood these instructions, especially the section “Important safety instructions”, • using the devices within the operating conditions and limitations described in this instruction manual. Book_XXXXXX_0308_Sp6.book Seite 2 Mittwoch, 6. Februar 2008 10:59 10 3 Safety instructions for Lithium-Ion rechargeable batteries If abused or misused, rechargeable batteries may leak. In extreme cases, they may even present a Please understand that Sennheiser does not accept liability for damage arising from abuse or misuse. •heat hazard •fire hazard • explosion hazard • smoke and gas hazard Keep away from children. Do not heat above 70°C/158°F, e.g. do not expose to sunlight or throw into a fire. Do not expose to moisture. Do not short-circuit. Do not mutilate or dismantle. Do not get fully charged but unpacked rechargeable batteries mixed up. Do not continue to use defective rechargeable batteries. Only use original Sennheiser rechargeable batteries. Observe correct polarity. Switch rechargeable battery- powered devices off after use. Remove rechargeable batteries when the unit is not used for extended periods of time. Only charge rechargeable batteries with the appropriate Sennheiser chargers. When not using rechargeable batteries for extended periods of time, charge them regularly (about every three months). Only charge rechargeable batteries at ambient temperatures between 10°C and 40°C. Immediately remove rechargeable batteries from obviously defective devices. Dispose of rechargeable batteries at special collection points or return them to your specialist dealer. Book_XXXXXX_0308_Sp6.book Seite 3 Mittwoch, 6. Februar 2008 10:59 10 4 MX W1 digital wireless earphone system Thank you for purchasing MX W1 - Sennheiser's completely digital wireless earphone system. We trust that you will enjoy using it and that it will satisfy your expectations. The MX W1 is simple to operate. These instructions for use have been designed to help you get started. Please take some time to read them carefully so as to ensure your utmost listening pleasure. Enjoy your new MX W1! Delivery includes 1 MX W1-T transmitter 2 MX W1-R earphones (left/right) incl. – earpads (1 pair, foam) – twist-to-fit pads (3 pairs: size S/M/L) 1 MX W1-C docking station 1 carrying case 1 elastic fabric strap 4 rubber bands (2 x S/2 x L) 1 charging cable with USB plug 1 power supply unit with 4 country adaptors (US/UK/EU/AU) 1 instructions for use Book_XXXXXX_0308_Sp6.book Seite 4 Mittwoch, 6. Februar 2008 10:59 10 5 Product overview Earphones Transmitter Twist-to-fit pad Speaker LED (orange/blue) Operation/pairing button of the earphone 2.5 mm charging jack …

Text truncated - open the document above for the full version.

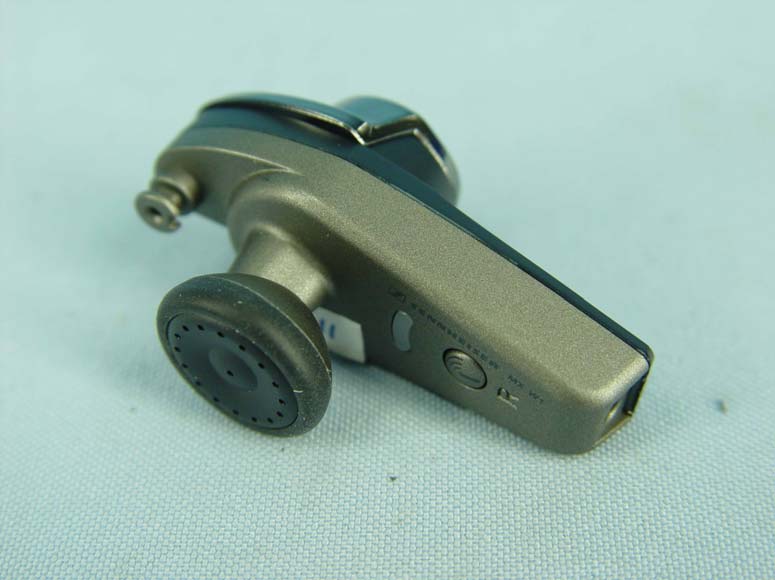

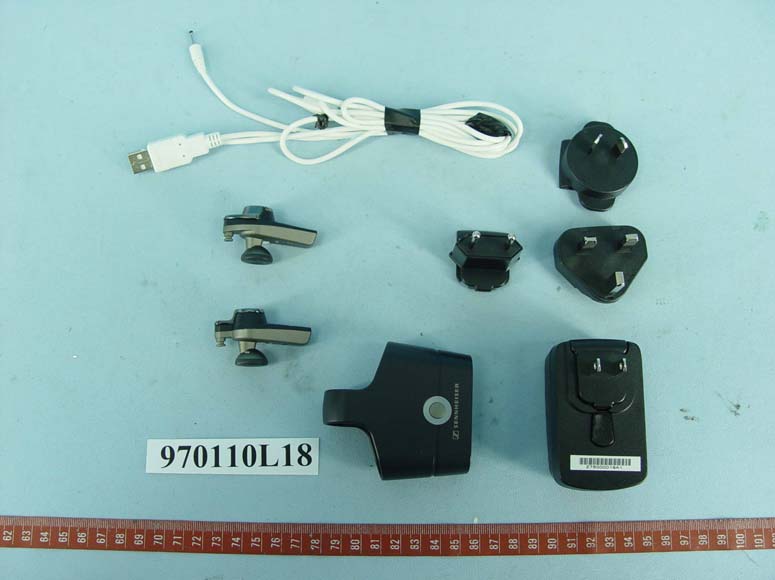

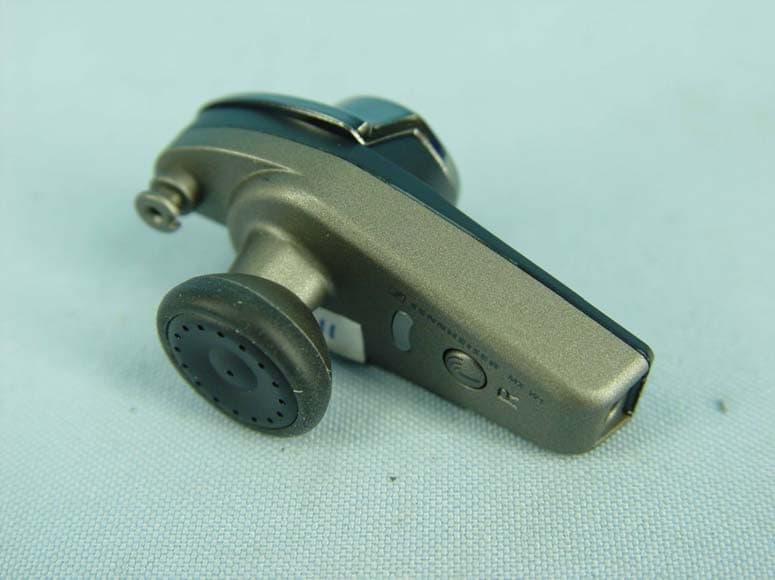

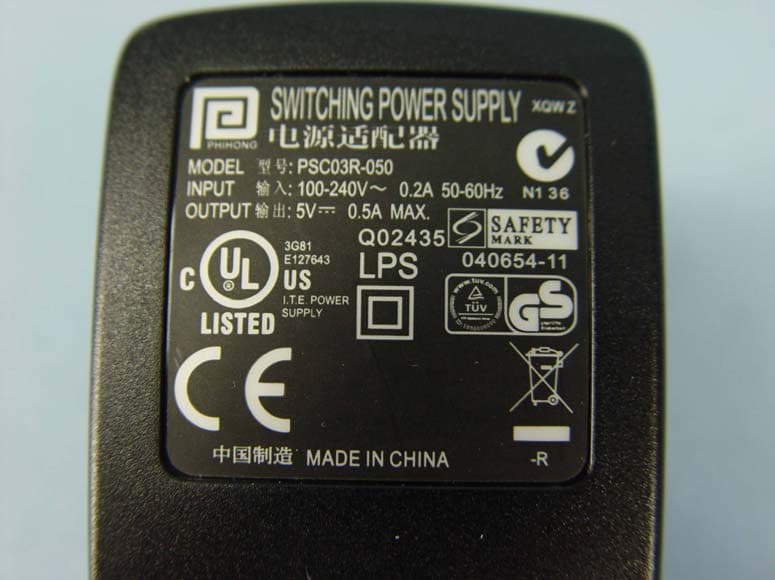

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 3 Page 4

FCC ID: DMOMXW1R Report No.: RF961224L09 Operational Description The transmitter of the EUT (Digital wireless earphone system) is powered from 3.7Vdc batteries or 5Vdc from adapter or host equipment. The antenna is Monopole / Ceramic antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: RF970110L18 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO. :RF970110L18 MODEL NO. : MX W1-R RECEIVED : Dec. 24, 2007 TESTED : Dec. 24, 2007 ~ Jan. 14, 2008 ISSUED : Feb. 18, 2008 PREPARE BY : Sennheiser electronic GmbH & Co. KG ADDRESS : Am Labor 1, D-30900 Wedemark, Germany ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 29 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF970110L18 2 Report Format Version 2.0.6 Table of Contents 1. CERTIFICATION ..................................................................................................... 3 2. SUMMARY OF TEST RESULTS ............................................................................. 4 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 4 3. GENERAL INFORMATION...................................................................................... 5 3.1 GENERAL DESCRIPTION OF EUT........................................................................ 5 3.2 DESCRIPTION OF TEST MODES.......................................................................... 6 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................... 6 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .......................... 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ......................................... 8 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................... 8 4. TEST TYPES AND RESULTS ................................................................................. 9 4.1 RADIATED EMISSION MEASUREMENT ............................................................... 9 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................. 9 4.1.2 TEST INSTRUMENTS .......................................................................................... 10 4.1.3 TEST PROCEDURES ............................................................................................11 4.1.4 DEVIATION FROM TEST STANDARD ..................................................................11 4.1.5 TEST SETUP ........................................................................................................ 12 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 12 4.1.7 TEST RESULTS .................................................................................................... 13 4.2 BAND EDGES MEASUREMENT .......................................................................... 22 4.2.1 LIMITS OF BAND EDGES MEASUREMENT ....................................................... 22 4.2.2 TEST INSTRUMENTS .......................................................................................... 22 4.2.3 TEST PROCEDURE ............................................................................................. 22 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 22 4.2.5 EUT OPERATING CONDITION ............................................................................ 22 4.2.6 TEST RESULTS .................................................................................................... 22 5. PHOTOGRAPHS OF THE TEST CONFIGURATION............................................ 27 6. INFORMATION ON THE TESTING LABORATORIES .......................................... 28 7. APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB ................................................................ 29 Report No.: RF970110L18 3 Report Format Version 2.0.6 1. CERTIFICATION PRODUCT: Digital wireless earphone system MODEL: MX W1-R BRAND: Sennheiser PREPARE BY: Sennheiser electronic GmbH & Co. KG TESTED: Dec. 24, 2007 ~ Jan. 14, 2008 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 The above equipment (model: MX W1-R) have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Feb. 18, 2008 Andrea Hsia / Specialist TECHNICAL ACCEPTANCE : , DATE:Feb. 18, 2008 Responsible for RF Long Chen / Senior Engineer APPROVED BY : , DATE:Feb. 18, 2008 Gary Chang / Assistant Manager Report No.: RF970110L18 4 Report Format Version 2.0.6 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD PARAGRAPH TEST TYPE RESULTREMARK 15.207 Conducted Emission Test NA Power supply is 3.7Vdc from battery 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 15.209 PASS Meet the requirement of limit. Minimum passing margin is -1.87dB at 2399.50MHz. 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: MEASUREMENT FREQUENCY UNCERTAINTY Conducted emissions 9kHz ~ 30MHz 2.44 dB 30MHz ~ 200MHz 3.34 dB 200MHz ~1000MHz 3.35 dB 1GHz ~ 18GHz 2.26 dB Radiated emissions 1…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST (Test mode A) 2 RADIATED EMISSION TEST (Test mode B)
