DMOP2EUWDPlug-on Transmitter

Instructions for use 49 W 100 50 Safety instructions Never open electronic units! If units are opened by customers in breach of this instruction, the warranty becomes null and void. Keep the units away from central heating radiators and electric heaters. Never expose them to direct sunlight. Use the units in dry rooms only. Use a damp cloth for cleaning the units. Do not use any cleansing agents or solvents. Thank you for choosing Sennheiser! We have designed this product to give you reliable operation over many years. Over half a century of accumulated expertise in the design and manufacture of high-quality electro-acoustic equipment have made Senn- heiser a world-leading company in this field. Please take a few moments to read these instructions carefully, as we want you to enjoy your new Sennheiser products quickly and to the fullest. 51 Contents Safety instructions ................................................................................................. 50 The evolution wireless series ew 100 G2 ........................................................... 52 The channel bank system ............................................................................................. 52 System variants ...................................................................................................... 53 Overview of operating controls ........................................................................... 54 EM 100 G2 rack-mount receiver .................................................................................. 54 EK 100 G2 bodypack receiver ....................................................................................... 55 SK 100 G2 bodypack transmitter ................................................................................ 56 SKP 100 G2 plug-on transmitter ................................................................................. 57 SKM 100 G2 radiomicrophone .................................................................................... 58 Indications and displays on the receivers .................................................................. 59 Indications and displays on the transmitters ........................................................... 61 Preparing the components for use ..................................................................... 62 EM 100 G2 rack-mount receiver .................................................................................. 62 EK 100 G2 bodypack receiver ....................................................................................... 65 SK 100 G2 bodypack transmitter ................................................................................ 66 SKP 100 G2 plug-on transmitter ................................................................................. 67 SKM 100 G2 radiomicrophone ..................................................................................... 68 Using the components .......................................................................................... 70 Switching the components on/off .............................................................................. 70 Muting the transmitters ............................................................................................... 71 Activating/deactivating the lock mode ..................................................................... 71 Attaching the components to clothing ...................................................................... 72 The operating menu ............................................................................................... 73 The buttons ..................................................................................................................... 73 Overview of menus ......................................................................................................... 73 Working with the operating menu ............................................................................. 74 Operating menu of the receivers ................................................................................. 75 Operating menu of the transmitters .......................................................................... 77 Adjustment tips for the operating menu .......................................................... 79 Switching between channel banks ............................................................................. 79 Switching between the channels in a channel bank ............................................... 79 Selecting the frequencies to be stored in the channel bank“U” .......................... 79 Scanning the channel banks for free channels (receivers only) ........................... 79 Multi-channel operation ................................................................................................ 80 Adjusting the sensitivity (transmitters only) .......................................................... 80 Adjusting the audio output level (receivers only) ................................................... 81 Adjusting the squelch threshold (receivers only) .................................................... 81 Selecting the standard display .................................................................................... 82 Entering a name .............................................................................................................. 82 Loading the factory-preset default settings ............................................................. 83 Activating/deactivating the pilot tone transmission or pilot tone evaluation .. 83 Activating/deactivating the lock mode ..................................................................... 83 Exiting the operating menu .......................................................................................... 83 If problems occur .................................................................................................... 84 Error checklist .........................…

Text truncated - open the document above for the full version.

EK 500 G2 SKP 500 Bedienungsanleitung Instructions for use Notice d’emploi Istruzioni per l’uso Instrucciones para el uso Gebruiksaanwijzing ew500_SKP.book Seite 1 Dienstag, 11. November 2003 9:47 09 Bedienungsanleitung .......................... 3 Instructions for use ............................ 31 Notice d’emploi ................................... 59 Istruzioni per l’uso .............................. 87 Instrucciones para el uso ............... 115 Gebruiksaanwijzing ........................ 143 ew500_SKP.book Seite 2 Dienstag, 11. November 2003 9:47 09 Instructions for use SKP 500 G2 31 ew500_SKP.book Seite 31 Dienstag, 11. November 2003 9:47 09 32 Thank you for choosing Sennheiser! We have designed this product to give you reliable operation over many years. Over half a century of accumulated expertise in the design and manufacture of high-quality electro-acoustic equipment have made Sennheiser a world-leading company in this field. Please take a few moments to read these instructions carefully, as we want you to enjoy your new Sennheiser product quickly and to the fullest. ew500_SKP.book Seite 32 Dienstag, 11. November 2003 9:47 09 33 Contents The SKP 500 G2 plug-on transmitter ................................. 34 The channel bank system ............................................... 34 Safety instructions ................................................................. 35 Delivery includes .................................................................... 35 Areas of application ............................................................... 36 The operating controls .......................................................... 37 Indications and displays ....................................................... 38 Preparing the plug-on transmitter for use ....................... 40 Inserting and replacing the batteries .......................... 40 Plugging the plug-on transmitter onto a microphone ........................................................................ 41 Using the plug-on transmitter ............................................. 42 Switching the plug-on transmitter on/off .................. 42 Muting the plug-on transmitter ................................... 42 Activating/deactivating the lock mode ....................... 43 The operating menu .............................................................. 44 The buttons ....................................................................... 44 Overview of menus .......................................................... 44 Working with the operating menu ............................... 45 Operating menu of the plug-on transmitter .............. 47 Adjustment tips for the operating menu .......................... 49 Switching between channel banks ............................... 49 Switching between the channels in a channel bank 49 Selecting the frequencies to be stored in the channel bank “U” .................................................. 49 Adjusting the sensitivity ................................................ 50 Switching the phantom powering on/off ................................................................................. 51 Selecting the standard display ...................................... 51 Entering a name ............................................................... 51 Loading the factory-preset default settings .............. 52 Activating/deactivating the pilot tone transmission 52 Activating/deactivating the lock mode ....................... 53 Exiting the operating menu ........................................... 53 Troubleshooting ..................................................................... 54 Error checklist ................................................................ 54 Recommendations and tips ........................................... 55 Care and maintenance ........................................................... 55 Specifications .......................................................................... 56 Accessories .............................................................................. 57 ew500_SKP.book Seite 33 Dienstag, 11. November 2003 9:47 09 34 The SKP 500 G2 plug-on transmitter The SKP 500 G2 plug-on transmitter is part of the evolution wireless series ew 500 G2. With this series, Sennheiser offers high-quality state-of-the-art RF transmission systems with a high level of operational reliability and ease of use. Transmitters and receivers permit wireless transmission with studio-quality sound. The excellent transmission reliability of the ew 500 G2 series is based on the use of yfurther optimized PLL synthesizer and microprocessor technology, ythe HDX noise reduction system, yand the pilot tone squelch control. The channel bank system The plug-on transmitter is available in five UHF frequency ranges with 1440 transmission frequencies per frequency range. Please note: Frequency usage is different for each country. Your Sennheiser agent will have all the necessary details on the available legal frequencies for your area. Range A:518 to 554 MHz Range B:626 to 662 MHz Range C:740 to 776 MHz Range D:786 to 822 MHz Range E:830 to 866 MHz The plug-on transmitter has nine channel banks with up to 20 switchable channels each. Each of the channels in the channel banks “1” to “8” has been factory-preset to a transmission frequency (see enclosed frequency table). These transmission frequencies cannot be changed but have been preset so that e.g. country-specific regulations on frequency usage are taken into account. The channel bank “U” (user bank) allows you to store your selection out of 1440 transmission frequencies that are freely selectable within the preset frequency range. channel bank 1... 8 channel bank U channel 20 preset frequency channel 1 channel 2 preset frequency preset frequency channel 20 channel 1 channel 2 freely selectable frequency freely selectable frequency freely selectable frequency ew500_SKP.book Seite 34 Dienstag, 11. Novemb…

Text truncated - open the document above for the full version.

SKP 3000 Instructions for use 33 SKP3000.book Seite 33 Freitag, 16. April 2004 11:03 11 34 Thank you for choosing Sennheiser! We have designed this product to give you reliable operation over many years. Over half a century of accumulated expertise in the design and manufacture of high-quality electro-acoustic equipment have made Sennheiser a world-leading company in this field. Please take a few moments to read these instructions carefully, as we want you to enjoy your new Sennheiser product quickly and to the fullest. SKP3000.book Seite 34 Freitag, 16. April 2004 11:03 11 35 Contents Safety instructions ........................................................... 36 Delivery includes ............................................................... 36 The SKP 3000 plug-on transmitter ............................... 37 HiDyn plus noise reduction ............................................. 38 Operating controls ............................................................ 40 Indications and displays .................................................. 41 Putting the SKP 3000 into operation ........................... 43 The operating menu ......................................................... 46 Working with the operating menu ............................... 48 Operating menu of the plug-on transmitter ............... 50 Adjustment tips for the operating menu .................... 52 Troubleshooting ................................................................ 56 Care and maintenance ..................................................... 58 Specifications .................................................................... 59 Accessories ......................................................................... 61 SKP3000.book Seite 35 Freitag, 16. April 2004 11:03 11 36 Safety instructions Never open an electronic unit! If units are opened by customers in breach of this instruction, the warranty becomes null and void. Use the SKP 3000 plug-on transmitter in dry rooms only. Delivery includes y1 SKP 3000 plug-on transmitter y2 AA size batteries, 1.5 V yInstructions for use SKP3000.book Seite 36 Freitag, 16. April 2004 11:03 11 37 The SKP 3000 plug-on transmitter The SKP 3000 transmitter permits wireless transmission with studio-quality sound. The use of further optimised PLL and microprocessor technology and the HiDyn plus noise reduction system ensure interference-free transmission. The transmitter can be supplied in nine frequency ranges within the UHF band and with a frequency grid of 5 kHz. Please note: Frequency usage is different for each country. Your Sennheiser agent will have all the necessary details on the available legal frequencies for your area. The plug-on transmitter has two channel banks with up to 20 switchable channels each. The channels of the channel bank “FIX” (Fixed Bank) are factory- preset to customer specific transmission frequencies. These transmission frequencies cannot be changed but have been preset so that e.g. country-specific regulations on frequency usage are taken into account. The channel bank “VAR” (Variable Bank) allows you to store your selection of transmission frequencies that are freely selectable within the preset frequency range. Please note, RangeFrequency rangeRangeFrequency range A518 to 554 MHzF556 to 592 MHz B626 to 662 MHzG576 to 612 MHz C740 to 776 MHzH670 to 706 MHz D786 to 822 MHzI696 to 732 MHz E830 to 866 MHz SKP3000.book Seite 37 Freitag, 16. April 2004 11:03 11 38 however, that the channel bank “VAR” is factory-preset to the same frequencies as the channel bank “FIX”. The transmitter can be combined with the rack-mount and bodypack receivers of the 3000 and 5000 series (e.g. EM 3252, EM 3032, EM 3031, EK 3041, EM 1046). The balanced XLR input allows the connection of ydynamic microphones, ycondenser microphones with internal power supply and ycondenser microphones that require 48 V phantom powering. HiDyn plus noise reduction This transmitter is equipped with HiDyn plus the Sennheiser noise reduction system that reduces RF interference. It increases the signal-to-noise radio in wireless audio transmission to more than 114 dB. SKP3000.book Seite 38 Freitag, 16. April 2004 11:03 11 39 HiDyn plus is a wideband compander system which compresses the audio signal in the transmitter in a ratio of 2:1 (related to dB). In the receiver the signal is expanded in an identical and opposite way in a 1:2 ratio to restore the original signal. HiDynplus has been specially developed for high quality radiomicrophone systems. Note: Only transmitters and receivers that are equipped with HiDynplus can work correctly with each other. If non HiDynplus equipment was mixed with HiDyn plus, the dynamic range would be drastically reduced and the transmission would sound blunt and flat. HiDyn plus is permanently active and cannot be switched off. SKP3000.book Seite 39 Freitag, 16. April 2004 11:03 11 40 Operating controls
Microphone input, XLR-3F socket (balanced) Mechanical locking ring of XLR-3 socket LC display SET button
button (DOWN)  button (UP) Red LED for operation and battery status indication (ON/LOW BAT) ON/OFF button (serves as the ESC (cancel) key in the operating menu) Battery compartment cover MUTE switch
   SKP3000.book Seite 40 Freitag, 16. April 2004 11:03 11 41 Indications and displays LC display panel Alphanumeric display “B.CH” – appears when the channel bank and the channel number are displayed “MHz” – appears when the frequency is displayed Battery status display Lock mode icon (lock mode is activated) “ MUTE” display (audio input is muted)  7-step level display for audio signal “AF” with “Peak-Hold” function  SKP3000.book Seite 41 Freitag, 16. April 2004 11:03 11 42 Operation and battery status indication The red LED (LOW BAT/ON)  provides information on the current operating state of the plug-on transmitter: Red LED lit up:The plug-on transmitter is switched on. The capacity of the batteries/BA 2015 accupack…

Text truncated - open the document above for the full version.

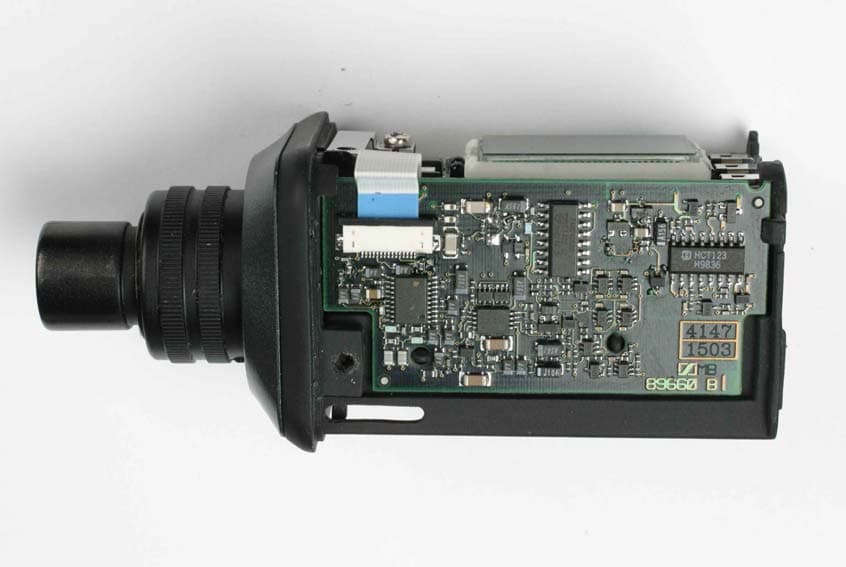

CETECOM ICT Services GmbH Test report no.: 2_3398-02-02/03 Issue Date: 12.03.2004 Page 48 (55) Photographs of the equipment SKP 100 G2/500 G2/ 3000 Photograph no.: 1 CETECOM ICT Services GmbH Test report no.: 2_3398-02-02/03 Issue Date: 12.03.2004 Page 49 (55) Photographs of the equipment SKP 100 G2/500 G2/ 3000 Photograph no.: 2

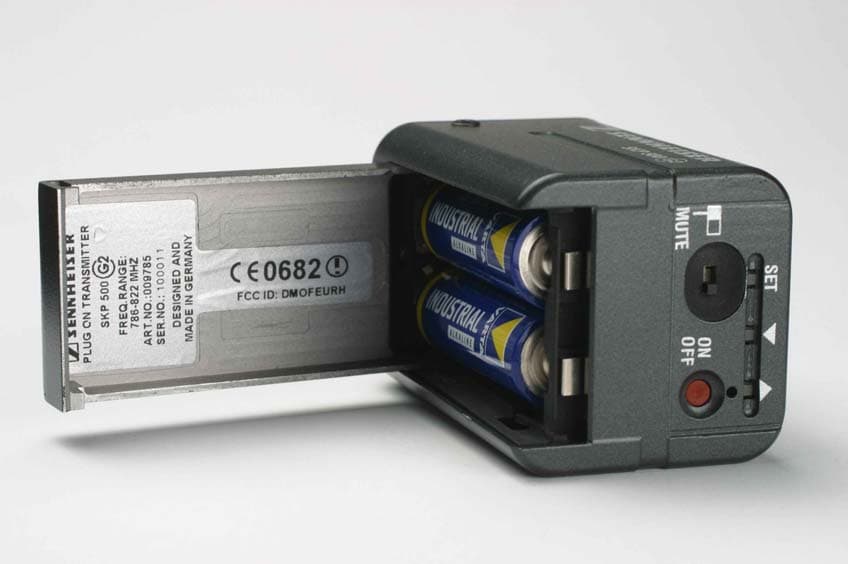

CETECOM ICT Services GmbH Test report no.: 2_3398-02-02/03 Issue Date: 12.03.2004 Page 49 (55) Photographs of the equipment SKP 100 G2/500 G2/ 3000 Photograph no.: 2

CETECOM ICT Services GmbH Test report no.: 2_3398-02-02/03 Issue Date: 12.03.2004 Page 50 (55) Photographs of the equipment SKP 100 G2/500 G2/ 3000 Photograph no.: 3 CETECOM ICT Services GmbH Test report no.: 2_3398-02-02/03 Issue Date: 12.03.2004 Page 51 (55) Photographs of the equipment SKP 100 G2/500 G2/ 3000 Photograph no.: 4

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Telephon: +49 (0)681 598-0 Telefax: -9075 RSC14 issued test report consists of 55 Pages Page 1 (55) Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 0001 Anechoic chamber registration no.: 3463 (IC) Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test Report No.: 2_3398-02-02/03 FCC Part 74.861 / CANADA RSS-123 SKP 100 G2/500 G2/ 3000 EM 550 FCC ID : DMOP2EUWD IC : 2099A-G2SKP CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 589-9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no.: 2_3398-02-02/03 Issue Date: 12.03.2004 Page 2 (55) Table of Contents 1 General Information 1.1 Notes 1.2 Testing Laboratory 1.3 Details of Applicant 1.4 Application Details 1.5 Test Item 1.6 Test Specifications 2 Technical Test 2.1 Summary of Test Results 2.2 Test Report CETECOM ICT Services GmbH Test report no.: 2_3398-02-02/03 Issue Date: 12.03.2004 Page 3 (55) 1 General Information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test Laboratory Manager: 2004-04-22 RSC8411 Berg M. Date Section Name Signature Technical Responsibility for Area of Testing: 2004-04-22 RSC8412 Hausknecht D. Date Section Name Signature CETECOM ICT Services GmbH Test report no.: 2_3398-02-02/03 Issue Date: 12.03.2004 Page 4 (55) 1.2 Testing Laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone : + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR-registration number : TTI-P-G 166/98-30 Accredited Bluetooth™ Test Facility (BQTF) BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM 1.3 Details of Applicant Name : Sennheiser electronic GmbH & Co. KG Street : Am Labor 1 City : D-30900 Wedemark Country : Germany Telephone : +49 (0) 5130 600-0 Telefax : +49 (0) 5130 600-324 Contact : Mr. Klaus Willemsen Telephone : +49 (0) 5130 600-542 E-mail : [email protected] 1.4 Application Details Date of receipt of application : 2003-09-15 Date of receipt of test item : 2004-03-11 Date of test : 2004-03-12 – 2004-03-16 CETECOM ICT Services GmbH Test report no.: 2_3398-02-02/03 Issue Date: 12.03.2004 Page 5 (55) 1.5 TEST ITEM Type of equipment : Low power auxiliary equipment Type designation : Tx: SKP 100 G2/500 G2/ 3000 Rx: EM 550 Manufacturer : see applicant Street : City : Country : Serial number : Tx: 100030, 100028, 100041, 100043, 100034; Rx 100001 Additional information : Frequency : 518 MHz – 870 MHz (518-608 MHz and 614-806 MHz) Type of modulation : 134KF3E (2x max. Audio Frequency + 2x max. FM Deviation) Number of channels : 7205 (in 25 kHz steps) Antenna : Tx: integrated antenna ; Rx: BNC connector Power supply : Rx: 100 – 240V AC ; Tx: 2x1.5V DC Battery Output power : max 18.2 mW Field strength : 110.1 dBμV/m in 3m Occupied bandwidth : max. 200 kHz Transmitter spurious : -42.1 dBm Receiver spurious . 26.4 dBμV/m in 3m Temperature range : -30°C - +50°C FCC ID : SKP 100 G2 / SKP 500 G2 SKP 3000: DMOP2EUWD IC : SKP 100 G2 / SKP 500 G2 / SKP 3000 / EM 550 :2099A-G2SKP DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Signature: _______________________________________________ Date: ___2003-10-13 Michael Berg ; Test management NAME AND TITLE (Please print or type): 1.6 Test Specifications: FCC Part 74 Subpart H CANADA RSS-123 CETECOM ICT Services GmbH Test report no.: 2_3398-02-02/03 Issue Date: 12.03.2004 Page 6 (55) 2 Technical Test For test was chosen Transmitter SKP 500 G2, which represents the worst case. ( differences in software) 2.1 Summary of Test Results TEST PROCEDURE All tests were done in accordance with the EIA/TIA 603. THE SUBSTITUTION METHOD ( TIA/EIA 603) WAS USED. This products fulfills also the requirements for CANADA RSS-123 No deviations from the technical specification(s) were ascertained in the course of the tests performed. Final verdict : PASS CETECOM ICT Services GmbH Test report no.: 2_3398-02-02/03 Issue Date: 12.03.2004 Page 7 (55) 2.2 Test report TEST REPORT Test report no.: 2_3398-02-02/03 CETECOM ICT Services GmbH Test report no.: 2_3398-02-02/03 Issue Date: 12.03.2004 Page 8 (55) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED PAGE OUTPUT POWER (radiated) FCC Rule Part 74.861 (e)(1)(ii) 9 AFC FREQ ERROR vs. VOLTAGE FCC Rule Part 74.861 12 AFC FREQ ERROR vs. TEMPERATURE 14 CHARACTERISTICS OF THE AUDIO MODULATION CIRCUITRY 16 OCCUPIED BANDWIDTH FCC Rule Part 74.861(e)(3), (5)/ Sec. 2.1049 17 Emission mask FCC 74 861(e)(6) 23 RADIATED EMISSIONS FCC Rule Part 74 subpart H 28 FCC Part 15 Subpart B 36 SPURIOUS RADIATION § 15.109 37 SPURIOUS RADIATION § 15.111 38 Conducted emissions § 15.107/207 42 TEST EQUIPM…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report no.: 2_3398-02-02/03 Issue Date: 12.03.2004 Page 45 (55) Test setup Radiated Emissions SKP 100 G2/500 G2/ 3000 CETECOM ICT Services GmbH Test report no.: 2_3398-02-02/03 Issue Date: 12.03.2004 Page 46 (55) Test site Radiated Emissions EM 550 CETECOM ICT Services GmbH Test report no.: 2_3398-02-02/03 Issue Date: 12.03.2004 Page 47 (55) Test site Conducted emissions
