DMOSK1G9WEDigital Wireless Bodypack

SpeechLine DW Technische Daten Specifications Caractéristiques techniques Dati tecnici Especificaciones técnicas Dados técnicos Technische specificaties        (ᄂ)㚰⍃㓱 (ᄂ)埔˻̫˳ 韥ꯕ鴥넩뫥 Manual SL LavalierSet CSL HeadmicSet CSL HandheldSet CSL Rack ReceiverSL LavalierSet RSL HeadmicSet RSL HandheldSet R KO EN FR IT PT NL RU ZH ES DE JA LICENSE 1 SpeechLine Digital Wireless Technische Daten System NF-Übertragungsbereich20 bis 20.000 Hz Dynamikbereich> 120 dB (A) THD (1 kHz)typ. 0,1 % Audio Sampling24 bit/48 kHz Signal/Rauschabstand 90 dB (A) EncryptionAES 256 HF-FrequenzbereicheEU: 1.880 bis 1.900 MHz USA: 1.920 bis 1.930 MHz Brasilien: 1.910 bis 1.920 MHz Taiwan: 1.880 bis 1.895 MHz Japan: 1.893 bis 1.906 MHz ModulationGFSK mit Datenrückkanal ÜbertragungssystemTDMA, Space diversity Latenz19 ms relative Luftfeuchte max. 95 % Temperaturbereich*im Betrieb: –10 °C bis +55 °C Lagerung: –20 °C bis +70 °C * Die Batterie-Eigenschaften beeinflussen diesen Temperaturbereich SL Rack Receiver HF-Empfindlichkeit –90 dBm Sendeleistung Rückkanaladaptiv bis zu 250 mW (länderspezifisch) Digital Gain einstellbar in 6-dB-Schritten Mic/Line level switch: –24 dB/0 dB XLR, symmetrisch: max. +18 dBu Cinch, unsymmetrisch: max. +6 dBu Audio-EffekteLow Cut: –3 dB bei 120 Hz Equalizer: 7-Band-Graphic-Equalizer mit Sound-Presets Automatic Gain Control AGC: Kompression/Expansion mit automatischer Make-Up-Gain-Funktion DisplayOLED NetzwerkprotokollMedia Control Protocol, TCP/IP IPv4 (DHCP, Manual)/IPv6 Spannungsversorgung12 V DC Stromaufnahme350 mA NF-AnschlussbuchsenXLR/2 x Cinch Antennenbuchsen2 x Rev-SMA NetzwerkbuchseRJ45 StromanschlussHohlklinke Gewichtca. 828 g 2 SL Handheld Sendeleistungadaptiv bis zu 250 mW (länderspezifisch) NF-Übertragungsbereich50 bis 20.000 Hz EingangsempfindlichkeitAutomatic Sensitivity Adjustment SpannungsversorgungAkkupack: BA 10 (Li-Ion, 3,7 V) Batterien*: 2 x Mignon AA (1,5 V) BatterielaufzeitAkkupack: typ. 15 h Batterien*: typ. 10 h DisplayLCD Mute-Schaltervorhanden Gewicht (ohne Akkupack)ca. 262 g inkl. Kapsel * optionales Zubehör SL Bodypack Sendeleistungadaptiv bis zu 250 mW (länderspezifisch) NF-Übertragungsbereich Mic: 50 bis 20.000 Hz Line: 20 bis 20.000 Hz Max. EingangspegelMic: 2,2 V RMS Line: 3,3 V RMS Eingangsimpedanz Line1 M EingangsempfindlichkeitAutomatic Sensitivity Adjustment SpannungsversorgungAkkupack: BA 30 (Li-Ion, 3,7 V) Batterien*: 2 x Mignon AA (1,5 V) BatterielaufzeitAkkupack: typ. 15 h Batterien*: typ. 11 h NF-Anschlussbuchse3,5 mm-Klinkenbuchse, verschraubbar LineMic Gewicht (ohne Akkupack)ca. 88 g * optionales Zubehör KO EN FR IT PT NL RU ZH ES DE JA LICENSE 3 MME 865-1MKE 1SL Headmic 1 Mikrofontypdauerpolarisiertes Kondensatormikrofon Empfindlichkeit1,6 mV/Pa5 mV/Pa5 mV/Pa RichtcharakteristikSuperniereKugelKugel Max. Schalldruckpegel152 dB SPL142 dB SPL142 dB SPL Mikrofone Anforderungen werden erfüllt für: Europa Funk EMV Sicherheit RoHS EN 301406 EN 301489-1/-6 EN 60950-1, EN 62311 (SAR) EN 50581 USAFCC 47 CFR 15 KanadaIndustry Canada RSS 210, CAN ICES-3(B)/NMB-3(B) Zugelassen für: USASL Rack Receiver SL Handheld SL Bodypack FCC ID: DMOEM1G9WE FCC ID: DMOSKM1G9WE FCC ID: DMOSK1G9WE KanadaSL Rack Receiver SL Handheld SL Bodypack IC: 2099A-EM1G9WE IC: 2099A-SKM1G9WE IC: 2099A-SK1G9WE Australien/Neuseeland Japan R 202-SMC048 SL Rack Receiver R 202-SMC049 SL Handheld R 202-SMC050 SL Bodypack 4 Netzteile NT 12-4CNT 2-3 Nenneingangspannung100 bis 240 V~ Netzfrequenz50 oder 60 Hz Eingangsstrommax. 120 mA Nennausgangsspannung 12 V Stand-by-Leistungsaufnahme 0,3 W Energie-Effizienz-KlasseVIV Betriebstemperatur–10 °C bis +55 °C Lagertemperatur–20 °C bis +70 °C Relative Luftfeuchtemax. 95 % Gewichtca. 100 gca. 105 g Anforderungen werden erfüllt für: Europa EMV Sicherheit RoHs EN 55022, EN 55024 EN 60065 EN 50581 Energie Effizienz Verordnung Nr.1275/2008 USA/KanadaEMV Sicherheit FCC 47 CFR 15 B ICES 003, CAN ICES-3(B)/NMB-3(B) UL 60065 CAN/CSA-C22.2 No. 60065 ChinaEMV Sicherheit RoHs GB13837, GB17625 GB8898 Australien/NeuseelandEMV Sicherheit AS/NZS CISPR 22 AS/NZS 60065 KO EN FR IT PT NL RU ZH ES DE JA LICENSE 5 Zertifiziert nach: EuropaVDF_GS (NT2-3) ENEC 22 SIQ (NZ12-4) USA/Kanada Australien/Neuseeland Japan China(nur NT 2-3) KoreaKTL SU 10524-13002 (nur NT 2-3) Russland ME95 Akkupacks BA 10BA 30 Ladekapazität2200 mAh2030 mAh Ausgangsspannung3,6 V3,7 V 6 Garantie  Sennheiser electronic GmbH & Co. KG übernimmt für dieses Produkt eine Garantie von 24 Monaten.  Die aktuell geltenden Garantiebedingungen können Sie über das Internet www.sennheiser.com oder Ihren Sennheiser-Partner beziehen. In Übereinstimmung mit folgenden Anforderungen  WEEE-Richtlinie (2012/19/EU) Bitte entsorgen Sie die Produkte am Ende ihrer Nutzungsdauer bei Ihrer örtlichen kommu- nalen Sammelstelle oder im Recycling Center.  Batterierichtlinie (2006/66/EG) Die mitgelieferten Akkus oder Batterien sind recyclingpflichtig. Bitte entsorgen Sie Akkus bzw. Batterien über offizielle Sammelstellen oder den Fachhandel. Entsorgen Sie nur leere Batterien oder Akkus, um den Umweltschutz zu gewährleisten. CE-Konformität  0682  R&TTE-Richtlinie (1999/5/EG)  RoHS-Richtlinie (2011/65/EU)  EMV-Richtlinie (2004/108/EU)  Niederspannungs-Richtlinie (2006/95/EU) Die Erklärungen stehen im Internet unter www.sennheiser.com zur Verfügung. Vor Inbetriebnah- me sind die jeweiligen länderspezifischen Vorschriften zu beachten. Herstellererklärungen Anforderungen werden erfüllt für: Europa EMV Sicherheit EN 301489-1/-6/-17 IEC/EN 62133 USA/KanadaAkkuzellen Akkupack UL 1642 UL 2054 JapanDENAN Ordinance Article 1; Appendix 9 Lithium Ion KoreaSicherheitK 62133 UN Transporttest gemäß UN-Prüfhandbuch Teil III, Abschnitt 38.3 Lithiumbatterien Zertifiziert nach: USA/Kanada Japan Korea KO EN FR IT PT NL RU ZH ES DE JA LICENSE 1 SpeechLine Digital Wireless Specifications System AF frequency response20 to 20,000 Hz Dynamic range> 120 dB (A) THD (1 kHz)typ. 0.1 % Audio sampling24 bit/48 kHz Signal-to-no…

Text truncated - open the document above for the full version.

Identify Change device App Control Menu Battery Setup SpeechLine Digital Wireless Quick Guide Kurzanleitung | Guide rapide | Guida rapida | Instrucciones resumidas | Guida rápido | Beknopte handleiding |      | | | | OR SHORT = ON 3 s = OFF Paired OR 3 s Pair 3 s Pair 1G9 min. 1 m AB OR 1:00h 2:00h 3:00h 4:30h 100% 75% 50% 25% 0:30h 1:00h 1:30h 3:00h OR SHORT Pair RCAXLR OR = Menu up esc = Navigate = Set App Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in Germany, Publ. 11/14, 554639/A02 SL Handheld SpeechLine Digital Wireless MME 865-1 NT 2-3 NT 12-4C Charger Battery Wallmount antenna SL Rack Receiver Power Supply SL Bodypack Lavalier microphone Headset microphone MKE 1 SL Headmic 1

Regulatory Compliance Declaration of Identity Global Process QM-08 Form 08-54 Version 03/2011 Project Name: Wennebostel Project No: 767622 Prepared By: DSm Product Name/Model No: SK AVX Revision No: 1.0 Date: 05.03.15 Type of product: Bodypack Transmitter We declare that the following Family Series/ Variant model(s) Family Series Model(s) / Variant Model(s) Model Name/No. Article No. SL Bodypack DW Bodypack transmitter 505883, 505900, 505910, 505920, 506704 are identical to the Basic model Basic Model Model Name/No. Article No. SK AVX Bodypack transmitter 505859 with the similarities and differences indicated below: Similarities Differences Remarks Same RF circuit and layout Silver housing, instead of black housing Responsible Person: Dennis Stegemerten /PRO &Kai Tossing / IS Change History: Revision No. Release Date Change Description Prepared By 1.0 05.03.2015 Initial release DSm

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 February 25, 2015 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Company requests confidentiality for the following products: FCC ID Number Product Title/Model DMOSK1G9WE SL Bodypack DW, SK AVX For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” 4. Tune Up Info submitted as Equipment Authorization Electronic Filing attachment: “tune up info” The above exhibits contain Company trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Marco Happ Company: Sennheiser electronic GmbH & Co. KG Address: Am Labor 1 D-30900 Wedemark (Germany) Phone: 49-5130-600-2621 Email: [email protected]

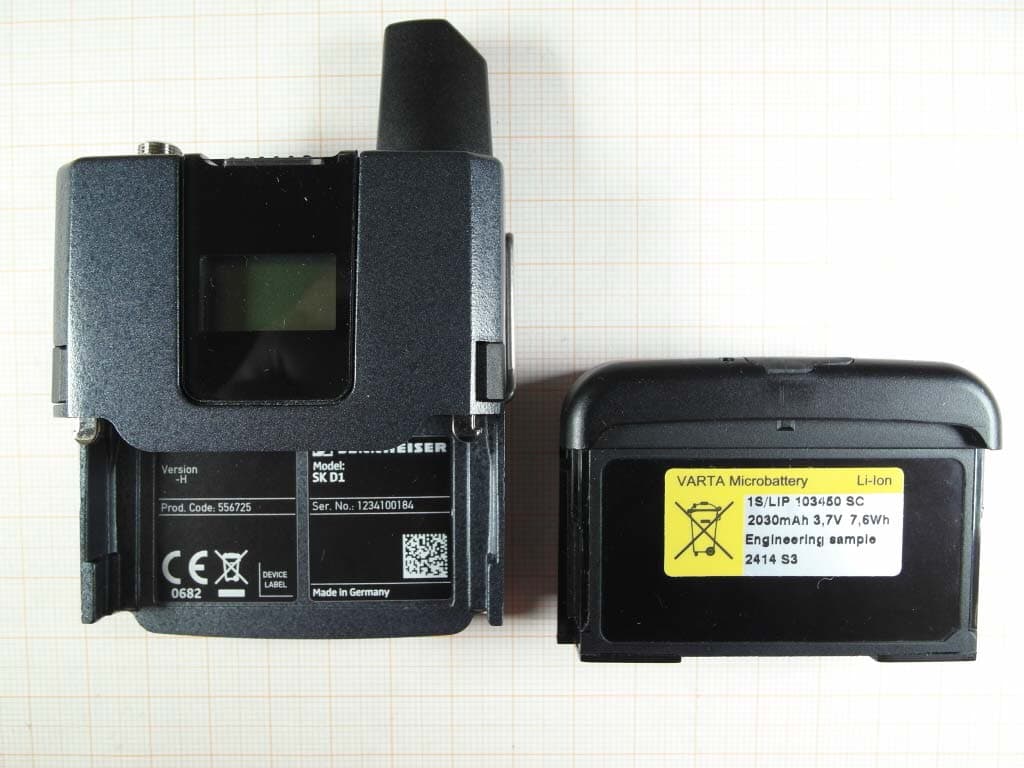

Test report no.: 1-5753/12-02-17 2015-02-04 Page 53 of 58 Annex B: External Photographs of the EUT Photo 1: Photo 2:

SK AVX SL Bodypack DW

Test report no.: 1-5753/12-02-17 2015-02-04 Page 54 of 58 Annex C: Internal Photographs of the EUT Photo 1: Photo 2: Test report no.: 1-5753/12-02-17 2015-02-04 Page 55 of 58 Photo 3:

Page 1 of 31 Annex D Appendix to Test Report No.: 1-5753/12-02-09 Testing Laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 – 10 66117 Saarbrücken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Test Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-01 Appendix with Calibration data, Phantom certificate and system check information 2015-01-12 Annex D to Test report no.: 1-5753/12-02-09 Page 2 of 31 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 Calibration report “Probe ES3DV3” ........................................................................................................ 3 3 Calibration report “1900 MHz System validation dipole” .................................................................... 14 4 Calibration certificate of Data Acquisition Unit (DAE) ........................................................................ 24 5 Certificate of “SAM Twin Phantom V4.0/V4.0C’’ ................................................................................. 25 6 Application Note System Performance Check ..................................................................................... 26 6.1 Purpose of system performance check ..................................................................................... 26 6.2 System Performance check procedure ...................................................................................... 26 6.3 Uncertainty Budget ...................................................................................................................... 27 6.4 Power set-up for validation ......................................................................................................... 30 6.5 Laboratory reflection ................................................................................................................... 31 6.6 Additional system checks ........................................................................................................... 31 Annex D to Test report no.: 1-5753/12-02-09 Page 3 of 31 2 Calibration report “Probe ES3DV3” Annex D to Test report no.: 1-5753/12-02-09 Page 4 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 5 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 6 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 7 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 8 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 9 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 10 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 11 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 12 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 13 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 14 of 31 3 Calibration report “1900 MHz System validation dipole” Annex D to Test report no.: 1-5753/12-02-09 Page 15 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 16 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 17 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 18 of 31 Antenna Parameters with Head TSL From cal. data Measured 2014-08-28 Impedance; transformed to feed point 51.2Ω +2.1jΩ 51.8Ω +1.8jΩ Return Loss -32.6dB -32.3dB Annex D to Test report no.: 1-5753/12-02-09 Page 19 of 31 Antenna Parameters with Body TSL From cal. data Measured 2014-08-28 Impedance; transformed to feed point 48.8Ω +3.2jΩ 46.4Ω +3.0jΩ Return Loss -26.5dB -26.3dB Annex D to Test report no.: 1-5753/12-02-09 Page 20 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 21 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 22 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 23 of 31 Annex D to Test report no.: 1-5753/12-02-09 Page 24 of 31 4 Calibration certificate of Data Acquisition Unit (DAE) Annex D to Test report no.: 1-5753/12-02-09 Page 25 of 31 5 Certificate of “SAM Twin Phantom V4.0/V4.0C’’ Annex D to Test report no.: 1-5753/12-02-09 Page 26 of 31 6 Application Note System Performance Check 6.1 Purpose of system performance check The system performance check verifies that the system operates within its specifications. System and operator errors can be detected and corrected. It is recommended that the system performance check is performed prior to any usage of the system in order to guarantee reproducible results. The measurement of the Specific Absorption Rate (SAR) is a complicated task and the result depends on the proper functioning of many components and the correct settings of many parameters. Faulty results due to drift, failures or incorrect parameters might not be recognized, since they often look similar in distribution to the correct ones. The Dosimetric Assessment System DASY4 incorporates a system performance check procedure to test the proper functioning of the system. The system performance check uses normal SAR measurements in a simplified setup (the flat section of the SAM Twin Phantom) with a well characterized source (a matched dipole at a specified distance). This setup was selected to give a high sensitivity to all parameters that might fail or vary over time (e.g., probe, liquid parameters, and software settings) and a low sensitivity to external effects inherent in the system (e.g., positioning uncertainty of the device holder). The system performance check does not replace the calibration of the components. The accuracy of the system performance check is not sufficient for calibration purposes. It is possible to calculate the field quite accurately in this simple setup; however, due to the open field situation some factors (e.g., laboratory reflections) cannot …

Text truncated - open the document above for the full version.

Page 1 of 39 TEST REPORT Test Report No.: 1-5753/12-02-09 Testing Laboratory Applicant CETECOM ICT Services GmbH Untertürkheimer Straße 6 – 10 66117 Saarbrücken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Test Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-00 Sennheiser electronic GmbH & Co. KG Am Labor 1 30900 Wedemark/GERMANY Phone: +49 5130 600-0 Contact: Marco Happ e-mail: [email protected] Phone: +49 5130 600-2621 Fax: +49 5130 600-574 Manufacturer Sennheiser electronic GmbH & Co. KG Am Labor 1 30900 Wedemark/GERMANY Test Standard/s IEEE 1528-2003 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR)in the Human Head from Wireless Communications Devices: Measurement Techniques RSS-102 Issue 4 Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Wireless Microphone Bodypack Device type: portable device Model name: SL Bodypack DW, SK AVX S/N serial number: 1464100465 FCC-ID: DMOSK1G9WE IC: 2099A-SK1G9WE Hardware status: 551064-09 SK Software status: 0.4.7 Frequency: 1920 - 1930MHz – DECT 1900MHz Antenna: integrated antenna (1: Ceramic / 2: PCB) Battery option: Lithium-Ion battery 5V/1A Accessories: SL Rack Receiver DW - DECT Test sample status: identical prototype Exposure category: general population / uncontrolled environment This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test Report authorised: Test performed: Oleksandr Hnatovskiy Marco Scigliano Radio Communications & EMC Radio Communications & EMC Test report no.: 1-5753/12-02-09 Page 2 of 39 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 General information .................................................................................................................................. 3 2.1 Notes and disclaimer ..................................................................................................................... 3 2.2 Application details ......................................................................................................................... 3 2.3 Statement of compliance ............................................................................................................... 3 2.4 Technical details............................................................................................................................. 4 3 Test standards/ procedures references .................................................................................................. 5 3.1 RF exposure limits ......................................................................................................................... 6 4 Summary of Measurement Results ......................................................................................................... 7 5 Test Environment ...................................................................................................................................... 7 6 Test Set-up ................................................................................................................................................. 8 6.1 Measurement system ..................................................................................................................... 8 6.1.1 System Description ................................................................................................................ 8 6.1.2 Test environment ................................................................................................................... 9 6.1.3 Probe description ................................................................................................................... 9 6.1.4 Phantom description ............................................................................................................ 10 6.1.5 Device holder description .................................................................................................... 11 6.1.6 Scanning procedure ............................................................................................................ 12 6.1.7 Spatial Peak SAR Evaluation .............................................................................................. 13 6.1.8 Data Storage and Evaluation............................................................................................... 14 6.1.9 Tissue simulating liquids: dielectric properties .................................................................... 16 6.1.10 Tissue simulating liquids: parameters ................................................................................. 16 6.1.11 Measurement uncertainty evaluation for SAR test .............................................................. 17 6.1.12 Measurement uncertainty evaluation for System Check ..................................................... 20 6.1.13 System check ...................................................................................................................... 21 6.1.14 System check procedure ..................................................................................................... 21 6.1.15 System validation ................................................................................................................ 22 7 Detailed Test Results .…

Text truncated - open the document above for the full version.

2015-02-04 Page 1 of 58 TEST REPORT Test Report No.: 1-5753/12-02-17 Testing Laboratory Applicant CETECOM ICT Services GmbH Untertürkheimer Straße 6 – 10 66117 Saarbrücken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Test Laboratory: The testing laboratory (FCC part 15 D) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-00 Sennheiser electronic GmbH & Co. KG Am Labor 1 30900 Wedemark GERMANY Phone: +49 5130 600-0 Fax: +49 5130 600-574 Contact: Marco Happ e-mail: [email protected] Phone: +49 5130 600-2621 Manufacturer Sennheiser electronic GmbH & Co. KG Am Labor 1 30900 Wedemark GERMANY Test Standard/s FCC Part 15, subpart D Isochronous UPCS Device 1920 – 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communication Service Devices (LE-PCS) Test Item Kind of test item: DECT Portable Part Model name: SL Bodypack DW, SKAVX FCC ID: DMOSK1G9WE IC: 2099A-SK1G9WE S/N serial number: 1234100131 HW hardware status: 551064-09 SK SW software status: 0.4.21 Frequency [MHz]: 1920 -1930 Type of Modulation: Digital (Gaussian Frequency Shift Keying) Number of channels: 5 RF Channels, 5x12 = 60 TDMA Duplex Channels Antenna: 1 chip and 1 PCB antenna Power Supply: 3.0 V DC, Li-Ion Battery Temperature Range: -20°C to 50°C Test Report authorised: Test performed: 2015-02-04 Lenjoint, Marco 2015-02-04 Wolf, Joachim Testing Manager Senior Consultant Test report no.: 1-5753/12-02-17 2015-02-04 Page 2 of 58 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 General information .................................................................................................................................. 4 2.1 Notes and disclaimer ..................................................................................................................... 4 2.2 Application details ......................................................................................................................... 4 3 Test standard/s: ......................................................................................................................................... 4 4 Test Environment ...................................................................................................................................... 5 5 Test Item ..................................................................................................................................................... 5 6 RSP100 Test report Cover Sheet/Performance Test Data ..................................................................... 6 7 Summary of Measurement Results ......................................................................................................... 7 8 Test Set-up ................................................................................................................................................. 8 8.1 Frequency Measurements ............................................................................................................. 8 8.2 Timing Measurements ................................................................................................................... 8 8.3 Conducted Emission Test ............................................................................................................. 8 8.4 Radiated Emission Test ................................................................................................................. 9 8.5 Power Line Conducted Emissions Test ....................................................................................... 9 8.6 Monitoring Tests........................................................................................................................... 10 8.7 Radiated Output Power Test ....................................................................................................... 10 9 Detailed Test Results .............................................................................................................................. 11 9.1 Power Line Conducted Emissions ............................................................................................. 11 9.2 Coordination with fixed microwave ............................................................................................ 12 9.3 Digital Modulation Techniques ................................................................................................... 12 9.4 Labeling Requirements ................................................................................................................ 12 9.5 Antenna Requirements ................................................................................................................ 13 9.6 Channel Frequencies ................................................................................................................... 13 9.7 Automatic Discontinuation of Transmission ............................................................................. 14 9.8 Peak Power Output ...................................................................................................................... 15 9.9 E m i s s i o n B a n d w i d t h B ......................................................................................................... 19 9.10 Power Spectral Density ............................................................................................................ 22 9.11 In-Band Unwanted Emissions, Conducted ............................................................................ 25 9.12 Out-of-Band Emissions, Conducted .........................................................…

Text truncated - open the document above for the full version.

Test report no.: 1-5753/12-02-17 2015-02-04 Page 52 of 58 Annex A: Photographs of the Test Set-up Photo 1: Radiated Emission Photo 2: Radiated Emission
