DMOSKMSEWDHandheld Transmitter

Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in Germany Publ. 04/20, 583962/A01 Quick Guide Kurzanleitung Guide rapide Guida rapida Guía de inicio rápido Guia rápido Beknopte handleiding Krótka instrukcja obsługi Snabbguide Kort vejledning Pikaohje Γρήγορος οδηγός Kısa Kılavuz Краткая инструкция 퀵 가이드 Evolution Wireless Digital EW-D Smart Assist Sennheiser Documentation App or online at www.sennheiser.com/download EW-D_ Instruction Manual EW-D EM EW-D Smart AssistIn the box Antennas Audio Out Power supply Battery Identify/Battery check EW-D SK EW-D SKM-S On/Off OR OR OR OR 6.3 mmXLR-3 antenna inputs audio outputs power supply EU KOR CN US UK AU ≥ 0,5 m ≥ 1 m * * *optional accessories: ADP UHF (470 - 1075 MHz) AD 1800 (1400 - 2400 MHz) MUTESYNC DATA LED DATA LED SYNC SYNC SYNC SETUP DOWN ESC Rack mount angles Power supply Power supply adapters MUTE ON/OFF ON/OFF ON/OFF LINK LED LINK LED DATA LED SK 2 AA batteries (included) *optional: BA 70 rechargeable battery 2 AA batteries (included) *optional: BA 70 rechargeable battery * * SKM-S LINK LED EM/SK/SKM-S Off -> OnEM SKM-S SK shorton EM/SK/SKM-S On -> Off longoff SK/SKM-S On -> Identify/Check shortIdentify/Check ≤ 100 % ≤ 60 % ≤ 20 % LINK LED SK/SKM-S Display of synced EM SKM-S SK 23 1 1234 MUTE MHz dB dB AF OUTGAIN AF OUT MUTE LOCK AUTO SCAN CHANNEL TUNE RESET GAIN CHRFAFBAT The EW-D Smart Assist app simplifies your workflow EW-D Smart Assist app provides automated setup, operation and monitoring using any iOS or Android device Easy frequency allocation and wireless channel naming help to keep syst ems organized Mobile access to all system settings centralizes control and eliminates the need for complicated menu navigation on each device Intelligent setup automatically creates reliable wireless connections, no wireless expertise required ai158615684537_583962_0420_A01_QG_EW-D_PRT.pdf 2 06.04.2020 09:07:27 Display Menu LEDs Mute Color coding sets Sync Key lock MHz dB dB AF OUTGAIN AF OUT MUTE LOCK AUTO SCAN CHANNEL TUNE RESET GAIN CHRFAFBAT MHz dB dB AF OUTGAIN AF OUT MUTE LOCK AUTO SCAN CHANNEL TUNE RESET GAIN CHRFAFBAT MHz dB dB AF OUTGAIN AF OUT MUTE LOCK AUTO SCAN CHANNEL TUNE RESET GAIN CHRFAFBAT MHz dB dB AF OUTGAIN AF OUT MUTE LOCK AUTO SCAN CHANNEL TUNE RESET GAIN CHRFAFBAT optional accessories for EM, SK and SKM-S wireless link 1: wireless link 2: etc. Firmware update in progress Bluetooth active to - sync with transmitter - connect with app - - Link ok audio active - - No link Device switched off - No link - - Link ok audio muted or no capsule on SKM - - Link ok audio clip - - Link ok Low transmitter battery EM EM short press short press short press LINK LED DATA LED SKM-S DATA DATA LINK LINK unlocked press both locked SK SKM-S SK 25 cm (10") ME 2ME 3 ME 4 SKM-S SKM-S 2...3 cm (1") Radio frequency level Transmitter audio level ChannelAudio output level GainTransmitter battery Menu Frequency Key lock Mute Mute lock Antenna switching diversity App connection MUTESYNC 470.200 MHz dB 060 124dB AF OUTGAIN AF OUT MUTE LOCK AUTO SCAN CHANNEL TUNE RESET GAIN CHRFAFBAT 21 MHz dB dB AF OUTGAIN AF OUT MUTE LOCK AUTO SCAN CHANNEL TUNE RESET GAIN CHRFAFBAT Instruction Manual Instruction Manual Instruction Manual Instruction Manual Instruction Manual Instruction Manual Mute Lock Instruction Manual MHz dB dB AF OUTGAIN AF OUT MUTE LOCK AUTO SCAN CHANNEL TUNE RESET GAIN CHRFAFBAT Gain MHz dB dB AF OUTGAIN AF OUT MUTE LOCK AUTO SCAN CHANNEL TUNE RESET GAIN CHRFAFBAT AF Out MHz dB dB AF OUTGAIN AF OUT MUTE LOCK AUTO SCAN CHANNEL TUNE RESET GAIN CHRFAFBAT MHz dB dB AF OUTGAIN AF OUT CHRFAFBAT Mute Lock MHz dB dB AF OUTGAIN AF OUT MUTE LOCK AUTO SCAN CHANNEL TUNE RESET GAIN CHRFAFBAT MHz dB dB AF OUTGAIN MUTE LOCK CHRFAFBAT Auto Scan MHz dB dB AF OUTGAIN AF OUT MUTE LOCK AUTO SCAN CHANNEL TUNE RESET GAIN CHRFAFBAT MHz dB dB AF OUTGAIN AUTO SCAN CHRFAFBAT Channel MHz dB dB AF OUTGAIN AF OUT MUTE LOCK AUTO SCAN CHANNEL TUNE RESET GAIN CHRFAFBAT MHz dB dB AF OUTGAIN CHANNEL CHRFAFBAT Tune MHz dB dB AF OUTGAIN AF OUT MUTE LOCK AUTO SCAN CHANNEL TUNE RESET GAIN CHRFAFBAT MHz dB dB AF OUTGAIN TUNE CHRFAFBAT Reset MHz dB dB AF OUTGAIN AF OUT MUTE LOCK AUTO SCAN CHANNEL TUNE RESET GAIN CHRFAFBAT MHz dB dB AF OUTGAIN GAIN CHRFAFBAT SK MUTESYNC MUTESYNC Instruction manual | Bedienungsanleitung | Notice d'emploi | Istruzioni per l'uso | Instrucciones de manejo | Manual de instruções | Gebruiksaanwijzing | Instrukcja obsługi | Bruksanvisning | Betjenings vejledning | Käyttöohje | Οδηγίεςλειτουργίας | Kullanım kılavuzu | Инструкцияпоэксплуатации | | | 사용 설명서 | Sennheiser Documentation App EW-D Smart Assist RESET RESET MUTESYNC OR MHz dB dB AF OUTGAINCHRFAFBAT MHz dB dB AF OUTGAINCHRFAFBAT etc. ai158615684537_583962_0420_A01_QG_EW-D_PRT.pdf 1 06.04.2020 09:07:26

Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in Germany, Publ. 07/20, 583963/A02 Evolution Wireless Digital EW-D EM EW-D SK EW-D SKM-S Technische Daten & Herstellererklärungen Specifications & Manufacturer declarations Caractéristiques techniques & Déclarations du fabricant Dati tecnici & Dichiarazioni del costruttore Especificaciones técnicas & Declaraciones del fabricante Dados técnicos & Declarações do fabricante Technische specificaties & Verklaringen van de fabrikant Dane techniczne & Deklaracje producenta Tekniska data & Tillverkarintyg Tekniske data & Producenterklæringer Tekniset tiedot & Valmistajan vakuutukset Τεχνικά χαρακτηριστικά & Δηλώσεις κατασκευαστή Teknik Bilgiler & Üretici Beyanları Технические характеристики & Заявления изготовителя 技术参数 & 制造商声明 技術仕様 & 製造者宣言 기술 데이터 & 제조사 선언 SPECIFICATIONS System Audio link frequency ranges Q1-6 R1-6 R4-9 S1-7 S4-7 S7-10 U1/5 V3-4 Y1-3 470.2 - 526 MHz 520 - 576 MHz 552 - 607.8 MHz 606.2 - 662 MHz 630 - 662 MHz 662 - 693.8 MHz 823.2 - 831.8 MHz & 863.2 - 864.8 MHz 925.2 - 937.3 MHz 1785.2 - 1799.8 MHz Bluetooth® Low Energy (BLE) frequency range 2402 - 2480 MHz Audio frequency response20 Hz - 20 kHz (-3 dB) @ 3 dBfs Audio THD≤ -60 dB for 1 kHz @ -3 dBfs input level Operating temperature-10 °C - +55 °C (14 °F - 131 °F) Relative humidity5 - 95 % (non-condensing) EW-D EM (Rack Receiver) Input voltage11 - 13 V Input current≤ 300 mA Transmit power (radiated)BLE: max. 10 mW EIRP Audio output power18 dBu max. Dimensions212 x 44 x 189 mm Weightapprox. 1000 g (without an- tennas and power supply) EW-D SKM-S (Handheld Transmitter) Input voltage2.0 - 4.35 V Input current< 300 mA Power supply2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack Occupied bandwidth200 kHz Transmit power (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP Dimensions (ø x l)50 x 268 mm (incl. MMD 835 microphone module) 40 x 200 mm (without microphone module) Weight (without batteries)approx. 304 g (incl. MMD 835 microphone module) approx. 195 g (without microphone module) EW-D SK (Bodypack Transmitter) Input voltage2.0 - 4.35 V Input current< 300 mA Power supply2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack Occupied bandwidth200 kHz Transmit power (radiated) Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP Dimensions63 x 80 x 20 mm (without antenna) Weight (without batteries)approx. 120 g DE Rahmenbedingungen und Einschränkungen für die Nutzung von Frequenzen In Ihrem Land gelten möglicherweise gesonderte Rahmen- bedingungen und Einschränkungen für die Nutzung von Fre- quenzen. Informieren Sie sich vor der Inbetriebnahme des Produktes unter folgender Adresse: www.sennheiser.com/frequency-information Herstellererklärungen Garantie Sennheiser electronic GmbH & Co. KG übernimmt für diese Produkte eine Garantie von 24 Monaten. Die aktuell geltenden Garantiebedingungen können Sie über das Internet www.sennheiser.com oder Ihren Sennhei- ser-Partner beziehen. In Übereinstimmung mit den folgenden Anforde- rungen WEEE-Richtlinie (2012/19/EU) Batterierichtlinie (2006/66/EG & 2013/56/EU) Hinweise zur Entsorgung Das Symbol der durchgestrichenen Mülltonne auf Rädern auf Produkt, Batterie/Akku (wenn vorhanden) und/oder Ver- packung weist Sie darauf hin, dass diese Produkte am Ende ihrer Lebensdauer nicht über den normalen Hausmüll ent- sorgt werden dürfen, sondern einer separaten Entsorgung zuzuführen sind. Für Verpackungen beachten Sie bitte die gesetzlichen Vorschriften zur Abfalltrennung in Ihrem Land. Weitere Informationen zum Recycling dieser Produkte er- halten Sie bei Ihrer Gemeindeverwaltung, den kommunalen Sammel- oder Rücknahmestellen oder bei Ihrem Sennhei- ser-Partner. Das separate Sammeln von Elektro- und Elektronik-Altgerä- ten, Batterien/Akkus (wenn vorhanden) und Verpackungen dient dazu, die Wiederverwendung und/oder Verwertung zu fördern und negative Effekte, beispielsweise durch poten- ziell enthaltene Schadstoffe, zu vermeiden. Hiermit leisten Sie einen wichtigen Beitrag zum Umwelt- und Gesundheits- schutz. EU-Konformitätserklärung • RoHS-Richtlinie (2011/65/EU) Hiermit erklärt Sennheiser electronic GmbH & Co. KG, dass der Funkanlagentyp EW-D EM, EW-D SK, EW-D SKM-S der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: www.sennheiser.com/download. EN Conditions and restrictions for using fre- quencies There may be special conditions and restrictions for using frequencies in your country. Before putting the product into operation, find the informati- on for your country at the following address: www.sennheiser.com/frequency-information Manufacturer declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on these products. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. FOR AUSTRALIA ONLY: Sennheiser goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are en- titled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is in addition to other rights or remedies un- der law. Nothing in this warranty excludes, limits or modifies any liability of Sennheiser which is imposed by law, or limits or modifies any remedy available to the consumer which is granted by law. To make a claim under this warranty, contact Sennheiser Technical Services and Spare Parts Sales c/o Linfox, Gate 3, 1 Fox Lane, Erskine Park, 2759, NSW Australia Phone: (02) 9910 6700, email: [email protected] All expenses of claiming the warranty will be borne by the person making the claim. The Sennh…

Text truncated - open the document above for the full version.

Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in Germany, Publ. 07/20, 583961/A02 Evolution Wireless Digital EW-D EM EW-D SK EW-D SKM-S Sicherheitshinweise Safety Instructions Consignes de sécurité Indicazioni di sicurezza Instrucciones de seguridad Instruções de segurança Veiligheidsvoorschriften Wskazówki bezpieczeństwa Säkerhetsanvisningar Sikkerhedsanvisninger Turvallisuusohjeita Υποδείξεις ασφαλείας Güvenlik bilgileri Инструкция по безопасности 安全提示 安全に関する注意事項 안전 지침 räusch ausgesetzt hat, sind: • Man hört Klingel- oder Pfeifgeräusche in den Ohren. • Man hat den Eindruck (auch kurzzeitig), hohe Töne nicht mehr wahrzunehmen. Klären Sie alle Bediener über diese Zusammenhänge auf und fordern Sie sie ggf. auf, die Lautstärke auf einen mittleren Wert einzustellen. Brandgefahr durch Überlast Überlasten Sie weder Steckdosen noch Verlängerungskabel. Andern- falls besteht das Risiko eines Brandes oder elektrischen Schlages. Sicherheitshinweise für Antennen Sichern Sie Antennen gegen Herabfallen/Umkippen. Verwenden Sie hierzu Sicherungsseile (Safety Wires). Sicherungsseile, Seilendverbindungen und Verbindungsglieder müs- sen in ihrer Dimensionierung und Beschaffenheit den Vorschriften und Standards des Landes entsprechen, in dem Sie diese verwenden! Sicherheitshinweise für Lithium-Ionen-Akkus XSekundärzellen oder -batterien dürfen nicht zerlegt, geöffnet oder zerkleinert werden. XZellen und Batterien von Kindern fernhalten. Kinder dürfen Batterien nur unter Aufsicht verwenden. Kleine Batterien müssen außerhalb der Reichweite kleiner Kinder aufbewahrt werden. XZellen oder Batterien dürfen weder Hitze noch Feuer ausgesetzt werden. Die Lagerung im direkten Sonnenlicht ist zu vermeiden. XZellen oder Batterien dürfen nicht kurzgeschlossen werden. Zellen oder Batterien dürfen nicht gefahrbringend in einer Schachtel oder in einem Schubfach gelagert werden, wo sie sich gegenseitig kurzschließen oder durch andere leitende Werkstoffe kurzgeschlossen werden können. XEine Zelle oder Batterie darf erst aus ihrer Originalverpackung entnommen werden, wenn sie verwendet werden soll. XEs dürfen keine anderen Ladegeräte verwendet werden als die, die speziell für den Gebrauch zusammen mit den Geräten vorgesehen sind. XZellen oder Batterien, die nicht für den Gebrauch zusammen mit dem Gerät ausgelegt sind, dürfen nicht verwendet werden. XImmer die von Sennheiser empfohlene Zelle oder Batterie für ein Gerät kaufen. XZellen und Batterien sauber und trocken halten. XFalls die Anschlüsse von Zellen oder Batterien verschmutzt wer- den, mit einem trockenen, sauberen Tuch reinigen. XZellen und Batterien nicht über längere Zeit laden, wenn sie nicht gebraucht werden. XDie ursprünglichen Druckschriften und Informationen über die Produkte sind für zukünftige Informations- und Nachschlagezwe- cke aufzubewahren. XOrdnungsgemäß entsorgen. XLaden Sie die Akkus auch bei längerem Nichtgebrauch regelmä- ßig nach (ca. alle 3 Monate). XEntfernen Sie die Akkus bei offensichtlich defekten Produkten. XVerwenden Sie defekte Akkus niemals weiter. Sicherheitshinweise für Standardbatterien/wieder- aufladbare Batterien XVorsicht: Explosionsgefahr beim Austauschen oder Verwenden von falschen Batterien oder Akkus. XSchließen Sie keine Batterien oder Akkus kurz. XSetzen Sie Batterien oder Akkus weder Hitze noch Feuer aus. Vermeiden Sie Sonneneinstrahlung. XSetzen Sie Batterien oder Akkus keinen Stoßbelastungen aus. XFassen Sie ausgelaufene/defekte Batterien oder Akkus nicht ungeschützt an. XAchten Sie beim Einsetzen auf die Polarität. XVerwenden Sie keine unterschiedlichen Batterie- oder Akkutypen. XLaden Sie die Batterien oder Akkus bei einer Umgebungstempe- ratur von +10 °C bis +40 °C. EN Important safety instructions 1. Read these safety instructions and the instruction manual of the product. 2. Keep these safety instructions and the instruction manual of the product. Always include all instructions when passing the product on to third parties. 3. Heed all warnings. 4. Follo w all instructions. 5. Do not use this apparatus near water. 6. Only clean the product when it is not connected to the power sup- ply system. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer‘s instructions. 8. Do not install near any heat sources such as radiators, heat regis- ters, stoves, or other apparatus (including amplifiers) that produce heat. 9. Only operate the product from the type of power source specified in the chapter „Specifications“ and indicated on the power supply unit. 10. Prot ect the power cord from being walked on or pinched, parti- cularly at plugs, convenience receptacles, and the point where it exits from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug the power supply unit from the wall socket, • to completely disconnect the product from the power supply sys- tem, • during lightning storms, • when not using the product for long periods of time. 14. Ref er all servicing to qualified service personnel. Servicing is re- quired when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. Only use the supplied power supply unit. 16. Warning: T o reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus. 17. When using the supplied device f eet, do not place the product on delicate surfaces. Delicate surfaces can become discolored or stained…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST f or Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 08-31-2020 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name DMOSKMSEWD E W-D SKM-S For the product stated above, we request permanent confidentiality for exhibits which contain Operational Description, Block Diagram, Schematics, Parts Lists or Tune Up Information. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely,                !" #$%&'&&( )  *$   +,'-&./#%&01&&2'/3,   4

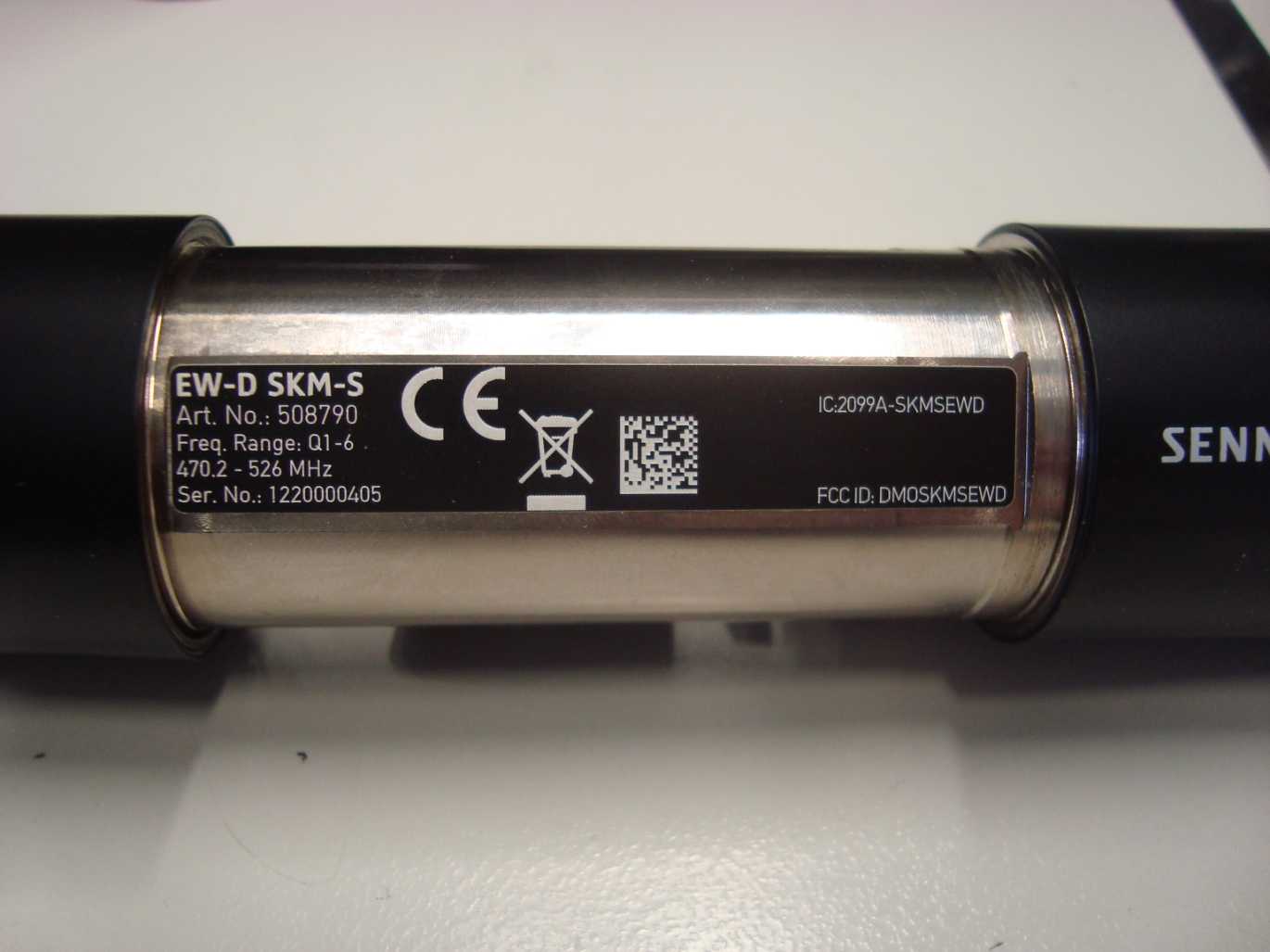

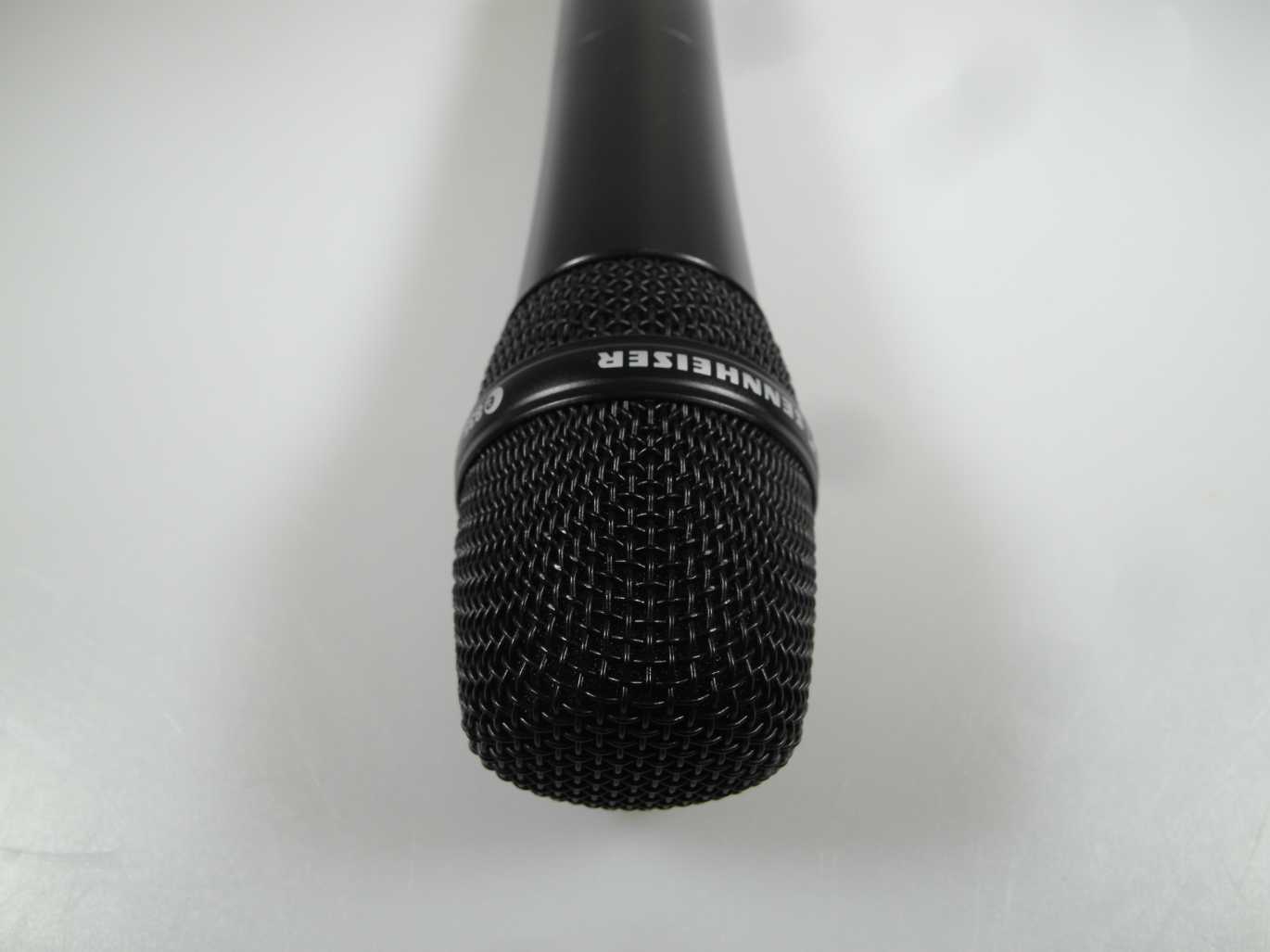

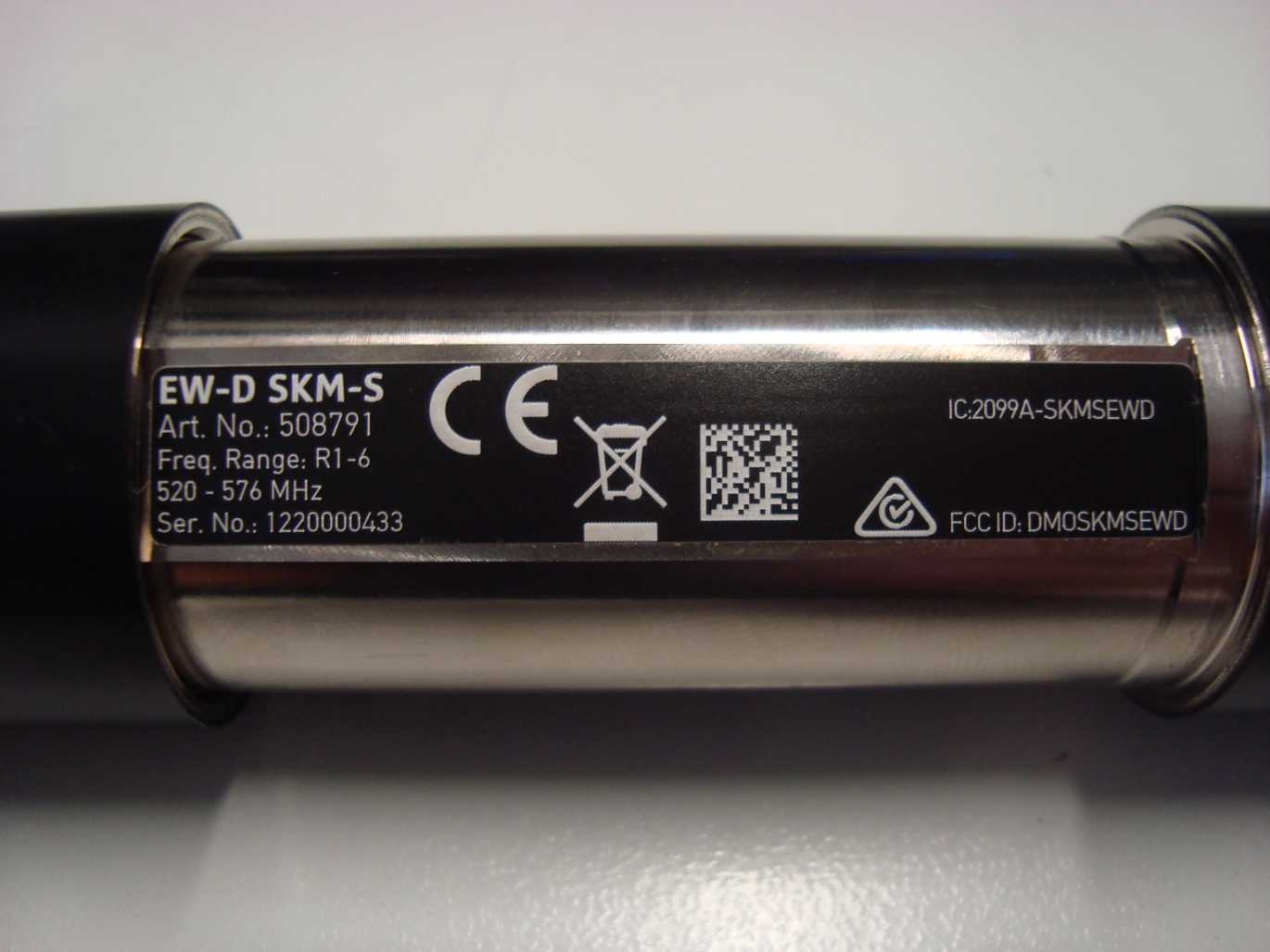

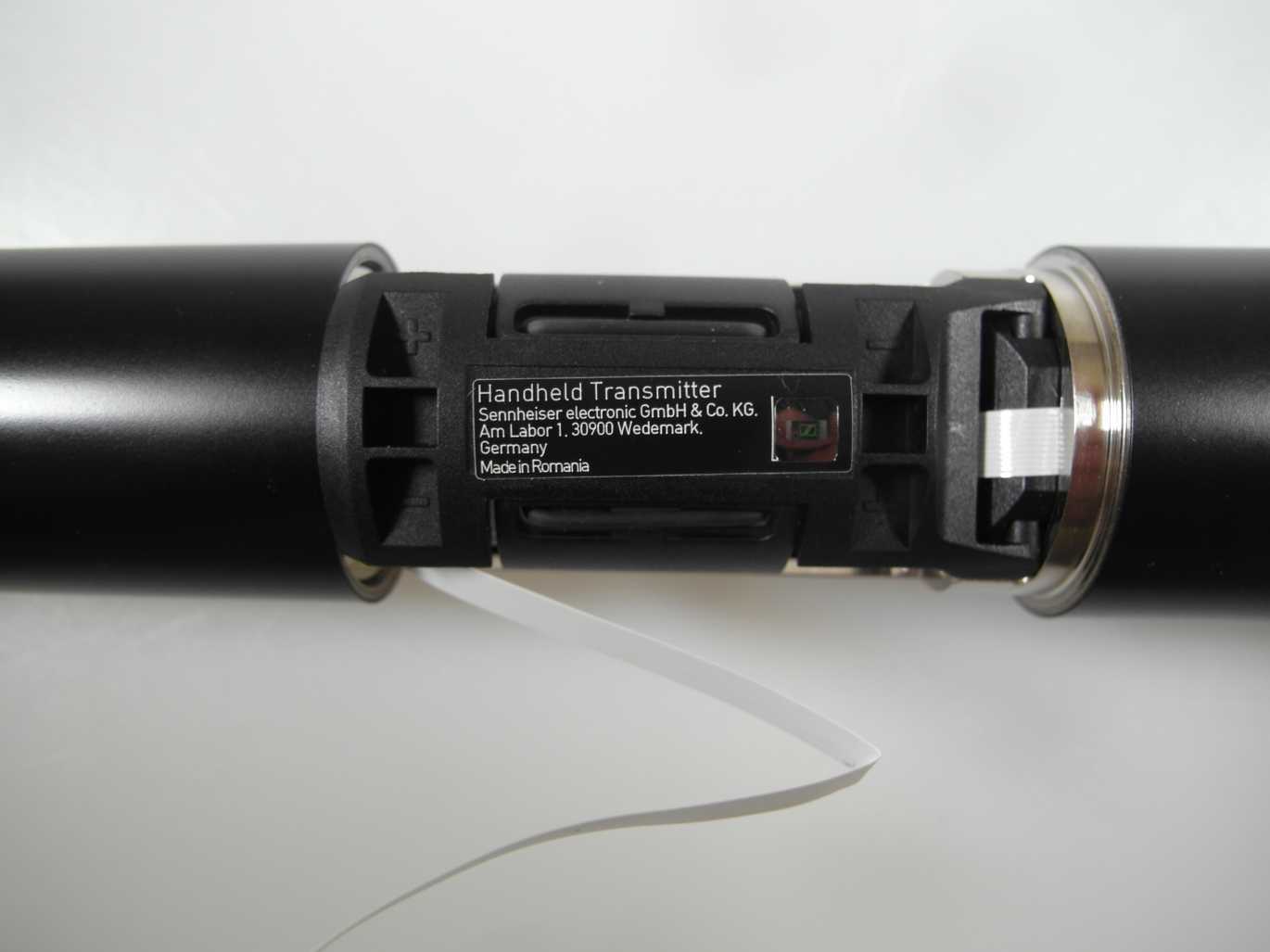

Annex A 1-8392/19-02-09_AnnexA External photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Hans-Joachim Wolsdorfer Lab Manager Radio Communications & EMC CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1 Photo 2 2020-07-28Document No. 1-8392/19-02-09_AnnexA2/7 Photo 3 Photo 4 2020-07-28Document No. 1-8392/19-02-09_AnnexA3/7 Photo 5 Photo 6 2020-07-28Document No. 1-8392/19-02-09_AnnexA4/7 Photo 7 Photo 8 2020-07-28Document No. 1-8392/19-02-09_AnnexA5/7 Photo 9 2020-07-28Document No. 1-8392/19-02-09_AnnexA6/7 Document history VersionApplied changesDate of release initial release2020-07-28 - END OF DOCUMENT - 2020-07-28Document No. 1-8392/19-02-09_AnnexA7/7

Labeling Infos Example below is valid only for devices which are subject to Part 15 Certification Procedure and DOC procedure in USA and subject to RSS-210 Certification in Canada. The text „ This device complies...“ may be placed in the user manual only if the device is too small to show the text on the label. USA: FCC ID: <Grantee><EPC> is the certification number <Grantee> is the Grantee code, made of 3-5 alphanumeric characters (A-Z, 0-9), assigned by FCC. <EPC> is the Equipment product code (EPC) assigned by the applicant. Minimum of 1 character and maximum of 14 characters and may consist ONLY of capital letters, Arabic numerals or combination thereof, the hyphen or dash (-). Applicant should assign the least number of characters that will adequately identify the product. Canada: IC: <CN>-<UPN> is the certification number; <CN> is the Company Number (CN), made of at most 6 alphanumeric characters (A-Z, 0-9), assigned by Industry Canada; <UPN> is the Unique Product Number (UPN), made of at most 11 alphanumeric characters (A-Z, 0-9) assigned by the applicant. Permitted alphanumeric characters used in UPN are capital letters (A-Z) and digits (0-9). Other characters, such as "#", "/" or "-", shall not be used. Additionally the PMN must be placed either on the product label, the packaging or the user manual.

Annex B 1-8392/19-02-01_AnnexB Internal photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Hans-Joachim Wolsdorfer Lab Manager Radio Communications & EMC CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1 Photo 2 2020-07-28Document No. 1-8392/19-02-01_AnnexB2/7 Photo 3 Photo 4 2020-07-28Document No. 1-8392/19-02-01_AnnexB3/7 Photo 5 Photo 6 2020-07-28Document No. 1-8392/19-02-01_AnnexB4/7 Photo 7 Photo 8 2020-07-28Document No. 1-8392/19-02-01_AnnexB5/7 Photo 9 Photo 10 2020-07-28Document No. 1-8392/19-02-01_AnnexB6/7 Document history VersionApplied changesDate of release initial release2020-07-28 - END OF DOCUMENT - 2020-07-28Document No. 1-8392/19-02-01_AnnexB7/7

Page 1 of 29 Annex D Appendix to Test Report No.: 1-8392/19-08-02 Testing Laboratory CTC advanced GmbH Untertürkheimer Straße 6 – 10 66117 Saarbrücken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.ctcadvanced.com e-mail: [email protected] Accredited Test Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-01 Appendix with Calibration data, Phantom certificate and system check information 2012-01-16 Test report no.: 1-8392/19-08-02 Page 2 of 29 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 Calibration report “Probe EX3DV4” ........................................................................................................ 3 3 Calibration report “2450 MHz System validation dipole” .................................................................... 13 4 Calibration certificate of Data Acquisition Unit (DAE) ........................................................................ 21 5 Certificate of “SAM Twin Phantom V4.0/V4.0C’’ ................................................................................. 22 6 Application Note System Performance Check ..................................................................................... 23 6.1 Purpose of system performance check ..................................................................................... 23 6.2 System Performance check procedure ...................................................................................... 23 6.3 Uncertainty Budget ...................................................................................................................... 24 6.4 Power set-up for validation ......................................................................................................... 28 6.5 Laboratory reflection ................................................................................................................... 29 6.6 Additional system checks ........................................................................................................... 29 Test report no.: 1-8392/19-08-02 Page 3 of 29 2 Calibration report “Probe EX3DV4” Test report no.: 1-8392/19-08-02 Page 4 of 29 Test report no.: 1-8392/19-08-02 Page 5 of 29 Test report no.: 1-8392/19-08-02 Page 6 of 29 Test report no.: 1-8392/19-08-02 Page 7 of 29 Test report no.: 1-8392/19-08-02 Page 8 of 29 Test report no.: 1-8392/19-08-02 Page 9 of 29 Test report no.: 1-8392/19-08-02 Page 10 of 29 Test report no.: 1-8392/19-08-02 Page 11 of 29 Test report no.: 1-8392/19-08-02 Page 12 of 29 Test report no.: 1-8392/19-08-02 Page 13 of 29 3 Calibration report “2450 MHz System validation dipole” Test report no.: 1-8392/19-08-02 Page 14 of 29 Test report no.: 1-8392/19-08-02 Page 15 of 29 Test report no.: 1-8392/19-08-02 Page 16 of 29 Test report no.: 1-8392/19-08-02 Page 17 of 29 Test report no.: 1-8392/19-08-02 Page 18 of 29 Test report no.: 1-8392/19-08-02 Page 19 of 29 Test report no.: 1-8392/19-08-02 Page 20 of 29 Test report no.: 1-8392/19-08-02 Page 21 of 29 4 Calibration certificate of Data Acquisition Unit (DAE) Test report no.: 1-8392/19-08-02 Page 22 of 29 5 Certificate of “SAM Twin Phantom V4.0/V4.0C’’ Test report no.: 1-8392/19-08-02 Page 23 of 29 6 Application Note System Performance Check 6.1 Purpose of system performance check The system performance check verifies that the system operates within its specifications. System and operator errors can be detected and corrected. It is recommended that the system performance check is performed prior to any usage of the system in order to guarantee reproducible results. The measurement of the Specific Absorption Rate (SAR) is a complicated task and the result depends on the proper functioning of many components and the correct settings of many parameters. Faulty results due to drift, failures or incorrect parameters might not be recognized, since they often look similar in distribution to the correct ones. The Dosimetric Assessment System DASY5 incorporates a system performance check procedure to test the proper functioning of the system. The system performance check uses normal SAR measurements in a simplified setup (the flat section of the SAM Twin Phantom) with a well characterized source (a matched dipole at a specified distance). This setup was selected to give a high sensitivity to all parameters that might fail or vary over time (e.g., probe, liquid parameters, and software settings) and a low sensitivity to external effects inherent in the system (e.g., positioning uncertainty of the device holder). The system performance check does not replace the calibration of the components. The accuracy of the system performance check is not sufficient for calibration purposes. It is possible to calculate the field quite accurately in this simple setup; however, due to the open field situation some factors (e.g., laboratory reflections) cannot be accounted for. Calibrations in the flat phantom are possible with transfer calibration methods, using either temperature probes or calibrated E-field probes. The system performance check also does not test the system performance for arbitrary field situations encountered during real measurements of mobile phones. These checks are performed at SPEAG by testing the components under various conditions (e.g., spherical isotropy measurements in liquid, linearity measurements, temperature variations, etc.), the results of which are used for an error estimation of the system. The system performance check will indicate situations where the system uncertainty is exceeded due to drift or failure. 6.2 System Performance check proce…

Text truncated - open the document above for the full version.

© CTC advanced GmbH Page 1 of 36 BNetzA - CAB - 02/21 - 102 D - P L - 1 2 0 7 6 - 0 1 - 0 3 TEST REPORT Test Report No.: 1-8392/19-08-02 Testing Laboratory Applicant CTC advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.ctcadvanced.com e-mail: [email protected] Accredited Test Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-03 Sennheiser electronic GmbH & Co. KG Am Labor 1 30900 Wedemark/GERMANY Phone: +49 5130 600-0 Contact: Nils Knauer e-mail: [email protected] Phone: +49 5130/600-9524 Manufacturer Sennheiser electronic GmbH & Co. KG Am Labor 1 30900 Wedemark/GERMANY Test Standards IEEE 1528-2013 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques RSS-102 Issue 5 Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Handheld Transmitter Device type: portable device Model name: EW-D SKM-S S/N serial number: 1220000432 FCC-ID: DMOSKMSEWD ISED Number: 2099A-SKMSEWD Product Marketing Name (PMN): EW-D SKM-S Hardware Version Identification No. (HVIN): EW-D SKM-S Hardware status: 590020_02 Firmware status: 1.0.0 Frequency: see technical details (on page 4) Antenna: integrated antenna Power ratings: 3.80 V DC by battery Li-Ion BA 70 or 2 x AA type 1.5 V DC Accessories: -- Test sample status: identical prototype Exposure category: general population / uncontrolled environment This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test Report authorised: Test performed: Alexander Hnatovskiy Marco Scigliano Lab Manager Testing Manager Radio Communications Radio Communications Test report no.: 1-8392/19-08-02 © CTC advanced GmbH Page 2 of 36 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 General information .................................................................................................................................. 3 2.1 Notes and disclaimer ..................................................................................................................... 3 2.2 Application det…
