DYF86708Bluetooth Headset

ge86708 BLOCK DIAGRAM.sch-1 - Thu Aug 10 14:42:11 2006 Device Diagrams BC219159ARF-ds-001Pf Production Information © Cambridge Silicon Radio 2004 This material is subject to CSR’s non-disclosure agreement. Page 28 of 97 _äìÉ`çêÉ ™ O Ó cä~ëÜmäìÖJåJdç= Product Data Sheet 5 Device Diagrams Clock Generation Baseband and Logic RAM Memory Mapped Control Status Physical Layer Hardware Engine BurstMode Controller Microcontroller RISC Microcontroller Interrupt Controller EventTimer DAC IQ MOD Internal Flash Memory Management Unit PA AUX_DAC PIO[1]/TXEN AUX DAC RF_IN PIO[0]/RXEN RF Transmitter XTAL_OUT XTAL_IN Fref -45 +45 RF Synthesiser RF Synthesiser /N/N+1 LoopFilter Tune VREG_IN VDD_ANA VREG In Out VDD_CORE VSS_CORE TEST_EN VDD_PADS RESET RESETB VDD_PIO VDD_USB VSS_ANA VSS_VCO VSS_RADIO VSS_MEM VDD_MEM IQ DEMOD ADC Demodulator RF Receiver RSSI LNA USB USB_DPUSB_DN Synchronous Serial Interface SPI_CSBSPI_CLKSPI_MOSISPI_MISOUART_TXUART_RXUART_RTSUART_CTSPCM_OUTPCM_INPCM_SYNCPCM_CLK UART Audio PCM Interface LOOP_FILTER VDD_VCO VDD_RADIO VSS_PADS FLASH_EN MIC_PMIC_NSPKR_PSPKR_N Audio CODEC PIO[2] AIO[0] AIO[1] AIO[2] VSS_PIO Programmable I/O AIO PIO[3]PIO[4]PIO[5]PIO[6]PIO[7]PIO[8]PIO[9]PIO[10]PIO[11] VSS_USB VDD_BALUN VSS_BALUNVSS_BALUN BAL_MATCH RF_CONNECT Balun and Filter D[15:0] VDD_DIG Figure 5.1: BlueCore2-Flash Plug-n-Go Device Diagram for 10 x 10mm LFBGA Package Appendix IFCC ID: DYF86708

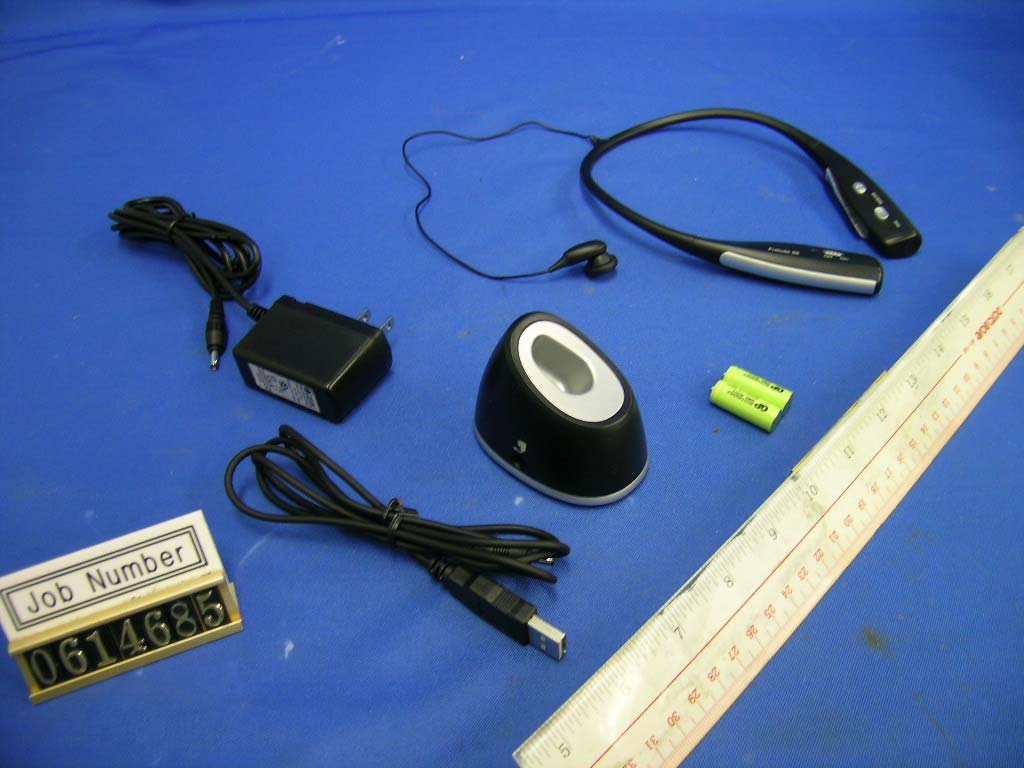

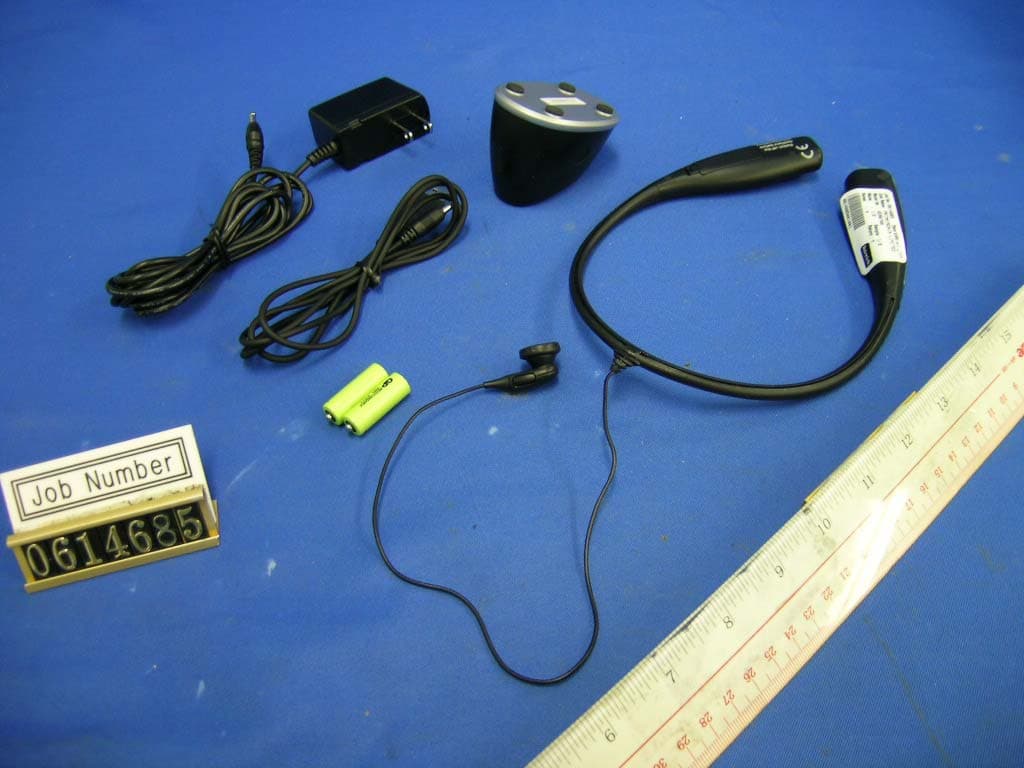

INTERTEK TESTING SERVICES External Photos FCC ID: DYF86708 external photos - 1 of 1 External Photo - Front External Photo - Rear

Lower cases : Satin Silver (AL 7504-SS/3)(ABS) Battery Hatch : Satin Silver (AL 7504-SS/3)(ABS) Battery Clip : Satin Silver (AL 7504-SS/3)(ABS) Necklace MODEL: TITLE: BRAND: COUNTRY: COLOUR: WITH SPRAY OR WITHOUT SPRAY SILK: DOC NO.: DWN: APP: DATE: REV.: PAGE OF ISSUED DATE: PRIMATRONIX GE 86708 (PRELUDE 30) OUTLINE DRAWING GE U.S.A SATIN SILVER(AL 7504-SS/3) BLACK USA/JSC/GE86708/L1 LINDA CHEUNG B 2 3 24, JUL 06 S t e w ic h o f f t h e n e c k l a c b e f o r e g r e p l a c i n b a t t e r y . SILK: BLACK 300mm length Model: 86708 Pairing code: 0000 FCC ID: XXXXXXXX DC 2.4V o d : E M e l G 8 6 7 0 8 i r i c e P a n g o d : 0 0 0 0 D 6 F C C I : D Y F 8 7 0 8 2 D C . 4 V

INTERTEK TESTING SERVICES Internal photos FCC ID: DYF86708 internal photos - 1 of 3 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal photos FCC ID: DYF86708 internal photos - 2 of 3 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal photos FCC ID: DYF86708 internal photos - 3 of 3 Internal Photo - 5 Internal Photo - 6

Technical Description Company name: PRIMATRONIX LTD Model no.: GE 86708 Date: Aug. 15, 2006 1. General description This device consists of a BlueCore2-Audio Plug-n-Go Chip that is a single chip radio and baseband chip for Bluetooth system. It is fully compliant with Bluetooth specification V1 and V1.2. It operates in the unlicensed ISM band at 2.4GHz and employ Time Division Duplex (TDD) for full duplex transmission. Details please refer to Bluetooth Specification in the appendix I. 2. Circuit description • Crystal oscillator 16 MHz is used for Bluetooth IC: BC219159A • Frequency band & channel = ISM band: 2400 to 2483.5 Mhz with 79 channels. Lower frequency channel is 2402 MHz, Middle Freq. channel 2441MHz and 2480MHz for high Freq. channel. • Frequency hopping algorithm= Adaptive Frequency hopping algorithm • Built-in charging circuit consists of Q7, Q8, ZD1 R101 & R20 that is used for stabilize and for battery charging. It is powered by a switching power adaptor or through USB port of computer. The USB port is only used for charging purpose. • The Built-in Microphone and Earphone: Q4, C15, C17, C19 & c30 are used to control the biasing current and filter the high frequency over 20KHz of microphone. Also the L1, L2, C25 & C26 are used to filter the high Frequency over 20KHz of Earphone. • Build-in printed PCB inverted “F” antenna. FCC ID: DYF86708 Page 1 of 8 1. FREQUENCY BANDS AND CHANNEL ARRANGEMENT The Bluetooth system operates in the 2.4 GHz ISM band. This frequency band is 2400 - 2483.5 MHz. Regulatory Range RF Channels 2.400-2.4835 GHz f=2402+k MHz, k=0,...,78 Table 1.1: Operating frequency bands RF channels are spaced 1 MHz and are ordered in channel number k as shown in Table 1.1. In order to comply with out-of-band regulations in each country, a guard band is used at the lower and upper band edge. Lower Guard Band Upper Guard Band 2 MHz 3.5 MHz Table 1.2: Guard Bands Model: GE 86708 Appendix IFCC ID: DYF86708 Page 2 of 8 BC219159ARF-ds-001Pf Production Information © Copyright CSR 2004 This material is subject to CSR’s non-disclosure agreement. Device Features _äìÉ`çêÉ » OJcä~ëÜ=mäìÖJåJdç » Single Chip Bluetooth ® System Production Information Data Sheet for BC219159A-BN Plug-n-Go Package ƒ Fully qualified Bluetooth system ƒ Bluetooth specification v1.1 and v1.2 compliant ƒ Guaranteed RF performance temperature range -40°C to +85°C ƒ Low power 1.8V operation ƒ Minimum external components ƒ Integrated 1.8V regulator ƒ Available in LFBGA package ƒ 50Ω matched connection to antenna May 2004 General Description Applications _äìÉ`çêÉOJcä~ëÜ=mäìÖJåJdç=is a single chip radio and baseband chip for Bluetooth 2.4GHz systems. It is implemented in 0.18μm CMOS technology. BlueCore2-Flash Plug-n-Go has the same pinout and electrical characteristics as available in BlueCore2-ROM Plug-n-Go and BlueCore2-Audio Plug-n-Go to enable development of custom code before committing to ROM. The integrated mono audio CODEC allows for more compact designs and low power consumption for battery powered applications. ƒ Headsets ƒ Cellular Handsets ƒ Personal Digital Assistants ƒ Mice ƒ Keyboards BlueCore2-Flash Plug-n-Go has been designed to reduce the number of external components required which ensures production costs are minimised. The 0.8mm pitch BlueCore2-Flash Plug-n-Go can be used on either two or four layer PCB construction. The device incorporates auto-calibration and built-in-self-test (BIST) routines to simplify development, type approval and production test. All hardware and device firmware is fully compliant with the Bluetooth specification v1.1and v1.2. BlueCore2-Flash Plug-n-Go System Architecture 2.4 GHz Radio I/O XTAL RF IN RF OUT FLASH RAM Baseband DSP MCU SPI UART/USB PIO Audio In/Out PCM Appendix IFCC ID: DYF86708 Page 3 of 8 Key Features BC219159ARF-ds-001Pf Production Information © Cambridge Silicon Radio 2004 This material is subject to CSR’s non-disclosure agreement. Page 8 of 97 _äìÉ`çêÉ ™ O Ó cä~ëÜmäìÖJåJdç= Product Data Sheet 1 Key Features Radio ƒ Direct 50Ω connection to a common TX/RX antenna ƒ Meets all Bluetooth RF specifications with no external filters ƒ Extensive built-in-self-test minimises production test time ƒ No external trimming is required in production Transmitter ƒ Up to +6dBm RF transmit power with level control from the on-chip 6-bit DAC over a dynamic range greater than 30dB ƒ Supports Class 2 and Class 3 radios without the need for an external power amplifier or TX/RX switch Receiver ƒ Integrated channel filters ƒ Digital demodulator for improved sensitivity and co-channel rejection ƒ Digitised RSSI available in real time over the HCI interface ƒ Fast AGC for enhanced dynamic range Synthesiser ƒ Fully integrated synthesizer; no external VCO varactor diode, resonator or loop filter ƒ Compatible with crystals between 8 and 32MHz (in multiples of 250kHz) or an external clock ƒ Accepts 7.68, 14.4, 15.36, 16.2, 16.8, 19.2, 19.44, 19.68, 19.8 and 38.4MHz TCXO frequencies for GSM and CDMA devices with either sinusoidal or logic level signals Auxiliary Features ƒ Crystal oscillator with built-in digital trimming ƒ Power management includes digital shutdown and wake up commands and an integrated low power oscillator for ultra low Park/Sniff/Hold mode power consumption ƒ Device can be used with an external master oscillator and provides a ‘clock request signal’ to control external clock source Auxiliary Features (Continued) ƒ On-chip linear regulator, producing 1.8V output from 2.2 – 4.2V input ƒ Power on reset cell detects low supply voltage ƒ Arbitrary sequencing of power supplies is permitted ƒ Uncommitted 8-bit ADC and 8-bit DAC are available to application programs Baseband and Software ƒ Internal programmed 8Mbit flash for complete system solution ƒ 32kbyte on-chip RAM allows full speed Bluetooth data transfer, mixed voice and data, plus full seven slave piconet operation ƒ Dedicated logic for forward error correction, header error control, access code correlation…

Text truncated - open the document above for the full version.

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Website: www.hk.intertek-etlsemko.com Primatronix Ltd. Application For Certification Bluetooth Headset (FCC ID: DYF86708) 06146851 KL/ Ann Choy August 8, 2006 INTERTEK TESTING SERVICES FCC ID: DYF86708 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual INTERTEK TESTING SERVICES FCC ID: DYF86708 ii MEASUREMENT/TECHNICAL REPORT Primatronix Ltd. - Model: GE 86708 FCC ID: DYF86708 This report concerns (check one:) Original Grant X Class II Change Equipment Type : DXT - Pt 15 Low Pwr Transceiver, Rx Verified Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [04-05-05 Edition] Provision. Report prepared by: Lam Chun Cheong, Kenneth Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8474 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: DYF86708 iii Table of Contents 1.0 General Description................................................................................................. 2 1.1 Product Description ................................................................................................. 2 1.2 Related Submittal(s) Grants .................................................................................... 3 1.3 Test Methodology.................................................................................................... 3 1.4 Test Facility............................................................................................................. 3 2.0 System Test Configuration...................................................................................... 5 2.1 Justification ............................................................................................................. 5 2.2 EUT Exercising Software......................................................................................... 5 2.3 Support Equipment List and Description .................................................................. 6 2.4 Measurement Uncertainty ....................................................................................... 7 2.5 Equipment Modification ........................................................................................... 7 3.0 Emission Results ..................................................................................................... 9 3.1 Field Strength Calculation...................................................................................... 10 3.2 Radiated Emission Configuration Photograph - Headset........................................ 11 3.3 Radiated Emission Data - Headset ........................................................................ 12 3.4 Radiated Emission on the Bandedge..................................................................... 16 3.5 Line Conducted Configuration Photograph - Headset ............................................ 17 3.6 Line Conducted Emission Data.............................................................................. 18 3.7 Radiated Emissions from Digital Portion of EUT .................................................... 19 4.0 Equipment Photographs ........................................................................................ 22 5.0 Product Labelling................................................................................................... 24 6.0 Technical Specifications........................................................................................ 26 7.0 Instruction Manual ................................................................................................. 28 INTERTEK TESTING SERVICES FCC ID: DYF86708 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission for Headset config photos.doc Test Report Emission Plot emission.pdf Test Setup Photo Conducted Emission config photos.doc Test Report Conducted Emission Test Result conduct.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: DYF86708 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: DYF86708 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Bluetooth Headset operating at 2402.000MHz to 2480.000MHz. The EUT is powered by 2 x “Ni-MH” Type GP rechargeable battery (1.2V 400mAh, Model: 40AAAMC) and/or a switching power adaptor (100-240VAC to 5.4VDC 450mA, model: S004CU0540045), a desktop cradle, or an USB port. The EUT consists of three function keys (Volume +, Volume -, Talk). After switching on the unit, it transmits a user’s voice…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Radiated Emission on the Bandedge Plots FCC ID: DYF86708 emission - 1 of 1 Plot H1A Plot H1B

Report No.: 06146851 Charging & Headset Online Mode PC’s AC Port Ctrl No.: N/A PAGE 1 Tested By:Hong, Report No.:06146851 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0699 12 9k 30M EW0192 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 06146851 Charging & Headset Online Mode PC’s AC Port Ctrl No.: N/A Tested By:Hong, Report No.:06146851 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.20500 47.5 63.4 0.23000 49.7 62.4 0.31000 36.5 60.0 Frequency AV Level AV Limit MHz dBuV dBuV 0.23000 36.8 52.4 * limit Report No.: 06146851 Charging & Headset Online Mode Adaptor’s AC Port Ctrl No.: N/A PAGE 1 Tested By:Hong, Report No.:06146851 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0699 12 9k 30M EW0192 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 06146851 Charging & Headset Online Mode Adaptor’s AC Port Ctrl No.: N/A Tested By:Hong, Report No.:06146851 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.51500 41.6 56.0 0.65000 35.2 56.0 1.36500 31.3 56.0 1.56000 33.9 56.0 Frequency AV Level AV Limit MHz dBuV dBuV 0.50000 31.8 46.0 * limit

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: DYF86708 config photos (radiated emission – headset) - 1 of 1 Radiated Emission – Headset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: DYF86708 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: DYF86708 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
