DYFEMG900TEmergency Pendant Telephone-Remote Control

EMG900 EMERGENCY PENDANT TELEPHONE Instruction Manual All rights reserved by SOUTHERN TELELCOM INC. Models: EMG900 SOS Emergency Corded Telephone 1 TABLE OF CONTENTS FCC REGULATIONS............................... 2-3 Pause............................................. 27 IMPORTAIN SAFETY INSTRUCTIONS........ 4-5 Flash............................................. 27 BATTERY CAUTIONARY INSTRUCTIONS.. 6 Mute.............................................. 28 FEATURES............................................ 7-10 Hearing Aid Compatibility................... 28 INSTALLATION....................................... 11-13 Ringer Volume Control....................... 28 Installing batteries............................. 11 Receiver Volume Control.................... 28 Replace the battery of Pendant............ 12 THE PHONE BOOK................................. 29-35 Connecting the AC adaptor.................. 12 Store Numbers................................. 29-33 Connecting the telephone line.......... 12 Review Numbers.............................. 33 Hanging the Phone on the Wall............ 13 Dial Numbers................................... 34 SETTING UP.......................................... 14-25 Record Names................................. 34 Manu Key........................................ 14 Edit Names...................................... 34 Setting the LCD Contrast.................... 15 Delete Names................................. 35 Setting the ENTER TIME/DATE............ 15-17 EMERGENCY FEATURE.......................... 36-40 Setting the LCD LANGUAGE............... 18 Check the Message........................... 37 Setting the VOICE............................. 19-20 Delete the Message........................... 37 Setting the FLASH............................ 21 Store numbers M1/M2 Keys................ 38-39 Setting the TONE PULSE................... 22 Activate Emergency Call..................... 39-40 Setting the REMOTE PENDANT.......... 22-25 CALLER ID............................................ 41-42 TELEPHONE OPERATION....................... 26-29 Receiving a Call................................ 41 Dialing a Call.................................... 26 Erase Caller ID Memory..................... 42 Pre Dialing a Call.............................. 26 Call Back from Caller ID..................... 42 Receiving a Call............................... 26 Copy Caller ID to Phone Book.............. 42 Receiving a Call with Remote Pendant... 27 TROUBLESHOOTING............................. 43-44 Speaker Volume Control..................... 27 WATTANTY INFORMATION...................... 45 Redial............................................ 27 2 FCC REGULATIONS The FCC requires that you be advised of certain requirements involving the use of this telephone. 1. This equipment complies with Part 68 of the FCC rules. On the bottom of this equipment is a label that contains, among other information, the FCC registration number and Ringer Equivalence Number (REN) for this equipment. If requested, provide this information to your telephone company. 2. The REN is used to determine the quantity of devices you may connect to your telephone line and still have all of those devices right when your number is called. In most, but no all areas, the sum of all the REN’s of all devices should not exceed five (5.00). To be certain of the number of devices you may connect to your lines, as determined by the REN, you should call your local telephone company to determine the maximum REN for your calling area. 3. If your telephone causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But if advance notice isn’t practical, you will be notified as soon as possible. You will be advise of your right to file a complaint with the FCC. 4. If your telephone company may make changes in it’s facilities, equipment, operations, or procedures that could affect the proper operation of your equipment. If they do, you will be given advance notice so that you can make the necessary modifications in order to maintain uninterrupted service. 5. If you experience trouble with the telephone, please contact the service center for repair/warranty information. Your telephone company may ask you to disconnect this telephone from the network until the problem has been corrected or you are sure that the equipment is not malfunctioning. 6. This equipment may not be used on coin service provided by the telephone. Connection to party lines is subject to state tariffs (contact your state public utility commission of corporation commission for information). This telephone complies with Part 15 of the FCC Rules and Regulations. Operation is subject to the following two conditions: (1) this telephone may not cause harmful interference, and (2) it must accept any interference received, including interference that may cause undesirable operation. 3 FCC REGULATIONS WARNING: CHANGES OR MODIFICATIONS TO THIS UNIT NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the problem by one or more of the following measures: z Reorient or relocate the receiving antenna z Reorient, relocate …

Text truncated - open the document above for the full version.

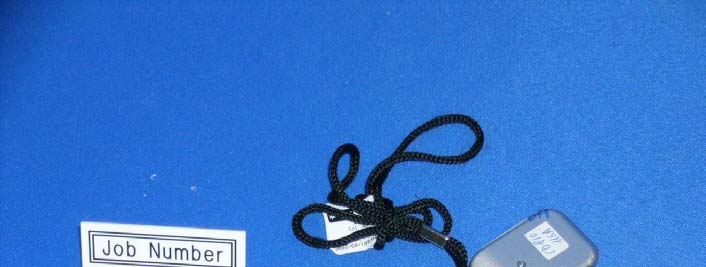

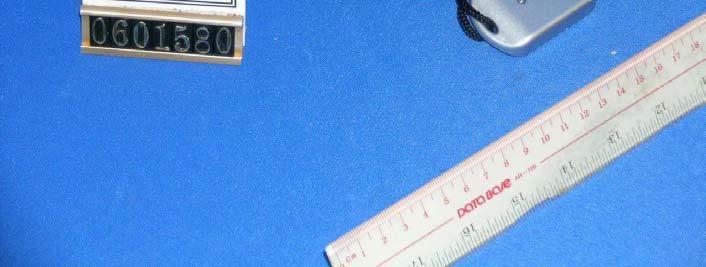

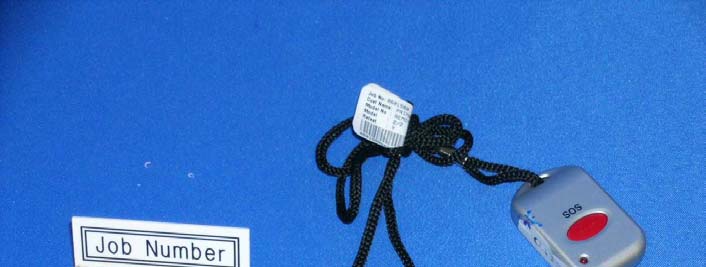

INTERTEK TESTING SERVICES External Photos FCC ID: DYFEMG900T external photos - 1 of 1 External Photo - Front External Photo - Rear

DISCONNECT ALL TELEPHONE AND POWER LINES FROM THE WALL OUTLETS BEFORE REPLACING THE BATTERIES, SERVICING OR DISASSEMBLING THE EQUIPMENT. CAUTION: COMPLIES WITH 47 CFR PART 68. REQUIREMENTS REGISTRATION NO.: US: DYFTE12BEMG900 RINGER EQUIVALENCE: 1.2B REQUIRED CONNECTOR: U.S.O.C. JACK RJ11C MODEL NO.: EMG900 POWER SOURCE: 9VDC, 200mA FCC ID: DYFEMG900R Made Exclusively for Southern Telecom Inc. MADE IN CHINA HAC 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 59284 L I D T S E ET R E T N K I US INFORMATION TECHNOLOGY EQUIPMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. FCC ID: DYFEMG900T LABEL (Print White on Black label) Silk: Black Silk: Black M O D E L : T I T L E : B R A N D : C O U N T R Y : U P P E R C O L O U R : W I T H S P R A Y O R W I T H O U T S P R A Y S I L K : D O C N O . : D W N : A P P : D A T E : R E V . : P A G E O F I S S U E D D A T E : U P P E R P R I M A T R O N I X E M G 9 0 0 ( C D 8 1 0 ) O U T L I N E D R A W I N G L I F E L I N E U . S . A S I L V E R ( # 8 4 0 0 C ) B L A C K U S A \ G T P \ E M G 9 0 0 \ L 1 L I N D A C H E U N G D 3 4 1 0 , M A R 0 6 USE 12 VOLT ALKALINE BATTERY ONLYUSE 12 VOLT ALKALINE BATTERY ONLY MADE IN CHINA 5 7 . 2 m m 58mm 36mm 61mm

INTERTEK TESTING SERVICES Internal photos FCC ID: DYFEMG900T internal photos - 1 of 2 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal photos FCC ID: DYFEMG900T internal photos - 2 of 2 Internal Photo - 3

1 of 1 Technical Description Company name: PRIMATRONIX LTD Model no.: CD810 (Transmitter) Date: May 29, 2006 1. General description This device contains ASK transmitter with a built-in encoder IC. The main purpose of the device is used to send a unique encoded signal to activate the receiver in a corded phone. 2. Circuit description When SW1 is pressed, the encoder IC (EV1527) will be turned on. Then the encoded signal will be modulated to ASK signal by a SAW resonator (SAW2) with a centre carrier frequency 868.35 MHz. The modulated signal will be amplified by a RF amplifier and transmit through a permanently attached antenna 2. The frame structure of the encoded data is shown as follow: Preamble C0 - C19 security code D0 D1 D2 D3 Where C0 - C19 contains security code information, which will be described in the next section. D0 - D2 are preset to be ‘0’ by the hardware configuration during production and D3 is a control bit. 3. Security coding information This device contains an encoder IC. The length of security code is 20 bit, which can provide up to 2 20 ~ 1 million different codes. When the pairing button is pressed on the phone base and SW1 is pressed at the transmitter side, the encoder at the transmitter side will generate a random security code. The decoder at the receiver side will then recognize and ‘remember’ this security code from the transmitter. Then this recognized security code will be used for each transmission for each pair up transmitter and receiver. This security code will only be changed when the pairing procedure is being taken again. As the length of the security code is significantly long, therefore it can minimize the possibility of code ‘collision’.

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Primatronix Ltd. Application For Certification (FCC ID: DYFEMG900T) 868MHz Transmitter 0601580 KL/ Ann Choy May 30, 2006 INTERTEK TESTING SERVICES FCC ID: DYFEMG900T i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: DYFEMG900T ii MEASUREMENT/TECHNICAL REPORT Primatronix Ltd. - MODEL: CD810 EMG900 FCC ID: DYFEMG900T May 30, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DSC - Pt. 15 Security/ Remote Control Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Lam Chun Cheong, Kenneth Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8474 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: DYFEMG900T iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................... 2 1.2 Related Submittal(s) Grants................................................................................... 2 1.3 Test Methodology.................................................................................................. 3 1.4 Test Facility ........................................................................................................... 3 2.0 System Test Configuration................................................................................. 5 2.1 Justification ........................................................................................................... 5 2.2 EUT Exercising Software....................................................................................... 5 2.3 Special Accessories .............................................................................................. 5 2.4 Equipment Modification ......................................................................................... 6 2.5 Measurement Uncertainty...................................................................................... 6 2.6 Support Equipment List and Description ................................................................ 6 3.0 Emission Results................................................................................................ 8 3.1 Field Strength Calculation...................................................................................... 9 3.2 Radiated Emission Configuration Photograph...................................................... 11 3.3 Radiated Emission Data ...................................................................................... 12 4.0 Equipment Photographs................................................................................... 15 5.0 Product Labelling.............................................................................................. 17 6.0 Technical Specifications................................................................................... 19 7.0 Instruction Manual ............................................................................................ 21 8.0 Miscellaneous Information ............................................................................... 23 8.1 Measured Bandwidth........................................................................................... 24 8.2 Discussion of Pulse Desensitization..................................................................... 25 8.3 Calculation of Average Factor.............................................................................. 26 8.4 Emissions Test Procedures ................................................................................. 27 INTERTEK TESTING SERVICES FCC ID: DYFEMG900T iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission config photos.doc Test Report Bandedge Plot bw.pdf Test Report Timing Diagram timing.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: DYFEMG900T 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: DYFEMG900T 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a transmitter operating at 868.350MHz. The EUT is powered by a 12V alkaline battery. It is a remote control of a single line corded phone with Talking Caller ID and Speakerphone. Once the button is press…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES 20dB RF Bandwidth Plots FCC ID: DYFEMG900T bw - 1 of 1 Plot A

INTERTEK TESTING SERVICES Transmission Timing Plots FCC ID: DYFEMG900T timing - 1 of 2 Plot B1 One Code Word Sync. Bit Plot B2 Data 'L’ Data ‘H’ INTERTEK TESTING SERVICES Transmission Timing Plots FCC ID: DYFEMG900T timing - 2 of 2 Plot B3 Plot B4

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: DYFEMG900T config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View
