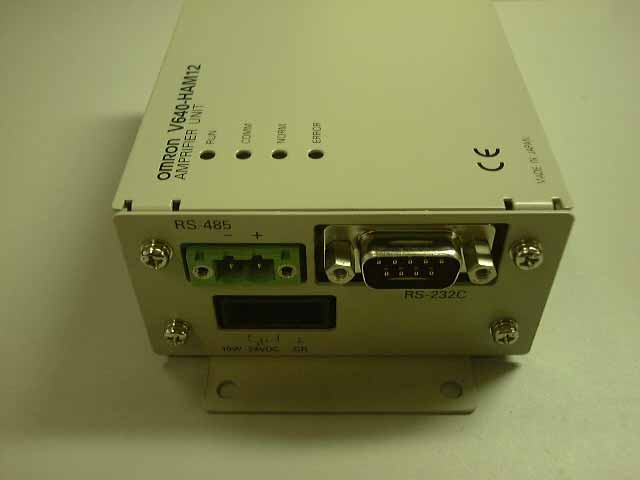

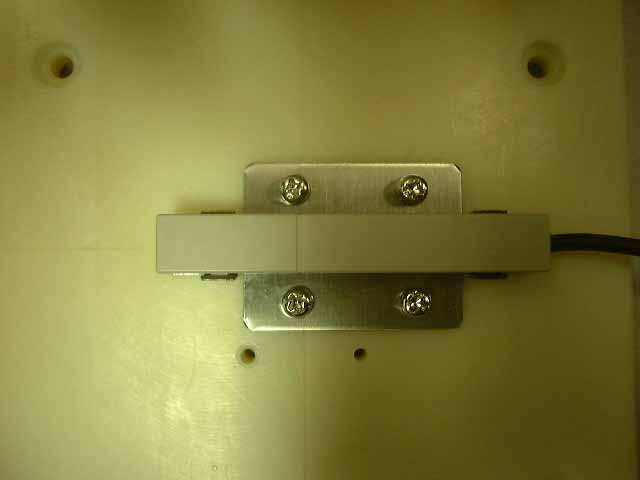

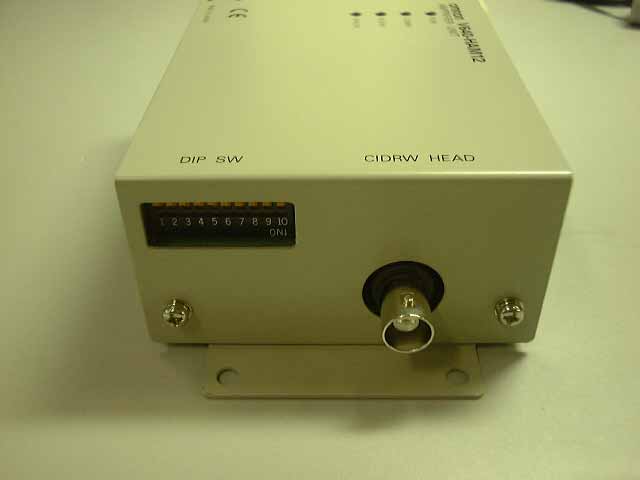

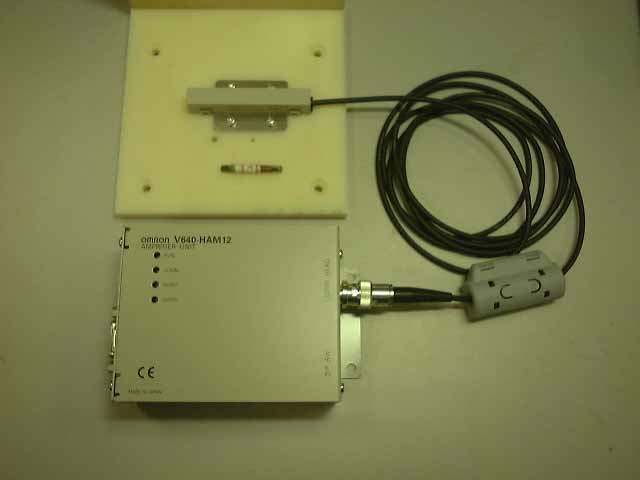

External Photo FCC ID: E4E6CYCID6400304 <V640-HAM12(-X)/ V640-HS62 (-X)> OMRON Corporation Over View Amplifier Unit: RF Transmitter V640-HAM12(-X) External Photo FCC ID: E4E6CYCID6400304 <V640-HAM12(-X)/ V640-HS62 (-X)> OMRON Corporation Bottom View of Amplifier Unit Right hand side of Amplifier Unit External Photo FCC ID: E4E6CYCID6400304 <V640-HAM12(-X)/ V640-HS62 (-X)> OMRON Corporation Left hand side of Amplifier Unit Antenna External Photo FCC ID: E4E6CYCID6400304 <V640-HAM12(-X)/ V640-HS62 (-X)> OMRON Corporation Head of Antenna: CIDRW Head V640-HS62 (-X) ID Tag

Internal Photo FCC ID: E4E6CYCID6400304 <V640-HAM12(-X)> OMRON Corporation Open View Without upper Circuit Board Internal Photo FCC ID: E4E6CYCID6400304 <V640-HAM12(-X)> OMRON Corporation Upper Circuit Board (Front) Upper Circuit Board (Back) Internal Photo FCC ID: E4E6CYCID6400304 <V640-HAM12(-X)> OMRON Corporation Lower Circuit Board (Front) Lower Circuit Board (Back) Internal Photo FCC ID: E4E6CYCID6400304 <V640-HS62(-X)> OMRON Corporation Open View

Test report No. : 24LE0207-HO Page : 2 of 19 Issued date : August 30, 2004 Revisaed date : October 26, 2004 FCC ID : E4E6CYCIDV6400304 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information............................................................................................................3 SECTION 2: Equipment under test (E.U.T.).......................................................................................3 SECTION 3: Test specification, procedures & results........................................................................4 SECTION 4: Operation of E.U.T. during testing................................................................................6 SECTION 5: Conducted emission.........................................................................................................7 SECTION 6: Radiated emission............................................................................................................8 SECTION 7: -20dB Bandwidth.............................................................................................................8 APPENDIX 1: Photographs of test setup..............................................................................................9 Conducted emission...............................................................................................................9 Radiated emission................................................................................................................10 Worst Case Position (Y-axis)..............................................................................................11 APPENDIX 2: Test instruments..........................................................................................................12 APPENDIX 3: Data of EMI test..........................................................................................................13 Conducted emission(FCC15C)...........................................................................................13 Radiated emission(FCC15C)...............................................................................................15 –20dB Bandwidth(FCC15C)...............................................................................................16 Conducted emission(FCC15B)............................................................................................17 Radiated emission(FCC15B)...............................................................................................19 Test report No. : 24LE0207-HO Page : 3 of 19 Issued date : August 30, 2004 Revisaed date : October 26, 2004 FCC ID : E4E6CYCIDV6400304 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : OMRON Corporation Brand or Trade name : OMRON Address : 3-2 Narutani, Nakayama-cho, Ayabe-shi, Kyoto, 623-0105 Japan Telephone Number : +81-773-42-6662 Facsimile Number : +81-773-43-0346 Contact Person : Yoshito Okuno SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Carrier ID Reader / Writer (RF-ID) Model No. : V640-HAM12 (Amplifier Unit) / V640-HS62 (CIDRW Head) Serial No. : 2/22 Rating : DC 24.0V Country of Manufacture : Japan Receipt Date of Sample : August 4, 2004 Condition of EUT : Production Prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Model No: V640-HAM12 and V640-HS62 is the Carrier ID Reader / Writer (RF-ID). The clock frequency of EUT is 16.0MHz (CPU). Equipment Type : Transceiver Frequency of Operation : 134.2 kHz Type of modulation : ASK Antenna Type : Loop Coil Antenna Method of Frequency Generation : Resonator Operating Temperature : 0 deg. C. to +40 deg. C. FCC 15.31 (e) This EUT provides stable voltage (DC 24.0V) constantly to RF Module regardless of input voltage. DC Power Supply also supplied this EUT with stable voltage (DC 24.0V) constantly. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement The device that has an external and particular antenna connector, and its installation is to be done by the professionals; This EUT has the external (particular) antenna connector, and the installation is to be done by the professionals. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 24LE0207-HO Page : 4 of 19 Issued date : August 30, 2004 Revisaed date : October 26, 2004 FCC ID : E4E6CYCIDV6400304 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart B Class A : 2004 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators Test Specification : FCC Part15 Subpart C : 2004 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emissions limits, general requirements 3.2 Procedures and results No. Item Test Procedure Limit Remarks Deviation Worst margin Results 1 Conducted Emission ANSI C63.4:2003 7. AC powerline conducted emission measurements Class A[FCC15B] Section 15.207[FCC15C] - N/A 5.0dB 17.19MHz L Complied 2 Radiated Emission ANSI C63.4:2003 8. Radiated emission measurements Class A[FCC15B]*1 Section 15.209[FCC15C]*2 - N/A 3.6dB 90.585MHz Vertical Complied 3 -20dB Bandwidth ANSI C63.4:2003 Annex H.6 Occupied bandwidth measurements Reference data - N/A N/A N/A Note: UL Apex’s EMI Work Procedures No.QPM05. *1: EUT is declared to be used under the Industrial environment according to the product description. Therefore, the test was complied…

Text truncated - open the document above for the full version.

Test report No. : 24LE0207-HO Page : 9 of 19 Issued date : August 30, 2004 Revisaed date : October 26, 2004 FCC ID : E4E6CYCIDV6400304 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Conducted emission Front Rear Test report No. : 24LE0207-HO Page : 10 of 19 Issued date : August 30, 2004 Revisaed date : October 26, 2004 FCC ID : E4E6CYCIDV6400304 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Radiated emission Front Rear Test report No. : 24LE0207-HO Page : 11 of 19 Issued date : August 30, 2004 Revisaed date : October 26, 2004 FCC ID : E4E6CYCIDV6400304 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (Y-axis) X-axis Y-axis *The normal installation was X-axis and Y-axis of Two directions only.
