E4E6CYSIDV6800108RFID Device

Cat. No. NTLP DeviceNet ID Slave V680-HAM42-DRT V680 Series User’s Manual Antennas V680-HS51 V680-HS52 V680-HS63 V680-HS65 ID Tags V680-D1KP52MT V680-D1KP66T/-D1KP66MT V680-D1KP66T-SP V680-D2KF52M V680-D2KF67/-D2KF67M V680-D8KF68/-D32KF68 Introduction Thank you for purchasing a V680-series RFID System. This manual describes the functions, performance, and application methods needed for optimum use of the V680-series RFID System. Please observe the following items when using the RFID System. •Allow the RFID System to be installed and operated only by qualified specialist with a sufficient knowledge of electrical systems. •Read and understand this manual before attempting to use the RFID System and use the RFID System correctly. •Keep this manual in a safe and accessible location so that it is available for reference when required. Introducti Section 1 Section 2 Sec tion 3 Section 4 Section 5 Section 6 Introduction Section 1 Section 2 Section 3 Section 4 Section 5 Section 6 READ AND UNDERSTAND THIS DOCUMENT Product Overview Names and Functions of Components Functions and Operation Installation, Connections, and Wiring I/O Settings and Control Methods Appendices RFID System V680-HAM42-DRT DeviceNet Remote ID Controller V680-HS51Antenna V680-HS52Antenna V680-HS63Antenna V680-HS65Antenna V680-D1KP52MTID Tag V680-D1KP66T/-D1KP66MTID Tag V680-D1KP66T-SPID Tag V680-D2KF52MID Tag V680-D2KF67/-D2KF67MID Tag V680-D8KF68/-D32KF68ID Tag 2 Introduction RFID System User's Manual Introduction READ AND UNDERSTAND THIS DOCUMENT Please read and understand this document before using the products. Please consult your OMRON representative if you have any questions or comments. WARRANTY OMRON’s exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by OMRON. OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR FIT- NESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. LIMITATIONS OF LIABILITY OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABIL- ITY. In no event shall responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted. IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE PRODUCTS UNLESS OMRON’S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT SUBJECT TO CON- TAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR. SUITABILITY FOR USE THE PRODUCTS CONTAINED IN THIS DOCUMENT ARE NOT SAFETY RATED. THEY ARE NOT DESIGNED OR RATED FOR ENSURING SAFETY OF PERSONS, AND SHOULD NOT BE RELIED UPON AS A SAFETY COMPONENT OR PROTECTIVE DEVICE FOR SUCH PURPOSES. Please refer to sep- arate catalogs for OMRON's safety rated products. OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer’s applica- tion or use of the product. At the customer’s request, OMRON will provide applicable third party certification documents identifying ratings and limitations of use that apply to the prod- ucts. This information by itself is not sufficient for a complete determination of the suitability of the products in combination with the end product, machine, system, or other application or use. The following are some examples of applications for which particular attention must be given. This is not intended to be an exhaustive list of all possible uses of the products, nor is it intended to imply that the uses listed may be suitable for the products: • Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses not described in this document. • Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations. • Systems, machines, and equipment that could present a risk to life or property. Please know and observe all prohibitions of use applicable to the products. NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM. PERFORMANCE DATA Performance data given in this document is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of OMRON’s test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON Warranty and Limitations of Liability. CHANGE IN SPECIFICATIONS Product specifications and accessories may be changed at any time based on improvements and other reasons. It is our practice to change model numbers when published ratings or features are changed, or when significant construction changes are made. However, some specifications of the product may be changed without any notice. When in doubt, special model numbers may be assigned to fix or establish key spec- ifications for your application on your request. Please consult with your OMRON representative at any time to confirm actual specifications of purchased prod- ucts. DIMENSIONS AND WEIGHTS Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances are shown. ERRORS AND OMISSION…

Text truncated - open the document above for the full version.

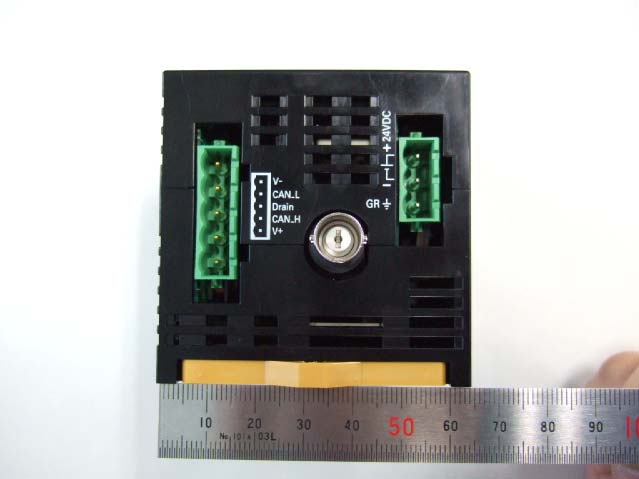

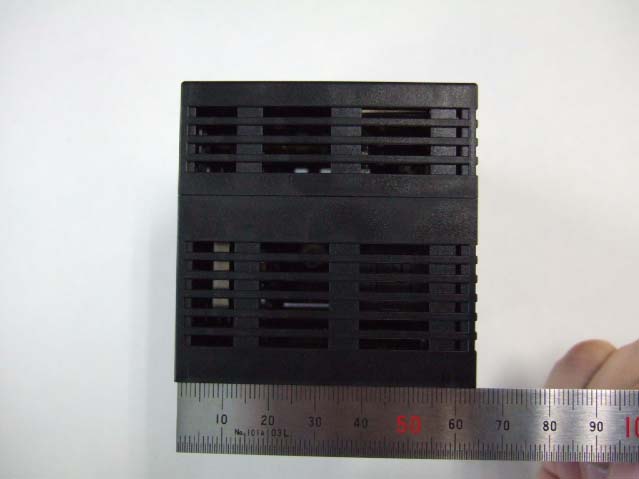

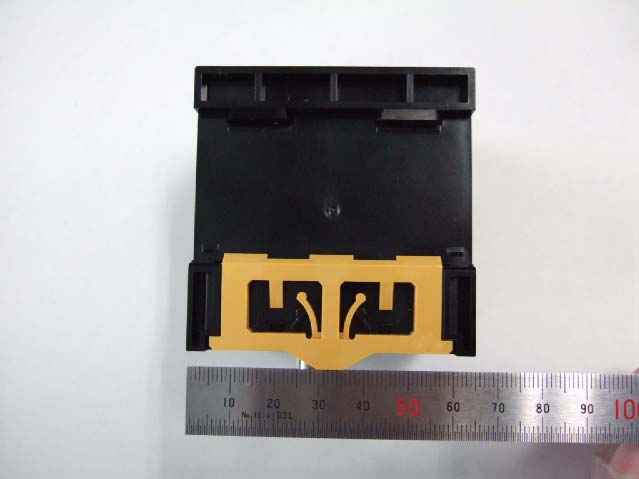

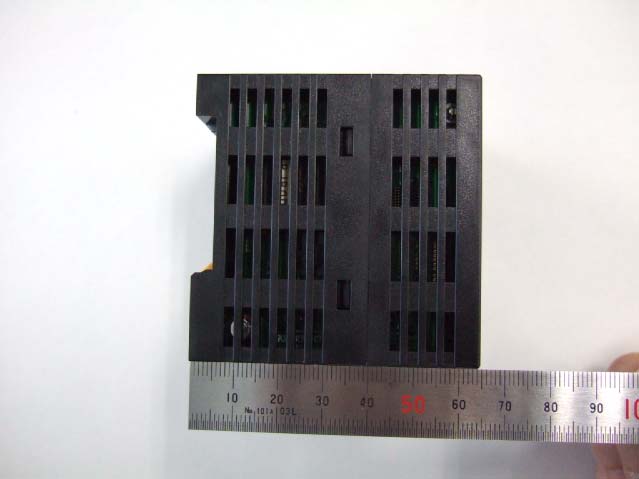

External Photo OMRON Corporation RFID system FCC ID: E4E6CYSIDV6800108 Model: V680-HAM42-DRT IC Number: 850J-V6800108 Front Rear External Photo OMRON Corporation RFID system FCC ID: E4E6CYSIDV6800108 Model: V680-HAM42-DRT IC Number: 850J-V6800108 Top Bottom External Photo OMRON Corporation RFID system FCC ID: E4E6CYSIDV6800108 Model: V680-HAM42-DRT IC Number: 850J-V6800108 Right Left

 4              r % #       #$%& # $%& '%%106'065 &#6' 5;/ &'5+)0'&(14 5*''6 &49)01 4&#0).' 5%#.' /#6'4+#. (+0+5* % '%01 5+)0 㧻㧹㧾㧻㧺㧯㨛㨞㨜㨛㨞㨍㨠㨕㨛㨚 㧭㨘㨘㧾㨕㨓㨔㨠㨟㧾㨑㨟㨑㨞㨢㨑㨐 61.'4#0%'5 70.'55 52'%+(+'& +6 &'5+)0'& #;: *;#7%*+ %*'%-'& #22418'& ᵈᵈ 㨠9ޓ6'2ޓ*6   8*#/&46 # .#$'.  㩡㩗㩨㩣  %10(+&'06+#.$ ࠻ࠦࡁශ೚࡞࡯ࠪޓ࠺⦡ࡁਅ⸥ᵈޓޓ࿾⦡࡮ᢥሼ㧔.QV0Q㧕㧦0㧔㤥㧕㧕࠻ࠗࡢࡎࡈࠝ㧔;ㇱ㧦ࠣࡦ࠴࠶ࡂ࡮✢࡮ᢥሼޓޓ࡞ࠬ࠻ടᎿ࠻࡯ࡀࡒ࡜ޓࠪᶖࡗ࠷ޓ࡞࡛࠾ਅ⴫ࡂᦠ૕ࡁᢥሼޓ࡞ࠬ࠻☼⌕ᗵ࿶ᒻࡂធ⌕ᣇᴺޓ࡞ࠕ࠺㧼㧯 㧭㧮㧿ࡂ᧚革ࡁⵍ⌕૕ޓ࠻ࠦࠗ࠽࡜ᱷࠟᄖᒻ✢ޓᤨ࡝઀਄ޓ࡞࡛࠾ਅ ࡂ⹦⚦ޓ .CDGN.QECVKQP

Internal Photo OMRON Corporation RFID system FCC ID: E4E6CYSIDV6800108 Model: V680-HAM42-DRT IC Number: 850J-V6800108 Front Rear Internal Photo OMRON Corporation RFID system FCC ID: E4E6CYSIDV6800108 Model: V680-HAM42-DRT IC Number: 850J-V6800108 Top Bottom Internal Photo OMRON Corporation RFID system FCC ID: E4E6CYSIDV6800108 Model: V680-HAM42-DRT IC Number: 850J-V6800108 Right Left Internal Photo OMRON Corporation RFID system FCC ID: E4E6CYSIDV6800108 Model: V680-HAM42-DRT IC Number: 850J-V6800108 Top of PWB(1) Bottom of PWB(1) Internal Photo OMRON Corporation RFID system FCC ID: E4E6CYSIDV6800108 Model: V680-HAM42-DRT IC Number: 850J-V6800108 Top of PWB(2) Bottom of PWB(2) with shield Internal Photo OMRON Corporation RFID system FCC ID: E4E6CYSIDV6800108 Model: V680-HAM42-DRT IC Number: 850J-V6800108 Bottom of PWB(2) without shield Top of PWB(3) Internal Photo OMRON Corporation RFID system FCC ID: E4E6CYSIDV6800108 Model: V680-HAM42-DRT IC Number: 850J-V6800108 Bottom of PWB(3) Top of PWB(5) Internal Photo OMRON Corporation RFID system FCC ID: E4E6CYSIDV6800108 Model: V680-HAM42-DRT IC Number: 850J-V6800108 Bottom of PWB(5)

Test report No. : 28DE0079-HO-01-A Page : 2 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ...............................................................................................3 SECTION 2: Equipment under test (E.U.T.) ................................................................................. 3 SECTION 3: Test specification, procedures & results .................................................................. 5 SECTION 4: Operation of E.U.T. during testing .......................................................................... 9 SECTION 5: Conducted emission .................................................................................................14 SECTION 6: Radiated emission (Fundamental , Spurious Emission and Spectrum Mask ) .. 15 SECTION 7: 20dB Bandwidth....................................................................................................... 16 SECTION 8: Frequency Tolerance ............................................................................................... 16 SECTION 9: 99% Occupied Bandwidth ...................................................................................... 16 APPENDIX 1: Photographs of test setup...................................................................................... 17 Conducted emission .......................................................................................................... 17 Radiated emission ............................................................................................................. 21 Worst Case Position.......................................................................................................... 25 APPENDIX 2: Data of EMI test .................................................................................................... 30 Conducted emission .......................................................................................................... 30 Radiated emission(Fundamental emission and Spectrum Mask) ................................ 39 Radiated emission (Spurious emission : below 30MHz) ............................................... 47 Radiated emission (Spurious emission: above 30MHz)................................................ 55 20dB Bandwidth................................................................................................................ 63 99% Occupied Bandwidth ............................................................................................... 64 Frequency Tolerance ........................................................................................................ 65 APPENDIX 3: Test instruments .................................................................................................... 66 Test report No. : 28DE0079-HO-01-A Page : 3 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : OMRON Corporation Brand or Trade name : OMRON Address : 3-2, NARUTANI, NAKAYAMA-CHO, AYABE-SHI, KYOTO, 623-0105 Japan Telephone Number : +81-773-42-6662 Facsimile Number : +81-773-42-6135 Contact Person : Toshiya Kitagawa SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Radio Frequency Identification System (RFID System) Model No. : DeviceNet ID Slave: V680-HAM42-DRT Antenna: V680-HS65-W, V680-HS63-W, V680-HS52-W, V680-HS51 Serial No. : V680-HAM42-DRT: 6 V680-HS65-W: D1 (2.0m), A-7 (12.5m) V680-HS63-W: D3 (2.0m), D1 (12.5m) V680-HS52-W: D2 (2.0m), 2 (12.5m) V680-HS51: 10 Rating : DC 24.0V Country of Manufacture : Japan Receipt Date of Sample : December 8, 2007 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: V680-HAM42-DRT / V680-HS65-W, V680-HS63-W, V680-HS52-W, V680-HS51 (referred to as EUT in this report) is DeviceNet ID Slave / Antenna (Radio Frequency Identification System (RFID System)). The clock frequency of EUT is 16MHz (CPU) and 13.56MHz (Radio). Equipment Type : Transceiver Frequency band : 13.553 to 13.567 MHz Frequency of Operation : 13.56 MHz Type of modulation : ASK Power control : N/A Mode of operation : Simplex Antenna Type : Loop Antenna Method of Frequency Generation : Crystal Operating voltage : DC 6.0V and 5.0V Test report No. : 28DE0079-HO-01-A Page : 4 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Variant models: Model Differences V680-HS65-W, V680-HS63-W (tested model) Standard cable (watertight connector) Antenna (HS6 series) V680-HS65-R, V680-HS63-R Flexible cable (Non-watertight connector) V680-HS52-W (tested model) Standard cable (watertight connector) Antenna (HS5 series) V680-HS52-R Flexible cable (Non-watertight connector) Test report No. : 28DE0079-HO-01-A Page : 5 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C 2008, final revised on January 30, 2008 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.225 Operation within the band 13.110-14.010MHz *The revision on January 30, 2008 does not influence the test specification applied to the EUT. FCC 15.31 (e) This EUT provides s…

Text truncated - open the document above for the full version.

Test report No. : 28DE0079-HO-01-A Page : 30 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Conducted emission [Antenna terminal: 50 ohm terminated] DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2008/02/01 Company : OMRON CorporationReport No.:28DE0079-HO-01 Kind of EUT : RFID System Power:DC 24.0V(AC120V / 60Hz) Model No.: V680-HAM42-DRT Temp./Humi.:22deg.C / 30% Serial No.: 6 Operator:Kazufumi Nakai Mode / Remarks : Transmitting without Tag, Communication with PLC, ANT:50ohm terminated LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCURATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >>L :QP :AV N :QP :AV .15M 30M .2M.3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 _ Frequency _ Reading Level _ Reading Level _ Corr . _ Results _ Results _ Limit _ Limit _ Margin _ Margin _ Phase _ Frequency _ QP _ AV _ Factor _ QP _ AV _ QP _ AV _ QP _ AV _ Phase _ [ MHz] _ [ dBuV ] _ [ dBuV ] _ [ dB ] _ [dBuV] _ [dBuV] _ [dBuV] _ [dBuV] _ [dB] _ [dB] _ Phase _ 13 .56000 _ 34 . 1 _ 29 . 2 _ 1 .6 _ 35.7 _ 30.8 _ 60.0 _ 50.0 _ 24.3 _ 19.2 _ N _ 13 .56000 _ 33 . 4 _ 28 . 5 _ 1 .6 _ 35.0 _ 30.1 _ 60.0 _ 50.0 _ 25.0 _ 19.9 _ L *The test result is round off to one or two decimal places, so some differences might be observed. Test report No. : 28DE0079-HO-01-A Page : 31 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted emission [Antenna: V680-HS65-W (2.0m), with Tag] DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2008/02/01 Company : OMRON CorporationReport No.:28DE0079-HO-01 Kind of EUT : RFID System Power:DC 24.0V(AC120V / 60Hz) Model No.: V680-HAM42-DRT Temp./Humi.:22deg.C / 30% Serial No.: 6 Operator:Kazufumi Nakai Mode / Remarks : Transmitting with Tag, Communication with PLC, ANT:HS65-W 2m LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCURATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >>L :QP :AV N :QP :AV .15M 30M .2M.3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 _ Frequency _ Reading Level _ Reading Level _ Corr . _ Results _ Results _ Limit _ Limit _ Margin _ Margin _ Phase _ Frequency _ QP _ AV _ Factor _ QP _ AV _ QP _ AV _ QP _ AV _ Phase _ [ MHz] _ [ dBuV ] _ [ dBuV ] _ [ dB ] _ [dBuV] _ [dBuV] _ [dBuV] _ [dBuV] _ [dB] _ [dB] _ Phase _ 0 .15152 _ 46 . 2 _ 35 . 7 _ 0 .3 _ 46.5 _ 36.0 _ 65.9 _ 55.9 _ 19.4 _ 19.9 _ N _ 0 .34950 _ 44 . 5 _ 33 . 4 _ 0 .3 _ 44.8 _ 33.7 _ 59.0 _ 49.0 _ 14.2 _ 15.3 _ N _ 0 .39545 _ 46 . 3 _ 37 . 9 _ 0 .3 _ 46.6 _ 38.2 _ 57.9 _ 47.9 _ 11.3 _ 9.7 _ N _ 0 .78430 _ 32 . 3 _ 25 . 1 _ 0 .4 _ 32.7 _ 25.5 _ 56.0 _ 46.0 _ 23.3 _ 20.5 _ N _ 7 .44543 _ 36 . 4 _ 30 . 8 _ 1 .2 _ 37.6 _ 32.0 _ 60.0 _ 50.0 _ 22.4 _ 18.0 _ N _ 27 .12036 _ 42 . 8 _ 31 . 4 _ 2 .4 _ 45.2 _ 33.8 _ 60.0 _ 50.0 _ 14.8 _ 16.2 _ N _ 0 .15150 _ 52 . 2 _ 40 . 7 _ 0 .3 _ 52.5 _ 41.0 _ 65.9 _ 55.9 _ 13.4 _ 14.9 _ L _ 0 .34481 _ 45 . 4 _ 35 . 0 _ 0 .3 _ 45.7 _ 35.3 _ 59.1 _ 49.1 _ 13.4 _ 13.8 _ L _ 0 .39248 _ 49 . 0 _ 38 . 3 _ 0 .3 _ 49.3 _ 38.6 _ 58.0 _ 48.0 _ 8.7 _ 9.4 _ L _ 0 .81812 _ 31 . 9 _ 26 . 5 _ 0 .4 _ 32.3 _ 26.9 _ 56.0 _ 46.0 _ 23.7 _ 19.1 _ L _ 7 .46761 _ 37 . 5 _ 31 . 9 _ 1 .2 _ 38.7 _ 33.1 _ 60.0 _ 50.0 _ 21.3 _ 16.9 _ L _ 27 .15454 _ 42 . 9 _ 31 . 9 _ 2 .4 _ 45.3 _ 34.3 _ 60.0 _ 50.0 _ 14.7 _ 15.7 _ L *The test result is round off to one or two decimal places, so some differences might be observed. Test report No. : 28DE0079-HO-01-A Page : 32 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted emission [Antenna: V680-HS65-W (2.0m), without Tag] DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2008/02/01 Company : OMRON CorporationReport No.:28DE0079-HO-01 Kind of EUT : RFID System Power:DC 24.0V(AC120V / 60Hz) Model No.: V680-HAM42-DRT Temp./Humi.:22deg.C / 30% Serial No.: 6 Operator:Kazufumi Nakai Mode / Remarks : Transmitting without Tag, Communication with PLC, ANT:HS65-W 2m LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCURATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >>L :QP :AV N :QP :AV .15M 30M .2M.3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 _ Frequency _ Reading Level _ Reading Level _ Corr . _ Results _ Results _ Limit _ Limit _ Margin _ Margin _ Phase _ Frequency _ QP _ AV _ Factor _ QP _ AV _ QP _ AV _ QP _ AV _ Phase _ [ MHz] _ [ dBuV ] _ [ dBuV ] _ [ dB ] _ [dBuV] _ [dBuV] _ [dBuV] _ [dBuV] _ [dB] _ [dB] _ Phase _ 0 .15595 _ 45 . 3 _ 33 . 1 _ 0 .3 _ 45.6 _ 33.4 _ 65.7 _ 55.7 _ 20.1 _ 22.3 _ N _ 0 .35712 _ 43 . 6 _ 33 . 1 _ 0 .3 _ 43.9 _ 33.4 _ 58.8 _ 48.8 _ 14.9 _ 15.4 _ N _ 0 .39217 _ 47 . 8 _ 38 . 4 _ 0 .3 _ 48.1 _ 38.7 _ 58.0 _ 48.0 _ 9.9 _ 9.3 _ N _ 1 .16592 _ 32 . 5 _ 26 . 7 _ 0 .4 _ 32.9 _ 27.1 _ 56.0 _ 46.0 _ 23.1 _ 18.9 _ N _ 7 .46351 _ 36 . 8 _ 30 . 9 _ 1 .2 _ 38.0 _ 32.1 _ 60.0 _ 50.0 _ 22.0 _ 17.9 _ N _ 27 .12024 _ 46 . 0 _ 42 . 2 _ 2 .4 _ 48.4 _ 44.6 _ 60.0 _ 50.0 _ 11.6 _ 5.4 _ N _ 0 .15026 _ 52 . 1 _ 39 . 7 _ 0 .3 _ 52.4 _ 40.0 _ 66.0 _ 56.0 _ 13.6 _ 16.0 _ L _ 0 .34908 _ 46 . 9 _ 35 . 8 _ 0 .3 _ 47.2 _ 36.1 _ 59.0 _ 49.0 _ 11.8 _ 12.9 _ L _ 0 .39092 _ 50 . 2 …

Text truncated - open the document above for the full version.

Test report No. : 28DE0079-HO-01-A Page : 17 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted emission [Antenna: V680-HS65-W (2.0m)] Front Side Test report No. : 28DE0079-HO-01-A Page : 18 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted emission [Antenna: V680-HS63-W (2.0m)] Front Side Test report No. : 28DE0079-HO-01-A Page : 19 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted emission [Antenna: V680-HS52-W (2.0m)] Front Side Test report No. : 28DE0079-HO-01-A Page : 20 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted emission [Antenna: V680-HS51 (2.0m)] Front Side Test report No. : 28DE0079-HO-01-A Page : 21 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated emission [ Antenna: V680-HS65-W (12.5m)] Front Rear Test report No. : 28DE0079-HO-01-A Page : 22 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated emission [Antenna: V680-HS63-W (12.5m)] Front Rear Test report No. : 28DE0079-HO-01-A Page : 23 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated emission [Antenna: V680-HS52-W (2.0m)] Front Rear Test report No. : 28DE0079-HO-01-A Page : 24 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated emission [Antenna: V680-HS51 (2.0m)] Front Rear Test report No. : 28DE0079-HO-01-A Page : 25 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position [Antenna: V680-HS65, Y-axis] X-axis Y-axis Z-axis Test report No. : 28DE0079-HO-01-A Page : 26 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position [Antenna: V680-HS63, Z-axis] X-axis Y-axis Z-axis Test report No. : 28DE0079-HO-01-A Page : 27 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position [Antenna: V680-HS52 (2.0m), Z-axis] [Antenna: V680-HS52 (12.5m), X-axis] X-axis Y-axis Z-axis Test report No. : 28DE0079-HO-01-A Page : 28 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position [Antenna: V680-HS51, X-axis] X-axis Y-axis Z-axis Test report No. : 28DE0079-HO-01-A Page : 29 of 66 Issued date : February 14, 2008 FCC ID : E4E6CYSIDV6800108 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position [ DeviceNet ID Slave : V680-HAM42-DRT, Z-axis] X-axis Y-axis Z-axis
