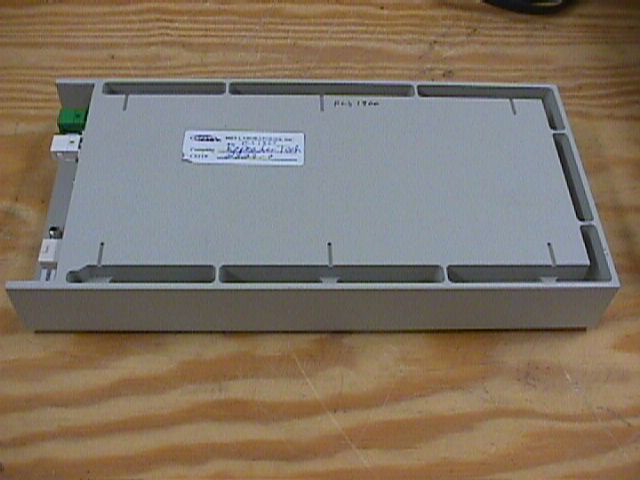

EK2OC190002Distributed Antenna System

OfficeCell Manual, Rev. E3 Operating Manual OfficeCell   Distributed Antenna System ii iii Table of Contents 1LINK DESCRIPTION........................................................................................................................................1-1 1.1C AUTIONS AND W ARNINGS ...........................................................................................................................1-1 1.2G EN ERAL D ESCRIPTIO N .................................................................................................................................1-1 1.2.1Basic Principles..................................................................................................................................1-2 1.2.2Functional Description.......................................................................................................................1-3 1.3S PECIFICATIONS ............................................................................................................................................1-7 2INSTALLATION...............................................................................................................................................2-1 2.1G EN ERAL P ROCEDURE ...................................................................................................................................2-1 2.2I N STALL F IBERO PTIC C ABLES ........................................................................................................................2-4 2.2.1Minimizing Optical Reflections..........................................................................................................2-4 2.2.2Cleaning Optical Connectors..............................................................................................................2-5 2.3S YSTEM A LARMS ..........................................................................................................................................2-6 2.4H UB S HELF AND R EMO TE P OWER S UPPLY B ATTERY C HARGE M ONITORING AND B ATTERY R EPLACEMEN T ....2-6 2.4.1Replacing the Hub Shelf Battery.........................................................................................................2-6 2.4.2Replacing the Remote Power Supply Battery.....................................................................................2-7 2.5I N STALLATIO N C HECKLIST ............................................................................................................................2-7 2.5.1Inspect Received Items........................................................................................................................2-7 2.5.2Recommended Tools............................................................................................................................2-8 2.6I N STALLIN G THE H UB S HELF ..........................................................................................................................2-8 2.7I N STALLIN G THE R EMO TE T RANSCEIVERS ......................................................................................................2-9 3MONITORING AND TROUBLESHOOTING...............................................................................................3-1 3.1F IELD S UPPORT N UMBERS .............................................................................................................................3-1 3.2T ROUBLESHOOTING T IPS ...............................................................................................................................3-2 iv 1-1 1 Link Description 1.1 Cautions and Warnings Throughout this manual, these terms appear w hich highlight the care that should be exercised to ensure personal safety and proper operation of the equipment. WARNING : Warning statements identify conditions or practices that could result in injury or loss of life. CAUTION : Caution statements identify conditions or practices that could result in damage to this product or other property. NOTE: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not aoccur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the follow ing measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. CAUTION : any modifications to this device not expressly authorized by Repeater Technologies, Inc. could void the user’s authority to operate this device. 1.2 General Description The OFFICECELL Fiberoptic Distributed Antenna System provides extended coverage of cellular and PCS netw orks throughout buildings and campus environments. The Hub Shelf is the HUB SHELF w hich is a 3U (5.25 inch) high, 19 inch wide rack-mounted chassis. The HUB SHELF holds up to 8 HUB TRANSCEIVER Plug-Ins. The Hub Shelf is located in a communications equipment room in the building and is connected to the cellular/PCS base station or repeater via hardline connection. The Hub Shelf may also be connected to the radios of a w ireless PBX. Each Hub Shelf is configured w ith up to eight HUB TRANSCEIVER plug-in cards. Each card is connected to up to two Remote Transceivers. The REMOTE TRANSCEIVER Units are 1-2 distribu…

Text truncated - open the document above for the full version.

August 14, 2000 attn:Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. To act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Gary Grimes VP Southern California Operations

September 18, 2000 attn:Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR EUT OfficeCell/Model OC1900 AND FCC ID EK2OC190002 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams required to be submitted with this application be withheld from public review. These schematics contain product information that is highly proprietary for Repeater Technologies, Inc. Please contact me if there is any information you may need. Sincerely, Gary Grimes VP Southern California Operations

iv 1-1 1 Link Description 1.1 Cautions and Warnings Throughout this manual, these terms appear which highlight the care that should be exercised to ensure personal safety and proper operation of the equipment. WARNING: Warning statements identify conditions or practices that could result in injury or loss of life. CAUTION: Caution statements identify conditions or practices that could result in damage to this product or other property. NOTE: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not aoccur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. CAUTION: any modifications to this device not expressly authorized by Repeater Technologies, Inc. could void the user’s authority to operate this device. 1.2 General Description The OFFICECELL Fiberoptic Distributed Antenna System provides extended coverage of cellular and PCS networks throughout buildings and campus environments. The Hub Shelf is the HUB SHELF which is a 3U (5.25 inch) high, 19 inch wide rack-mounted chassis. The HUB SHELF holds up to 8 HUB TRANSCEIVER Plug-Ins. The Hub Shelf is located in a communications equipment room in the building and is connected to the cellular/PCS base station or repeater via hardline connection. The Hub Shelf may 1-2 also be connected to the radios of a wireless PBX. Each Hub Shelf is configured with up to eight HUB TRANSCEIVER plug-in cards. Each card is connected to up to two Remote Transceivers. The REMOTE TRANSCEIVER Units are distributed throughout the building as necessary to provide coverage. The Remote Transceivers are mounted, generally, above the suspended ceiling but may be mounted near the ceiling inside the room if need be. The aesthetic and low-profile design of the Remote Power Supply makes it relatively unobtrusive. The plastic cover may even be removed and/or painted to match the décor. Each REMOTE TRANSCEIVER is connected to Hub Shelf via two singlemode optical fibers. Each REMOTE TRANSCEIVER has one RF port which is connected to a user-supplied indoor coverage antenna. This port may also be routed through an N-way RF splitter to provide coverage from a number N antennas for the one Remote Transceiver. This reduces the output power and sensitivity at that Remote Transceiver but, in some cases, this could be the most cost-effective way to provide unifirm coverage. The REMOTE TRANSCEIVER is powered by +12 to 24 VDC which can be supplied by the customer or by the Remote Power Supply. This is a universal AC power supply with battery backup and is installed with the REMOTE TRANSCEIVER on a wall mounting bracket supplied with the unit. If DC power is supplied by the customer, it can be distributed from a power supply at the Hub location using the conductor pairs in a composite fiber/conductor cable. The DC connector utilized at the Remote Transceiver can accommodate up to 14 AWG wire. The OFFICECELL design is very versatile but certain options are available that target specific signal types and applications. In addition to the single band versions, there is an 800 MHz/1900 MHz dual band and a GSM900/GSM1800 dual band option. There is also a high power 800MHz and GSM900 option. This option provides a +22 dBm single carrier output for GSM900 or, for 800 MHz, 10 carriers of IS-136 at +10 dBm/carrier or +12 dBm for single carrier CDMA. The system performance is specified for 4 dB optical loss. OFFICECELL installation and setup is very simple. First, standard telcom grade singlemode fiberoptic cable that is most suitable for the site is installed. The cable installer can terminate the cable on site easily with the OptoClip optical connectors. The Plug-Ins and Remote Transceivers of a given type are completely interchangeable. The OptoClip plugs directly into the Remote Transceiver at one end. The other end plugs into an optical patch panel or directly into the Hub Shelf via an OptoClip-to-SC/UPC adapter. If the patch panel is used, OptoClip-to-SC/UPC jumpers must be used to connect the HUB SHELF to the patch panel. Built-in optical loss compensation automatically equalizes the gain in both the transmit and receive paths so the transmit RF power is known for a given input RF power and the receive path sensitivity is optimized. The only adjustment available is a manual setting for the static transmit power at the Remote Transceiver which may be used to optimize coverage, if necessary. This is a one time adjustment during set up. 1.2.1 Basic Principles The OFFICECELL operation is based on an analog RF fiberoptic link. The principles are illustrated in Figure 1. Input RF signals are converted to light by direct intensity modulation of a semiconductor laser. This modulated light is transmitted over optical fiber and detected by a semiconductor PIN Figure 0. Laser diode and photodiode characteristics illustrating the operation of an analog fiberoptic link. Ibias I (mA)I (mA) P ( m W ) o u t Ith RF Input RF Output (ac coupled to remove dc component) Optical Output Optic al Input P ( m W ) i n LASER DIODE CHARACTERISTIC PHOTODIODE CHARACTERISTIC 1-3 photodiod…

Text truncated - open the document above for the full version.

Parts List/Tune Up Info N/A - Performed during servicing

September 7, 2000 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention:Applications Examiner Applicant:Repeater Technologies 300 S. Harbor Blvd. Suite 900 Anaheim, CA 92805 Equipment:OfficeCell PCS1900 FCC ID: EK2OC190002 Specification:47 CFR 24 Licensed Certification Dear Examiner: The following application for Grant of Equipment Authorization is presented on behalf of Repeater Technologies for the Licensed Certification of their Model: OfficeCell PCS1900. Enclosed, please find a complete data and documentation package demonstrating that this device complies with the technical requirements of 47 CFR, Part 24, for a PCS Repeater. If you have any questions, please contact the undersigned, who is authorized to act as Agent. Sincerely, Chris Harvey Director, EMC Laboratory MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE !! BALTIMORE, MARYLAND 21230-3432 !! PHONE (410) 354-3300 !! FAX (410) 354-3313 ENGINEERING TEST REPORT in support of the Application for Grant of Equipment Authorization EQUIPMENT:OfficeCell PCS1900 FCC ID:EK2OC190002 Specification:47 CFR 24 On Behalf of the Applicant:Repeater Technologies 300 S. Harbor Blvd. Suite 900 Anaheim, CA 92805 Manufacturer:Repeater Technologies 300 S. Harbor Blvd. Suite 900 Anaheim, CA 92805 Manufacturer’s Mr. Gary Grimes Representative Test Date(s):August 10 thru September 5 , 2000 ENGINEERING STATEMENT I ATTEST: the measurements shown in this report were made in accordance with the procedures indicated, and that the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements. On the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 24 of the FCC Rules under normal use and maintenance. _____________________________ Liming Xu EMC Engineer, MET Laboratories MET #EMI1367ACopyright 2000, MET Laboratories, Inc.Page 3 of 46 1.0INTRODUCTION The following data is presented on behalf of the Applicant, Repeater Technologies, as verification of the compliance of the Repeater Technologies OfficeCell PCS1900 to the requirements of 47CFR 24. 2.0TEST SITE All testing was conducted at MET Laboratories, Inc., 914 West Patapsco Avenue, Baltimore, Maryland 21230-3493. Radiated emissions measurements were performed on a three-meter open area test site (OATS). A complete site description is on file with the FCC Laboratory Division as 31040/SIT/MET. 3.0TEST EQUIPMENT USED ManufacturerEquipment Calibration DueCal. Interval Hewlett Packard8563A Spectrum Analyzer6/14/01annual EMCOBiconical Antenna 31044/10/01annual EMCOEMCO Log Periodic Antenna4/10/01annual EMCODouble Ridge Guided Horn2/17/01annual Hewlett Packard8594EM Analyzer11/20/00annual Hewlett Packard8591E Analyzer8/12/00annual SolarLISN7/27/00annual 4.0EQUIPMENT UNDER TEST CONFIGURATION The PCS Repeater was configured with AC power supply modules and a digital signal generator was used to simulate various CDMA (i.e. QPSK Modulation type),NADC (DAMPS) and GSM. cellular RF input signals to the EUT. The EUT with host external computer was configured for maximum signal gain and bandwidth. The EUT was operated in a manner representative of the typical usage of the equipment. During all testing, system components were manipulated within the confines of typical usage to maximize each emission. 5.0TEST TYPE(S) 5.1Radiated Emissions: 47 CFR 2.1053, 24.238 5.2Occupied Bandwidth: 47 CFR 2.1049, Input vs. Output 5.3RF Power Output: 47 CFR 2.1046, 24.132(b)(c) 5.4Spurious Emission at Antenna Terminals (uplink & downlink): 47 CFR 2.1051, 24.238(a) 5.5Intermodulation Spurious Emissions-2 Tone Simultaneous RF Injection (uplink & downlink) at the lowest and highest sides of the band: 47 CFR 2.1051. 5.6AC Line Conducted Emissions: 47 CFR 15.107 MET #EMI1367ACopyright 2000, MET Laboratories, Inc.Page 4 of 46 E(V/m) 1m ' 49.2X0.22 1 E(V/m) 1m '3.29V/mor130.5dbμV 43%10Log(0.22)'36.424dB 130.5dBμV&36.424dB'94dBμV@1m E(V/m) 3m ' 49.2X0.22 3 E(V/m) 3m '1.0967V/mor120.5dbμV 120.5&36.424'84dBμV@3m 6.0TEST RESULTS 6.1TEST TYPE: Radiated Emissions 6.1.1TECHNICAL SPECIFICATION:47 CFR 2.1053; 24.238 6.1.2TEST DATE(S):August 10, 2000 6.1.3MEASUREMENT PROCEDURES: As required by §2.1053, field strength of spurious radiation measurements were made in accordance with the general procedures of ANSI C63.4-1992 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40 GHz". Preliminary and final radiated emission measurements were performed inside a semi-anechoic chamber with all digital signal generators on and . The frequency list from the preliminary measurements was used as a guide for making final measurements in the semi-anechoic chamber. The unit was scanned over the frequency range of 30MHz to 20 GHz. The Radiated Spurious Emissions Limit is obtained by the following: Based on an output power (as measured at the output of the Amplifier) of 0.22 watts: P o = 0.22 W As per 2.993 (a), it is assumed this power is to be fed to a half-wave tuned dipole. Using a conversion formula for distance, the field strength at one meter can be derived: As per 22.917(e), the spurious emissions must be attenuated by 43 + 10log(P) which is: Therefore, the limit for spurious emissions is: At 3 meters measurement distance, the limit is; According to 22.917(e), all signals must be attenuated by 49 dB. Therefore, the limit for spurious emissions for a test distance of 3 meters is: MET #EMI1367ACopyright 2000, MET Laboratories, Inc.Page 5 of 46 6.1.4RESULTS: Carrier Emission:0.22 Watts Frequency (MHz) Azimuth (EECCW- OEE=EUT facing ant.) Pola- rity Height (m) Raw Amplitud e (dBuV) Ant.Cor. Factor (db) Cable Loss (db) Distance Corr. 3m to 10m Corrected Amplitude (dBuV/m) Limit (dBuV/m) at 10 meters…

Text truncated - open the document above for the full version.

September 7, 2000 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention:Applications Examiner Applicant:Repeater Technologies 300 S. Harbor Blvd. Suite 900 Anaheim, CA 92805 Equipment:OfficeCell PCS1900 FCC ID: EK2OC190002 Specification:47 CFR 24 Licensed Certification Dear Examiner: The following application for Grant of Equipment Authorization is presented on behalf of Repeater Technologies for the Licensed Certification of their Model: OfficeCell PCS1900. Enclosed, please find a complete data and documentation package demonstrating that this device complies with the technical requirements of 47 CFR, Part 24, for a PCS Repeater. If you have any questions, please contact the undersigned, who is authorized to act as Agent. Sincerely, Chris Harvey Director, EMC Laboratory MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE !! BALTIMORE, MARYLAND 21230-3432 !! PHONE (410) 354-3300 !! FAX (410) 354-3313 ENGINEERING TEST REPORT in support of the Application for Grant of Equipment Authorization EQUIPMENT:OfficeCell PCS1900 FCC ID:EK2OC190002 Specification:47 CFR 24 On Behalf of the Applicant:Repeater Technologies 300 S. Harbor Blvd. Suite 900 Anaheim, CA 92805 Manufacturer:Repeater Technologies 300 S. Harbor Blvd. Suite 900 Anaheim, CA 92805 Manufacturer’s Mr. Gary Grimes Representative Test Date(s):August 10 thru September 5 , 2000 ENGINEERING STATEMENT I ATTEST: the measurements shown in this report were made in accordance with the procedures indicated, and that the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements. On the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 24 of the FCC Rules under normal use and maintenance. Liming Xu EMC Engineer, MET Laboratories MET #EMI1367ACopyright 2000, MET Laboratories, Inc.Page 3 of 52 1.0INTRODUCTION The following data is presented on behalf of the Applicant, Repeater Technologies, as verification of the compliance of the Repeater Technologies OfficeCell PCS1900 to the requirements of 47CFR 24. 2.0TEST SITE All testing was conducted at MET Laboratories, Inc., 914 West Patapsco Avenue, Baltimore, Maryland 21230-3493. Radiated emissions measurements were performed on a three-meter open area test site (OATS). A complete site description is on file with the FCC Laboratory Division as 31040/SIT/MET. 3.0TEST EQUIPMENT USED ManufacturerEquipment Calibration DueCal. Interval Hewlett Packard8563A Spectrum Analyzer6/14/01annual EMCOBiconical Antenna 31044/10/01annual EMCOEMCO Log Periodic Antenna4/10/01annual EMCODouble Ridge Guided Horn2/17/01annual Hewlett Packard8594EM Analyzer11/20/00annual Hewlett Packard8591E Analyzer8/12/00annual SolarLISN7/27/00annual 4.0EQUIPMENT UNDER TEST CONFIGURATION The PCS Repeater was configured with AC power supply modules and a digital signal generator was used to simulate various CDMA (i.e. QPSK Modulation type),NADC (DAMPS) and GSM. cellular RF input signals to the EUT. The EUT with host external computer was configured for maximum signal gain and bandwidth. The EUT was operated in a manner representative of the typical usage of the equipment. During all testing, system components were manipulated within the confines of typical usage to maximize each emission. 5.0TEST TYPE(S) 5.1Radiated Emissions: 47 CFR 2.1053, 24.238 5.2Occupied Bandwidth: 47 CFR 2.1049, Input vs. Output 5.3RF Power Output: 47 CFR 2.1046, 24.132(b)(c) 5.4Spurious Emission at Antenna Terminals (uplink & downlink): 47 CFR 2.1051, 24.238(a) 5.5Intermodulation Spurious Emissions-2 Tone Simultaneous RF Injection (uplink & downlink) at the lowest and highest sides of the band: 47 CFR 2.1051. 5.6AC Line Conducted Emissions: 47 CFR 15.107 MET #EMI1367ACopyright 2000, MET Laboratories, Inc.Page 4 of 52 Po&[43%10Log(0.22)]'&13dBm 6.0TEST RESULTS 6.1TEST TYPE: Radiated Emissions 6.1.1TECHNICAL SPECIFICATION:47 CFR 2.1053; 24.238 6.1.2TEST DATE(S):August 10, 2000 6.1.3MEASUREMENT PROCEDURES: As required by §2.1053, field strength of spurious radiation measurements were made in accordance with the general procedures of ANSI C63.4-1992 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40 GHz". Preliminary and final radiated emission measurements were performed inside a semi-anechoic chamber with all digital signal generators on and . The frequency list from the preliminary measurements was used as a guide for making final measurements in the semi-anechoic chamber. The unit was scanned over the frequency range of 30MHz to 20 GHz. The Radiated Spurious Emissions Limit is obtained by the following: Based on an output power (as measured at the output of the Amplifier) of 0.22 watts: P o = 0.22 W the radiated power level of all spurious emissions must be attenuated by at least 43 + 10log(Po) below Po, yielding: All of the measurable radiated emissions are related to the digital device portion of the EUT, and thus are compared to the 47CFR 15 Class A field strength limit. Mathematical calculations indicate that these field strengths yield radiated power levels greater than 30 dB below the -13 dBm limit for spurious emissions from the transmitter portion of the EUT calculated above. There were no observable radiated emissions from the transmitter portion of the EUT. MET #EMI1367ACopyright 2000, MET Laboratories, Inc.Page 5 of 52 6.1.4RESULTS: Carrier Emission:0.22 Watts Frequency (MHz) Azimuth (EECCW- OEE=EUT facing ant.) Pola- rity Height (m) Raw Amplitud e (dBuV) Ant.Cor. Factor (db) Cable Loss (db) Distance Corr. 3m to 10m Corrected Amplitude (dBuV/m) 73.34211 H2.629.98 7.43121.55 0 38.96 73.34 220V1 17.77 7.29921.55 026.62 31.83 200 H3.9 13.32 13.005 1.03 0 27.35 31.83 198V1 25.3311.3144…
