ELV113R/C Transmitter

RS-230-DP Deluxe Keyless Entry & Remote Start July 27, 2010 Operation Guide Temporary cover. Color cover is in a separate file. 2 Table Of Contents Congratulations on your purchase of this convenience system by Omega Research & Development, Inc., a world leader in vehicle security and conveince products since 1975. This system is designed to offer ease of use and it’s modular design allows for many features to be customiz- able to suit your needs. Please note that this manual is written to reflect the full capability of this system though some features may not be available to you because of vehicle limitations and/or chosen options at the time of installation. It is also written to reflect the operations in their default configurations. This system has three principal user components that you should famil- iarize yourself with: The Status Lights which indicate the current system status and helps in troubleshooting failed remote start attempts as well as in customizing the programmable features. The specific operations of the lights are described on page 5. The Valet Switch is used to access transmitter and feature program- ming. It is also used to place the system in valet mode which temporarily bypasses the remote start feature. See page 6. The remote Transmitters are used to operate the system on a daily basis. This system is capable of being operated by up to 4 different transmitters. Each transmitter has 1 button. Introduction ............................................................................................2 The Transmitter .....................................................................................3 Transmitter Functions ............................................................................3 Other Remote Start Features ................................................................4 Low Battery/Low Temp Automatic Starting ........................................4 Turbo Timer Feature ..........................................................................4 Pit-Stop Feature ................................................................................4 The Status Lights...................................................................................5 Using The Valet Switch ..........................................................................6 Transmitter Protection & Technology .....................................................6 Programming Transmitters ....................................................................6 Programming Features ..........................................................................7 User Programmable Features ...............................................................7 Installer Programmable Features ..........................................................8 Programmable Features Matrix ...........................................................11 Introduction 3 The Transmitter Transmitter part number: 113-03 Call your dealer or visit www.caralarm.com to order re- placement transmitters. Transmitter battery replacement: Remove the small screw from the lower back case, and separate the transmitter halves. Replace the 2 CR2016 batteries and reassemble the transmitter case. “start”/”unlock” button Transmitter Functions REMOTE START: Press and release the “START” button twice. (see installer feature #1 for other options) ThE PARkIng LIghTS wILL FLASh AnD • ThE STATUS LIghTS wILL FLASh RAPIDLy. ThE IgnITIOn wILL TURn On AnD ThE • SySTEM wILL START ThE EngInE. whEn ThE EngInE IS RUnnIng, ThE • STATUS LIghTS wILL FLASh SLOw AnD ThE PARkIng LIghTS wILL STAy On AS LOng AS REMOTE START MODE IS ACTIVE. If the engine stalls, the system will make up to 3 more attempts.• Each time you park your vehicle, set the climate controls to give you • the desired interior temperature when you use the remote start. The engine will run for the preset run time (see user feature #1). • Run Time Extender• : Press the “START” button one time while in remote start mode to restart the engine run timer. NOTE: This can only be used once per remote start cycle. If you de- cide not to drive your vehicle, you can turn off the remote start using the same method to turn it on (keep in mind that the first press is considered the Run Time Extender). Upon entering the vehicle during remote start mode, turn the ignition • key to the “On/RUn” position (NOT START!!). when you press the brake pedal, the remote start will turn off. 4 Transmitter Functions (cont’d) UNLOCK: Press and hold the button for 3 seconds. ThE DOORS wILL UnLOCk, ThE PARkIng • LIghTS wILL FLASh TwICE ThEn ILLUMI- nATE FOR 30 SECOnDS. Other Remote Start Features It is typically recommended that vehicles equipped with turbocharged engines allow the engine to idle for after driving to cool the turbocharger. when this Installer Programmable Feature is enabled, the system will automatically keep the engine running as follows: • With the engine running, hold the brake pedal and engage the parking brake. when the brake pedal is released, the system will keep the engine running for the programmed time (1, 2, or 3 minutes), and then automatically turn it off. • Turbo Timer can be prevented from engaging, or “bypassed” if desired, by turning the engine off before engaging the parking brake, or if it’s already engaged, step on the brake pedal to turn the engine off. This feature will automatically start the engine should the vehicle battery drop below 11 volts or the interior temperature drop to 15 (or 32) degrees fahrenheit. This feature is very useful when the vehicle is parked for a long period of time in cold climates. you must activate these features each time you park your car and wish to use them. • Turn the ignition switch “on”, then “off” (engine not running), and within 7 seconds press the valet switch twice. The system is now in low voltage start mode. • To activate low temp starting, enter low voltage start mode as described above but, within 5 seconds of entering low voltage mo…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Aug. 06, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Nutek Corporation hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product: Transmitter, Model No.: #113-03; #113-13, FCC ID: ELV113 We affirm that between SIEMIC and Nutek Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Charles Chen / President Nutek Corporation Tel: +886 2 2918 9478 Fax: +886 2 2917 9069 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Aug. 06, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ELV113 We hereby request confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Charles Chen / President Nutek Corporation Tel: +886 2 2918 9478 Fax: +886 2 2917 9069 E-mail: [email protected]

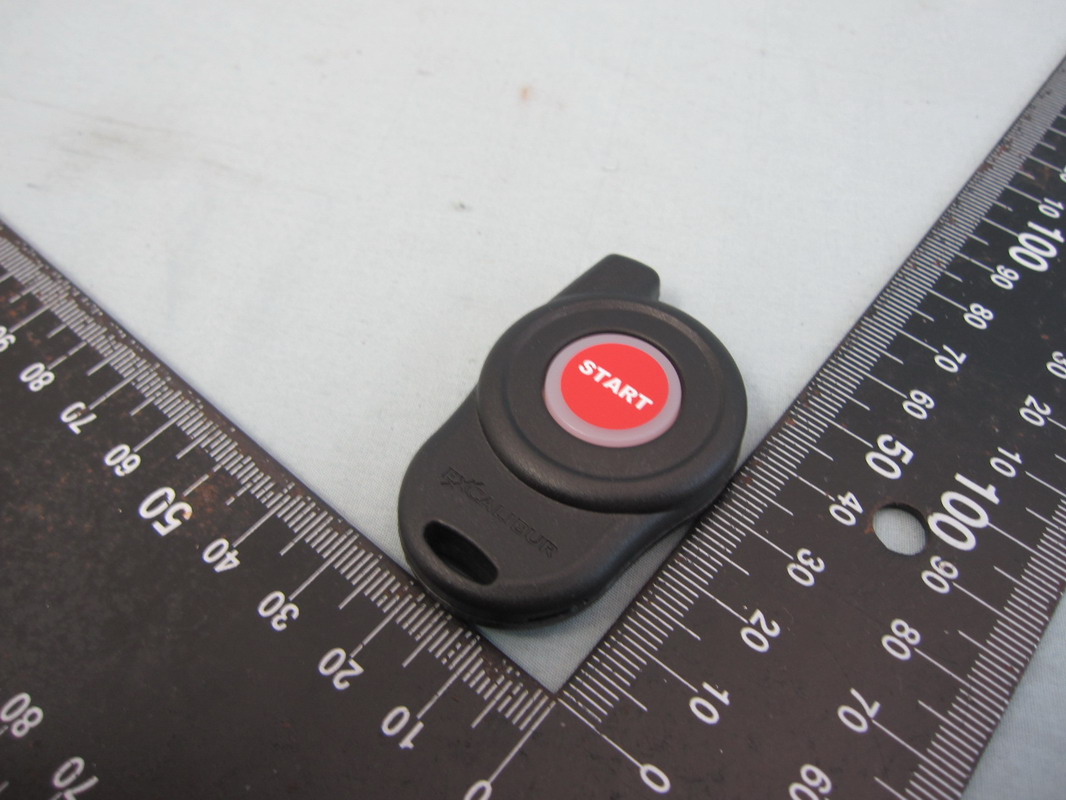

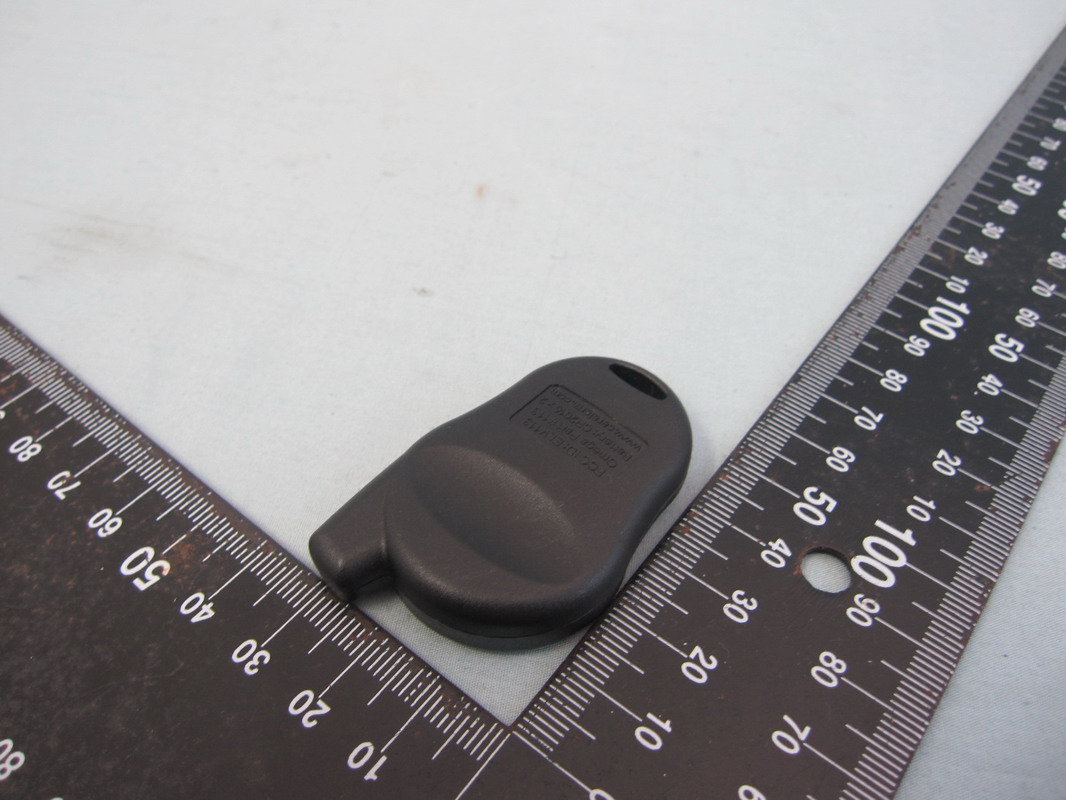

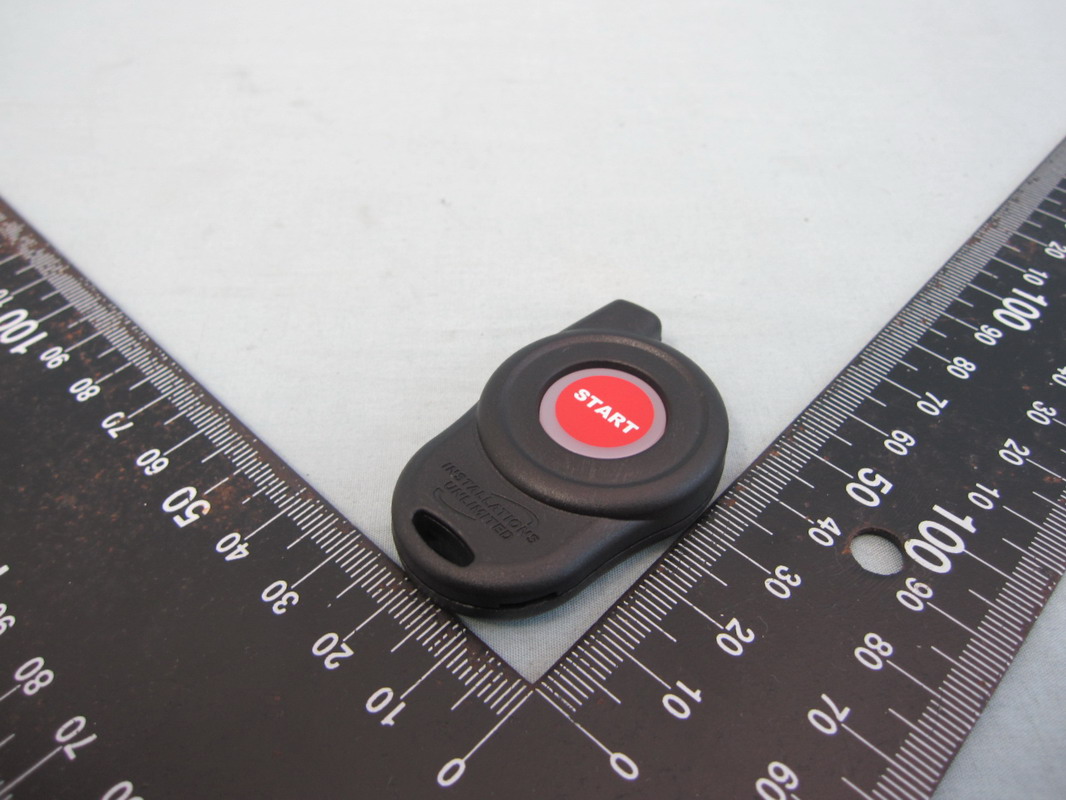

Report No.：10A072301FR FCC ID： ELV113 Page 21 of 26 Interocean EMC Technology Corp. Test Report 7 Photographs of EUT 7.1 Model No.: #113-03 Front View of EUT Rear View of EUT Report No.：10A072301FR FCC ID： ELV113 Page 24 of 26 Interocean EMC Technology Corp. Test Report Label Report No.：10A072301FR FCC ID： ELV113 Page 25 of 26 Interocean EMC Technology Corp. Test Report 7.2 Model No.: #113-13 Front View of EUT Rear View of EUT Report No.：10A072301FR FCC ID： ELV113 Page 26 of 26 Interocean EMC Technology Corp. Test Report Label

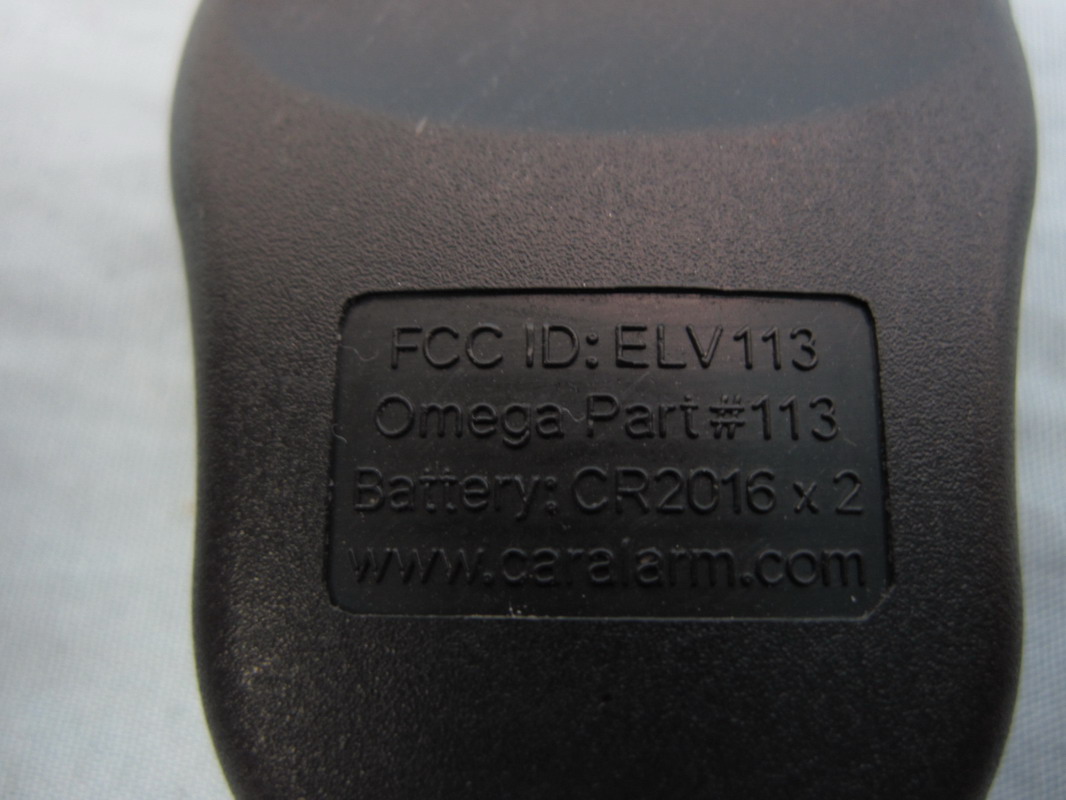

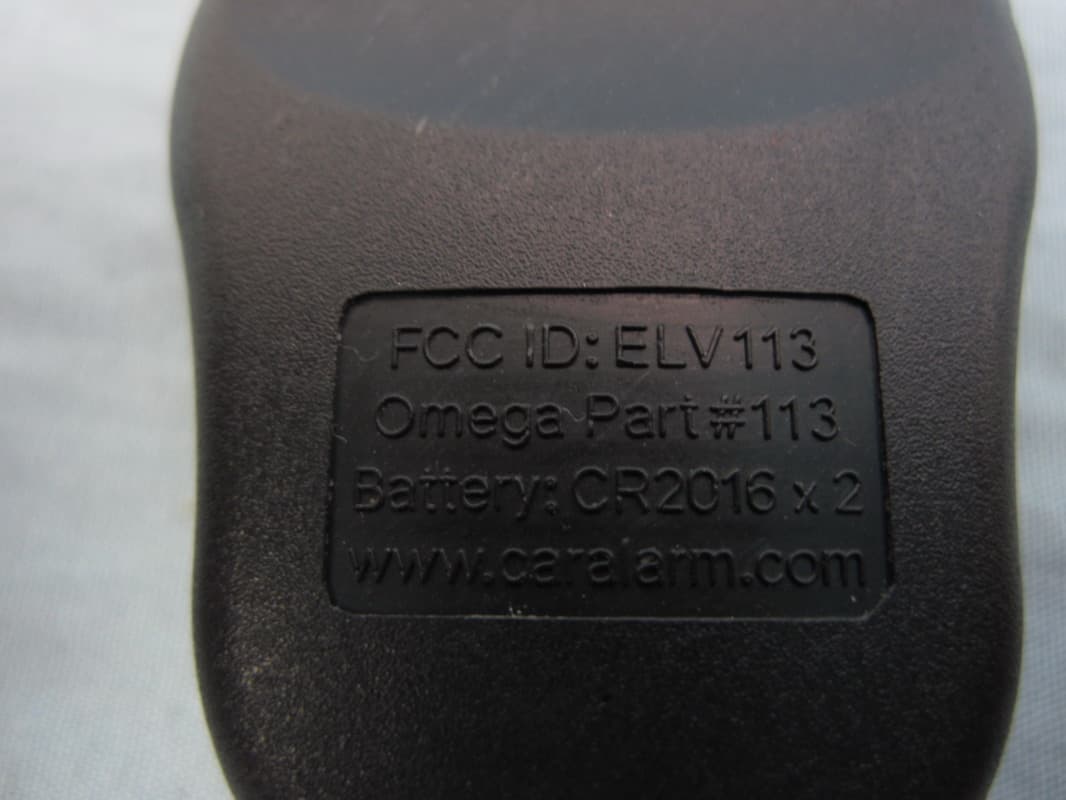

B O D Y M A T E R I A L : A B S + P C M T - 1 1 0 1 0 0 . 2 C ± A ± ± B J a m e s Y Y S V I C T O R F C C I D : E L V 1 1 3 O m e g a P a r t # 1 1 3 B a t t e r y : C R 2 0 1 6 x 2 w w w . c a r a l a r m . c o m B O D Y M A T E R I A L : A B S + P C M T - 1 1 0 1 0 0 . 2 C ± A ± ± B J a m e s Y Y S V I C T O R F C C I D : E L V 1 1 3 P a r t # 1 1 3 - 1 3

Report No.：10A072301FR FCC ID： ELV113 Page 22 of 26 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.：10A072301FR FCC ID： ELV113 Page 23 of 26 Interocean EMC Technology Corp. Test Report Component View of PCB Board Solder View of PCB Board

Report No.：10A072301FR FCC ID： ELV113 Page 1 of 26 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.231 TEST REPORT Product： Transmitter Trade Name： N/A Model Number： #113-03; #113-13 FCC ID： ELV113 Prepared for Nutek Corporation NO.167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan TEL.： +886 2 2918 9478 FAX.： +886 2 2917 9069 Prepared by Interocean EMC Technology Corp. 244 No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark: The test report consists of 26 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test results in the report only to the tested sample. Report No.：10A072301FR FCC ID： ELV113 Page 3 of 26 Interocean EMC Technology Corp. Test Report Table of Contents 1 Summary of Measurement 4 2 General Information 5 2.1 Description of Equipment Under Test 5 2.2 Details of tested peripheral equipment 6 2.3 Test Facility 7 3 Test specifications 8 3.1 Test standard 8 3.2 Operation mode 8 3.3 Test Equipment 9 4 Radiated emission test 10 4.1 Limits 10 4.2 Calculation of Average Factor 11 4.3 Configuration of Measurement 15 4.4 Test Procedure 15 4.5 Test Result 15 5 Emission bandwidth 18 5.1 Limits 18 5.2 Test Result 18 6 Photographs of Test 20 6.1 Radiated Emission Measurement 20 7 Photographs of EUT 21 7.1 Model No.: #113-03 21 7.2 Model No.: #113-13 25 Report No.：10A072301FR FCC ID： ELV113 Page 4 of 26 Interocean EMC Technology Corp. Test Report 1 Summary of Measurement Report Clause Test Parameter Reference Document CFR47 Part15 Results 4 Radiated Emission §15.231(b), 15.209 Pass 5 Emission bandwidth §15.231(c) Pass Report No.：10A072301FR FCC ID： ELV113 Page 5 of 26 Interocean EMC Technology Corp. Test Report 2 General Information 2.1 Description of Equipment Under Test Product : Transmitter Model Number : #113-03; #113-13 Applicant : Nutek Corporation NO.167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan Manufacturer : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan Power Supply : 6Vdc Battery Operating Frequency : 433.92MHz Channel Number : 1 channel Type of Modulation : ASK Antenna description : This device uses Spring antenna. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Receipt Sample : Jul. 23, 2010 Date of Test : Jul. 23 ~ Aug. 06, 2010 Additional Description : 1) The Model Number “#113-03” is representative selected in the test and included in this report. 2) For all the series only the shape of logo are different. The difference please see detail as follows: Model No. Logo #113-03 EXCALIBUR #113-13 INSTALLATIONS UNLIMITED 3) For more detail specification about EUT, please refer to the user’s manual. Report No.：10A072301FR FCC ID： ELV113 Page 6 of 26 Interocean EMC Technology Corp. Test Report 2.2 Details of tested peripheral equipment N/A Report No.：10A072301FR FCC ID： ELV113 Page 7 of 26 Interocean EMC Technology Corp. Test Report 2.3 Test Facility Site Description : OATS 2 Name of Firm : Interocean EMC Technology Corp. Company web : http://www.ietc.com.tw Site 1, 2 Location : No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. Site 3, 4 Location : No. 12, Ruei-Shu Valley, Ruei-Ping Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. Site Filing : z Federal Communication Commissions – USA Registration No.: 96399 (OATS 1 & 2) Registration No.: 518958 (OATS 3 & 4) Designation No.: TW1020 z Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-1094 Registration No. (Conducted Room): T-1562 Registration No. (OATS 1): R-1040 Registration No. (OATS 2): R-1041 z Industry Canada (IC) OUR FILE: 46405-4437 Submission: 130946 Registration No. (OATS 1): 4437A-1 Registration No. (OATS 2): 4437A-2 Registration No. (OATS 3): 4437A-3 Registration No. (OATS 4): 4437A-4 Site Accreditation : z Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR22 SL2-R1-E-0026 for CNS13439 / CISPR13 SL2-R2-E-0026 for CNS13439 / CISPR13 SL2-A1-E-0026 for CNS13783-1 / CISPR14-1 SL2-L1-E-0026 for CNS 14115 / CISPR 15 z Taiwan Accreditation Foundation (TAF) Accrditation No.: 1113 z TüV NORD Certificate No: TNTW0801R-02 Report No.：10A072301FR FCC ID： ELV113 Page 8 of 26 Interocean EMC Technology Corp. Test Report 3 Test specifications 3.1 Test standard The EUT was performed according to FCC Part 15 Subpart C Section 15.231 procedure and setup followed by ANSI C63.4, 2003 requirements. 3.2 Operation mode By preliminary testing and verifying three axis (X, Y and Z) position of EUT transmitted status, it was found that “X axis” position was the worst, then the final test was executed the worst condition and test data were recorded in this report The EUT was operated in continuous transmission mode during all of the tests. X axis mode Y axis mode Z axis mode Report No.：10A072301FR FCC ID： ELV113 Page 9 of 26 Interocean EMC Technology Corp. Test Report 3.3 Test Equipment Instrument ManufacturerModel Serial No. Next Cal. Date Spectrum Analyzer R&S FSP30 100002 2010/12/08 Spectrum Analyzer R&S FSP40 100478 2011/04/20 Preamplifier Agilent 8449B 3008A01434 2011/04/20 Preamplifier SCHAFFNER CA30100 2 2010/11/03 Horn Antenna COM-POWER AH-118 10081 2012/05/19 Horn Antenna Schwarzbeck BBHA 9120 9120D-583 2011/02/09 Horn Antenna Schwarzbeck BBHA 9170 213 2012/07/19 Wide Bandwidth Sensor Anritsu MA2491A 728133 2010/11/13 Power Meter Anritsu ML2495A 736010 2010/11/13 Temp & Humidity chamber GIAN FORCE GTH-150-40-2P-U MAA0305-012 2011/05/07 Note: The above equipments are within the valid calibration period. Report No.：10A072301FR FCC ID： ELV113 Page 10 of 26 Int…

Text truncated - open the document above for the full version.

Report No.：10A072301FR FCC ID： ELV113 Page 20 of 26 Interocean EMC Technology Corp. Test Report 6 Photographs of Test 6.1 Radiated Emission Measurement Front View Rear View
