ELVAT9A

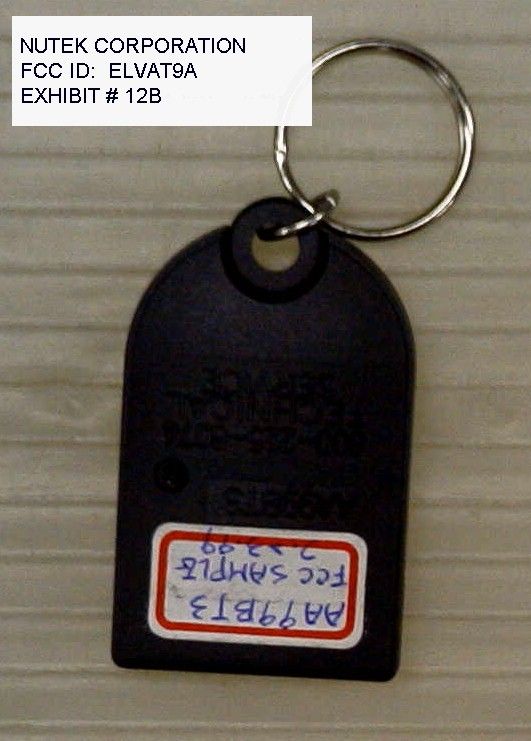

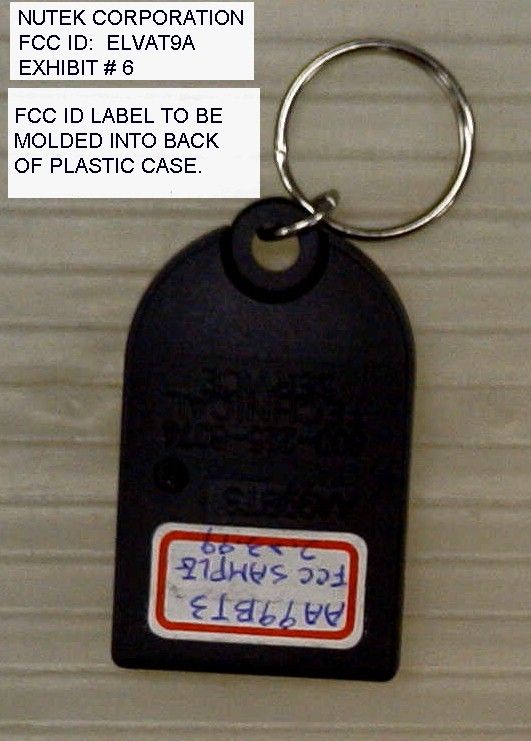

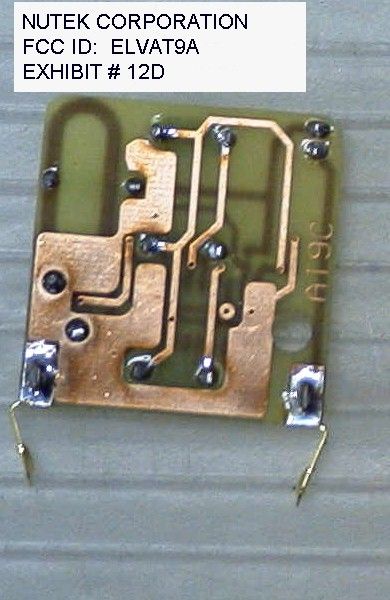

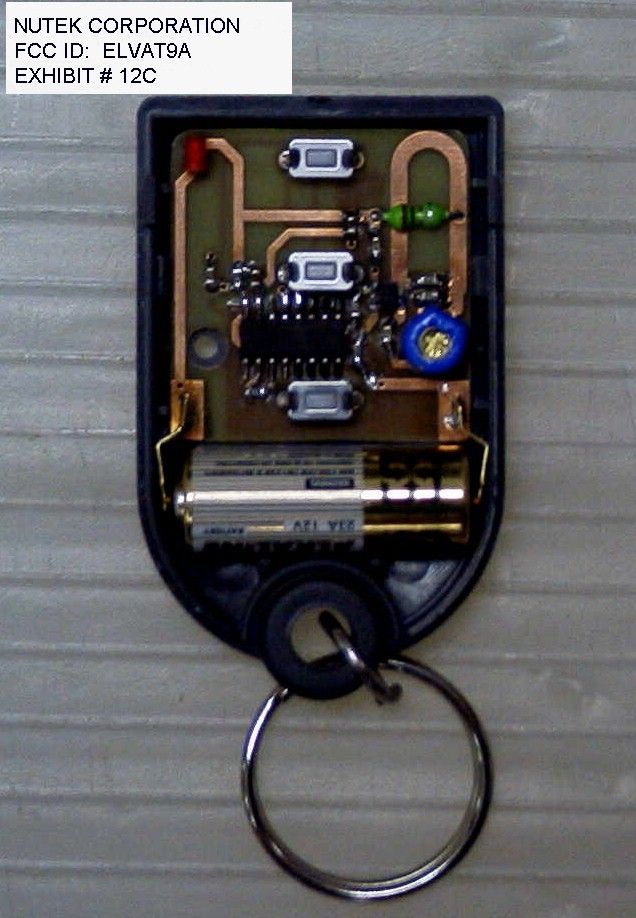

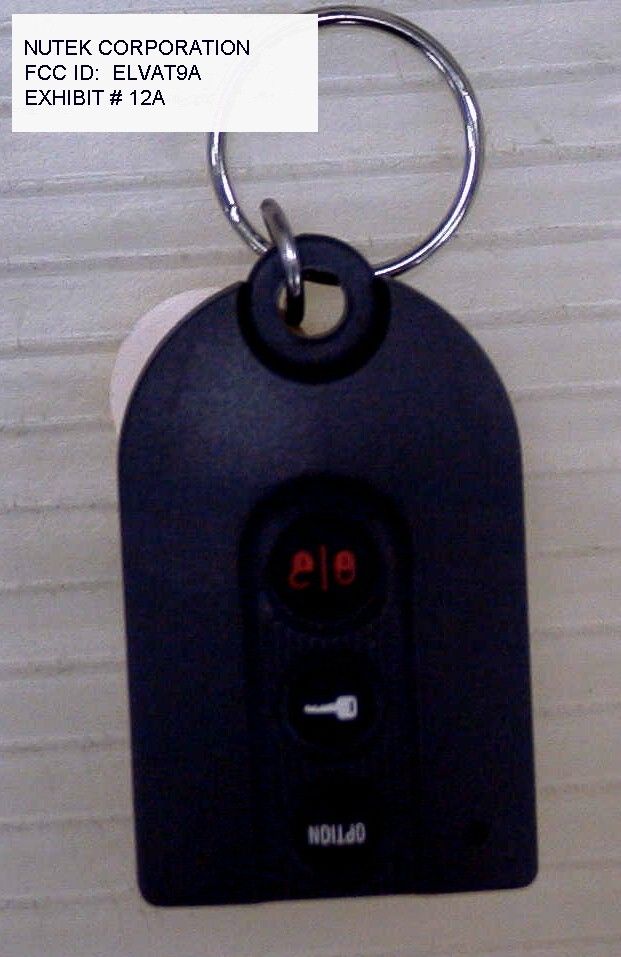

TABLE OF CONTENTS APPLICANT: NUTEK CORPORATION FCC ID: ELVAT9A TEST REPORT CONTAINING: PAGE 1.............TEST PROCEDURE PAGE 2.............CIRCUIT DESCRIPTION & TEST PROCEDURE PAGE 3.............RADIATION INTERFERENCE TEST DATA PAGE 4.............CALCULATION OF DUTY CYCLE PAGE 5.............OCCUPIED BANDWIDTH EXHIBIT ATTACHMENTS: EXHIBIT 1...........POWER OF ATTORNEY LETTER EXHIBIT 2...........BLOCK DIAGRAM EXHIBIT 3...........SCHEMATIC EXHIBIT 4A-4C.......INSTRUCTION MANUAL EXHIBIT 5...........FCC ID LABEL SAMPLE EXHIBIT 6...........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 7...........DUTY CYCLE PLOT - SMALL PULSES EXHIBIT 8...........DUTY CYCLE PLOT - LARGE PULSES EXHIBIT 9-10........DUTY CYCLE PLOTS EXHIBIT 11..........OCCUPIED BANDWIDTH PLOT EXHIBIT 12A.........FRONT VIEW EXTERNAL PHOTO EXHIBIT 12B.........REAR VIEW EXTERNAL PHOTO EXHIBIT 12C.........COMPONENT SIDE INTERNAL PHOTO EXHIBIT 12D.........COPPER SIDE INTERNAL PHOTO APPLICANT: NUTEK CORPORATION FCC ID: ELVAT9A REPORT #: F:\CUS\N\NUTEK\NUT350 PAGE: TABLE OF CONTENTS LIST APPLICANT: NUTEK CORPORATION FCC ID: ELVAT9A TEST EQUIPMENT LIST 1. Spectrum Analyzer: Hewlett Packard 8566B - Opt 462, w/ preselector 85685A, & Quasi-Peak Adapter HP 8565OA, & HP 8449B - OPT H02 Cal. 7/6/99 2. Signal Generator, Hewlett Packard 8640B, cal. 10/1/98 3. Signal Generator, HP 8614A Serial No.2015A07428 cal. 5/27/99 3. Eaton Biconnical Antenna Model 94455-1 20-200 MHz Serial No. 0997 Cal. 10/30/98 4. Electro-Metric Dipole Kit, 20-1000 MHz, Model TDA-30 10/31/98 5. Electro-Metric Horn 1-18 GHz, Model RGA-180, Cal. 10/30/98 6. Electro-Metric Antennas Model TDA-30/1-4,Cal. 10/15/98 7. Electro-Metric Line Impedance Stabilization Network Model No. EM-7821, Serial No. 101; 100KHz-30MHz 50uH. Cal.11/19/98 8. Electro-Metric Line Impedance Stabilization Network Model No. EM-7820, Serial No. 2682; 10KHz-30MHz 50uH. Cal. 11/19/98 9. Special low loss cable was used above 1 GHz 10. Tenney Temperature Chamber TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 98.3oF with a humidity of 40%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m APPLICANT: NUTEK CORPORATION FCC ID: ELVAT9A REPORT #: F:\CUS\N\NUTEK\NUT350 PAGE #: 1 TEST PROCEDURES CONTD. ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table. The table used for radiat- ed measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the high- est readings were converted to average readings based on the duration of "ON" time. Measurements were made by TIMCO ENGINEERING INC. at the registered open field test site located at 6051 N.W. 19th Lane, Gainesville, Fl 32605. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. RULES:2.1033(b)(4) CIRCUIT DESCRIPTION This unit is a low power security device transmitter. The oscil- lator is a SAW oscillator formed by the transistor T3 and the SAW filter Q2 tuned circuit made up of antenna L4, C5, C9, & C182. The inductor is printed on the PCB. The digital code is provided by the integrated circuit IC1. The unit is completely self contained and is powered by a 12Volt batteries. The calculations are shown in the report and the duty cycle was 50.8%. ANTENNA & GROUND: This unit uses the PCB inductor as the antenna. There is no provision for an external antenna. APPLICANT: NUTEK CORPORATION FCC ID: ELVAT9A REPORT #: F:\CUS\N\NUTEK\NUT350 PAGE #: 2 APPLICANT: NUTEK CORPORATION FCC ID: ELVAT9A NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.231 REQUIREMENTS: Fundamental Field Strength Field Strength of Frequency of Fundamental Harmonics and Spurious MHz dBuV Emissions (dBuV/m @ 3m) 40.66 to 40.70 67.04 47.04 70 to 130 61.94 41.94 130 to 174 61.94 to 71.48 41.94 to 51.48 174 to 260 71.48 51.48 260 to 470 71.48 to 81.94 51.48 to 61.94 470 and above 81.94 61.94 THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE FUNDAMENTAL FREQUENCY= 80.82 dBuV/m dBuV/m. NO FUNDAMENTAL IS ALLOWED IN THE RESTRICTED BANDS. THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE HARMONICS AND SPURIOUS FREQUENCIES = 60.82 dBuV/m dBuV/m. SPURIOUS IN THE RESTRICTED BANDS MUST BE LESS THAN 54dBuV/m OR 15.209. TEST DATA: PEAK AVERAGE EMISSION METER COAX FIELD FIELD FREQ. READING LOSS ACF STRNGTH STRNGTH MARGIN MHz @ 3m dBuV dB dB dBuV/m dBuV/m dB ANT. 433.00 59.10 1.60 17.76 78.46 72.58 8.21 V 866.00 9.50 2.90 23.79 36.19 30.31 30.48 H 1299.00 6.10 1.00 25.20 32.30 26.41 34.37 V SAMPLE CALCULATION OF LIMIT @ 303 MHz: (470 - 260)Mhz = 210 MHz (12500 - 3750)uV/m = 8750 uV/m 8750uV/m/210MHz = 41.67 uV/m/MHz (303-260)MHz = 43 MHz 43 MHz * 41.67 uV/m/MHz = 1791.81 uV/m (1791.81 + 3750)uV/m = 5541.81 uV/m limit @ 303 MHz The transmitter ceases transmitting when the button is released. TEST RESUL…

Text truncated - open the document above for the full version.
