ELVATCDCar Alarm Transmitter

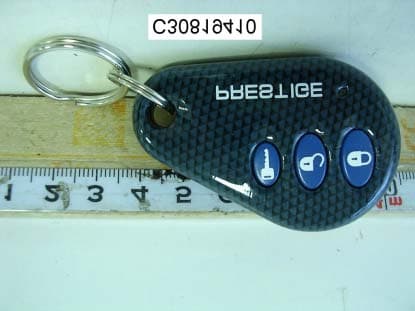

Report Number: C30819410-RP October 20, 2003 Page 11 Rev. 00 External of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: NUTEK CORPORATION FCC ID: ELVATCD This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: ELVATCD FCC ID LABEL AREA

Report Number: C30819410-RP October 20, 2003 Page 12 Rev. 00 Internal of EUT Report Number: C30819410-RP October 20, 2003 Page 13 Rev. 00

Operational Description The car alarm transmitter is a low powered, hand held unit for remote controlling the car locks and other features. See the function descriptions in attached. The transmitter is powered by a 12 volt battery. It is designed to operated on a single fixed frequency at 433.92 MHz. See the attached block diagram and schematic. There are 3 buttons trigger the integrated circuit (IC1) which produces the digital control signals and will modulate the carrier signal. The carrier signal is generated by a crystal oscillator/ amplifier circuit comprised of a 433.92 MHz crystal (XTAL) and a npn transmitter (TR1). The modulated output of the RF amplifier stage is coupled to the PCB strip antenna. The coupling network comprised of C3, C4 and C5. The strip antenna is attached on PCB permanently around 30 mm. The transmitter is manually operated by the buttons pushed and will automatically deactivate instant after the button being released. This feature is incorporated by the IC1 internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by the user. No external ground is required or used with this transmitter.

Report Number: C30819410-RP October 20, 2003 Page 1 of 14 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR of CAR ALARM TRANSMITTER FCC ID Number : ELVATCD Trade Name : NUTEK CORPORATION Model Number : APS99BT3SBCF4 Agency Series : N/A Report Number : C30819410-RP Date : October 20, 2003 Prepared for NUTEK CORPORATION 5F, NO. 3, ALLEY 6, LANE 45, PAO-HSING RD., HSING-TIEN CITY, TAIPEI, TAIWAN, R.O.C. Prepared by Compliance Certification Services Inc. No. 165, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan, R. O. C. TEL: (02)2217-0894 FAX: (02)2217-1029 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Lab. Code: 200617-0 Report Number: C30819410-RP October 20, 2003 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................... 3 2. PRODUCT DESCRIPTION................................................................................. 4 3. TEST FACILITY ................................................................................................... 4 4. MEASUREMENT STANDARDS ....................................................................... 4 5. TEST METHODLOGY ........................................................................................ 4 6. MEASUREMENT EQUIPMENT USED ........................................................... 5 7. POWERLINE RFI LIMIT.................................................................................... 5 8. RADIATED EMISSION LIMITS ....................................................................... 6 9. SYSTEM TEST CONFIGURATION ................................................................. 6 10. TEST PROCEDURE ............................................................................................. 7 11. EQUIPMENT MODIFICATIONS...................................................................... 8 12. TEST RESULT ....................................................................................................... 9 12.1. MAXIMUM MODULATION PERCENTAGE(M%).................................. 9 12.2. THE EMISSIONS BANDWIDTH ................................................................... 9 APPENDIX 1 PHOTOGRAPHS OF EUT .............................................................. 10 APPENDIX 2 TEST DATA ....................................................................................... 14 Report Number: C30819410-RP October 20, 2003 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : NUTEK CORPORATION 5F, NO. 3, ALLEY 6, LANE 45, PAO-HSING RD., HSING-TIEN CITY, TAIPEI, TAIWAN, R.O.C. CONTACT PERSON : RUBY HSIEH / MARKETING DEPT. TELEPHONE NO. : (886-2) 2918-9478 EUT DESCRIPTION : CAR ALARM TRANSMITTER MODEL NAME/NUMBER : APS99BT3SBCF4 FCC ID : ELVATCD DATE TESTED : August 18, 2003 & August 19, 2003 REPORT NUMBER : C30819410-RP TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz CAR ALARM TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Engineering Services, Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services Inc. will constitute fraud and shall nullify the document. Vince Chiang / Supervisor Compliance Certification Services Inc. Report Number: C30819410-RP October 20, 2003 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz Power Source 12V Battery Transmitting Time Periodic < 5 seconds Associated Receiver Model: ELVAR8B 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 165 & No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Report Number: C30819410-RP October 20, 2003 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Manufacturer Model Number Description Cal Due Date SCHAFFNER SCR3501 MEASURE RECEIVER 06/16/04 ADVANTEST R3132 SPECTRUM ANALYZER 09/17/03 SCHAFFNER CBL 6112B ANTENNA 10/01/03 BELDEN 9913 CABLE 10/13/03 SCHAFFNER CPA9231A PRE-AMPLIFIER 10/30/03 CCS N/A Site NSA 09/22/03 EMCO 3115 ANTENNA (1-18GHz) 02/24/04 HP 8449B AMPLIFIER (1-26.5GHz) 02/20/04 HUBER+SUHNER SUCOFLEX 104 CABLE (1-18GHz) 02/20/04 JYEBAO LL143 CABLE (1-18GHz) 02/20/04 JYEBAO LL142 CABLE (1-18GHz) 02/20/04 HP 8566B EMC ANALYZER (100Hz-22GHz) 06/25/04 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 KHz TO 30 MHz SECTION 15.205 AND SECTION 15.209, 15.221, 15.223, 15.225 OR 15.227, AS APPROPRIATE. BATTERY POWER NO REQUIRED. Report Number: C30819410-RP October 20, 2003 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC…

Text truncated - open the document above for the full version.

Report Number: C30819410-RP October 20, 2003 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up
