ELVATEDCar Alarm Transmitter

1 2 3 3 4 5 BUTTON RECEIVER CHANNEL SYSTEM FUNCTION Lock And Arm Alarm, also initiate and terminates *Panic Unlock And Disarm, also initiates and terminates *Panic. Programmable to unlock drivers door and or all doors. Pulsed or switched output to control Remote Trunk Release or optional device connected to channel 3. When pressed and release two times, will provide pulsed output or activate the Remote Start option when installed. When so equipped, this button can be used to operate an optional device connected to channel 4. When so equipped, any combination of buttons can be used to operate an optional device which may be connected to channel 5. These transmitters makes use of icons (symbols) to identify the reac- tion your security system/keyless entry/and or remote start system, where applicable, will have when any icon (button) is pressed. These icons are programmed at time of installation to meet the needs of the individual and to complement the vehicle that the system is installed in. To replace a transmitter or add transmitters, please follow the programming instructions listed on the pages of this manual. Transmitter Programming Guide * Where So Equipped Model W1WT

NUTEK CORPORATION 5F,NO.3,ALLEY 6, LANE 45 PAO-HSING RD.,HSING-TIEN CITY,TAIPEI,TAIWAN. Tel: 02-2918-9478#120 Date :JAN. 16, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, charles Retail Program Manager

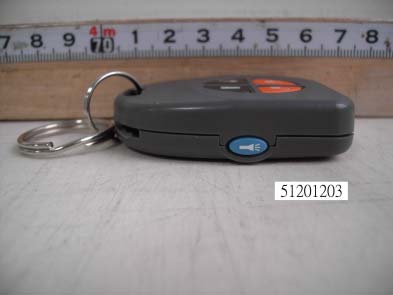

Compliance Certification Services Inc. Report No.: 51201203 Date of Issue: January 19, 2006 Page PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 51201203 Date of Issue: January 19, 2006 Page Compliance Certification Services Inc. Report No.: 51201203 Date of Issue: January 19, 2006 Page

FCC ID LABEL FORMAT AND LOCATION NUTEK CORPORATION FCC ID: ELVATED FCC ID: ELVATED This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 51201203 Date of Issue: January 19, 2006 Page Compliance Certification Services Inc. Report No.: 51201203 Date of Issue: January 19, 2006 Page

Operational Description The car alarm transmitter is a low powered, hand held unit for remote controlling the car locks and other features. See the function descriptions in attached. The transmitter is powered by a 12 volt battery. It is designed to operated on a single fixed frequency at 433.92 MHz. See the attached block diagram and schematic. There are 5 buttons. These 4 buttons are to trigger the integrated circuit (IC1) which produce the digital control signals and will modulate the carrier signal. The carrier signal is generated by a SAWR circuit comprised of a 433.92 MHz and a npn transmitter (TR1). Rest one button is for flash light power. The transmitter is manually operated by the buttons pushed and will automatically deactivate instant after the button being released. This feature is incorporated by the IC1 internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by the user. No external ground is required or used with this transmitter.

Compliance Certification Services Inc. Report No.: 51201203-RP1 FCC ID: ELVATED Date of Issue: January 19, 2006 Page 1 of 31 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS For INTENTIONAL RADIATOR of Car Alarm FCC ID Number : ELVATED Trade Name : N/A Model Number : W1WT Agency Series : N/A Report Number : 51201203-RP1 Date : January 19, 2006 Issued to NUTEK CORPORATION 5F, NO. 3, ALLEY 6, LANE 45, PAO-HSING RD., HSING-TIEN CITY, TAIPEI, TAIWAN. Issued by Compliance Certification Services Inc. Hsintien Lab. No. 165, Chunghsen Road, Hsintien City Taipei Hsien, Taiwan TEL: (02) 2217-0894 FAX: (02) 2217-1029 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No.: 51201203-RP1 FCC ID: ELVATED Date of Issue: January 19, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE........................................................ 3 2. PRODUCT DESCRIPTION........................................................................ 4 3. TEST FACILITY.......................................................................................... 4 4. MEASUREMENT STANDARDS ............................................................... 4 5. TEST METHODOLOGY ............................................................................ 4 6. MEASUREMENT EQUIPMENT USED................................................... 5 7. POWERLINE RFI LIMIT .......................................................................... 5 8. RADIATED EMISSION LIMITS............................................................... 6 9. SYSTEM TEST CONFIGURATION ......................................................... 6 10. TEST PROCEDURE.................................................................................. 7 11. Equipment Modifications........................................................................... 8 12. TEST RESULT ........................................................................................... 9 12.1 Maximum Modulation Percentage (M%)................................................ 9 12.2 The Emissions Bandwidth......................................................................... 9 APPENDIX I ................................................................................................... 10 Compliance Certification Services Inc. Report No.: 51201203-RP1 FCC ID: ELVATED Date of Issue: January 19, 2006 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : NUTEK CORPORATION 5F, NO. 3, ALLEY 6, LANE 45, PAO-HSING RD., HSING-TIEN CITY, TAIPEI, TAIWAN. CONTACT PERSON : Charles TELEPHONE NO. : 02-2917-9478#120 EUT DESCRIPTION : Car Alarm MODEL NAME/NUMBER : W1WT FCC ID : ELVATED DATE TESTED : December 3, 2005 & December 6, 2005 REPORT NUMBER : 51201203-RP1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz Car Alarm MEASUREMENT PROCEDURE ANSI 63.4 / 2003 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services Inc. will constitute fraud and shall nullify the document. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 51201203-RP1 FCC ID: ELVATED Date of Issue: January 19, 2006 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz Power Source 12V Battery Transmitting Time Periodic < 5 seconds Associated Receiver ELVNTRCB 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 165, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2003. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Compliance Certification Services Inc. Report No.: 51201203-RP1 FCC ID: ELVATED Date of Issue: January 19, 2006 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Open Area Test Site # J Name of Equipment Manufacturer Model Serial Number Calibration Due SITE NSA CCS J Site N/A 10/15/2006 MEASURE RECEIVER SCHAFFNER SCR3501 330 06/13/2006 SPECTRUM ANALYZER ADVANTEST R3132 120900003 No Calibration Required ANTENNA SCHAFFNER CBL 6112B 2800 09/24/2006 PRE- AMPLIFIER SCHAFFNER CPA9231A 3629 10/08/2006 CABLE BELDEN 9913 N-TYPE #J2 02/18/2006 ATTENUATOR MCL UNAT-6 AT06-8 12/02/2006 THERMO- HYGRO METER TFA N/A NO.3 11/02/2006 Above 1GHz Used EMC ANALYZER (100Hz-22GHz) HP 8566B 2937A06102 06/30/2006 ANTENNA (1-18GHz) EMCO 3115 5761 01/17/2006 AMPLIFIER (1-18GHz) HP 8449B 3008A01266 02/16/2006 CABLE (1-18GHz) JYEBAO LL142 SMA#RS1&2 02/16/2006 CABLE (1-18GHz) JYEBAO LL142 SMA#C1 04/28/2006 Remark: Each piece of equipment is scheduled for calibrat…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 51201203-RP1 FCC ID: ELVATED Date of Issue: January 19, 2006 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X, Y and Z axis. To activate continuous transmitting & receiving, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up
