ELVATFFALARM DEVICE

USER MANUAL NUTEK CORPORATION Model:ATFC FCC ID:ELVATFF Remote Control Transmitters TRANSMITTER PROGRAMMING： If the need arises for programming of additional or replacement transmitters, simply follow the 4 steps outlined below: 1. Turn the ignition to the ON position 2. Press and release the programming button 3 times 3. Press and hold, for 3 seconds, the button of the transmitter you wish to add until the parking light flashes indicating the transmitter has been learned NOTE: Do not allow more than 5 seconds the lapse between steps or the program mode will be automatically exited and you will have to start over. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user`s authority to operate the equipment. FCC Caution :To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

NUTEK CORPORATION 5F,NO.3,ALLEY 6, LANE 45 PAO-HSING RD.,HSING-TIEN CITY, TAIPEI, TAIWAN R.O.C. Federal Communications Commission Dear Sir: We, the undersigned, hereby authorize ETS Dr. Genz Taiwan PS Co., Ltd. to act on our behalf in all matters relating to application for“ALARM DEVICE” ( Model : ATFC, FCC ID: ELVATFF )”authorization, including the signing of all documents relating to these matters. Any and all acts carried out by ETS Dr.Genz Taiwan PS Co., Ltd. on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant ( e.g., corporation ), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-drug abuse Act of 1988, 21 U.S.C. 862. For a definition of a “party” for these purposes See 47 C.F.R. 1.2002 (b). By: By: Shella (Signature) (Printed) Title : Sales representative Applicant : NUTEK CORPORATION Address : 5F,NO.3,ALLEY 6, LANE 45 PAO-HSING RD.,HSING-TIEN CITY, TAIPEI, TAIWAN R.O.C. Tel : 02-2918-9478 Fax: 02-2917-9069 Date : 12.26.2006

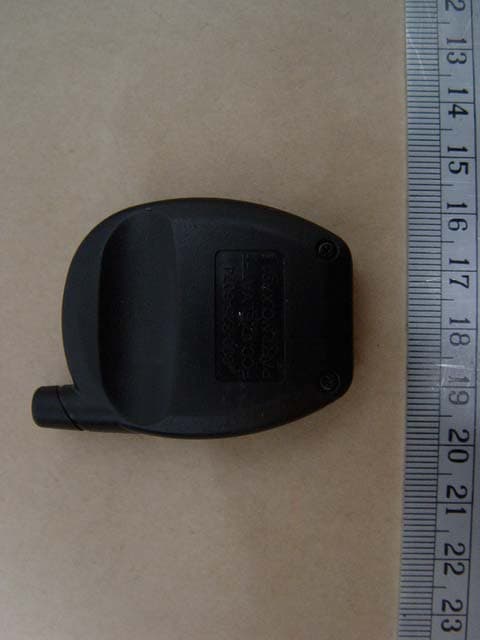

Registration number: W6M20612-7667-P-15 FCC ID: ELVATFF ETS Dr. Genz Taiwan PS Co., Ltd. External Photos Registration number: W6M20612-7667-P-15 FCC ID: ELVATFF ETS Dr. Genz Taiwan PS Co., Ltd. Registration number: W6M20612-7667-P-15 FCC ID: ELVATFF ETS Dr. Genz Taiwan PS Co., Ltd.

NUTEK CORPORATION Model:ATFC FCC ID:ELVATFF Lable Format: This device complies with part 15 of the FCC Rules. FCC ID :ELVATFF Lable size:15 X 21 mm . Lable position: FCC Caution :To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NUTEK CORPORATION Model:ATFC FCC ID:ELVATFF Lable Format: This device complies with part 15 of the FCC Rules. FCC ID :ELVATFF Lable position: FCC ID Location Lable size:15 X 21 mm . FCC ID :ELVATFF

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC TEST - REPORT FCC RULES PART 15 / SUBPART C § 15.249 FCC ID : ELVATFF Test report no.: W6M20612-7667-P-15 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 Registration number: W6M20612-7667-P-15 FCC ID: ELVATFF ETS Dr. Genz Taiwan PS Co., Ltd. 1 of 22 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 N OTES..........................................................................................................................................2 1.2 T ESTING LABORATORY................................................................................................................3 1.2.1 Location ..............................................................................................................................3 1.2.2 Details of accreditation status ............................................................................................3 1.3 D ETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 APPLICATION DETAILS...................................................................................................................4 1.5 GENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 T EST STANDARDS.........................................................................................................................5 2 TECHNICAL TEST .........................................................................................................................6 2.1 S UMMARY OF TEST RESULTS........................................................................................................6 2.2 TEST ENVIRONMENT....................................................................................................................6 2.3 TEST EQUIPMENT LIST.................................................................................................................7 2.4 GENERAL TEST PROCEDURE........................................................................................................9 3 TEST RESULTS (ENCLOSURE) ................................................................................................10 3.1 P EAK OUTPUT POWER (TRANSMITTER) ......................................................................................11 3.2 EQUIVALENT ISOTROPIC RADIATED POWER................................................................................12 3.2.1 Transmitter........................................................................................................................12 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................12 3.4 OUT OF BAND RADIATED EMISSIONS.........................................................................................12 3.5 SPURIOUS EMISSION (TX) ...........................................................................................................13 3.6 R ADIATED EMISSIONS FROM DIGITAL PART AND RECEIVER OF TRANSCEIVER..........................15 3.7 R ADIATED EMISSION ON THE BAND EDGE..................................................................................16 3.8 POWER LINE CONDUCTED EMISSION.........................................................................................17 APPENDIX ..............................................................................................................................................18 APPENDIX A...........................................................................................................................................19 A PPENDIX B...........................................................................................................................................20 A PPENDIX C...........................................................................................................................................21 APPENDIX D...........................................................................................................................................22 Registration number: W6M20612-7667-P-15 FCC ID: ELVATFF ETS Dr. Genz Taiwan PS Co., Ltd. 2 of 22 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS DR. GENZ TAIWAN PS CO., LTD. Tester: December 27, 2006 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: December 27, 2006 Steven Chuang Date ETS Name Signature Registration number: W6M20612-7667-P-15 FCC ID: ELVATFF ETS Dr. Genz Taiwan PS Co., Ltd. 3 of 22 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli …

Text truncated - open the document above for the full version.

Registration number: W6M20612-7667-P-15 FCC ID: ELVATFF ETS Dr. Genz Taiwan PS Co., Ltd. Set Up Photo Registration number: W6M20612-7667-P-15 FCC ID: ELVATFF ETS Dr. Genz Taiwan PS Co., Ltd.
