ELVATIFTransmitter

12012 Audiovox Electronics Corporation. All rights reserved. professional series Owner’s Guide PROCOMP IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR SAFETY PRECAUTIONS may not apply. Please see your installing dealer for more information. Deluxe Vehicle Security and Remote Start System with 900 Mhz 2 Way Confirming OLED Remote Control 22012 Audiovox Electronics Corporation. All rights reserved. Table of Contents Using Your Remote Control............................................................... 3 Using the 2 Way Remote Control for the First Time........................ 3 Arming the Security System............................................................ 3 Bypassing the Shock Sensor.......................................................... 3 Disarming the Security System........................................................ 4 Two Stage Door Unlock (optional)................................................... 4 Eliminating Arm / Disarm Notification Chirps.................................... 4 Using the Progressive Car Finder Feature...................................... 4 Using the Personal Protection Alarm............................................... 4 Activating Trunk Release (optional)................................................ 5 Activating Optional AUX 1 (optional)............................................... 5 Activating Optional AUX 2 (optional)............................................... 5 Activating Optional AUX 3 (optional)............................................... 5 Activating Optional AUX 4 (optional)............................................... 5 Turning On the Vehicle’s Headlights............................................... 5 Valet Mode........................................................................................ 6 2 Car Mode........................................................................................ 6 Manually Overriding the Security System....................................... 6 Programming Your Personal Override Code................................... 7 Using Your Remote Vehicle Starter................................................. 8 Remote Starting Your Vehicle.......................................................... 8 Entering Your Vehicle while it is Running via Remote Start........... 8 Preheating or Precooling the Vehicle’s Interior............................... 8 Using the “Quick-Stop” Feature....................................................... 8 Turbo Timer Mode (optional)............................................................ 9 Operating the Daily Start Timer........................................................ 9 Operating the 2 / 4 Hour Start Up Timer Mode.............................. 10 Manual Transmission Mode........................................................... 11 Fuel Saver Mode............................................................................ 11 Temp Start....................................................................................... 11 Remote Start Valet Mode................................................................ 12 Remote Start Safety Features....................................................... 12 Additional 2 Way OLED Remote Control Features...................... 13 Activating 1 Way Remote Control Features................................. 15 Activating 2 Way Remote Control Features................................. 17 LED and Siren/Horn Indications....................................................... 21 Replacing Remote Control Batteries............................................. 22 Warranty Information......................................................................... 23 32012 Audiovox Electronics Corporation. All rights reserved. Arming the Security System To arm the system, exit the vehicle, close all doors, then press the button. The parking lights will flash 2 times, indicating the system is armed, has locked the doors (if equipped and connected) and activated the starter disable feature. The LED status indicator will blink steadily, once per second. NOTE: The system is defaulted with Silent Choice enabled, which requires a second press of the button to activate an audible arming response from the vehicle. Bypassing The Shock Sensor There are 3 additional modes of operation in which your system will react to the shock sensor, FULL TRIGGER ONLY, ALL OFF, or CITY MODE. Standard Shock - Press once to arm the system, the shock sensor will be fully active. Full Trigger Only - Pressing & together within 5 seconds will set the system to Full Trigger Only in which the system will ignore the light touch setting. All Off - Pressing & again within 5 seconds will set the system to All Off. In this mode the system will not react to the shock sensor and the 2 way LCD remote will display the shock sensor icon. City Mode - Pressing & again within 5 seconds will set the system to City Mode. In this mode the light touch horn output is extended to a full 10 seconds and full trigger horn output is shortened to 15 seconds, no icon is displayed. NOTE: The system will only change the shock sensor setting for one arm cycle and will be defaulted back to normal operation the next time the system is armed. *Throughout this manual, ‘press’ refers to pressing for less than 1 second; ‘press and hold’ refers to pressing for more than 2 seconds. Using Your Remote Control Using the 2 Way Remote Control for the First Time. The 2 way remote control has been shipped in Battery Save Mode to conserve battery power and will be necessary for you to turn off battery save mode before using the remote for normal operation. It is also recommended that you fully charge the battery before use. Refer to the additional 2 way remote control features section of this manual for details. 42012 Audiovox Electronics Corporation. All rig…

Text truncated - open the document above for the full version.

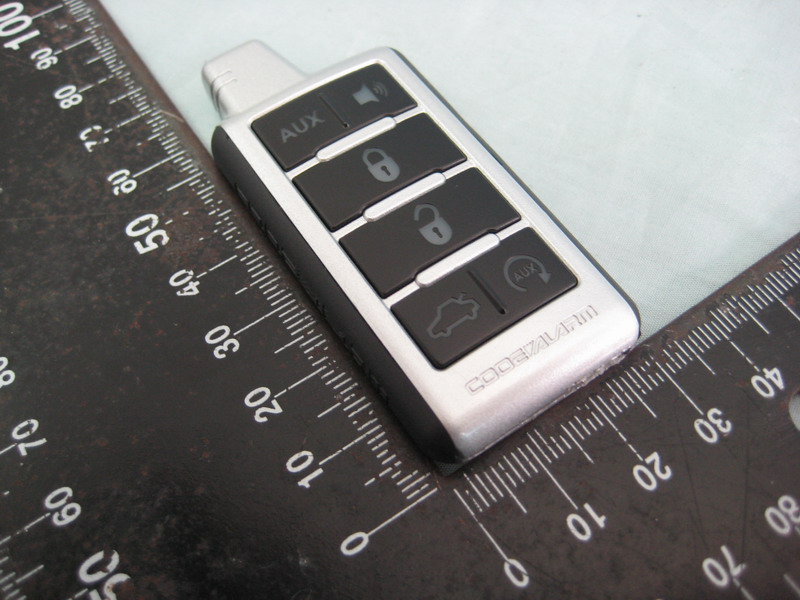

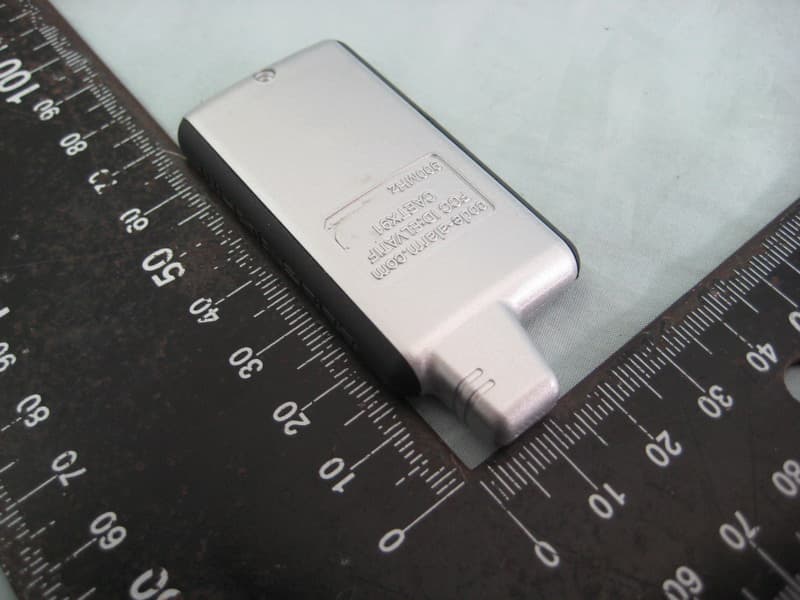

Report No.: 12A021601R-FR FCC ID：ELVATIF Page 39 of 43 Interocean EMC Technology Corp. Test Report 11 Photographs of EUT Front View of EUT Rear View of EUT Report No.: 12A021601R-FR FCC ID：ELVATIF Page 40 of 43 Interocean EMC Technology Corp. Test Report Label of EUT

Report No.: 12A021601R-FR FCC ID：ELVATIF Page 41 of 43 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.: 12A021601R-FR FCC ID：ELVATIF Page 42 of 43 Interocean EMC Technology Corp. Test Report Front View of Main Board Rear View of Main Board Report No.: 12A021601R-FR FCC ID：ELVATIF Page 43 of 43 Interocean EMC Technology Corp. Test Report Front View of Battery Rear View of Battery

FCC ID：ELVATIF Report No.：12A021601R-FR Page 1 of 2 RF Exposure Evaluation E.U.T.： Transmitter (TX) Model Number： CAETX91 Report Issued： 2012/04/23 Project Engineer： Approved： Elli Chang Jerry Liu Applicant： Nutek Corporation Address： No. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Issued By： Interocean EMC Technology Corp. LAB Location： No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. FCC ID：ELVATIF Report No.：12A021601R-FR Page 2 of 2 Portable Device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 (2)(a)(i) Frequency Range (MHz) Low Freq. High Freq. Center Frequency (MHz) 60/f SAR Limitation (mW) 909.6 919.024 914.743 66 Maximum measured transmitter power Output power To antenna (mW) Maximum Antenna gain (numeric) EIRP (mW) 3.5318 1 3.5318 Threshold at which no SAR required is 66 mW. Maximum Tx power is 3.5318 mW EIRP. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A

Report No.: 12A021601R-FR FCC ID：ELVATIF Page 1 of 43 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.247 TEST REPORT Product： Transmitter (TX) Trade Name： N/A Model Number： CAETX91 FCC ID： ELVATIF Prepared for Nutek Corporation No. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan TEL.： +886 2 2918 9478 FAX.： +886 2 2917 9069 Prepared by Interocean EMC Technology Corp. No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark： The test report consists of 43 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test result in the report is only subjected to the test sample. Report No.: 12A021601R-FR FCC ID：ELVATIF Page 2 of 43 Interocean EMC Technology Corp. Test Report Table of Contents 1 General Information 5 1.1 Description of Equipment Under Test 5 1.2 Table for Carrier Frequencies 6 1.3 Details of Tested Supporting System 6 1.4 Test Facility 7 1.5 Test Equipment 8 1.6 Summary of Measurement 9 1.7 Justification 10 2 Test specifications 11 2.1 Test standard 11 2.2 Operation mode 11 3 20dB Bandwidth test 12 3.1 Limit 12 3.2 Configuration of Measurement 12 3.3 Test Procedure 12 3.4 Test Result 12 4 Carrier Frequency Separation test 15 4.1 Limit 15 4.2 Configuration of Measurement 15 4.3 Test Procedure 15 4.4 Test Result 15 5 Number of hopping frequencies test 18 5.1 Configuration of Measurement 18 5.2 Test Procedure 18 5.3 Test Result 18 6 Time of Occupancy (dwell time) test 20 6.1 Limit 20 6.2 Configuration of Measurement 20 6.3 Test Procedure 20 6.4 Test Result 20 7 Maximum Output Power test 22 7.1 Limit 22 7.2 Configuration of Measurement 22 7.3 Test Procedure 22 7.4 Test Result 22 Report No.: 12A021601R-FR FCC ID：ELVATIF Page 3 of 43 Interocean EMC Technology Corp. Test Report 8 RF Conducted spurious emission 25 8.1 Limit 25 8.2 Configuration of Measurement 25 8.3 Test Procedure 25 8.4 Test Result 25 9 RF Radiated spurious emission test 31 9.1 Limit 31 9.2 Configuration of Measurement 31 9.3 Test Procedure 32 9.4 Test Result 32 10 Photographs of Test 37 10.1 Radiated Emission Measurement 37 11 Photographs of EUT 39 Report No.: 12A021601R-FR FCC ID：ELVATIF Page 4 of 43 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: Nutek Corporation Manufacturer: Nutek Corporation Product: Transmitter (TX) Model No.: CAETX91 Tested Power Supply: DC 3V from battery Date of Final Test: Mar. 01, 2012 Revision of Report: Rev. 00 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of IETC Report Issued: 2012/04/13 Project Engineer: Approved: Elli Chang Jerry Liu Report No.: 12A021601R-FR FCC ID：ELVATIF Page 5 of 43 Interocean EMC Technology Corp. Test Report 1 General Information 1.1 Description of Equipment Under Test Product : Transmitter (TX) Model Number : CAETX91 Applicant : Nutek Corporation No. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Manufacturer : Nutek Corporation No. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Power Supply : DC 3V from battery Operating Frequency : 909.6MHz ~ 919.024MHz Channel Number : 25 channels Type of Modulation : SST Antenna Description : This device uses Helix antenna. Antenna gain 0dBi. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Test : Feb. 16 ~ Mar. 01, 2012 Additional Description : 1) The Model Number “CAETX91” is representative selected in the test and included in this report. 2) For more detail specification about EUT, please refer to the user’s manual. Report No.: 12A021601R-FR FCC ID：ELVATIF Page 6 of 43 Interocean EMC Technology Corp. Test Report 1.2 Table for Carrier Frequencies Channel Frequency (MHz) Channel Frequency (MHz) CH0 909.6000 CH13 915.1110 CH1 909.9570 CH14 915.4590 CH2 910.2860 CH15 915.8100 CH3 910.6380 CH16 916.1900 CH4 911.0000 CH17 916.5280 CH5 911.3600 CH18 916.8890 CH6 912.6270 CH19 917.2310 CH7 912.9800 CH20 917.5810 CH8 913.3620 CH21 917.9430 CH9 913.7140 CH22 918.3030 CH10 914.0650 CH23 918.6670 CH11 914.4000 CH24 919.0240 CH12 914.7430 1.3 Details of Tested Supporting System The EUT can be operated stand along without any supporting device. Report No.: 12A021601R-FR FCC ID：ELVATIF Page 7 of 43 Interocean EMC Technology Corp. Test Report 1.4 Test Facility Site Description : OATS 2 RF Test Room Name of Firm : Interocean EMC Technology Corp. Company web : http://www.ietc.com.tw Site 1, 2, 3 Location : No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. Site Filing : z Federal Communication Commissions – USA Registration No.: 96399 (OATS 1 & 2) Registration No.: 518958 (OATS 3) Designation No.: TW1020 z Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-1094 Registration No. (Conducted Room): T-1562 Registration No. (OATS 1): R-1040; G-274 Registration No. (OATS 2): R-1041 z Industry Canada (IC) OUR FILE: 46405-4437 Submission: 145171 Registration No. (OATS 1): Site# 4437A-1 Registration No. (OATS 2): Site# 4437A-2 Registration No. (OATS 3): Site# 4437A-3 Site Accreditation : z Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR22 SL2-R1-E-0026 for CNS13439 / C…

Text truncated - open the document above for the full version.

Report No.: 12A021601R-FR FCC ID：ELVATIF Page 37 of 43 Interocean EMC Technology Corp. Test Report 10 Photographs of Test 10.1 Radiated Emission Measurement Front View (Frequency below 1GHz) Rear View (Frequency below 1GHz) Report No.: 12A021601R-FR FCC ID：ELVATIF Page 38 of 43 Interocean EMC Technology Corp. Test Report Front View (Frequency above 1GHz) Rear View (Frequency above 1GHz)
