ELVATJCTransmitter

128-8840 1 of 8 1 1 2 1 3 3 4 5 BUTTON RECEIVER CHANNEL SYSTEM FUNCTION Lock And Arm Alarm, also initiate and terminates *Panic Unlock And Disarm, also initiates and terminates *Panic. Programmable to unlock drivers door and or all doors. Lock and arm/unlock and disarm. May be programmed to unlock driver's door or all doors. Also will initiate and terminate *Panic. Pulsed or switched output to control Remote Trunk Release or optional device connected to channel 3. When pressed and release two times, will provide pulsed output or activate the Remote Start option when installed. When so equipped, this button can be used to operate an optional device connected to channel 4. When so equipped, this button can be used to operate an optional device connected to channel 5. These transmitters makes use of icons (symbols) to identify the reac- tion your security system/keyless entry/and or remote start system, where applicable, will have when any icon (button) is pressed. These icons are programmed at time of installation to meet the needs of the individual and to complement the vehicle that the system is installed in. To replace a transmitter or add transmitters, please follow the programming instructions listed on the pages of this manual. Transmitter Programming Guide * Where So Equipped Model SS91 128-8840 2 of 8 2 Although the most common use of the transmitter buttons are shown on the front page of this guide, any button or button combination can be programmed into any receiver channel. Additionally, if all 4 buttons are used and you require access to a 5th channel, you would program a combination of buttons to control the 5th function. i.e... you have programmed lock for arm, unlock for disarm, trunk for trunk release, and OPT1 Sliding Door where applicable, and you've added a win- dow up module that you want independent control of, you would pro- gram unlock and trunk buttons pressed simultaneously into the receiver to control this function independently. Also, if you do not program a transmitter button into channel 2 which is the separate unlock/dis- arm channel, then whatever button is programmed into channel 1 will serve as both lock/arm & unlock/disarm. PROGRAMMING TRANSMITTERS: NOTE:It is important to remember that during the programming mode, each individual step must be completed within 15 seconds of the previous step. If the 15 second time limit expires between steps, the unit will automatically exit the program mode. This is indicated by a long chirp from the siren. Non alarm models will flash the parking lights only to confirm the transmitter code has been learned and stored. NOTE:Because the system may be capable of sounding a siren, the vehicle horn, or both, where the siren chirp is referenced be- low, the siren may chirp, the horn may beep, or both devices may sound. TO PROGRAM ADDITIONAL TRANSMITTERS: 1) Enter the vehicle, and turn the ignition switch to the on position. 2) Press and release the valet push button switch three times. NOTE: Some systems may use a combination push-button LED switch, others may use an intergrated push-button LED receiver. In these systems the push-button and the dash mounted LED, or the receiver, push-button,LED are one and the same. 3) The LED will flash 1x, and the siren will chirp 1x, indicating that the system is ready to accept programming of channel #1 which is arm/ lock, disarm/unlock/unlock 2, and panic functions. 4) Press and hold the lock or lock/unlock symbol button of the transmit- ter you wish to program for 4 seconds or until a long chirp is heard from the siren. "Repeat step 4 for each transmitter you wish to program". NOTE:If your transmitter button has the Lock/Unlock icon on one button, press and release the valet push button switch 2 times then move on to step #8. 5) Press and release the valet push button switch one time to advance to channel 2. The siren will chirp 2 times and the dash mounted LED will 128-8840 3 of 8 3 Flash 2 times, indicating that the unit is ready to accept programming for channel # 2 which is only used for separate lock and unlock button transmitters, and is the disarm/unlock/unlock 2 and panic. 6) Press and hold the unlock symbol button of the transmitter you wish to program for 4 seconds or until a long chirp is heard from the siren. "Repeat step 6 for each transmitter you wish to program". 7) Press and release the valet push button switch one time to ad- vance to channel 3.The siren will chirp 3 times and the dash mounted LED will Flash 3 times, indicating that the unit is ready to accept programming for channel # 3 which is the trunk release/alternate output channel of the system. 8) Press and hold the trunk/key symbol button of the transmitter you wish to program for 4 seconds or until a long chirp is heard from the siren. "Repeat step 8 for each transmitter you wish to program". 9) Press and release the valet push button switch one time to advance to channel 4 if so equipped. The siren will chirp 4 times and the dash mounted LED will Flash 4 times, indicating that the unit is ready to accept programming for channel # 4, optional device (where equipped) 10) Press and hold the Option button of the transmitter you wish to program for 4 seconds or until a long chirp is heard from the siren. "Repeat step 10 for each transmitter you wish to program". 11) Press and release the valet push button switch one time to ad- vance to channel 5 if so equipped. The siren will chirp 5 times and the dash mounted LED will Flash 5 times, indicating that the unit is ready to accept programming for channel # 5 optional device (where equipped) 12) Press and hold the second Option button of the transmitter you wish to program for 4 seconds or until a long chirp is heard from the siren. "Repeat step 12 for each transmitter you wish to program". 13) Within 10 seconds, press and release the valet program switch one time. (Siren emits 6 short chirps indicating channel 6 has been entered) 14) Within 10 Seconds, Press and hold …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Oct. 28, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Nutek Corporation hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product: Transmitter, Model No.: SS91P, FCC ID: ELVATJC We affirm that between SIEMIC and Nutek Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Charles Chen / President Nutek Corporation Tel: +886 2 2918 9478 Fax: +886 2 2917 9069 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Oct. 28, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ELVATJC We hereby request confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Charles Chen / President Nutek Corporation Tel: +886 2 2918 9478 Fax: +886 2 2917 9069 E-mail: [email protected] The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application.

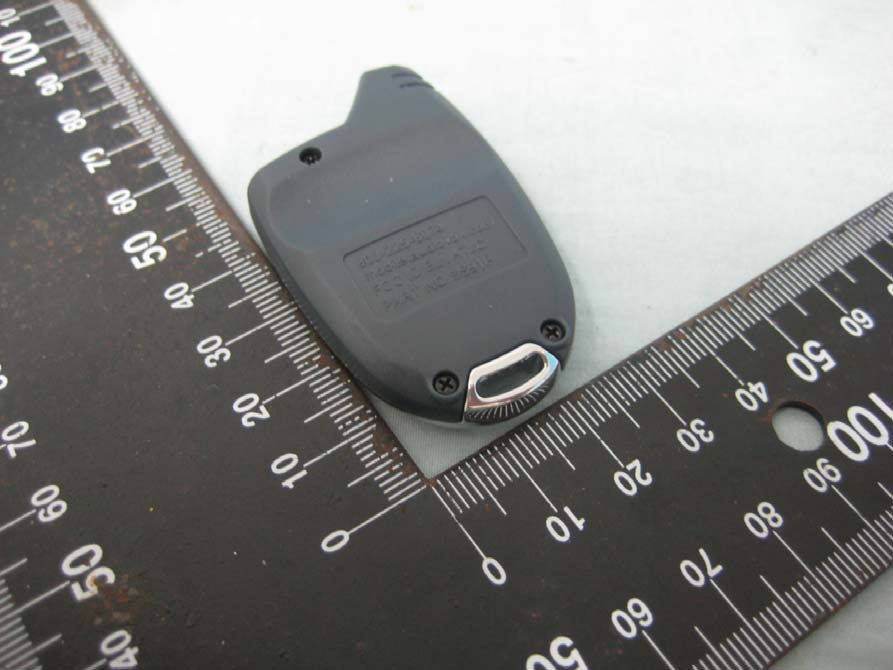

Report No.：10A102101FR FCC ID： ELVATJC Page 20 of 22 Interocean EMC Technology Corp. Test Report 5 Photographs of EUT Front View of EUT Rear View of EUT

BODY MATERIAL : ABS MT-11010 0.2 C ± A ±± B Eason YYS VICTOR 1 2 800-225-6074 FCC ID:ELVATJC PART NO.SS91P mobile.audiovox.com XX BODY MATERIAL : ABS+PC Label FCC ID: ELVATJC Label Location

Report No.：10A102101FR FCC ID： ELVATJC Page 21 of 22 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.：10A102101FR FCC ID： ELVATJC Page 22 of 22 Interocean EMC Technology Corp. Test Report Component View of PCB Board Solder View of PCB Board

Report No.：10A102101FR FCC ID： ELVATJC Page 1 of 22 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.249 TEST REPORT Product： Transmitter Trade Name： N/A Model Number： SS91P FCC ID： ELVATJC Prepared for Nutek Corporation NO.167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan TEL.： +886 2 2918 9478 FAX.： +886 2 2917 9069 Prepared by Interocean EMC Technology Corp. 244 No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark: The test report consists of 22 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test results in the report only to the tested sample. Report No.：10A102101FR FCC ID： ELVATJC Page 3 of 22 Interocean EMC Technology Corp. Test Report Table of Contents 1 General Information 4 1.1 Description of Equipment Under Test 4 1.2 Test Facility 5 1.3 Test Equipment 6 1.4 Summary of Measurement 6 1.5 Justification 6 1.6 Operation mode 6 2 RF Radiated spurious emission test 7 2.1 Limits 7 2.2 Configuration of Measurement 7 2.3 Test Procedure 8 2.4 The description of operation mode 8 2.5 Test Result 8 3 Emission on the Band Edge test 14 3.1 Limits 14 3.2 Configuration of Measurement 14 3.3 Test Procedure 14 3.4 Test Result 14 4 Photographs of Test 18 4.1 Radiated Emission Measurement (below 1GHz) 18 4.2 Radiated Emission Measurement (above 1GHz) 19 5 Photographs of EUT 20 Report No.：10A102101FR FCC ID： ELVATJC Page 4 of 22 Interocean EMC Technology Corp. Test Report 1 General Information 1.1 Description of Equipment Under Test Product : Transmitter Model Number : SS91P Applicant : Nutek Corporation NO.167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan Manufacturer : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan Power Supply : 3Vdc Battery Operating Frequency : 909.6~919.024MHz Channel Number : 25 channels frequency hopping Type of Modulation : FSK Antenna description : This device uses Helix antenna. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Receipt Sample : Oct. 22, 2010 Date of Test : Oct. 22~26, 2010 Additional Description : 1) The Model Number “SS91P” is representative selected in the test and included in this report. 2) For more detail specification about EUT, please refer to the user’s manual. Report No.：10A102101FR FCC ID： ELVATJC Page 5 of 22 Interocean EMC Technology Corp. Test Report 1.2 Test Facility Site Description : OATS 2 Name of Firm : Interocean EMC Technology Corp. Company web : http://www.ietc.com.tw Site 1, 2, 3 Location : No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. Site Filing : z Federal Communication Commissions – USA Registration No.: 96399 (OATS 1 & 2) Registration No.: 518958 (OATS 3) Designation No.: TW1020 z Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-1094 Registration No. (Conducted Room): T-1562 Registration No. (OATS 1): R-1040 Registration No. (OATS 2): R-1041 z Industry Canada (IC) OUR FILE: 46405-4437 Submission: 130946 Registration No. (OATS 1): 4437A-1 Registration No. (OATS 2): 4437A-2 Registration No. (OATS 3): 4437A-3 Site Accreditation : z Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR22 SL2-R1-E-0026 for CNS13439 / CISPR13 SL2-R2-E-0026 for CNS13439 / CISPR13 SL2-A1-E-0026 for CNS13783-1 / CISPR14-1 SL2-L1-E-0026 for CNS 14115 / CISPR 15 z Taiwan Accreditation Foundation (TAF) Accrditation No.: 1113 z TüV NORD Certificate No: TNTW0801R-02 Report No.：10A102101FR FCC ID： ELVATJC Page 6 of 22 Interocean EMC Technology Corp. Test Report 1.3 Test Equipment Instrument ManufacturerModel Serial No. Next Cal. Date Spectrum Analyzer R&S FSP30 100002 2010/12/08 Spectrum Analyzer R&S FSP40 100478 2011/04/20 Preamplifier Agilent 8449B 3008A01434 2011/04/20 Preamplifier SCHAFFNER CA30100 2 2010/11/03 Horn Antenna Schwarzbeck BBHA 9120 9120D-583 2011/02/09 Biconical Antenna Schwarzbeck VHA 9103 2484 2011/10/08 Log Antenna Schwarzbeck UHALP 9108 A 0765 2011/10/08 Note: The above equipments are within the valid calibration period. 1.4 Summary of Measurement Report Clause Test Parameter Reference Document CFR47 Part15 Results 2 RF Radiated spurious emission test §15.249(a)(c)(d) Pass 3 Emission on the Band Edge §15.249(d) Pass AC Power Line Conducted Emission test §15.207 Not applicable 1.5 Justification The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of the frequency band were all arrive limit requirement, thus we evaluate the EUT pass the specified test. 1.6 Operation mode By preliminary testing and verifying three axis (X, Y and Z) position of EUT transmitted status, it was found that “Z axis” position was the worst, then the final test was executed the worst condition and test data were recorded in this report The EUT was operated in continuous transmission mode during all of the tests. X axis mode Y axis mode Z axis mode Report No.：10A102101FR FCC ID： ELVATJC Page 7 of 22 Interocean EMC Technology Corp. Test Report 2 RF Radiated spurious emission test 2.1 Limits According to §15.249 (a), the field strength of emissions from intentional radiators operated within these frequency bands shall comply with the following: Fundamental frequency Field strength of fundamental (millivolts/meter) Field strength of harmonics (microvolts/meter) 902–928 MHz 50 500 2400–2483.5 MHz 50 500 5725–5875 MHz 50 500 24.0–24.25 GHz 250 2500 For intentional radiator, the radiated emission shall comply with §15.209(a). Frequency (MHz) Field strength dB(μV/m) Measurement distance (meters) 1.705~30.0 29.5 30 30 ~ 88 40 3 88~2…

Text truncated - open the document above for the full version.

Report No.：10A102101FR FCC ID： ELVATJC Page 18 of 22 Interocean EMC Technology Corp. Test Report 4 Photographs of Test 4.1 Radiated Emission Measurement (below 1GHz) Front View Rear View Report No.：10A102101FR FCC ID： ELVATJC Page 19 of 22 Interocean EMC Technology Corp. Test Report 4.2 Radiated Emission Measurement (above 1GHz) Front View Rear View
