ELVATJHTransmitter

OWNER’S G UID E REMOTE START Part Number: 4280373 REV A © 7/2011 KIA MOTORS AMERICA Congratulations on your purchase of a Kia Remote Start System featuring PowerCode Technology. This easy-to-use manual details the operating instructions and benefits of the Remote Start System. Should you have questions or concerns regarding this system that this manual does not address, please contact your local Kia dealer. REMOTE START OWNER’S GUIDE TABLE OF CONTENTS:Remote Control Quick Guide 2 Features and Benefi ts of the System 3 Remote Control Operation 3 Your Remote Control TransmitterPersonal Protection Alarm with RPSProgressive Car Find Using the Remote Start Function 4 Starting your vehicle Remote Start Safety FeaturesUsing the Remote Start Function 5 Entering the vehicle while it is running via Remote StartUsing the Remote Start Function 6 Pre-Heating or Pre-Cooling the interior Using the Rear Defroster Feature Using Valet/Service Mode 7 Changing the Remote Control Battery 8 INTRODUCTION 1 STEERING WHEEL / STALK / PANEL 2 REMOTE CONTROL QUICK GUIDE Press 2 times within 3 seconds to activate the Remote Start function. Caution:Do not remote start a vehicle in an enclosed environment (i.e. closed garage). Prolonged operation of a motor vehicle in an enclosed environment can cause a harmful build-up of Carbon Monoxide. Carbon Monoxide is harmful to your health. Exposure to high levels of carbon monoxide can cause headaches, dizziness or in extreme cases unconsciousness and/or death. Do not leave children or animals unattended in a vehicle while using the remote start function.FCC COMPLIANCEThis device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including any interference that may cause undesired operation. Warning!Changes or modi fi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate Red L.E.D. fl ash with every button press to con fi rm proper operation and a good battery. During Remote Start operation, press 1 time to activate the Rear Defroster feature. Press for Progressive Car Find x1= 5 Soft Chirpsx2= 5 Louder Chirpsx3= 5 Full Volume ChirpsPress and hold for PersonalProtection Alarm. STEERING WHEEL / STALK / PANEL 3 FEATURES AND BENEFITS OF THE SYSTEMSTEERING WHEEL / STALK / PANEL REMOTE CONTROL OPERATION • Remote Start - Start your vehicle with the press of a button. Preheat or precool the vehicle’s interior. • Remote Keyless Entry - Unlock the vehicle’s doors and tailgate with the factory Smart key transmitter during Remote Start operation.• Rear Defroster - Activate the Rear Defroster feature during Remote Start operation. • Personal Protection Alarm - The red “panic” button on your remote control transmitter triggers the vehicle’s horn and hazard or parking lights to scare away a potential attacker. • Progressive Car Find - Helps locate your vehicle in a parking lot. Your Remote Control TransmitterThe remote control transmitter controls the Remote Start, Rear Defroster, Personal Protection Alarm and Progressive Car Find. Personal Protection Alarm with RPS (Real Panic Sound)The remote control panic feature helps draw attention to your vehicle and yourself in a threatening situation. Press and hold the button on your remote control transmitter for 3 seconds to activate the panic feature. The horn and hazard or parking lights will sound/ fl ash in random pulses for 30 seconds. Pressing the button a second time will turn off the panic feature. Progressive Car FindThe remote control car fi nd feature can help locate your vehicle in a dark or crowded parking lot. Pressing the button on your remote control transmitter will chirp the horn 5 times. Subsequent presses of the button within 5 seconds of the fi rst press will activate the car fi nd feature again; sounding the horn slightly louder on the second and third activations and then at a constant sound level (equal to the third activation). Important Note: The factory Smart key transmitters will function during Remote Start operation, except the panic feature. Important Note: The outside door handle lock/unlock buttons will NOT function during Remote Start operation. Important Note: If the driver’s door is unlocked, opened and closed with the factory Smart key transmitter outside the vehicle, a warning chime may be heard. This is normal and not cause for concern. 4 STEERING WHEEL / STALK / PANEL USING THE REMOTE START FUNCTION Starting Your VehicleThe remote start function is activated by pressing the button 2 times within 3 seconds on your remote control transmitter. The system will check the vehicle to ensure that it is safe to start and if all safety parameters are correct, the engine will star t within 15 seconds and run for up to 15 minutes. Press and hold the button again for 3 seconds to turn off the vehicle. Remote Start Safety FeaturesFor safety and security reasons, the system will fail to start and chirp the horn accordingly or shut down the engine during re mote start operation if any of the following occur: Chirps Safety Feature 2 Hood opened Brake Pedal pressed (Not applicable during remote start operation) 3Valet/Service Mode engaged5 Hatch opened 6 Any door opened (Not applicable during remote start operation) 7 Gear selector moved from “Park” position or Start button pressed As a safety precaution, the vehicle will shut off if left unattended after 15 minutes.Important Note: Whenever the remote start function is activated, the system can take up to 15 seconds to start the engine. Important Note: If the system determines it is NOT safe to start the engine, it will abort the operation. STEERING WHEEL / STALK / PANEL 5 USING THE REMOTE START FUNCTION Entering the Vehicle While it is Running via Remote StartImportant Note: The outside door handle lock/unlock buttons will NOT functi…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Jul. 26, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Nutek Corporation hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product: Transmitter, Model No.: 4360317, 4360318 and 4360307, FCC ID: ELVATJH We affirm that between SIEMIC and Nutek Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Charles Chen / President Nutek Corporation Tel: +886 2 2918 9478 Fax: +886 2 2917 9069 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Jul. 26, 2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ELVATJH We hereby request confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Charles Chen / President Nutek Corporation Tel: +886 2 2918 9478 Fax: +886 2 2917 9069 E-mail: [email protected]

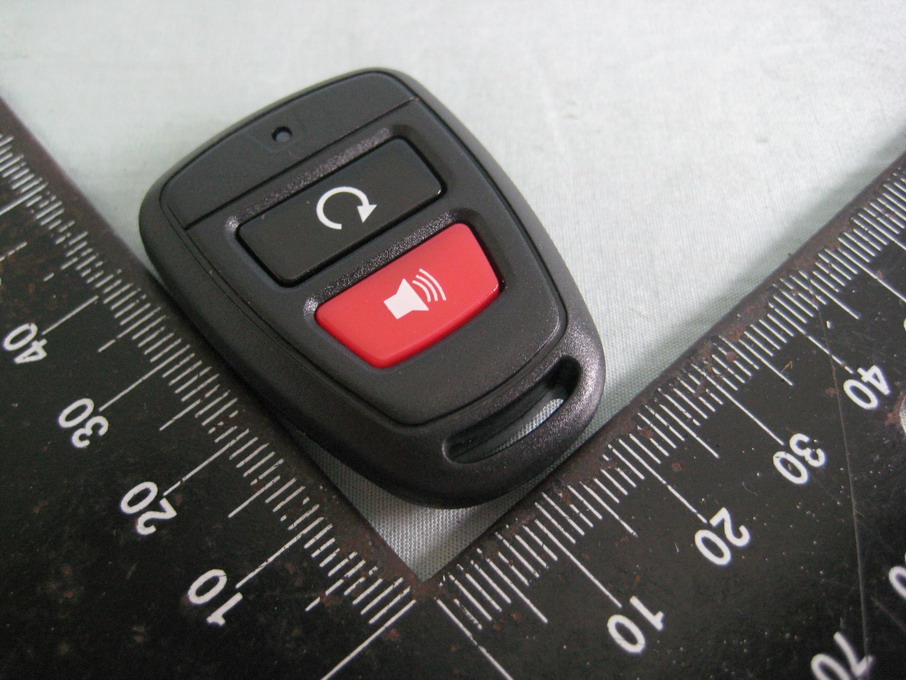

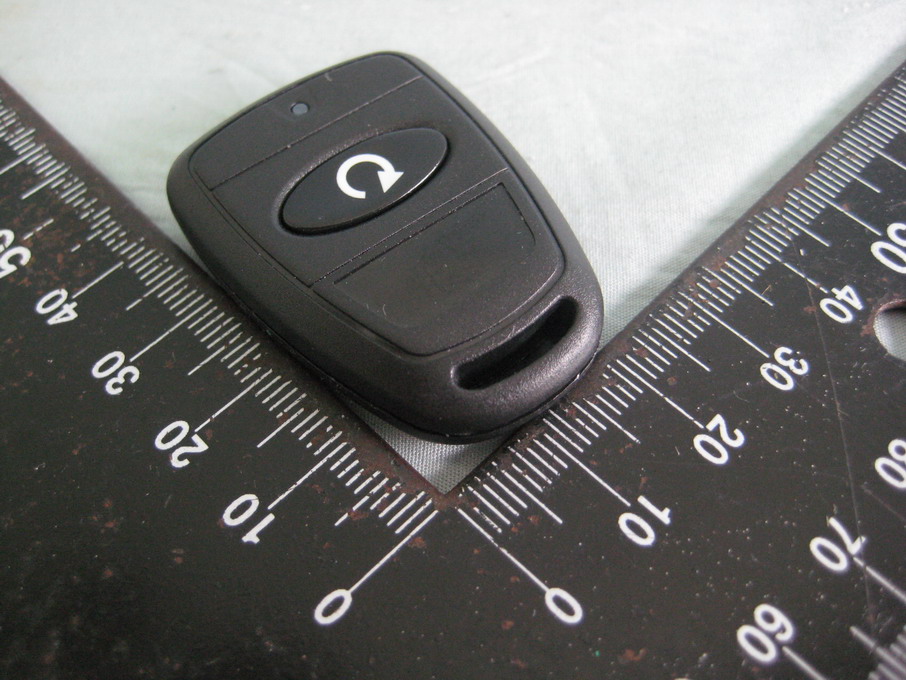

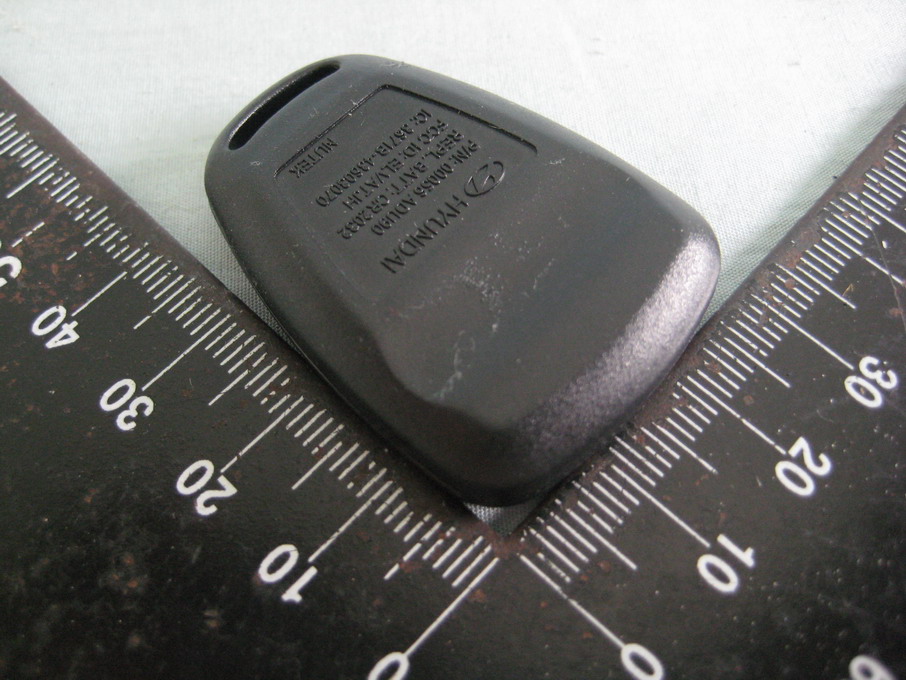

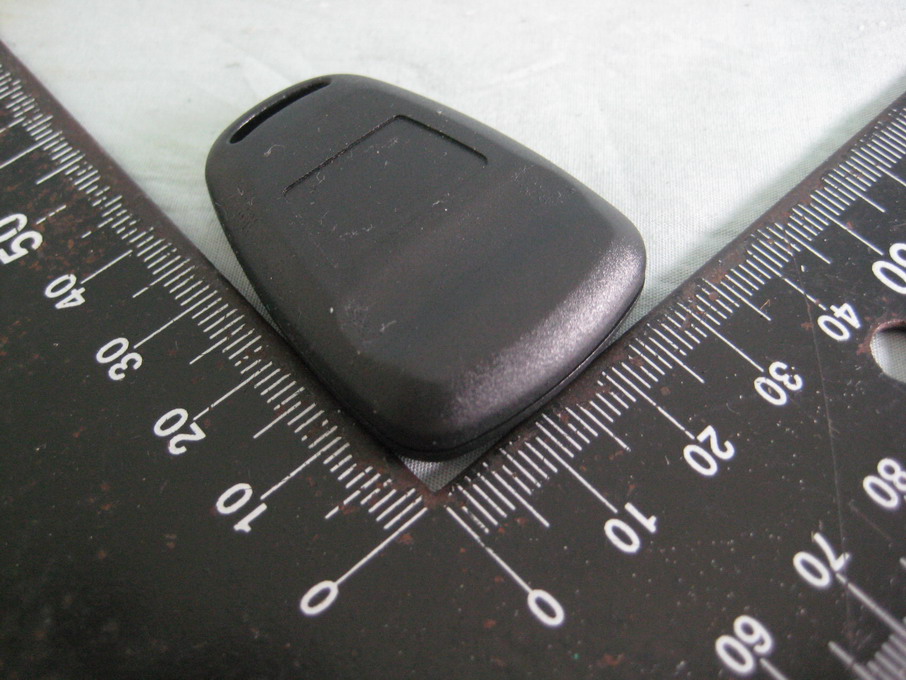

Report No.：11A070606R-FR FCC ID： ELVATJH Page 23 of 29 Interocean EMC Technology Corp. Test Report 7 Photographs of EUT 7.1 Model No.: 4360317 Front View of EUT Rear View of EUT Report No.：11A070606R-FR FCC ID： ELVATJH Page 24 of 29 Interocean EMC Technology Corp. Test Report Label Report No.：11A070606R-FR FCC ID： ELVATJH Page 28 of 29 Interocean EMC Technology Corp. Test Report 7.2 Model No.: 4360307 Front View of EUT Rear View of EUT Report No.：11A070606R-FR FCC ID： ELVATJH Page 29 of 29 Interocean EMC Technology Corp. Test Report 7.3 Model No.: 4360318 Front View of EUT Rear View of EUT

Report No.：11A070606R-FR FCC ID： ELVATJH Page 25 of 29 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.：11A070606R-FR FCC ID： ELVATJH Page 26 of 29 Interocean EMC Technology Corp. Test Report Component View of PCB Board Solder View of PCB Board Report No.：11A070606R-FR FCC ID： ELVATJH Page 27 of 29 Interocean EMC Technology Corp. Test Report Front View of Battery Rear View of Battery

Report No.：11A070606R-FR FCC ID： ELVATJH Page 1 of 29 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.231 TEST REPORT Product： Transmitter Trade Name： N/A Model Number： 4360317; 4360307; 4360318 FCC ID： ELVATJH Prepared for Nutek Corporation NO.167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan TEL.： +886 2 2918 9478 FAX.： +886 2 2917 9069 Prepared by Interocean EMC Technology Corp. No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark: The test report consists of 29 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test results in the report only to the tested sample. Report No.：11A070606R-FR FCC ID： ELVATJH Page 2 of 29 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: Nutek Corporation Manufacturer: Nutek Corporation Product: Transmitter Model No.: 4360317; 4360307; 4360318 Tested Power Supply: 3Vdc Battery Date of Final Test: Jul. 19, 2011 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart C 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of IETC. Report Issued: 2011/08/05 Project Engineer: Approved: Elli Chang Jerry Liu Report No.：11A070606R-FR FCC ID： ELVATJH Page 3 of 29 Interocean EMC Technology Corp. Test Report Table of Contents 1 Summary of Measurement 4 2 General Information 5 2.1 Description of Equipment Under Test 5 2.2 Details of tested peripheral equipment 6 2.3 Test Facility 7 3 Test specifications 8 3.1 Test standard 8 3.2 Operation mode 8 3.3 Test Equipment 9 4 Radiated emission test 10 4.1 Limits 10 4.2 Calculation of Average Factor 11 4.3 Configuration of Measurement 16 4.4 Test Procedure 16 4.5 Test Result 16 5 Emission bandwidth 19 5.1 Limits 19 5.2 Test Result 19 6 Photographs of Test 21 6.1 Radiated Emission Measurement 21 7 Photographs of EUT 23 Report No.：11A070606R-FR FCC ID： ELVATJH Page 4 of 29 Interocean EMC Technology Corp. Test Report 1 Summary of Measurement Report Clause Test Parameter Reference Document CFR47 Part15 Results 4 Radiated Emission §15.231(b), 15.209 Pass 5 Emission bandwidth §15.231(c) Pass Report No.：11A070606R-FR FCC ID： ELVATJH Page 5 of 29 Interocean EMC Technology Corp. Test Report 2 General Information 2.1 Description of Equipment Under Test Product : Transmitter Model Number : 4360317; 4360307; 4360318 Applicant : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan Manufacturer : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan Power Supply : 3Vdc Battery Operating Frequency : 433.92MHz Channel Number : 1 channel Type of Modulation : ASK Antenna description : This device uses Spring antenna. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Test : Jul. 07 ~ 19, 2011 Additional Description : 1) The Model Number “4360317” is representative selected in the test and included in this report. 2) All models included in this report have different switches; the rest parts are identical. Model No. SW1 SW2,3 4360307 Yes N/A 4360317 4360318 N/A Yes 3) For more detail specification about EUT, please refer to the user’s manual. Report No.：11A070606R-FR FCC ID： ELVATJH Page 6 of 29 Interocean EMC Technology Corp. Test Report 2.2 Details of tested peripheral equipment N/A Report No.：11A070606R-FR FCC ID： ELVATJH Page 7 of 29 Interocean EMC Technology Corp. Test Report 2.3 Test Facility Site Description : OATS 2 Name of Firm : Interocean EMC Technology Corp. Company web : http://www.ietc.com.tw Site 1, 2, 3 Location : No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. Site Filing : z Federal Communication Commissions – USA Registration No.: 96399 (OATS 1 & 2) Registration No.: 518958 (OATS 3) Designation No.: TW1020 z Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-1094 Registration No. (Conducted Room): T-1562 Registration No. (OATS 1): R-1040; G-274 Registration No. (OATS 2): R-1041 z Industry Canada (IC) OUR FILE: 46405-4437 Submission: 145171 Registration No. (OATS 1): Site# 4437A-1 Registration No. (OATS 2): Site# 4437A-2 Registration No. (OATS 3): Site# 4437A-3 Site Accreditation : z Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR22 SL2-R1-E-0026 for CNS13439 / CISPR13 SL2-R2-E-0026 for CNS13439 / CISPR13 SL2-A1-E-0026 for CNS13783-1 / CISPR14-1 SL2-L1-E-0026 for CNS 14115 / CISPR 15 z Taiwan Accreditation Foundation (TAF) Accrditation No.: 1113 z TüV NORD Certificate No: TNTW0801R-03 Report No.：11A070606R-FR FCC ID： ELVATJH Page 8 of 29 Interocean EMC Technology Corp. Test Report 3 Test specifications 3.1 Test standard The EUT was performed according to FCC Part 15 Subpart C Section 15.231 procedure and setup followed by ANSI C63.4, 2003 requirements. 3.2 Operation mode By preliminary testing and verifying three axis (X, Y and Z) position of EUT transmitted status, it was found that “Z axis” position was the worst, then the final test was executed the worst condition and test data were recorded in this report The EUT was operated in continuous transmission mode during all of the tests. X axis mode Y axis mode Z axis mode Report No.：11A070606R-FR FCC ID： ELVATJH Page 9 of 29 Interocean EMC Technology Corp. Test Report 3.3 Test Equipment Instrument ManufacturerModel Serial No. Next Cal. Date Spectrum Analyzer R&S FSP30 100002 2012/01/02 Preamplifier Agilent 8449B 3008A01434 2012/04/28 Horn Antenna Schwarzbeck BBHA 9120 9120D-583 2013/05/01 Horn Antenna COM-POWER AH-118 …

Text truncated - open the document above for the full version.

Report No.：11A070606R-FR FCC ID： ELVATJH Page 21 of 29 Interocean EMC Technology Corp. Test Report 6 Photographs of Test 6.1 Radiated Emission Measurement Front View of Above 1GHz Rear View of Above 1GHz Report No.：11A070606R-FR FCC ID： ELVATJH Page 22 of 29 Interocean EMC Technology Corp. Test Report Front View of below 1GHz Rear View of below 1GHz
