ELVATLBTransmitter

1997 – 2000 CORVETTE REPLACEMENT TRANSMITTER P/N: 19299230 INSTRUCTION SHEET Remote Function Actuation System Your vehicle has a Remote Function Actuation (RFA) system that allows you to lock and unlock your doors, unlock your hatch/trunk lid, turn the panic alarm on and off and disarm or arm your theft-deterrent system. When using one of the key fob transmitters supplied with your vehicle range distance is as much as 100 feet (30 m) away. Your RFA system operates on a radio frequency subject to Federal Communication Commission (FCC) Rules and with Industry Canada. FCC COMPLIANCE This device complies with Part 15 of the FCC rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including any interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deaux conditions suivantes: 1. l’appareil ne doit pas produire de brouillage. 2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Warning! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment and void warranty. Operation You can use the buttons on the transmitter to unlock your vehicle. Press UNLOCK once to unlock the driver’s door, or UNLOCK again within 10 seconds to unlock both doors. Pressing LOCK once will lock both doors and arm the theft-deterrent system. Your memory settings will also be recalled when you press the UNLOCK button on the key fob transmitter. See “Memory” in the vehicle’s Owner’s Manual Index for more information. The hatch/trunk lid will unlock when the button with the trunk symbol is pressed, as long as the ignition is turned to OFF. The system has a feature that makes it difficult for you to lock your keys in your vehicle. If you leave your keys in the ignition and attempt to lock the doors, the vehicle will not lock and a chime will sound reminding you that the keys are in the ignition. If the door lock is pressed again, within five seconds, the doors will lock and the keys can be locked in the vehicle The system will allow you to lock your keys in the vehicle if you didn’t leave them in the ignition (for example, you leave the keys on the seat). Always remember to take your keys with you. Panic Alarm Button When you press the special horn button on the key fob transmitter, the horn will sound. This panic alarm button will allow you to attract attention, if needed. If the horn alarm sounds, there are three ways to turn it off: • Push the panic alarm button again on the key fob transmitter. • Wait 90 seconds, and the horn will turn off by itself. • Turn the key to any position in the ignition, except OFF. RFA Settings You can adjust the settings on the system through the Driver Information Center (DIC). See “Driver Information Center Controls and Displays” in the Index of your vehicle’s Owner’s Manual for more information. Matching Transmitter(s) To Your Vehicle Each key fob transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer. When the dealer matches the replacement transmitter to your vehicle, any remaining transmitters must also be matched. Once your dealer has coded the new transmitter, the lost transmitter will not unlock your vehicle. Each vehicle can have only three transmitters matched to it. To match transmitters to your vehicle: 1. Turn the ignition key to ON . 2. Clear any warning messages on the Driver Information Center (DIC) by pressing the RESET button. 3. Press the OPTIONS button on the DIC several times until the blank page is displayed, the press and hold the RESET button for two seonds. 4. When the message FOB TRAINING is displayed, push the RESET button once. The message HOLD LK+UNLK 1 ST FOB in DIC will be displayed. 5. Press and holf the LOCK and UNLOCK buttons on the transmitter simultaneously for 15 seconds. 6. When the transmitter is learned (matched), the DIC will display FOB LEARNED and then prompt you to learn the next transmitter. 7. Repeat steps 5 and 6 for each additional transmitter. 8. Remove the key from the ignition. The programming mode will shut off if: • You don’t program any transmitter for two minutes. • You take the key out of the ignition. • You have programmed three transmitters.

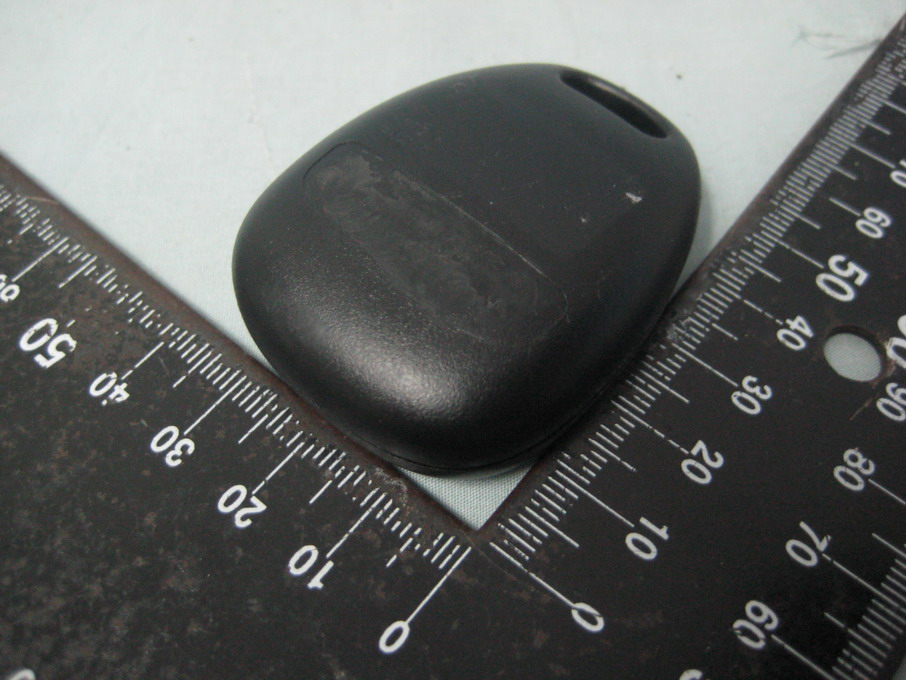

Report No.：12A071301R-FR FCC ID： ELVATLB Page 22 of 25 Interocean EMC Technology Corp. Test Report 7 Photographs of EUT Front View of EUT Rear View of EUT

Report No.：12A071301R-FR FCC ID： ELVATLB Page 23 of 25 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.：12A071301R-FR FCC ID： ELVATLB Page 24 of 25 Interocean EMC Technology Corp. Test Report Component View of Main Board Solder View of Main Board Report No.：12A071301R-FR FCC ID： ELVATLB Page 25 of 25 Interocean EMC Technology Corp. Test Report Front View of Battery Rear View of Battery

Report No.：12A071301R-FR FCC ID： ELVATLB Page 1 of 25 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.231 TEST REPORT Product： Transmitter Trade Name： N/A Model Number： 19299230 FCC ID： ELVATLB Prepared for Nutek Corporation NO.167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan TEL.： +886 2 2918 9478 FAX.： +886 2 2917 9069 Prepared by Interocean EMC Technology Corp. No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark: The test report consists of 25 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test result in the report is only subjected to the test sample. Report No.：12A071301R-FR FCC ID： ELVATLB Page 2 of 25 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: Nutek Corporation Manufacturer: Nutek Corporation Product: Transmitter Model No.: 19299230 Tested Power Supply: 3Vdc Battery Date of Final Test: Jul. 16, 2012 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart C 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of IETC. Report Issued: 2012/07/30 Project Engineer: Approved: Elli Chang Jerry Liu Report No.：12A071301R-FR FCC ID： ELVATLB Page 3 of 25 Interocean EMC Technology Corp. Test Report Table of Contents 1 Summary of Measurement 4 2 General Information 5 2.1 Description of Equipment Under Test 5 2.2 Details of tested peripheral equipment 6 2.3 Test Facility 7 3 Test specifications 8 3.1 Test standard 8 3.2 Operation mode 8 3.3 Test Equipment 9 4 Radiated emission test 10 4.1 Limits 10 4.2 Calculation of Average Factor 11 4.3 Configuration of Measurement 14 4.3 Configuration of Measurement 15 4.4 Test Procedure 15 4.5 Test Result 15 5 Emission bandwidth 18 5.1 Limits 18 5.2 Test Result 18 6 Photographs of Test 20 6.1 Radiated Emission Measurement 20 7 Photographs of EUT 22 Report No.：12A071301R-FR FCC ID： ELVATLB Page 4 of 25 Interocean EMC Technology Corp. Test Report 1 Summary of Measurement Report Clause Test Parameter Reference Document CFR47 Part15 Results 4 Radiated Emission §15.231(b), 15.209 Pass 5 Emission bandwidth §15.231(c) Pass Report No.：12A071301R-FR FCC ID： ELVATLB Page 5 of 25 Interocean EMC Technology Corp. Test Report 2 General Information 2.1 Description of Equipment Under Test Product : Transmitter Model Number : 19299230 Applicant : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan Manufacturer : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan Power Supply : 3Vdc Battery Operating Frequency : 315MHz Channel Number : 1 channel Type of Modulation : FSK Antenna description : This device uses PCB antenna. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Test : Jul. 13 ~ 16, 2012 Additional Description : 1) The Model Number “19299230” is representative selected in the test and included in this report. 2) For more detail specification about EUT, please refer to the user’s manual. Report No.：12A071301R-FR FCC ID： ELVATLB Page 6 of 25 Interocean EMC Technology Corp. Test Report 2.2 Details of tested peripheral equipment N/A Report No.：12A071301R-FR FCC ID： ELVATLB Page 7 of 25 Interocean EMC Technology Corp. Test Report 2.3 Test Facility Site Description : OATS 2 Name of Firm : Interocean EMC Technology Corp. Company web : http://www.ietc.com.tw Site 1, 2, 3 Location : No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. Site Filing : z Federal Communication Commissions – USA Registration No.: 96399 (OATS 1 & 2) Registration No.: 518958 (OATS 3) Designation No.: TW1020 z Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-1094 Registration No. (Conducted Room): T-1562 Registration No. (OATS 1): R-1040; G-274 Registration No. (OATS 2): R-1041 z Industry Canada (IC) OUR FILE: 46405-4437 Submission: 145171 Registration No. (OATS 1): Site# 4437A-1 Registration No. (OATS 2): Site# 4437A-2 Registration No. (OATS 3): Site# 4437A-3 Site Accreditation : z Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR22 SL2-R1-E-0026 for CNS13439 / CISPR13 SL2-R2-E-0026 for CNS13439 / CISPR13 SL2-A1-E-0026 for CNS13783-1 / CISPR14-1 SL2-L1-E-0026 for CNS 14115 / CISPR 15 z Taiwan Accreditation Foundation (TAF) Accreditation No.: 1113 z TüV NORD Certificate No: TNTW0801R-04 Report No.：12A071301R-FR FCC ID： ELVATLB Page 8 of 25 Interocean EMC Technology Corp. Test Report 3 Test specifications 3.1 Test standard The EUT was performed according to FCC Part 15 Subpart C Section 15.231 procedure and setup followed by ANSI C63.4, 2003 requirements. 3.2 Operation mode By preliminary testing and verifying three axis (X, Y and Z) position of EUT transmitted status, it was found that “Z axis” position was the worst, then the final test was executed the worst condition and test data were recorded in this report The EUT was operated in continuous transmission mode during all of the tests. X axis mode Y axis mode Z axis mode Report No.：12A071301R-FR FCC ID： ELVATLB Page 9 of 25 Interocean EMC Technology Corp. Test Report 3.3 Test Equipment Instrument ManufacturerModel Serial No. Next Cal. Date Spectrum Analyzer R&S FSP30 100002 2013/01/16 Preamplifier Agilent 8449B 3008A01434 2013/05/02 Preamplifier Agilent 83050A 3950A00225 2012/09/07 Horn Antenna COM-POWER AH-118 10081 2014/05/29 Horn Antenna Schwarzbeck BBHA 9120 9120D-583 2013/05/01 Horn Antenna Schwarzbeck BBHA 9170 213 2012/07/19 Wide Bandwidth Sensor Anritsu MA2491A 728133 …

Text truncated - open the document above for the full version.

Report No.：12A071301R-FR FCC ID： ELVATLB Page 20 of 25 Interocean EMC Technology Corp. Test Report 6 Photographs of Test 6.1 Radiated Emission Measurement Front View of Below 1GHz Rear View of Below 1GHz Report No.：12A071301R-FR FCC ID： ELVATLB Page 21 of 25 Interocean EMC Technology Corp. Test Report Front View of Above 1GHz Rear View of Above 1GHz
