BODY MATERIAL : ABS+PC MT-11010 0.2 D  B   C Eric YYSVictor FCC ID:ELVATNEPART NO.145SPR www.PR-TRANS.COM Battery:CR2032

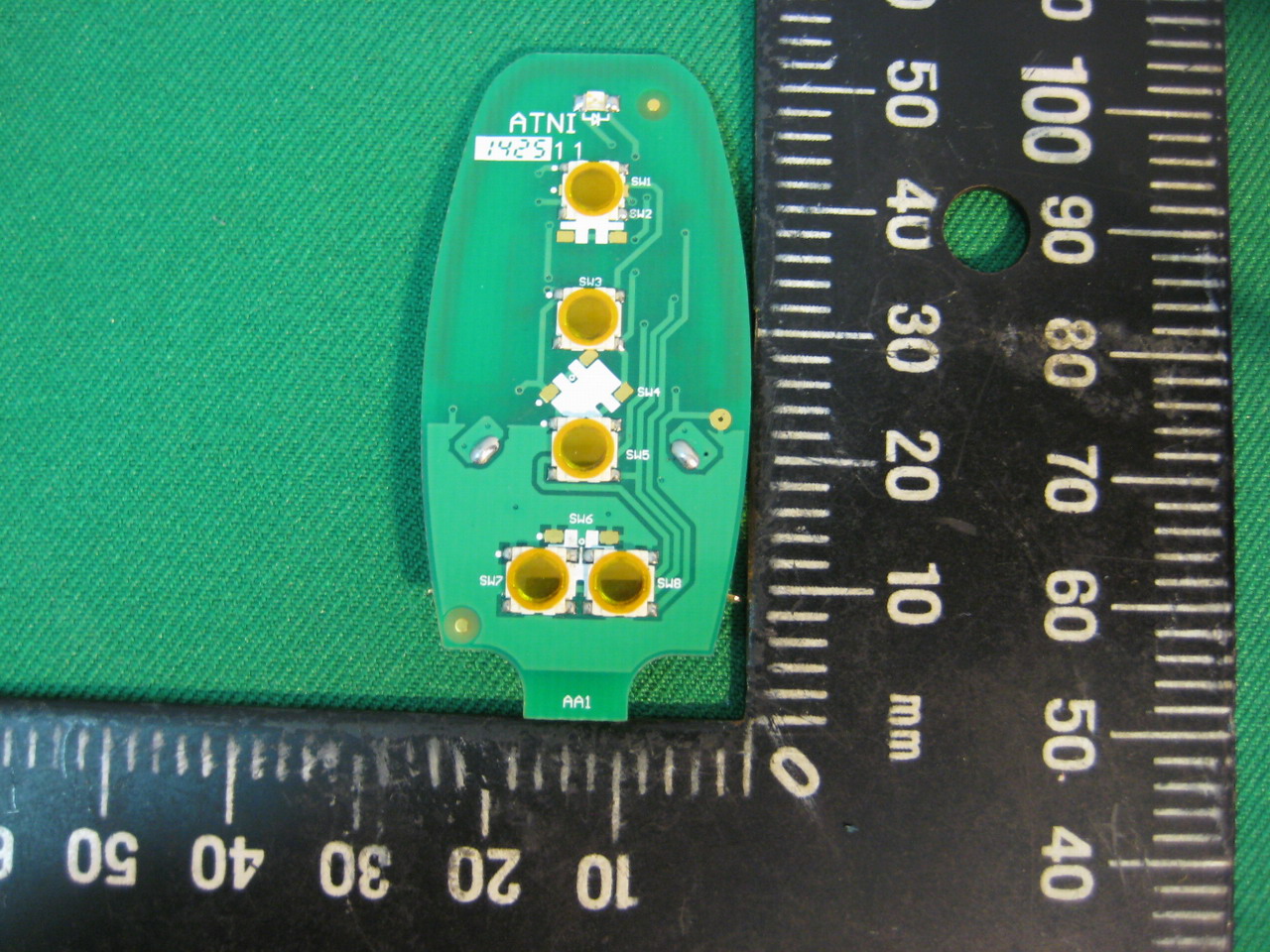

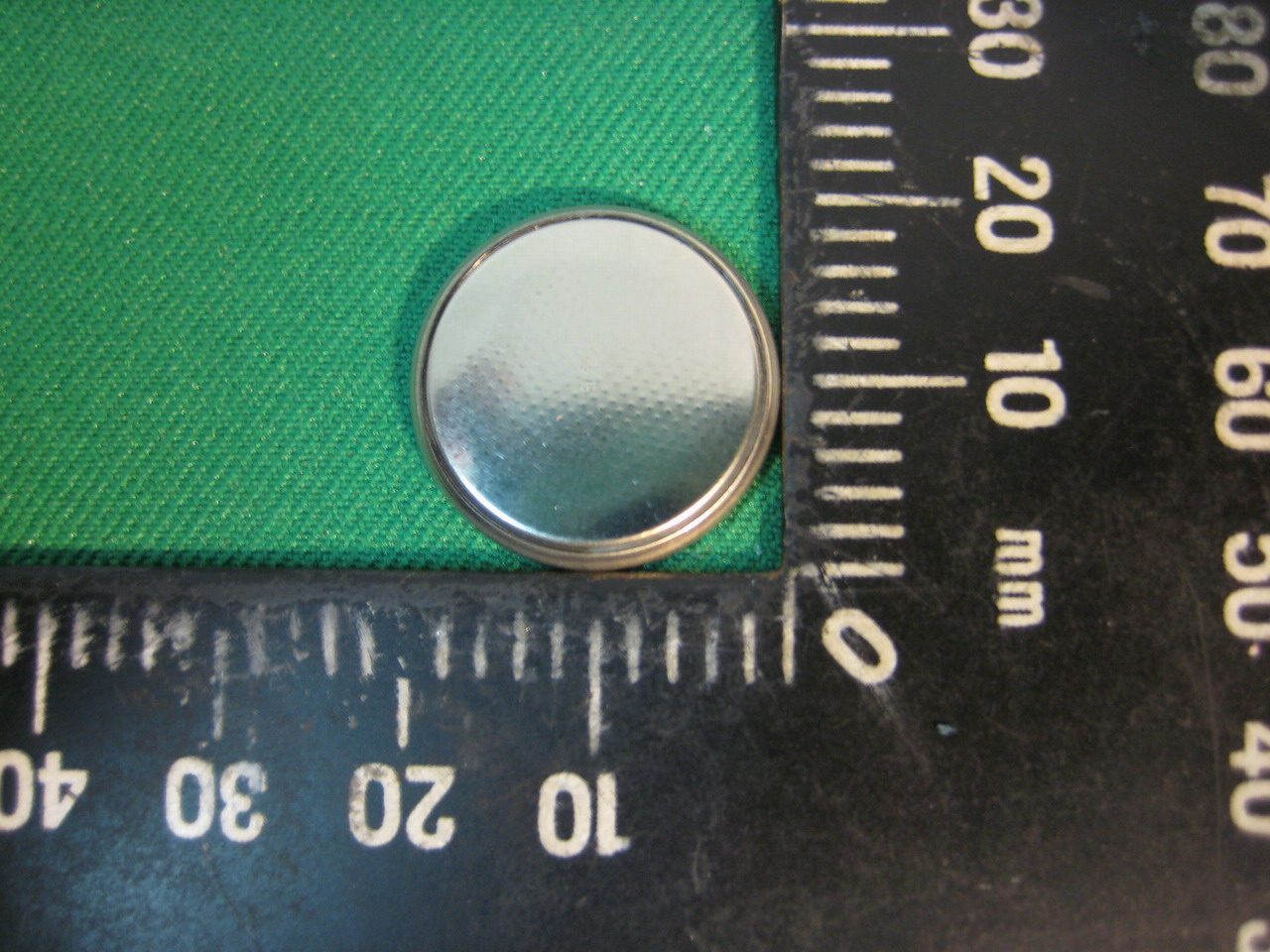

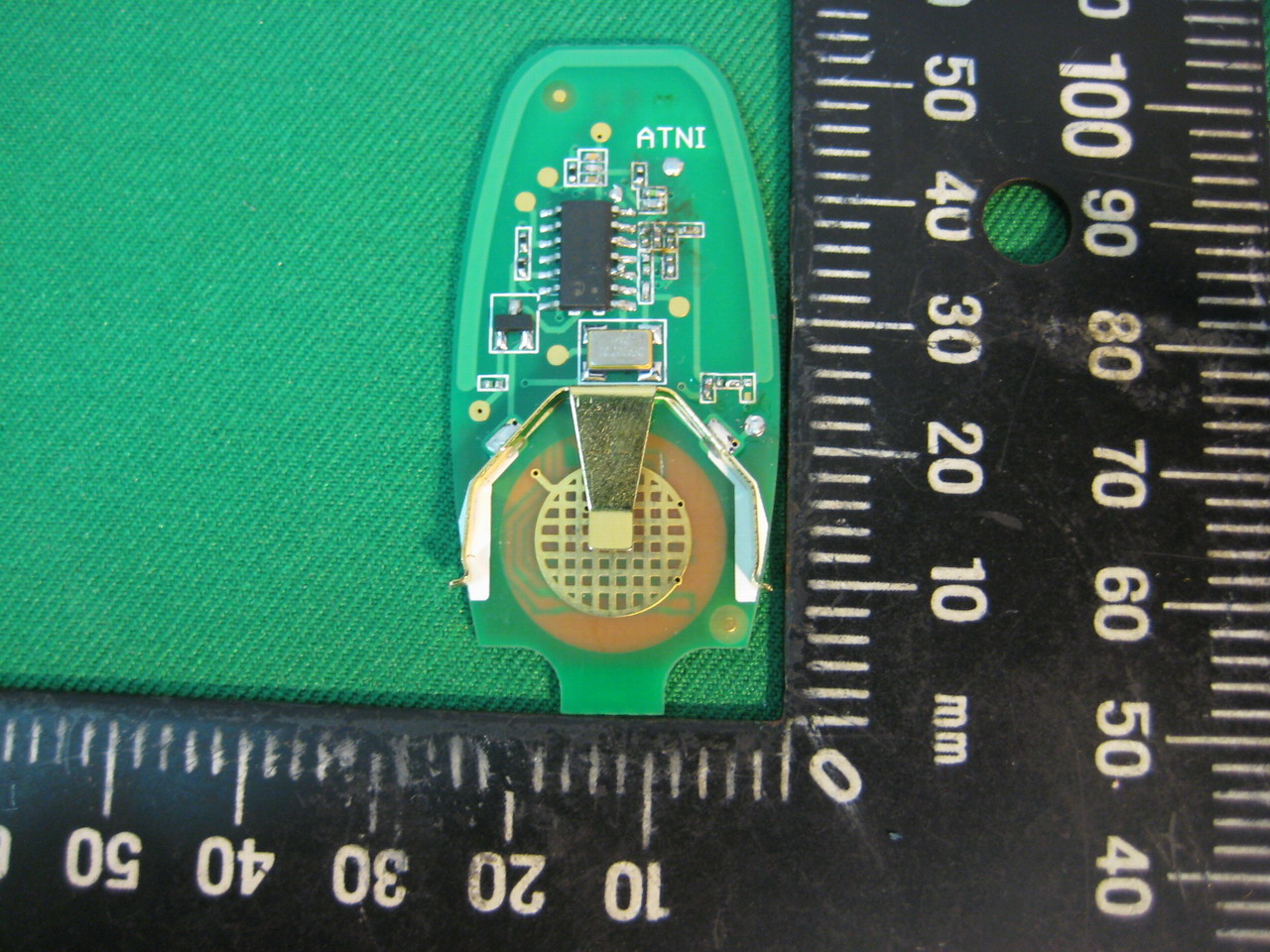

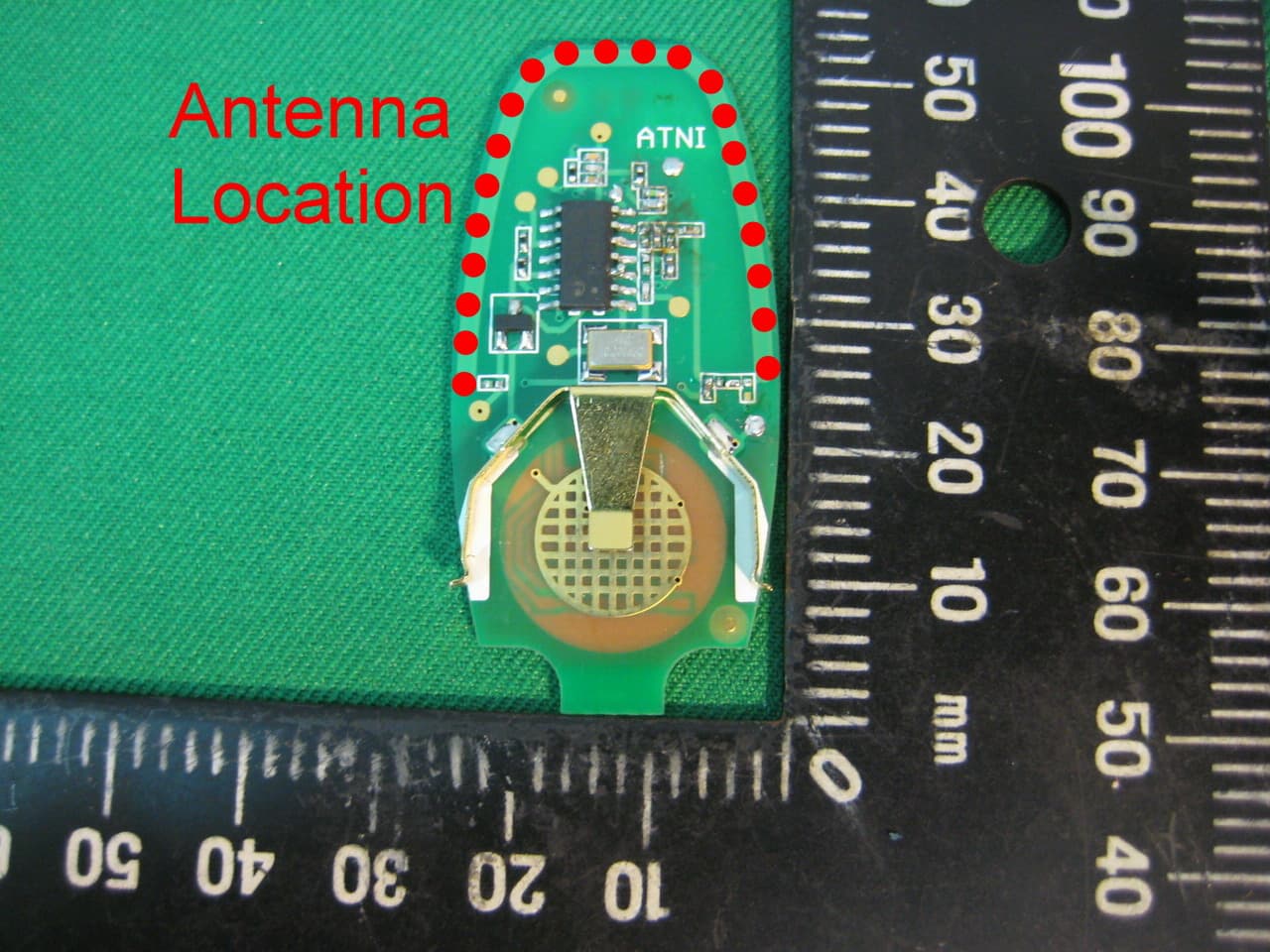

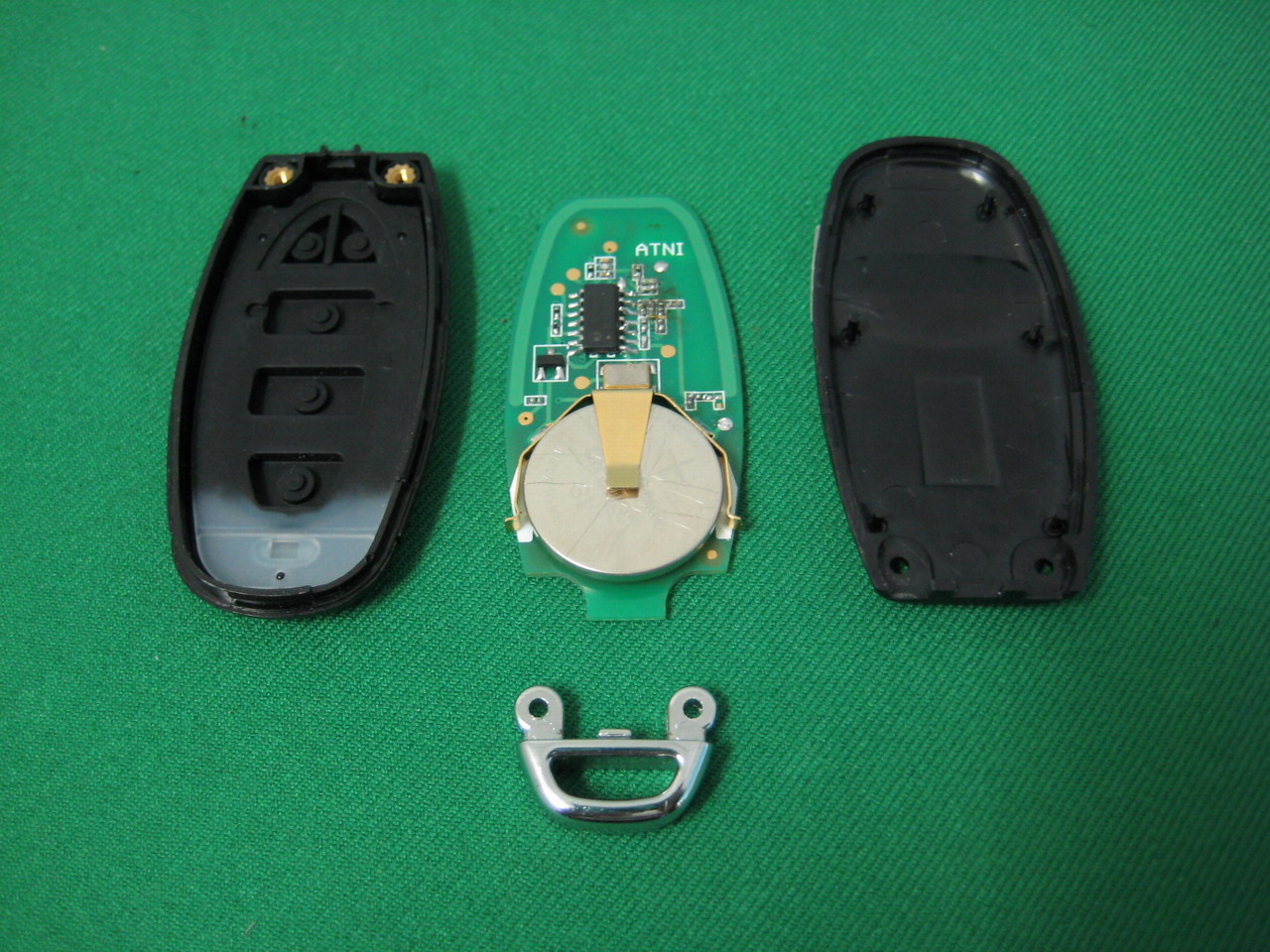

Report No.: 14A072102R-FR FCC ID：ELVATNE Page 42 of 44 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.: 14A072102R-FR FCC ID：ELVATNE Page 43 of 44 Interocean EMC Technology Corp. Test Report Front View of Main Board Rear View of Main Board Report No.: 14A072102R-FR FCC ID：ELVATNE Page 44 of 44 Interocean EMC Technology Corp. Test Report Front View of Battery Rear View of Battery

FCC ID：ELVATNE Report No.：14A072102R-FR Page 1 of 2 RF Exposure Evaluation E.U.T.： Transmitter Model Number： 145SPR Report Issued： 2014/08/01 Project Engineer： Approved： Elli Chang Jerry Liu Applicant： Nutek Corporation Address： NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Issued By： Interocean EMC Technology Corp. LAB Location： No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. FCC ID：ELVATNE Report No.：14A072102R-FR Page 2 of 2 Portable Device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498_D01_V05 4.3.1(1) SAR exclusion thresholds by: [max. power of channel, including tune-up tolerance, mW]/(min, test separation distances, mm)]*[√f(GHz)]≦3.0 for 1-g SAR and ≦7.5 for 10-g extremity SAR. Maximum measured transmitter power Frequency Range (MHz) Maximum peak power (dBm) Maximum peak power (mW) 909.6 1.90 1.5488 913.8 2.06 1.6069 918.0 2.31 1.7022 (1.7022/5)*(√0.918)=0.32618≦3. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A

Report No.: 14A072102R-FR FCC ID：ELVATNE Page 1 of 44 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.247 TEST REPORT Product： Transmitter Trade Name： N/A Model Number： 145SPR FCC ID： ELVATNE Prepared for Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan TEL.： +886 2 2918 9478 FAX.： +886 2 2917 9069 Prepared by Interocean EMC Technology Corp. No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark： The test report consists of 44 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test result in the report is only subjected to the test sample. Report No.: 14A072102R-FR FCC ID：ELVATNE Page 2 of 44 Interocean EMC Technology Corp. Test Report Table of Contents 1 General Information 5 1.1 Description of Equipment Under Test 5 1.2 Table for Carrier Frequencies 6 1.3 Hopping Sequence 6 1.4 Details of Tested Supporting System 7 1.5 Test Facility 8 1.6 Test Equipment 9 1.7 Summary of Measurement 10 1.8 Justification 11 2 Test specifications 12 2.1 Test standard 12 2.2 Operation mode 12 2.3 Test Step of EUT 12 3 20dB Bandwidth test 13 3.1 Limit 13 3.2 Configuration of Measurement 13 3.3 Test Procedure 13 3.4 Test Result 13 4 Carrier Frequency Separation test 17 4.1 Limit 17 4.2 Configuration of Measurement 17 4.3 Test Procedure 17 4.4 Test Result 17 5 Number of hopping frequencies test 21 5.1 Configuration of Measurement 21 5.2 Test Procedure 21 5.3 Test Result 21 6 Time of Occupancy (dwell time) test 23 6.1 Limit 23 6.2 Configuration of Measurement 23 6.3 Test Procedure 23 6.4 Test Result 23 Report No.: 14A072102R-FR FCC ID：ELVATNE Page 3 of 44 Interocean EMC Technology Corp. Test Report 7 Maximum Output Power test 25 7.1 Limit 25 7.2 Configuration of Measurement 25 7.3 Test Procedure 25 7.4 Test Result 25 8 RF Conducted spurious emission 28 8.1 Limit 28 8.2 Configuration of Measurement 28 8.3 Test Procedure 28 8.4 Test Result 28 9 RF Radiated spurious emission test 32 9.1 Limit 32 9.2 Configuration of Measurement 32 9.3 Test Procedure 33 9.4 Test Result 33 10 Photographs of Test 38 10.1 Radiated Emission Measurement 38 11 Photographs of EUT 40 Report No.: 14A072102R-FR FCC ID：ELVATNE Page 4 of 44 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: Nutek Corporation Manufacturer: Nutek Corporation Product: Transmitter Model No.: 145SPR Tested Power Supply: 3Vdc battery Date of Final Test: Jul. 25, 2014 Revision of Report: Rev. 00 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of IETC Report Issued: 2014/08/01 Project Engineer: Approved: Elli Chang Jerry Liu Report No.: 14A072102R-FR FCC ID：ELVATNE Page 5 of 44 Interocean EMC Technology Corp. Test Report 1 General Information 1.1 Description of Equipment Under Test Product : Transmitter Model Number : 145SPR Applicant : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Manufacturer : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Power Supply : 3Vdc battery Operating Frequency : 909.6MHz ~ 918MHz Channel Number : 25 channels Type of Modulation : FSK Antenna Description : This device uses PCB Printed antenna. Antenna gain 0dBi. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Test : Jul. 01 ~ 25, 2014 Additional Description : 1) The Model Number “145SPR” is representative selected in the test and included in this report. 2) For more detail specification about EUT, please refer to the user’s manual. Report No.: 14A072102R-FR FCC ID：ELVATNE Page 6 of 44 Interocean EMC Technology Corp. Test Report 1.2 Table for Carrier Frequencies FC (MHz) FC (MHz) FC (MHz) CH0 909.6000 CH9 912.7500 CH18 915.9000 CH1 909.9500 CH10 913.1000 CH19 916.2500 CH2 910.3000 CH11 913.4500 CH20 916.6000 CH3 910.6500 CH12 913.8000 CH21 916.9500 CH4 911.0000 CH13 914.1500 CH22 917.3000 CH5 911.3500 CH14 914.5000 CH23 917.6500 CH6 911.7000 CH15 914.8500 CH24 918.0000 CH7 912.0500 CH16 915.2000 CH8 912.4000 CH17 915.5500 1.3 Hopping Sequence 12, 8, 6, 2, 0, 5, 1, 7, 3, 9, 4, 10, 15, 19, 13, 11, 16, 18, 14, 20, 22, 21, 24, 23, 17 Report No.: 14A072102R-FR FCC ID：ELVATNE Page 7 of 44 Interocean EMC Technology Corp. Test Report 1.4 Details of Tested Supporting System N/A Report No.: 14A072102R-FR FCC ID：ELVATNE Page 8 of 44 Interocean EMC Technology Corp. Test Report 1.5 Test Facility Site Description : OATS 1 RF Test Room Name of Firm : Interocean EMC Technology Corp. Company web : http://www.ietc.com.tw Location : No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. Site Filing :  Federal Communication Commissions – USA Registration No.: 96399 (OATS 1, 2, 3 & Chamber 3) Designation No.: TW1020  Industry Canada (IC) OUR FILE: 46405-4437 Registration No. (OATS 1): Site# 4437A-1 Registration No. (OATS 3): Site# 4437A-3 Registration No. (Chamber 3): Site# 4437A-5 Registration No. (OATS 5): Site# 4437A-6  Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-1094 Registration No. (Conducted Room): T-1562 Registration No. (OATS 1): R-1040; G-274 Registration No. (OATS 2): R-1041 Site Accreditation :  Bureau of Standards and Metr…

Text truncated - open the document above for the full version.

Report No.: 14A072102R-FR FCC ID：ELVATNE Page 38 of 44 Interocean EMC Technology Corp. Test Report 10 Photographs of Test 10.1 Radiated Emission Measurement Front View (Frequency below 1GHz) Rear View (Frequency below 1GHz) Report No.: 14A072102R-FR FCC ID：ELVATNE Page 39 of 44 Interocean EMC Technology Corp. Test Report Front View (Frequency above 1GHz) Rear View (Frequency above 1GHz)
