ELVATNGTransmitter

128-9297 1 of 4 1 PATENTED: www.voxxintl.com/company/patents FEATURES : 2 Programmable RF Transmitter Single Channel Receiver (capable of accepting 4 transmitters) External Receiver Antenna w/PushButton Switch & LED On-Board Start Relay On-Board Accessory Relay On-Board Ignition 1 Relay On-Board Ignition 2 Relay Ignition 2 Relay Selectable On or Off During Cranking On-Board Parking Light Relay Ignition 3 / Shock By-Pass / GM VAT Output (relay required) Tach Signal Learning Circuit Two ( + ) and Two ( - ) Safety Shutdown Circuits Alarm By-Pass Output Accessory Outputs (Pulse Before & After Start, During Crank & After Shut Down) Selectable Steady or Flashing Parking Lights for Run Indication Selectable 5, 10, 15, 20, 45, and 60 Minute Run Time Car Finder Mode Optional Door Unlock Feature For Vehicles Equipped With Power Doors (Only operational while running under control of the remote start unit.) Single Channel Remote Car Starter Model PRO9056E Owner’s Manual 128-9297 2 of 4 2 REMOTE STARTING THE VEHICLE This will not start the vehicle if any one of the following situations exists: The vehicle's hood lid is opened. The gear shift selector is not in Park. The brake pedal is depressed. The safety control switch is in the Off position. 1) To start the vehicle, press and release the transmitter button two times within 2 seconds. The vehicle will start and remain running for the pre-programmed run cycle. As a visual indication, the parking lights will flash or remain on depending on the setting by your installation center. 2) When you arrive at the vehicle, turn the ignition key to the ON position (not the spring loaded start position), then step on the brake pedal to disengage the remote starter. The vehicle will continue to run, but now on its own power. NOTE: The engine will stop running before the pre-programmed run cycle has expired if you perform any one of the following functions: -Press and the button on the keychain transmitter two times within 2 seconds -Depress the brake pedal -Open the vehicle's hood -Place the unit in the safety control disabled mode. PUSH-BUTTON LED RECEIVER VALET/OVERRIDE/SAFETY CONTROL SWITCH The Push-Button LED switch located in the receiver allows you to temporarily dis- able the remote starting function of the system. This recommended whenever the vehicle is being serviced. To place the system in the service mode: 1) With the system disarmed/unlocked, and the ignition switch off, Press and Hold the Push-Button, found on the windsheild receiver, in. 2) Turn the ignition switch on, off, on, off, on, off. 3) The LED begins to flash two short flashes followed by one long flashes and continues this pattern until returned to normal mode of operation. This puts the unit into the R/S Override mode indicating that the remote start is in the service mode and will not start from RF or any other input Posse or other- wise. To Exit R/S Override Mode 1) With the system disarmed, Press and Hold the Push-Button, found on the windsheild receiver, in. 2) Turn the ignition switch on, off, on, off, on, off. 3) The LED turns off indicating that the R/S unit is fully functional once again. 128-9297 3 of 4 3 UNLOCKING THE VEHICLE: If you have electric door lock, and the Optional Unlock feature was added, with the vehicle running under command of the remote start unit, press and hold the transmitter button for 3 seconds until the doors unlock. CAR FINDER MODE: Anytime the vehicle is not running under control of the remote start unit, within operating range of the vehicle, press and hold the push-button of the hand held transmitter for 4 seconds to activate the car finder mode. The vehicle lights will flash for 30 seconds or until the push-button is again pressed and released. TELEMATIC UPGRADE: This system has the ability to have a telematic upgrade module connected to it. This is an upgrade that can give you control of certain functions of your vehicle from a Telephone, or in some cases a computer interface. Please check with your installation center for most recent Telematic Upgrades. If you had a Telem- atic Upgrade installed, the manual supplied with the upgrade unit will provide an operator's manual advising of the features of the system and means available to control these features of your vehicle. PROGRAMMING NEW OR REPLACEMENT TRANSMITTERS (BANK 1) Transmitter Model Name, 141BPR Is Also Found On Back Of Transmitter Case. Use Battery CR2032 1) Turn the ignition key to the on position. 2) Press and release the valet/programming switch 3 times (Siren Chirps). 3) Press the Button of each transmitter you want programmed until you hear a chirp from the horn or siren. 4) Turn the ignition switch off. The above action programs the Start button for the one button start systems. Note: Some systems will not have a audible sound associated with program- ming,,,for these systems the lights will flash. 128-9297 4 of 4 4 To purchase replacement transmitters or to get additional product information go to: www.pursuitcarsecurity.com © 2014 Voxx Electronics Corp., 150 Marcus Blvd., Hauppauge, NY 11788 128-9297 FCC COMPLIANCE This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including any interference that may cause undesired operation. Warning! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment Transmitter Battery Replacement 1) Locate and remove the "00" point philips head screw on the back of the transmitter case. 2) Carefully separate the front case from the rear. 3) Slide the CR2032 battery out …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012

Report No.：14A071502R-FR FCC ID： ELVATNG Page 24 of 28 Interocean EMC Technology Corp. Test Report 7 Photographs of EUT Front View of EUT Rear View of EUT Report No.：14A071502R-FR FCC ID： ELVATNG Page 25 of 28 Interocean EMC Technology Corp. Test Report FCC ID

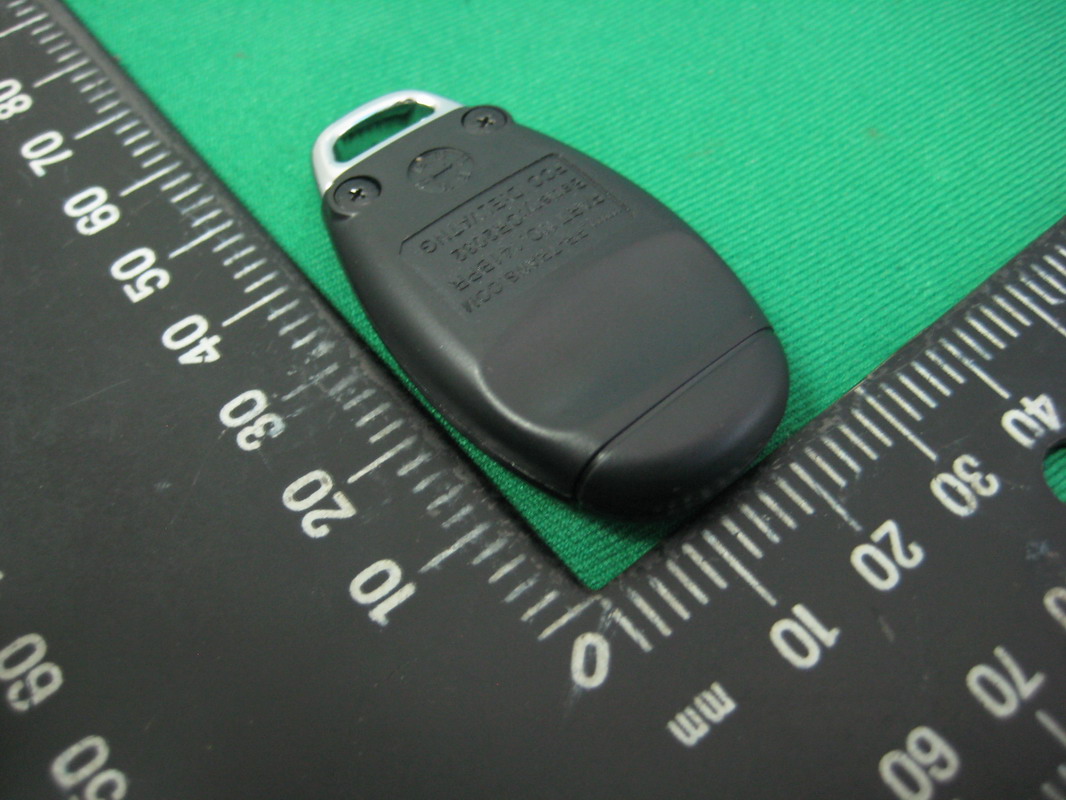

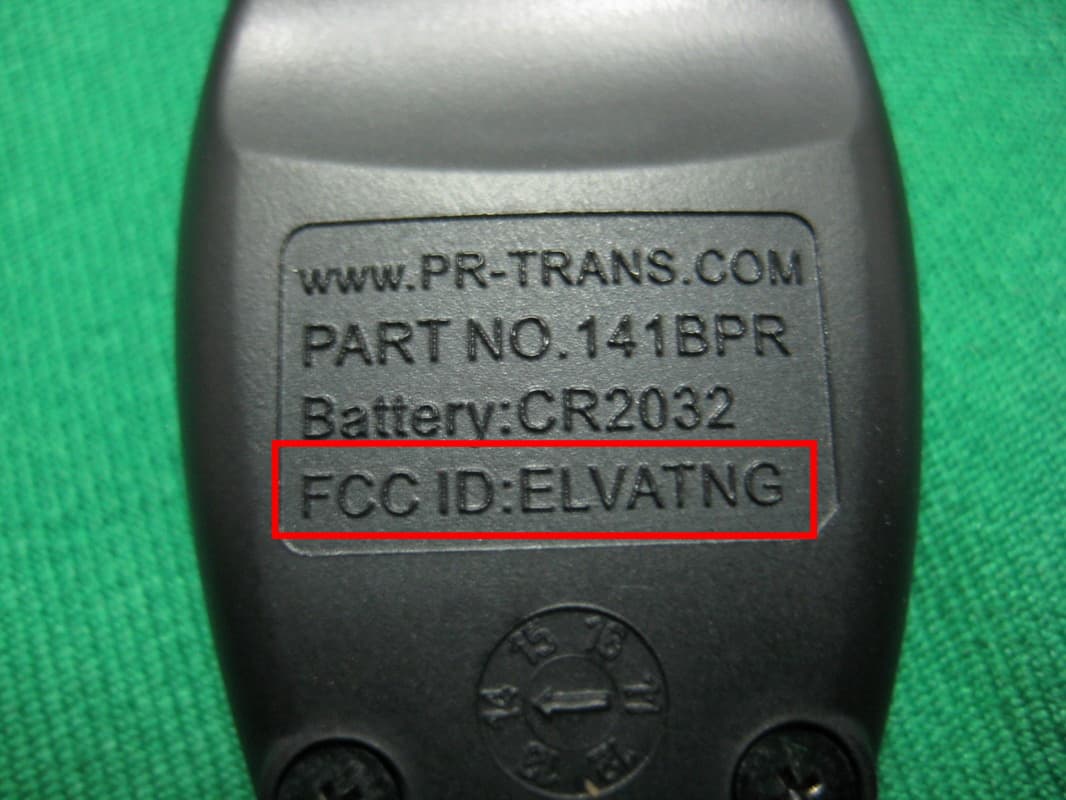

BODY MATERIAL : ABS+PC MT-11010 0.2 C ± A ± ± B Eric YYSVictor FCC ID:ELVATNGPART NO.141BPR www.PR-TRANS.COM Battery:CR2032 FCC ID:ELVATND

Report No.：14A071502R-FR FCC ID： ELVATNG Page 26 of 28 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.：14A071502R-FR FCC ID： ELVATNG Page 27 of 28 Interocean EMC Technology Corp. Test Report Front View of Main Board Rear View of Main Board Report No.：14A071502R-FR FCC ID： ELVATNG Page 28 of 28 Interocean EMC Technology Corp. Test Report Front View of Battery Rear View of Battery

Report No.：14A071502R-FR FCC ID： ELVATNG Page 1 of 28 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.231 TEST REPORT Product： Transmitter Trade Name： N/A Model Number： 141BPR FCC ID： ELVATNG Prepared for Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan TEL.： +886 2 2918 9478 FAX.： +886 2 2917 9069 Prepared by Interocean EMC Technology Corp. No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark: The test report consists of 28 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test result in the report is only subjected to the test sample. Report No.：14A071502R-FR FCC ID： ELVATNG Page 2 of 28 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: Nutek Corporation Manufacturer: Nutek Corporation Product: Transmitter Model No.: 141BPR Tested Power Supply: 3Vdc Battery Date of Final Test: Jul. 16, 2014 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart C 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of IETC. Report Issued: 2014/07/22 Project Engineer: Approved: Elli Chang Jerry Liu Report No.：14A071502R-FR FCC ID： ELVATNG Page 3 of 28 Interocean EMC Technology Corp. Test Report Table of Contents 1 Summary of Measurement 4 2 General Information 5 2.1 Description of Equipment Under Test 5 2.2 Details of Tested Peripheral Equipment 6 2.3 Test Facility 7 3 Test Specifications 8 3.1 Test Standard 8 3.2 Operation Mode 8 3.3 Test Step of EUT 8 3.4 Test Equipment 9 4 Radiated Emission Test 10 4.1 Limits 10 4.2 Calculation of Average Factor 11 4.3 Configuration of Measurement 16 4.4 Test Procedure 16 4.5 Test Result 16 5 Emission Bandwidth 20 5.1 Limits 20 5.2 Test Result 20 6 Photographs of Test 22 6.1 Radiated Emission Measurement 22 7 Photographs of EUT 24 Report No.：14A071502R-FR FCC ID： ELVATNG Page 4 of 28 Interocean EMC Technology Corp. Test Report 1 Summary of Measurement Report Clause Test Parameter Reference Document CFR47 Part15 Results 4 Timing requirement §15.231(a) Pass 4 Radiated Emission §15.231(b), 15.209 Pass 5 Emission Bandwidth §15.231(c) Pass Report No.：14A071502R-FR FCC ID： ELVATNG Page 5 of 28 Interocean EMC Technology Corp. Test Report 2 General Information 2.1 Description of Equipment Under Test Product : Transmitter Model Number : 141BPR Applicant : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Manufacturer : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Xindian District, New Taipei City 23145, Taiwan Power Supply : 3Vdc Battery Operating Frequency : 433.92MHz Type of Modulation : ASK Antenna Description : This device uses PCB Printed antenna. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Test : Jun. 20 ~ Jul. 16, 2014 Additional Description : 1) The Model Number “141BPR” is representative selected in the test and included in this report. 2) For more detail specification about EUT, please refer to the user’s manual. Report No.：14A071502R-FR FCC ID： ELVATNG Page 6 of 28 Interocean EMC Technology Corp. Test Report 2.2 Details of Tested Peripheral Equipment N/A Report No.：14A071502R-FR FCC ID： ELVATNG Page 7 of 28 Interocean EMC Technology Corp. Test Report 2.3 Test Facility Site Description : OATS 1 Name of Firm : Interocean EMC Technology Corp. Company web : http://www.ietc.com.tw Location : No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. Site Filing : Federal Communication Commissions – USA Registration No.: 96399 (OATS 1, 2, 3 & Chamber 3) Designation No.: TW1020 Industry Canada (IC) OUR FILE: 46405-4437 Registration No. (OATS 1): Site# 4437A-1 Registration No. (OATS 3): Site# 4437A-3 Registration No. (Chamber 3): Site# 4437A-5 Registration No. (OATS 5): Site# 4437A-6 Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-1094 Registration No. (Conducted Room): T-1562 Registration No. (OATS 1): R-1040; G-274 Registration No. (OATS 2): R-1041 Site Accreditation : Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR 22 SL2-IN-E-0026 for CNS14757-2 / IEC 62040-2 SL2-R1-E-0026 for CNS13439 / CISPR 13 SL2-R2-E-0026 for CNS13439 / CISPR 13 SL2-A1-E-0026 for CNS13783-1 / CISPR 14-1 SL2-L1-E-0026 for CNS 14115 / CISPR 15 Taiwan Accreditation Foundation (TAF) Accreditation No.: 1113 Vehicle Safety Certification Center (VSCC) Approval No.: TW16-11-0 TüV NORD Certificate No: TNTW0801R-04 Nemko Authorisation No: AeLA 011 Authorisation No: ELA 181 Report No.：14A071502R-FR FCC ID： ELVATNG Page 8 of 28 Interocean EMC Technology Corp. Test Report 3 Test Specifications 3.1 Test Standard The EUT was performed according to FCC Part 15 Subpart C Section 15.231 procedure and setup followed by ANSI C63.4, 2003 requirements. 3.2 Operation Mode By preliminary testing and verifying three axis (X, Y and Z) position of EUT transmitted status, it was found that “X axis” position was the worst, then the final test was executed the worst condition and test data were recorded in this report The EUT was operated in continuous transmission mode during all of the tests. X axis mode Y axis mode Z axis mode 3.3 Test Step of EUT 3.3.1 Setup the fixture to EUT for power supplying. 3.3.2 Turn on the power of all equipment. 3.3.3 Let the EUT continuous transmission. Executed the test. Report No.：14A071502R-FR FCC ID： ELVATNG Page 9 of 28 Interocean EMC Technology Corp. Test Report 3.4 Test Equipment Instrument Manufacturer Model S…

Text truncated - open the document above for the full version.

Report No.：14A071502R-FR FCC ID： ELVATNG Page 22 of 28 Interocean EMC Technology Corp. Test Report 6 Photographs of Test 6.1 Radiated Emission Measurement Front View (Frequency below 1GHz) Rear View (Frequency below 1GHz) Report No.：14A071502R-FR FCC ID： ELVATNG Page 23 of 28 Interocean EMC Technology Corp. Test Report Front View (Frequency above 1GHz) Rear View (Frequency above 1GHz)
